Rösler / Belmeko / Van Herwijnen State of the art industrial paintshop

Información adicional

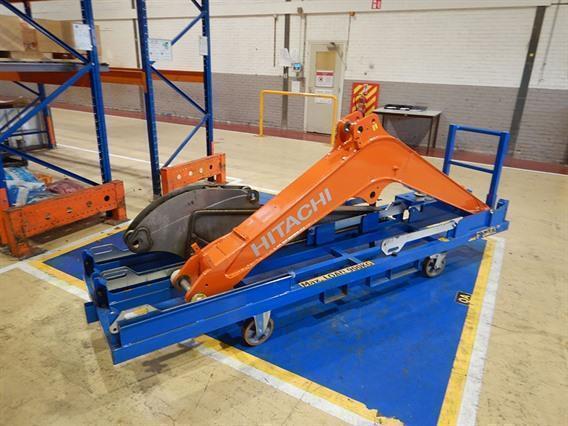

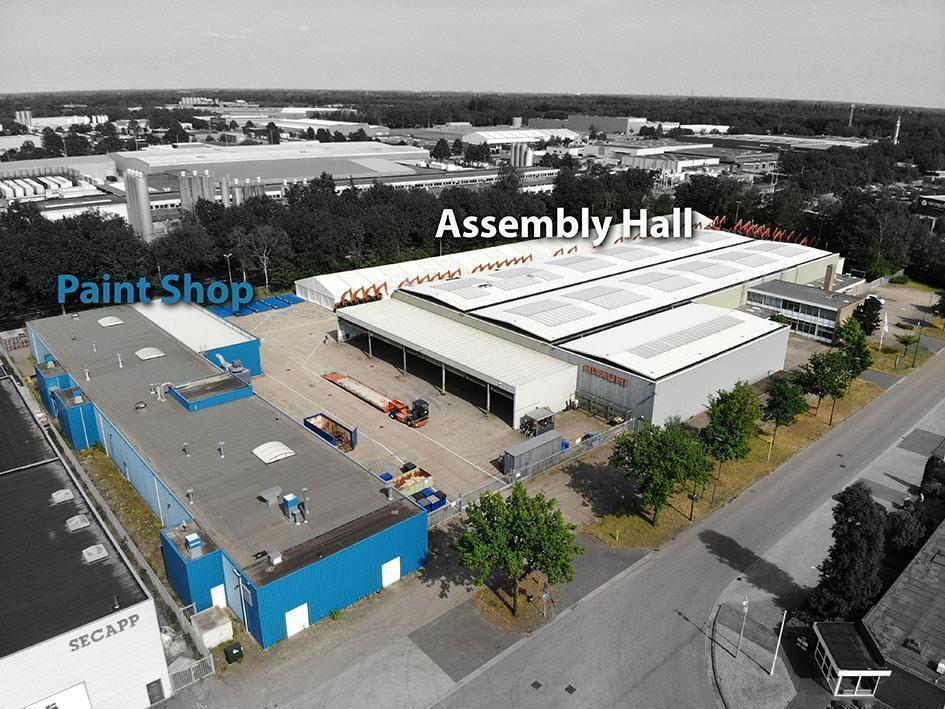

  • Private sale of the paintshop (2015-2018) of Hitachi Construction Machinery in Oosterhout due to relocation of the construction department. The total new value of the entire paint shop installation incl. was 7,5 million euro. In addition to the offered installation, the property may also be available for acquisition or rental. This is on a plot of 2102m2, the blue building which houses the paint shop is 1300m2. The white building, the assembly hall, stands on a plot of 19 000m2.

    Consits of:

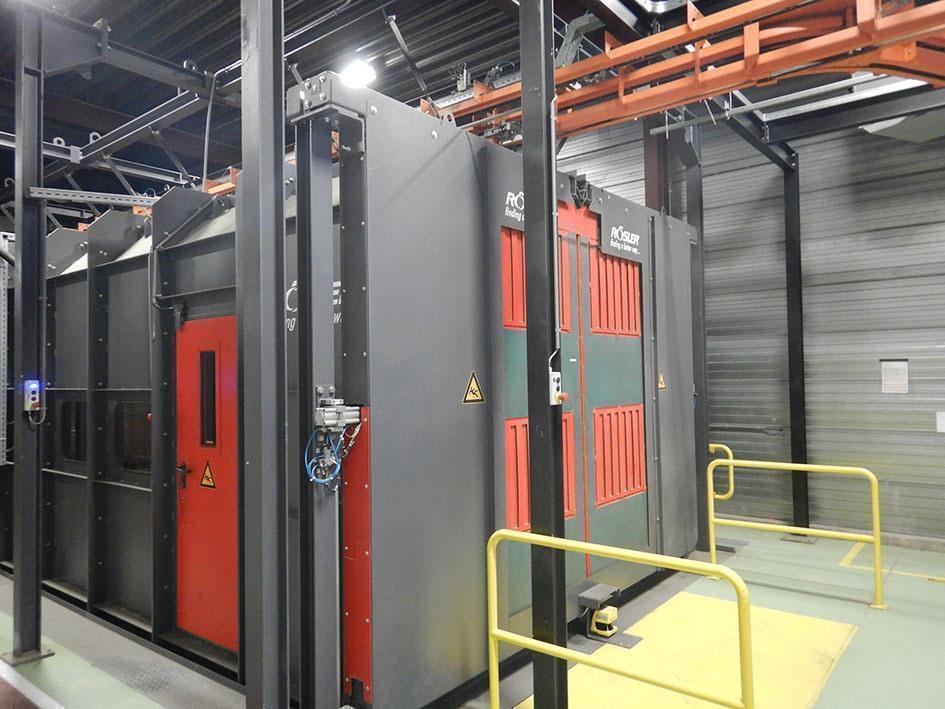

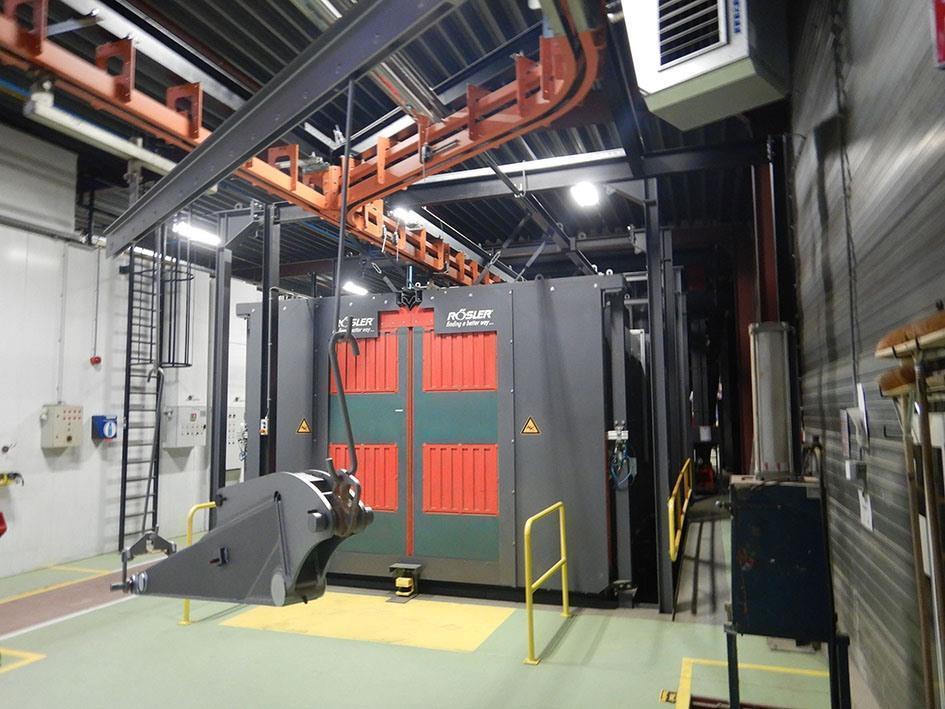

    1 >> Rösler shotblasting unit RHBE RHBD 17/22
    - 8 turbines of 11 kW each
    - max dimensions of workpiece: 4000 x 1100 x 1750 mm

    2 >> Degreasing / phosphate unit
    - max dimensions of workpiece: 4000 x 800 x 1500 mm

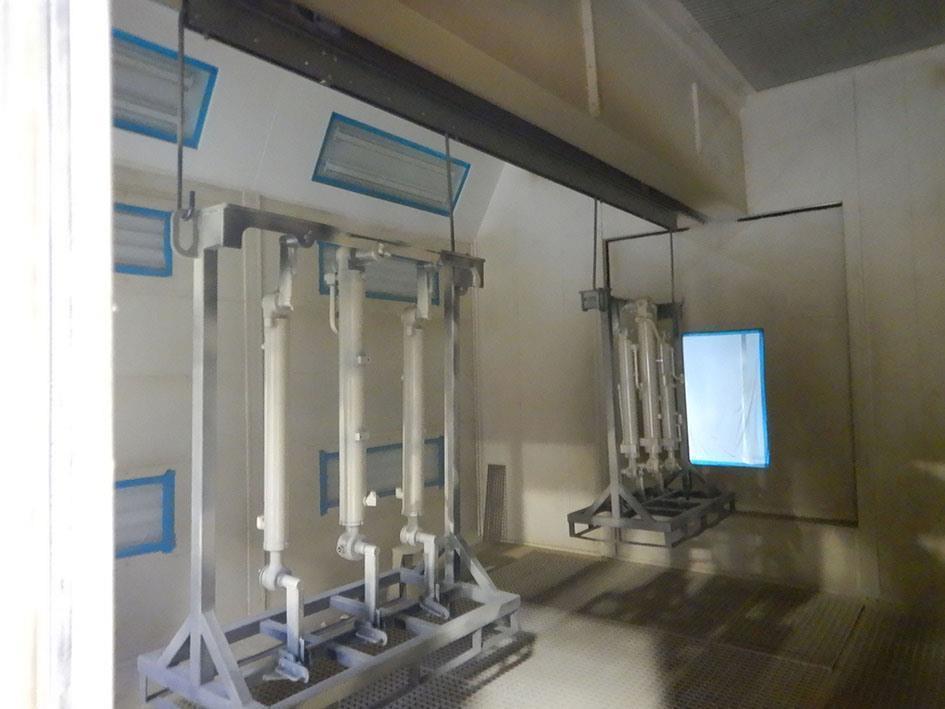

    3 >> Belmeko spray booths
    - primer spray booths
    - flash off booths
    - drying booth
    - lacquer spray booth
    - flash off lacquer booth
    - drying booth

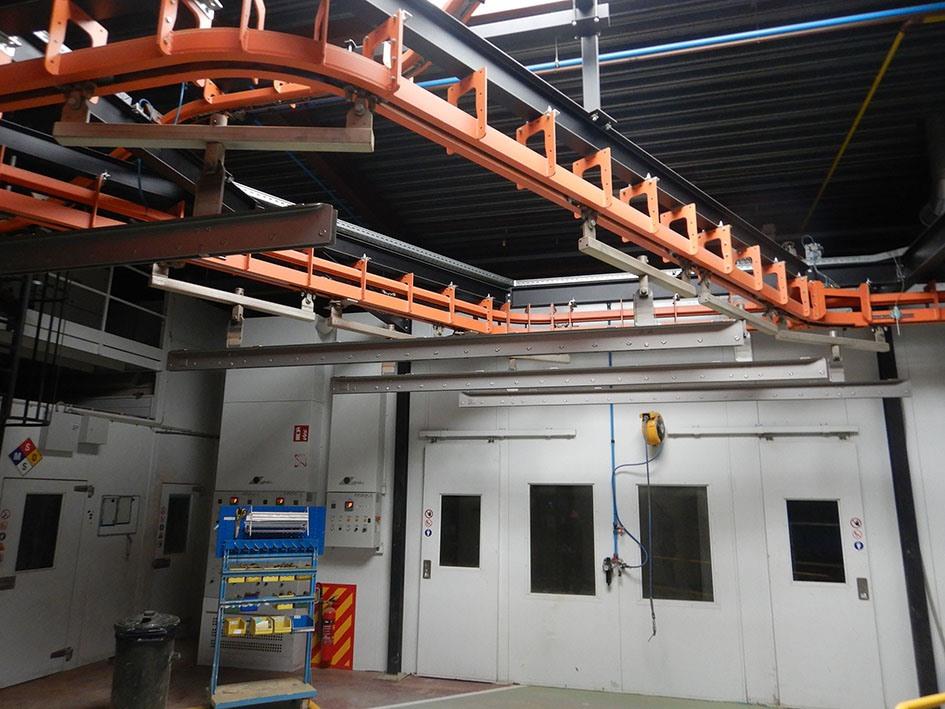

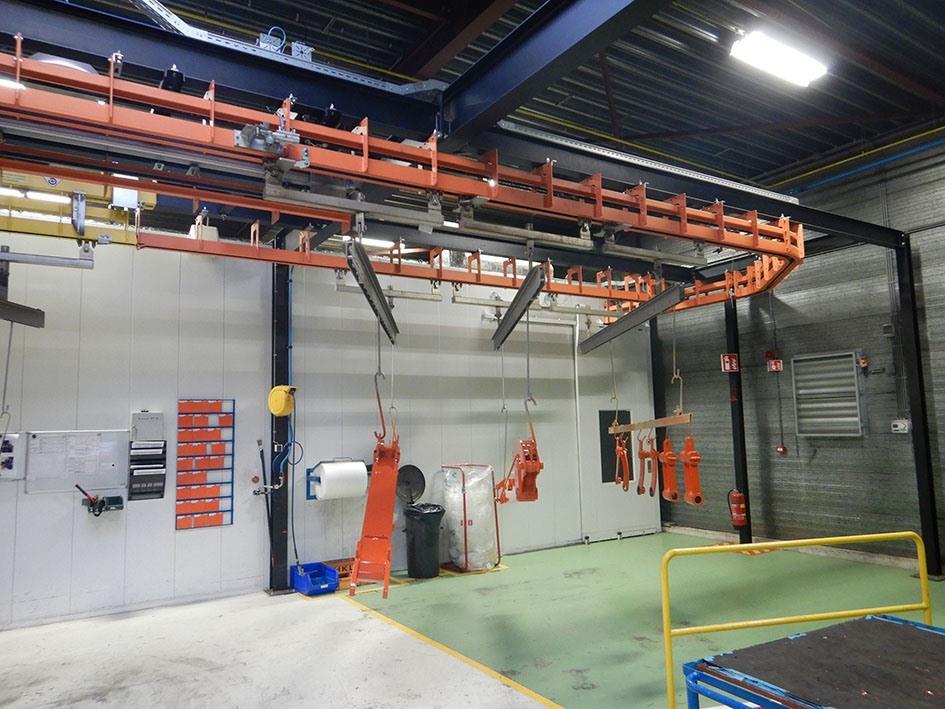

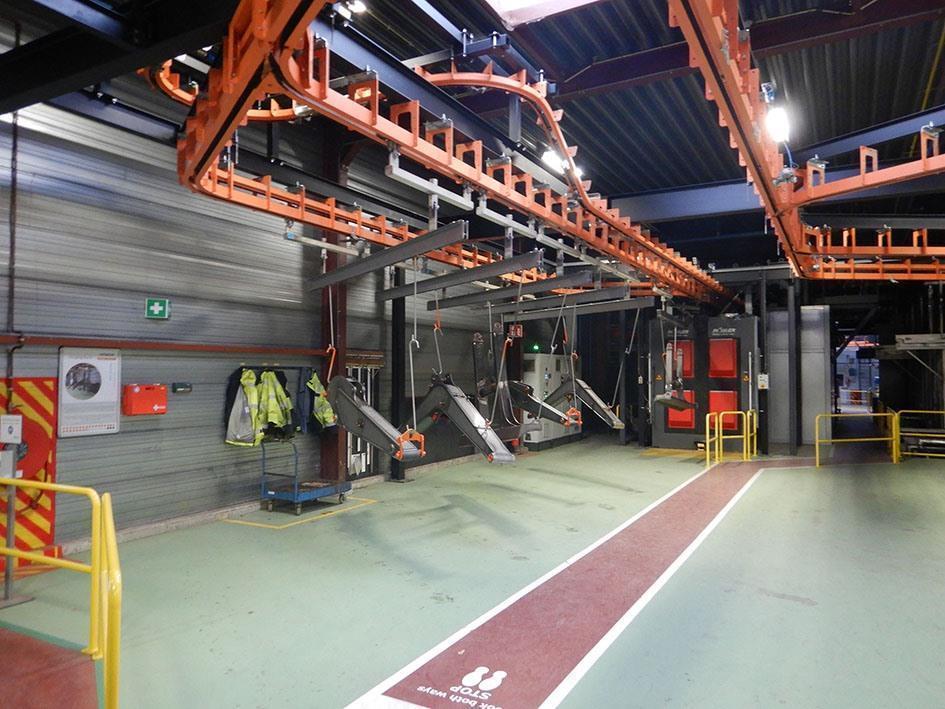

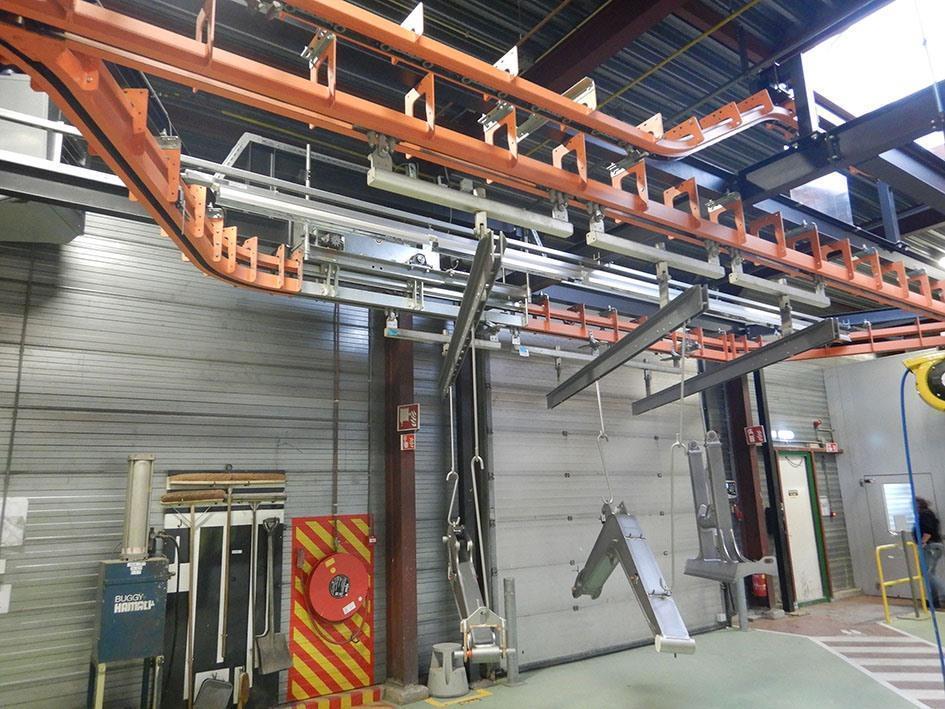

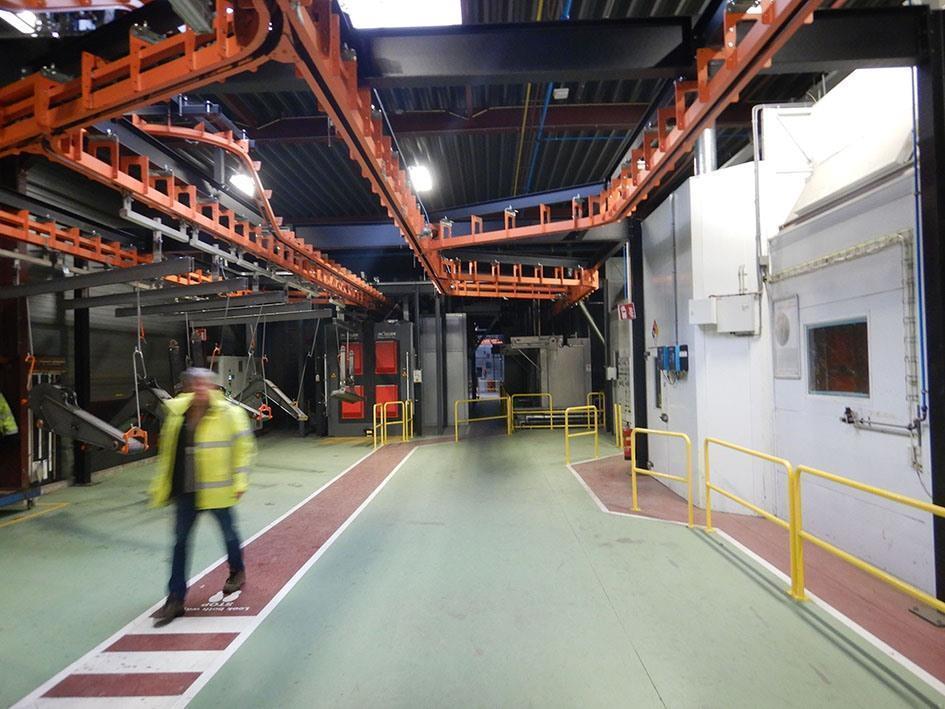

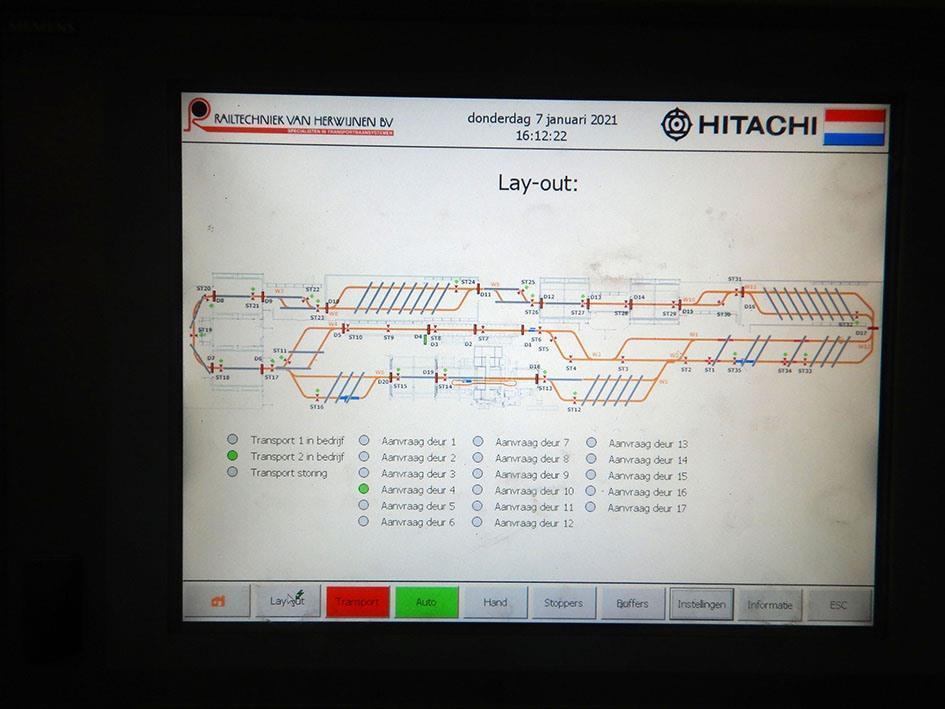

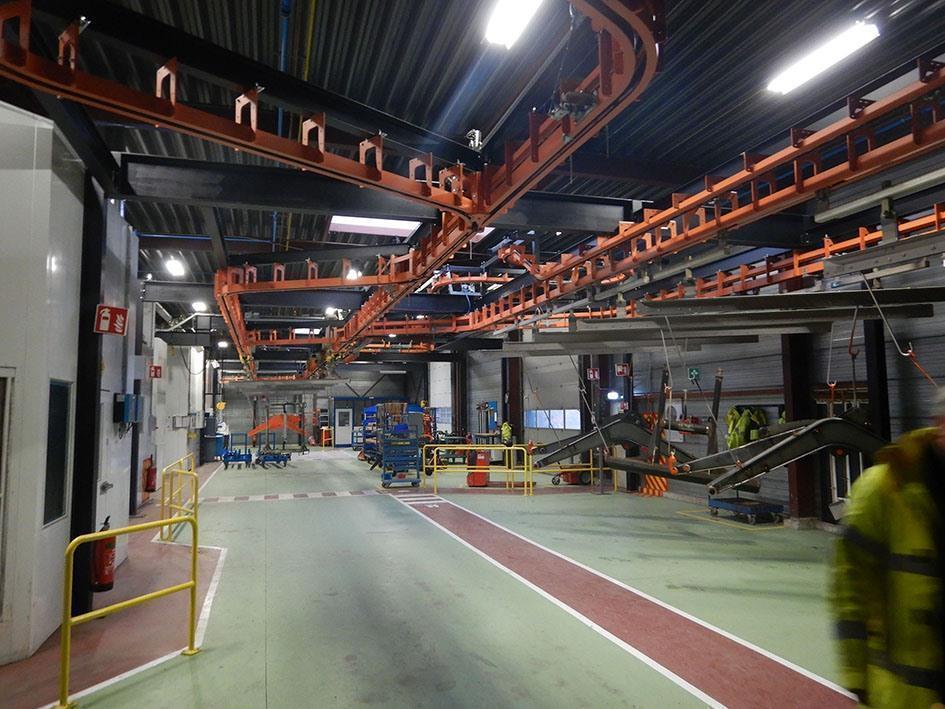

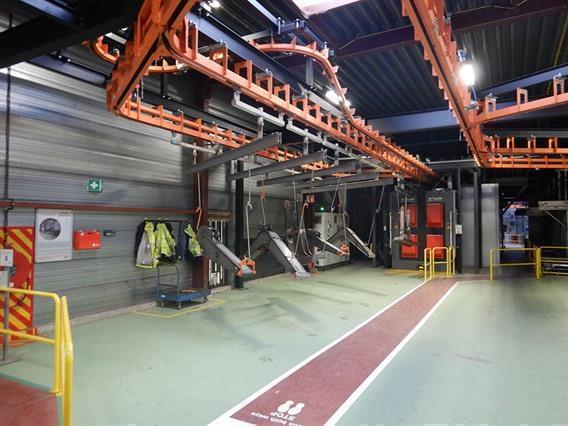

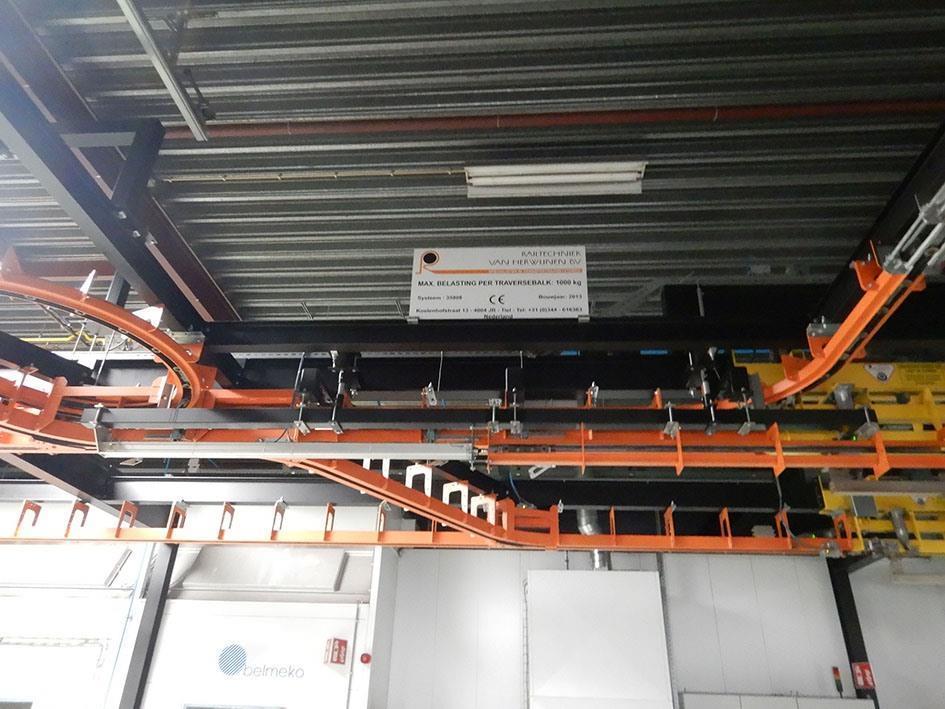

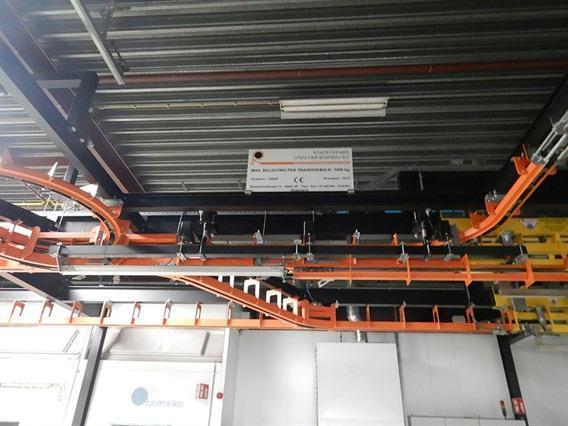

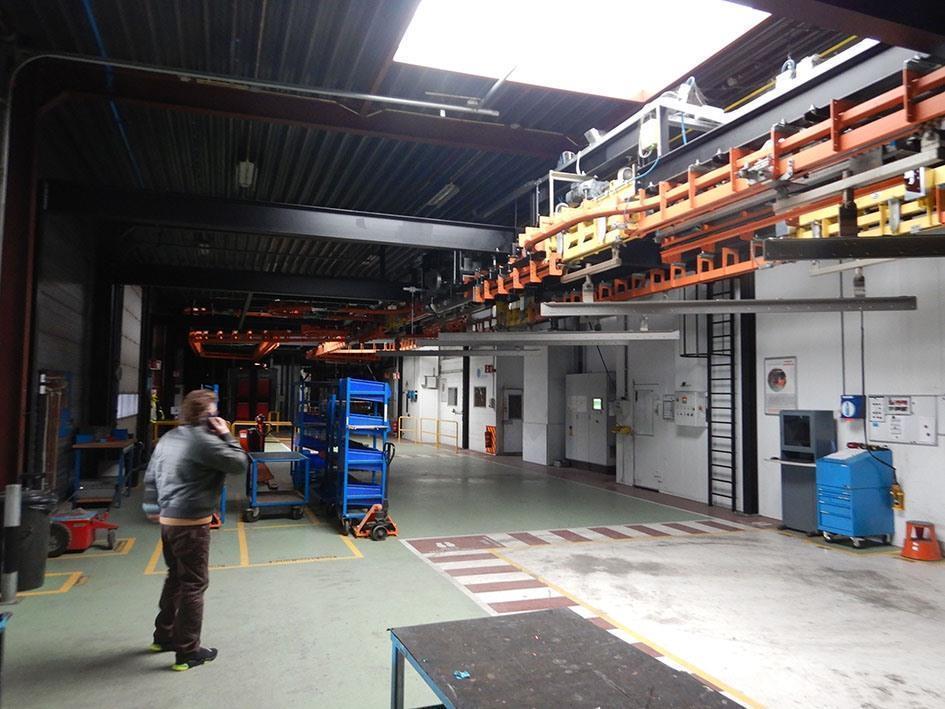

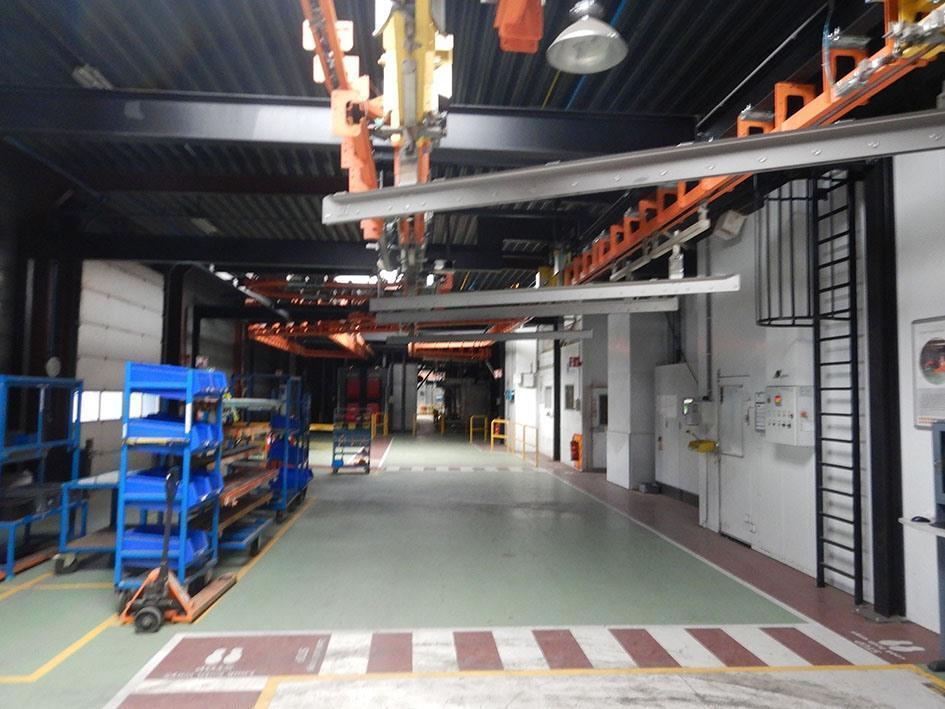

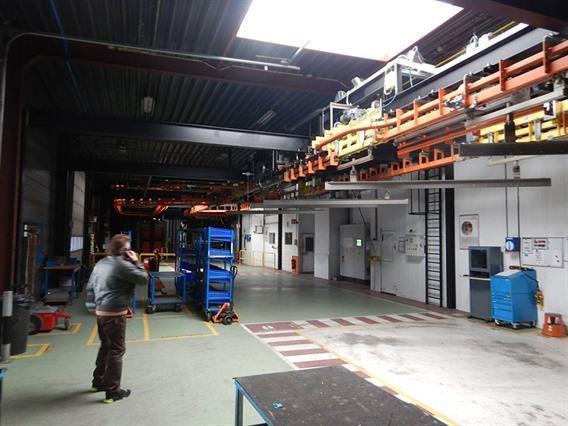

    4 >> Railtechniek Van Herwijnen railsystem
    - Type T4 tele flex power & free
    - max rail loading capacity 1000 kg; load-bearing capacity to 2000 kg

    5 >> Gas burner 300 kW open burner system

    6 >> Siemens S7 PLC-control

    7 >> Donaldson filter 20 000 m3

    8 >> Boge SLF 40 compressor







  • Tipo/Modelo: State of the art industrial paintshop
  • Numéro stock: Y.06 12571
  • Categoría principal: [Y] Tratamiento superficial, plantas y equipos de acabado, hornos y máquinas de granallado
  • Subcategoría: [Y.06] Instalación de recubrimiento en polvo
  • Marca: Rösler / Belmeko / Van Herwijnen

Numéro stock: Y.06 12571
