Finn Power Laser Center LC6
Specyfikacja
- Workpiece dimensions (max)3000 x 1500 x 8 mm
- Type of LaserRofin
- Power2500 Watt
- Type of command CNCSiemens Sinumerik 840D
- Motor Power27 kW
- Weight29 ton
Dodatkowe informacje
- Automated laser cutting with integrated sorting and packing. LC6 integrates laser operation and part handling for fabricating high-quality components. Fast, accurate sheet positioning and the integrated Rofin Sinar 2,500 Watt diffusion cooled CO SLAB.

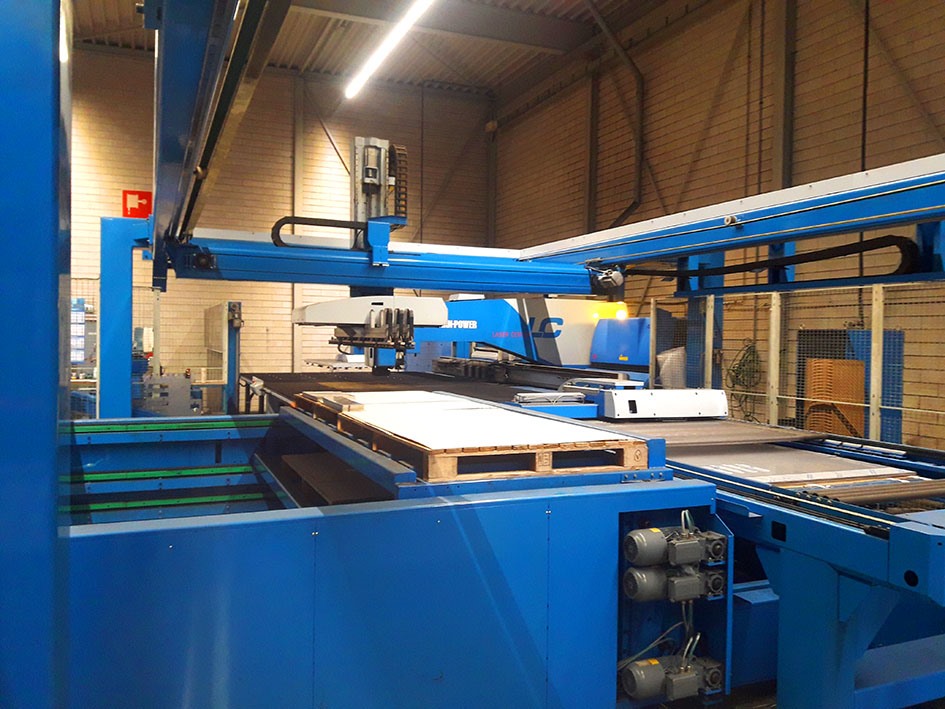

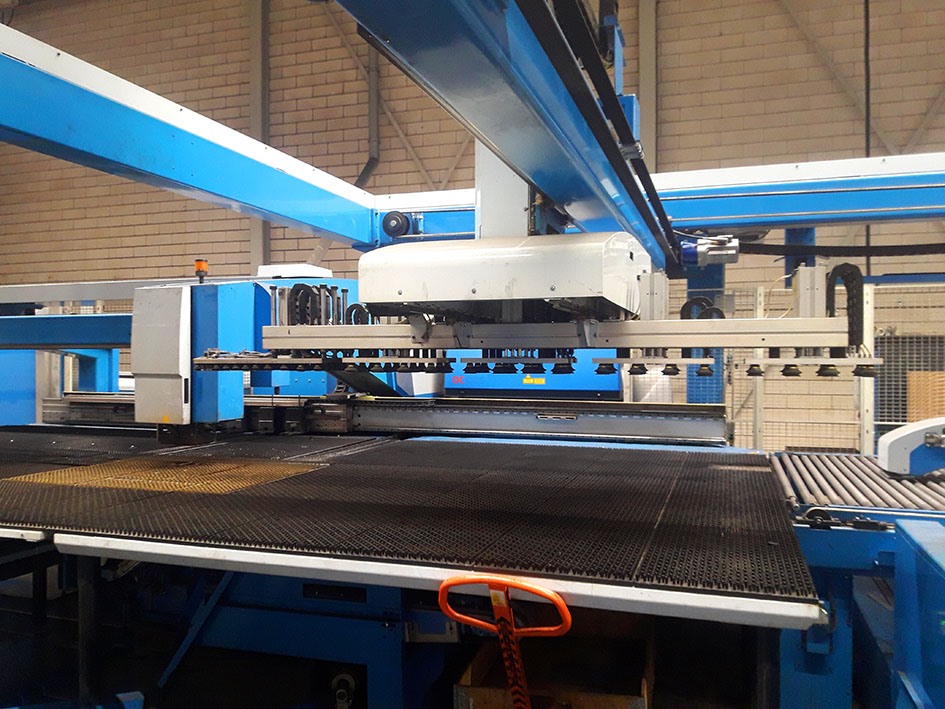

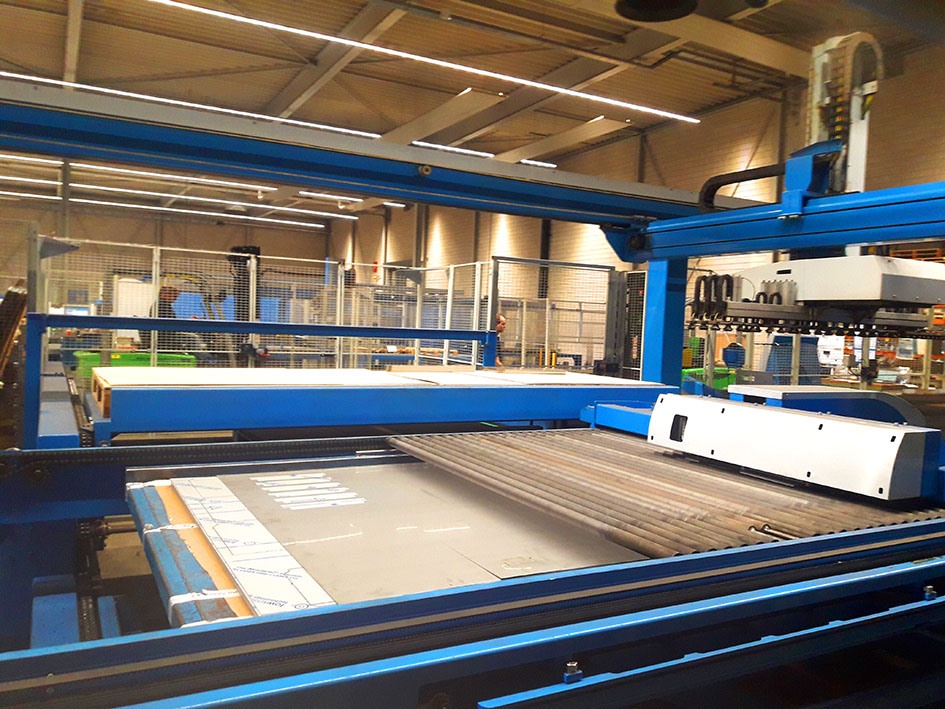

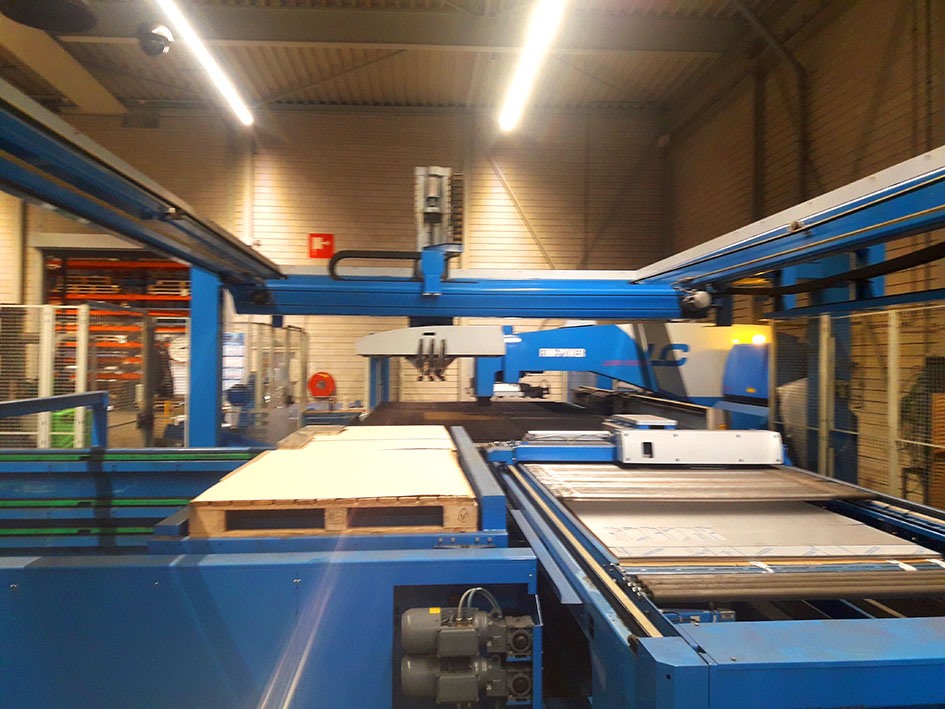

5 axis gantry robot for material loading,
part sorting and stacking

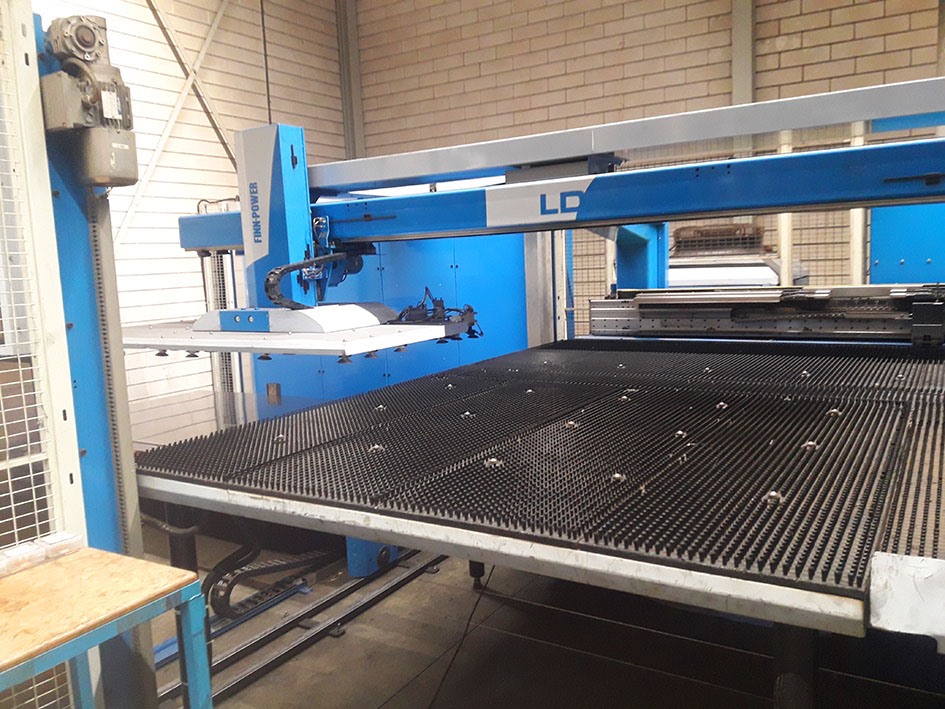

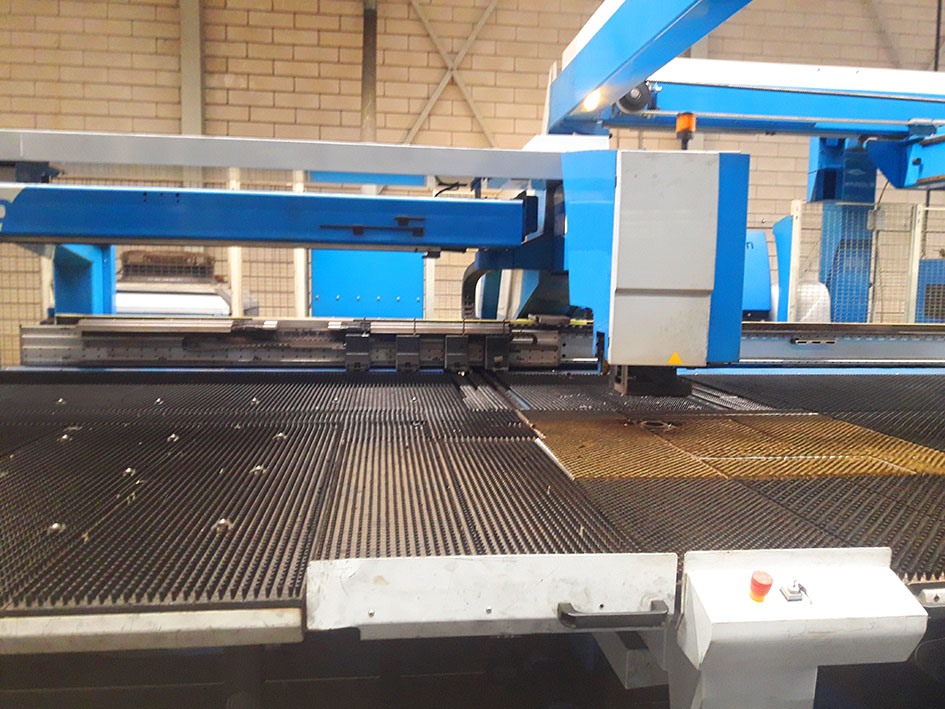

brush tables for smoother sheet transfer
programmable clamp setting for virtually
no dead zone
3 metre X axis with rack and pinion and
1.5 meter Y axis with double ball screw for
sheets up to 8 mm / 200 kg
2.5 kW SLAB laser
high beam quality
low maintenance requirements
autofocus cutting head
2 trap doors 300 mm x 400 mm and
800 mm x 800 mm
9 address small part sorting device
automatic laser scrap sorting

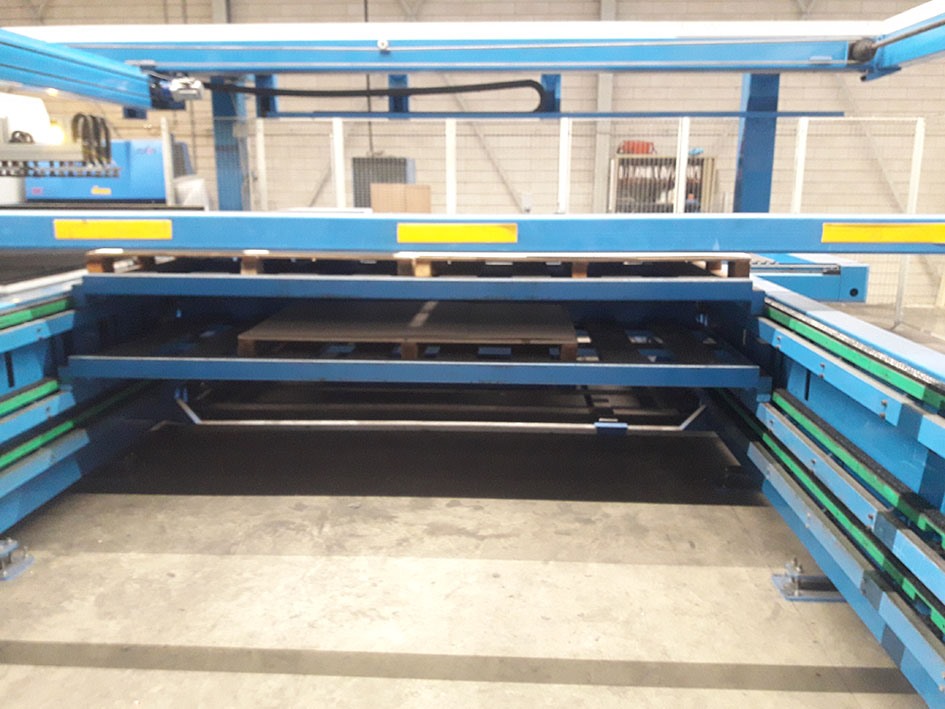

skeleton unloading

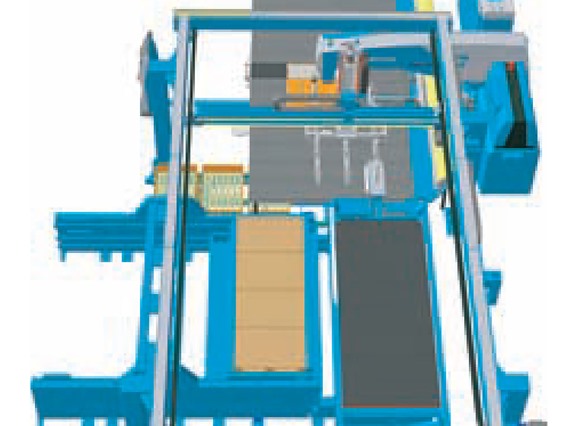

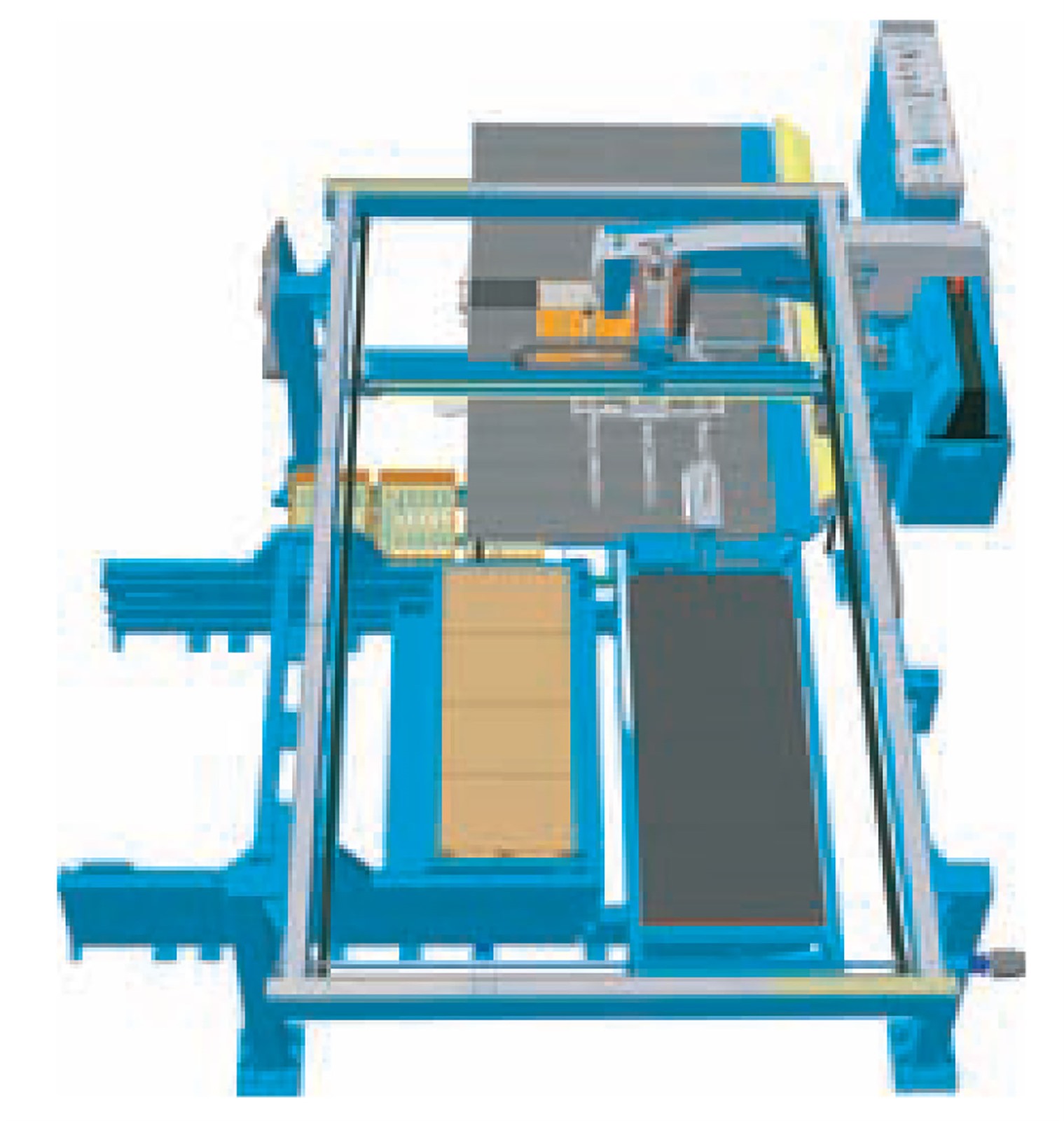

highly compact system layout with complete access from front side
- Typ/Model: Laser Center LC6
- Stocknumber: O.12 10971
- Kategoria główna: [O] Giętarki, Prostownice, Wycinarki, Maszyny do cięcia laserowego, Maszyny do cięcia gazowego i Linie walcujące
- Sub kategorii: [O.12] Maszyny do cięcia laserowego
- Marka: Finn Power
