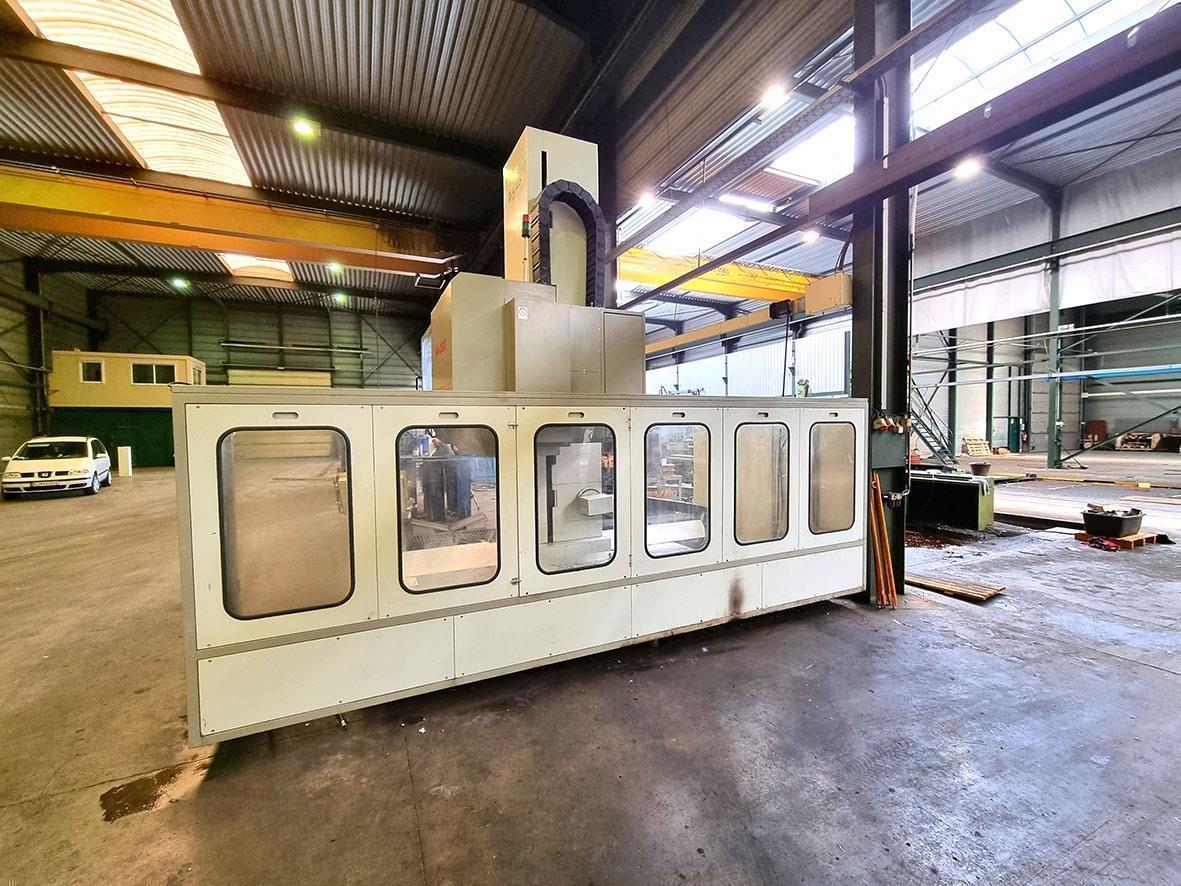

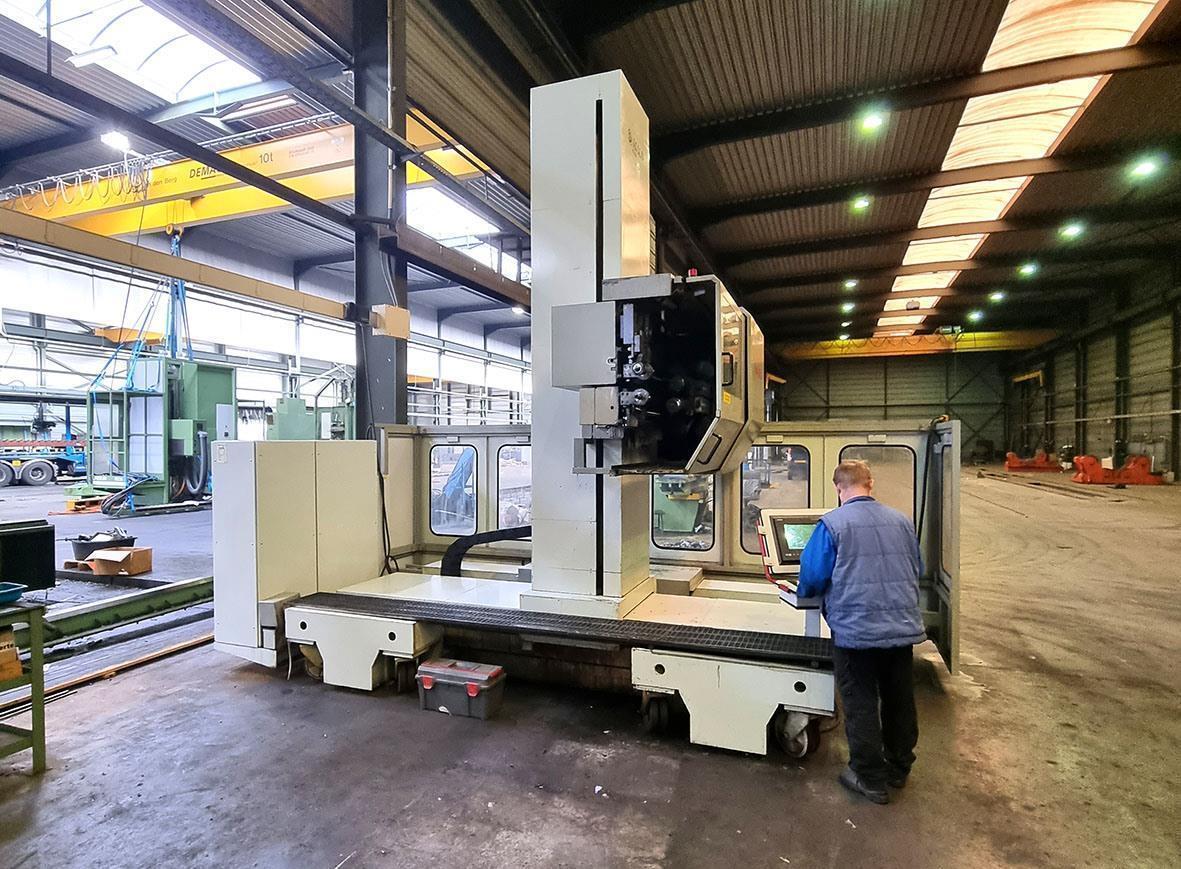

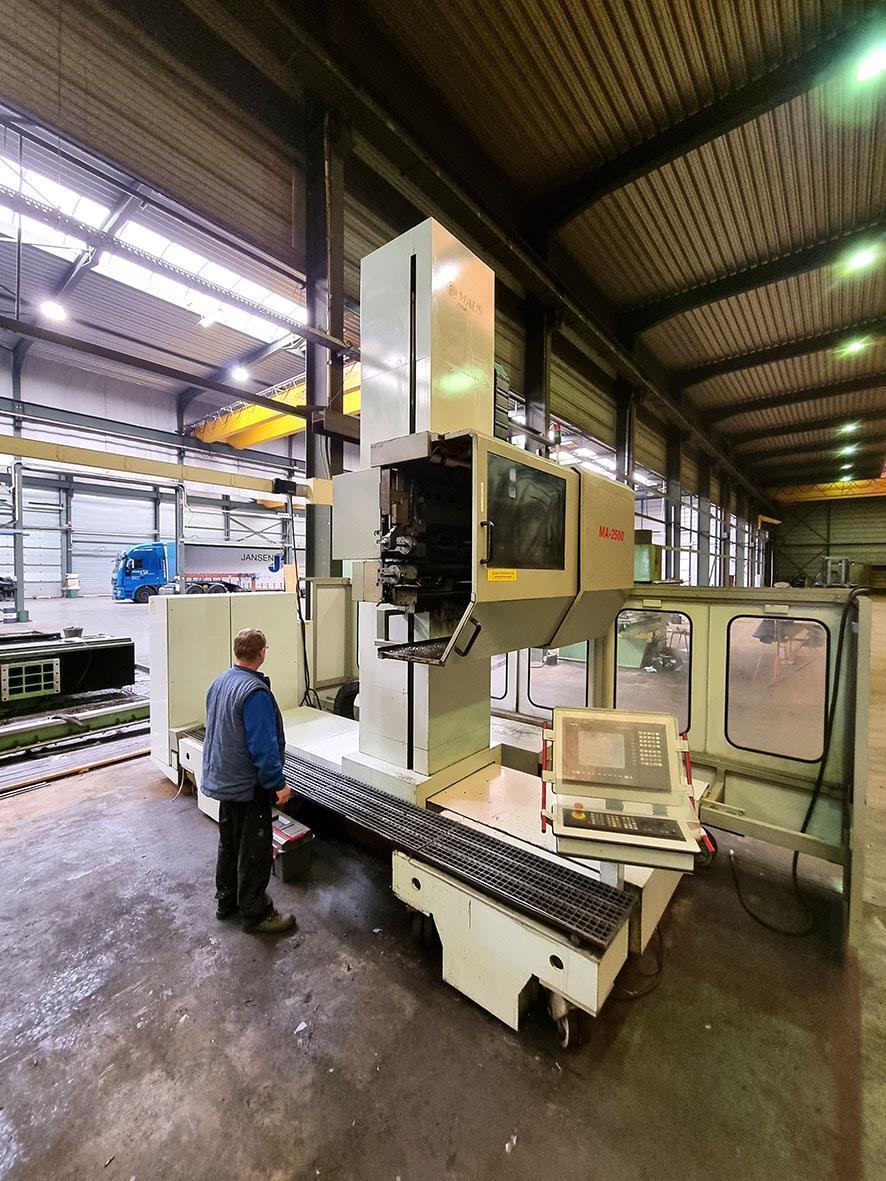

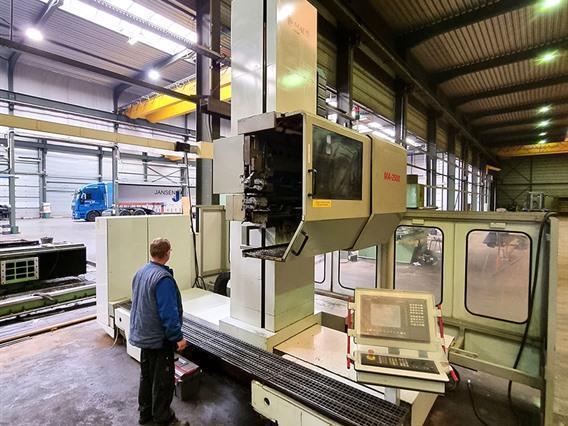

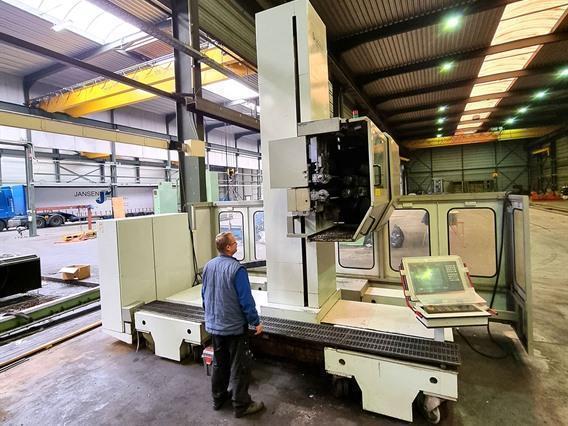

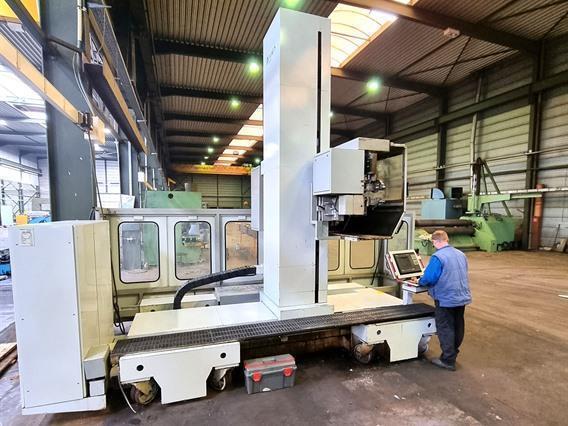

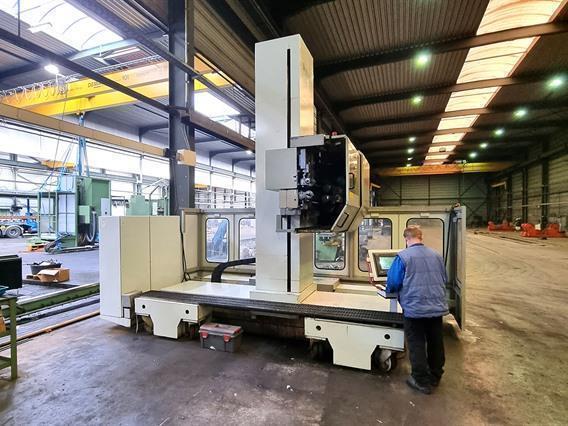

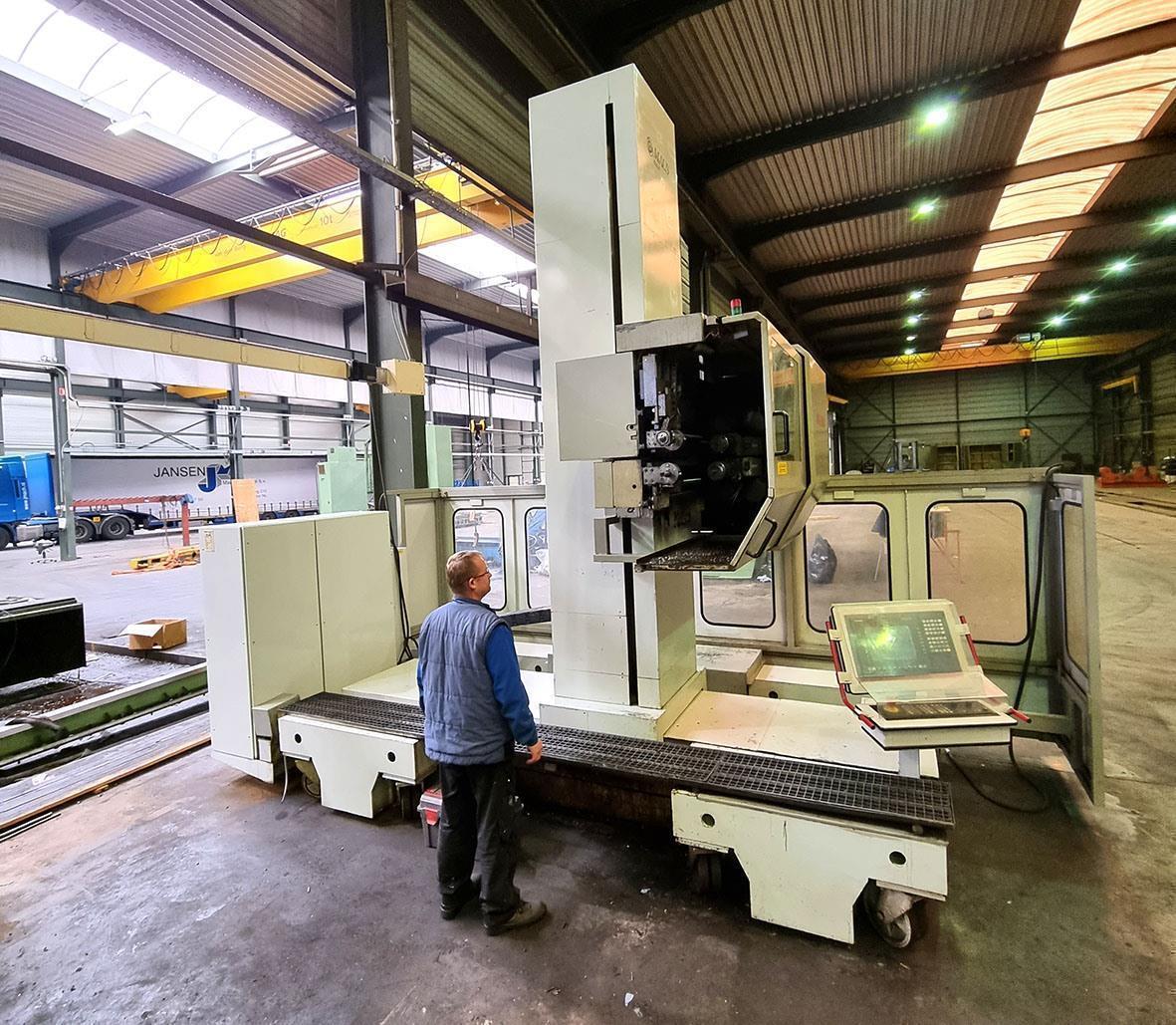

Plattenbohrwerke Maus Italia X: 2500 - Y: 2500 - Z: 800 mm CNC
Technische Informationen
- Vorschub im längsrichtung X-achse2500 mm
- Vorschub im querrichtung Y-achse (Tische/Kolonne)800 mm
- Verzetsung im höhe Z-achse2500 mm

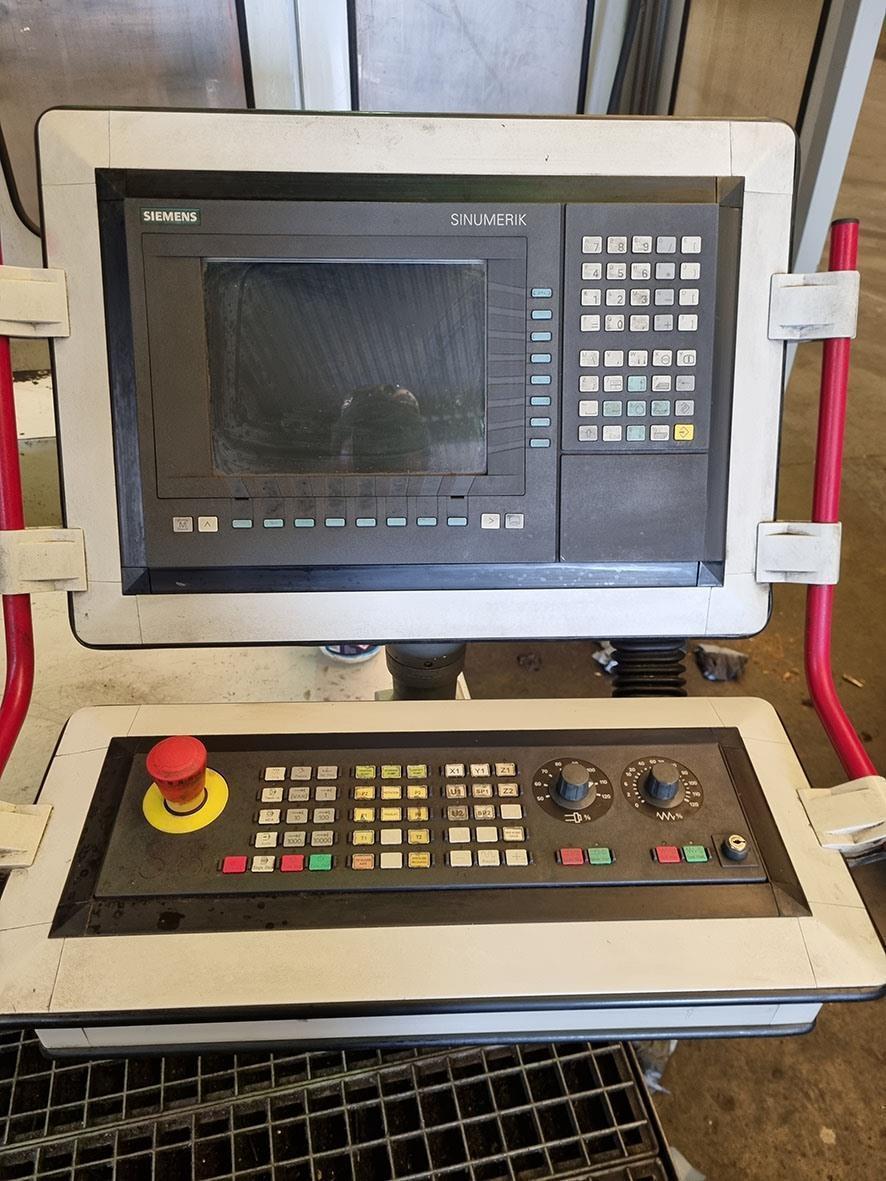

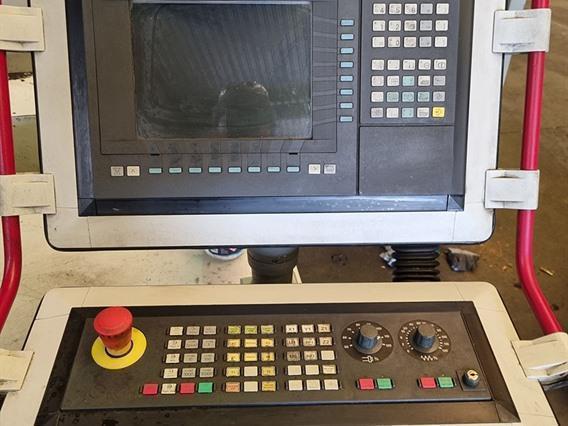

- Digitale ablesung (1) CNC (2)Siemens Sinumerik
- Gewicht9 ton
Zusätzliche Informationen

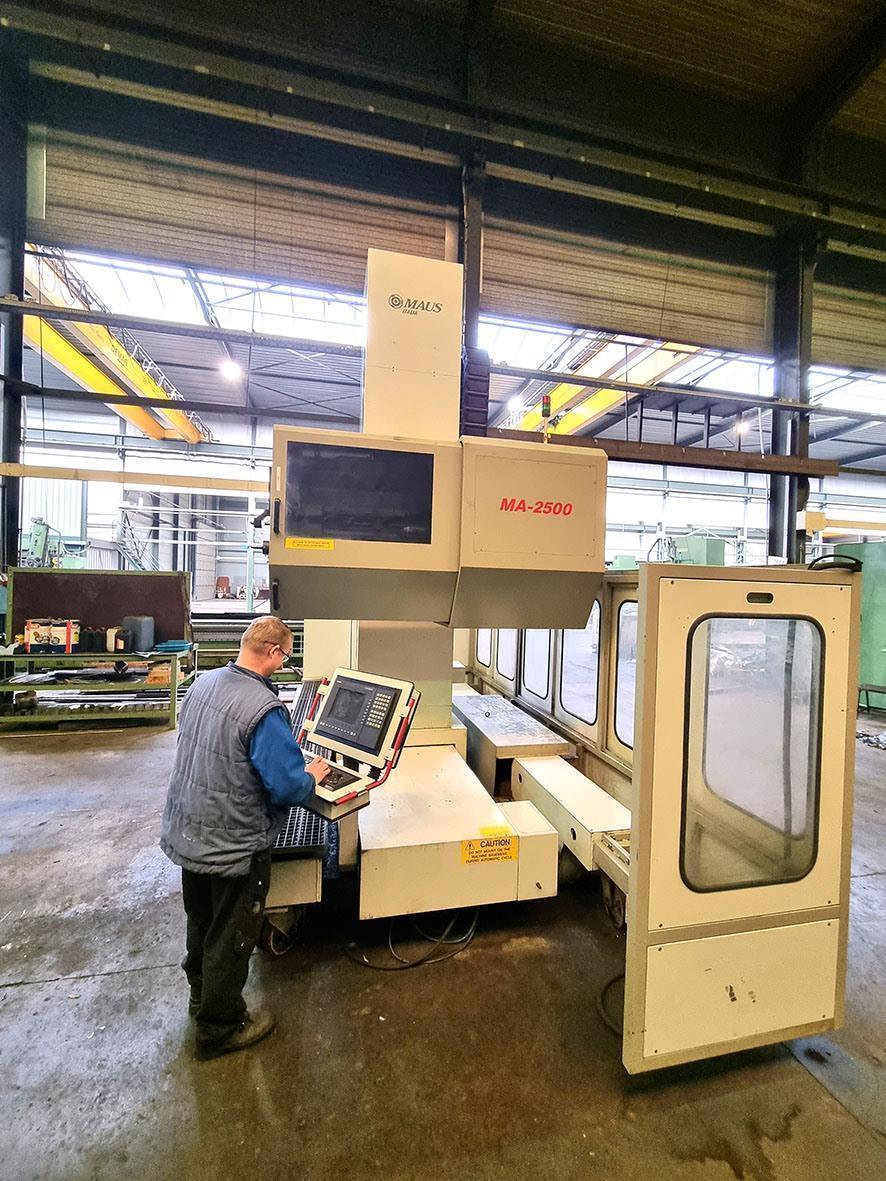

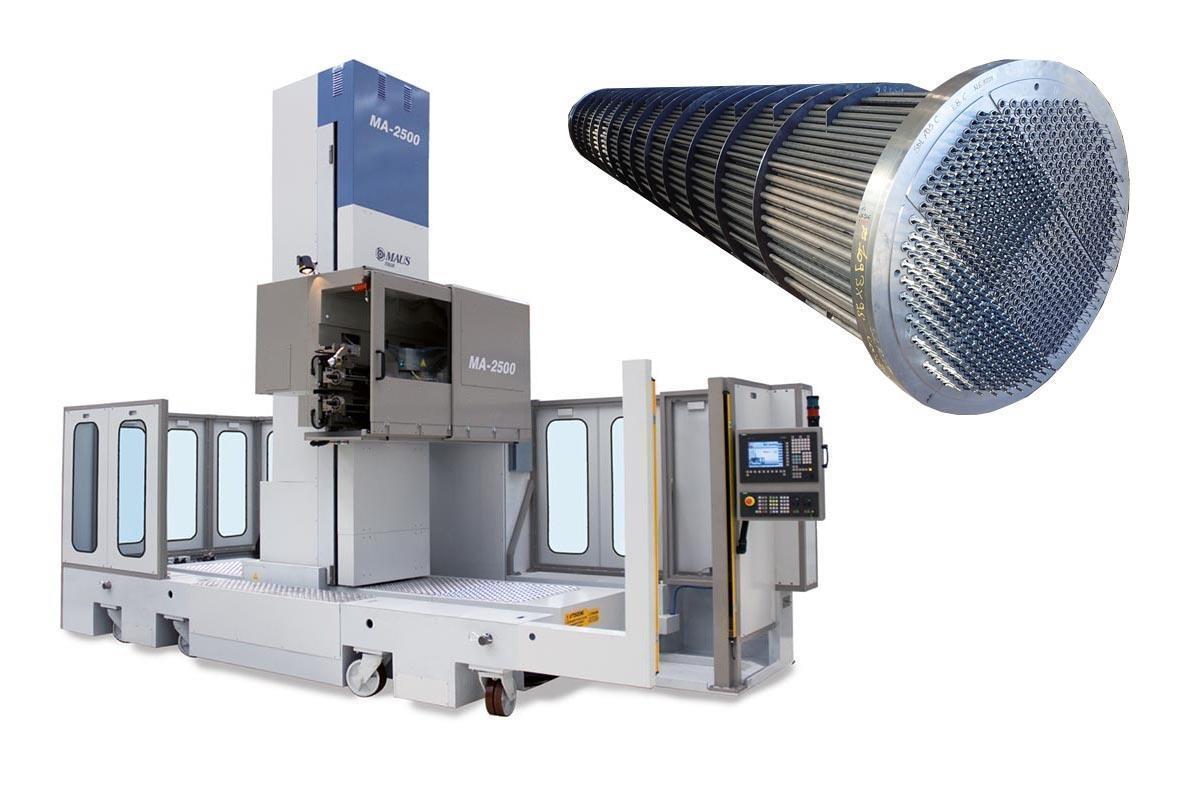

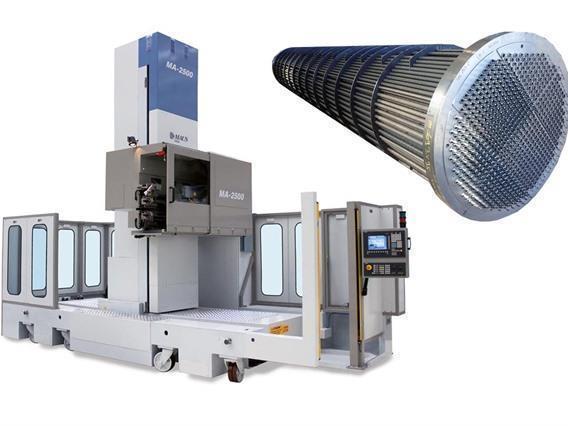

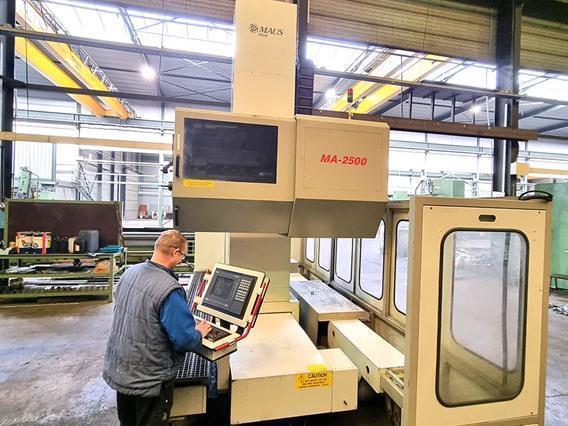

Type: MA-2500

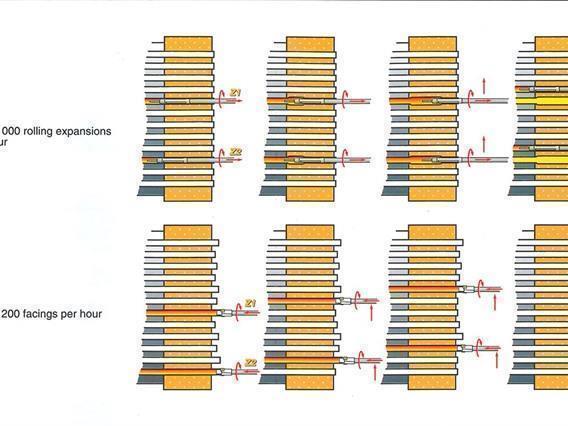

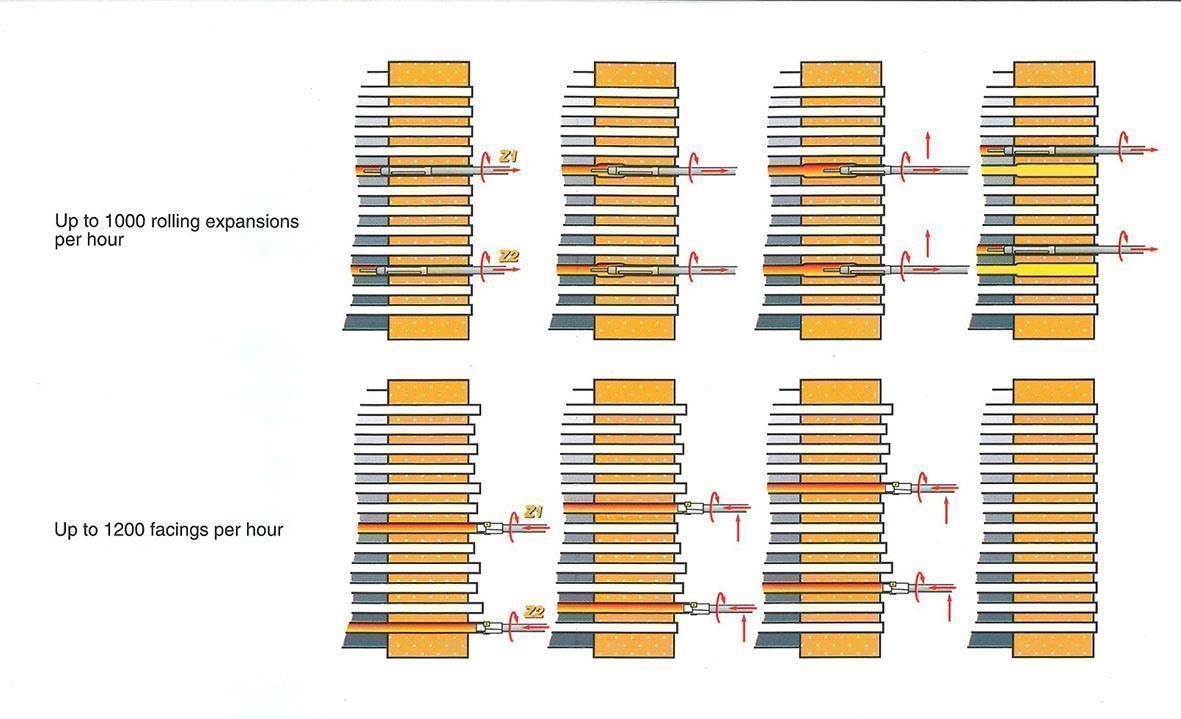

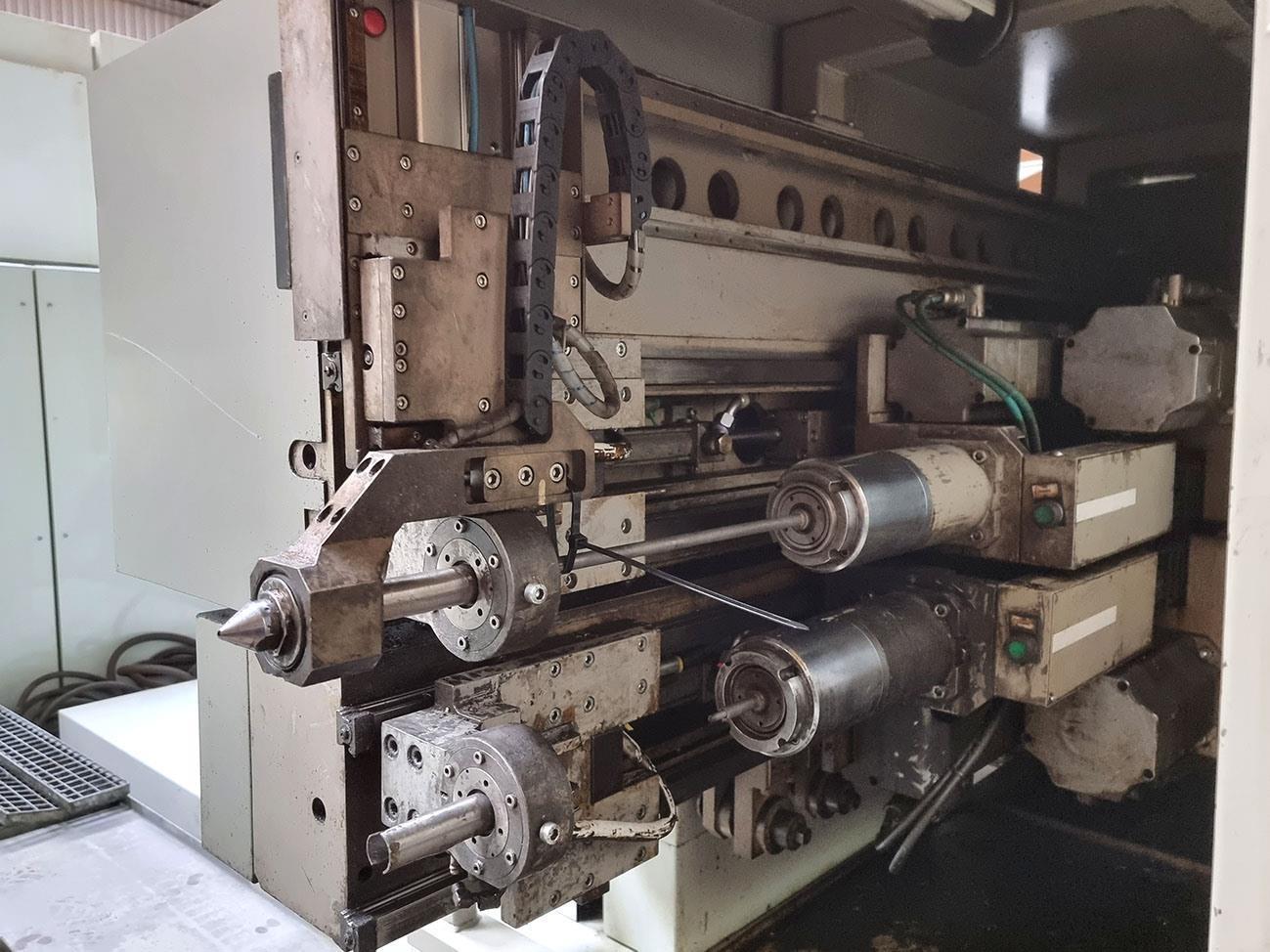

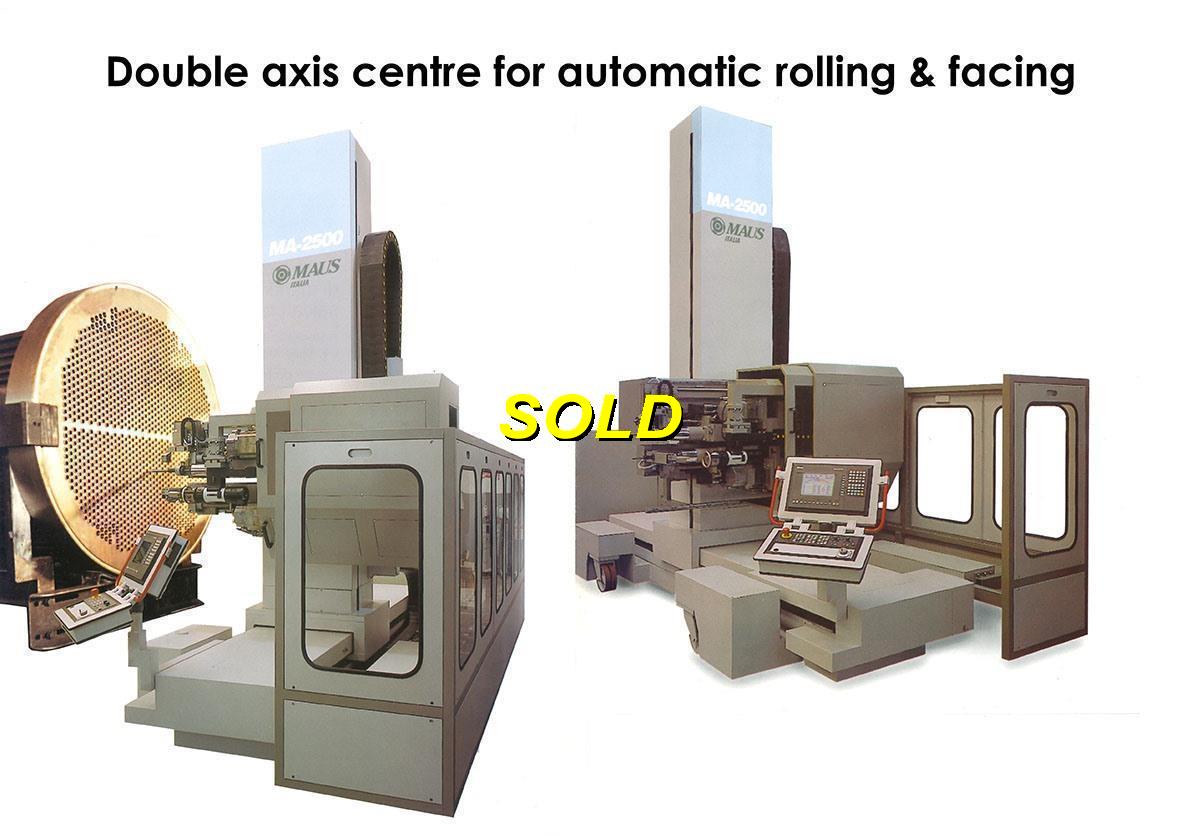

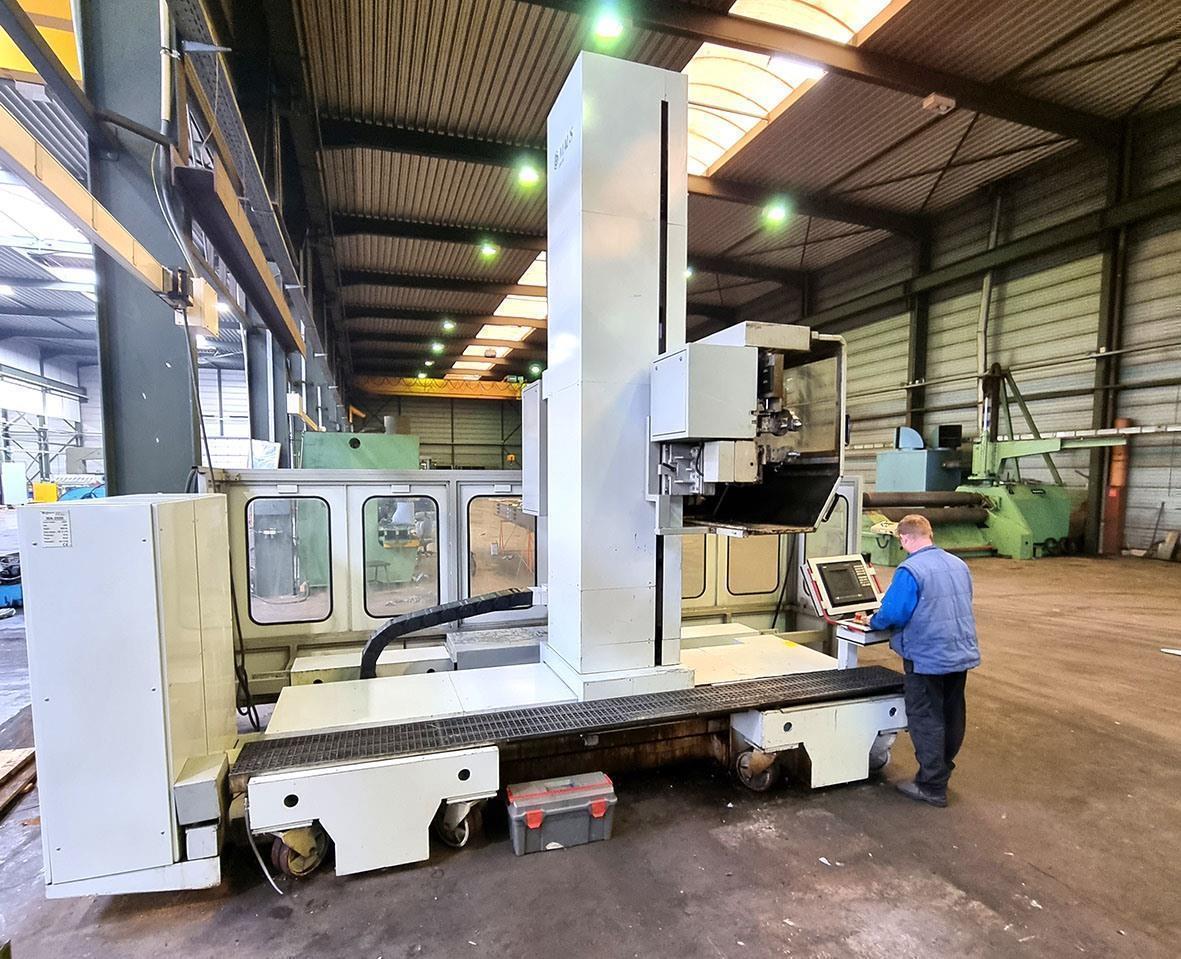

double-axis workcentre with mobile base for rolling & facing of tubes for heat exchangers in automatic cycle
functions:
- automatic rolling expansion
- automatic end facing

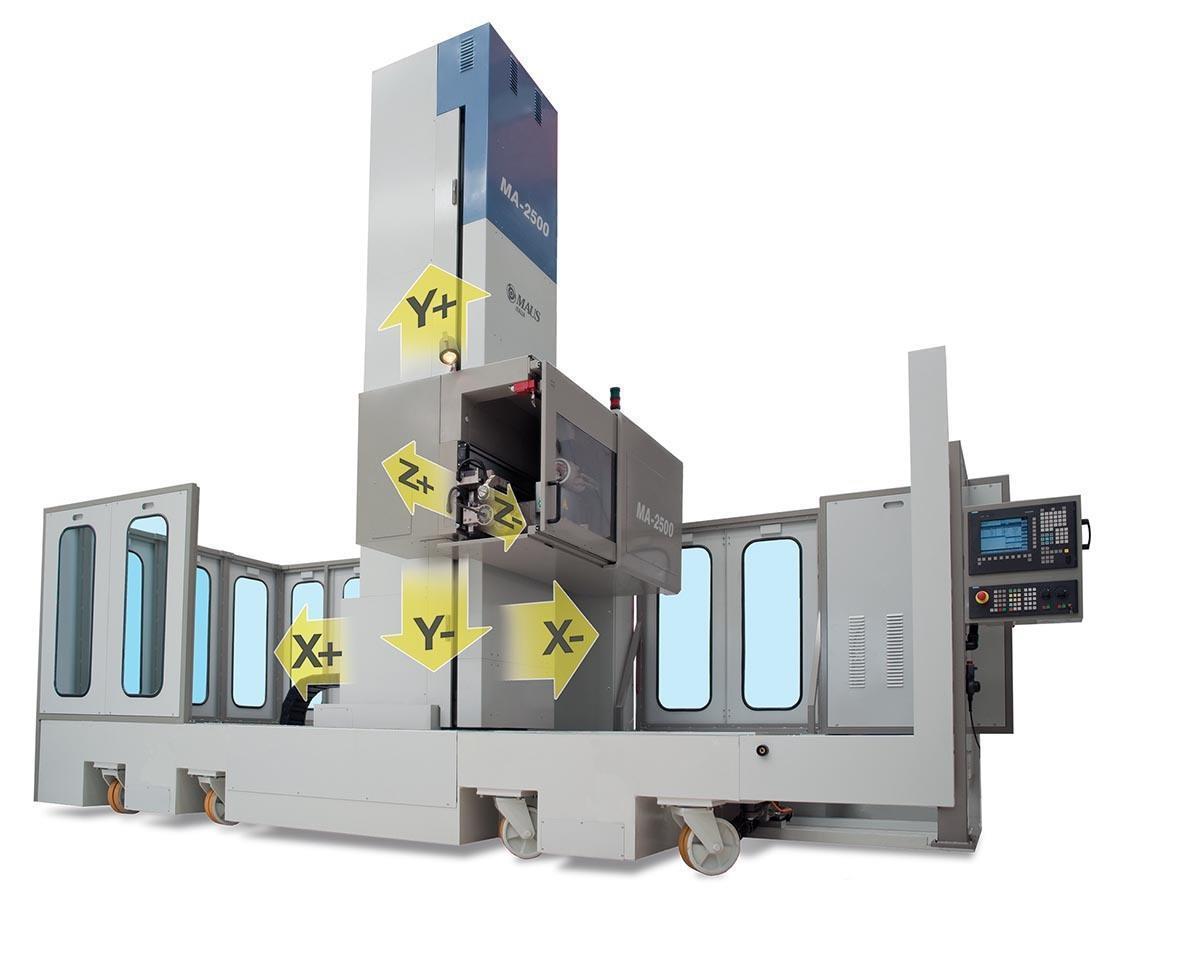

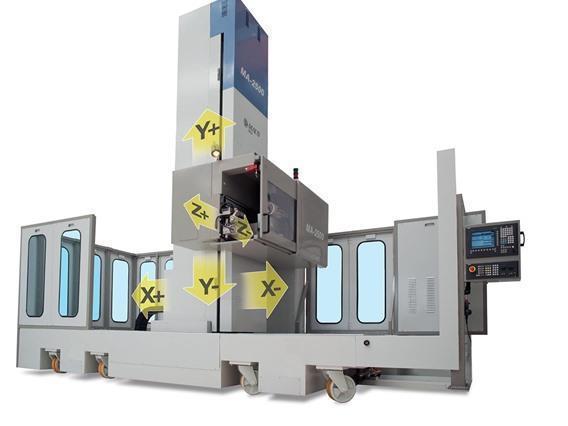

Controlled axes:
- horizontal axis: 2500 mm
- vertical axis: 2200 mm
- transversal axis (Z1): 950 mm
- transversal axis (Z2): 950 mm
- mandrel axis (U1): 60 mm
- mandrel axis (U2): 60 mm
Motor speed tool SP1 & SP2: 1 > 1500 rpm
Workable tubes: dia 12 > 50 mm
Max depth of tube expension: 700 mm
Total power: 50 kW
- Typ/Modell: X: 2500 - Y: 2500 - Z: 800 mm CNC
- Stocknummer: F.02 12713
- Hauptkategorie: [F] Bohrwerke & Drehtische
- Unterkategorie: [F.02] Plattenbohrwerke
- Markenname: Maus Italia
