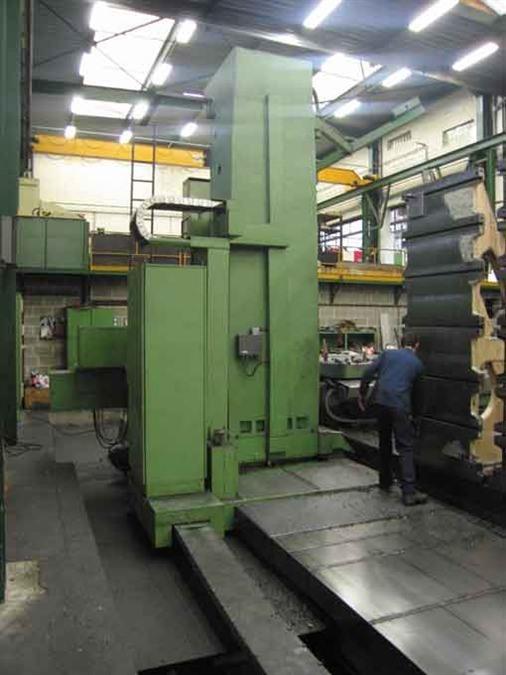

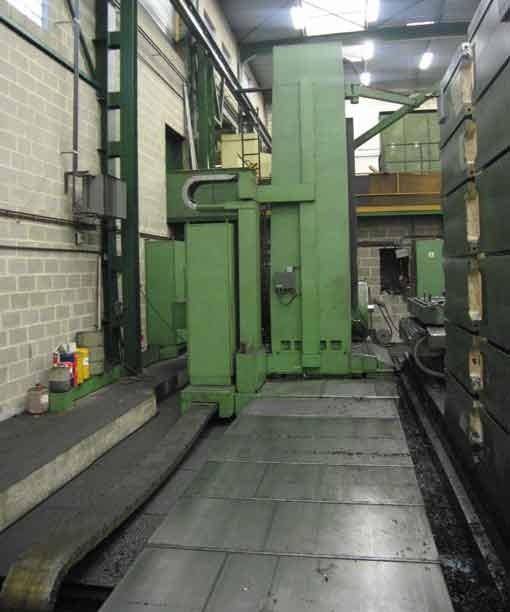

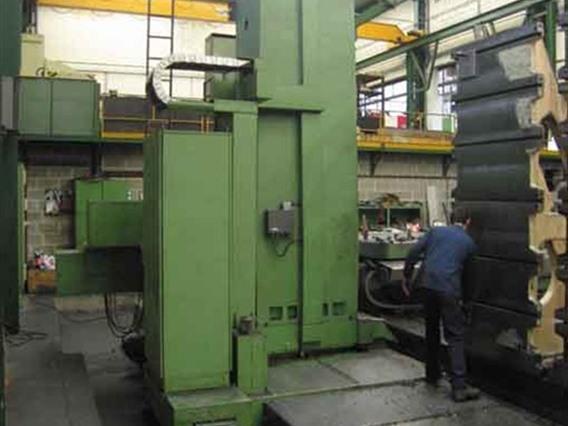

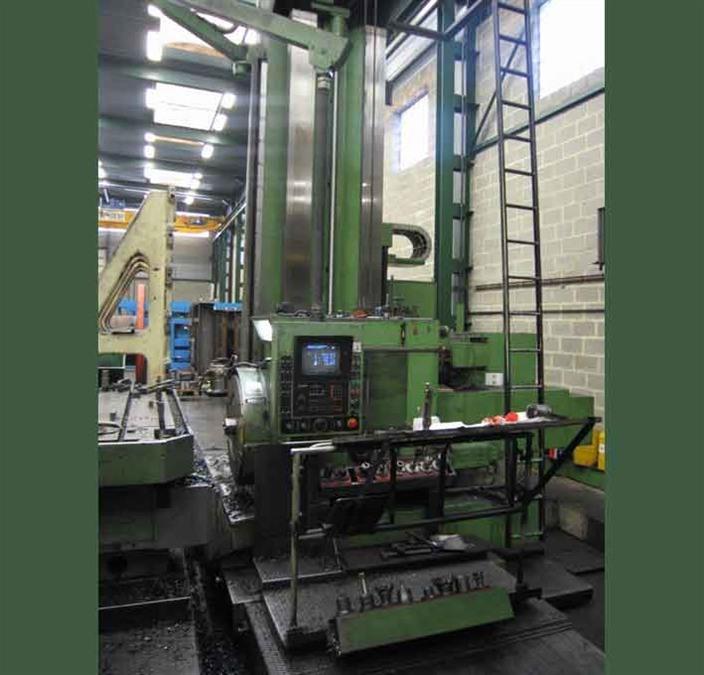

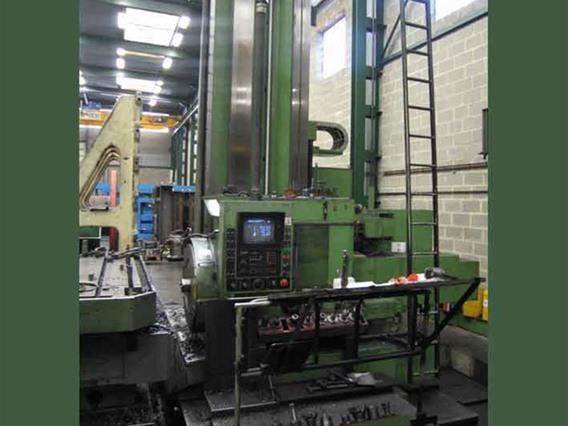

Plattenbohrwerke Union BFP 130 CNC

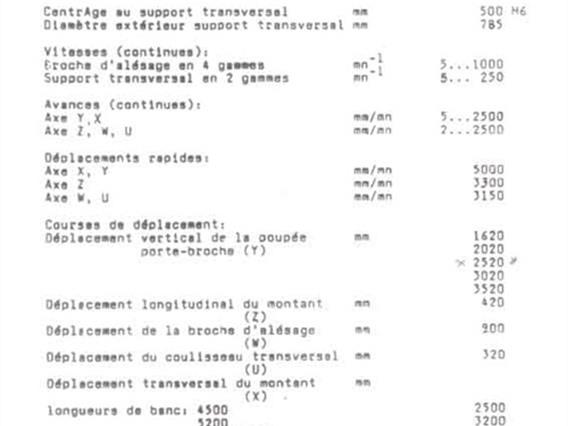

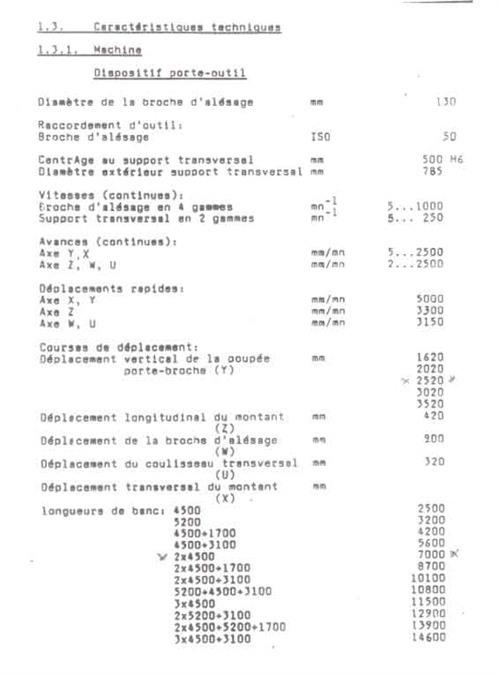

Technische Informationen
- Vorschub im längsrichtung X-achse7000 mm
- Vorschub im querrichtung Y-achse (Tische/Kolonne)kolom 420 mm
- Verzetsung im höhe Z-achse2520 mm
- Spindelverzetsung W-achse900 mm
- Spindle aufname (ISO)iso 50
- Leistung auf spindel50 kW
- Spindeldurchmesser -- Spindelbohrung130 mm
- Spindelgeschwindigkeiten5-1000 rpm

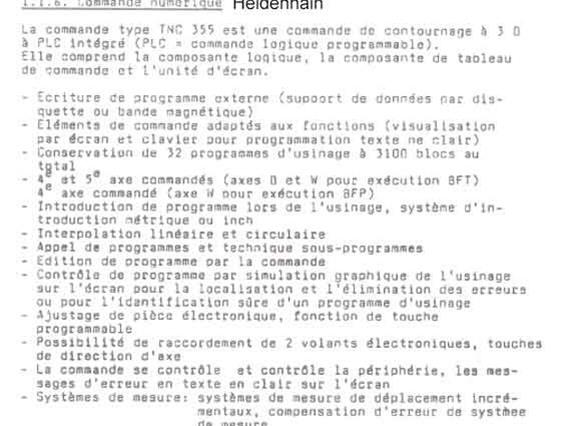

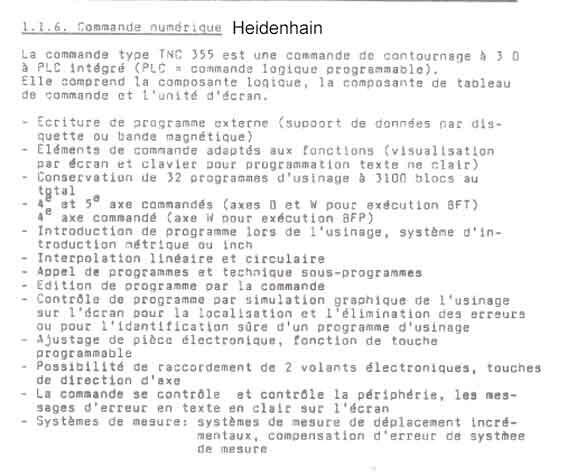

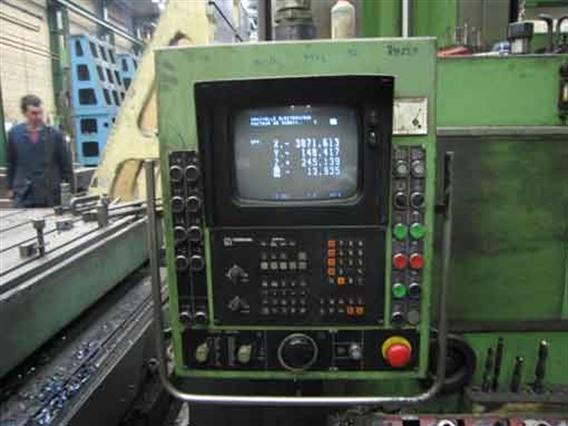

- Digitale ablesung (1) CNC (2)Heidenhain TNC 355
- Spannung380 V / 100 kW
- Gewicht55 700 kg
Zusätzliche Informationen

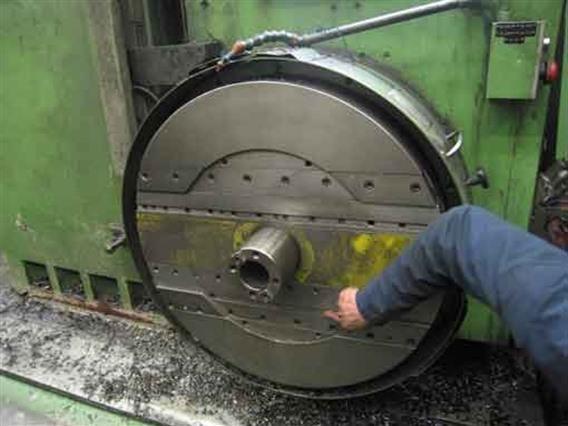

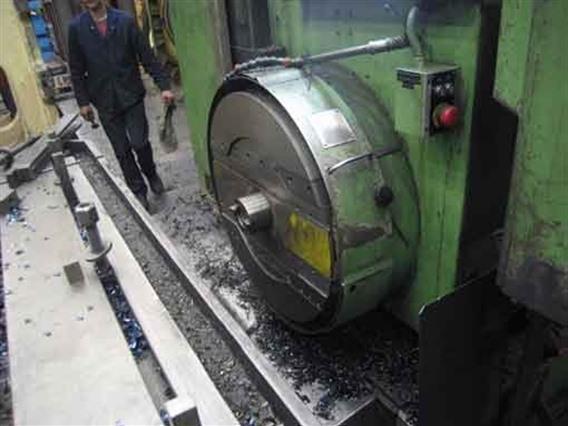

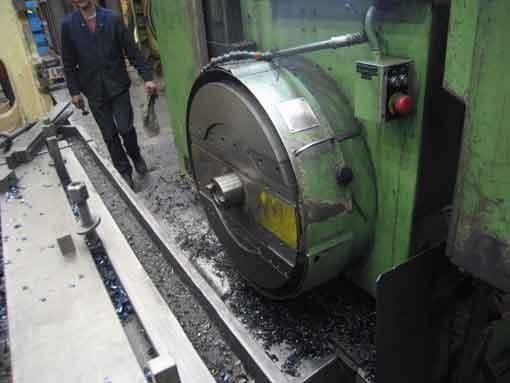

- *Vlakdraaisupport dia 785 mm;
* moving 320 mm.
without rotation table and floor plates
- Typ/Modell: BFP 130 CNC
- Stocknummer: F.02 3286 *06
- Hauptkategorie: [F] Bohrwerke & Drehtische
- Unterkategorie: [F.02] Plattenbohrwerke
- Markenname: Union
