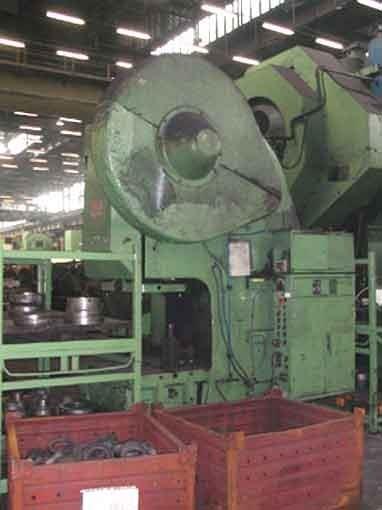

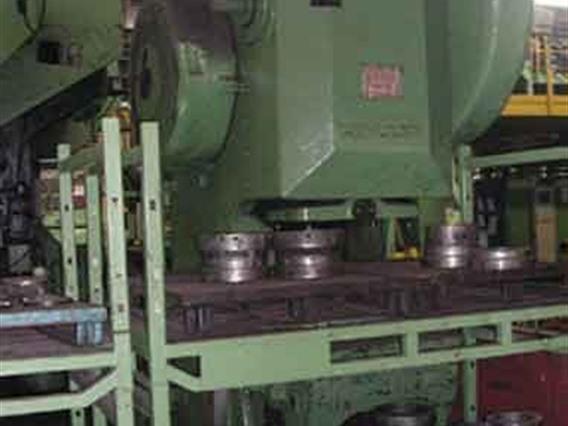

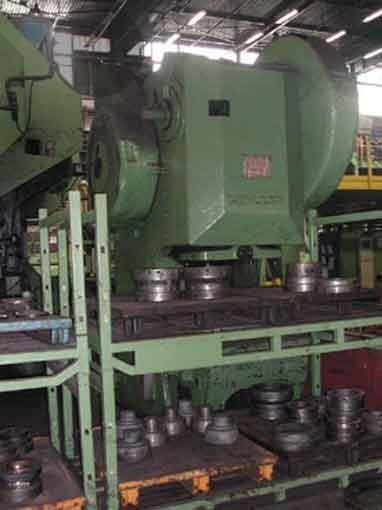

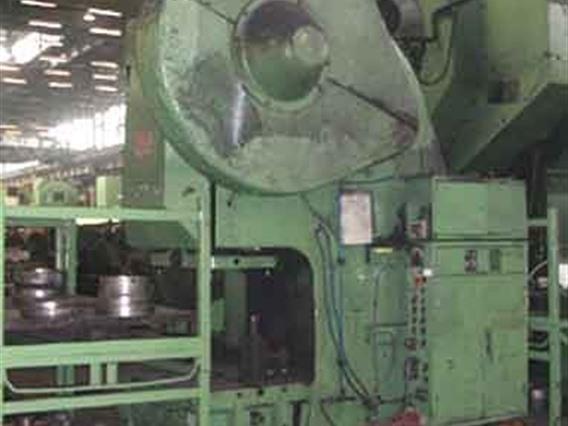

Einstander exzenterpressen Schuler PDr 315-400

Der Produkt ist zu Ihren Favoriten hinzugefügt

Technische Informationen

kapazität315 Ton
KupplungPneum.
Auslading400 mm
Max verstellung stössel30 -- 180 mm
Arbeitschnelligkeit40 sl/min
Bedienung500 mm
Abstand zwischen tisch -- stössel505 mm
Abmessungen tisch1120x850 mm
Durchfalloch tisch500 mm
Abmessungen stösselsohle800x500 mm
Durchmesser stempelhalterloch65 mm / H 110
Veränderlicher hub125 mm
Elektromotor (kraft)22 kW
Netzspannung380 V
Gewicht17 000 kg

Zusätzliche Informationen

Typ/Modell: PDr 315-400
Stocknummer: N.05 0761 *04
Hauptkategorie: [N] Pressen mit Mechanischem Antrieb
Unterkategorie: [N.05] Einstander exzenterpressen
Markenname: Schuler

Stocknummer: N.05 0761 *04

Verkauft
Verkauft
