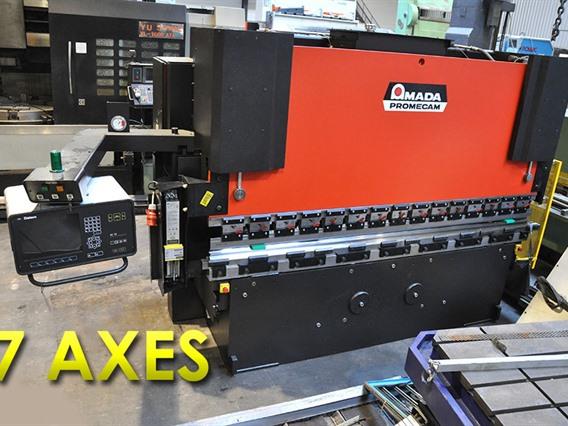

Amada Promecam HFB 125 ton x 3140 mm CNC

Der Produkt ist zu Ihren Favoriten hinzugefügt

» Fragen Sie ein individuelles Angebot

Technische Informationen

Kapazität x Max arbeitslänge125 ton x 3140 mm
Hinten anschlag:Manu(1)-Elektr-(2)CNC(3)CNC

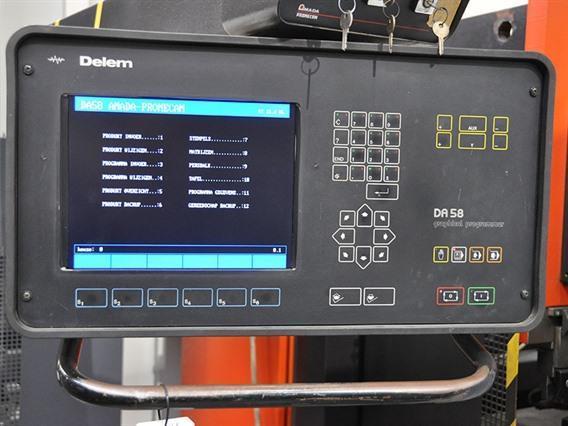

SteuerungDelem DA 58 Graphic
Durchgang zwischen Ständer2700 mm
Max Stossel180 mm
Ausladung410 mm
Tischbreite90 mm
SchlieBschnelligkeit100 mm/sec
Arbeitsschnelligkeit8 mm/sec
Zurücklaufschnelligkeit80 mm/sec
Elektromotor (kraft)11 kW
Netzspannüng380V
Länge L -- R3630 mm
Tieffe F -- H2070 mm
Höhe2820 mm
Gewicht7,4 ton

Zusätzliche Informationen

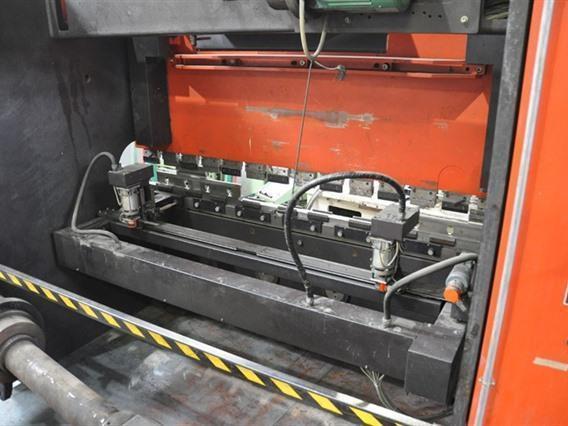

7 axes: X - X1 - X2 - R - Z - Y1 - Y2
Bombation in table

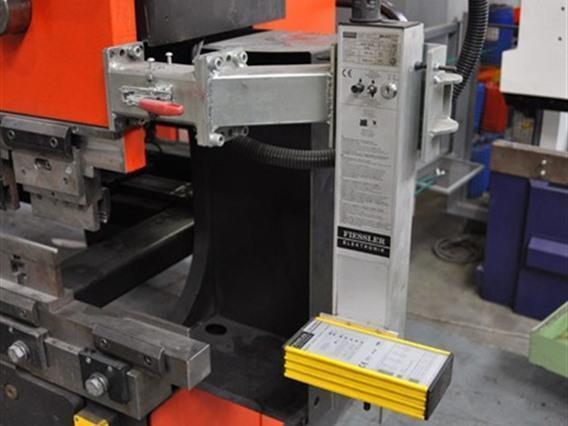

Fiessler Laser security

Machine set up in accordance with French rules
Typ/Modell: Promecam HFB 125 ton x 3140 mm CNC
Stocknummer: O.01 7391
Hauptkategorie: [O] Abkantpressen, Walzmaschinen, Richtmaschinen, Lasermaschinen und Brennschneidmaschinen, Stanzmaschinen & Profilierungsanlagen
Unterkategorie: [O.01] Hydraulische Abkantpressen
Markenname: Amada

» Fragen Sie ein individuelles Angebot

Stocknummer: O.01 7391

Amada Promecam HFB 125 ton x 3140 mm CNC
