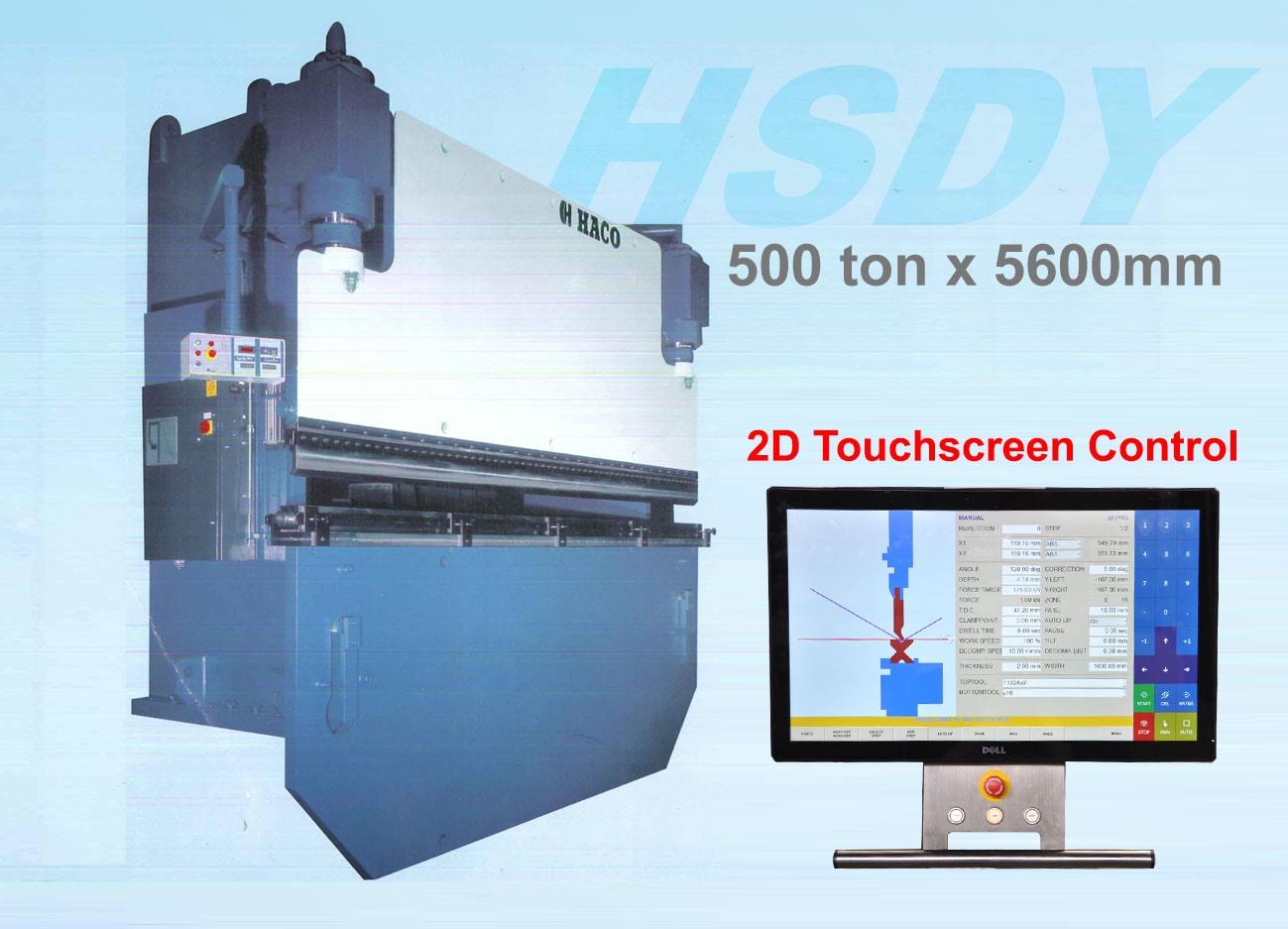

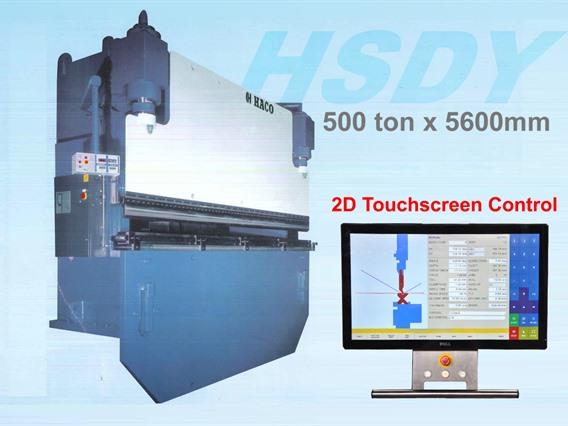

Haco HSDY 500 ton x 5600 mm CNC

Der Produkt ist zu Ihren Favoriten hinzugefügt

» Fragen Sie ein individuelles Angebot

Technische Informationen

Kapazität x Max arbeitslänge500 Ton x 5600mm
Hinten anschlag:Manu(1)-Elektr-(2)CNC(3)CNC

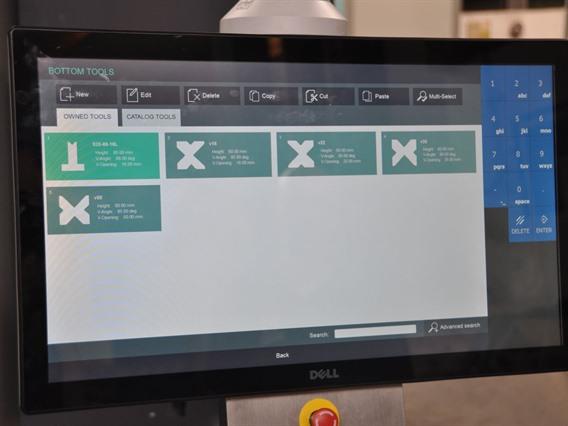

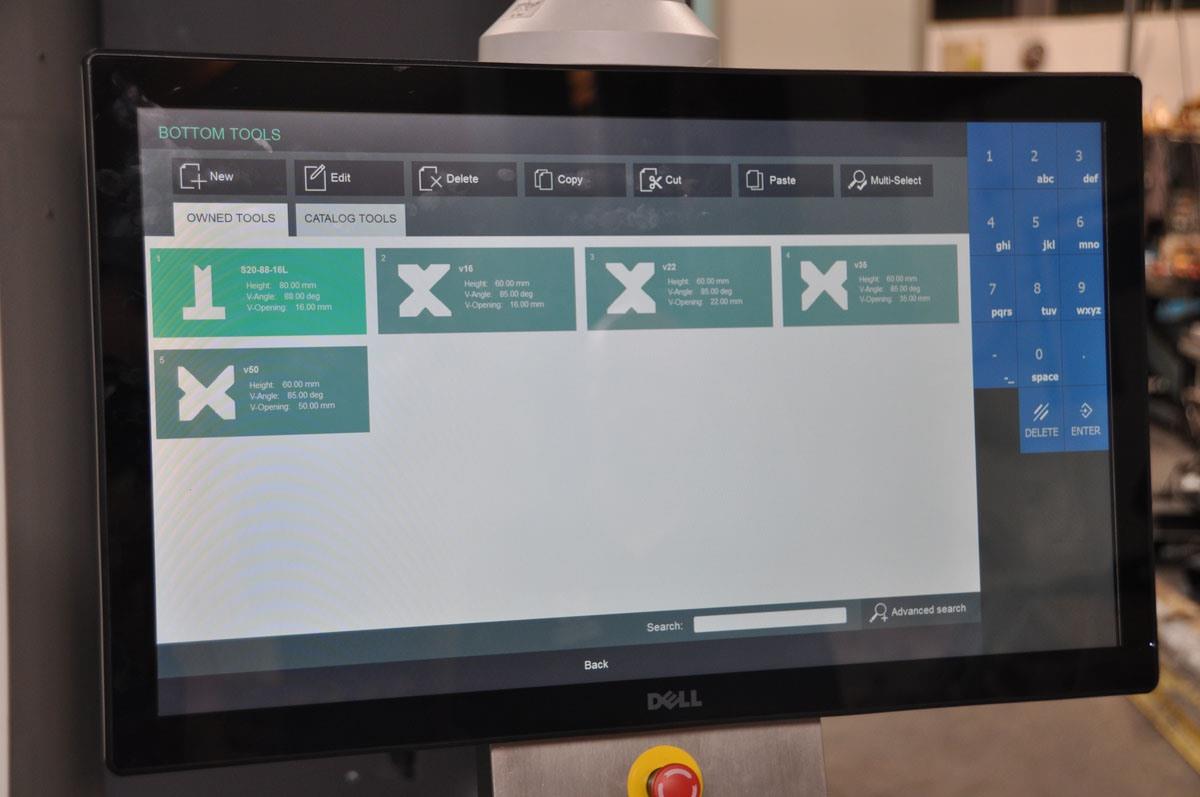

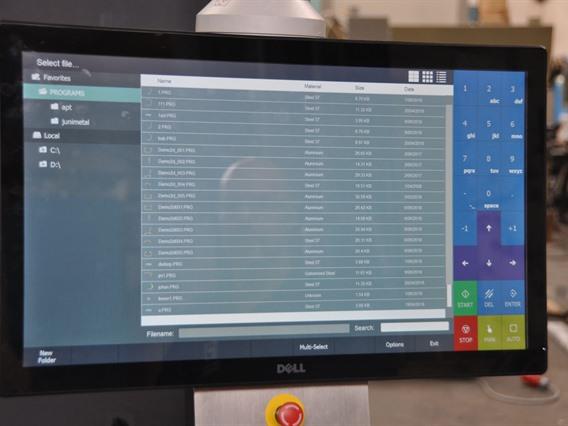

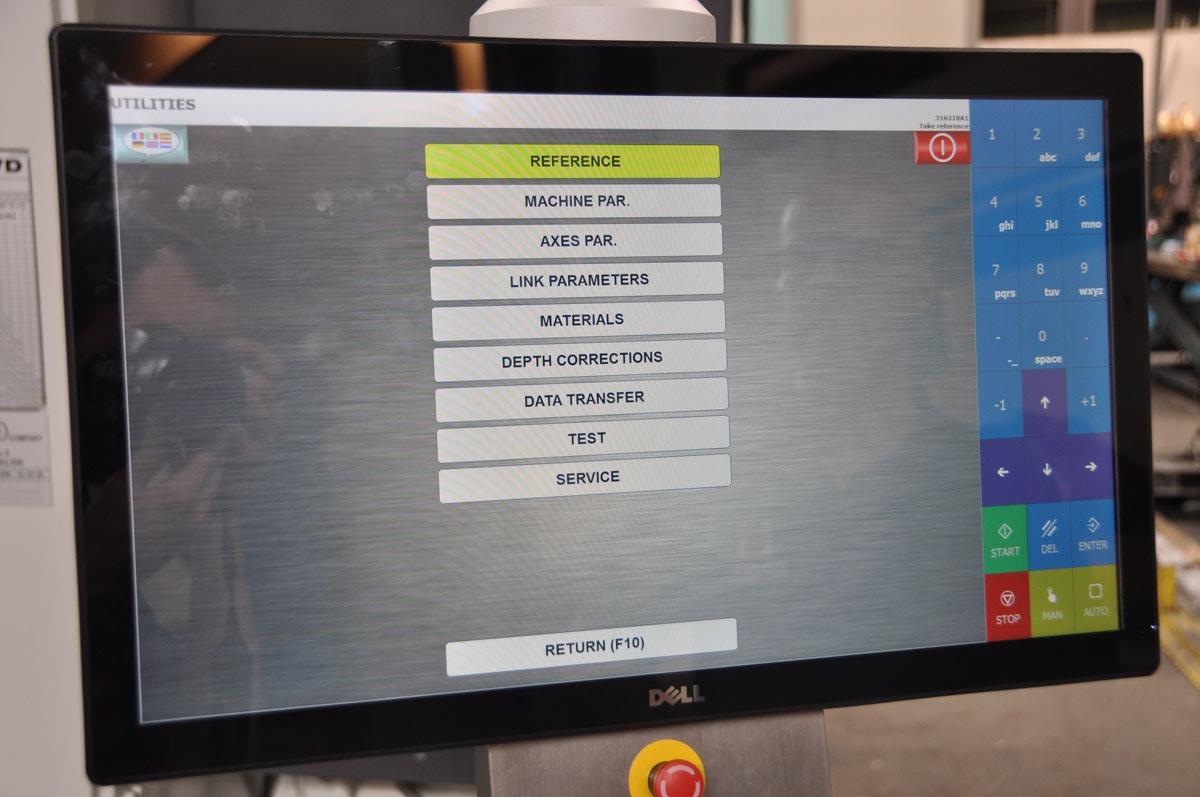

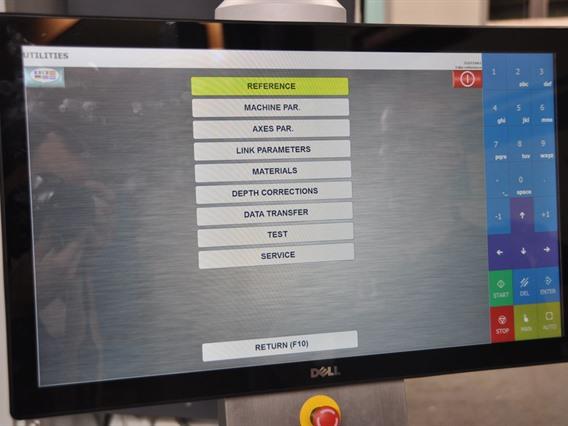

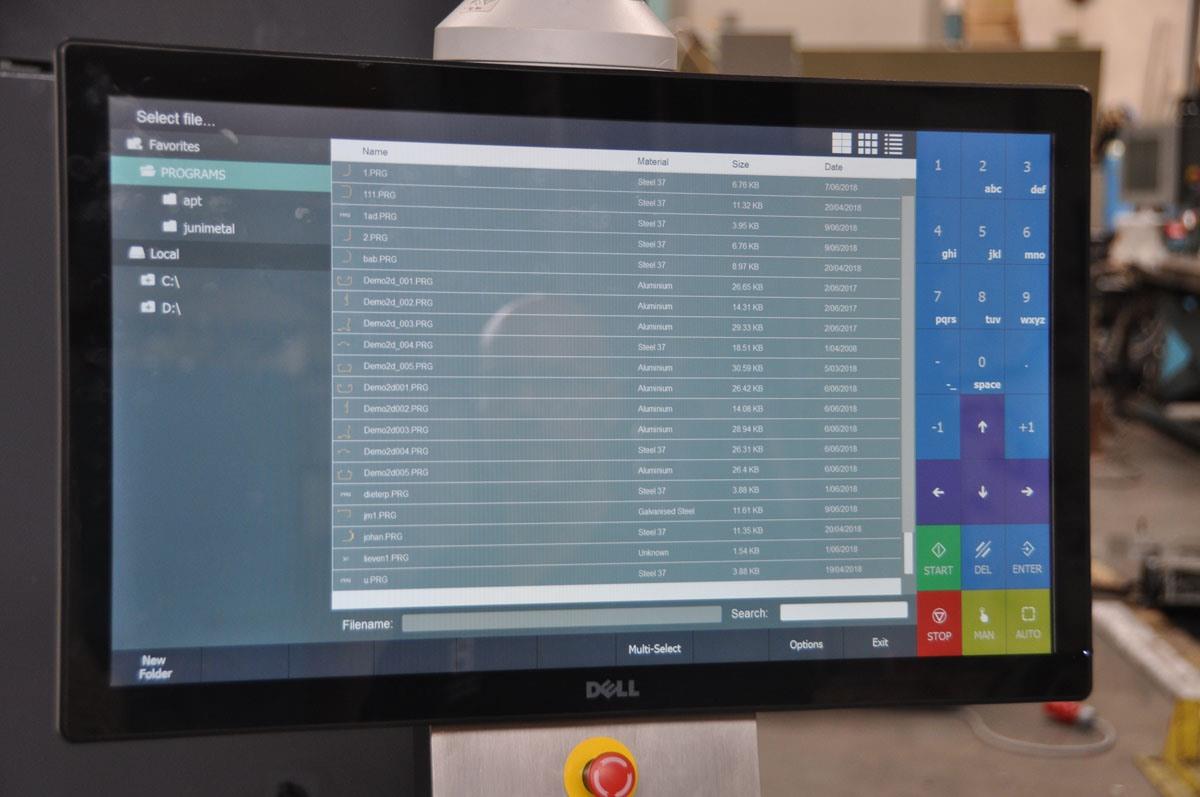

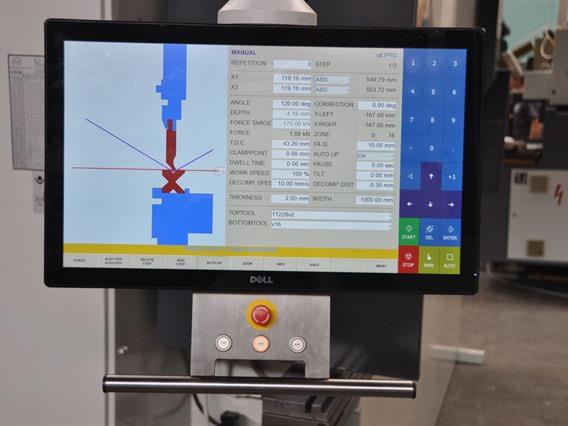

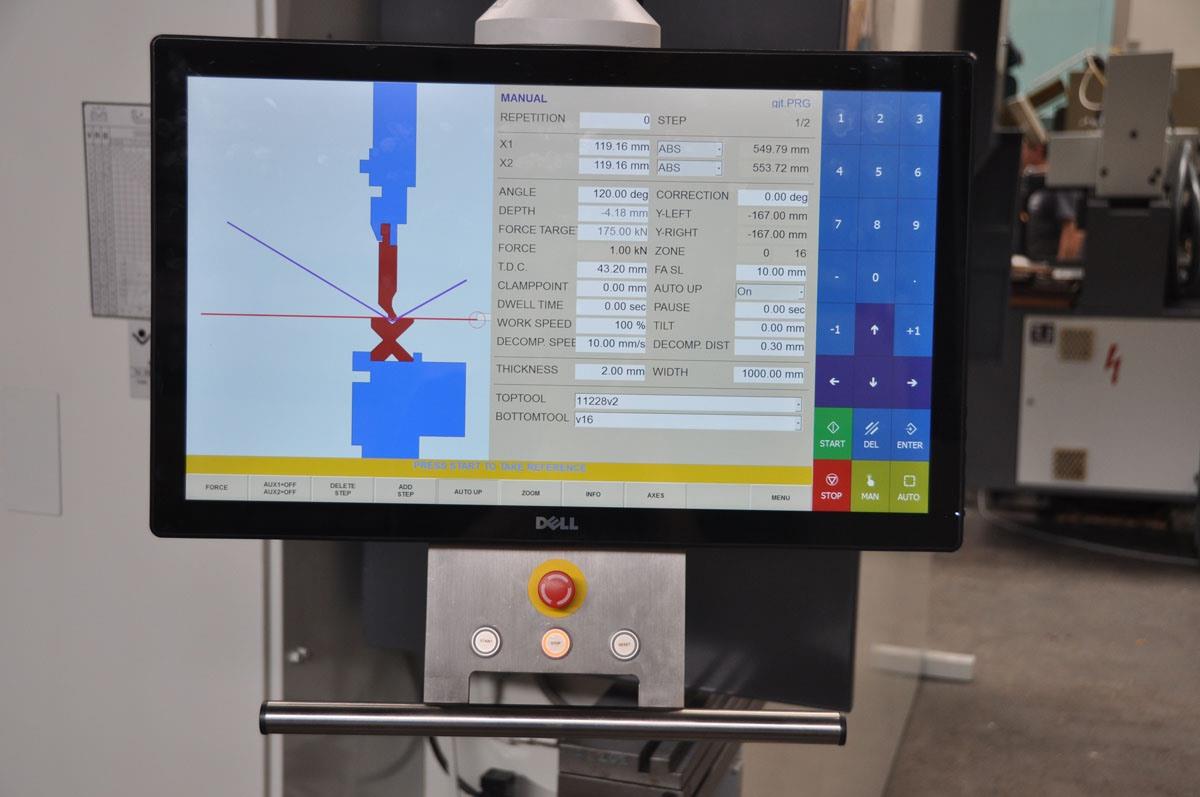

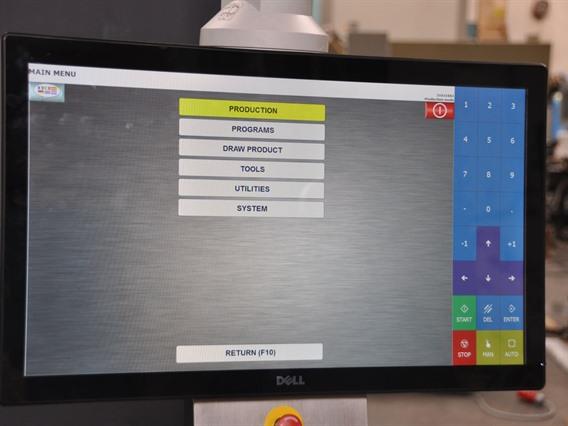

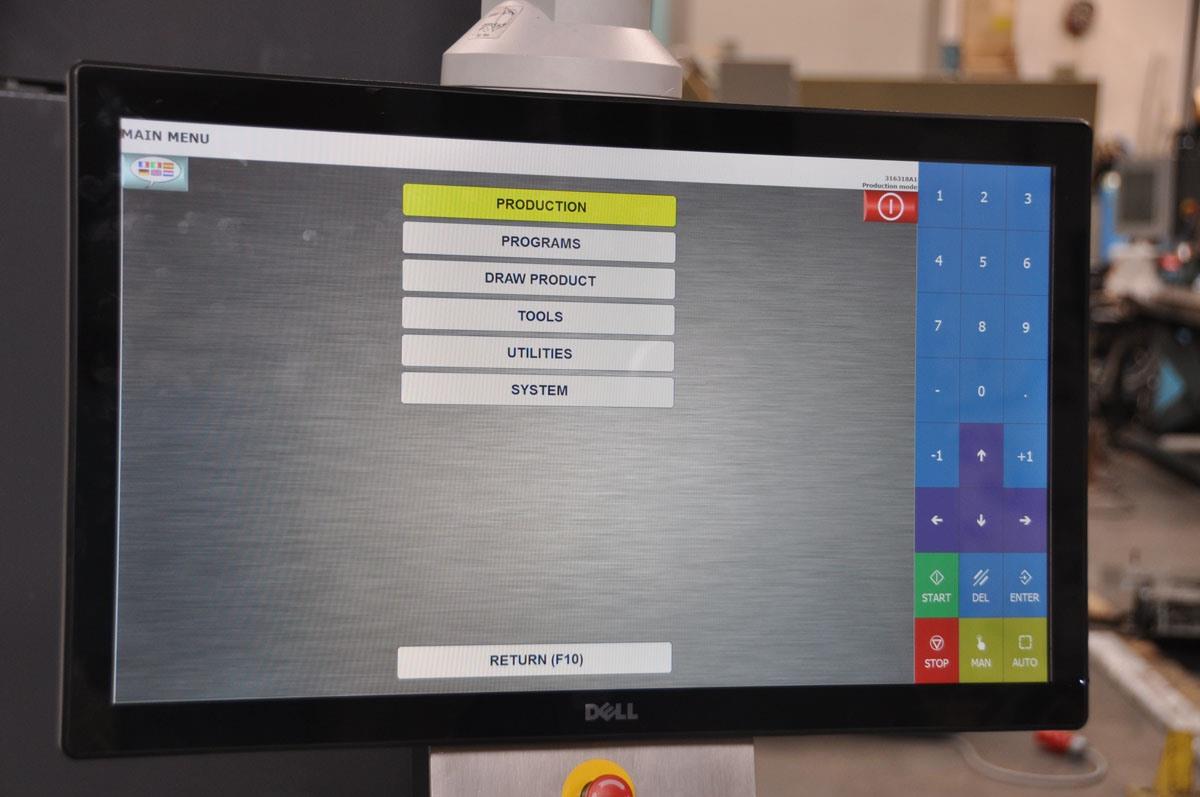

SteuerungBC 45 Graphic 3 axes
Durchgang zwischen Ständer4600 mm
Max Stossel300 mm
Abstand zwichen Tisch -- Stössel550 mm
Ausladung330 mm
SchlieBschnelligkeit90 mm/sec
Arbeitsschnelligkeit7 mm/sec
Zurücklaufschnelligkeit60 mm/sec
Elektromotor (kraft)37,5 kW
Länge L -- R6150 mm
Tieffe F -- H2150 mm
Höhe3800 mm (above ground)
Gewicht38000 kg

Zusätzliche Informationen

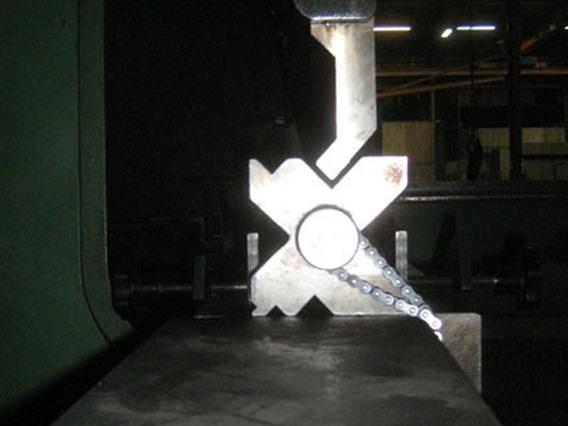

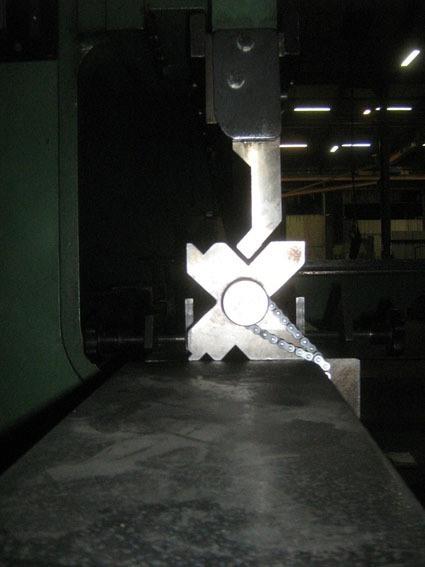

CNC Bombation Table + 1 knife 88° + Multi v-Bloc: 90°/30°/40°/60°/80°/100°
servocontrolled

3 axes

heavy duty backgauge

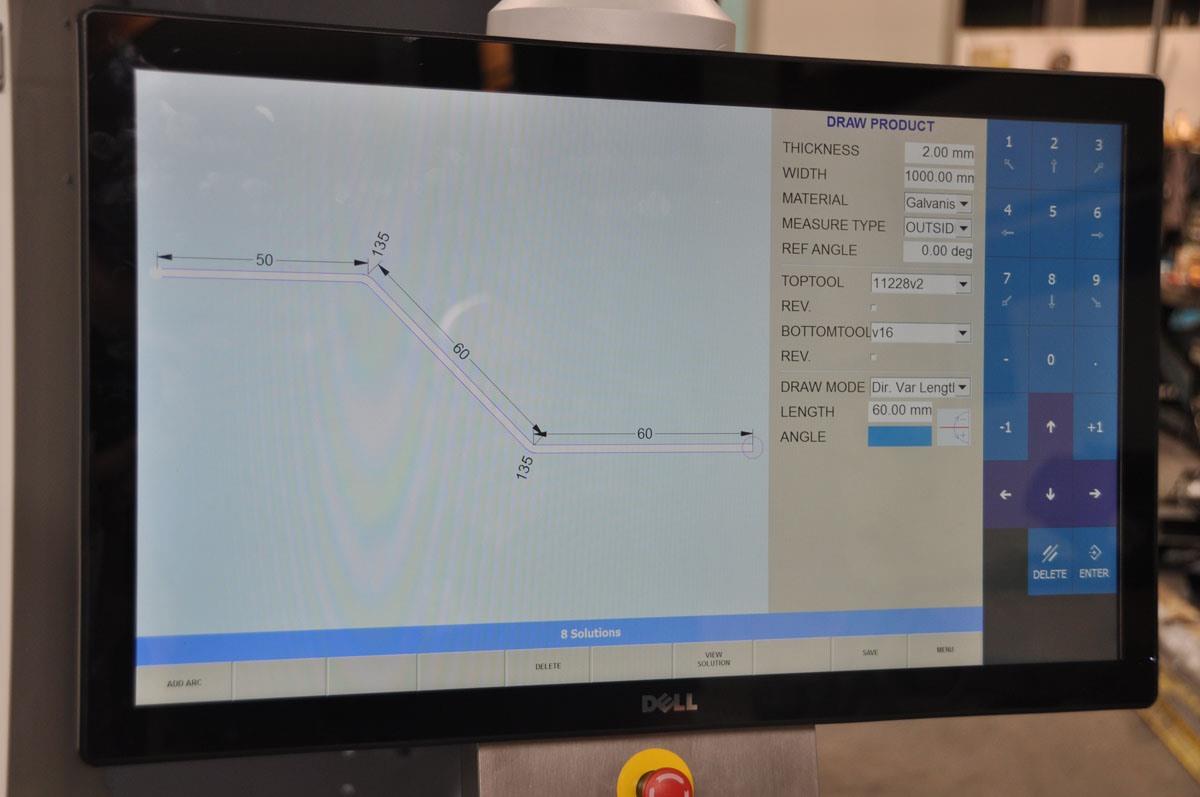

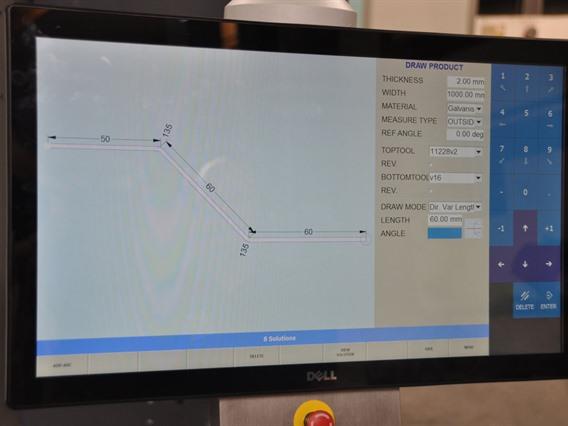

graphic control

possibility to bend conical

Machine can be transported in containers, in pieces.
Typ/Modell: HSDY 500 ton x 5600 mm CNC
Stocknummer: O.01 8526
Hauptkategorie: [O] Abkantpressen, Walzmaschinen, Richtmaschinen, Lasermaschinen und Brennschneidmaschinen, Stanzmaschinen & Profilierungsanlagen
Unterkategorie: [O.01] Hydraulische Abkantpressen
Markenname: Haco

» Fragen Sie ein individuelles Angebot

Stocknummer: O.01 8526
