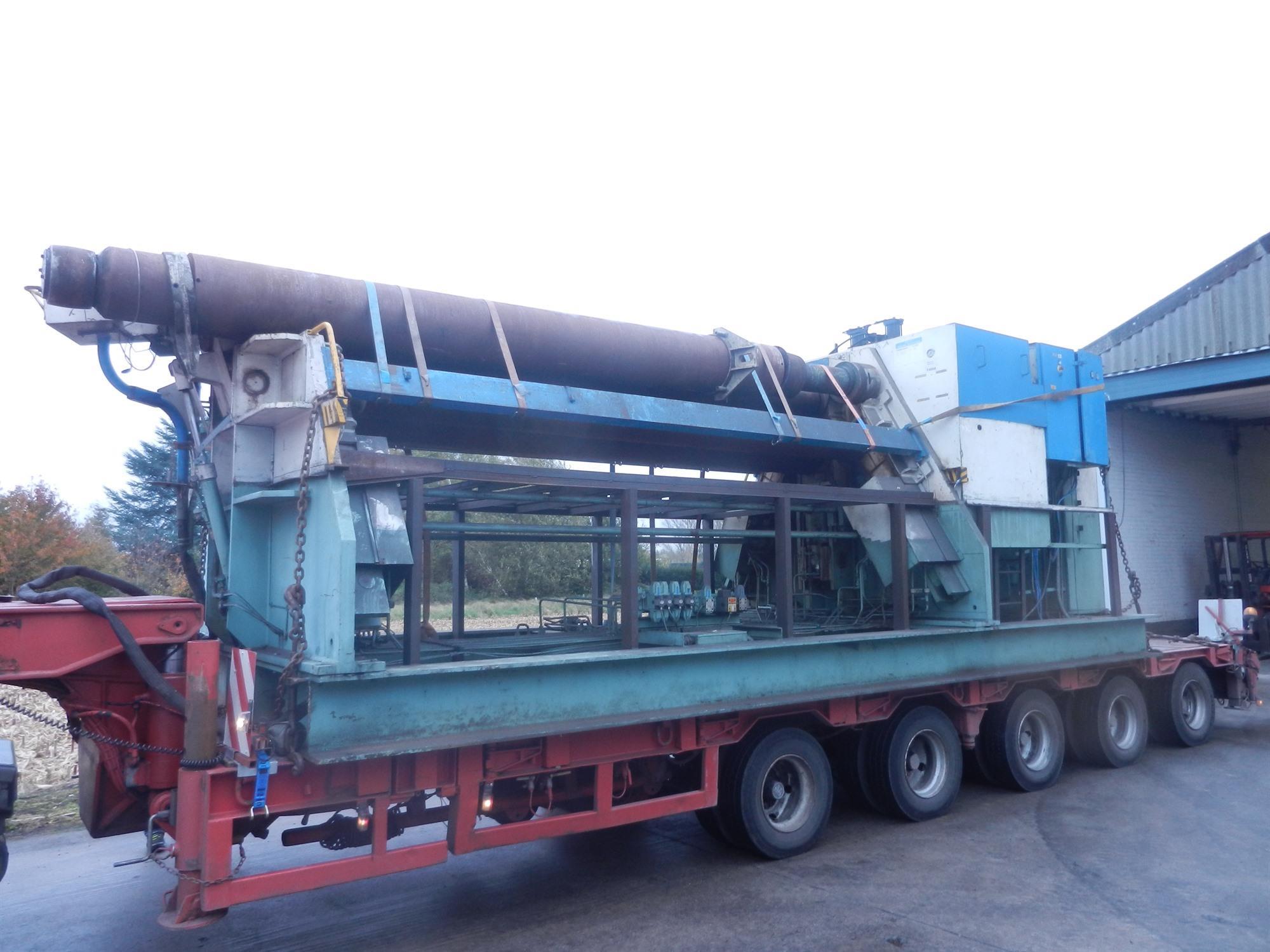

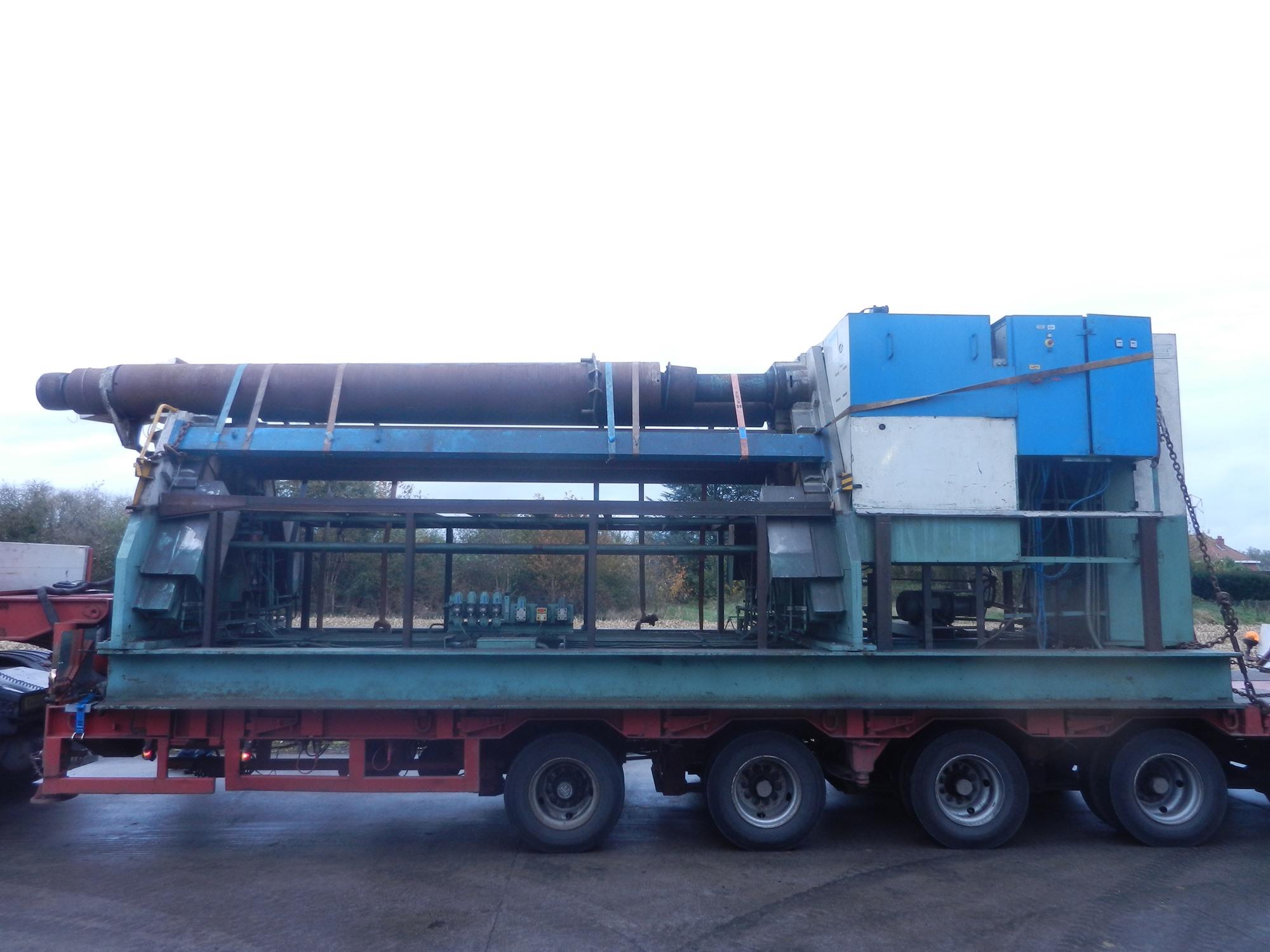

Haeusler VRM-E 4180 x 20 mm

Der Produkt ist zu Ihren Favoriten hinzugefügt

» Fragen Sie ein individuelles Angebot

Technische Informationen

Rollen anzahl4x
Roll Kapazität (L x dicke) kalt4180 x 20 mm
Durchmesser überrol420 mm
Durchmesser unterrol - laterale rollen330 mm
Leistung motor30 HP
Länge L -- R7600 mm
Breite V -- H2900 mm
Höhe3000 mm
Gewicht36+7 ton

Zusätzliche Informationen

Hydraulic machine
- extra upperroll of dia 300 mm included (weight: 8 ton)
- hardened rolls

- 2 syncrhonized driven rolls (upper and lower roll)

> with upperroll of 420 mm the smallest rollable diameter is 460 mm

cap: 4180 x 20 mm / 3100 x 30 mm

> with upperroll of 300 mm the smallest rollable diameter is 330 mm

cap: 4180 x 10 mm / 3100 x 20 mm

conical bending
Typ/Modell: VRM-E 4180 x 20 mm
Stocknummer: O.06 8556
Hauptkategorie: [O] Abkantpressen, Walzmaschinen, Richtmaschinen, Lasermaschinen und Brennschneidmaschinen, Stanzmaschinen & Profilierungsanlagen
Unterkategorie: [O.06] Rundbiegemaschinen
Markenname: Haeusler
