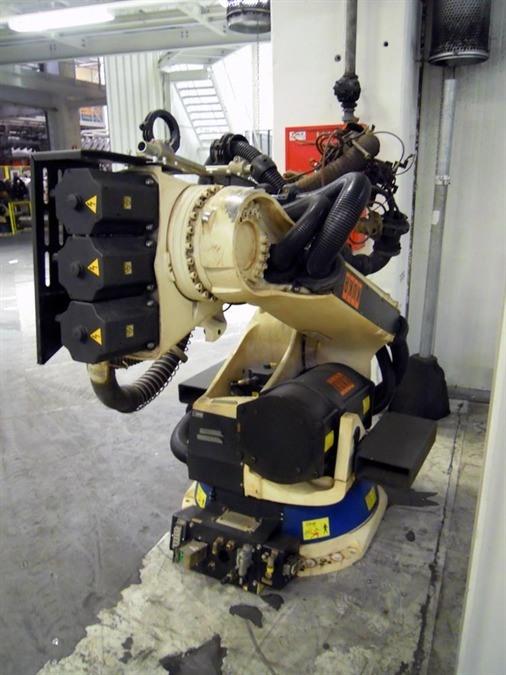

Schweissroboter Trumpf - Kuka YAG laser beam welding robot
Technische Informationen
- SteueringKRC2
- Achsen anzahl6 axes

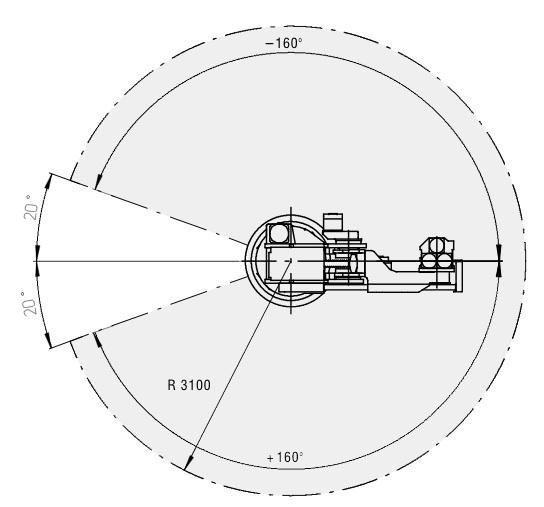

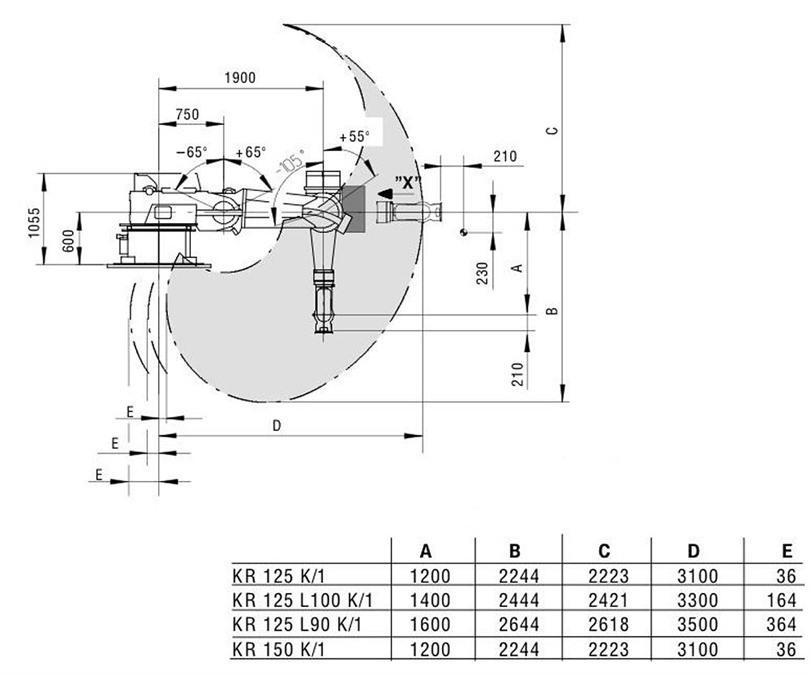

- ArbeitsraumRadius 3000 mm
Zusätzliche Informationen

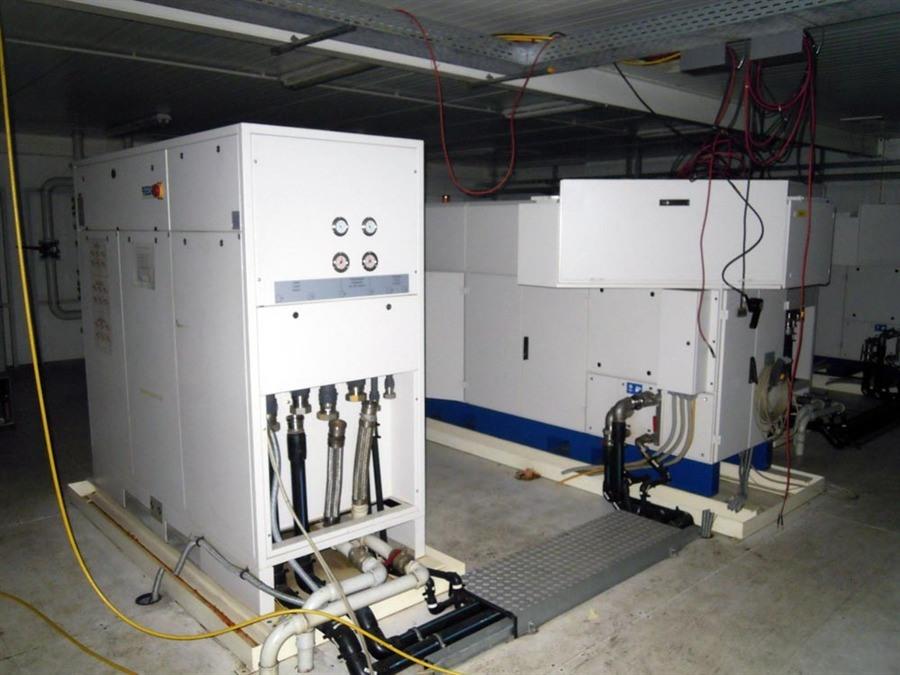

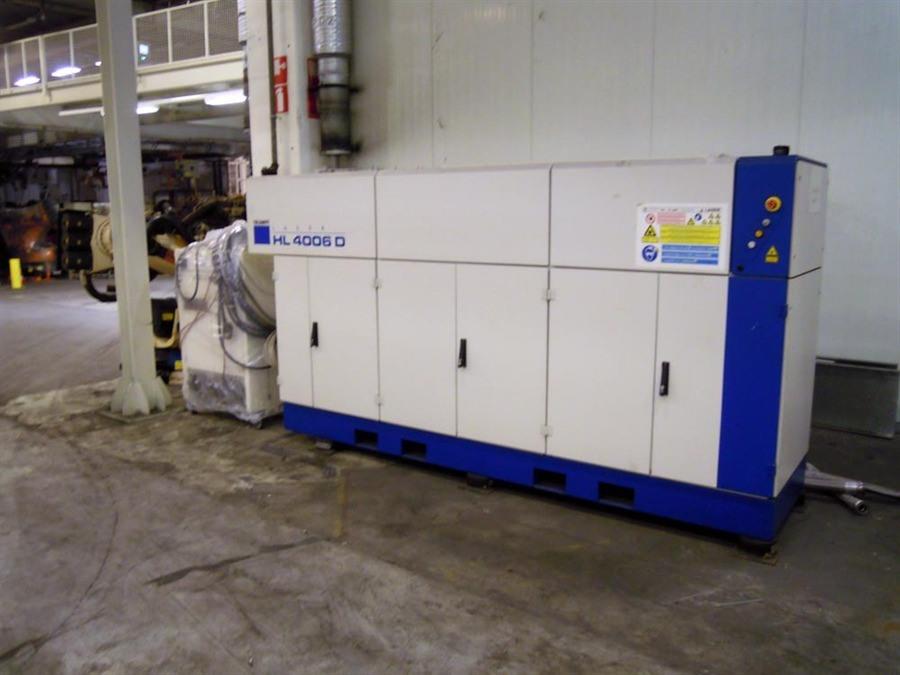

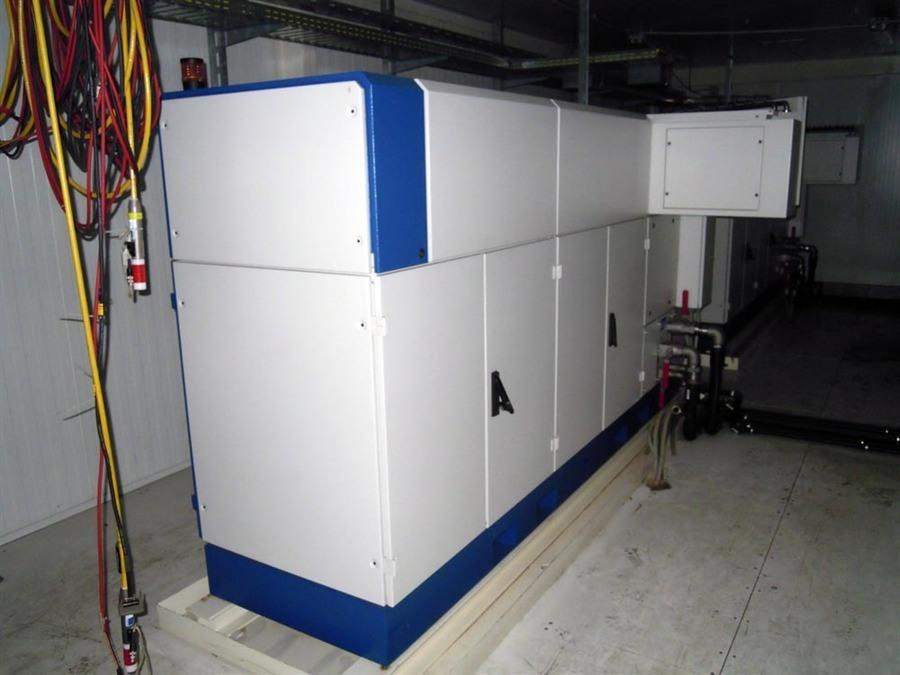

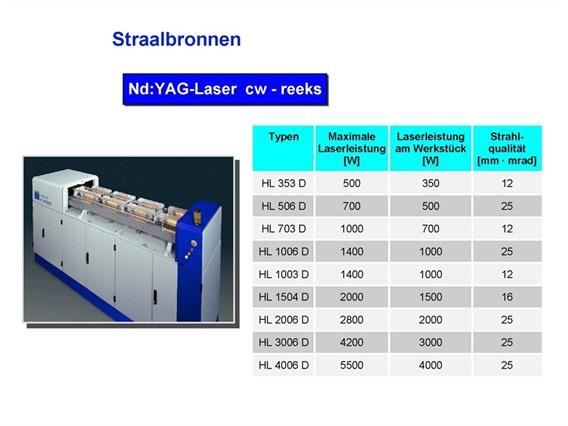

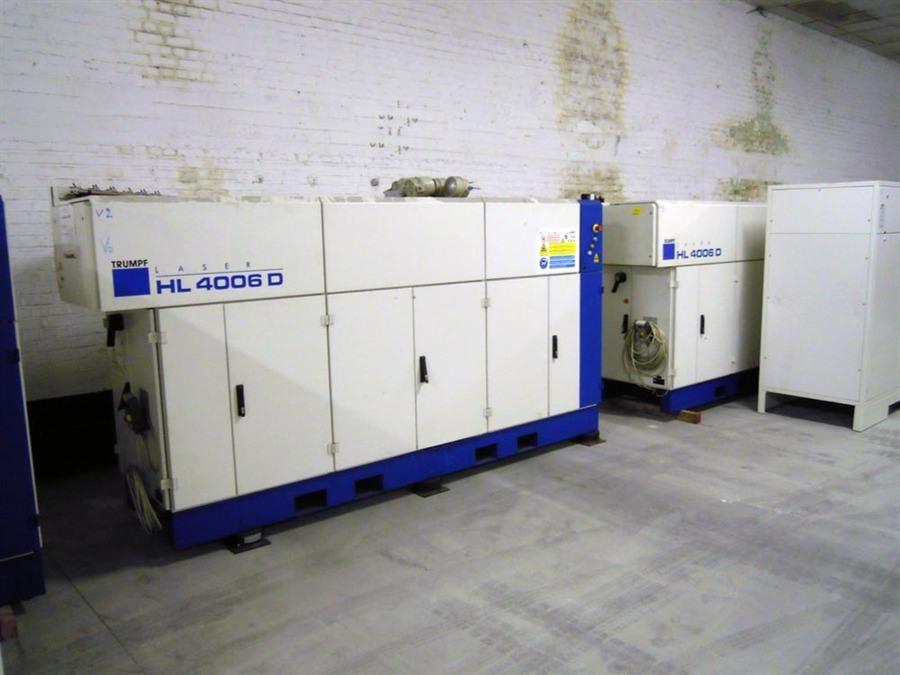

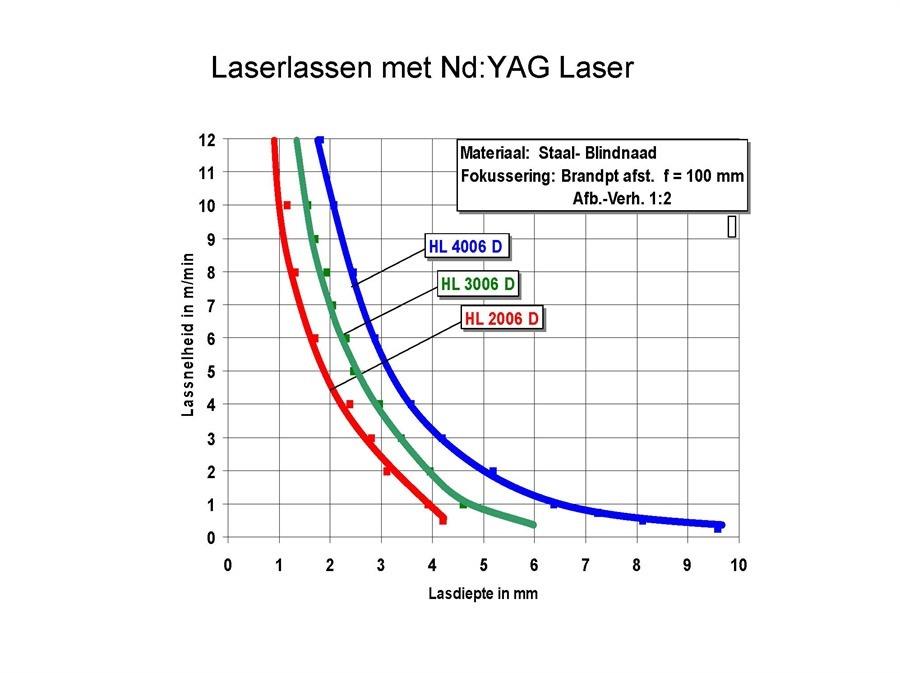

- Trumpf laserwelding HL 4006

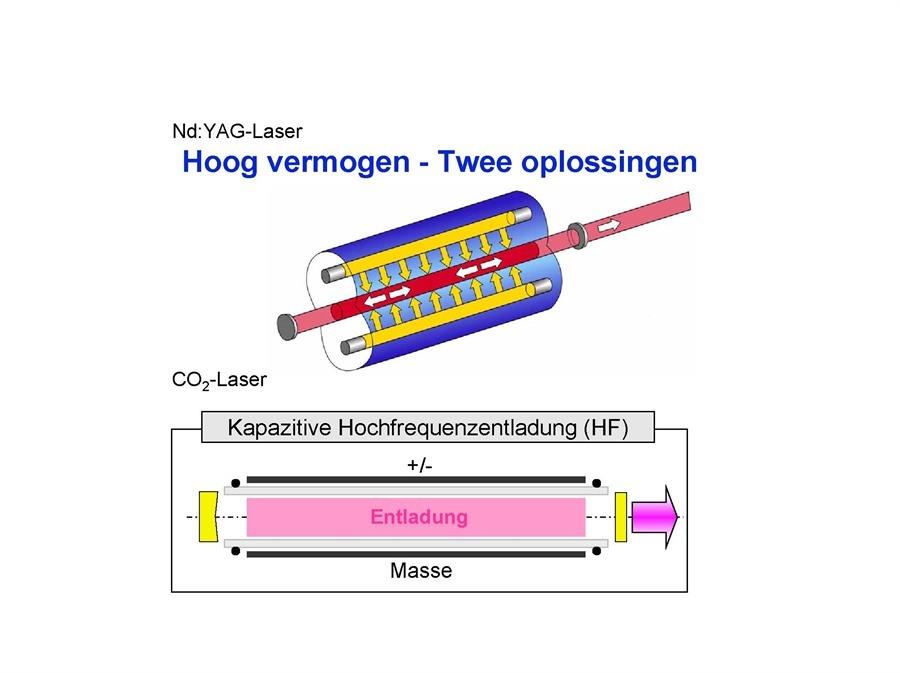

YAG laser 4000 W
6 axes controlled
(optional 7th axis transversal movement of the robot 2000mm available)

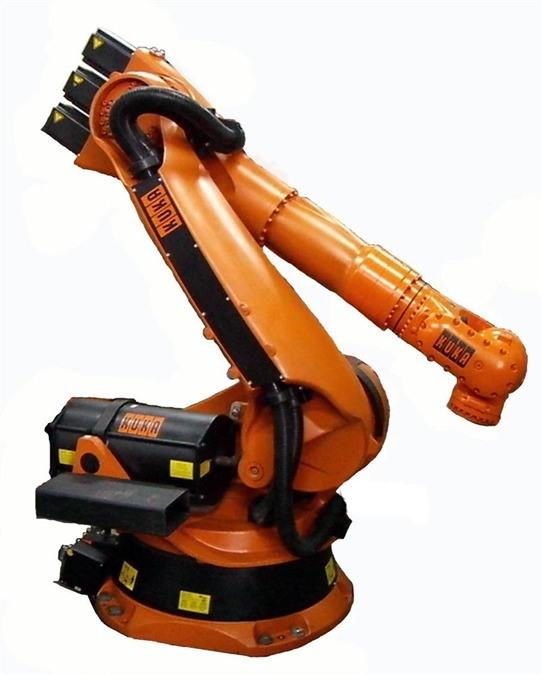

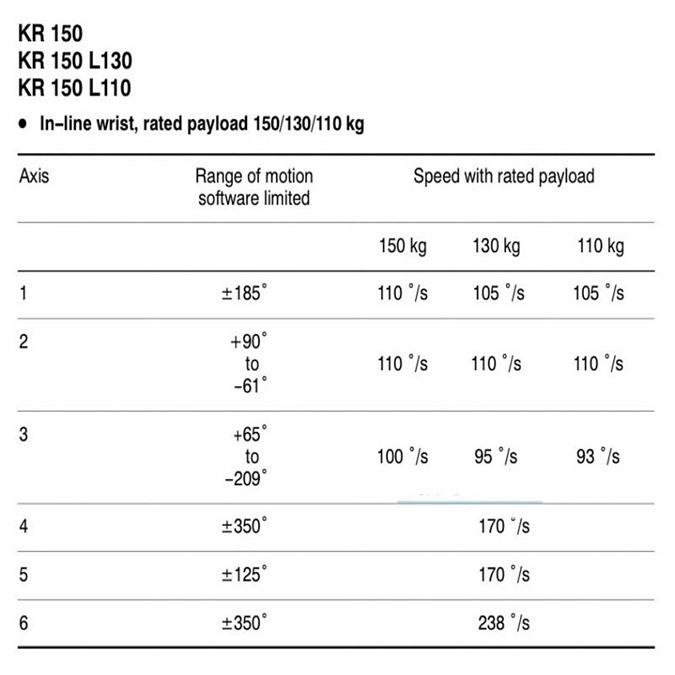

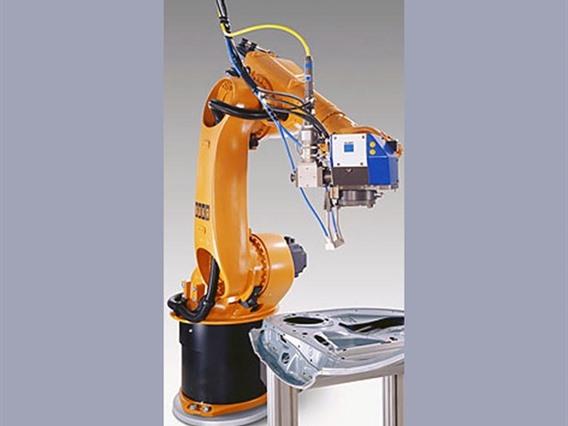

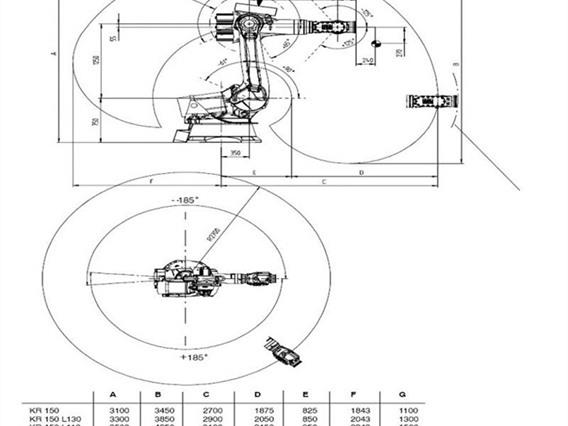

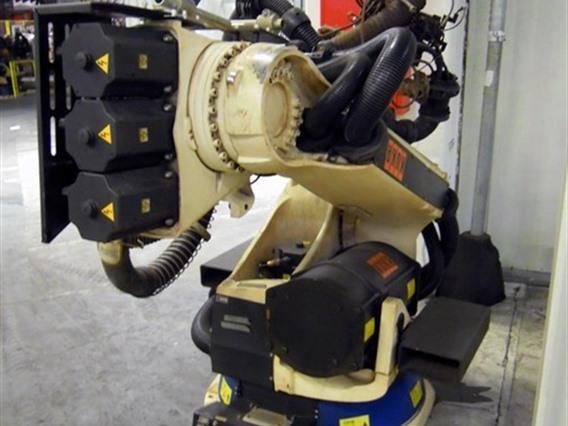

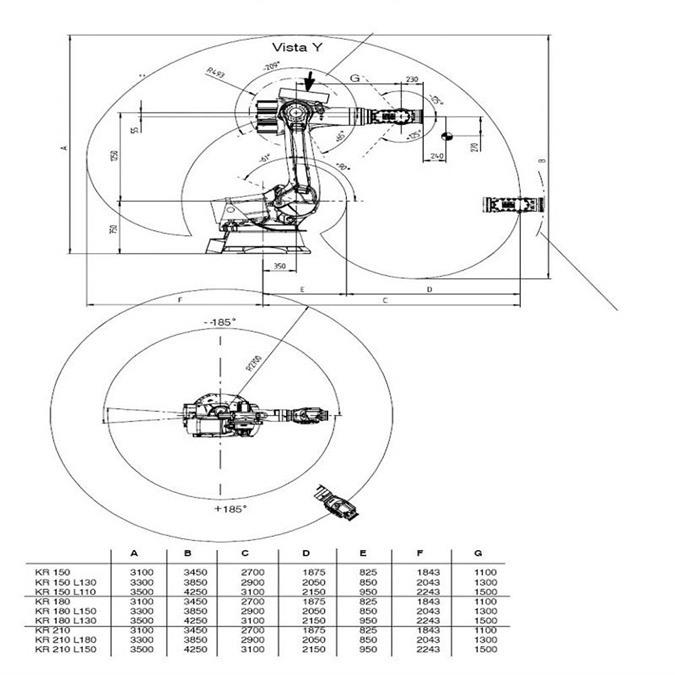

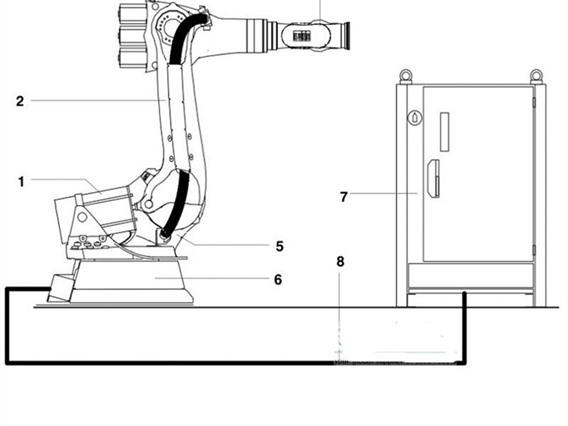

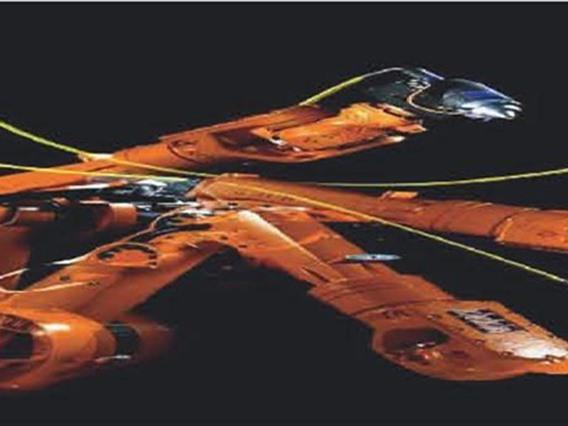

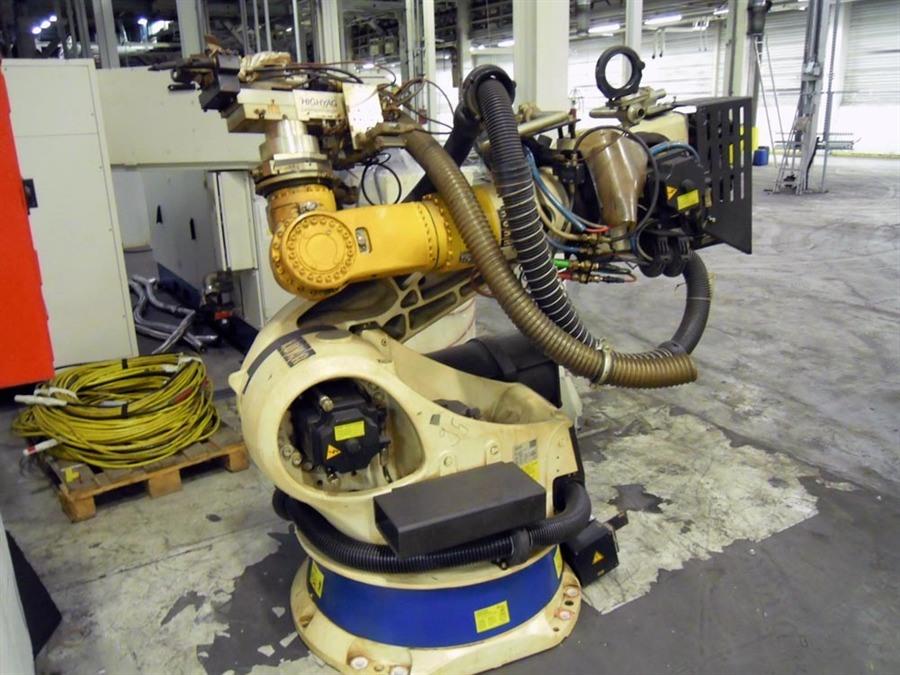

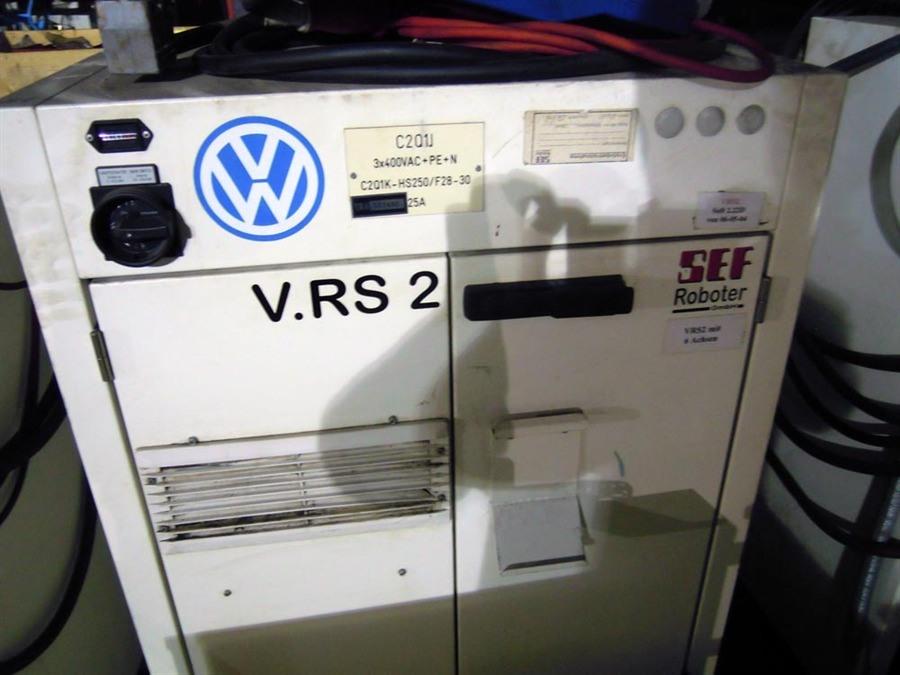

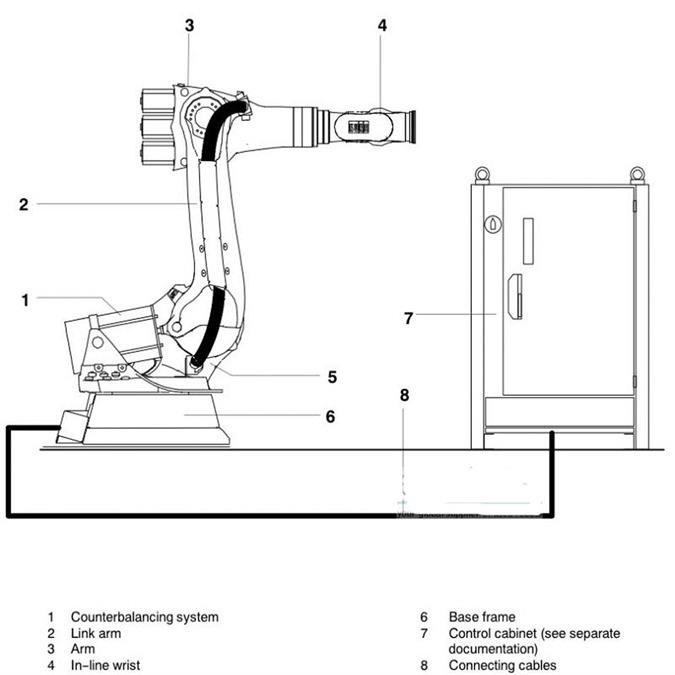

Incl. Kuka TRULaser robot KR 150 + SEF roboter VRS2 soft-controller

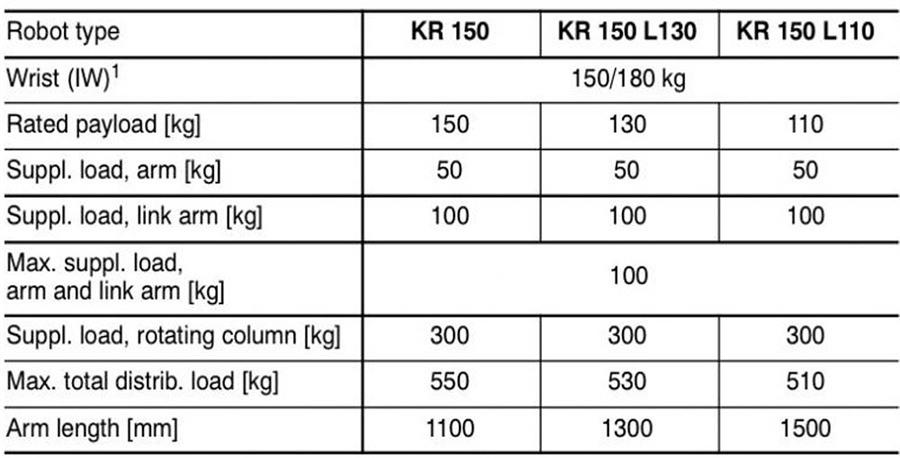

Max load: 150 kg
F.e. welding steelplate 0.7 x 0.7: 100 mm/sec.

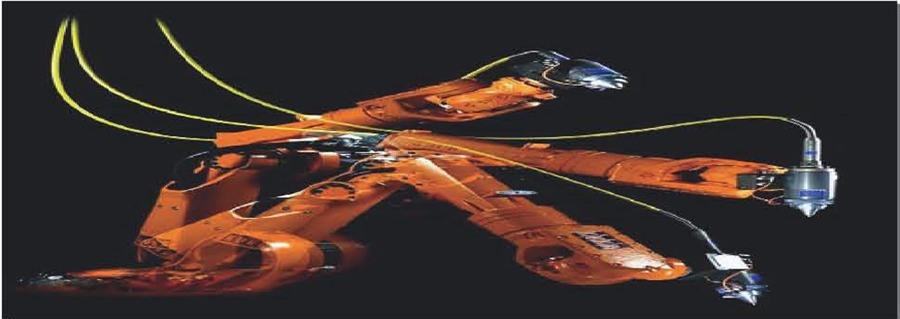

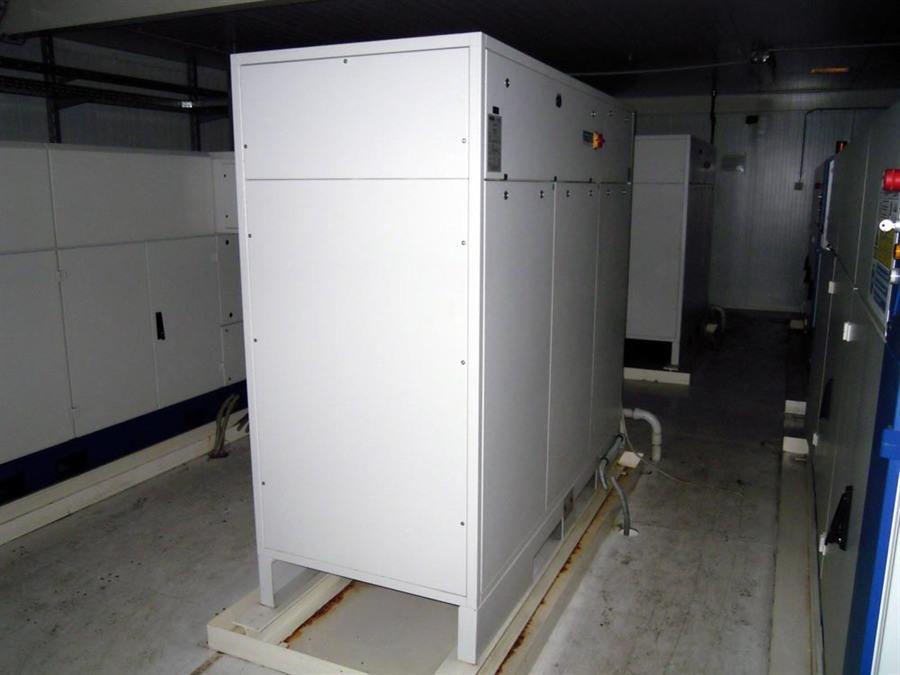

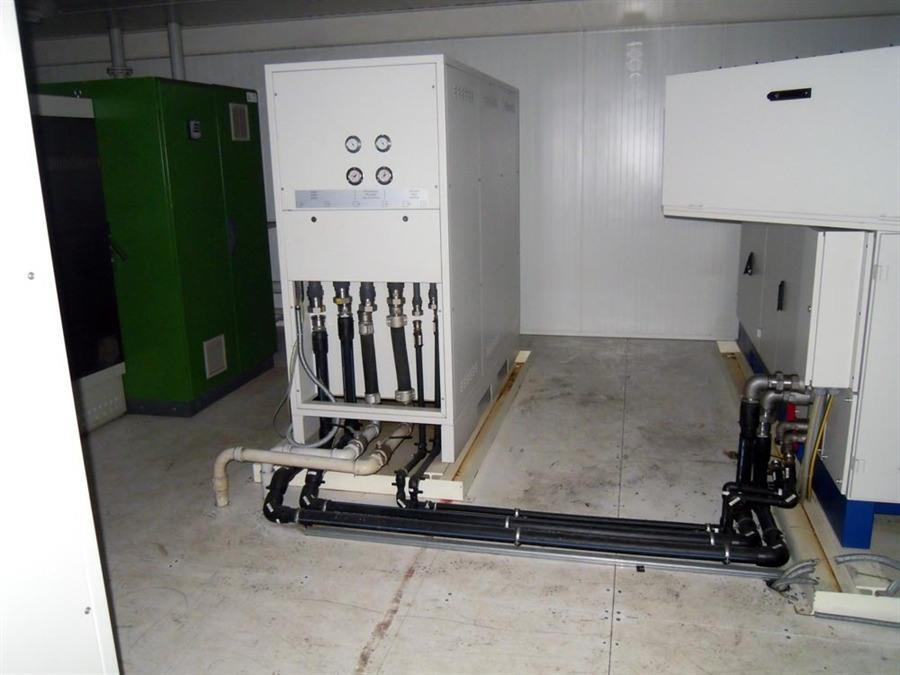

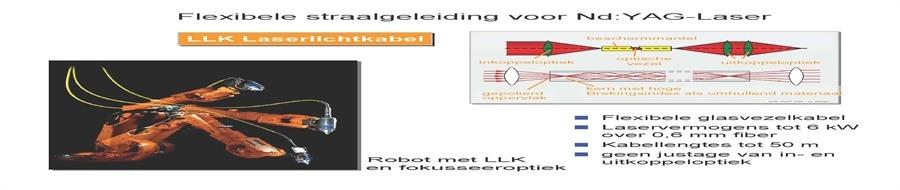

The trumpf resonator feeds the laser by glassfiber cable up to 30m lenght max.
In use 2004, nearly new condition.
(original new price: +700000€ laserwelding + robot)
- Typ/Modell: YAG laser beam welding robot
- Stocknummer: V.03 6280
- Hauptkategorie: [V] Schweissrolstellungen, Manipulatoren, Robotik, Schweisskranen & Schweissbanken
- Unterkategorie: [V.03] Schweissroboter
- Markenname: Trumpf - Kuka
