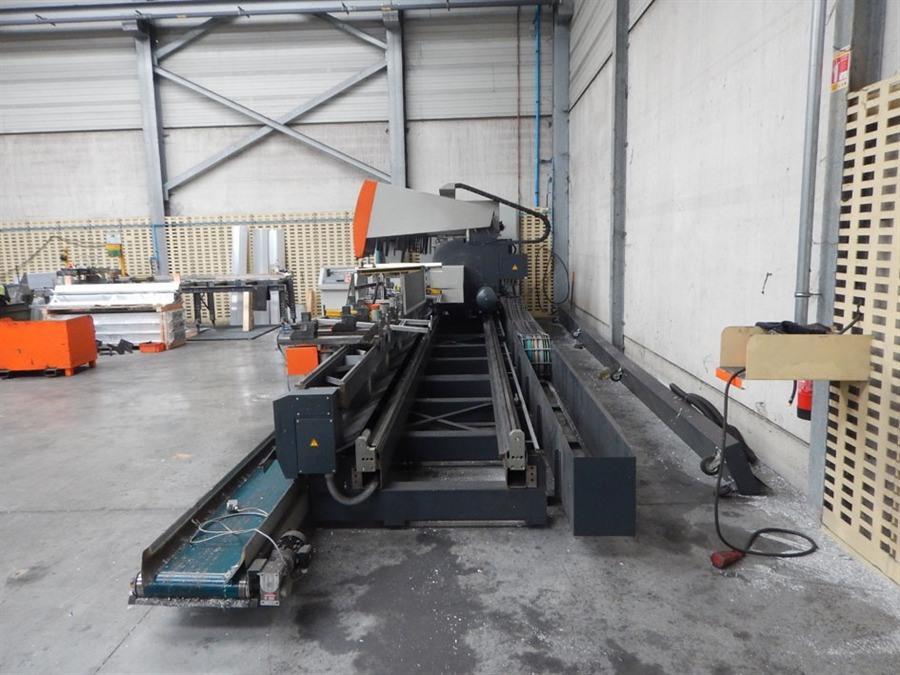

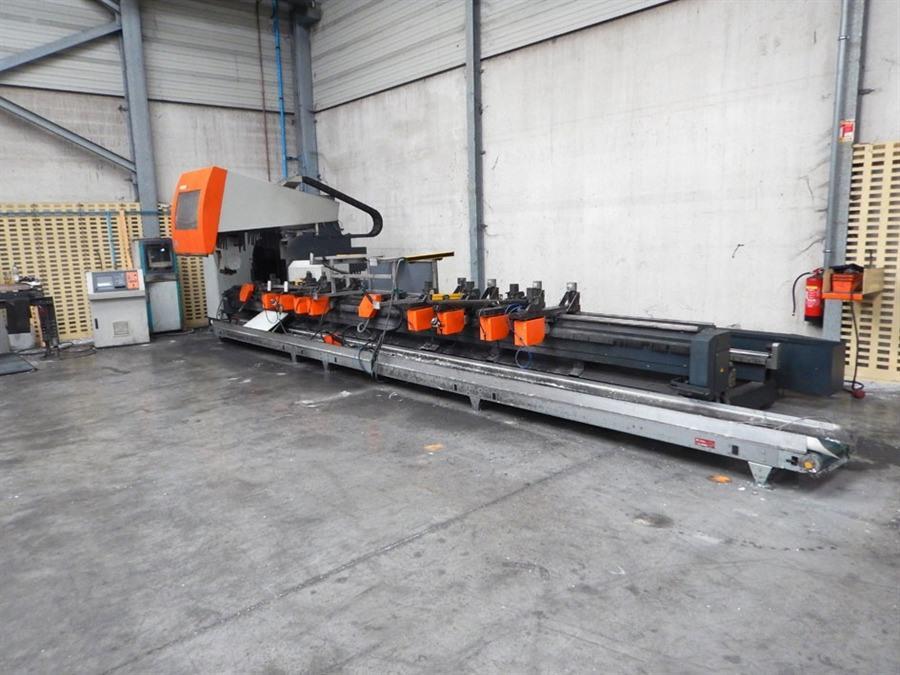

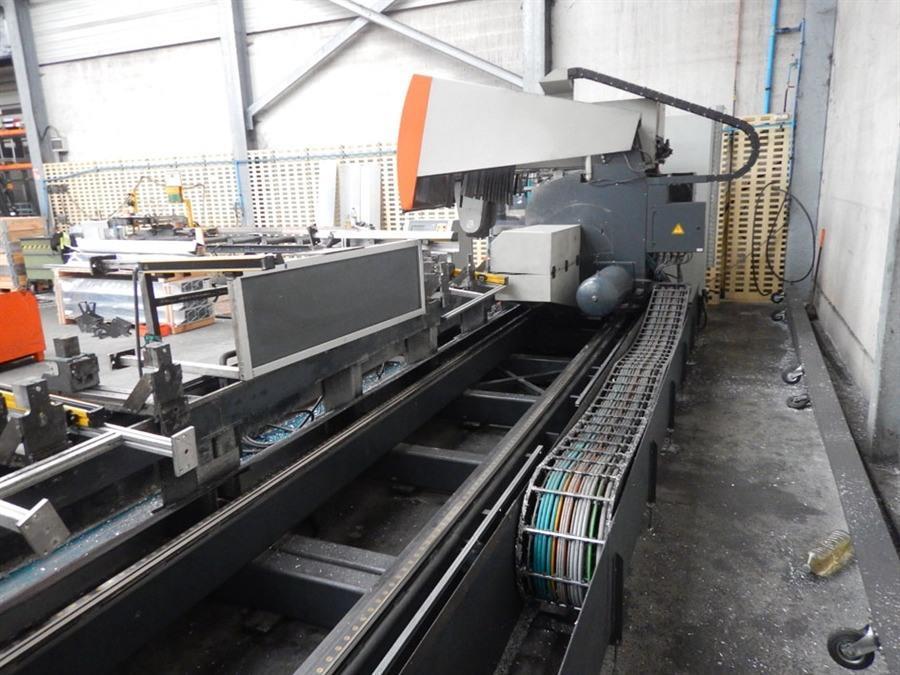

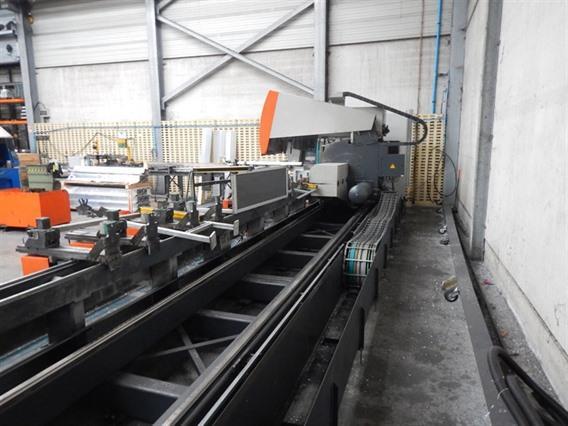

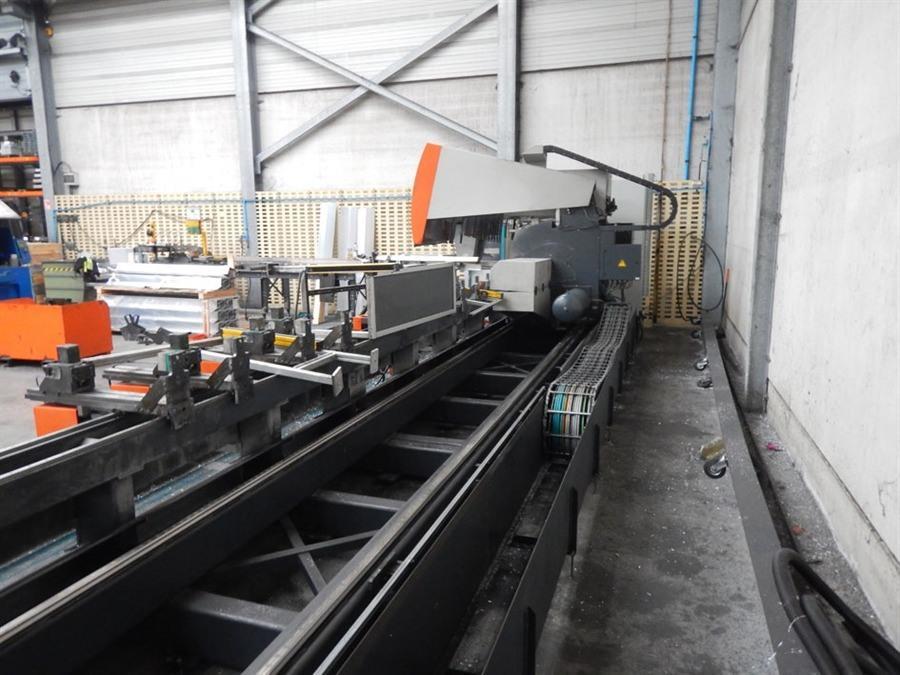

Elumatec SBZ 150 6500 mm CNC
Technische Informationen
- Vorschuss im längsrichtung tisch X-achse6700 mm
- Vorschuss im querrichtung kopf Y-achse 1000 m
- Kopfverstellung im höhe Z-achse650 mm
- Spindelaufnahme (ISO)HSK63
- Leistung auf spindel15 kW
- Bohr-kapazitätyes
- Gewindebohrer-kapazitätyes
- Achsen anzahl5
- Werkzeugwechsleryes
- Anzahl werkzeughalters8+3
- Tourenzahl (von X bis Y rpm)22 000 rpm
Zusätzliche Informationen

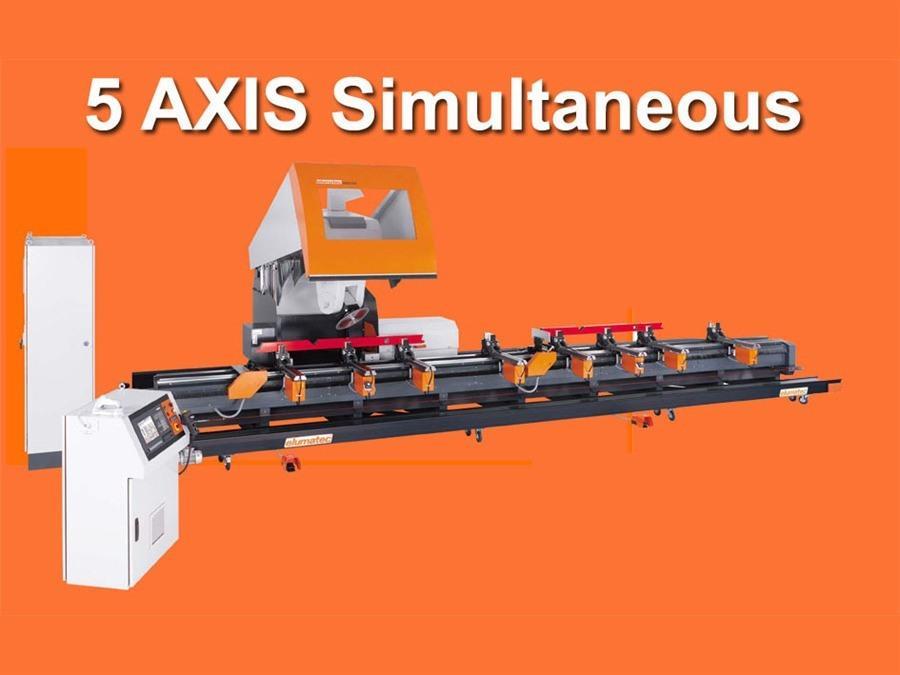

- 5-axis profile machining centre 6-side processing

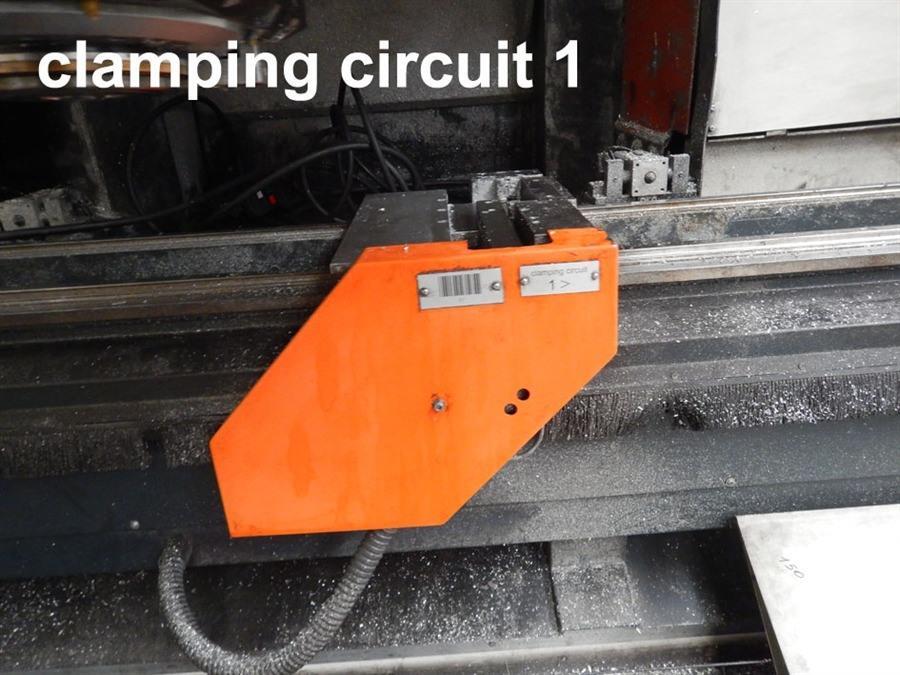

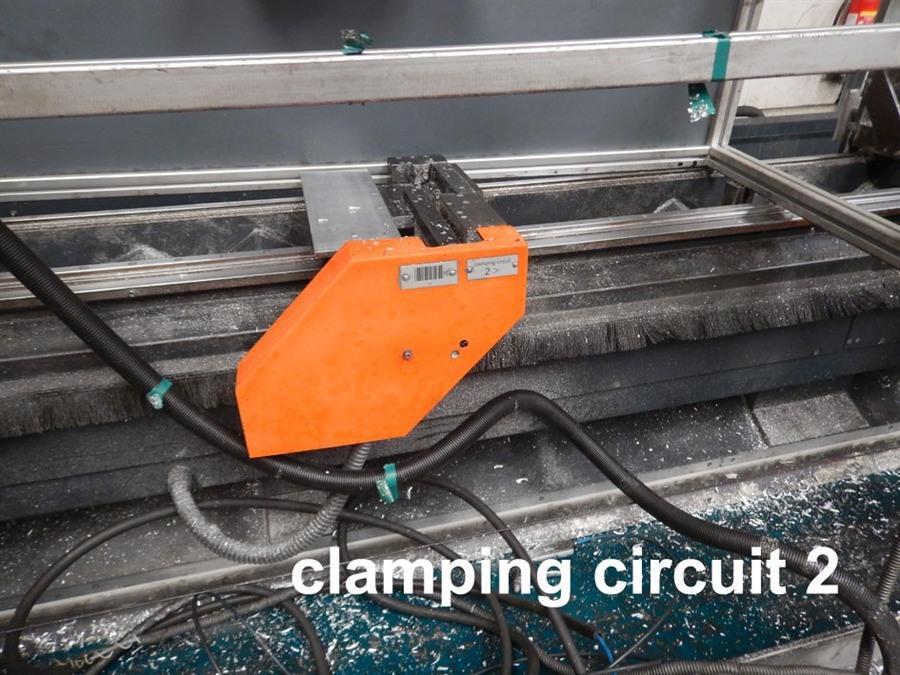

2 clamping circuits; machine can work on one side while the operatior can work on the other side

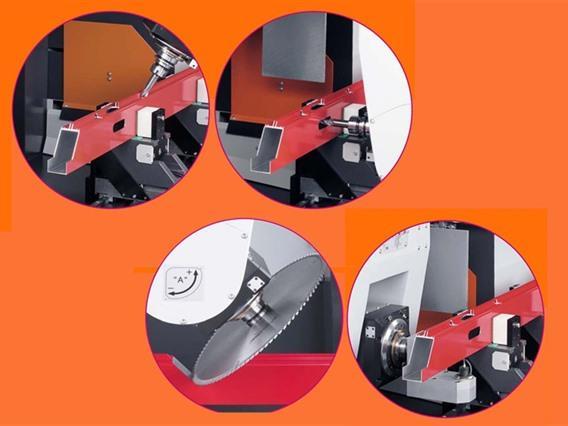

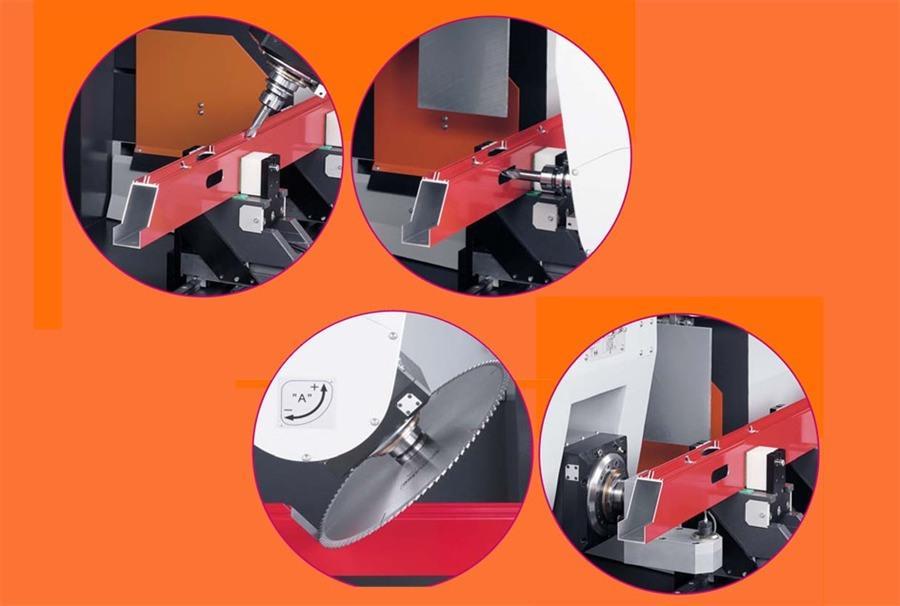

Processing in aluminium: Drilling, routing, taping, cutting and notching
Processing in steel: Drilling, routing, taping.

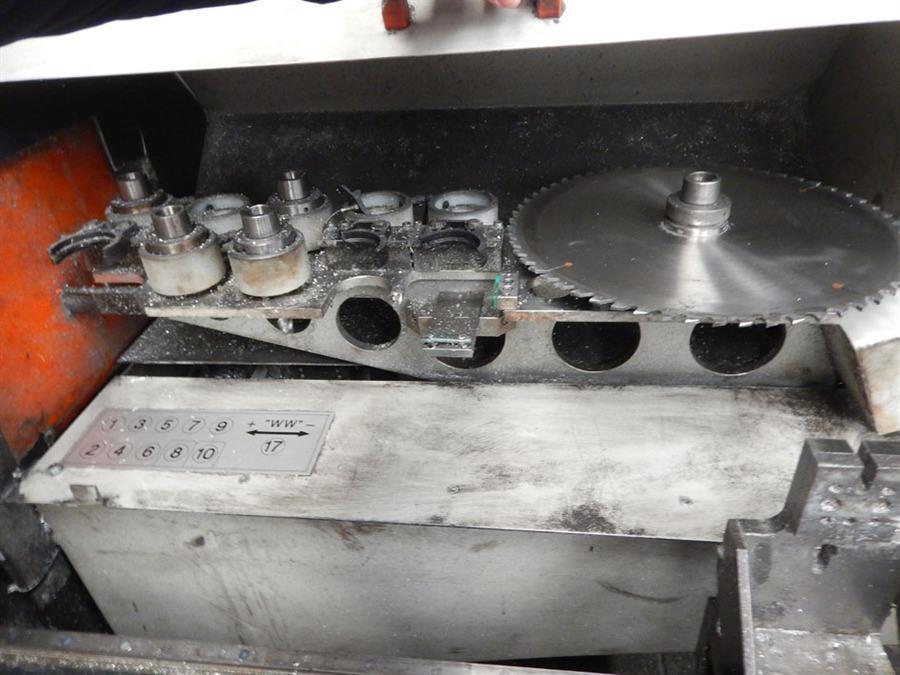

Automatic tool changer with 8 standard tools and 3 special tools Travelling capacity X-axis V.max: 60m/min
Travelling capacity Y-axis V.max: 36m/min
Travelling capacity Z-axis V.max: 36m/min
Pivoting Angels A-axis: 0° - 90° free programmable in 1/10° steps
Pivoting Angels C-axis: 0° - 350° free programmable in 1/10° steps

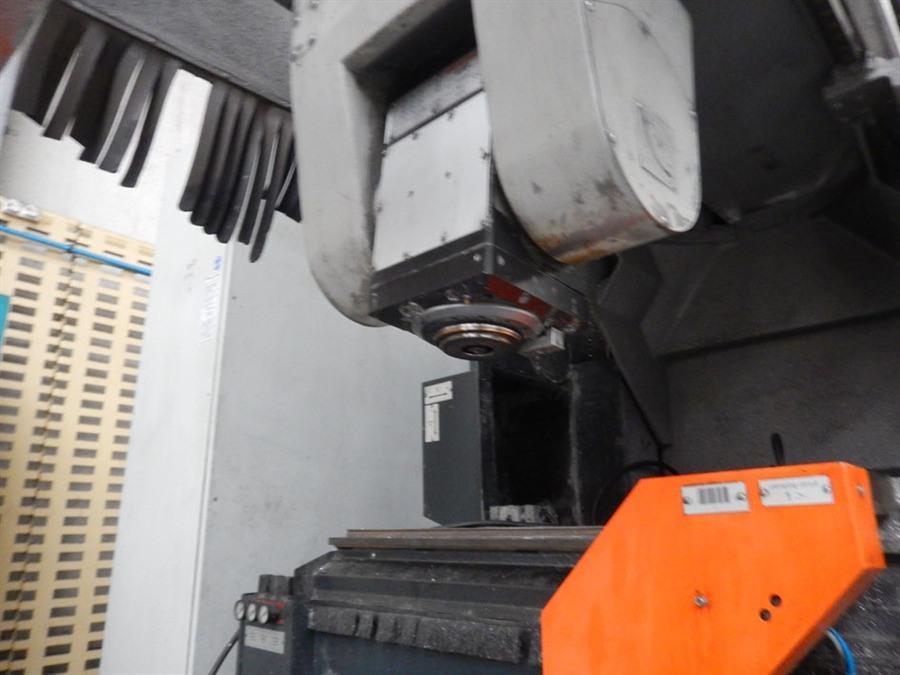

Angle router head for processing from below.

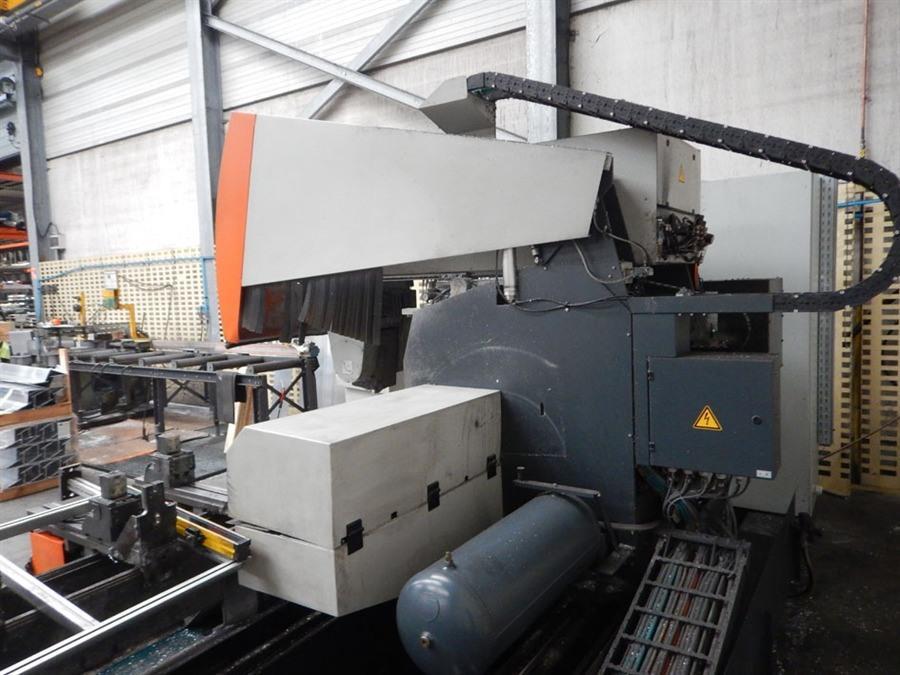

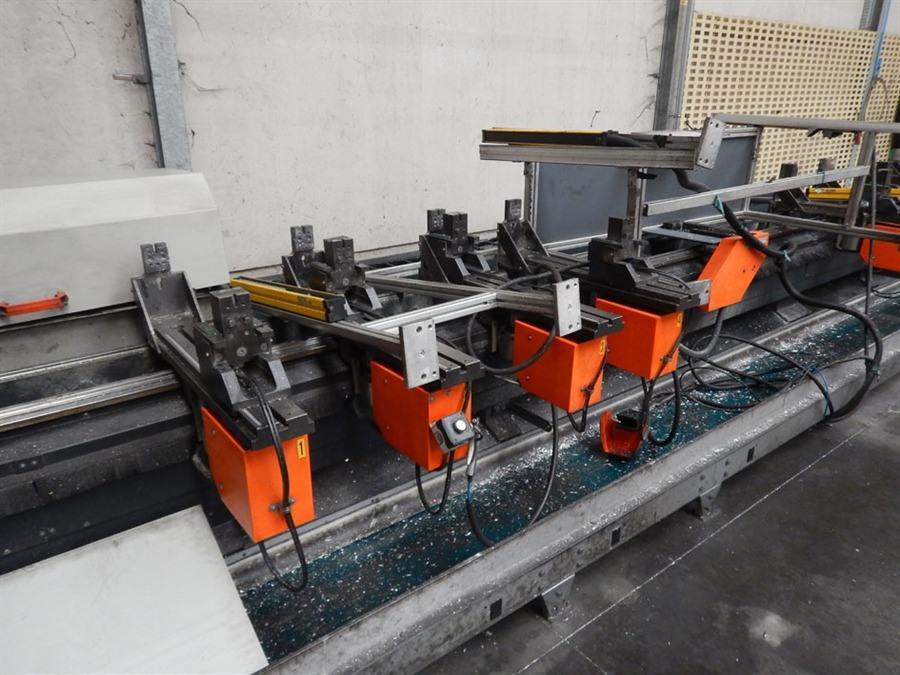

1 Sawmodule Ø 500 mm automatic clamping automatic movement of the clamps automatic profile measuring system
- Typ/Modell: 6500 mm CNC
- Stocknummer: D.01 10170
- Hauptkategorie: [D] Bearbeitungszentren
- Unterkategorie: [D.01] Senkrecht- Bearbeitungszentren CNC
- Markenname: Elumatec SBZ 150
