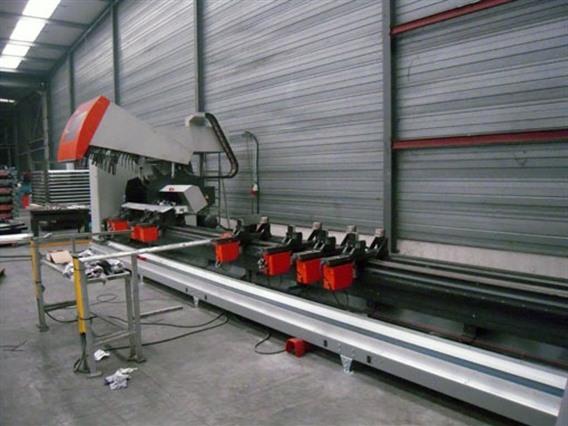

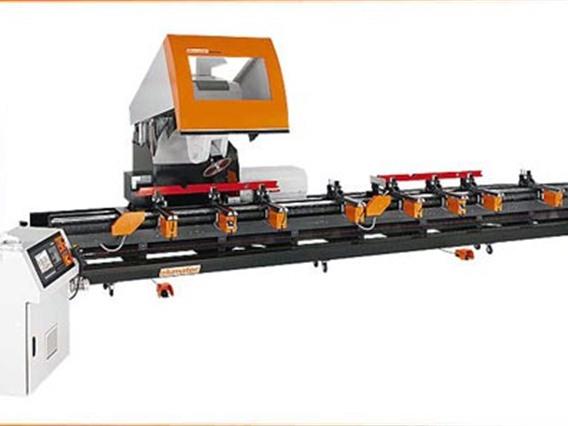

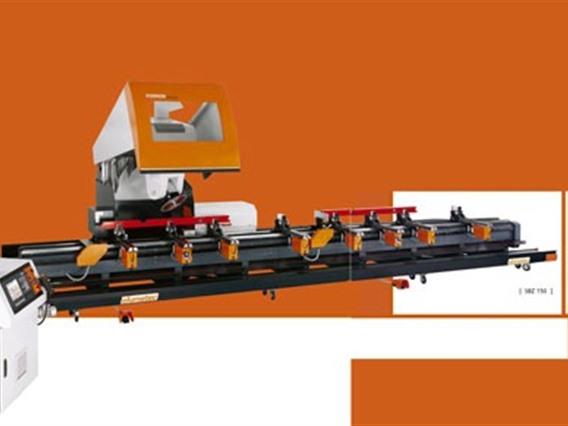

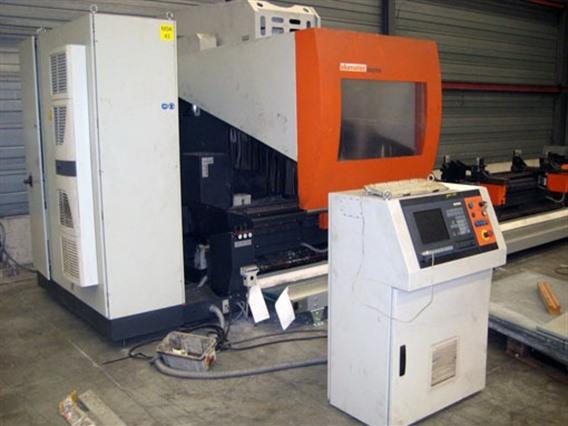

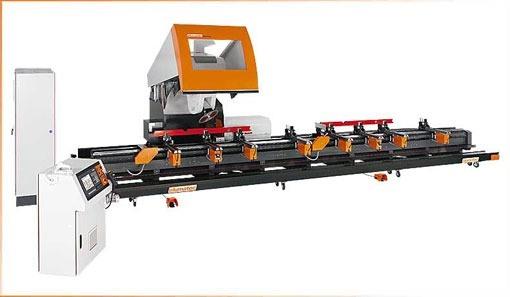

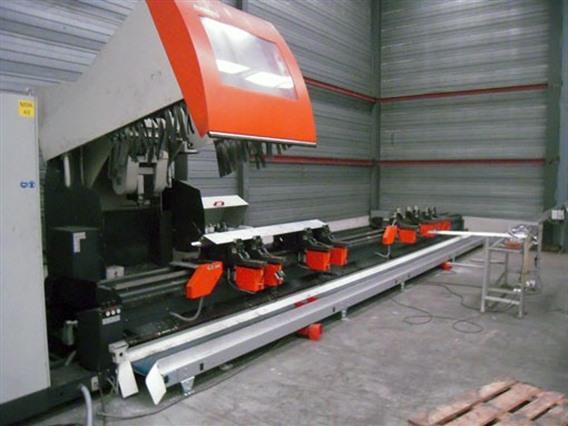

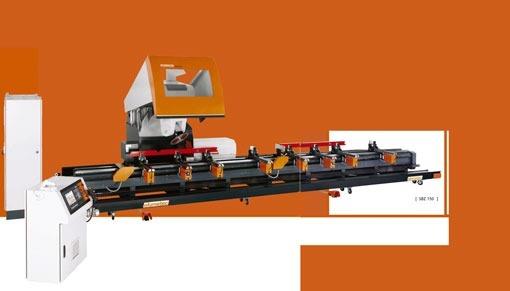

Senkrecht- Bearbeitungszentren CNC Elumatec SBZ 150 - 7300 CNC
Technische Informationen
- Vorschuss im längsrichtung tisch X-achse7800 mm
- Vorschuss im querrichtung kopf Y-achse 1000 mm
- Kopfverstellung im höhe Z-achse650 mm
- Spindelaufnahme (ISO)HSK 63
- Leistung auf spindel15 kW

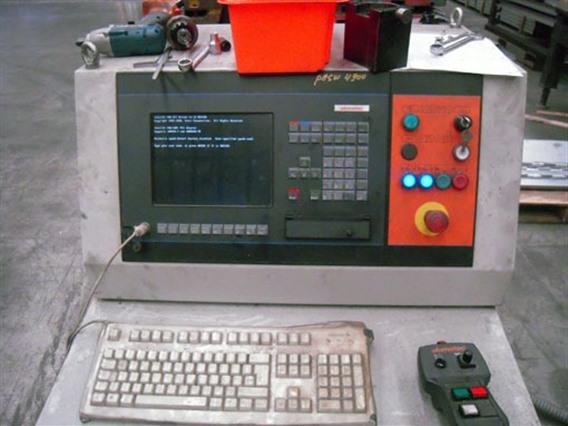

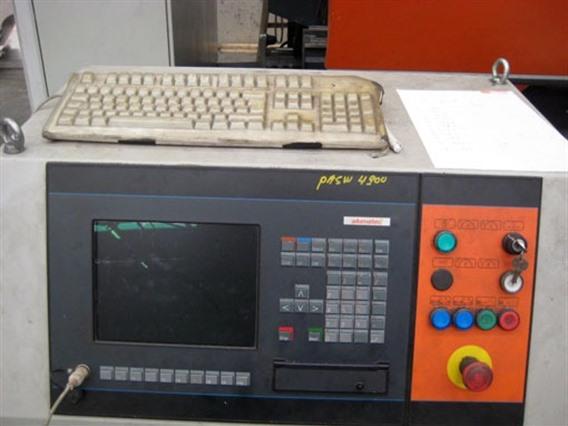

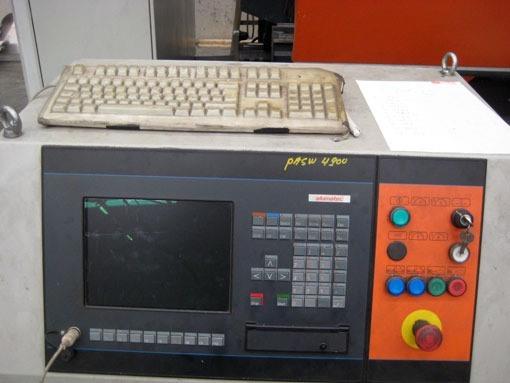

- Steuering (type)Elusoft
- Werkzeugwechsler*
- Anzahl werkzeughalters8 + 3
- Tourenzahl (von X bis Y rpm)max 22000 rpm
Zusätzliche Informationen

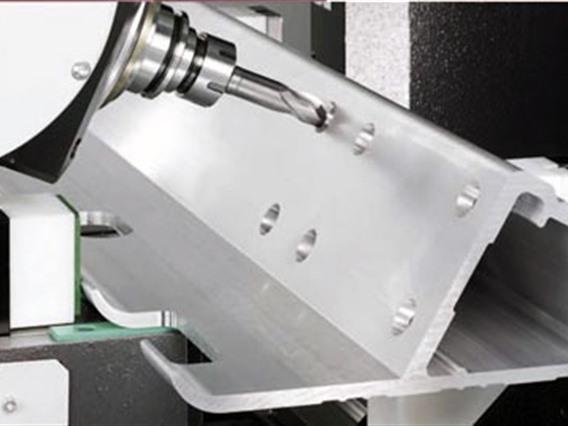

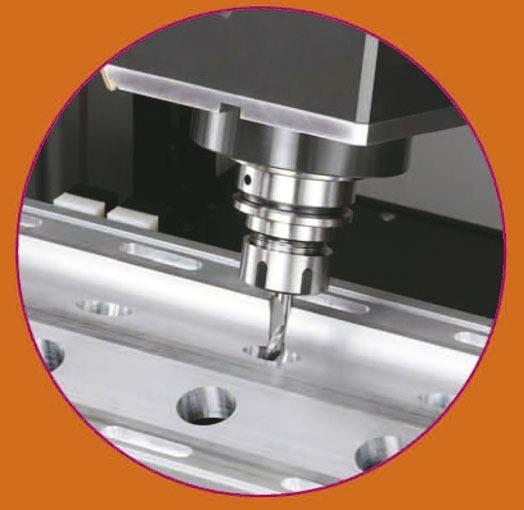

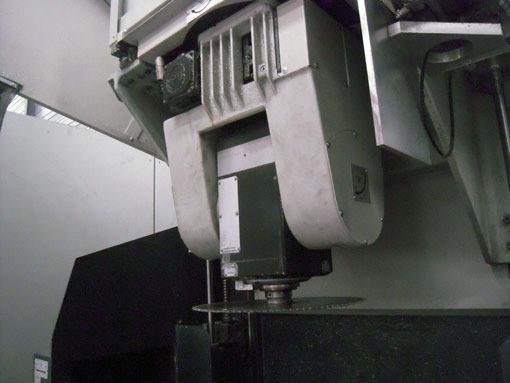

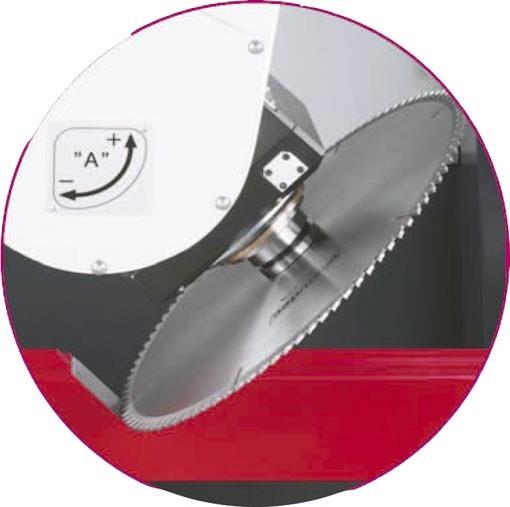

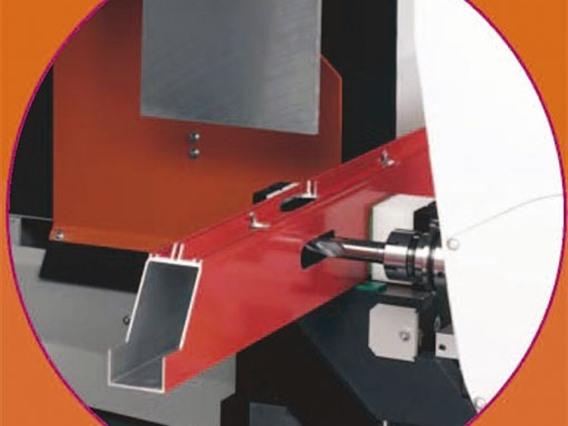

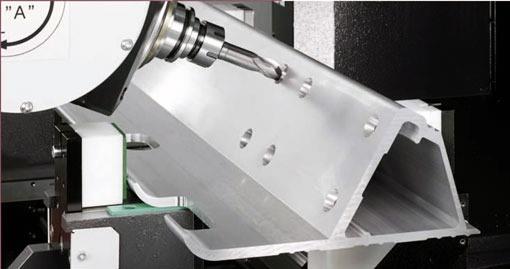

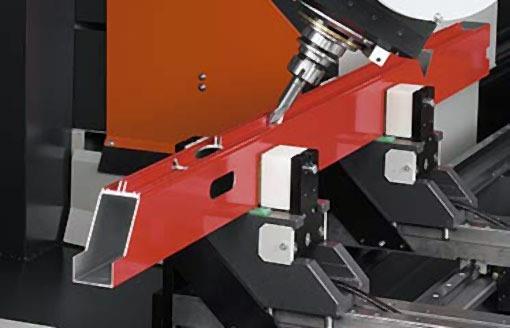

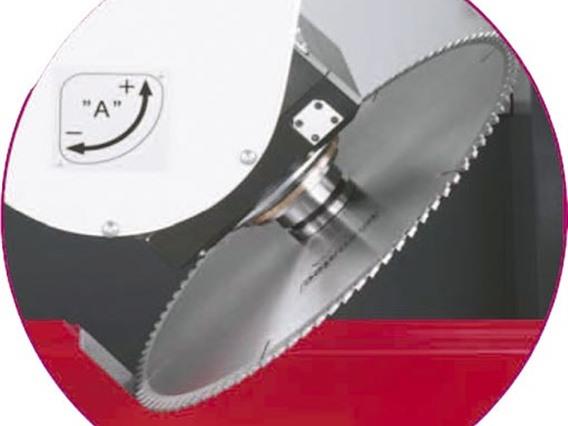

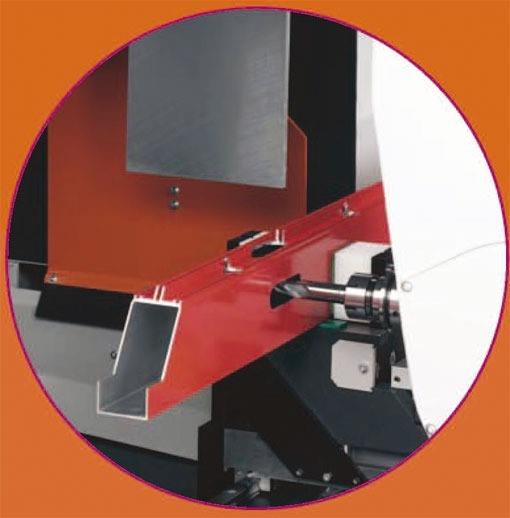

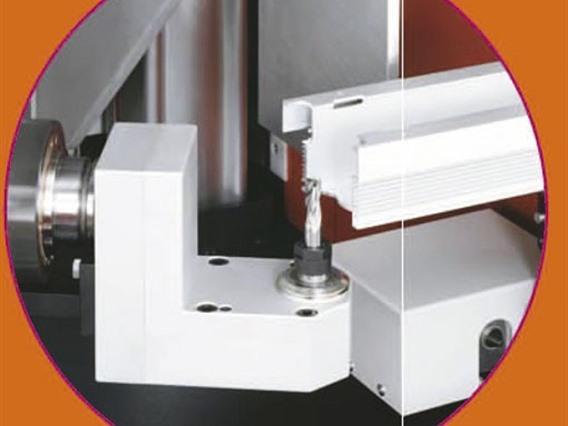

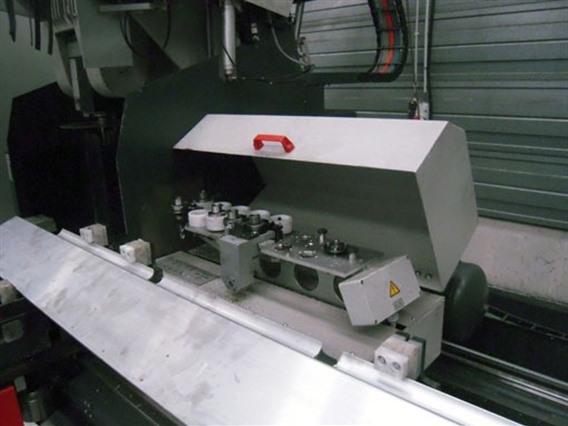

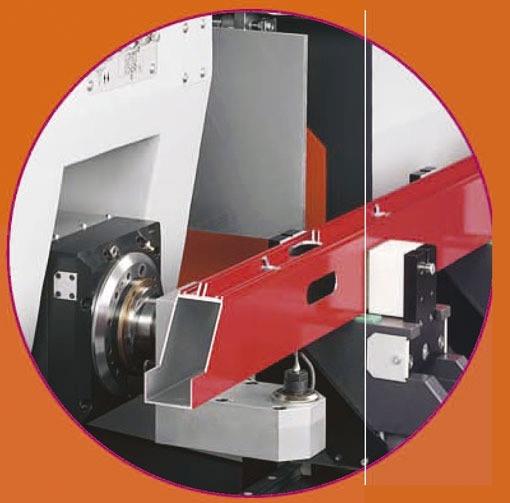

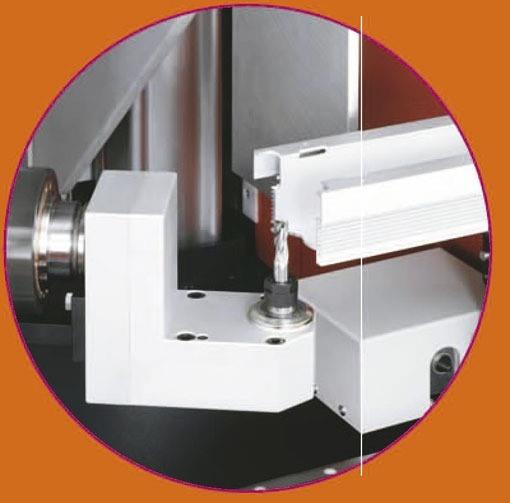

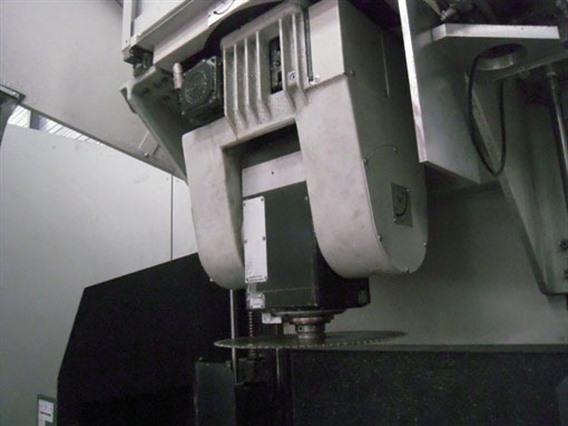

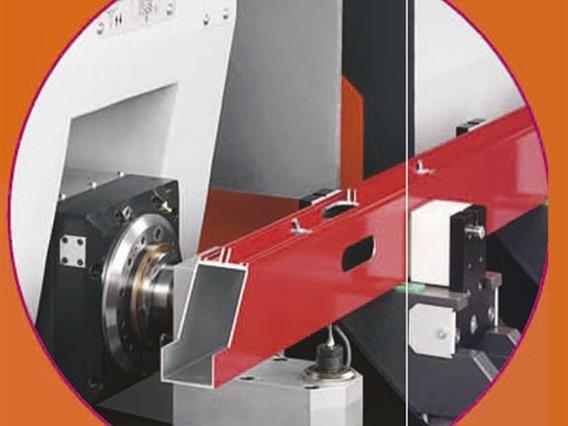

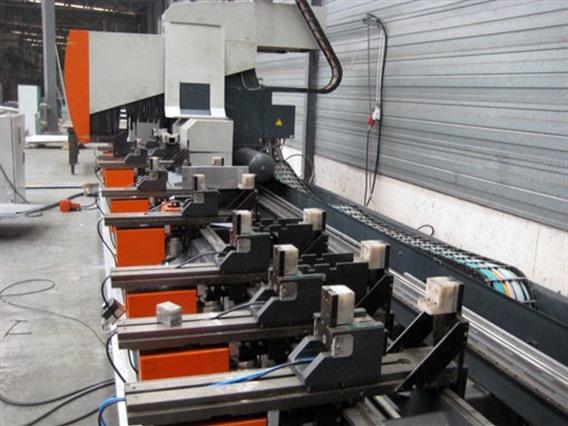

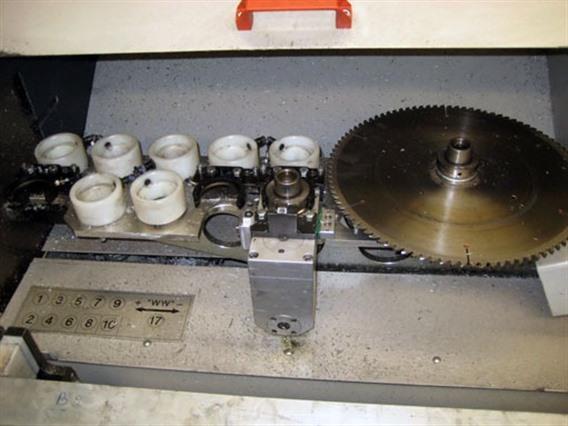

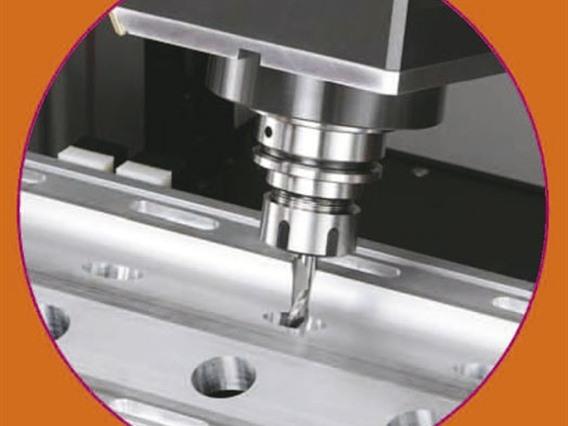

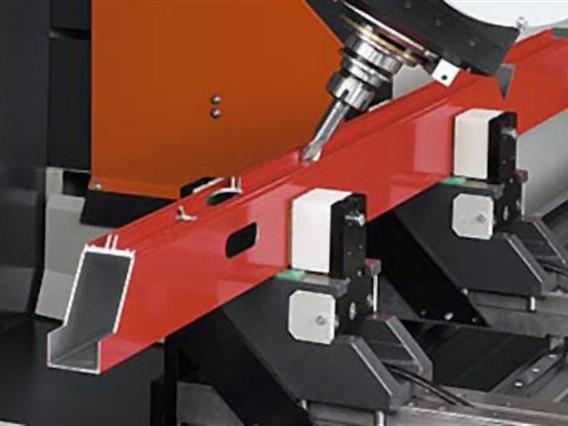

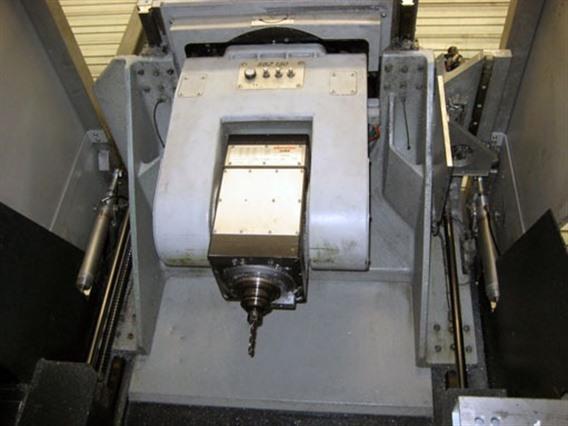

- 5-axis profile machining centre 6-side processing Processing in aluminium: Drilling, routing, taping, cutting and notching Processing in steel: Drilling, routing, taping. Automatic tool changer with 8 standard tools and 3 special tools Travelling capacity X-axis V.max: 60m/min Travelling capacity Y-axis V.max: 36m/min Travelling capacity Z-axis V.max: 36m/min Pivoting Angels A-axis: 0° - 90° free programmable in 1/10° steps Pivoting Angels C-axis: 0° - 350° free programmable in 1/10° steps Angle router head for processing from below. 1 Sawmodule Ø 500 mm automatic clamping automatic movement of the clamps automatic profile measuring system
- Typ/Modell: SBZ 150 - 7300 CNC
- Stocknummer: D.01 4714 *08
- Hauptkategorie: [D] Bearbeitungszentren
- Unterkategorie: [D.01] Senkrecht- Bearbeitungszentren CNC
- Markenname: Elumatec
