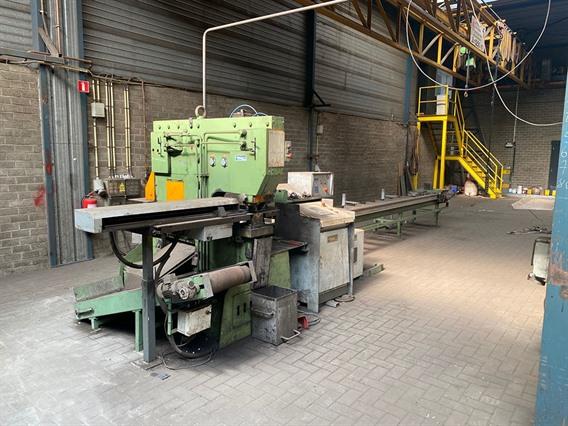

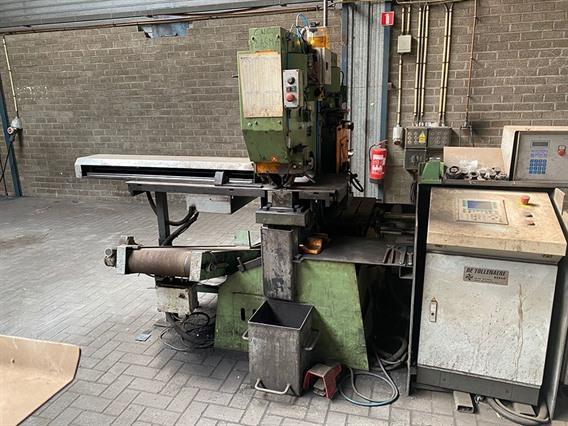

Peddinghaus Peddimax 100 ton CNC
Zusätzliche Informationen
- Peddimax 1002 combi punch/shear/notching
with CNC Siemens X & Y positioning table for punchstation
with CNC MPS pushfeed system > 6 meter for auto cutting flat steel (with hydraulic workpiece clamping)

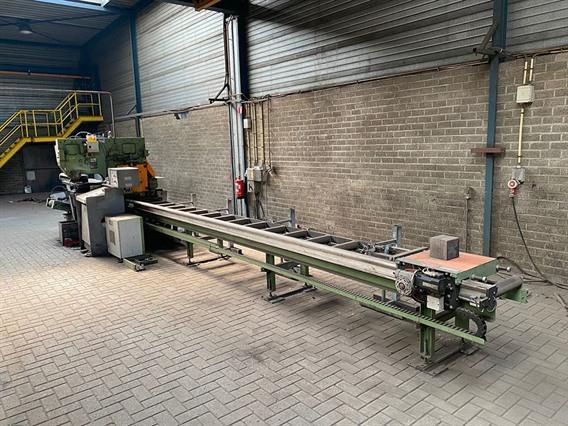

with conveyor belt for cut pieces
central lubrification
Dia x sheetthicknessdia: dia 31 in 25 mm / dia 90 in 10 mm
Depth of throat 510 mm
Max hole dia. Ø 90 mm
Max cutting-thickness in plate: 500 x 20 mm
Blade length 510 mm
90°-cut corner 150 x 150 x 12 mm
45°-cut corner 100 x 100 x 12 mm
Cut to length round/square 50 mm
Max material -thickness by notching: 90 x 52 x 13 mm
- Typ/Modell: 100 ton CNC
- Stocknummer: P.13 12549
- Hauptkategorie: [P] Scheren, Univ. formstahlscheren mit lochstanze, Quer- und Langsteilanlage, Lockformers & Sägestrassen
- Unterkategorie: [P.13] Univ. formstahlscheren mit lochstanze
- Markenname: Peddinghaus Peddimax
