Zayer X: 2200 - Y: 1000 - Z: 1000 mm CNC

Der Produkt ist zu Ihren Favoriten hinzugefügt

» Fragen Sie ein individuelles Angebot

Technische Informationen

Max vorschub im längsrichtung X-achse2200 mm
Max vorschub in querrichtung Y-achse1016 mm
Max vorschub im höhe Z-achse1016 mm
Leistung auf spindel15 HP
Bohrkopf aufnahme (ISO)ISO 50
Geschwindigkeiten28 > 1800 rpm
Tisch abmessungen2200 x 1000 mm

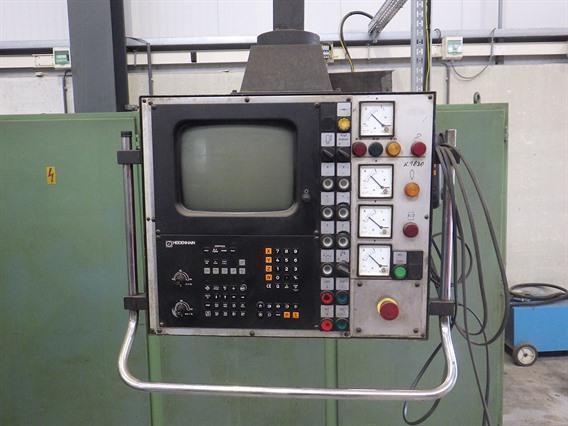

SteueringHeidenhain TNC 360
Länge L -- R4500 mm
Tieffe V -- H2800 mm
Höhe2950 mm
Gewicht12 ton

Zusätzliche Informationen

Type: 2200 BF3

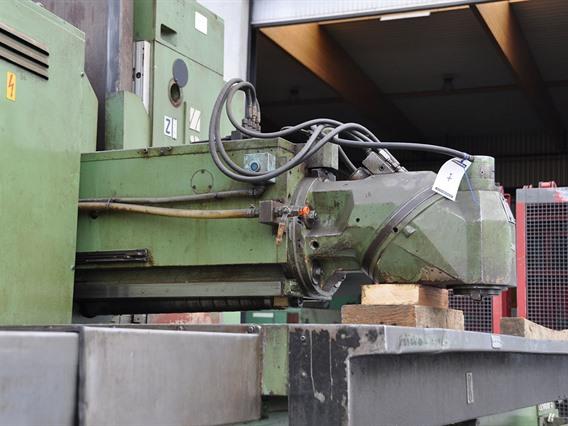

Universal Huron milling head:
> hydraulic automatic positioning (4 pos)
> manual indexing
Typ/Modell: X: 2200 - Y: 1000 - Z: 1000 mm CNC
Stocknummer: B.01 10264
Hauptkategorie: [B] Frasmaschinen
Unterkategorie: [B.01] Universal-frasmaschinen & CNC
Markenname: Zayer

» Fragen Sie ein individuelles Angebot

Stocknummer: B.01 10264

Zayer X: 2200 - Y: 1000 - Z: 1000 mm CNC
