Emmegi Quadra ST 7000

Produit ajouté à vos favoris

Information technique

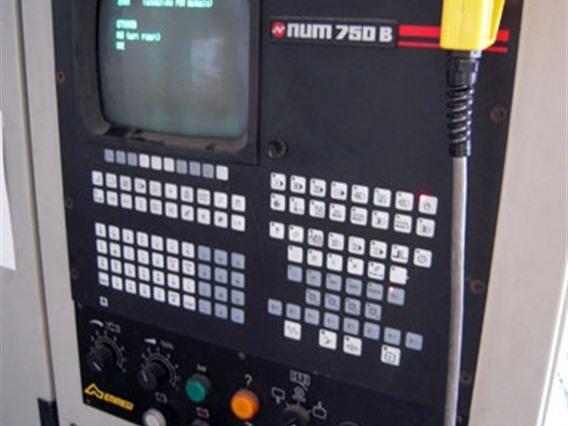

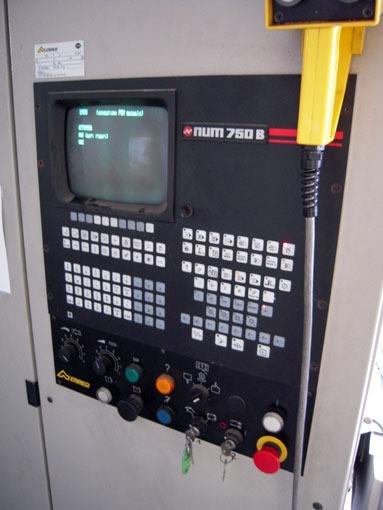

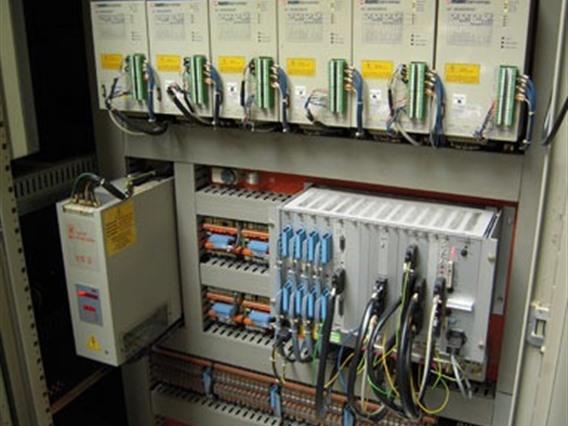

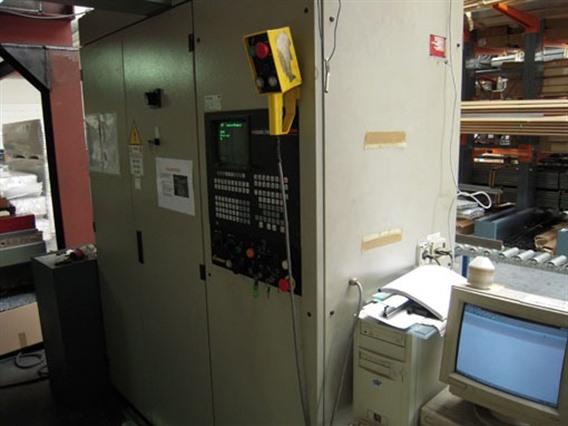

Contrôle de la tableNUM 750 B
poids total7400 kg

Informations complémentaires

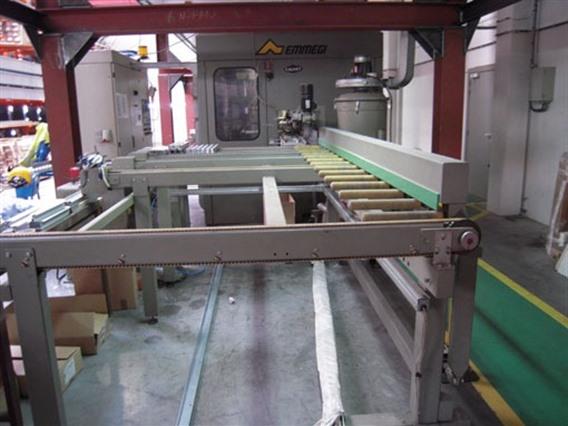

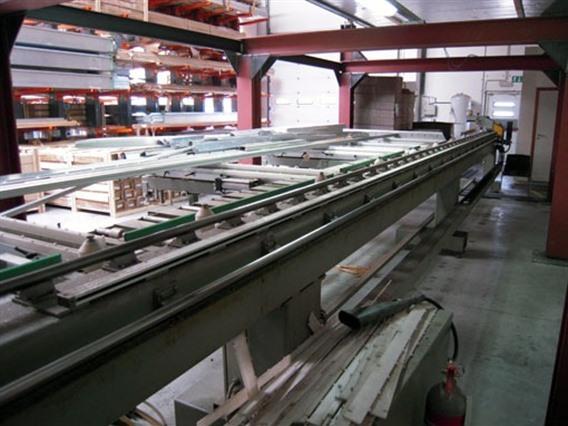

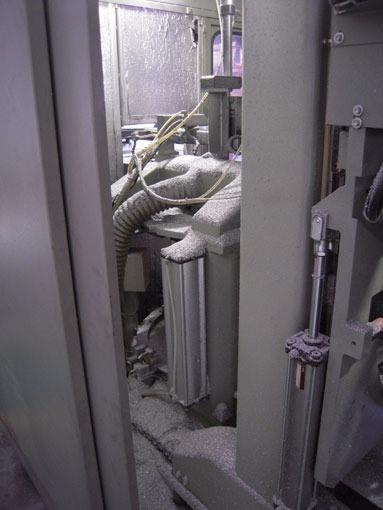

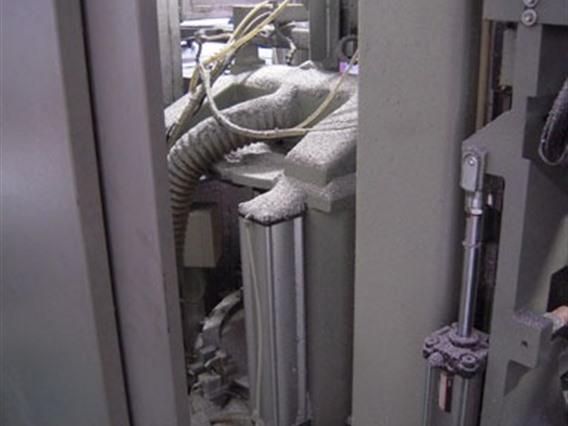

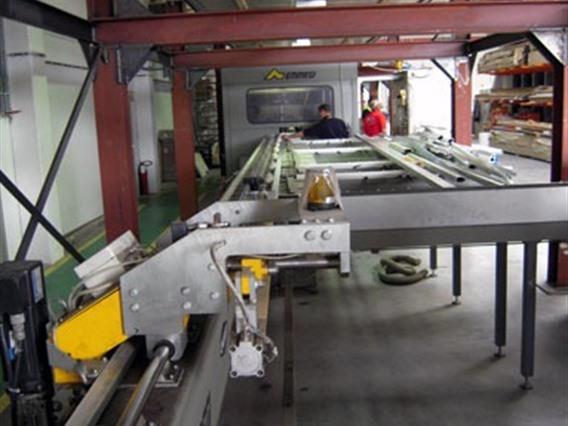

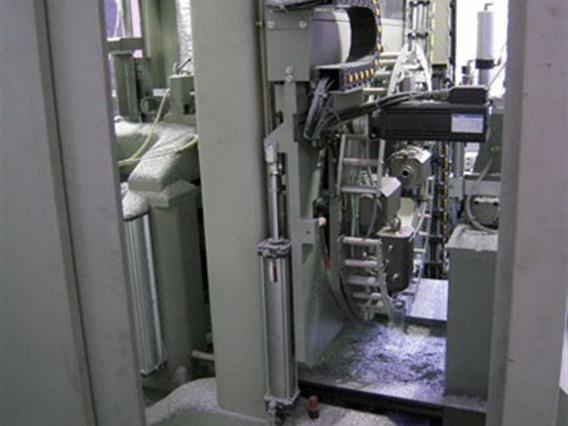

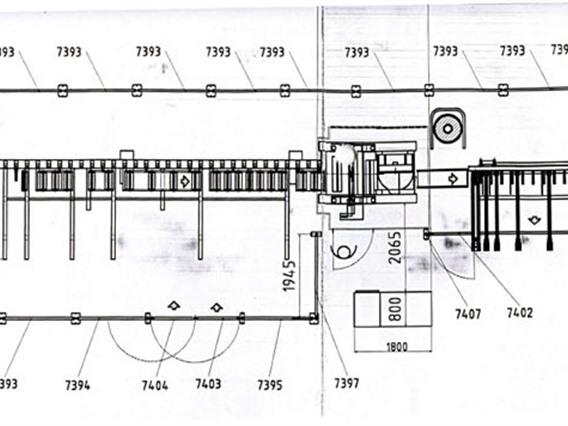

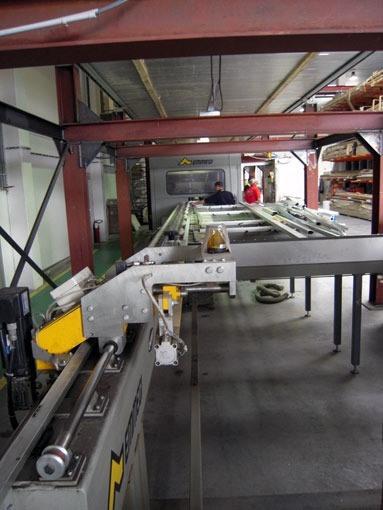

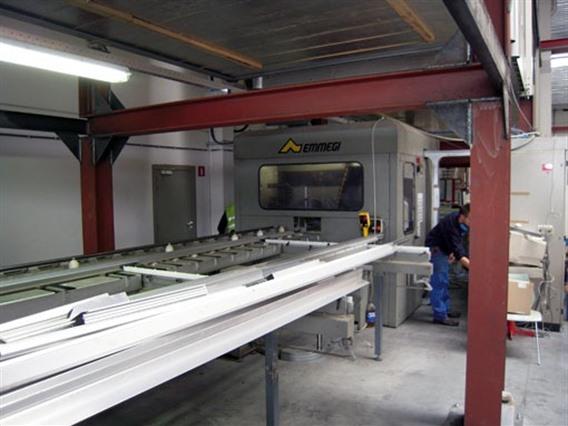

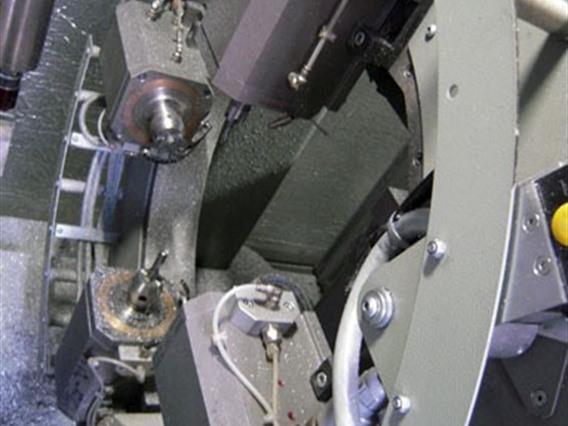

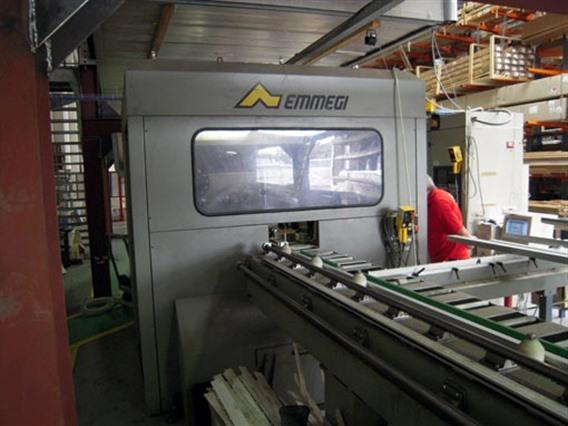

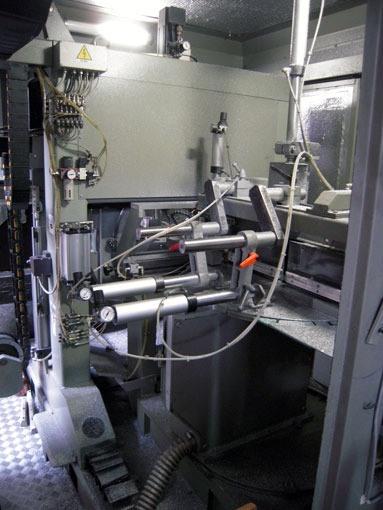

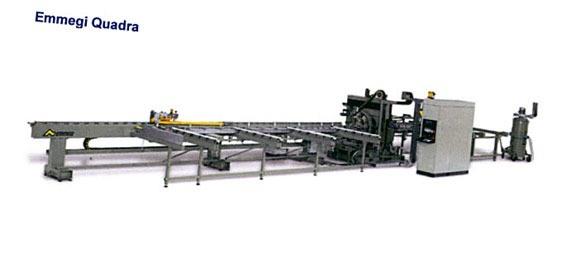

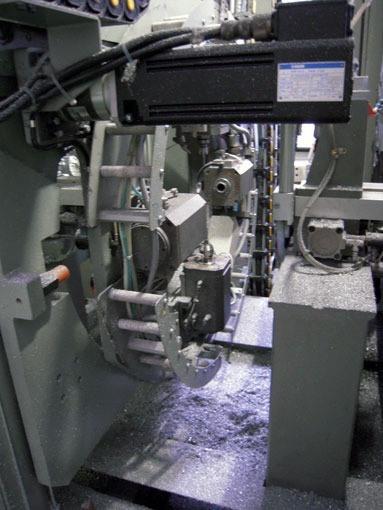

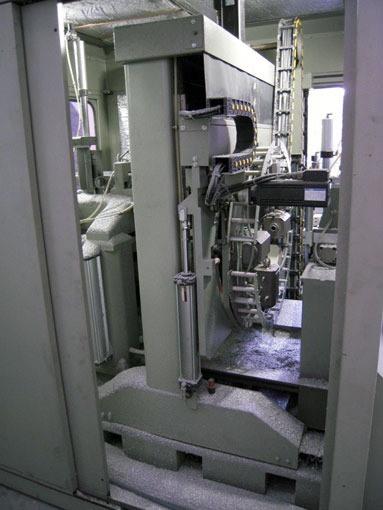

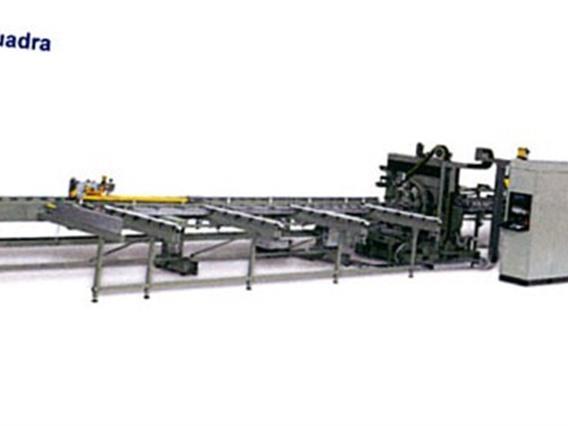

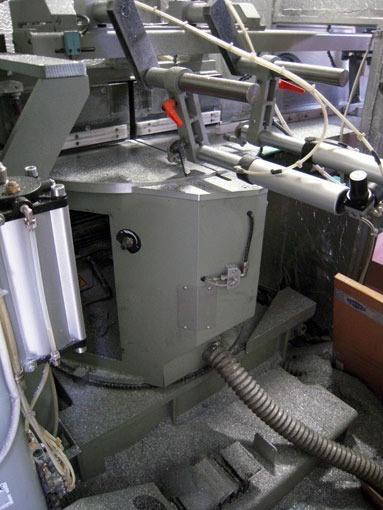

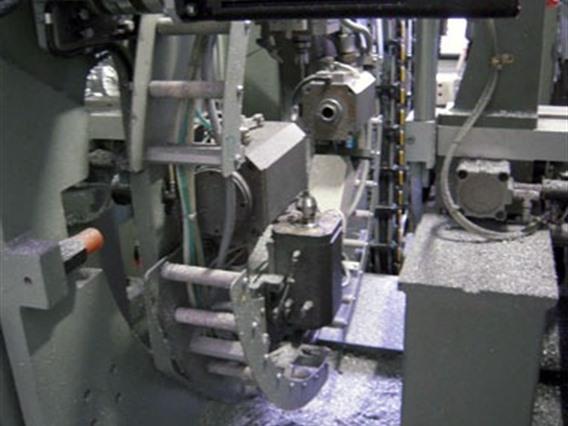

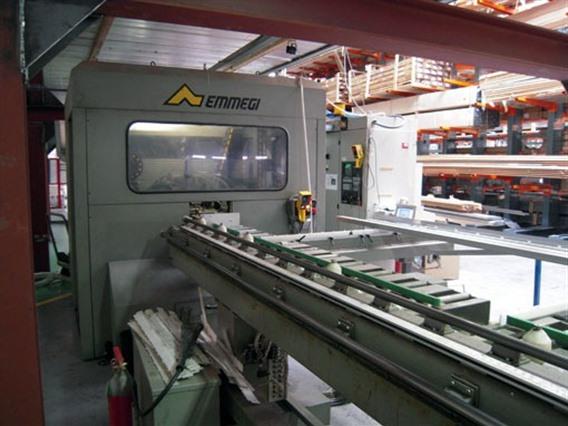

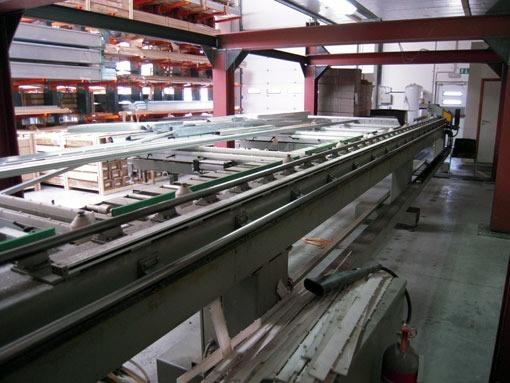

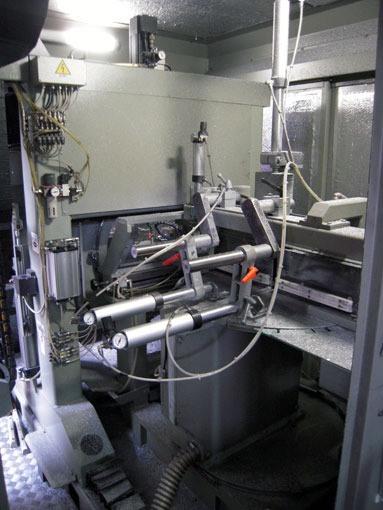

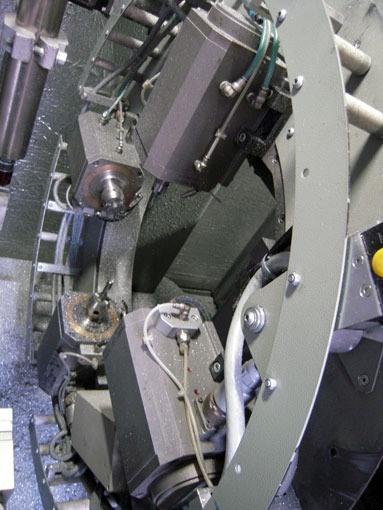

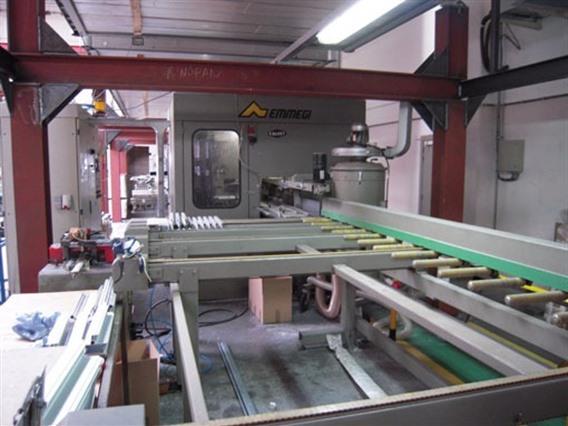

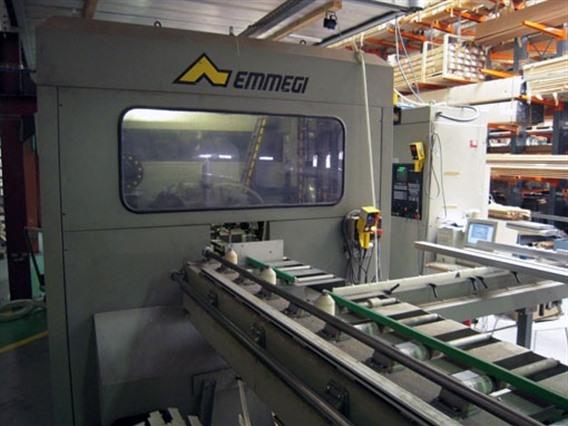

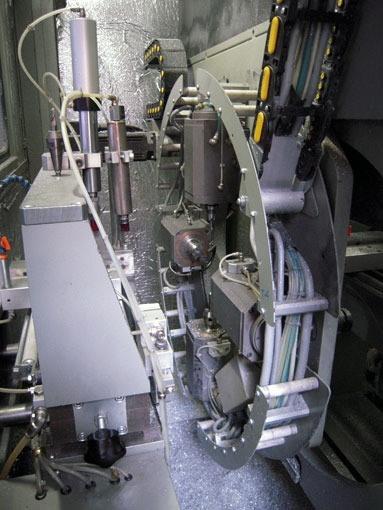

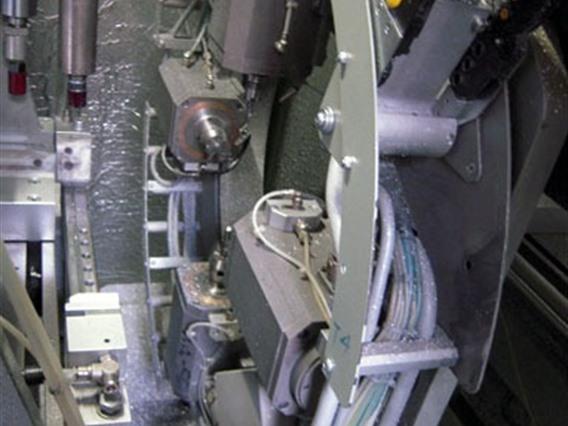

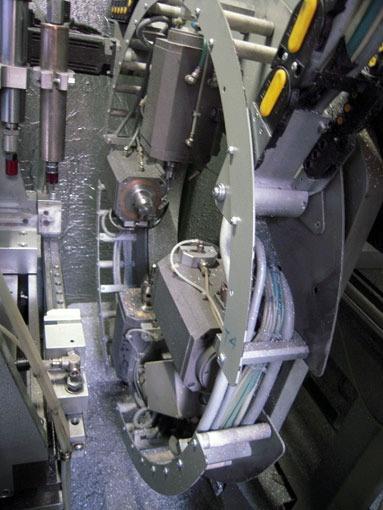

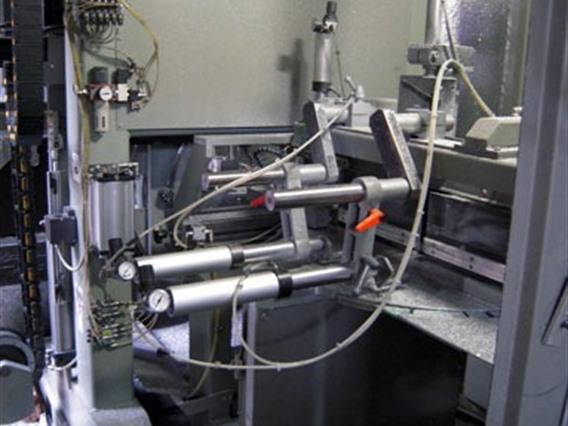

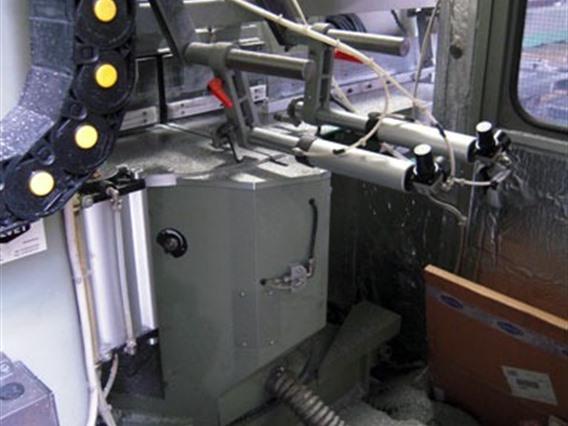

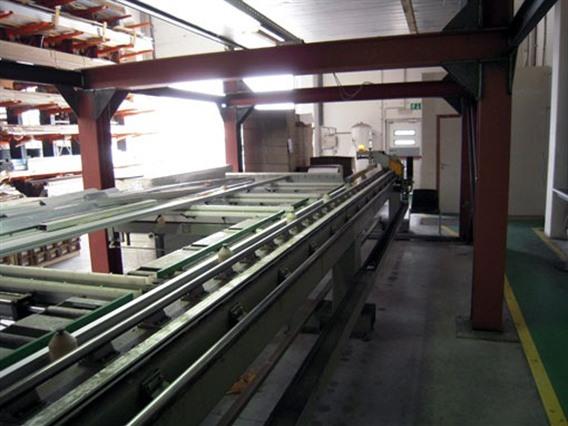

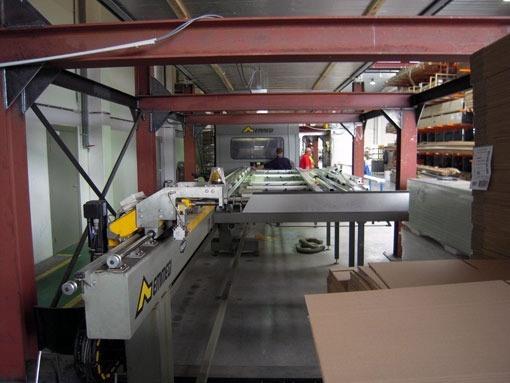

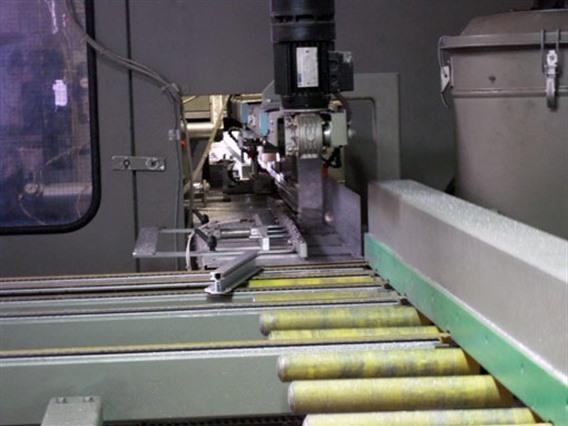

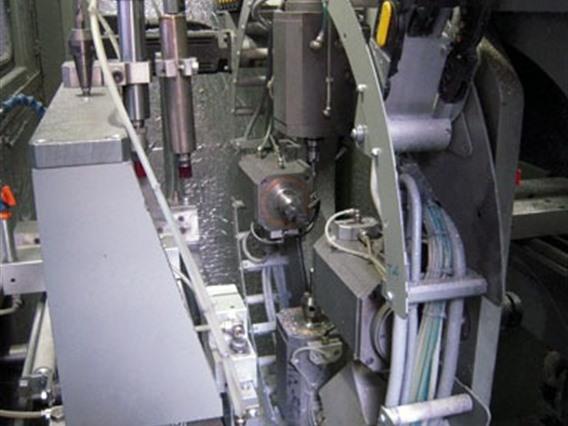

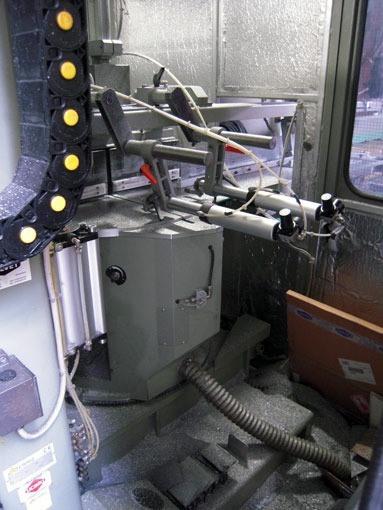

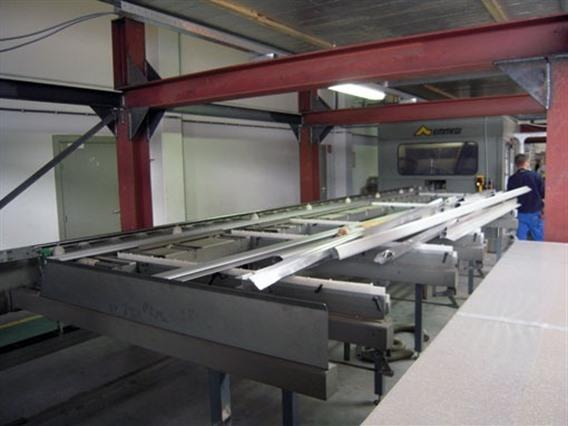

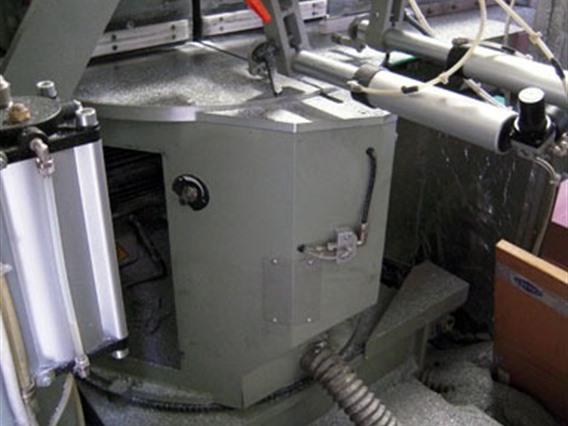

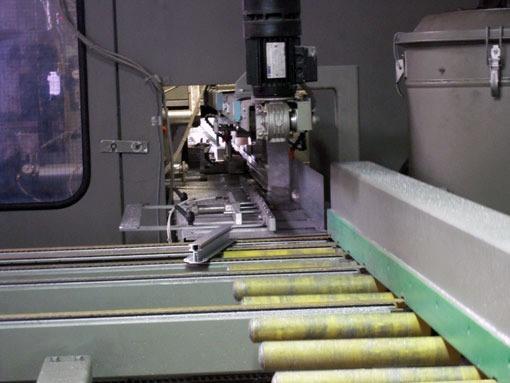

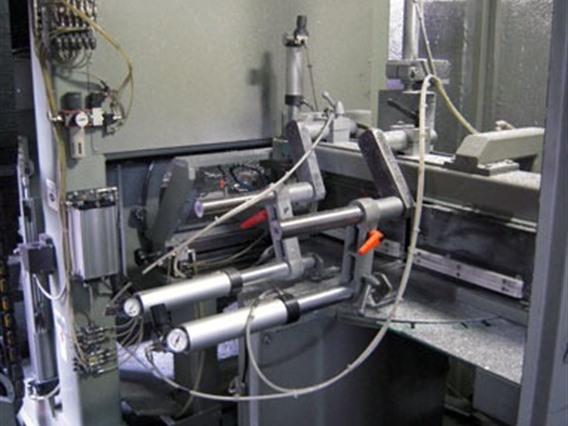

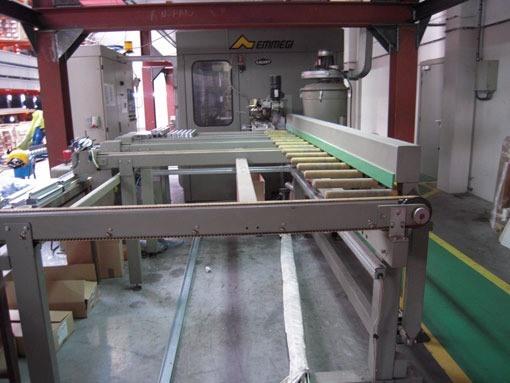

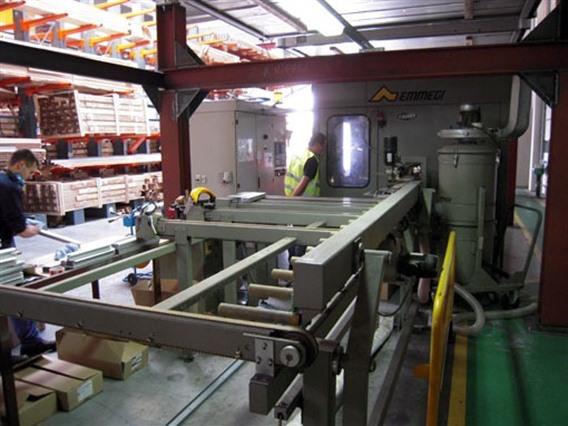

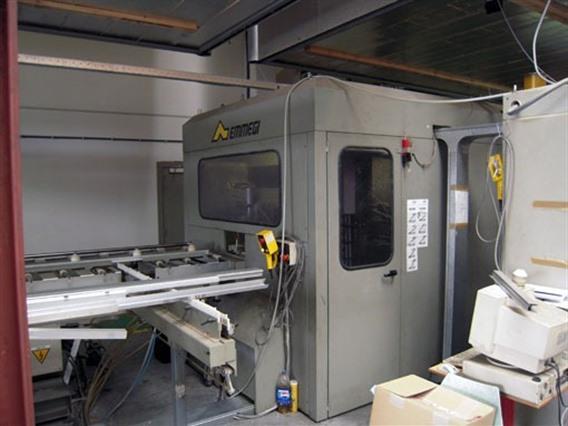

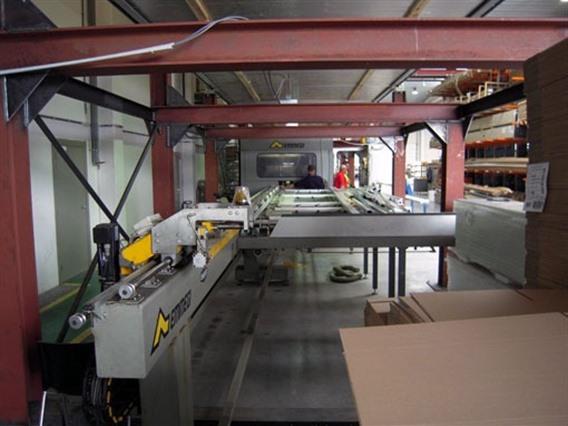

Complete 6-axis CNC machining centre, designed for milling, drilling, thread-cutting and slotting operations on bars or workpieces made of aluminium, PVC, light alloys to in general. It is provided with an automatic magazine for feeding unmachined bars the system without requiring operator attendance. The 4-axis CNC milling module with 4 electro-spindles, located in the centre, is able to machine along the entire contour of the workpiece regardless of its orientation. The N/C cutting module with continuous rotation allows cutting angles in the range 22°30’ and 157°30’ with rising blade dia. 600 mm. The final part of the system consists of a storage unit for finished parts with cross-belt conveyor. The central operating part is provided with a sound damped enclosure which, besides protecting the operator, also allows reducing the environmental noise impact. Movements: X axis: 240 mm Y axis: 350 mm Z axis: 350 mm A axis: 0° -> 360° B-axis: -22,5° -> 157,5° U axis: 7500 mm Spind
Type/Modèle: Quadra ST 7000
Numéro de Stock: B.11 4929 *09
Catégorie principal: [B] Fraiseuses
Subcatégorie: [B.11] Autres fraiseuses et fraiseuses speciales
Marque: Emmegi

Numéro de Stock: B.11 4929 *09
