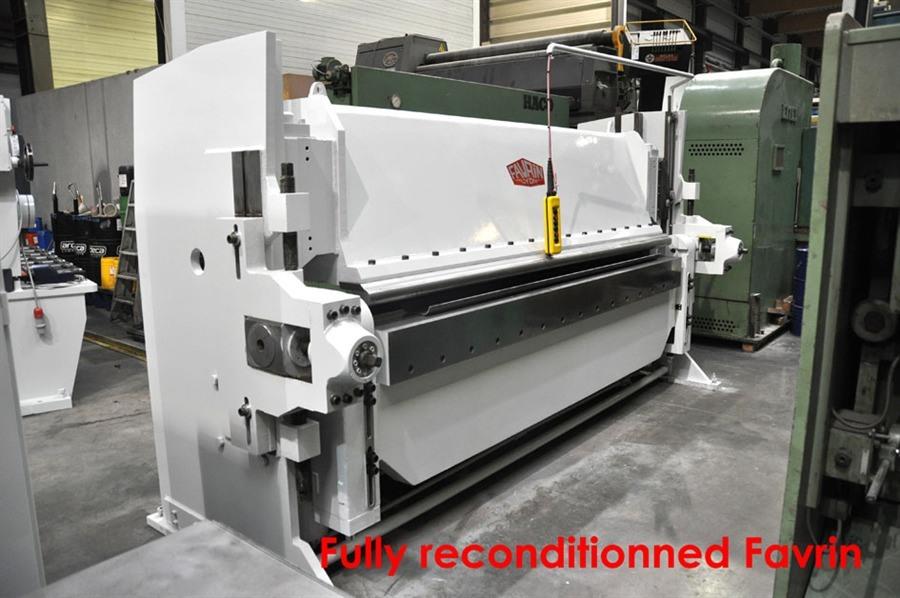

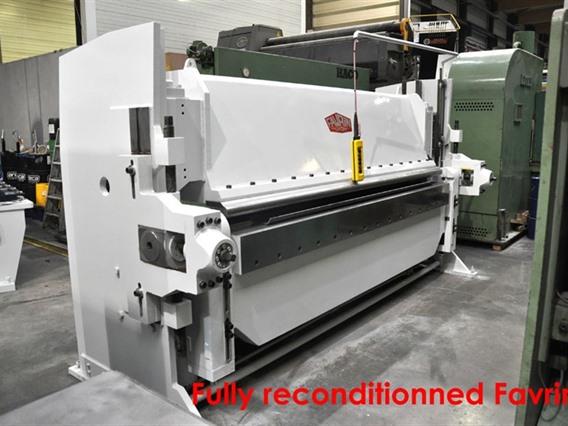

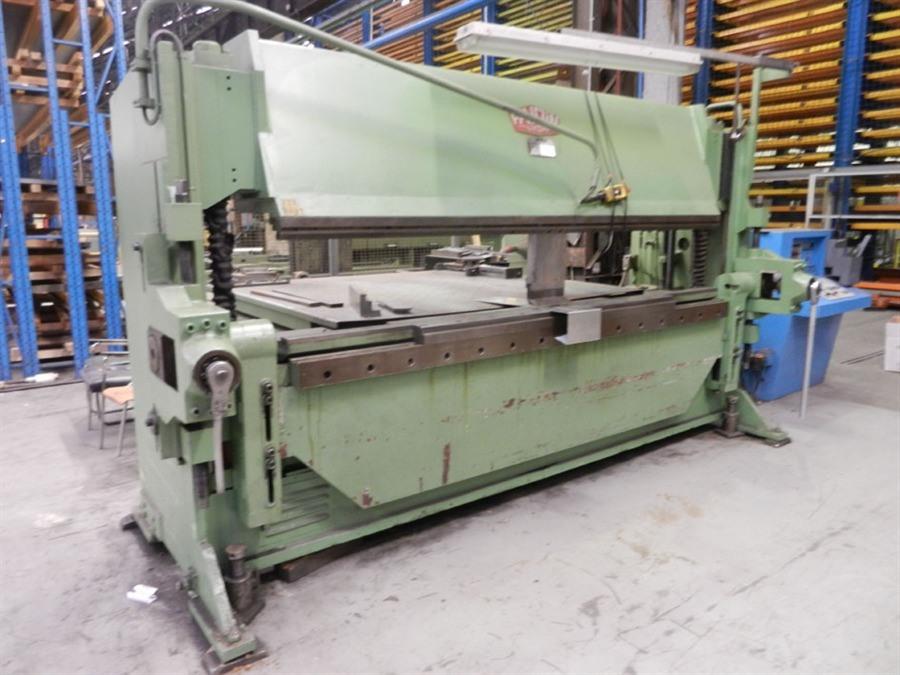

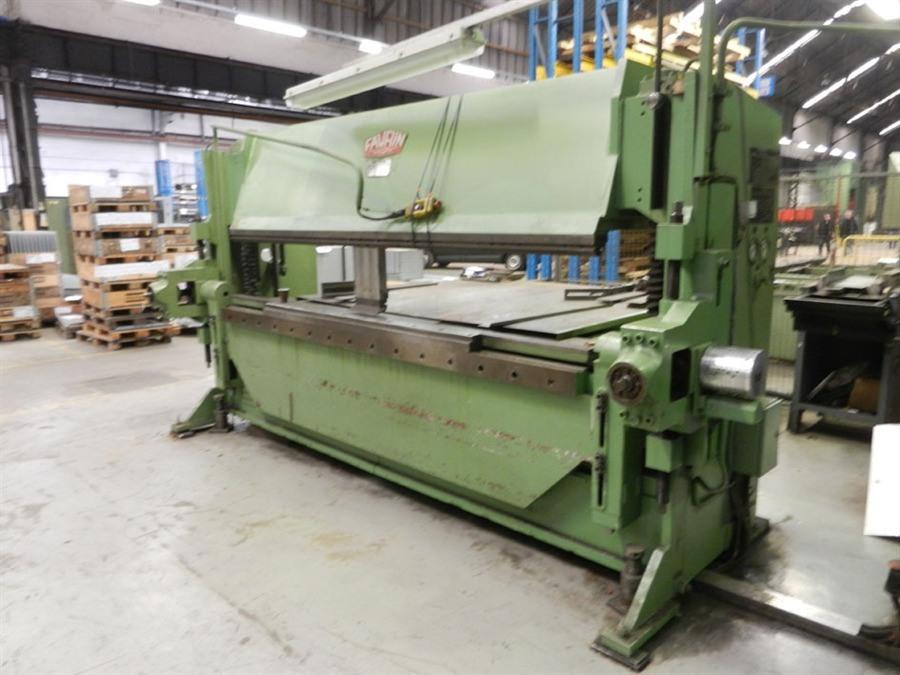

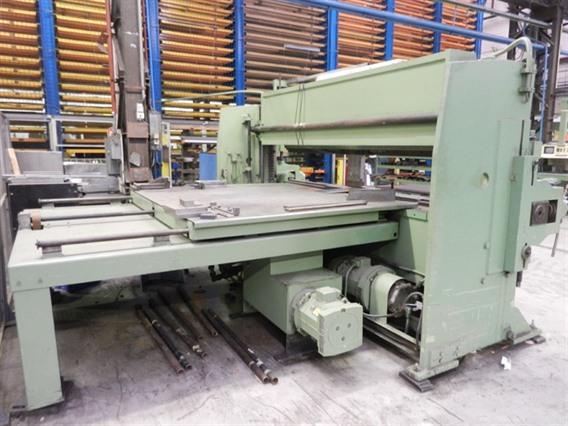

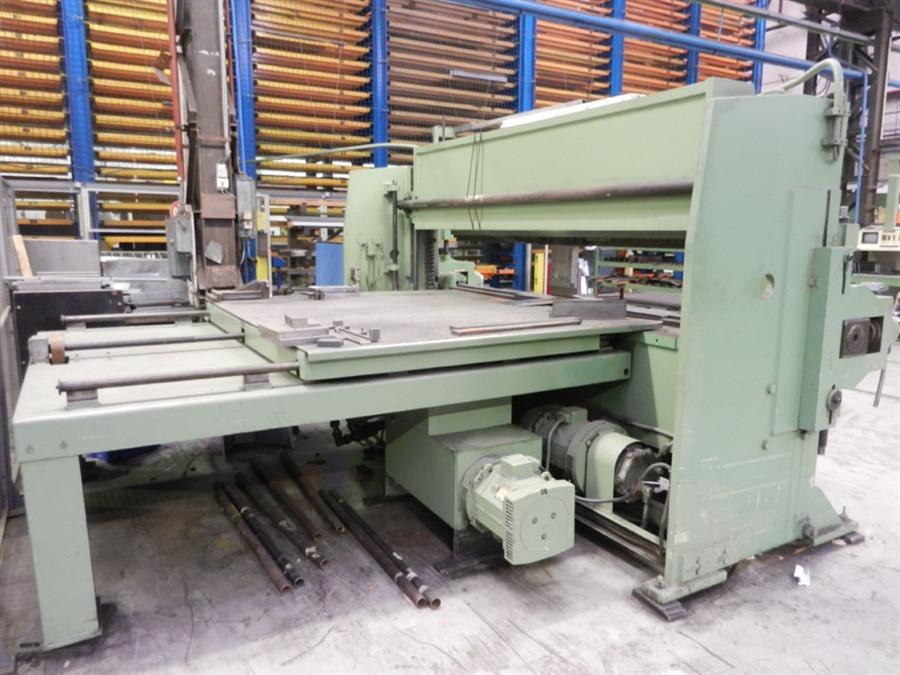

Favrin PHMMPE 3050 x 10 mm CNC

Produit ajouté à vos favoris

» Demandez un devis personalisé

Information technique

Hydraulique (1) -- Electro-mécanique (2)Hydraulic
Longueur max de la tôle3050 mm
Epaisseur max de la tôle8 mm
Distance max serre tôle -- coulisseau500 mm
Déplacement max guide arrière1500 mm
Courant nécessaire380V
Longueur G -- D4180 mm
Largeur Av -- Ar2415 mm
Hauteur2110 mm
Poids14 ton

Informations complémentaires

- bendingangle: 0 - 110°
- clamping force: 92 ton

- bending force: 92 ton

- NEW CONTROL ELGO (Angle + Backgauge)

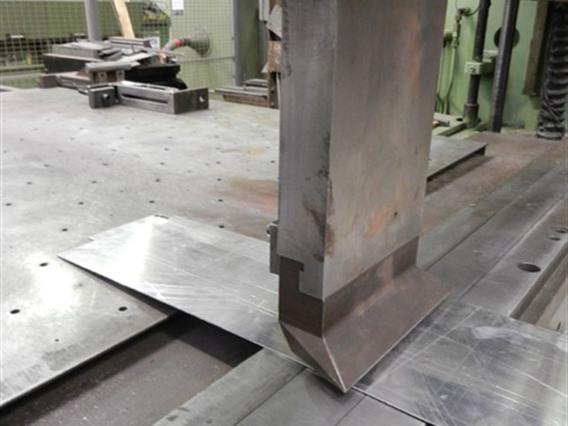

- bending capacity limited to 8 mm with sectionned knife (currently present on machine)

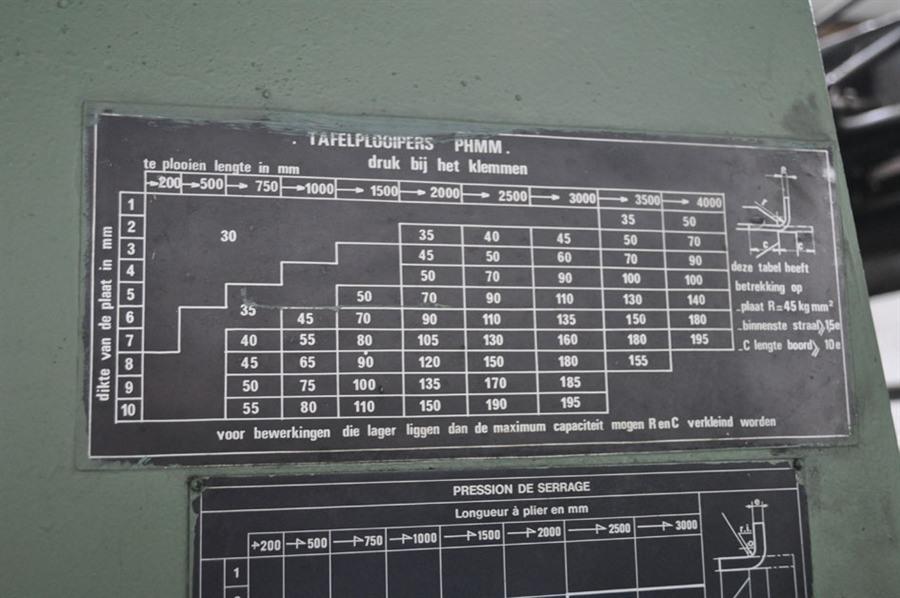

Bending radius (R) = 1,5 E

- 10 mm on 3 meter length

- 12 mm on 2 meter length

- 15 mm on 1 meter length

Bending radius (R) = 2 E

- 12 mm on 3 meter length

- 15 mm on 2 meter length

Pre-bending

- 15 mm on 3 meter length

- 20 mm on 2 meter length
Type/Modèle: 3050 x 10 mm CNC
Numéro de Stock: O.04 7742
Catégorie principal: [O] Presses Plieuses, Machines à Plier, Machines à Dresser, Machines à Cintrer, Machines a Oxycouper, Machines Laser, Poinconneuses et lignes aprofiler
Subcatégorie: [O.04] Machines a plier oscillantes hydrauliques, plieuse fer plat
Marque: Favrin PHMMPE

» Demandez un devis personalisé

Numéro de Stock: O.04 7742
