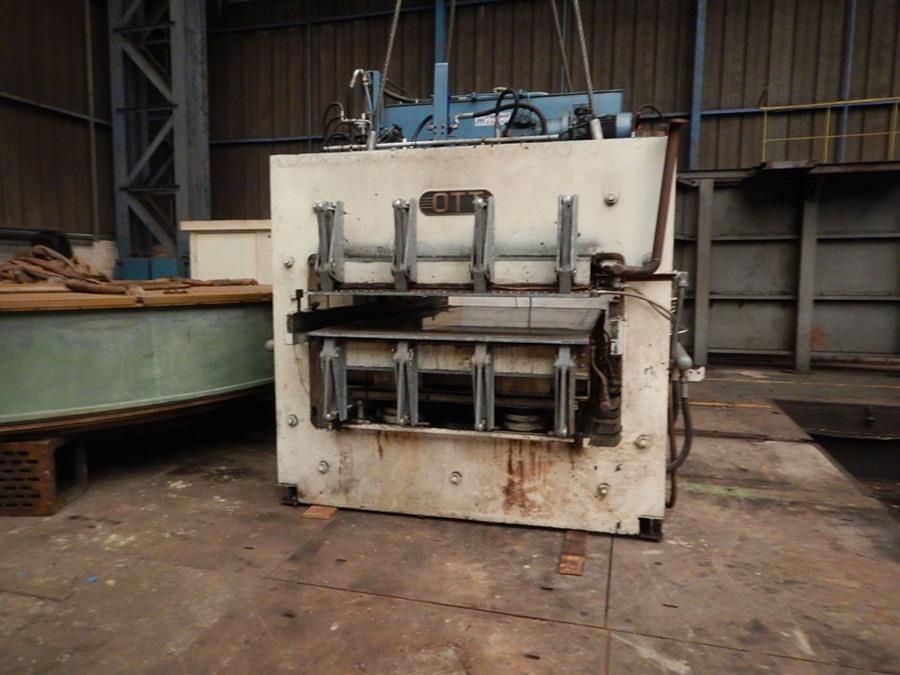

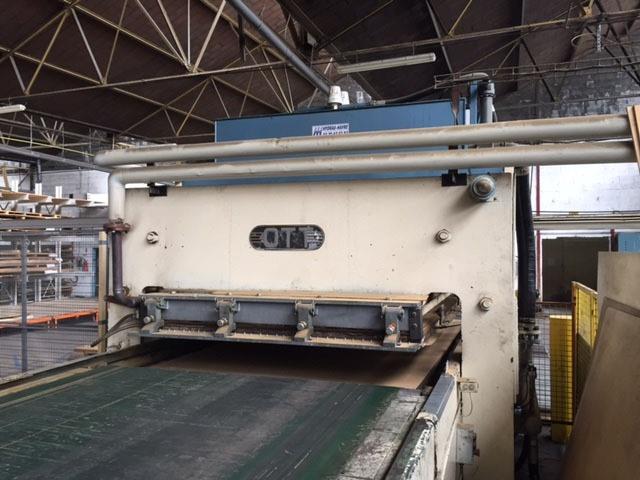

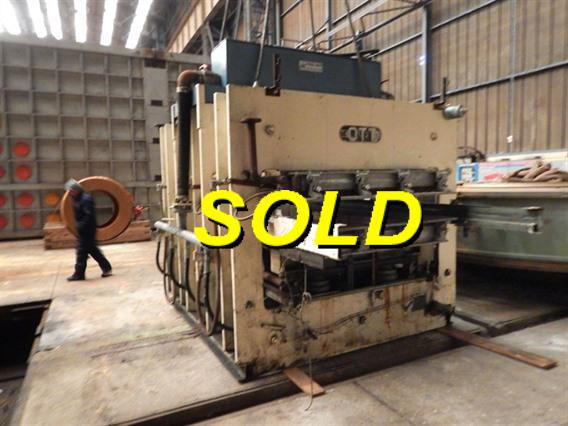

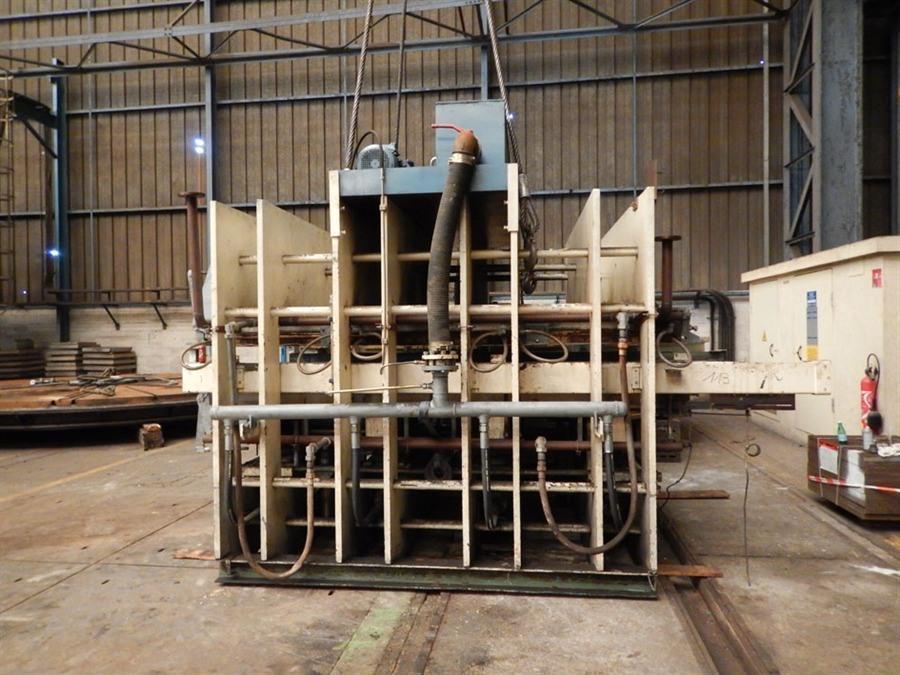

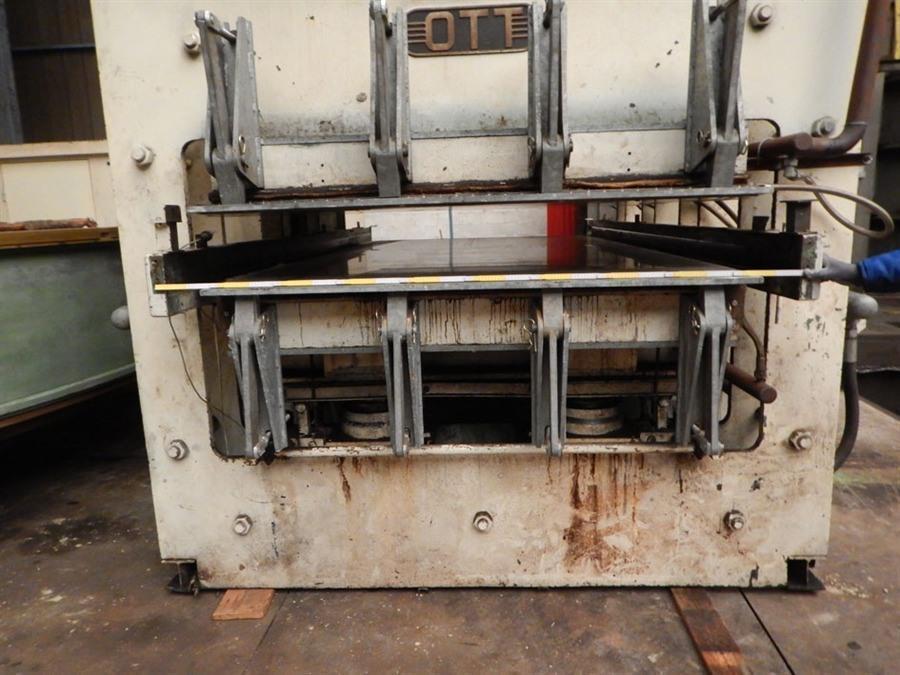

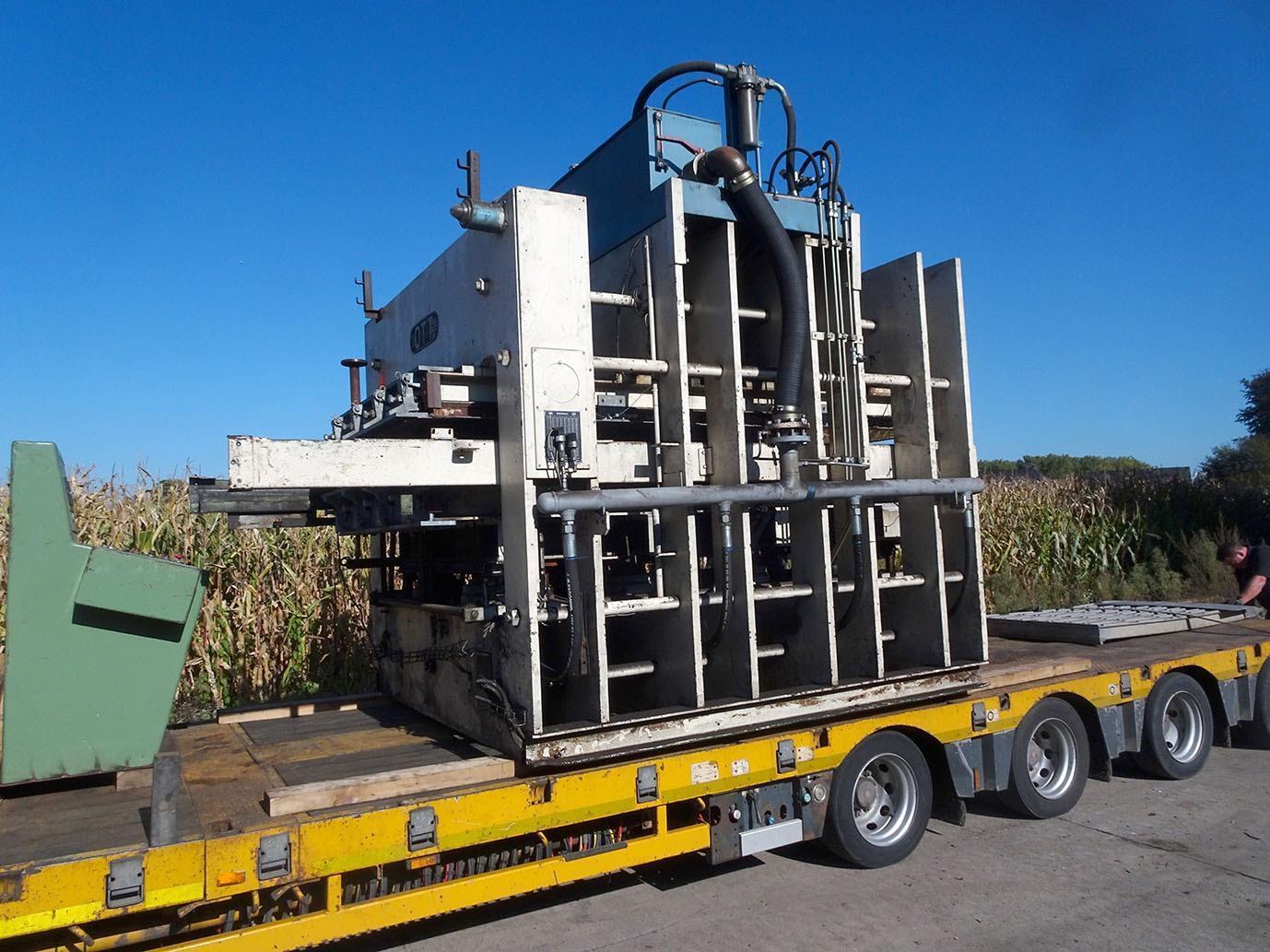

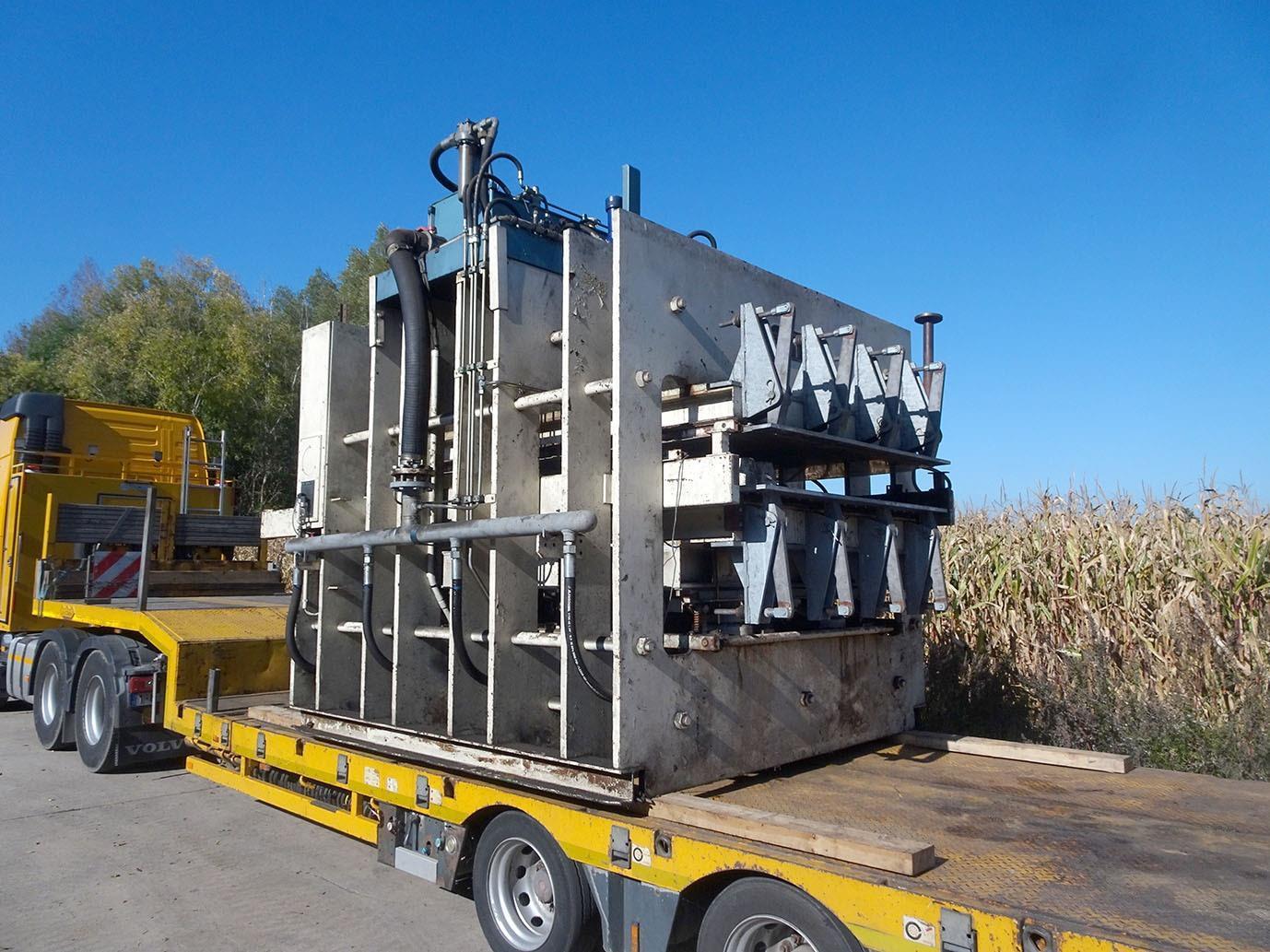

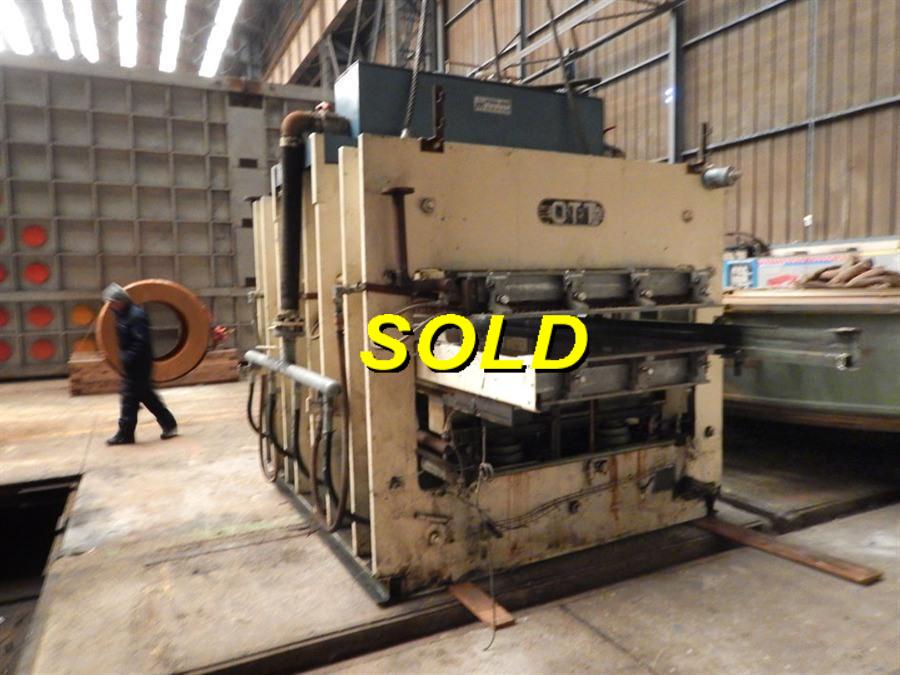

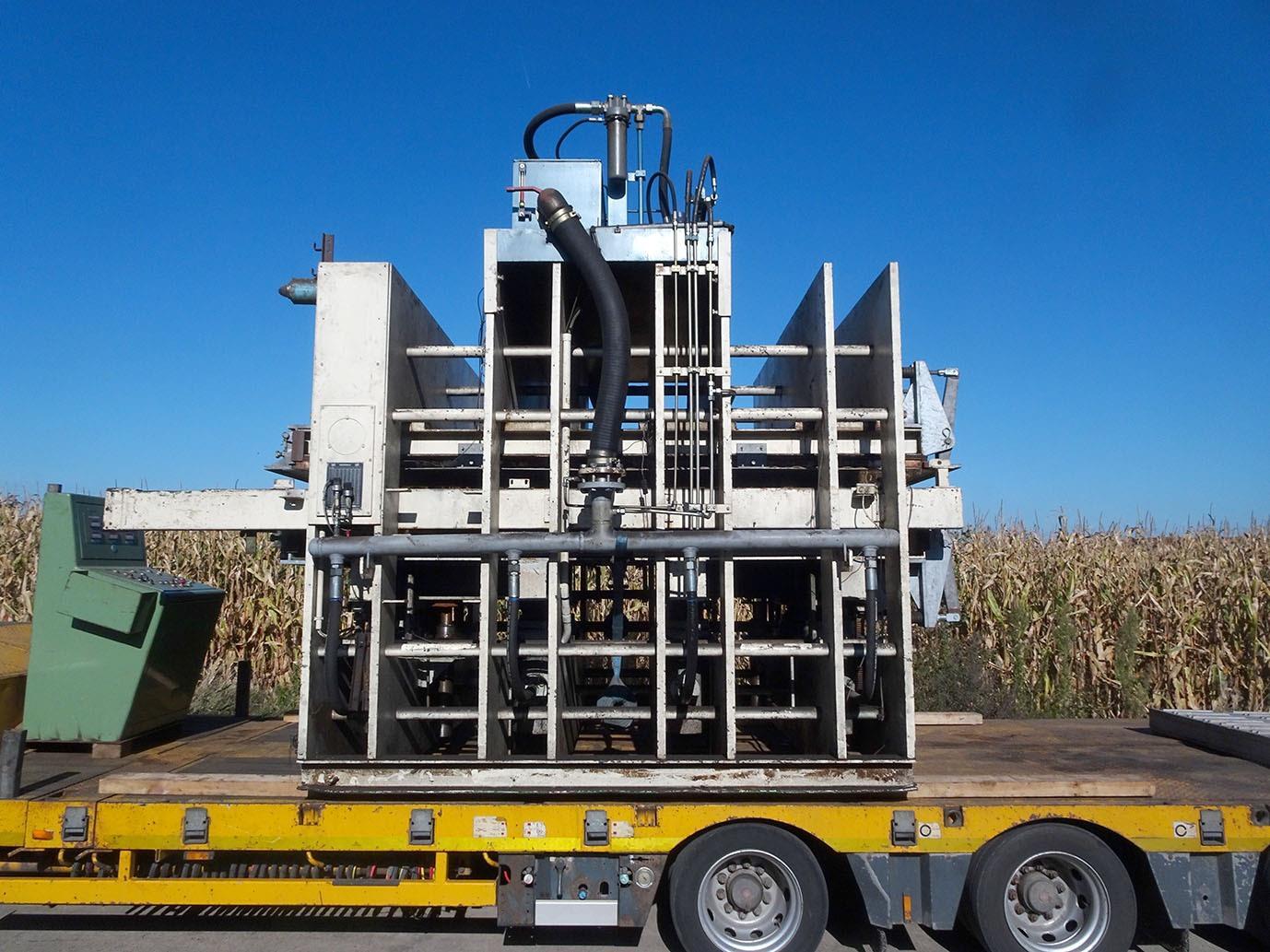

OTT Pressomat heated panel press
Informations complémentaires
Automatic continuous heated panel press
Type: Pressomat D 77/540
Cap: 540 ton
2 tables
Table size: 3200 x 1700 x 50 mm

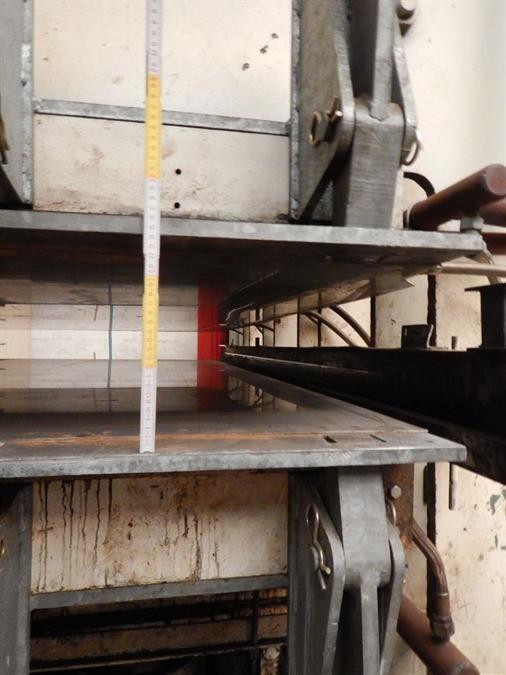

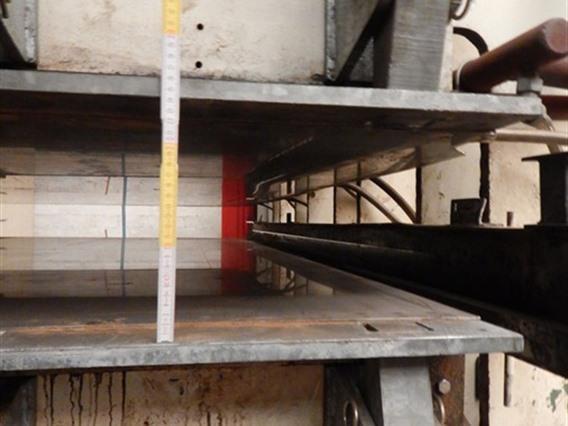

Max distance between tables: 200 mm
Between columns: 1700 mm
Max distance between tables: 150 mm
pressing speed: 1,4 mm/sec
return speed: 105 mm/sec
closing speed: 105 mm/sec

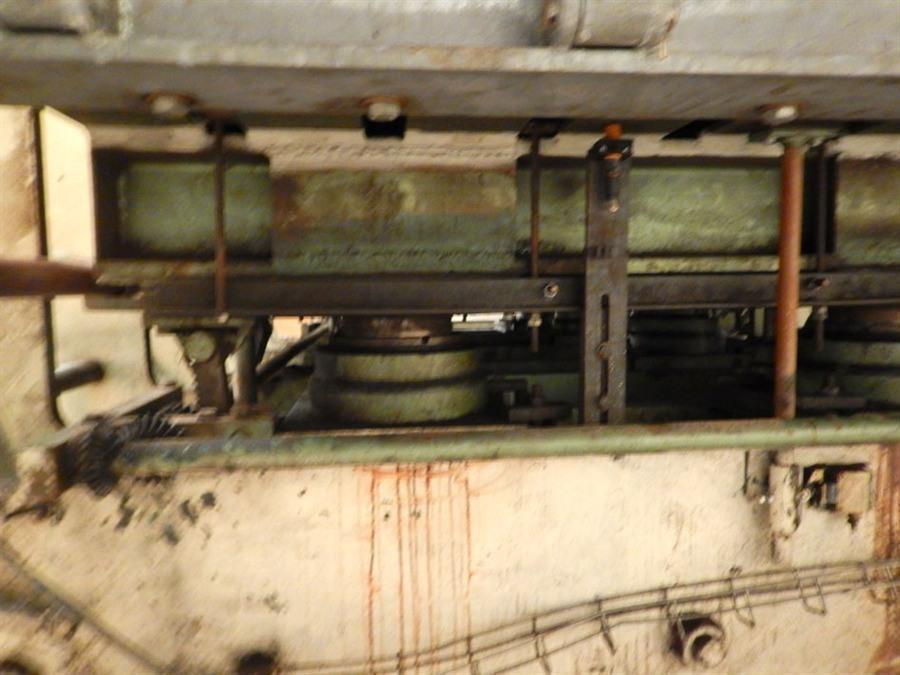

8 pistons
- dia of piston: 180 mm
- stroke: 200 mm
Weight: 26 ton

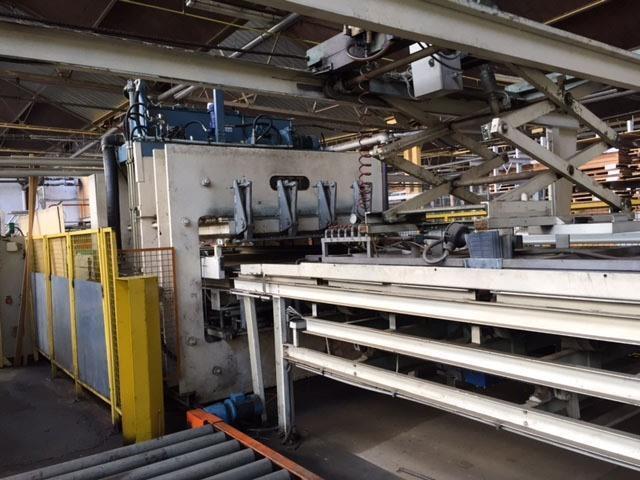

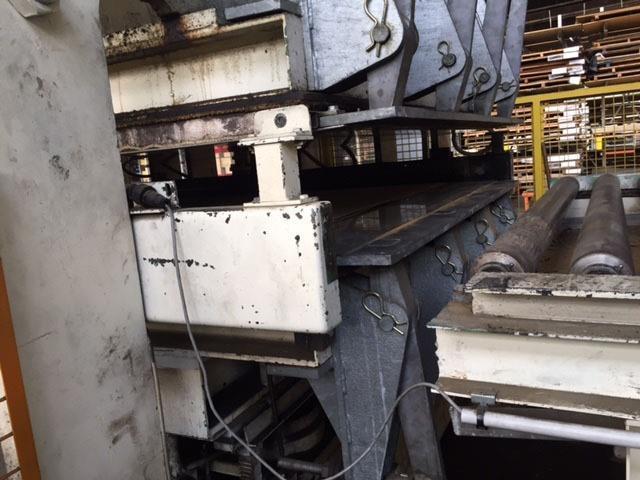

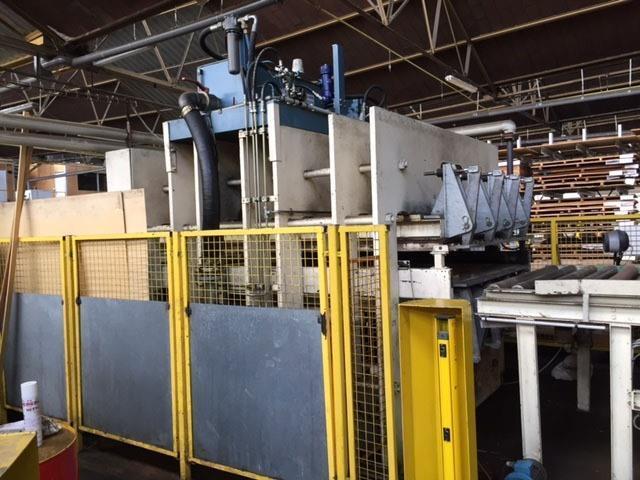

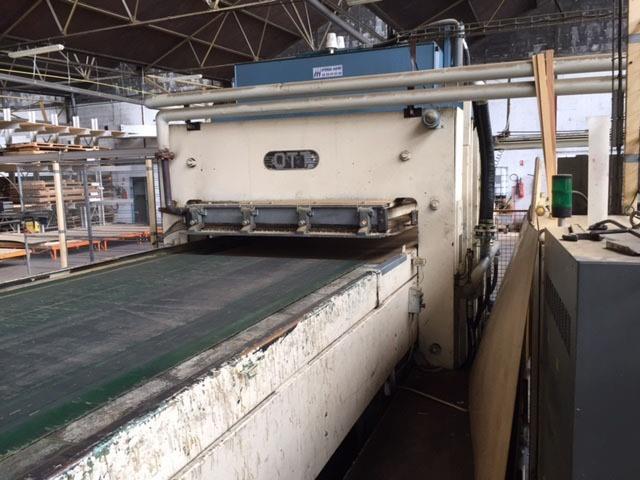

Equipped with unloading & stacking system
Also equipped with Kuka robot for loading purposes
Optional: Boiler to heat up oil which is used inside the tables -
click here
Furnierpressen - Conveyor press - Composit press - Heizplattenpressen
- Type/Modèle: heated panel press
- Numéro de Stock: M.06 9839
- Catégorie principal: [M] Presses hydrauliques
- Subcatégorie: [M.06] Presses a 4 colonnes a action simple
- Marque: OTT Pressomat
Numéro de Stock: M.06 9839
