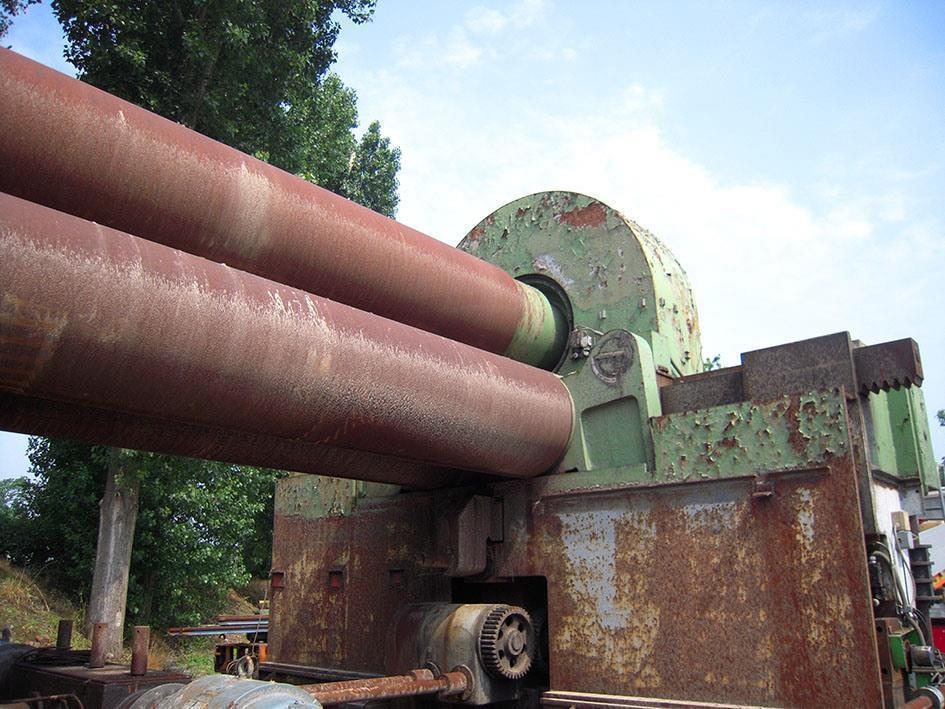

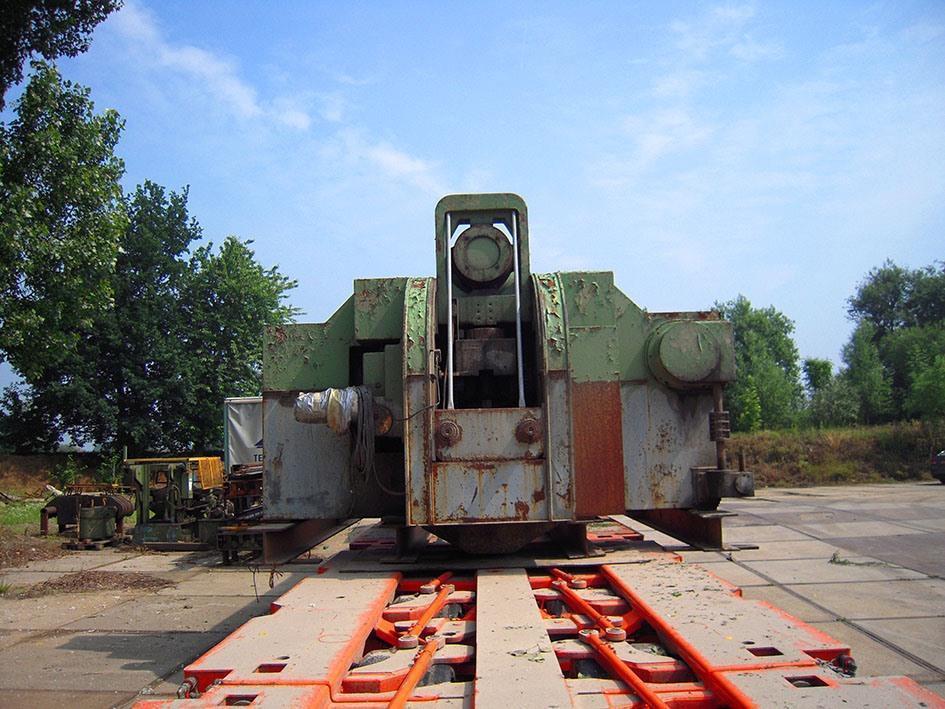

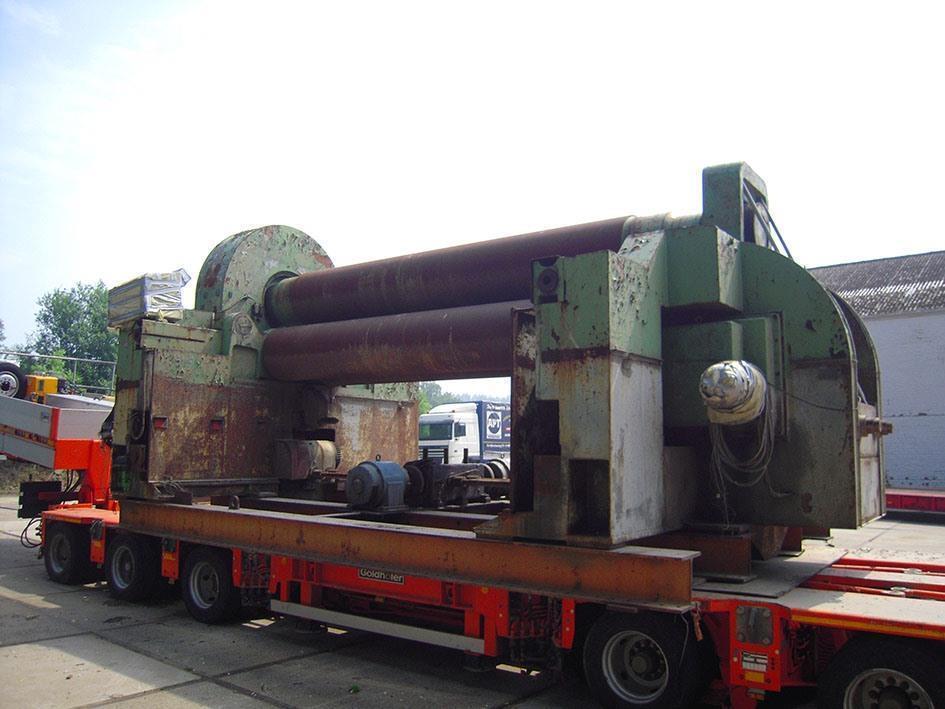

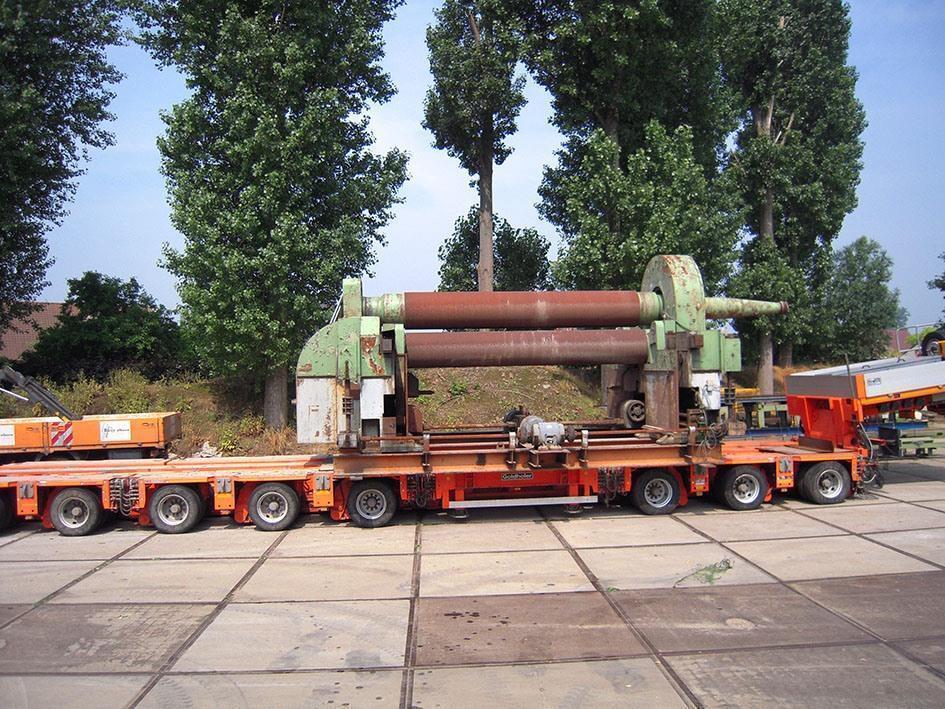

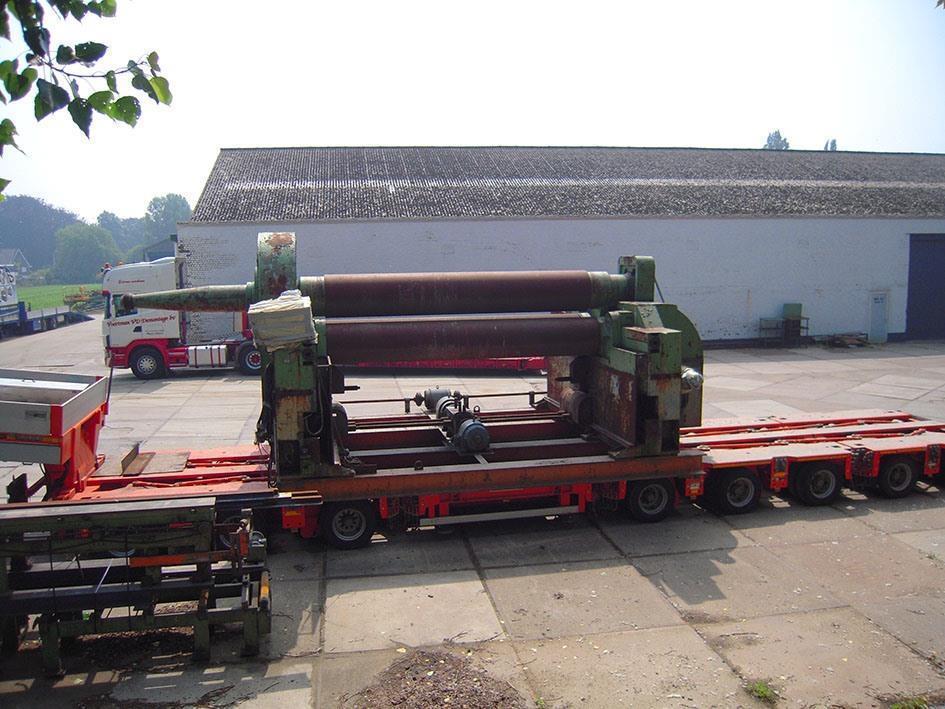

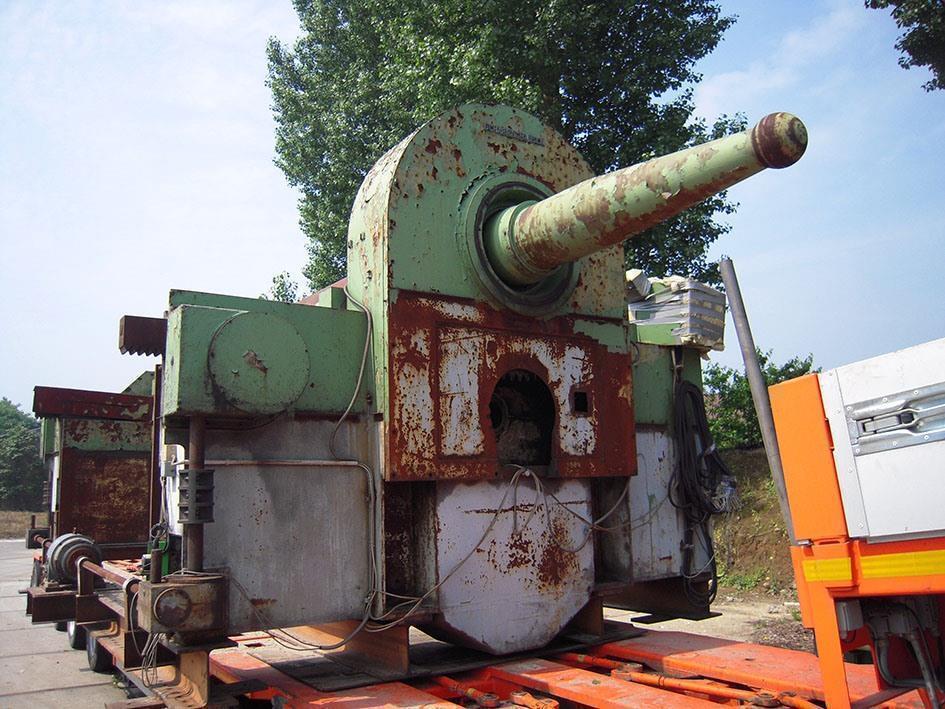

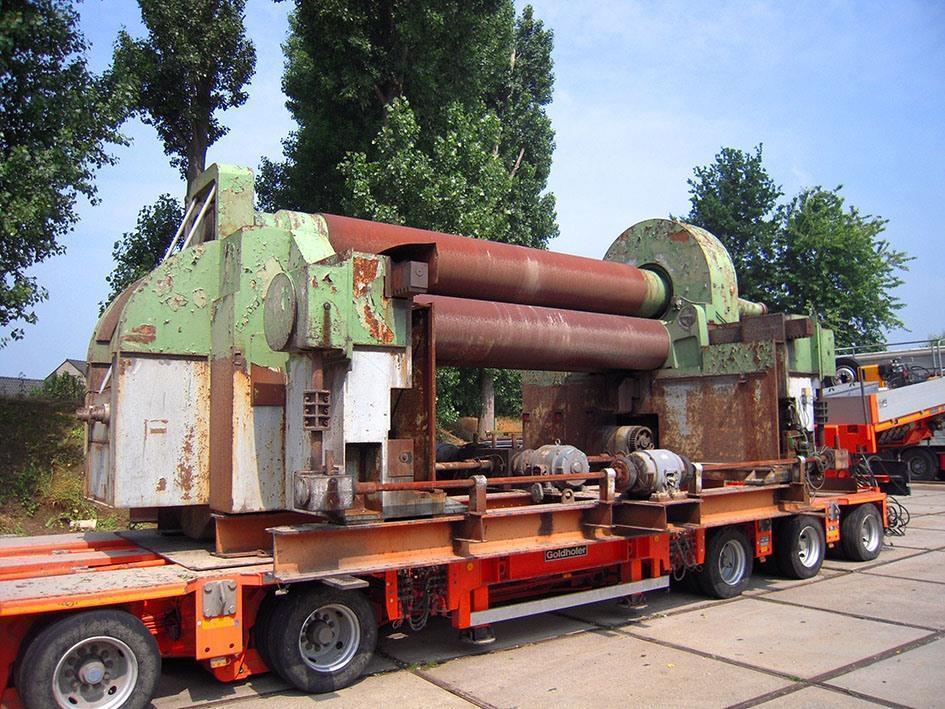

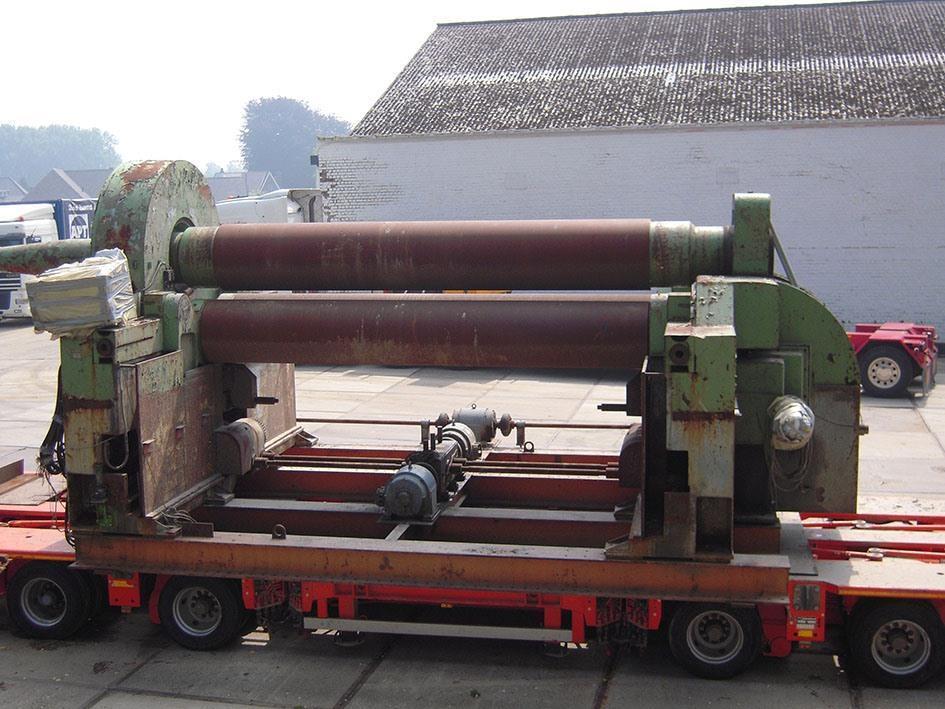

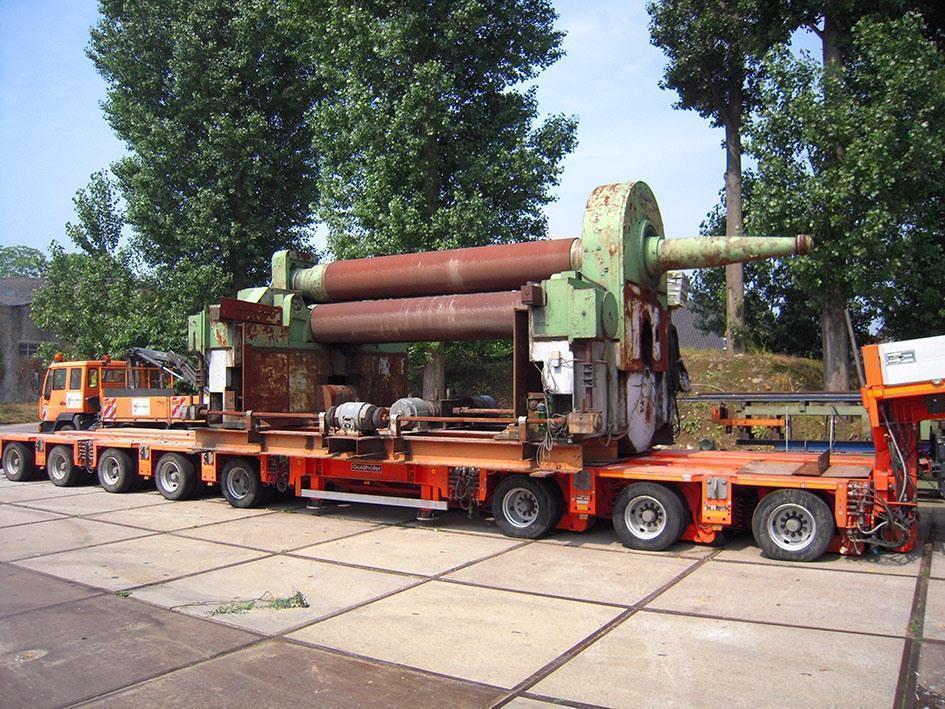

Scharringhausen DBR 4000x40/60mm

Prodotto aggiunto al suo preferiti

» Richiedere una quotazione presentata personalizzata

Informazione tecniche

Number of rolls3 Rolls
Roll capacity cold4000 x 40 / 60 mm
Type(1) Mechanical
Roll dia upsideØ 570 mm
Dia under roll - side rollsØ 520 mm
Length9000 mm
Depth4500 mm
Hight3600 mm
Weight62 ton
Pre-bending Yes

Informazioni supplementari

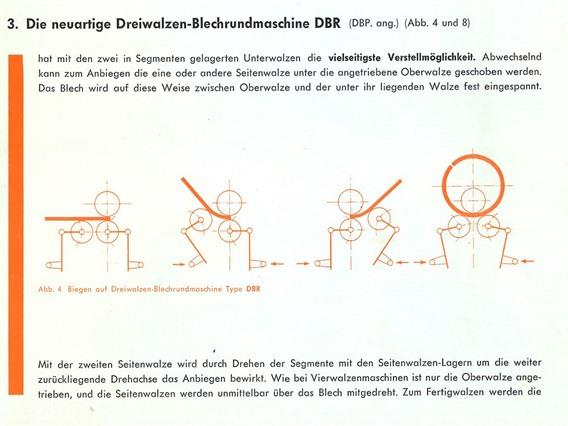

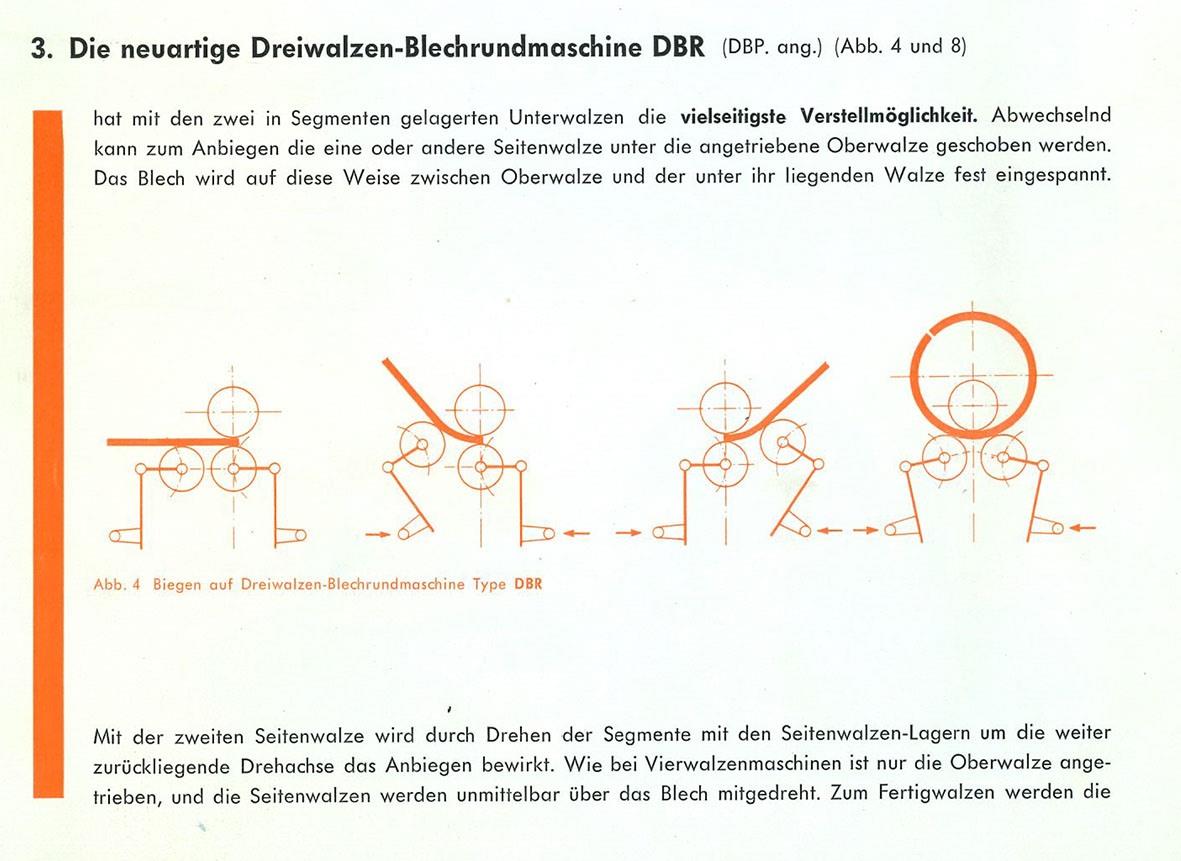

Lower rolls are individual movable for prebending!
Cap: 4000x40 @ rolling Ø 1000mm
Cap: 2500x60 @ rolling Ø 1000mm
Cap: 3000x60 @ rolling Ø 2000 mm
+ gear box length 4000 x width 2000 x height 3000 mm

80 kW power on main roll
30 kW power on siderolls

Weight of chassis: +- 18 ton
Weight of rolls: +- 30 ton
Weight of gearbox: 14 ton
Tipo/Modello: DBR 4000x40/60mm
Numero di magazzino: O.06 4269
Categoria: [O] Presse piegatrici, curvatrici, raddrizzatrici, punzonatrici, impianti taglio laser e impianti ossitaglio e linee di profilatura
Sottocategoria: [O.06] Calandre
Il marchio: Scharringhausen

» Richiedere una quotazione presentata personalizzata

Numero di magazzino: O.06 4269

Scaricare tutte le foto in ZIP
