Centri di lavorazione verticali Emmegi Comet T4 X: 4100 - Y: 470 - Z: 420mm

Informazione tecniche

X-axis4100 mm
Y-axis470 mm
Z-axis420 mm
Admission in spindle (ISO)HSK 63F
Power on the spindle8 kW
Tapping-capacityM10

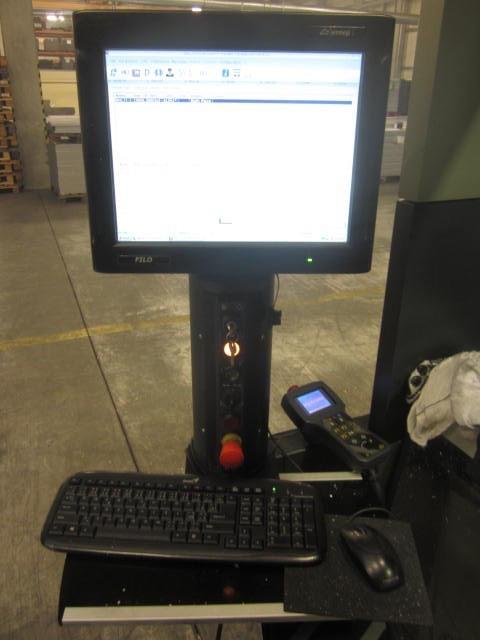

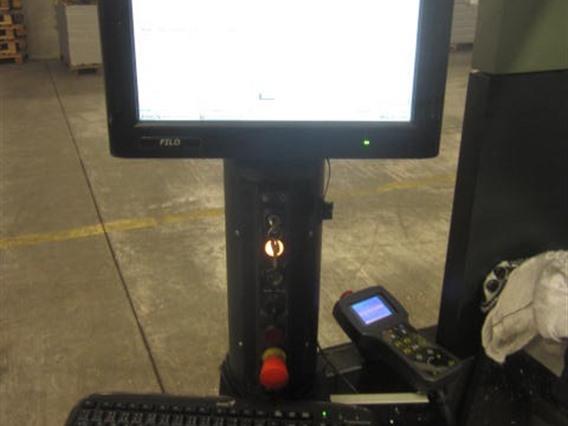

Control CNC-PC
Number of axes4
Toolchangeryes
Number of toolholders8x
Number of rotations20 000 rpm
Length5304 mm
Depth2713 mm
Height2185 mm

Informazioni supplementari

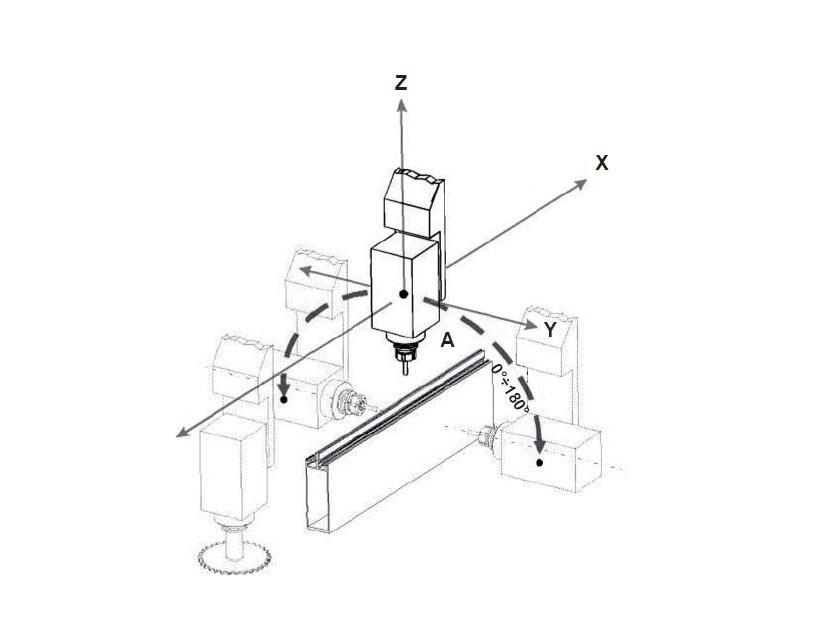

2 angle machining heads loadable in toolmagazine
max blade dia loadable in magazine: 180 mm

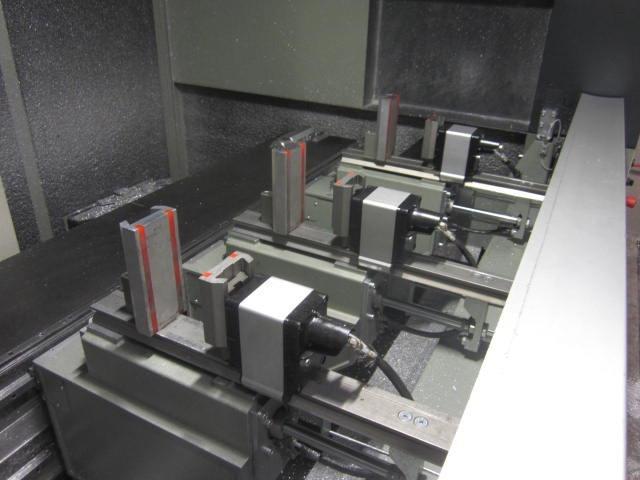

pneumatic clamping

8 tools in toolstorage
Tipo/Modello: X: 4100 - Y: 470 - Z: 420mm
Numero di magazzino: D.01 8107
Categoria: [D] Centri di lavorazione
Sottocategoria: [D.01] Centri di lavorazione verticali
Il marchio: Emmegi Comet T4

Numero di magazzino: D.01 8107

Venduto
Venduto
Venduto
Venduto
Venduto
Venduto

Emmegi Comet T4 X: 4100 - Y: 470 - Z: 420mm

Scaricare tutte le foto in ZIP
