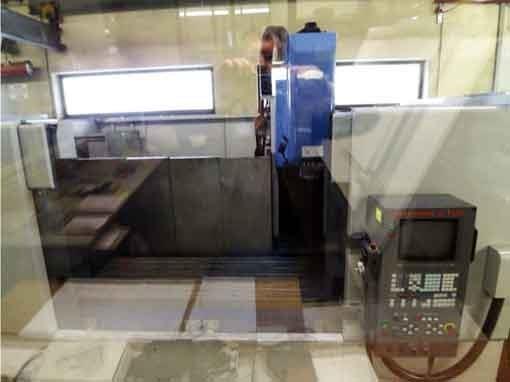

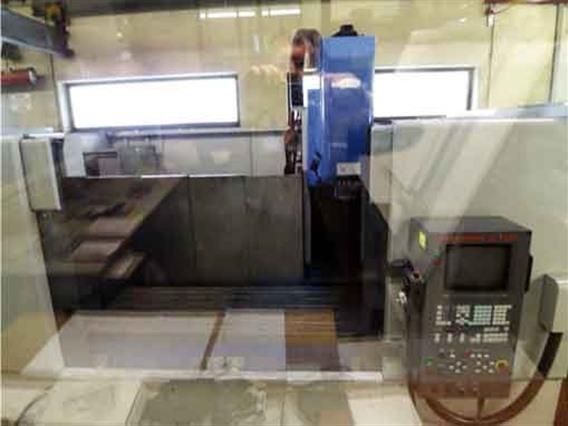

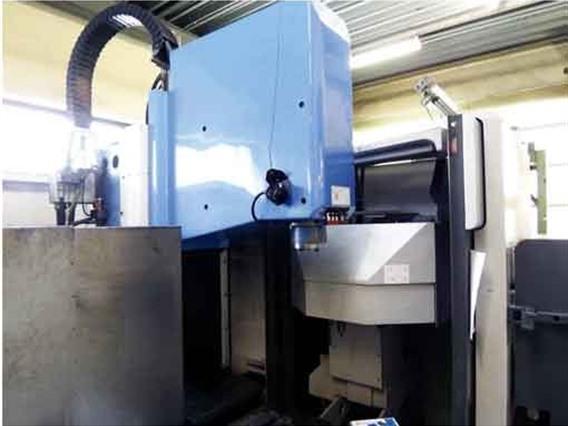

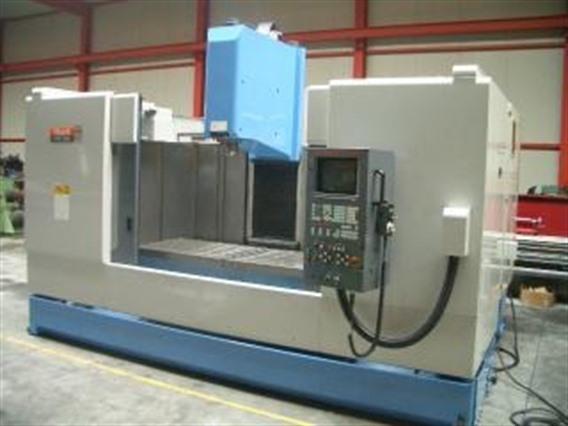

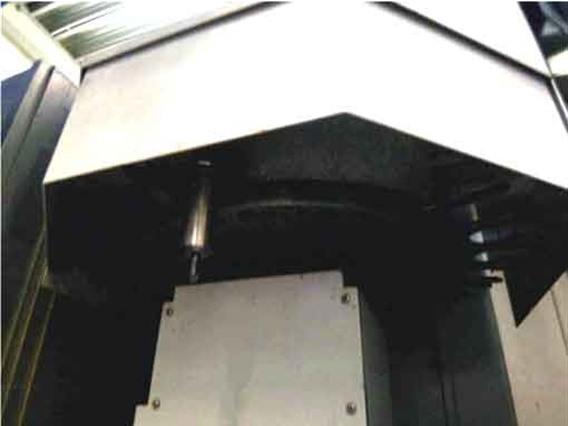

Centri di lavorazione verticali Mazak VTC 30 C CNC

Informazione tecniche

X-axis1660 mm
Y-axis760 mm
Z-axis660 mm
Table dimensions2000 x 760 mm
Max weight on the table1200 kg
Depth of throat (uprights-spindlecenter)808 mm
Admission in spindle (ISO)ISO 40
Power on the spindle11 kW

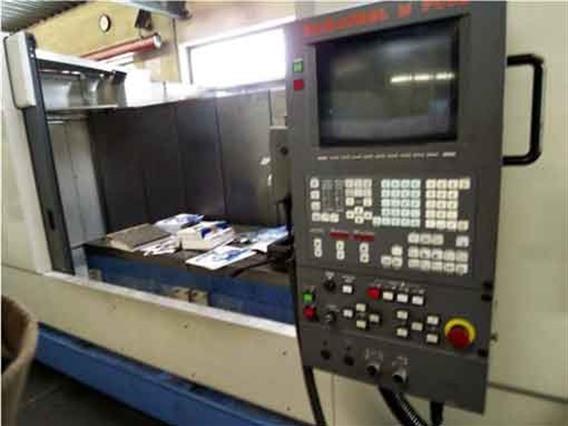

Control Mazatrol M plus
ToolchangerYes
Number of toolholders24 positions
Number of rotationsmax 7000 rpm
Length4000 mm
Depth3000 mm
Weight8450 kg

Informazioni supplementari

Tipo/Modello: VTC 30 C CNC
Numero di magazzino: D.01 3751 *07
Categoria: [D] Centri di lavorazione
Sottocategoria: [D.01] Centri di lavorazione verticali
Il marchio: Mazak

Numero di magazzino: D.01 3751 *07

Venduto
Venduto
Venduto
Venduto
Venduto

Scaricare tutte le foto in ZIP
