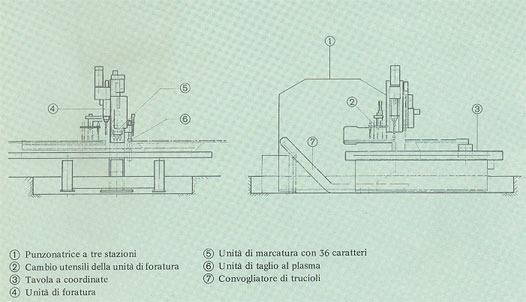

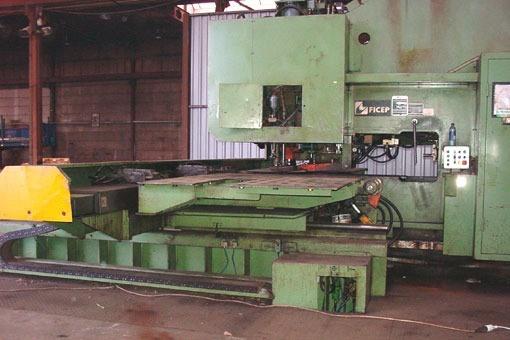

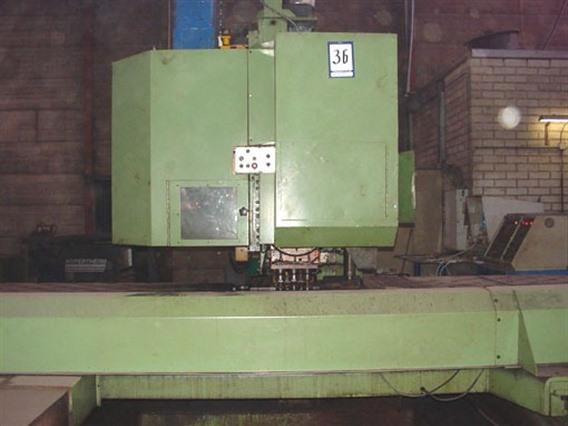

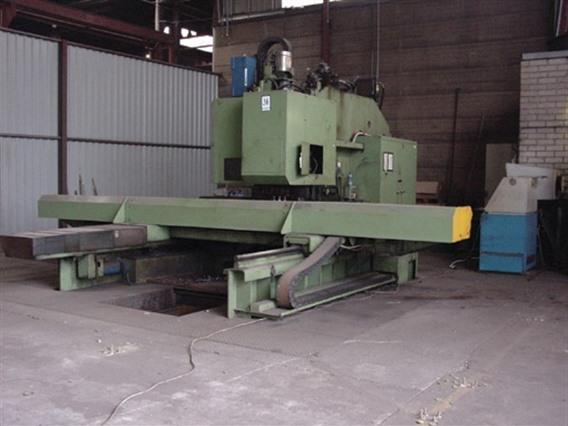

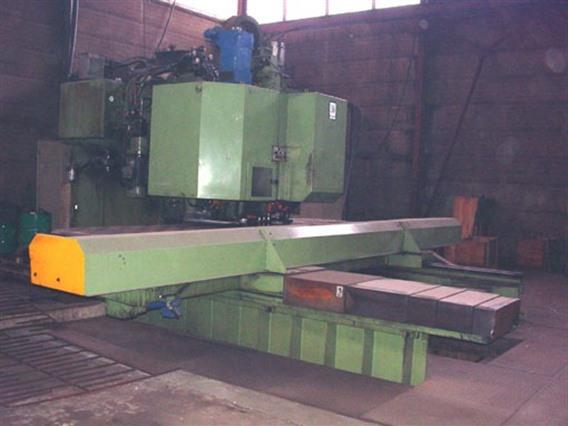

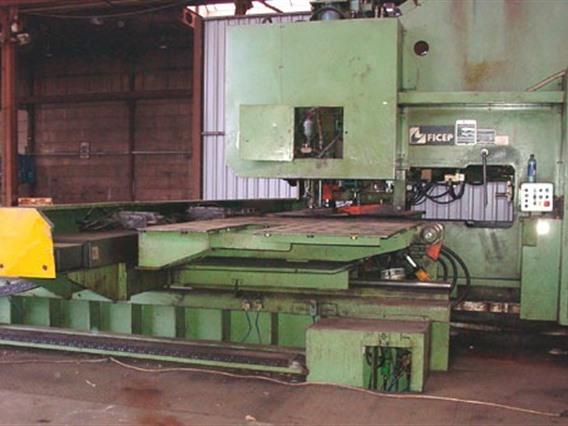

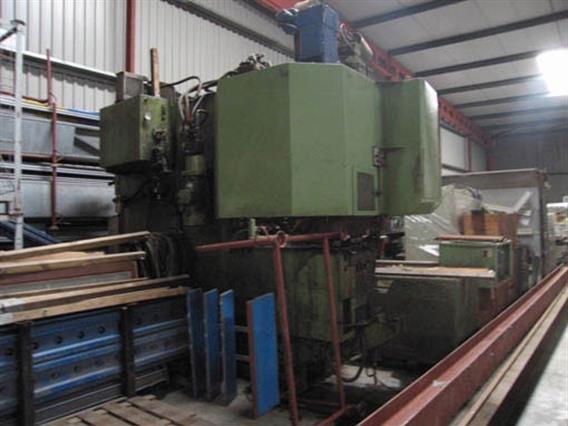

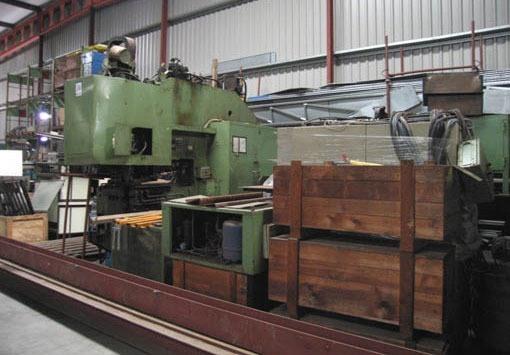

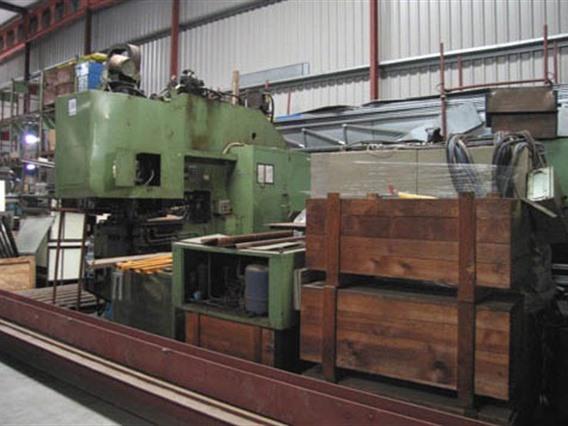

Centro CNC per punzonatura, perforazione, taglio al plasma e marchiatura lastre Ficep LPT.P.703.2G
Informazione tecniche
- Especially forThick steelplates

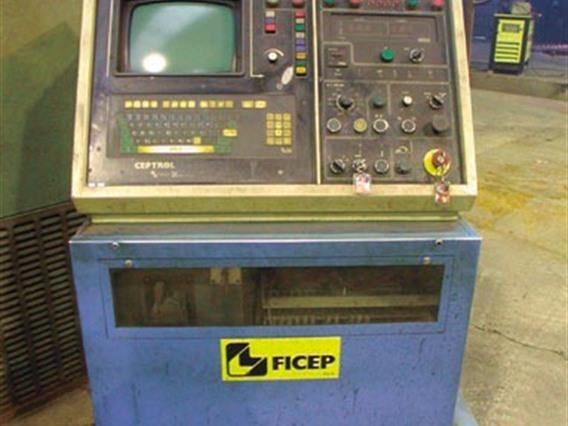

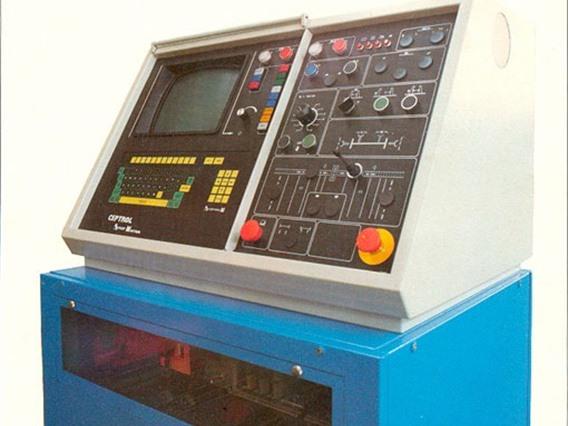

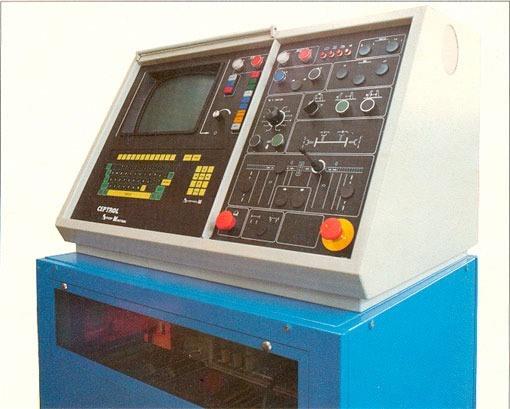

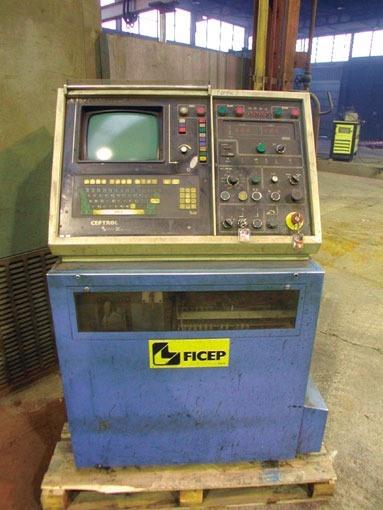

- Type CNCCeptrol

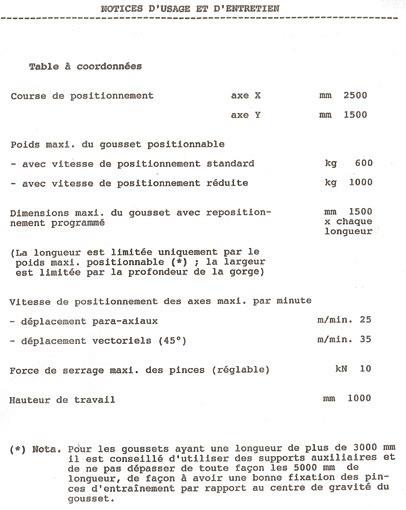

- Cap in first workarea : Longitudinal X1500 mm
- Crossdirection Y3000 mm
- Repositioninginfinity-oneindig

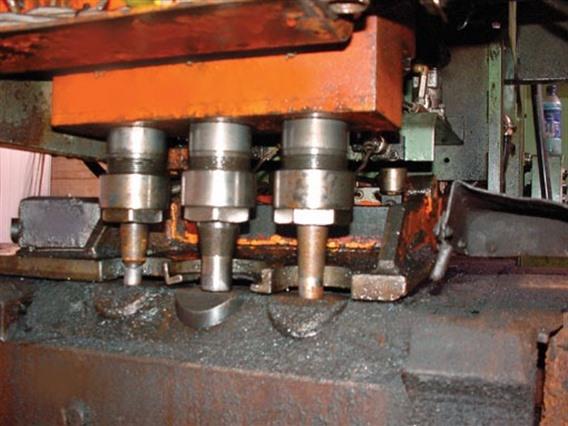

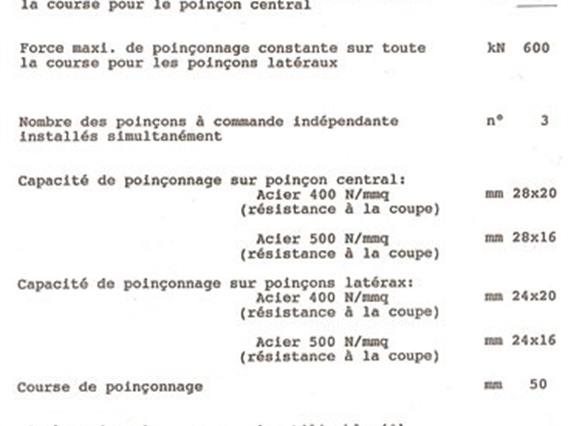

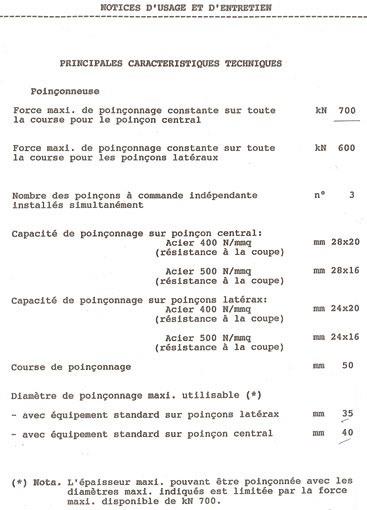

- PUNCHING UNIT*
- Stations 60 T -- Max dia x thickness2 -- 40 x 15 mm
- Stations 70 T -- Max dia x thickness1 -- 28 x 20 mm

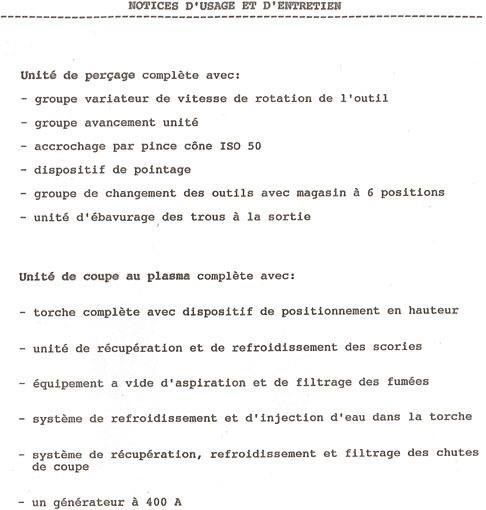

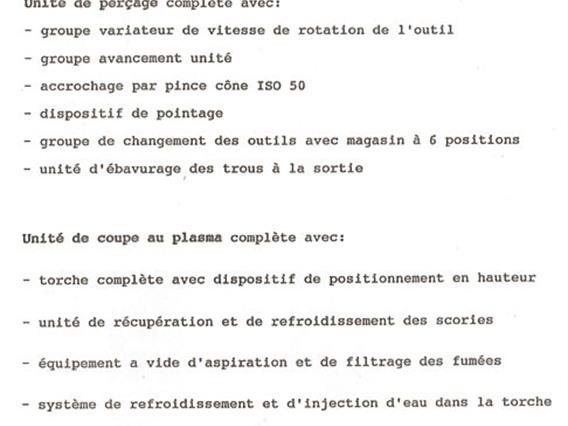

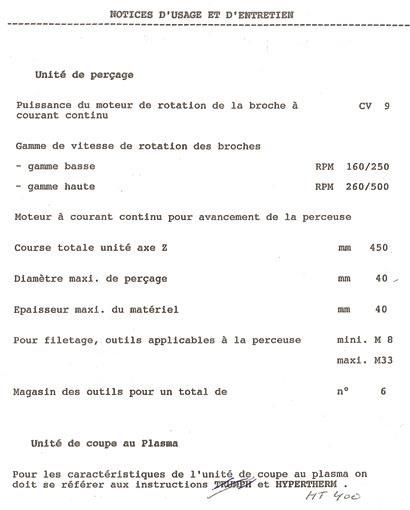

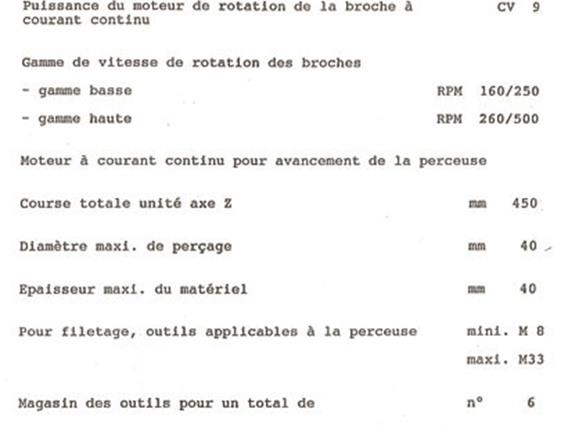

- DRILLING UNIT1 head
- Dia capacity50 mm
- Drillinghead ISO -- to ...50 -- MK 5
- Capacity6,8 kW

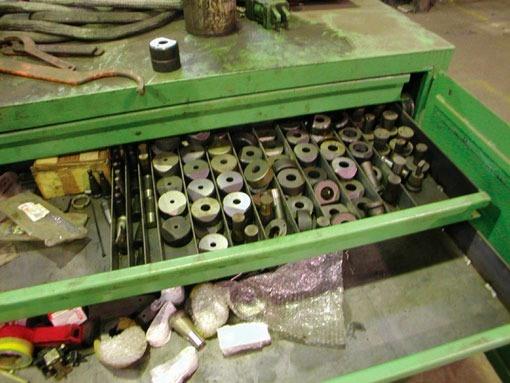

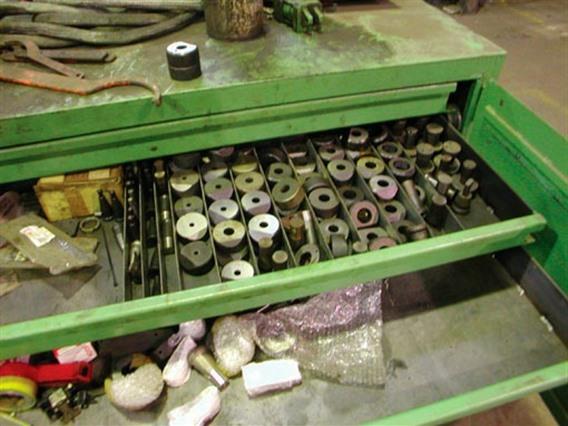

- Toolholder*
- Toolchanger -- tools* -- 6

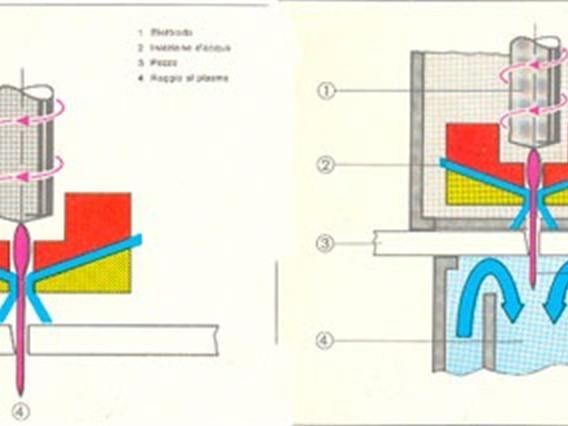

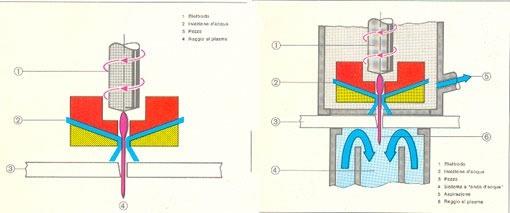

- PLASMA-CUTTING UNIT*

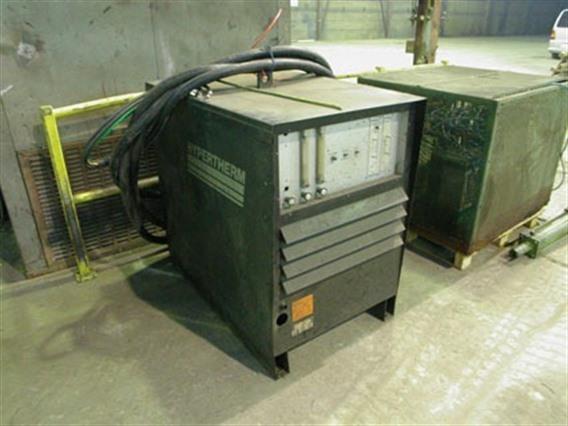

- Plasmasource HYPERTHERM typeHT 400
- Capacity400 A
- Cuttingcapacity40 mm

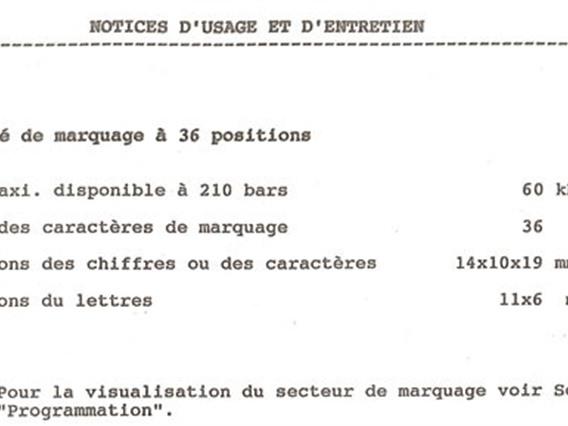

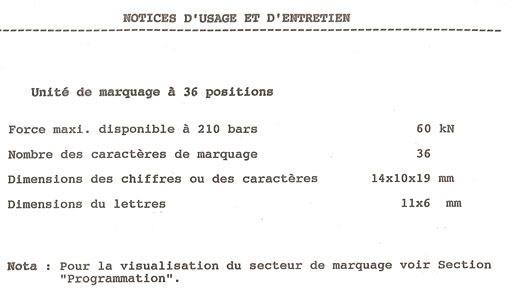

- MARKING UNIT*
- Number of caracters36
- Capacity60 T
- Length 2000 mm
- Depth 3500 mm
- Height3800 mm
- Total weight22 000 kg

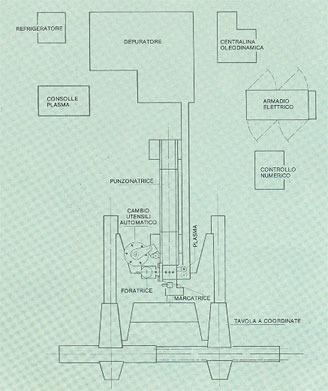

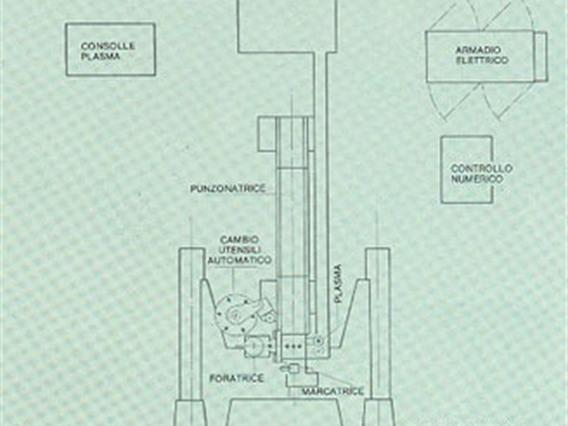

- Table space requierement6400 x 3900
- Table hight / weight1500 / 8 T
