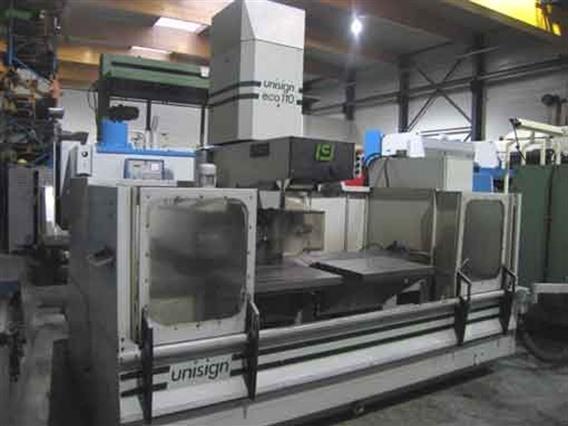

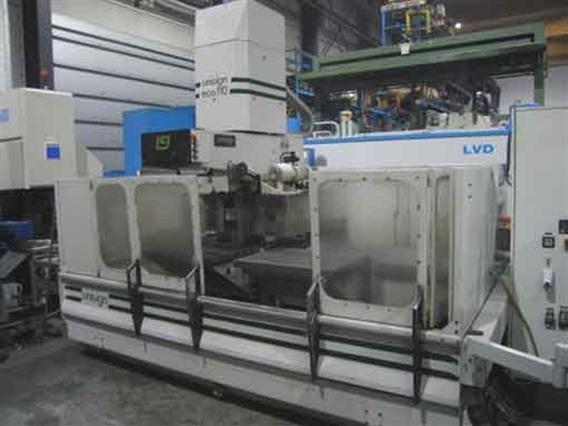

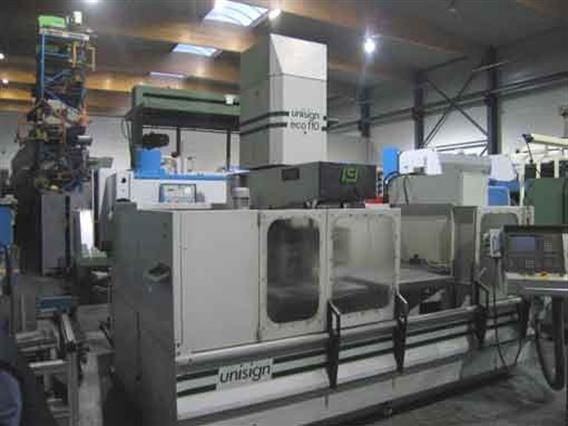

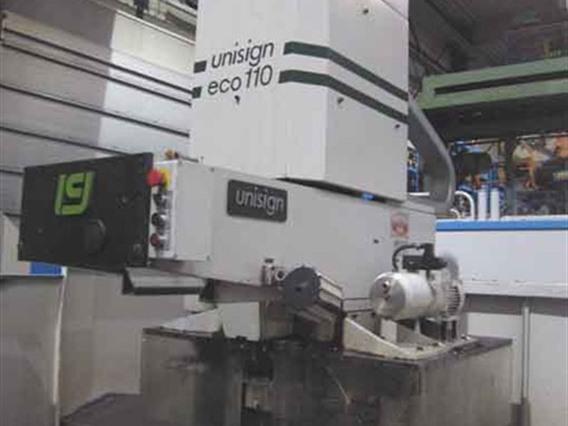

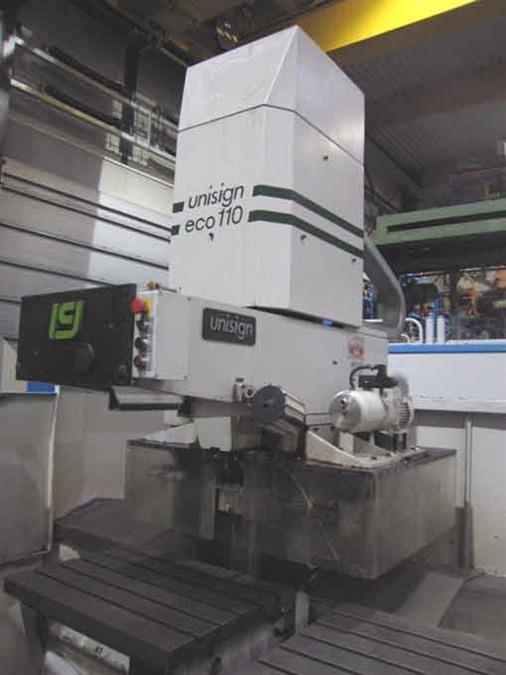

Unisign ECO 110 CNC X:1800 - Y:550 - Z:500 mm

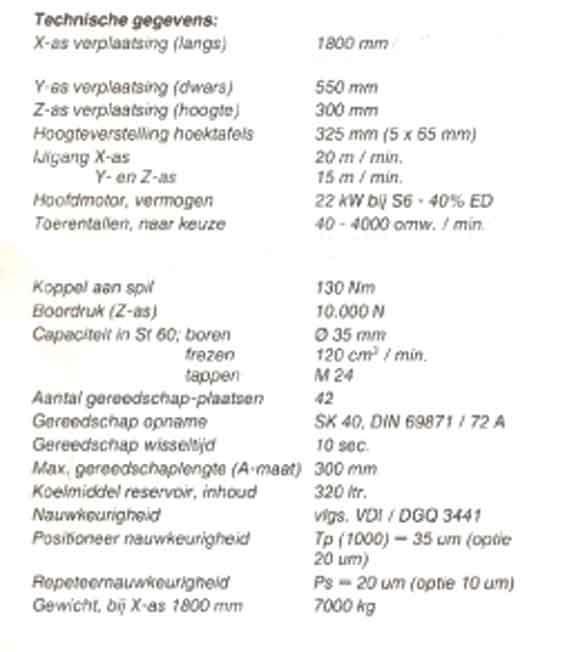

Informazione tecniche

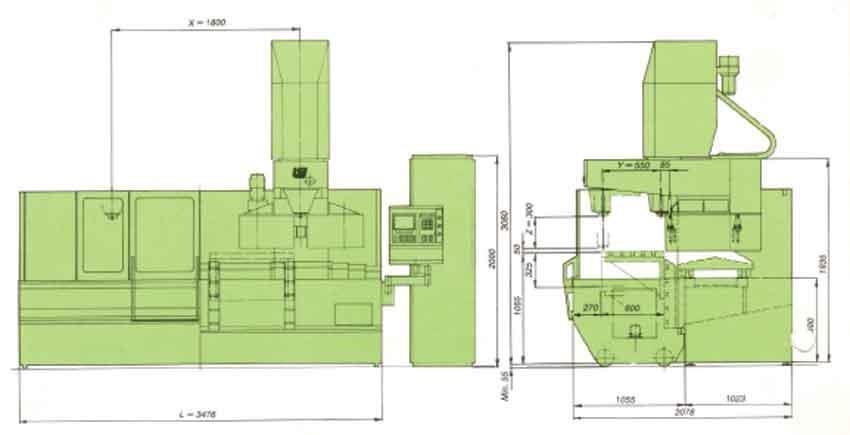

- Longitudinal travel X-axe1800 mm
- Crosstravel Y -axe550 mm
- Travel Z-axe (Height)300 mm
- Power on spindle7 kW
- Admission in millingheadspindle (ISO)ISO 40
- Boring head (1 x90°)Ø 35 mm
- Max speedrange40-4000 rpm

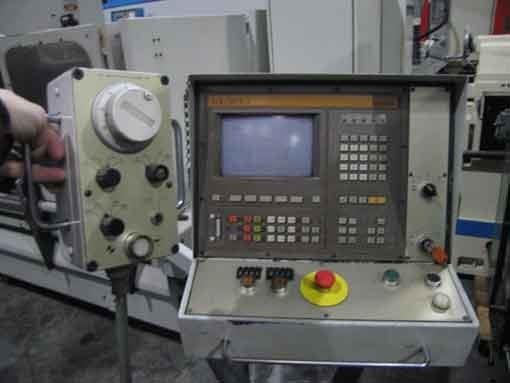

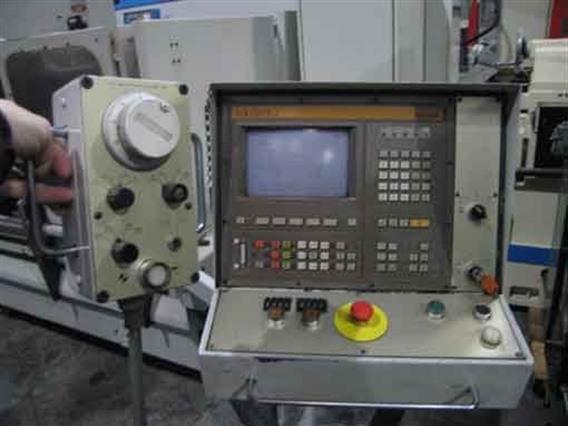

- ControlSiemens Sinumerik 810M
- Length 4000 mm
- Depth 2100 mm
- Height1940 mm
- Weight7000 kg
- Coolant pump+
Informazioni supplementari

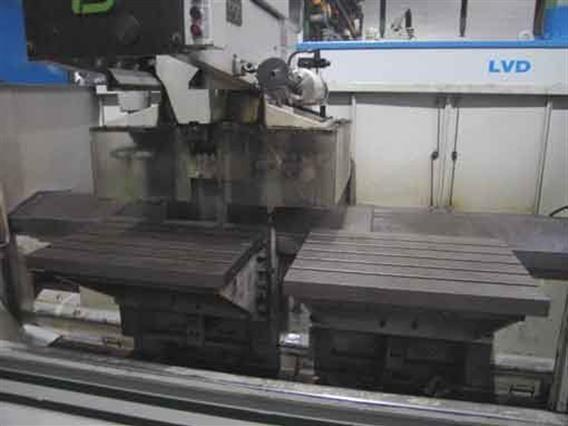

- Height adjustable cornertables over 325 mm
Ideal for long pieces
Big Coordinates field
Powerfull Main motor: 22kW
Quick axle movement up to 20 m/min rapid speed
Toolstorage for 42 tools
Fast, reliable tool changing system
Excellent loadingspossibilities, also with a crane
- Tipo/Modello: ECO 110 CNC X:1800 - Y:550 - Z:500 mm
- Numero di magazzino: B.04 3151
- Categoria: [B] Fresatrici
- Sottocategoria: [B.04] Fresatrice a banco con colonna mobile e CNC
- Il marchio: Unisign
Numero di magazzino: B.04 3151
