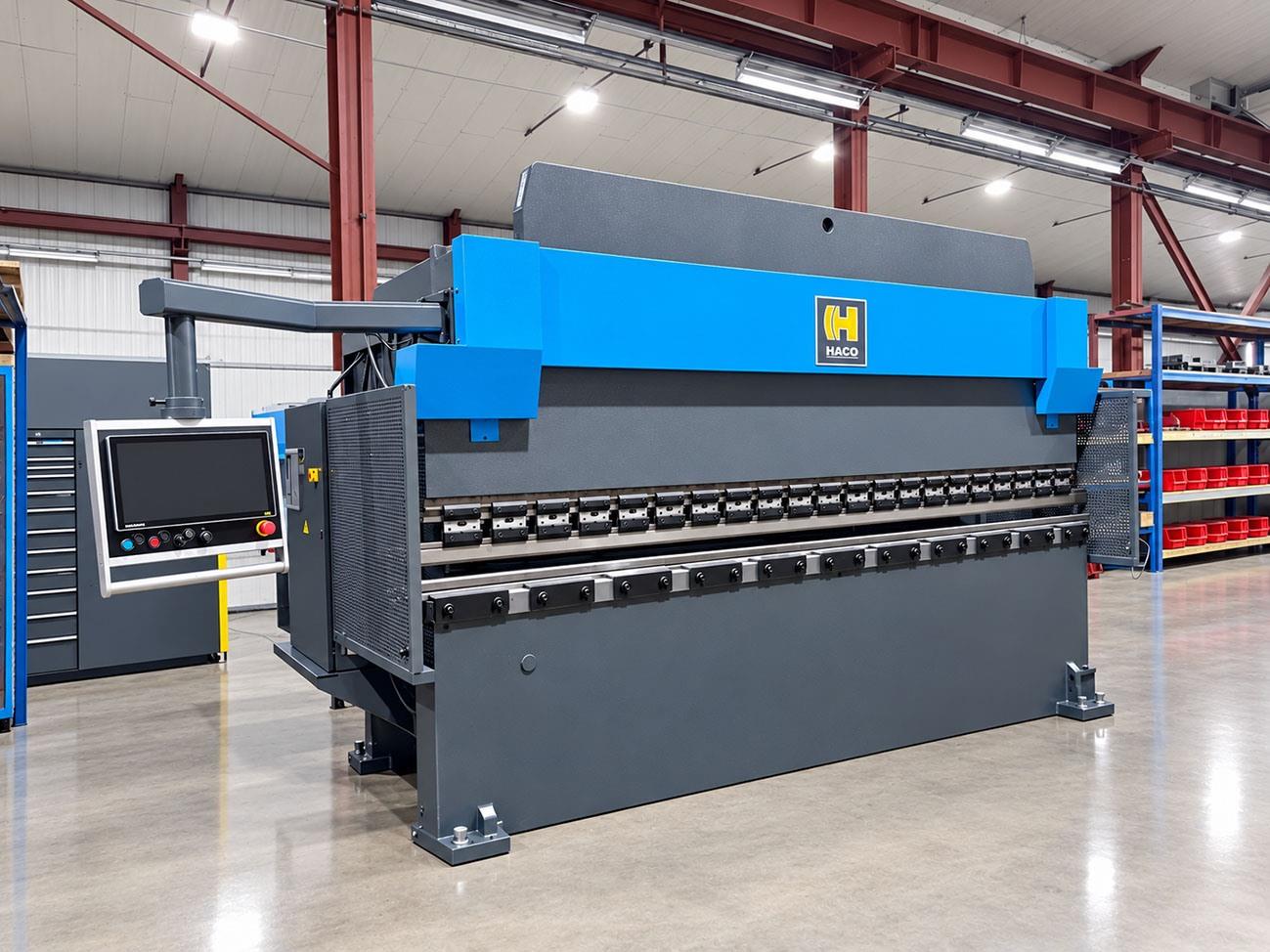

Presse piegatrici idrauliche Haco ERM 150 ton x 4300 mm CNC

Name: Haco ERM 150 ton x 4300 mm CNC
Brand: Haco ERM
SKU: O.01 16576

Prodotto aggiunto al suo preferiti

» Richiedere una quotazione presentata personalizzata

Informazione tecniche

Capacity150 ton x 4300 mm
BackgaugeCNC

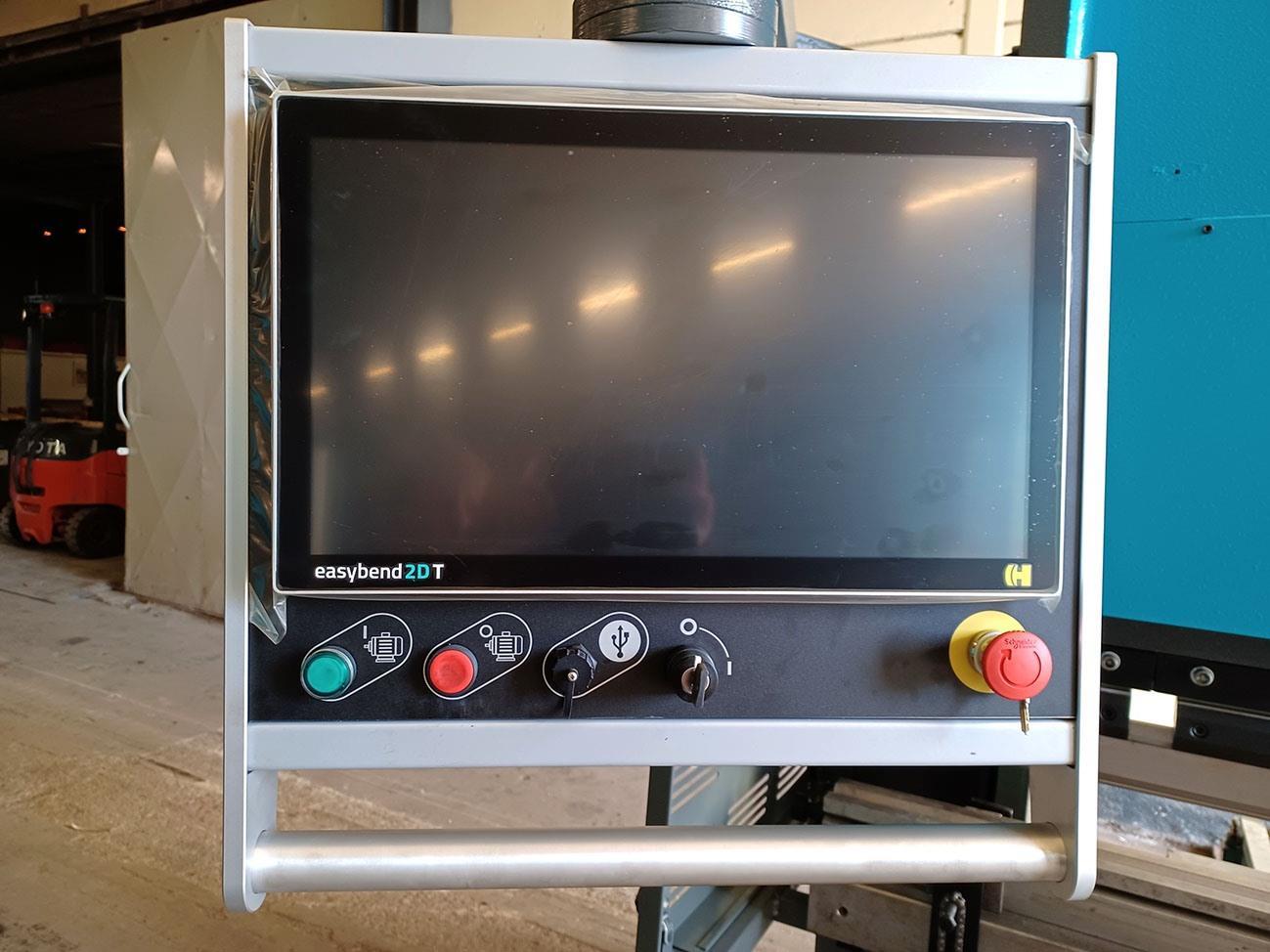

ControlEasybend 2D
Passage between uprights3750 mm
Max stroke200 mm
Max distance between table -- ram400 mm
Depth of throat250 mm
Table width180 mm
Locking speed100 mm/sec
Working speed10 mm/sec
Returning speed80 mm/sec
Electric motor (power)15 kW
Length4700 mm
Depth1700 mm
Height2850 mm
Weight11 ton

Informazioni supplementari

3 assi: Y1 / Y2 / X
Sistema di strumenti Amanda superiore
Aggiornato da Haco con il sistema di controllo Easybend 2D Touch.
Tipo/Modello: 150 ton x 4300 mm CNC
Numero di magazzino: O.01 16576
Categoria: [O] Presse piegatrici, curvatrici, raddrizzatrici, punzonatrici, impianti taglio laser e impianti ossitaglio e linee di profilatura
Sottocategoria: [O.01] Presse piegatrici idrauliche
Il marchio: Haco ERM

» Richiedere una quotazione presentata personalizzata

Numero di magazzino: O.01 16576

+++BekijkVideoWerkendeMachine+++

Scaricare tutte le foto in ZIP
