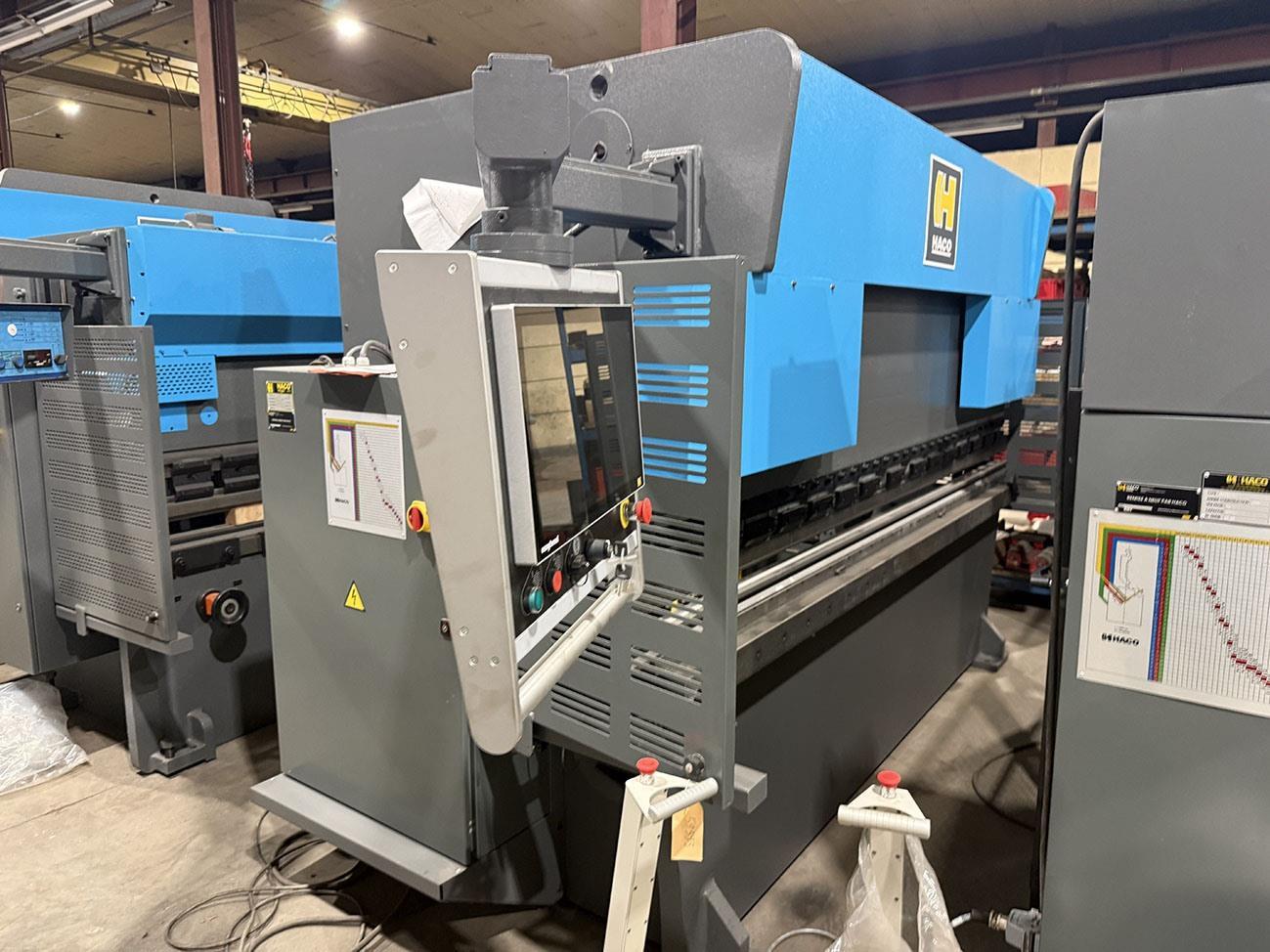

Presse piegatrici idrauliche Haco PPES 135 ton x 3100 mm CNC

Name: Haco PPES 135 ton x 3100 mm CNC
Brand: Haco PPES
SKU: O.01 16573

Prodotto aggiunto al suo preferiti

» Richiedere una quotazione presentata personalizzata

Informazione tecniche

Capacity135 ton x 3100 mm
BackgaugeCNC

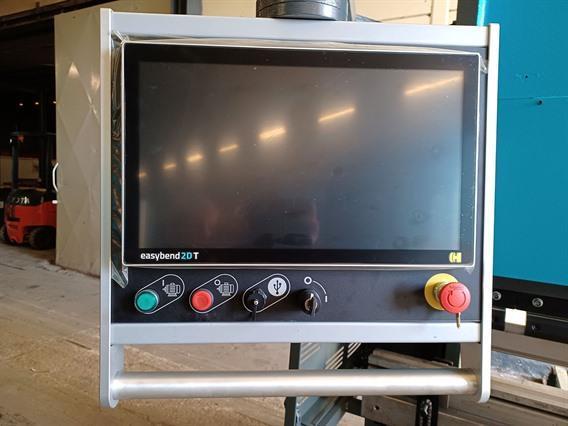

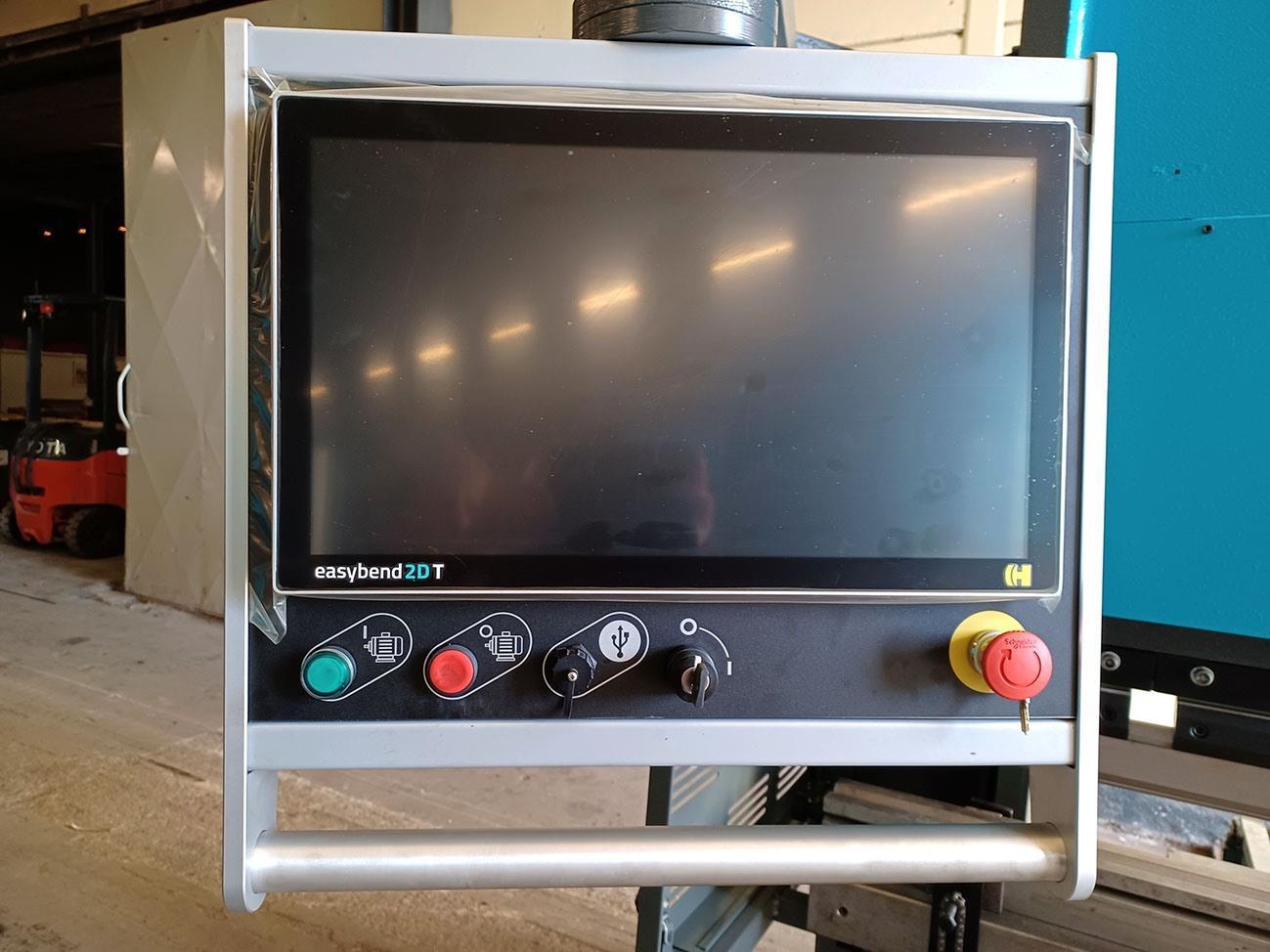

ControlEasybend 2D
Passage between uprights2600 mm
Max stroke130 mm
Max distance between table -- ram325 mm
Depth of throat250 mm
Table width180 mm
Locking speed100 mm/sec
Working speed10 mm/sec
Returning speed100 mm/sec
Electric motor (power)12 kW
Length3270 mm
Depth1500 mm
Height2460 mm
Weight8 ton

Informazioni supplementari

3 assi: Y1 / Y2 / X
Sistema di strumenti Amada superiore
Aggiornato da Haco con il sistema di controllo Easybend 2D Touch.
Tipo/Modello: 135 ton x 3100 mm CNC
Numero di magazzino: O.01 16573
Categoria: [O] Presse piegatrici, curvatrici, raddrizzatrici, punzonatrici, impianti taglio laser e impianti ossitaglio e linee di profilatura
Sottocategoria: [O.01] Presse piegatrici idrauliche
Il marchio: Haco PPES

» Richiedere una quotazione presentata personalizzata

Numero di magazzino: O.01 16573

+++BekijkVideoWerkendeMachine+++

Scaricare tutte le foto in ZIP
