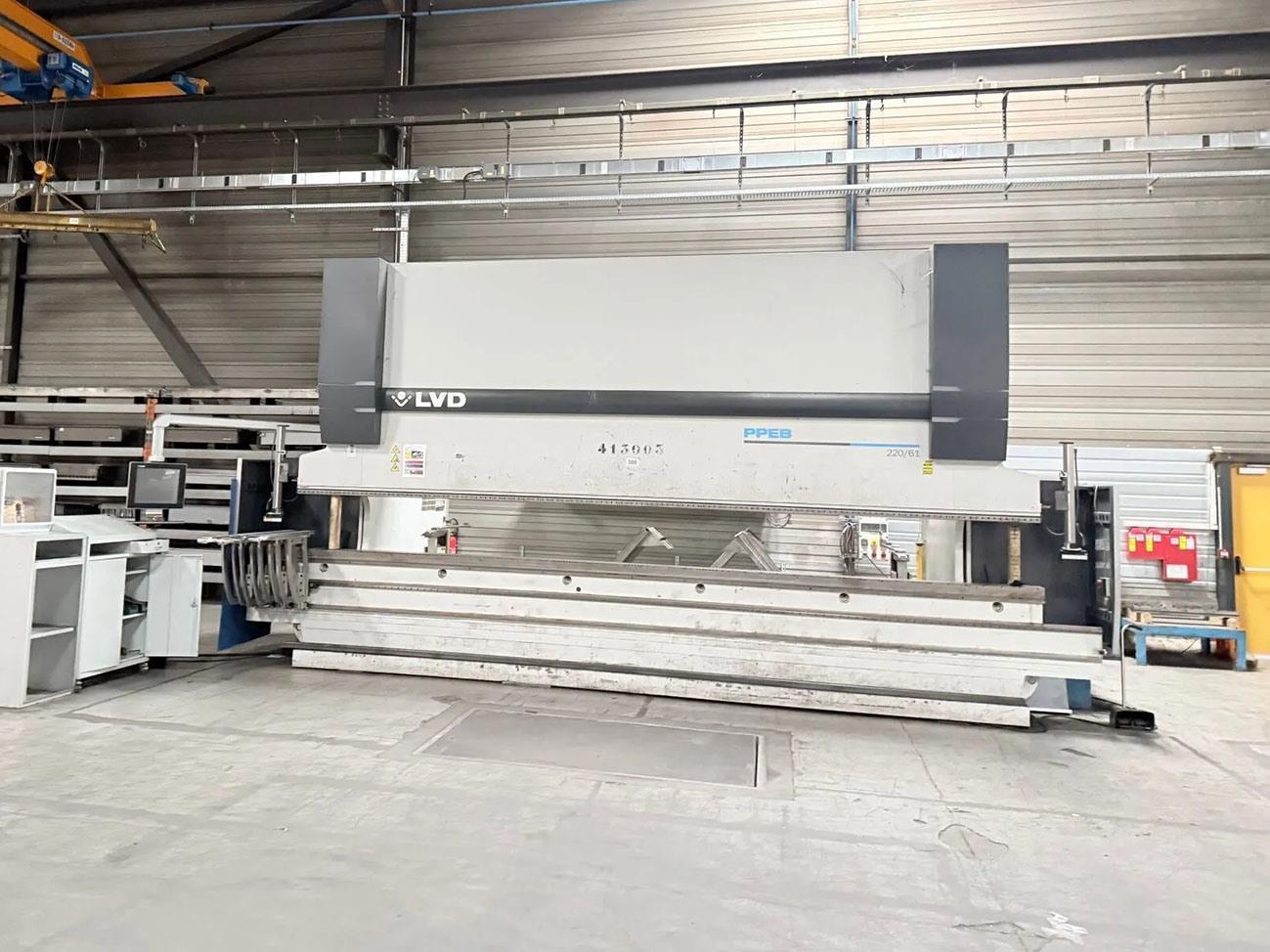

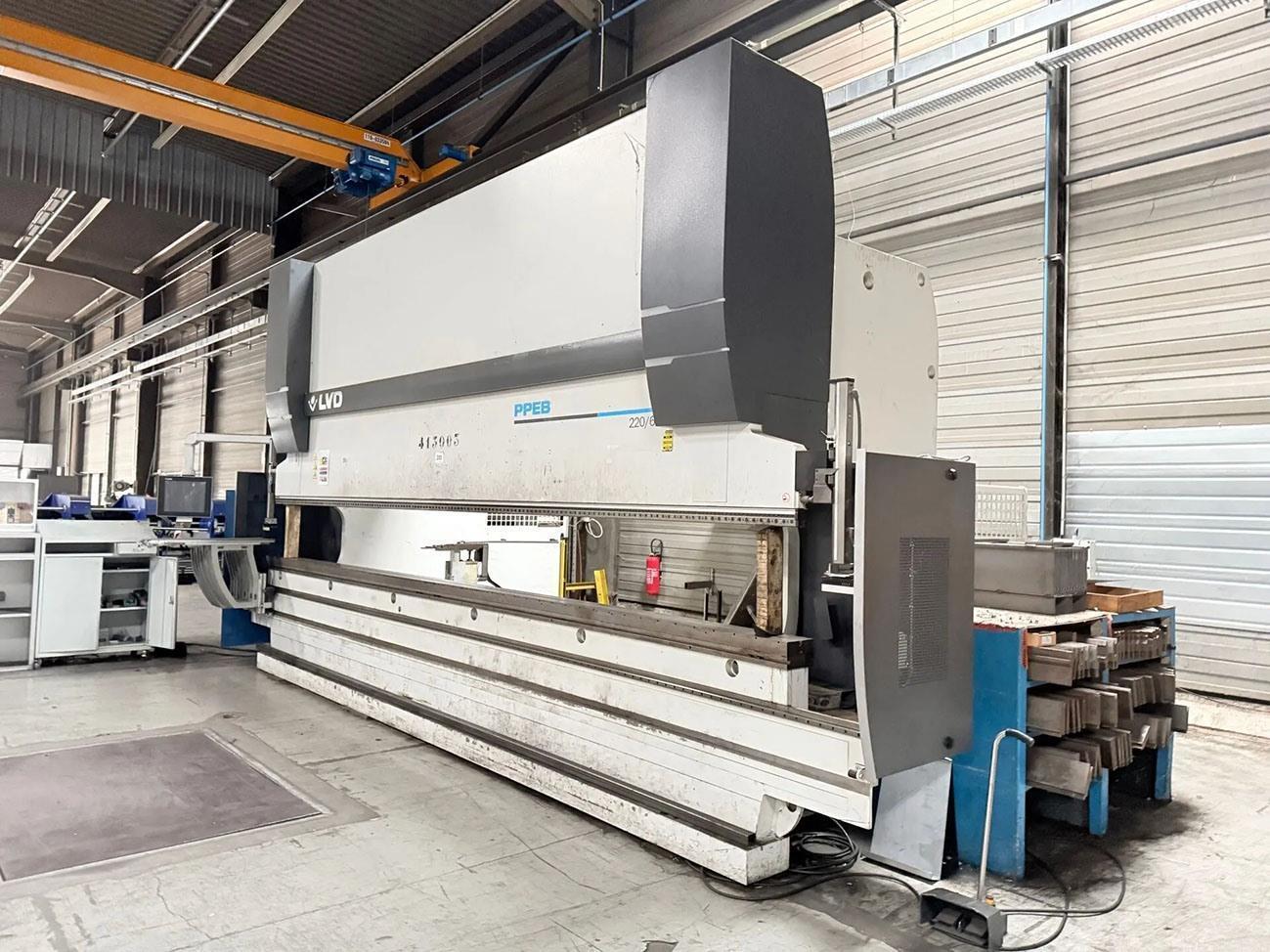

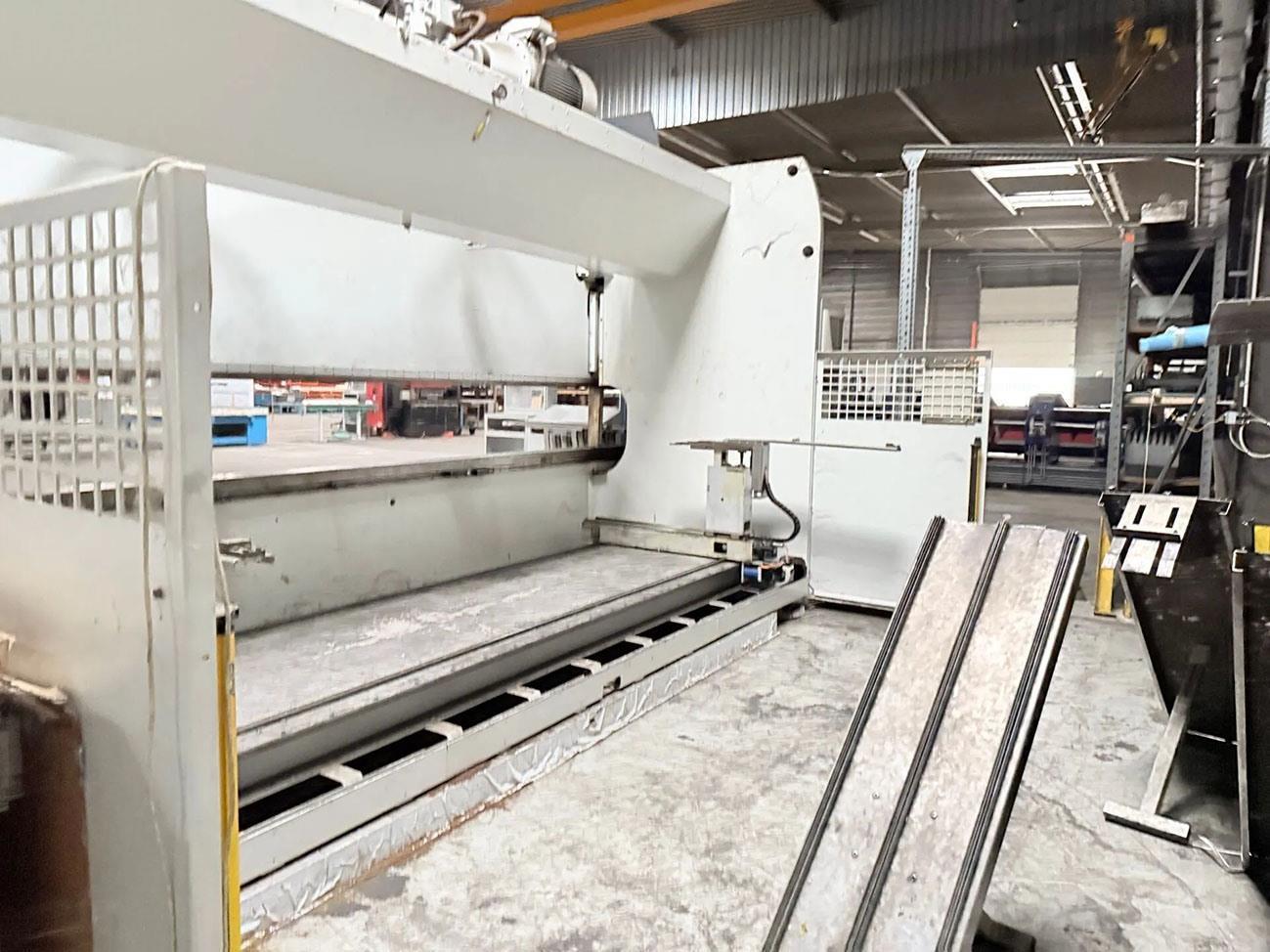

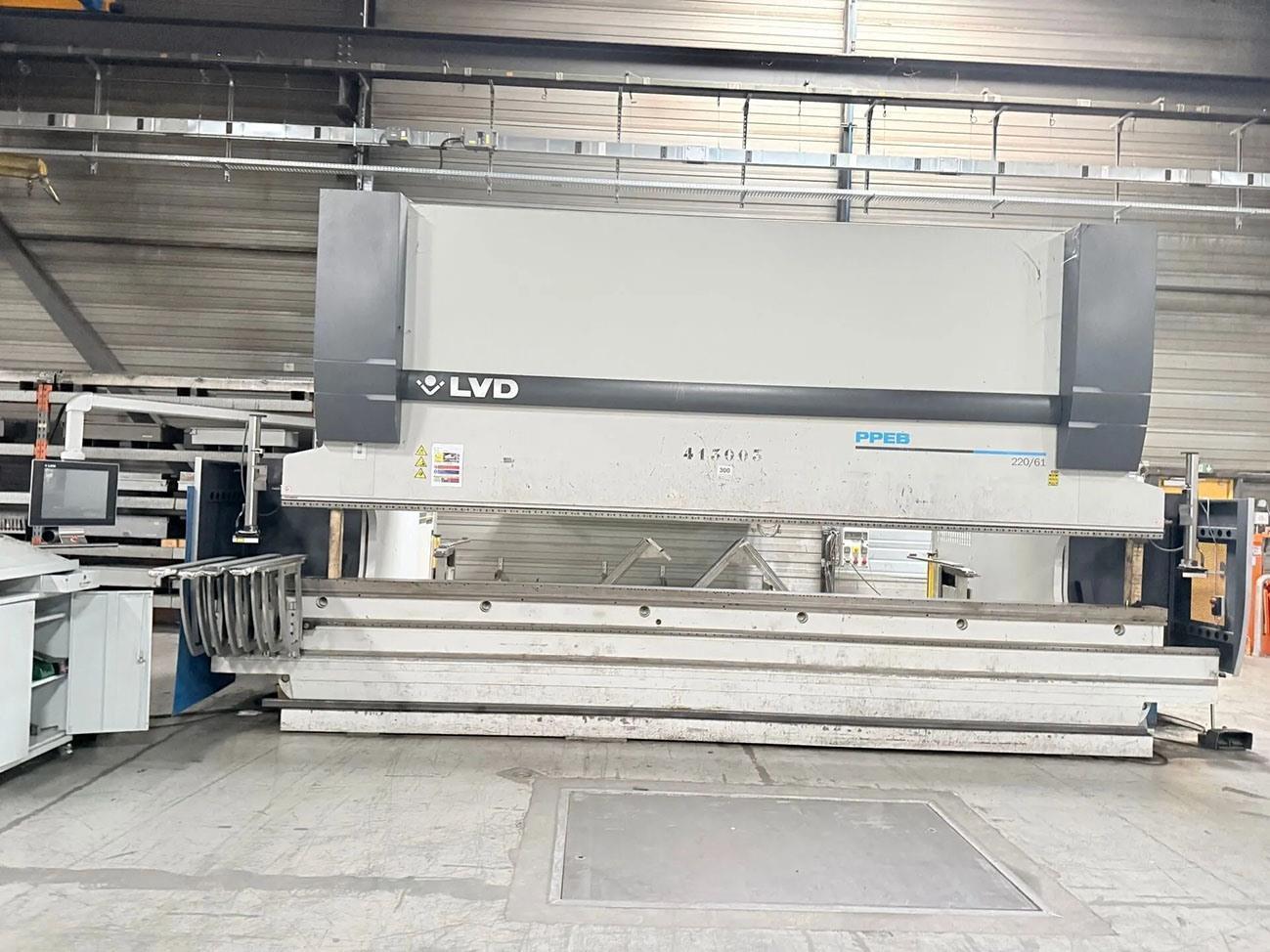

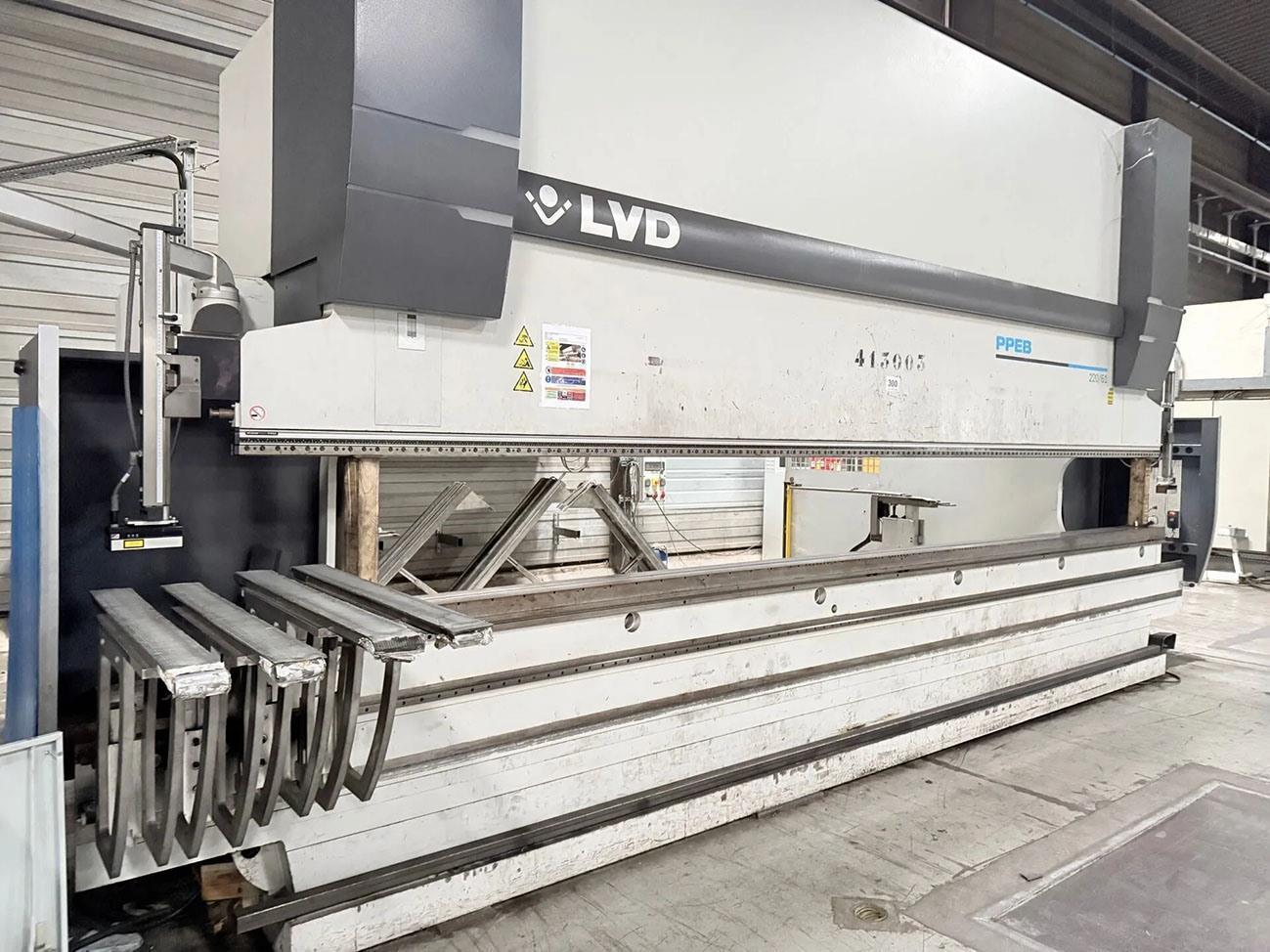

Presse piegatrici idrauliche LVD PPEB 220 ton x 6100 mm CNC

Name: LVD PPEB 220 ton x 6100 mm CNC
Brand: LVD PPEB
SKU: O.01 16174

Prodotto aggiunto al suo preferiti

» Richiedere una quotazione presentata personalizzata

Informazione tecniche

Capacity220 ton x 6100 mm
BackgaugeCNC

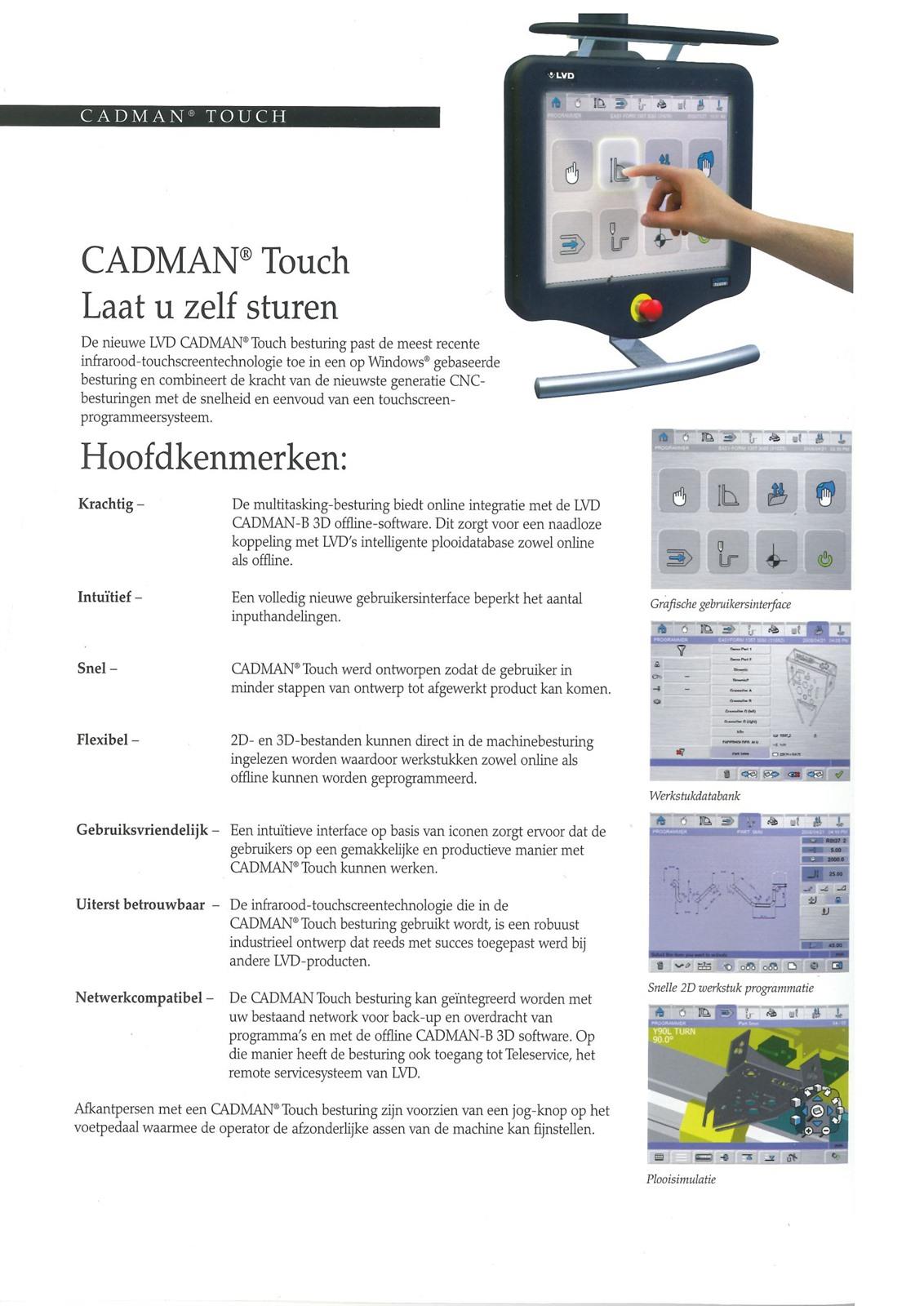

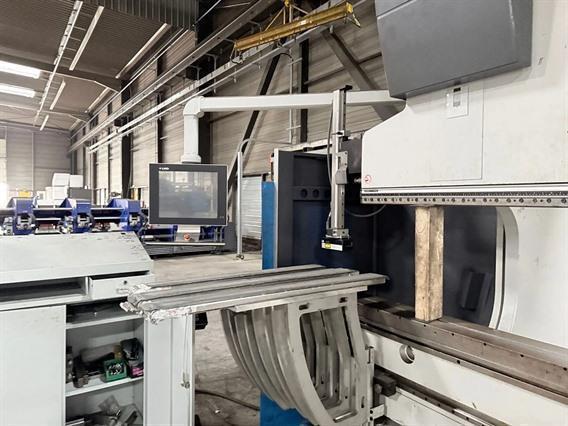

ControlCadman-B Touch
Passage between uprights5050 mm
Max stroke200 mm
Max distance between table -- ram400 mm
Depth of throat400 mm
Table width120 mm
Locking speed120 mm/sec
Working speed21 mm/sec
Returning speed200 mm/sec
Electric motor (power)42 kW
Weight24 ton

Informazioni supplementari

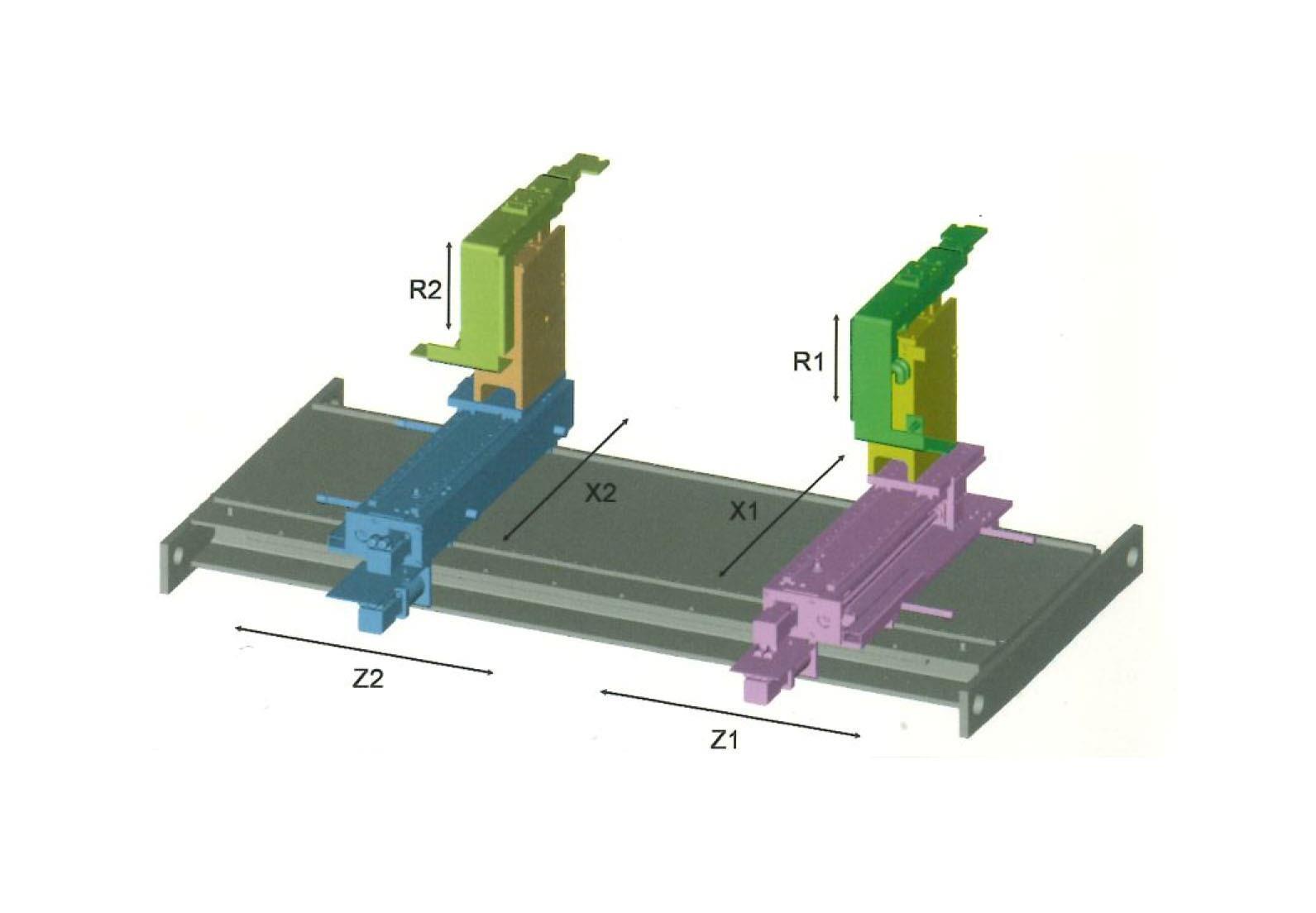

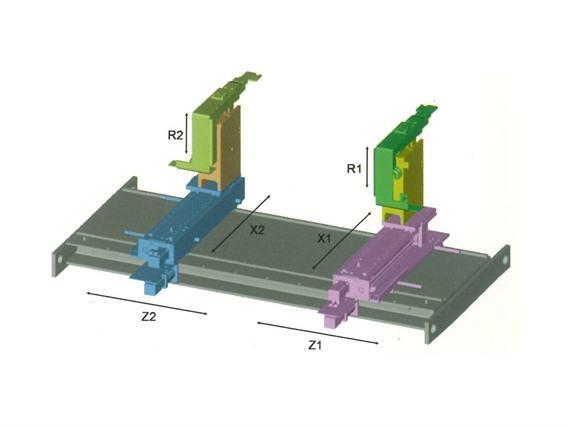

8 assi: Y1 / Y2 / X1 / X2 / R1 / R2 / Z1 / Z2

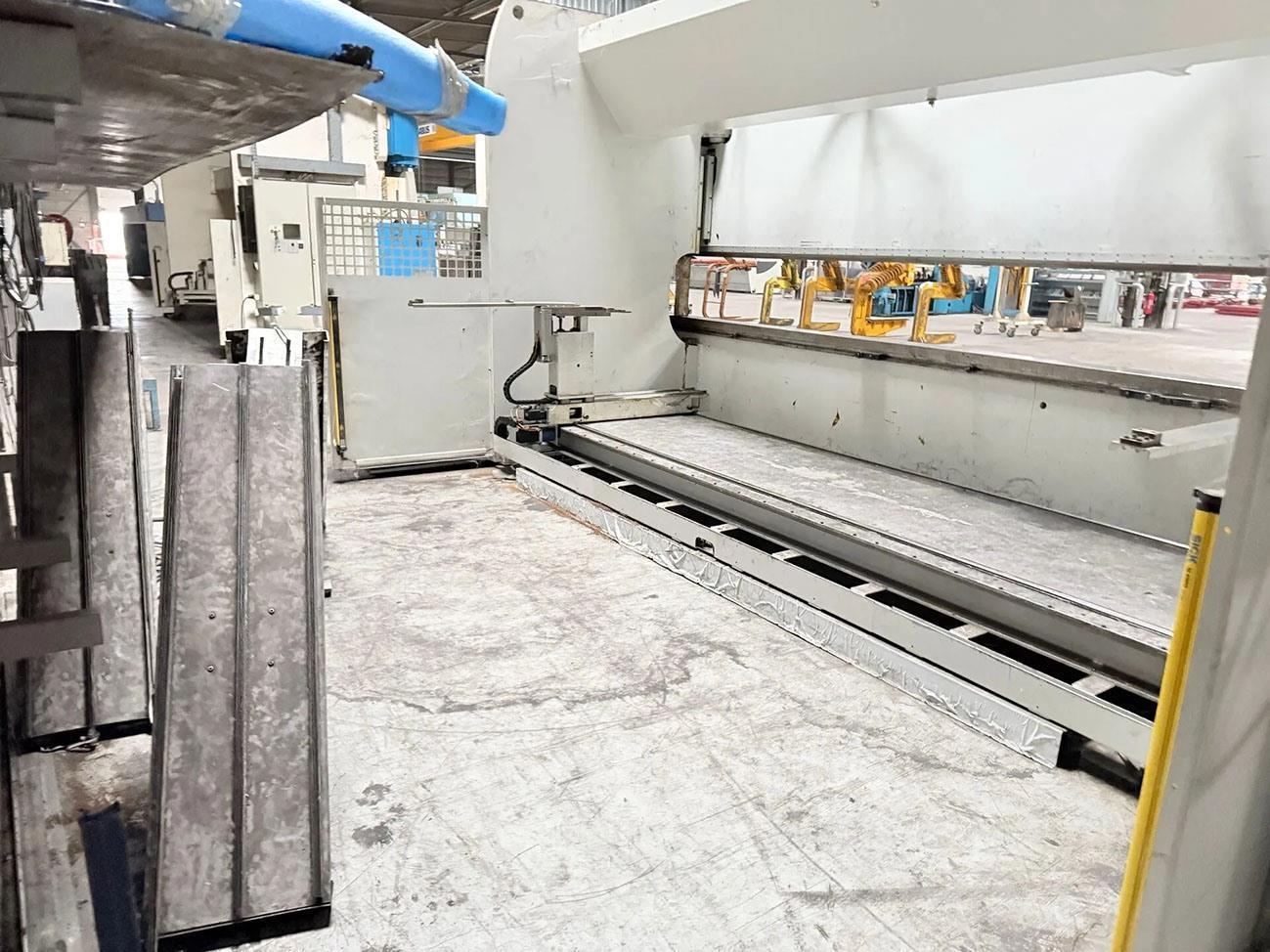

4 supporti per piastre nella parte anteriore
sicurezza sicura laser

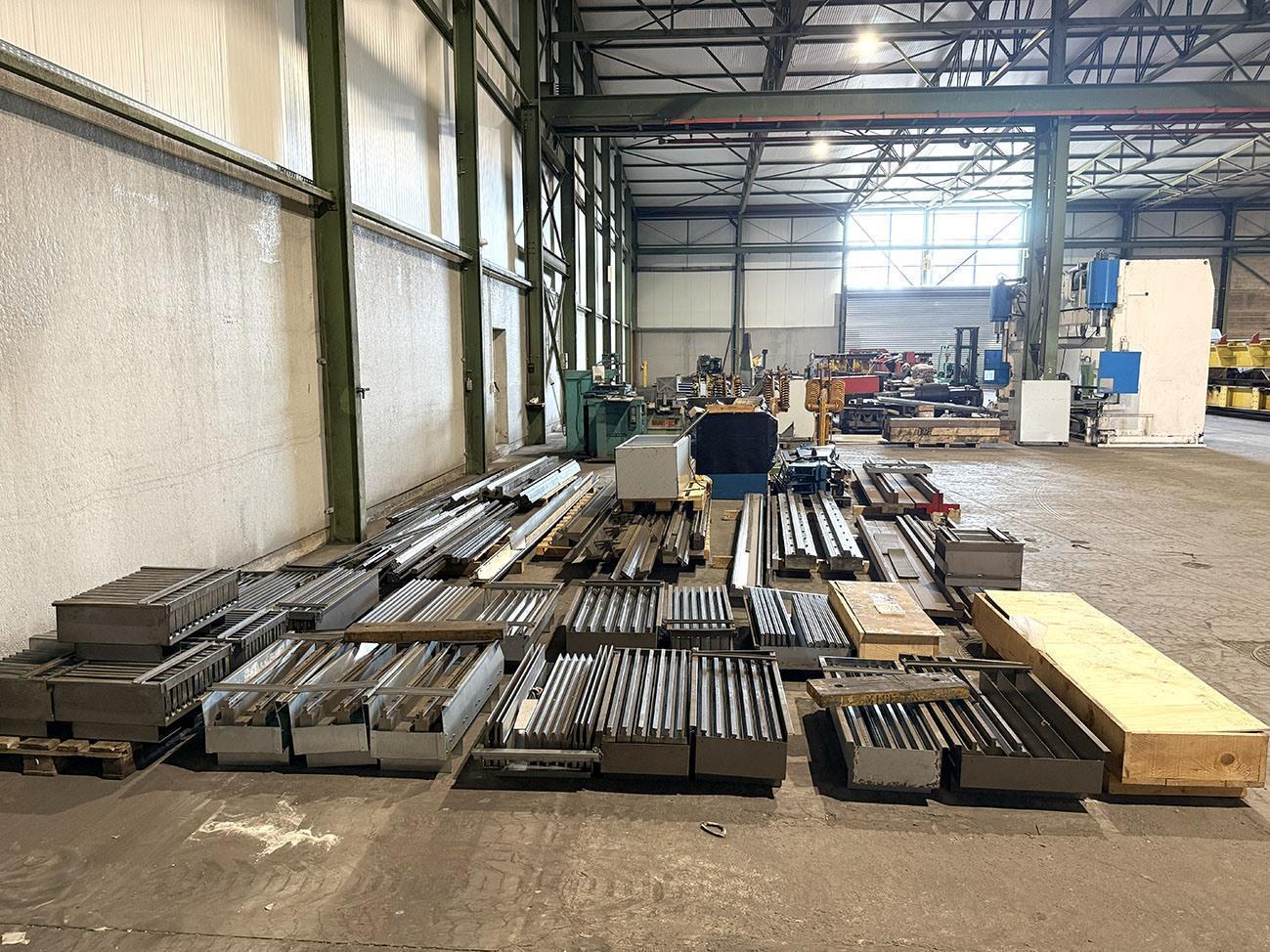

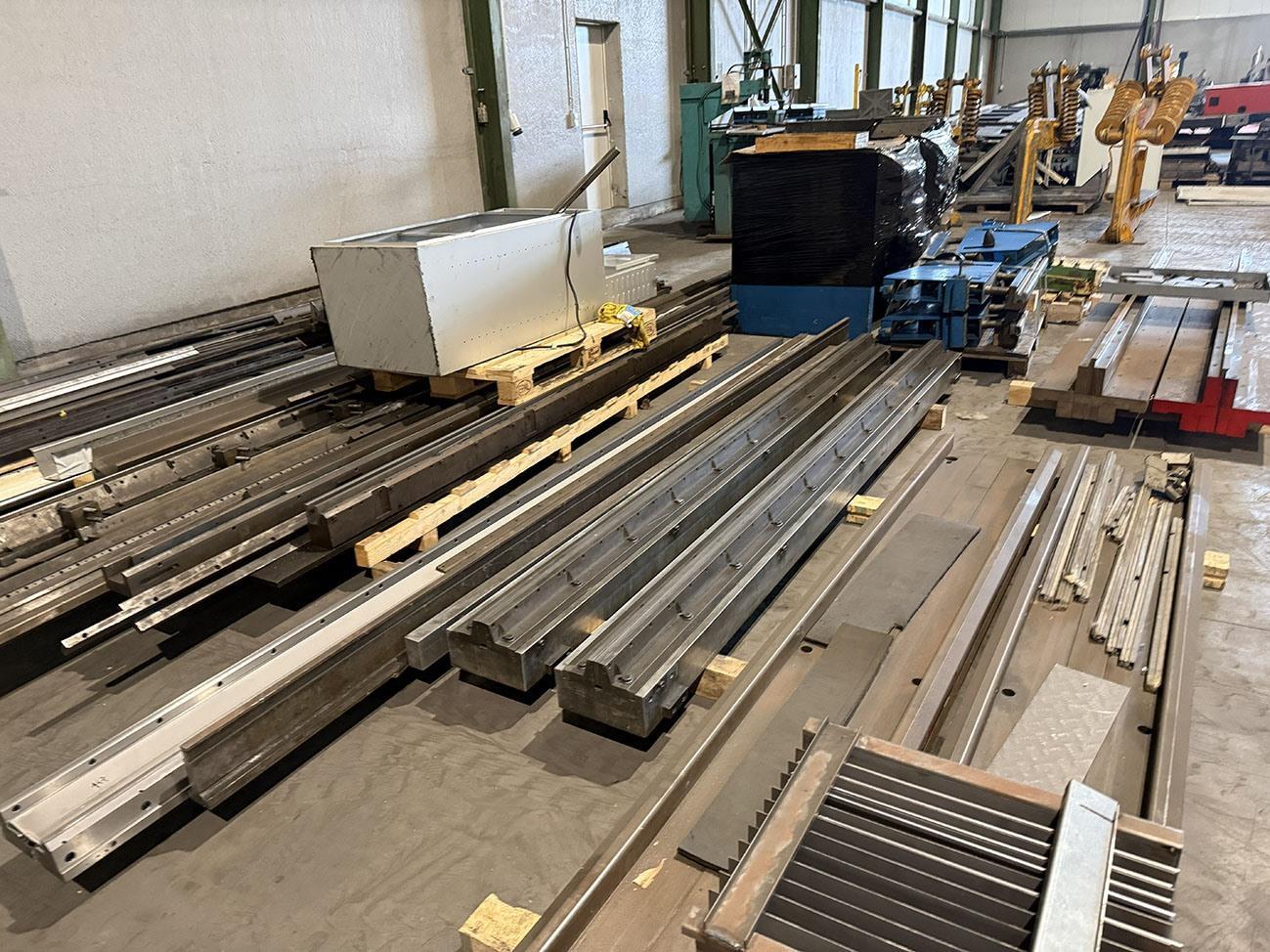

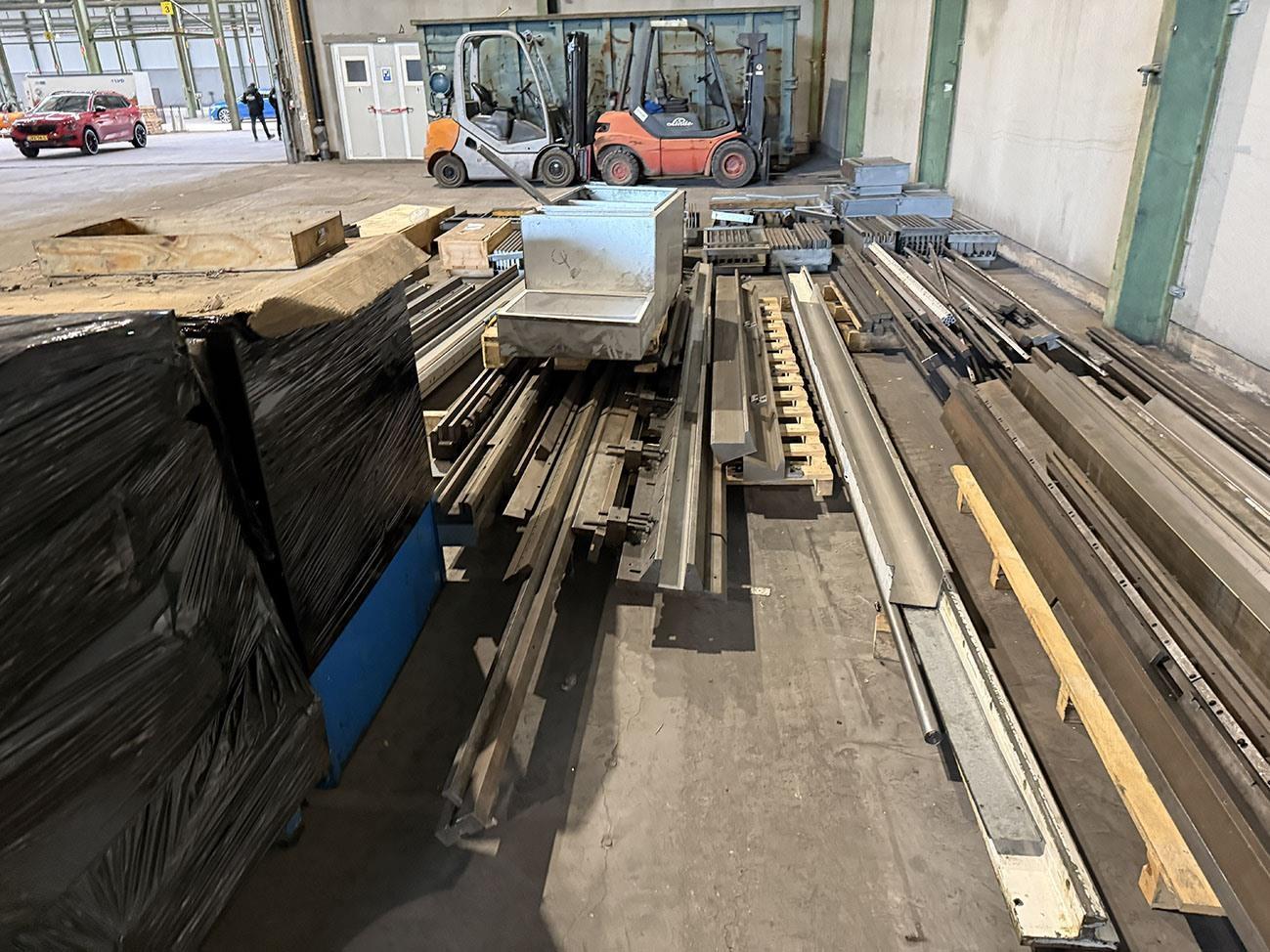

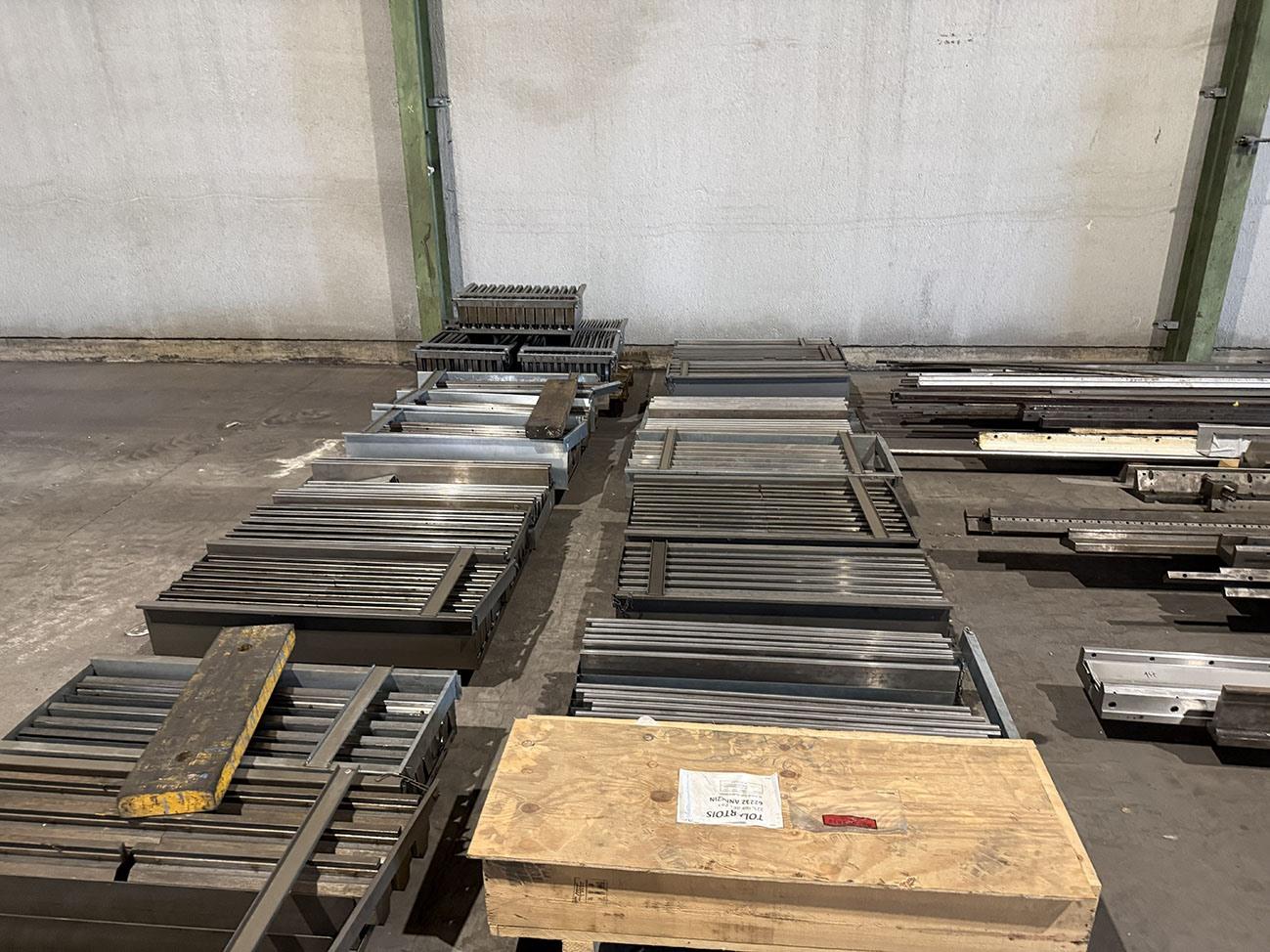

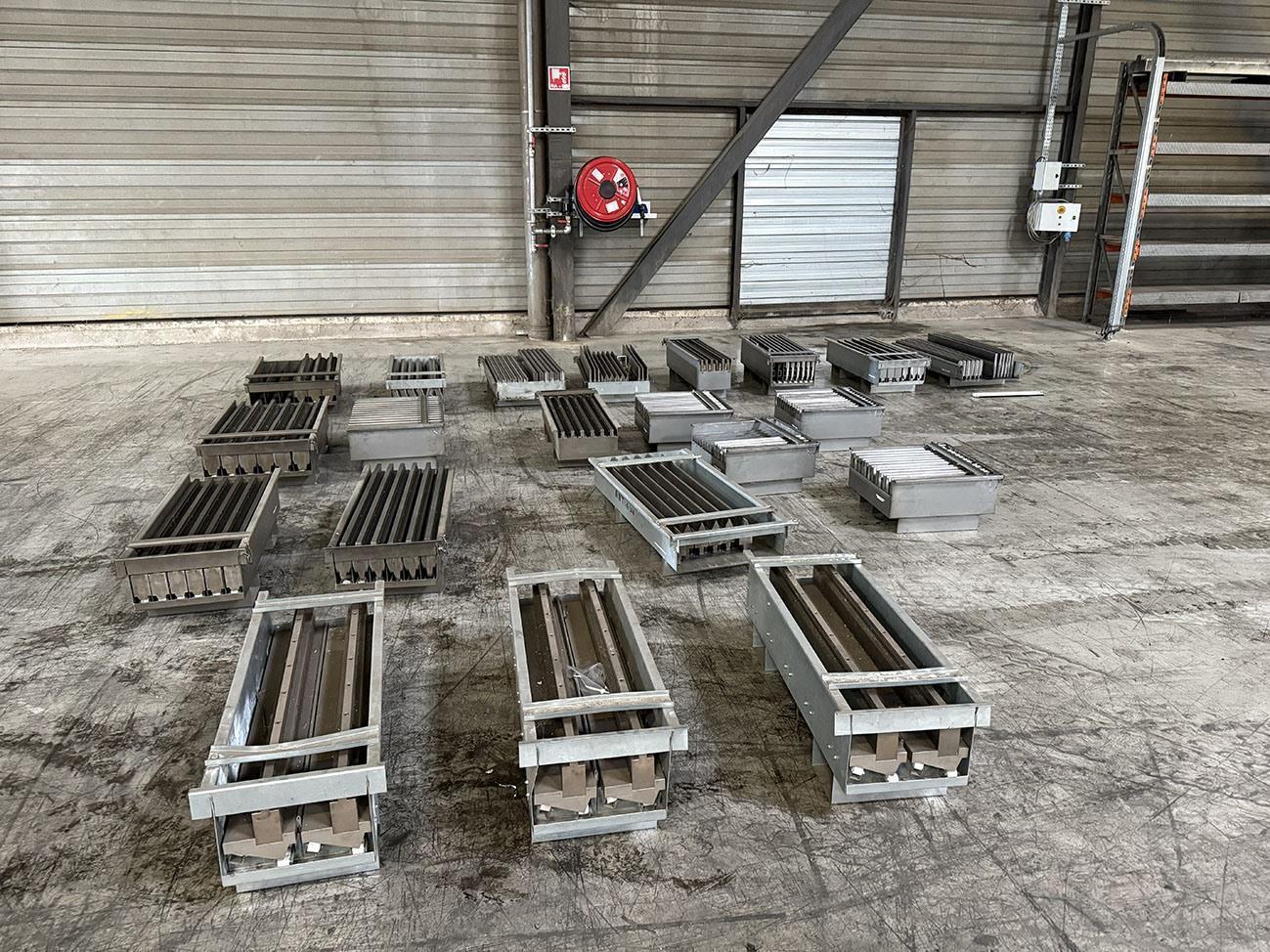

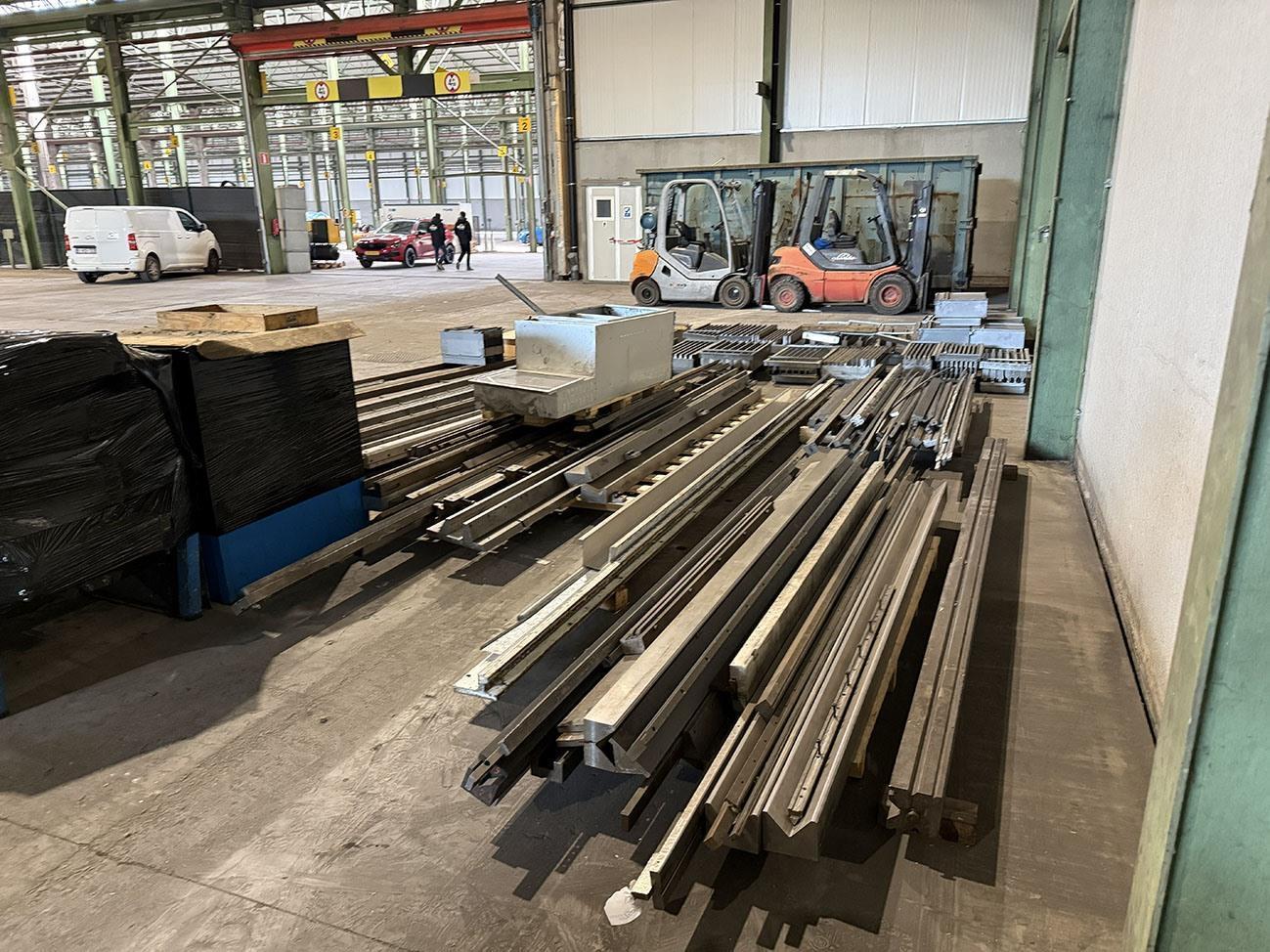

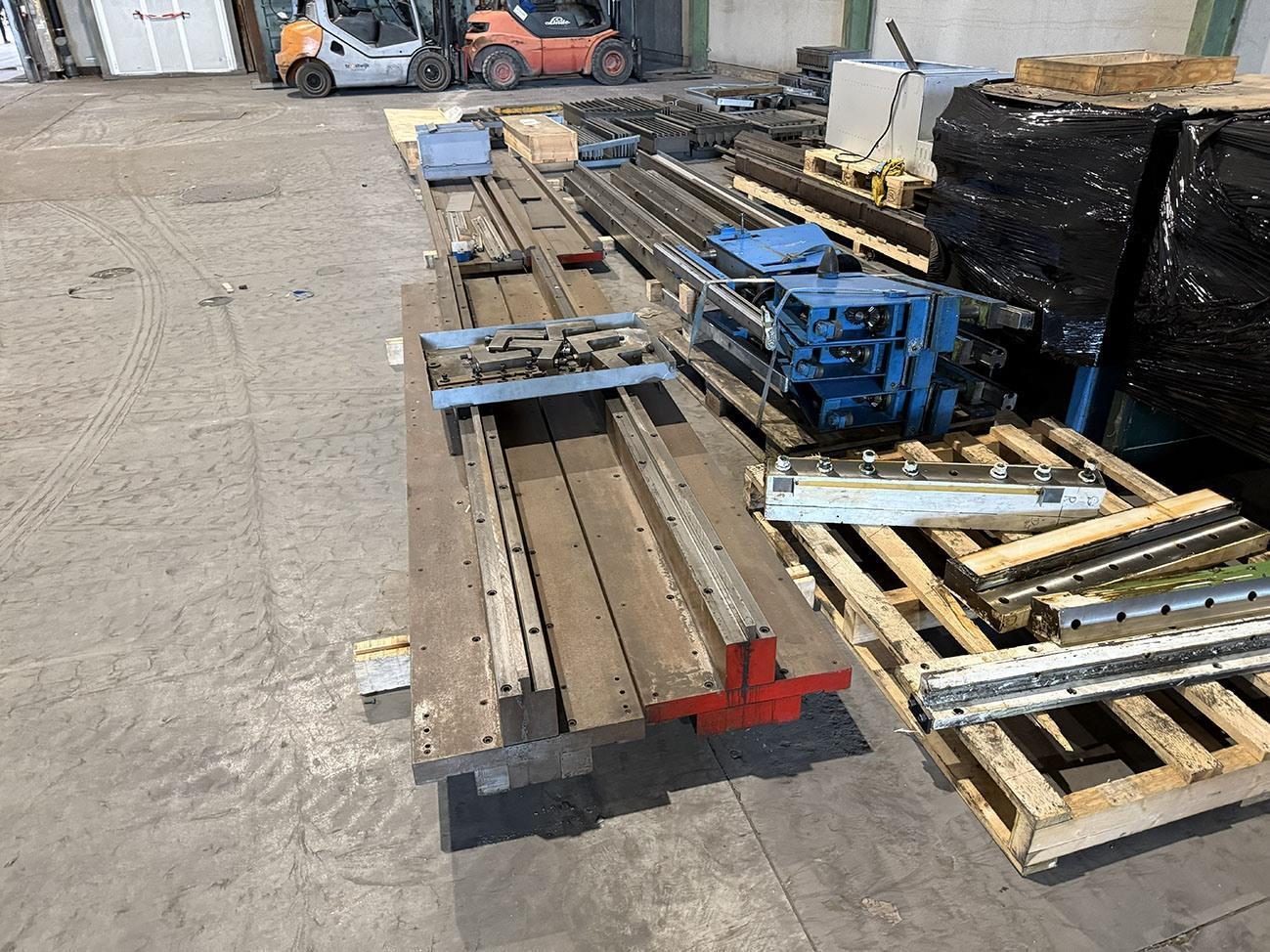

Willa Tooling
Tipo/Modello: 220 ton x 6100 mm CNC
Numero di magazzino: O.01 16174
Categoria: [O] Presse piegatrici, curvatrici, raddrizzatrici, punzonatrici, impianti taglio laser e impianti ossitaglio e linee di profilatura
Sottocategoria: [O.01] Presse piegatrici idrauliche
Il marchio: LVD PPEB

» Richiedere una quotazione presentata personalizzata

Numero di magazzino: O.01 16174
