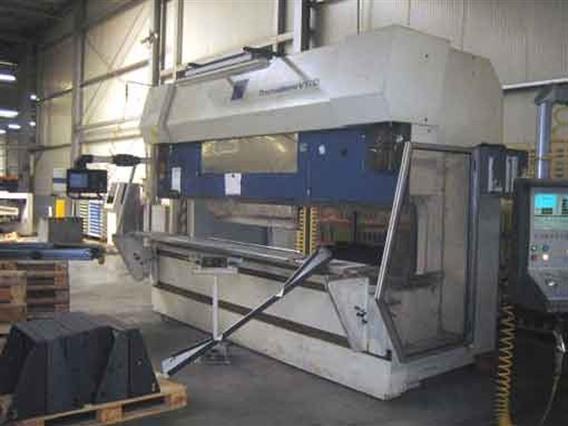

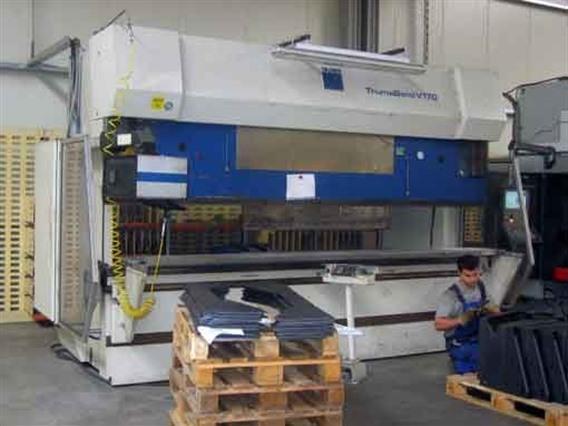

Presse piegatrici idrauliche Trumpf Trumabend V170 x 4080mm CNC

Informazione tecniche

Capacity170T x 4080 mm
Backgauge(3) CNC
ControlCNC
Passage between uprights3680 mm
Max stroke365 mm (+150mm)
Max distance between table -- ram535 mm (+150mm)
Depth of throat410 mm
Table width4080 mm
Locking speed200 mm/sec
Working speed1-10 mm/sec
Returning speed135 mm/sec
Electric motor (power)22 kW
Length4620 mm
Depth1980 mm
Height2885 mm
Weight18000 kg

Informazioni supplementari

7 axis total Pneumatic adjustable I axis Lower Tool EXTRA OPTIONS: Hydraulic clamping upper & lower CNC Bombation Increased insertion height and stroke (+ 150 mm) ACB (angle sensor) preparation Modifix Tools Wila 2 individually activated bending arms Delem DA65 - Control
Tipo/Modello: Trumabend V170 x 4080mm CNC
Numero di magazzino: O.01 4127 *08
Categoria: [O] Presse piegatrici, curvatrici, raddrizzatrici, punzonatrici, impianti taglio laser e impianti ossitaglio e linee di profilatura
Sottocategoria: [O.01] Presse piegatrici idrauliche
Il marchio: Trumpf

Numero di magazzino: O.01 4127 *08

Venduto
Venduto
Venduto
Venduto

Scaricare tutte le foto in ZIP
