Ernault & somua Ø 2000 x 7500 mm CNC
Informazione tecniche

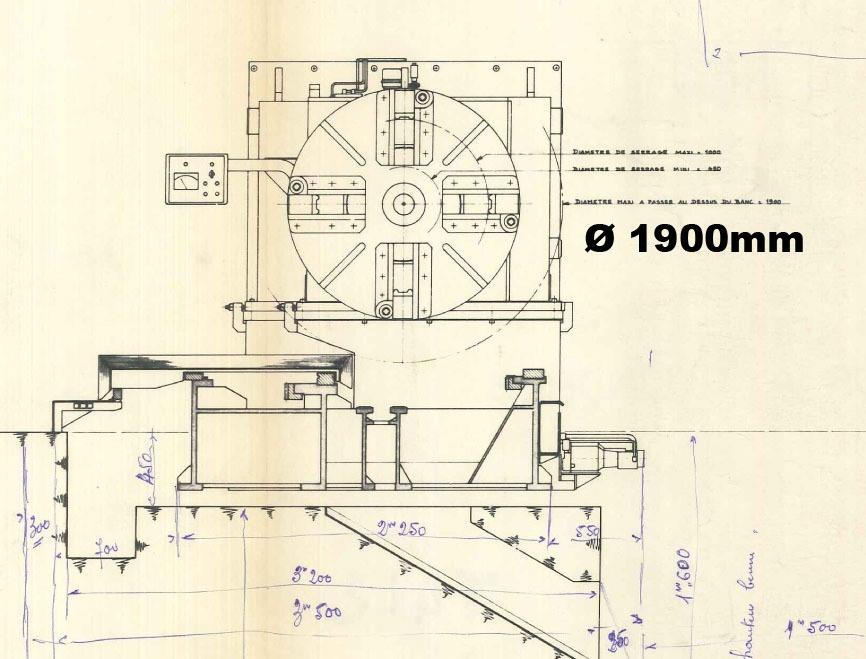

- Swing over bed2000 mm

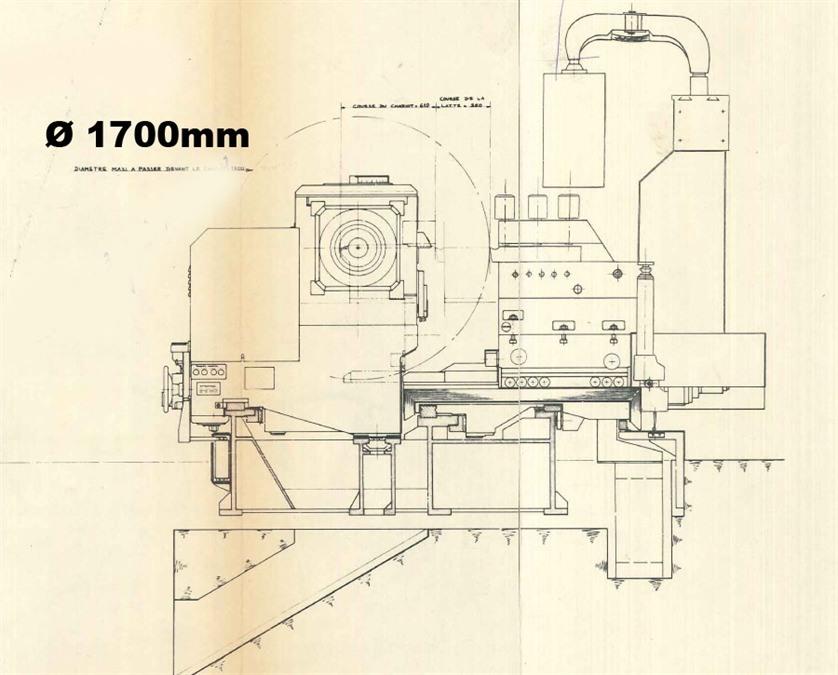

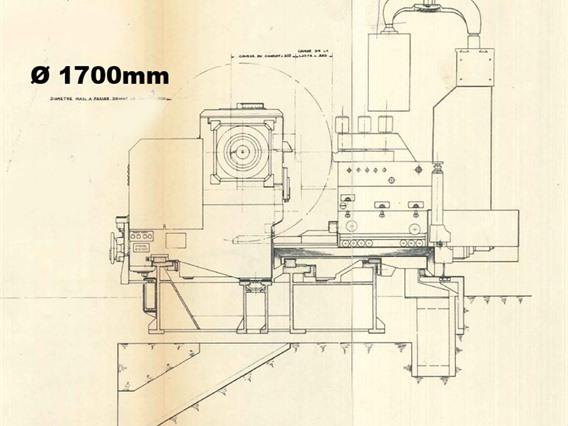

- Swing over cross-slide1700 mm
- Distance centre tot centre7500 mm

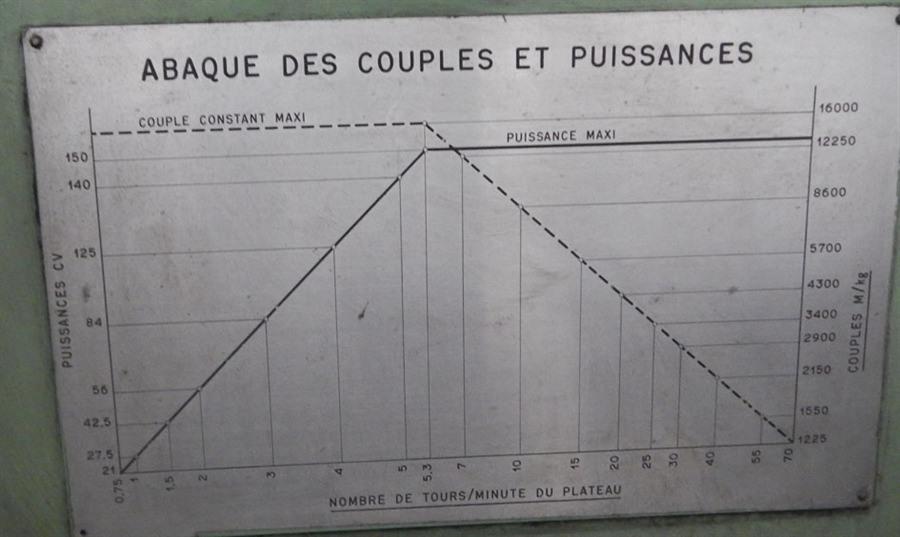

- Power on the spindle110 kW
- Number of speeds0,7 > 70 rpm

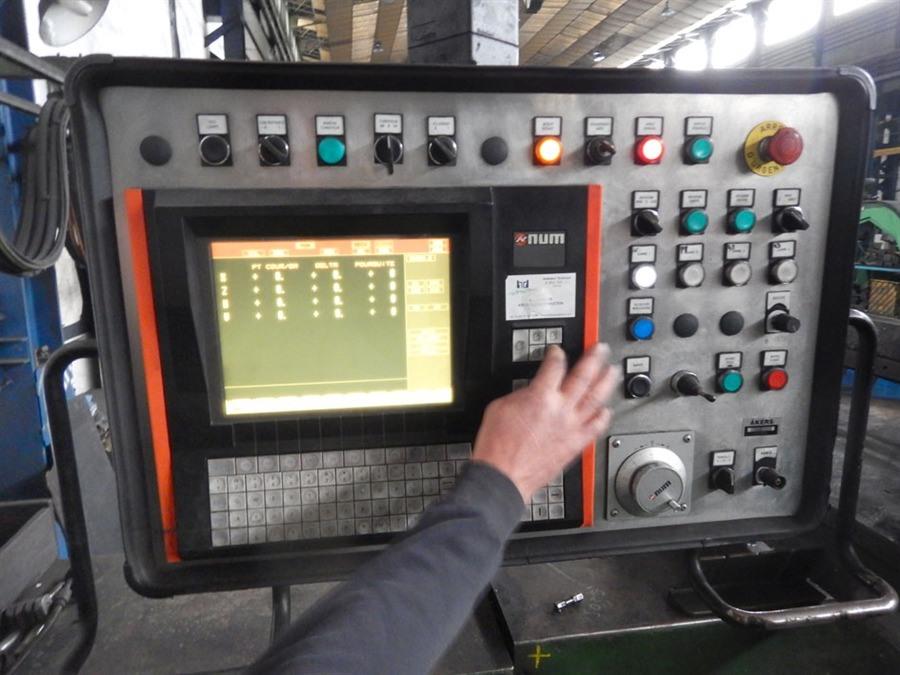

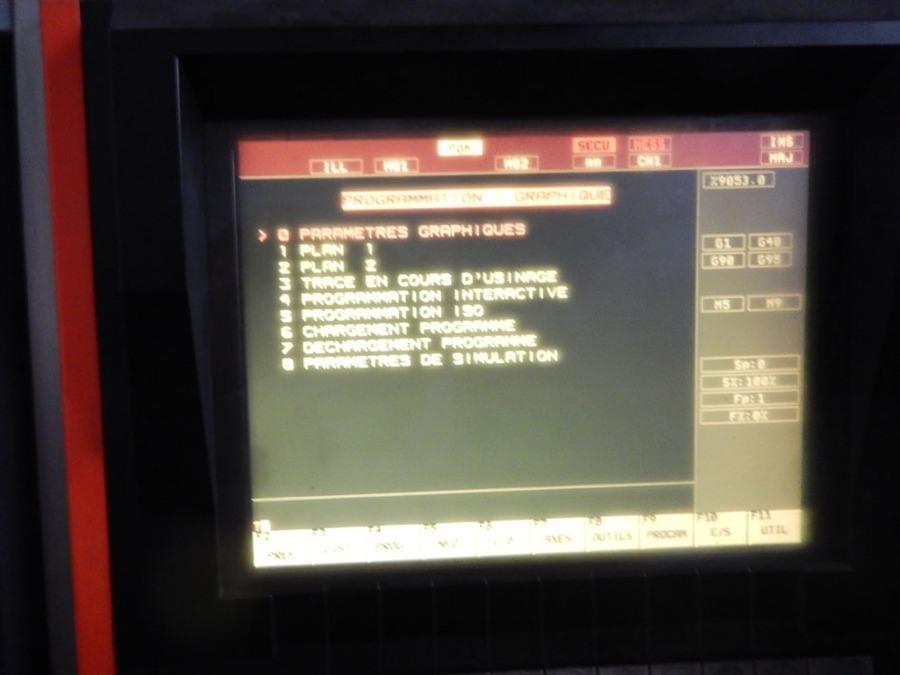

- CommandNum 1040
Informazioni supplementari

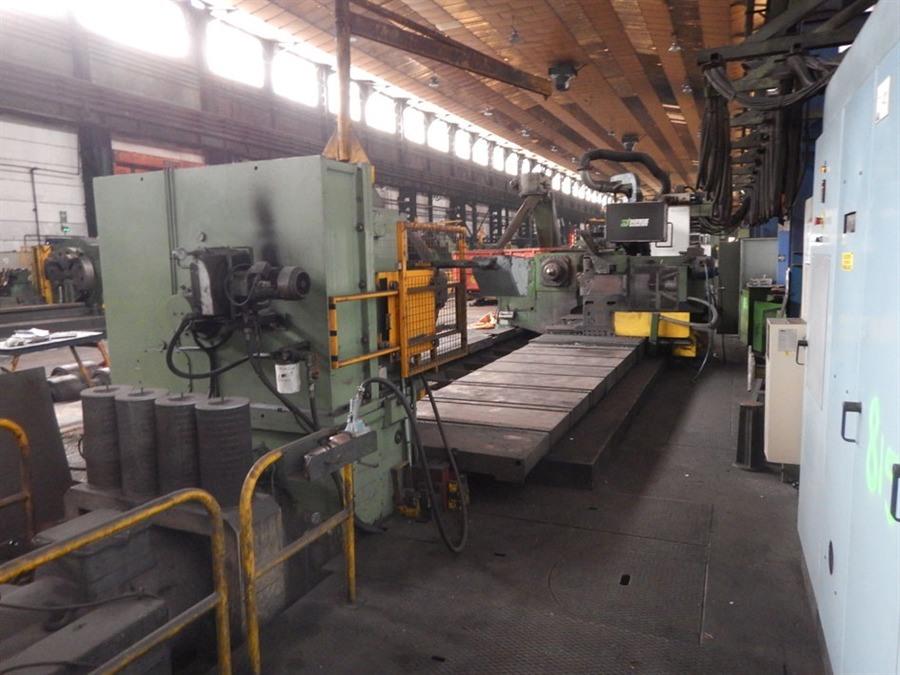

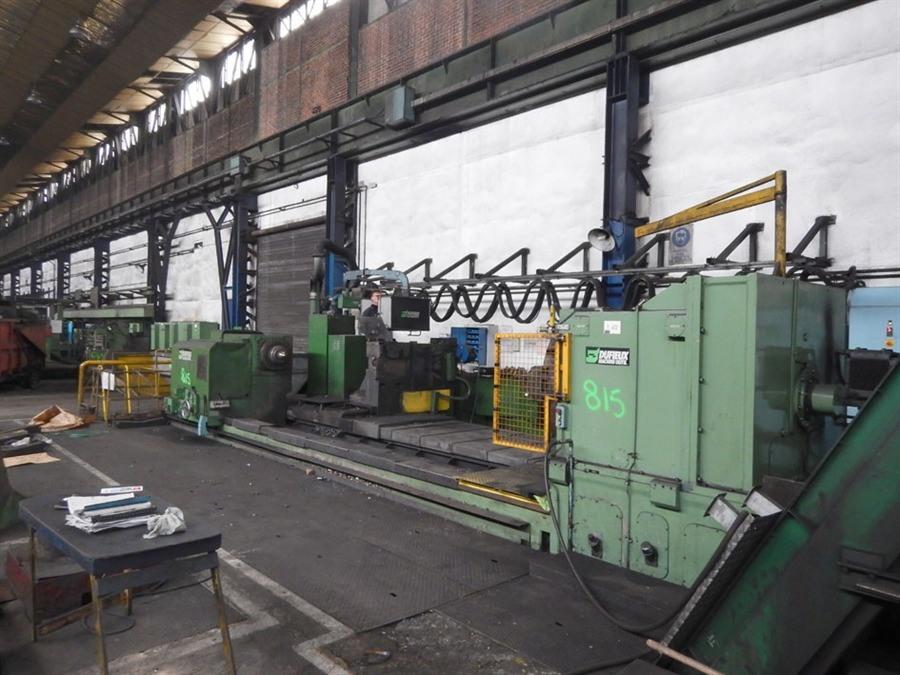

- Heavy duty lathe with 4 hardened linear guides
Max workpiece weight: 60 ton

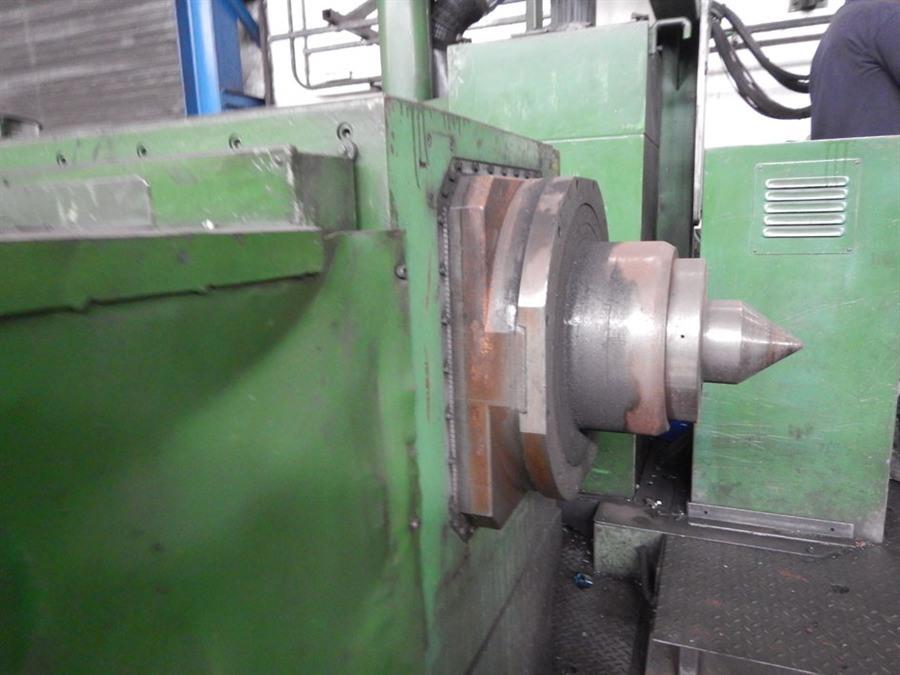

Hydraulic counterpoint = automatic compensation

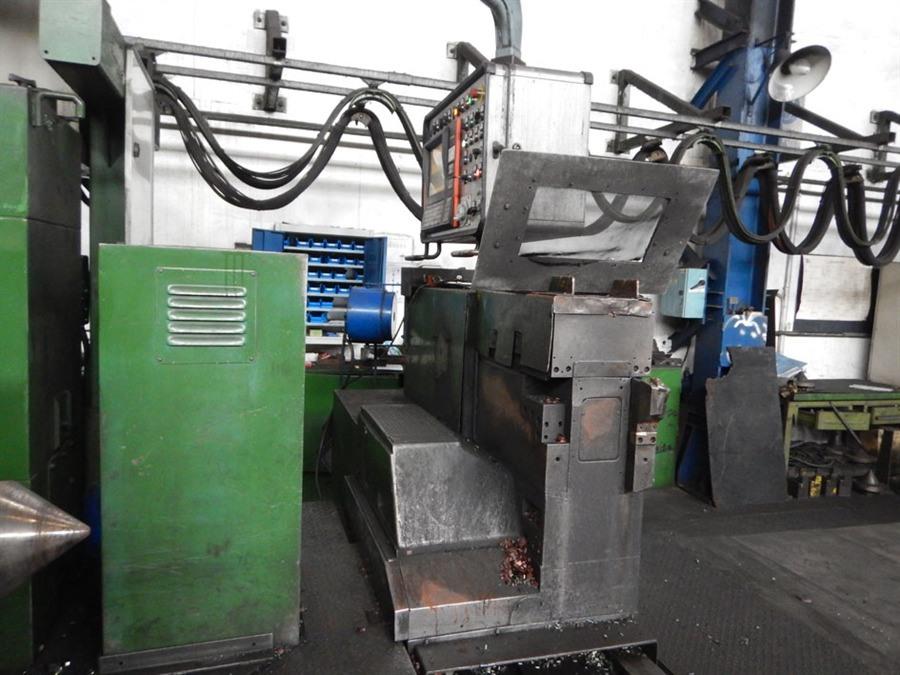

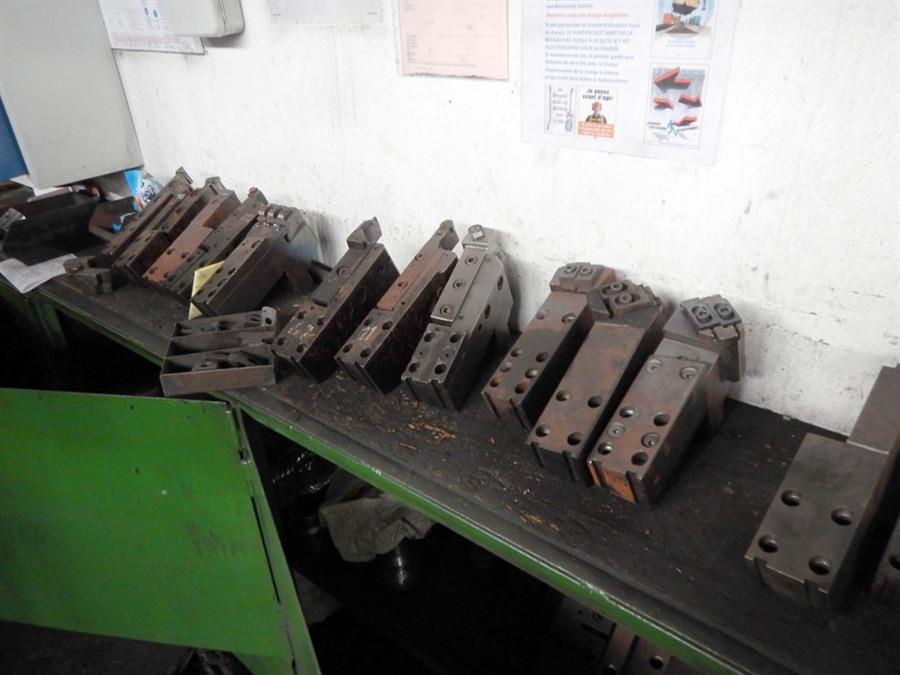

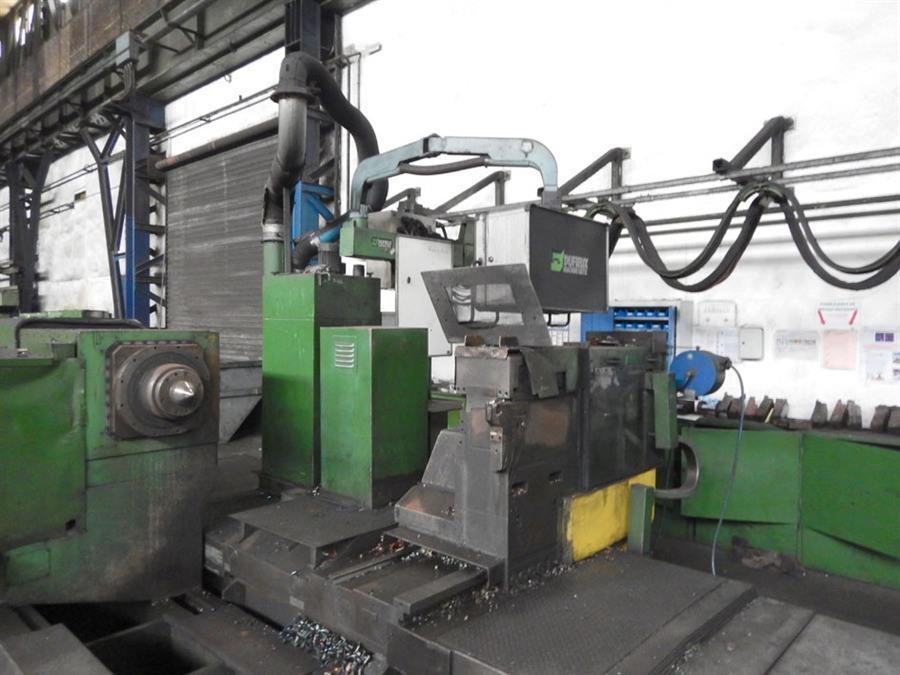

Crosslide equipped with two CNC controlled toolholders

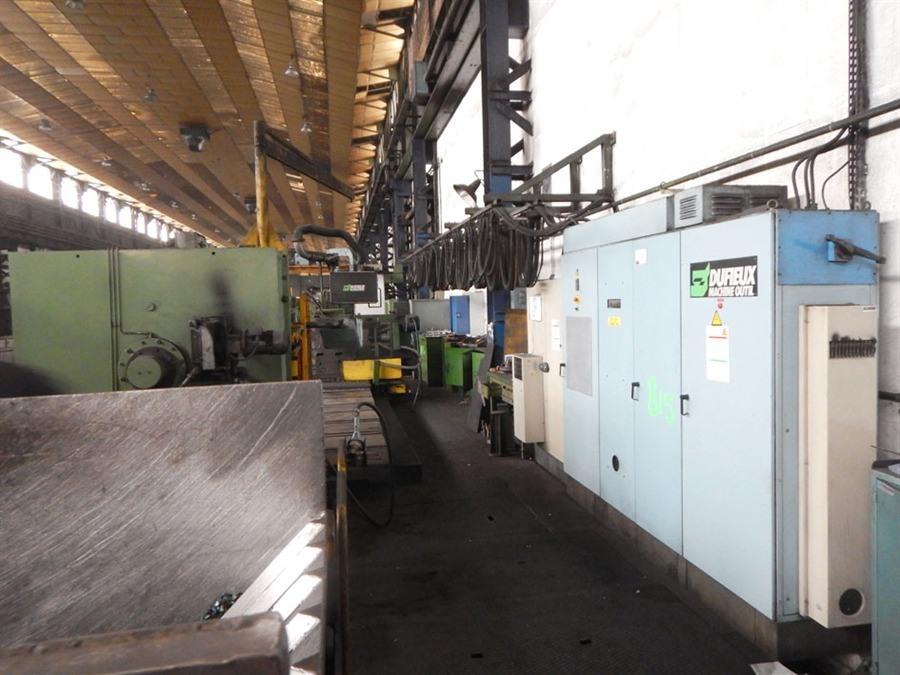

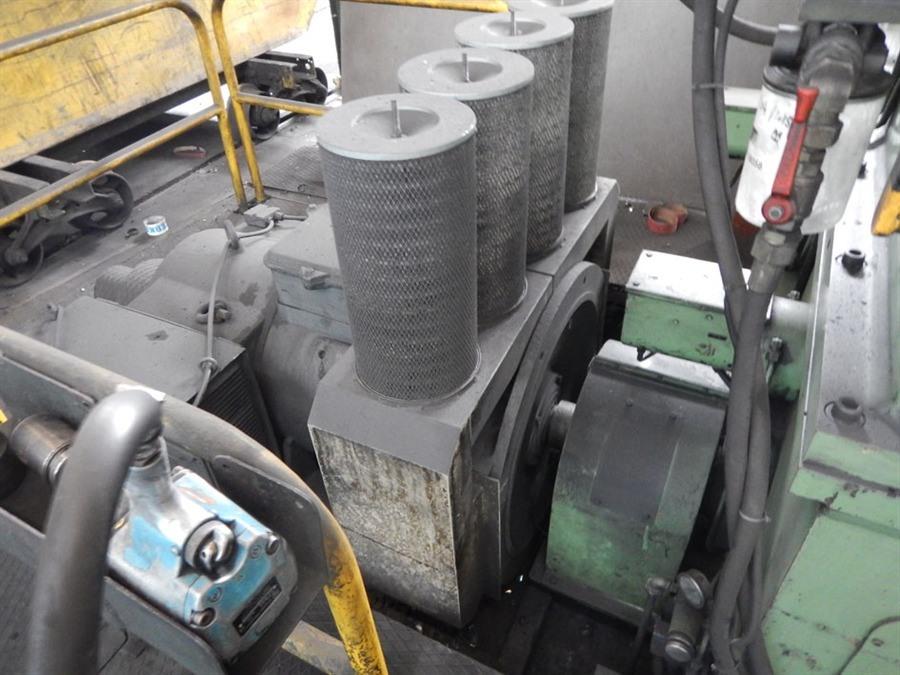

Siemens drives and motors
Heidenhain rulers and encoders

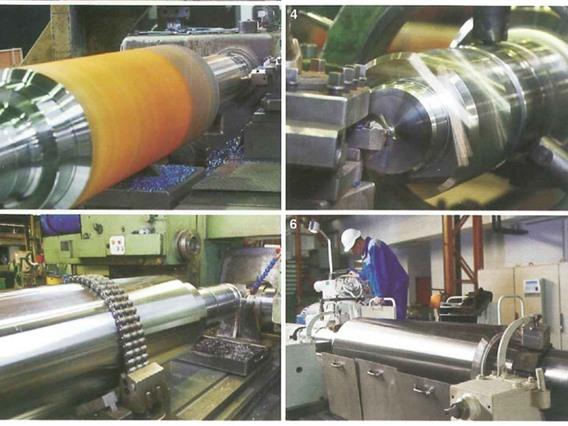

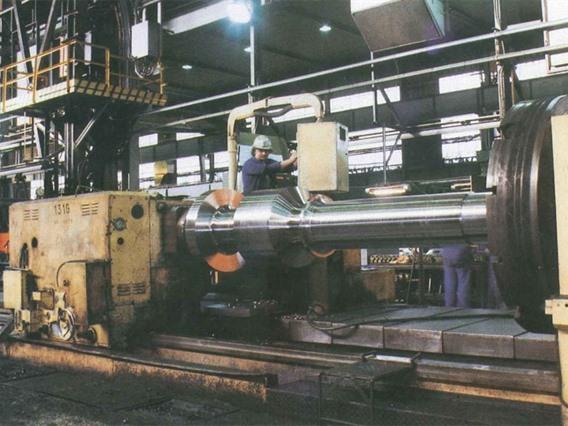

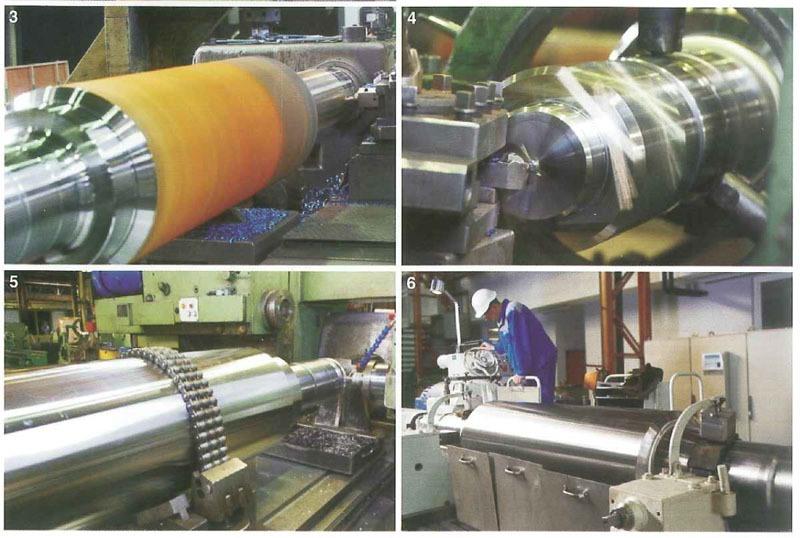

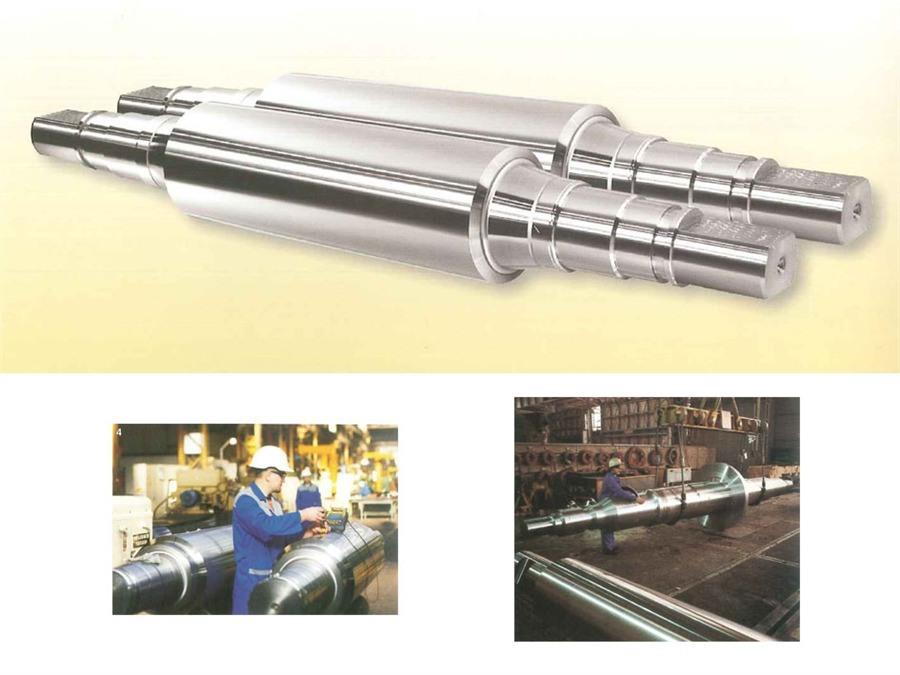

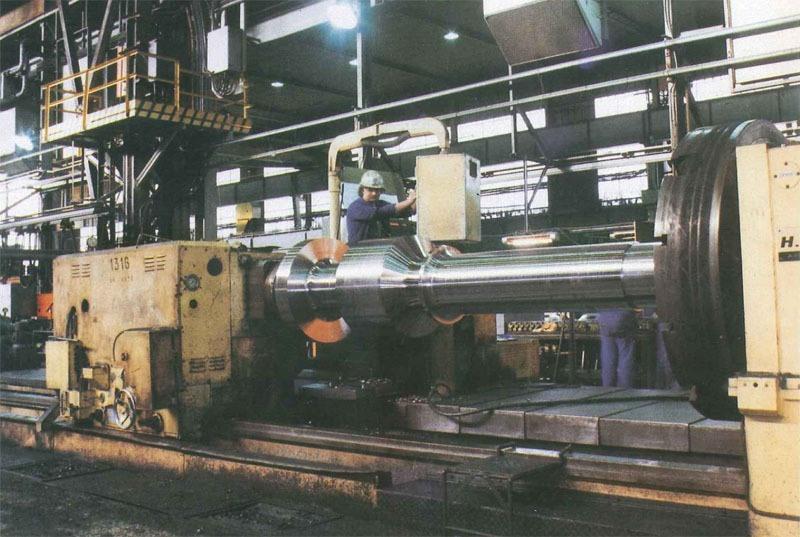

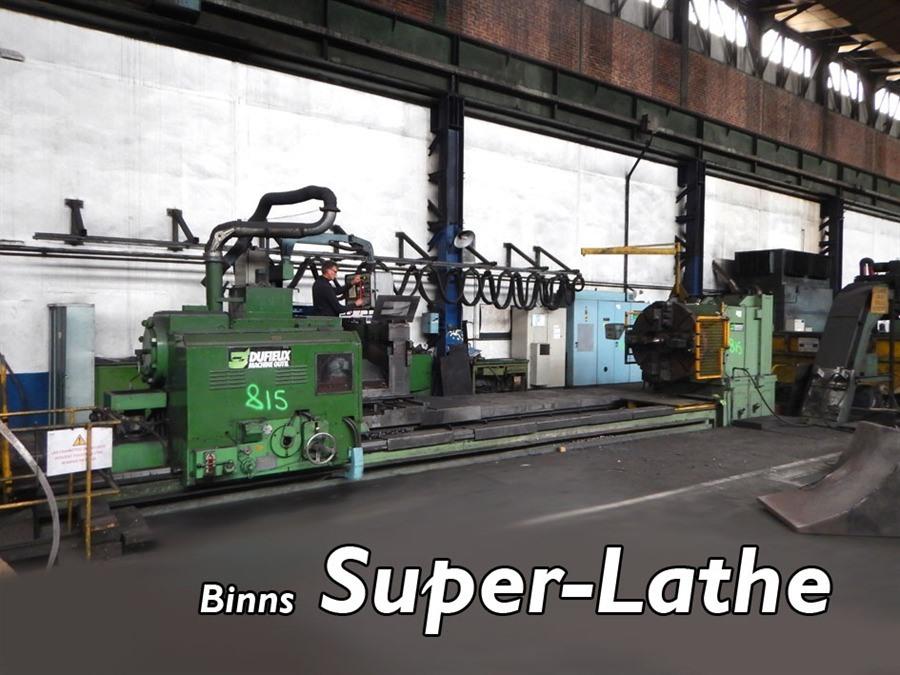

Super Lathe principle/license of Binns Machinery (USA). The ultimate in performance for heavy lathes intended for steel mills, roll foundries, forge shops for making products like turbine rotors, large shafts and bar production.
Most noticeable differences in regards to a normal lathe:
> much wider bed = very high rigidity = no more vibration
> heavy and bulcky carriage also for rigidity purposes

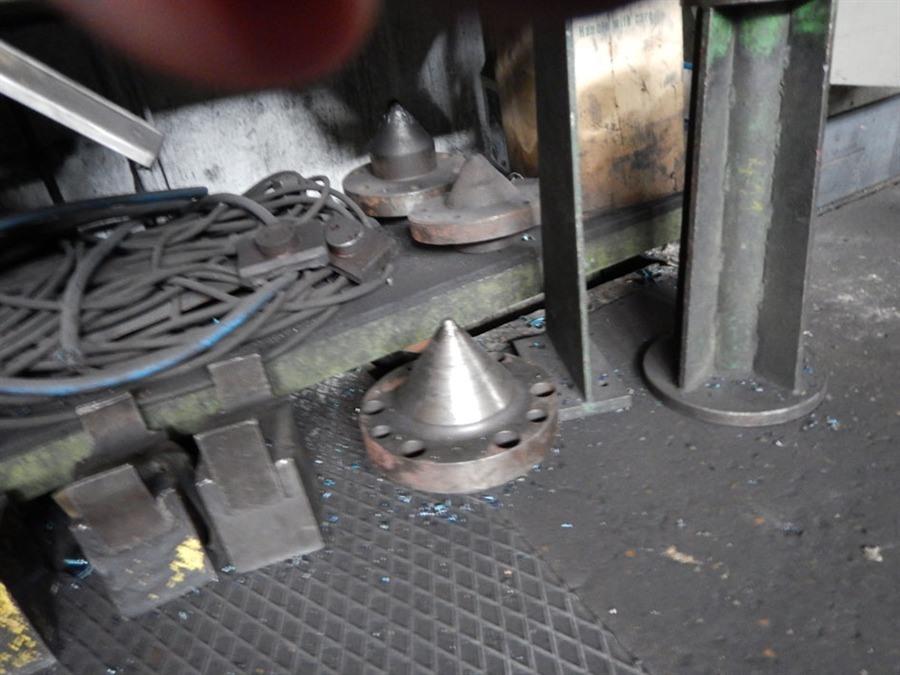

> heavy workpieces can be placed between the centers
> the total weight of the roll lathe is very high
- Tipo/Modello: Ø 2000 x 7500 mm CNC
- Numero di magazzino: A.07 9524
- Categoria: [A] Torni
- Sottocategoria: [A.07] Torni CNC
- Il marchio: Ernault & somua
Numero di magazzino: A.07 9524
