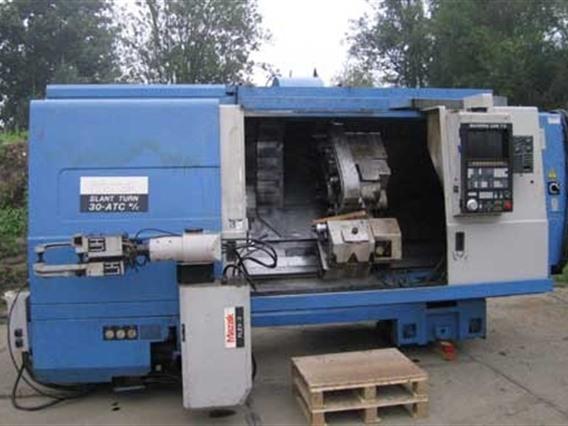

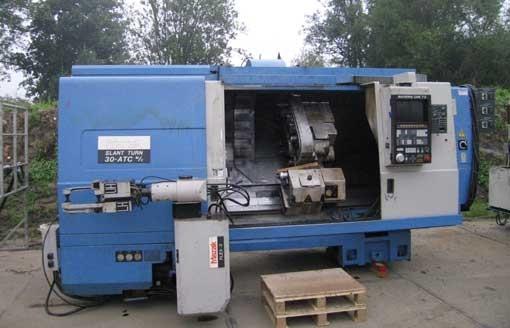

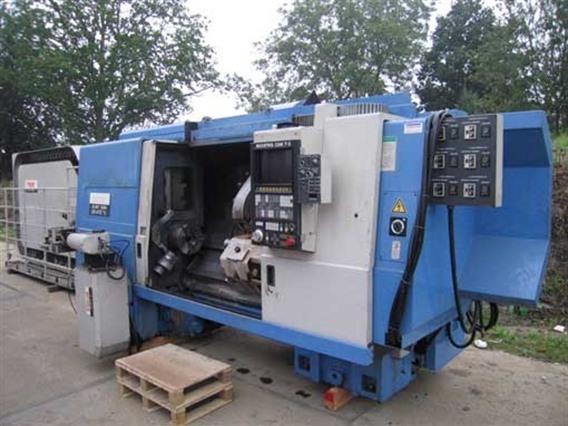

Torni CNC Mazak Slant turn 30 ATC
Informazione tecniche
- Swing over beddia 460 mm
- Distance centre tot centre1500 mm
- Max longitudinal travel Z-axis1538 mm
- Max cross travel X-axis335 mm
- Spindle coneA²-8 inch
- Dia of spindle bore80 mm
- Power on the spindle22 kW
- Number of speeds6 - 3000 rpm

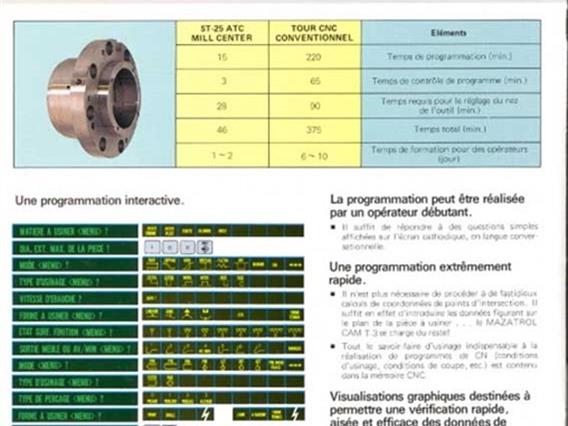

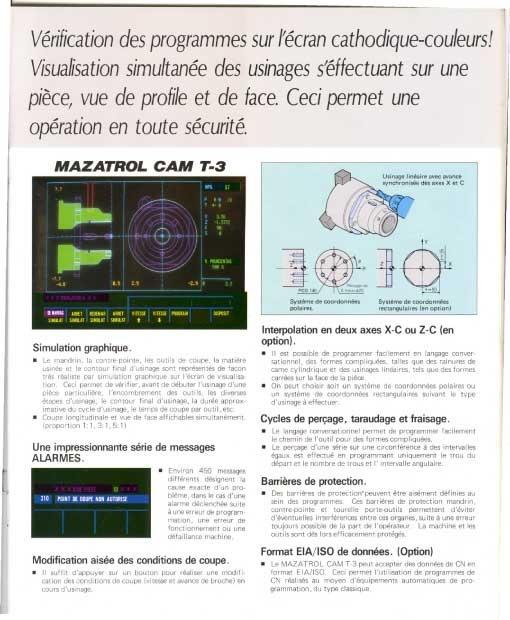

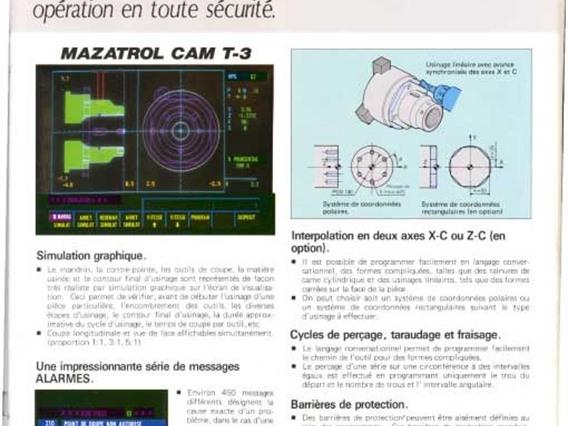

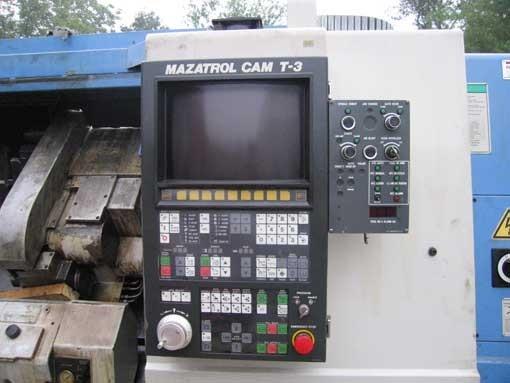

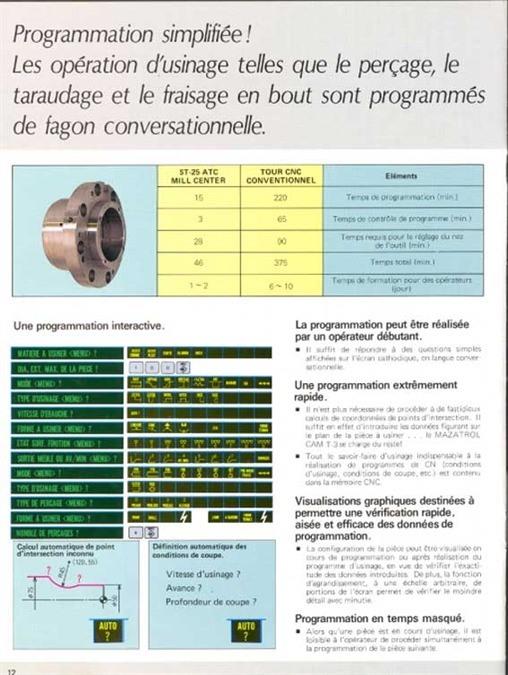

- CommandMazatrolCAM T3
- Total power needed37,9 kVA
- Current needed380 V
- Weight5100 kg
- Chuck*Hydr. 12 inch

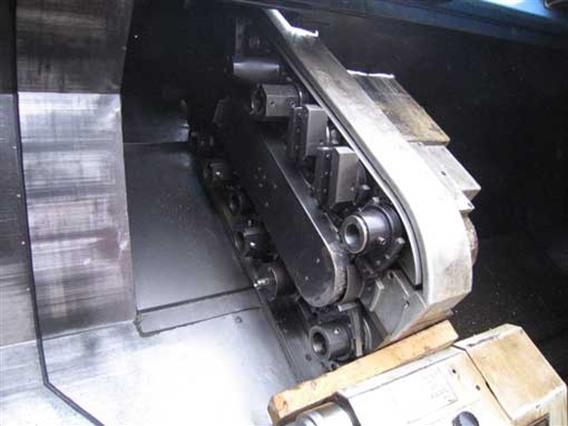

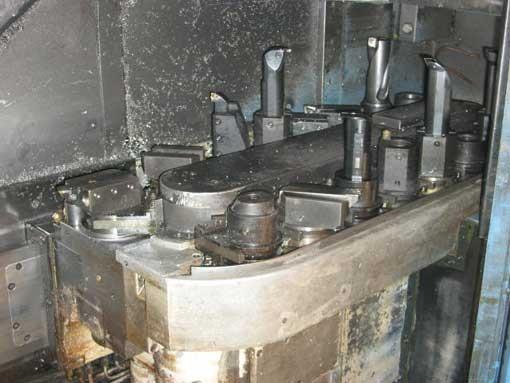

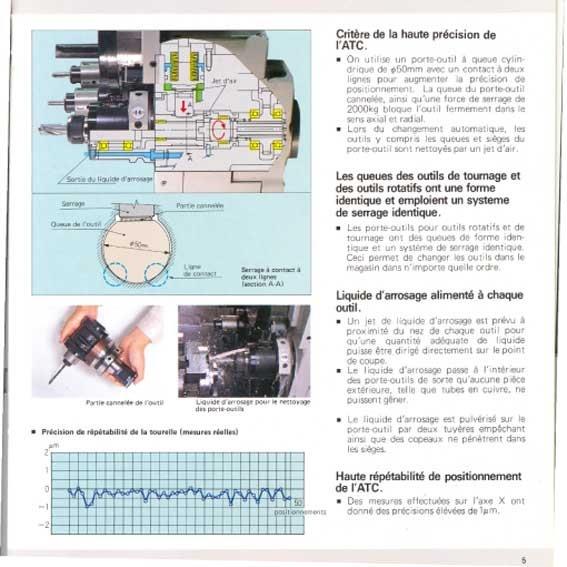

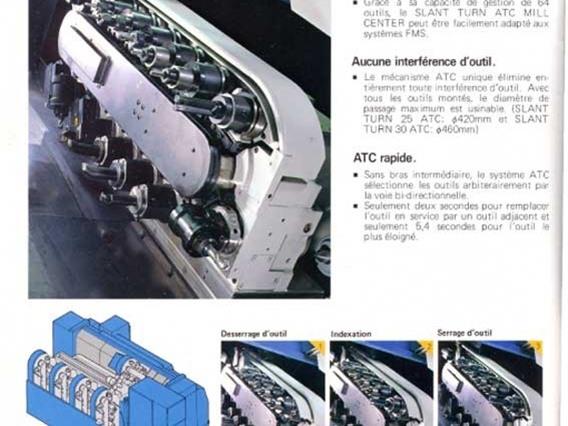

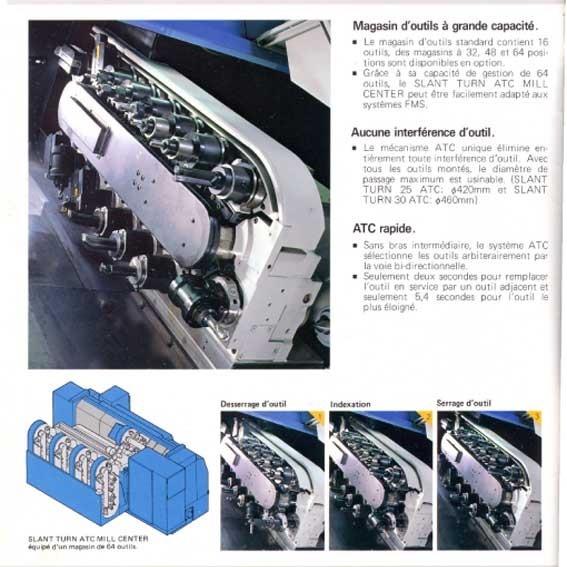

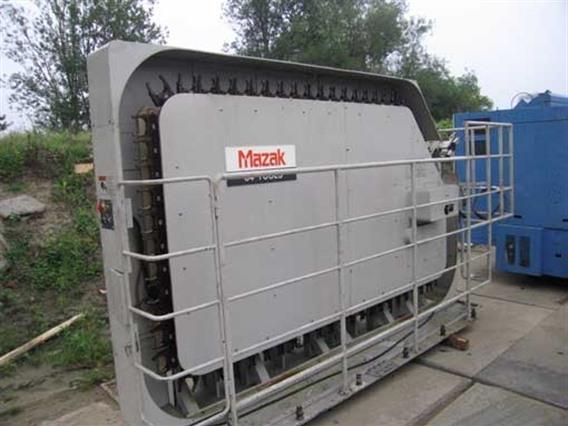

- Toolchanger64 tools + C-as
- - rotating*
Informazioni supplementari
- Turn 30 ATC M/C X 1500
-- Spindle-indexation : 1 x 360°

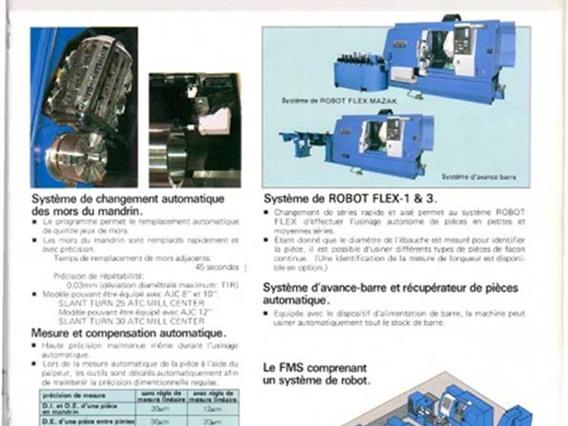

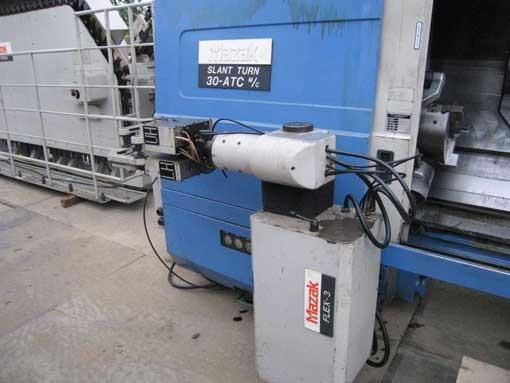

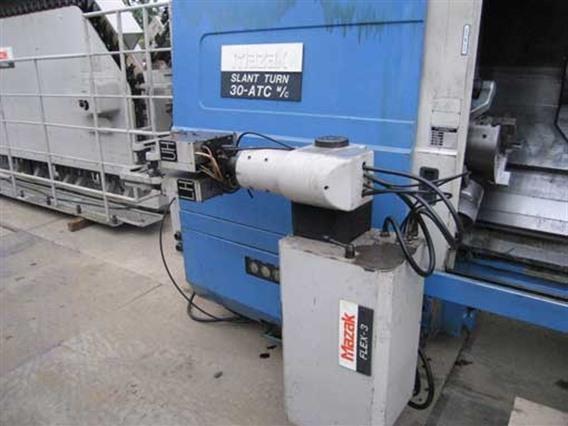

-- Robotflex 3 met 30 pallets

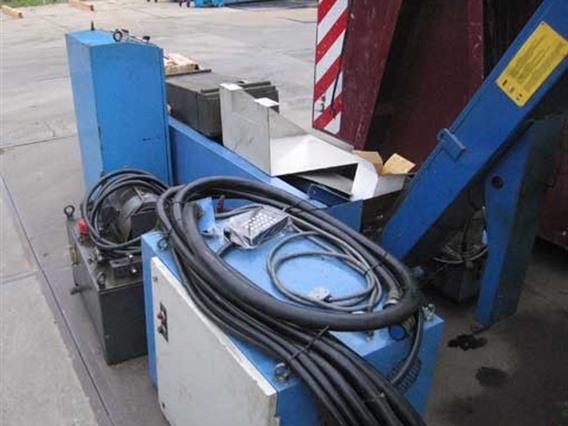

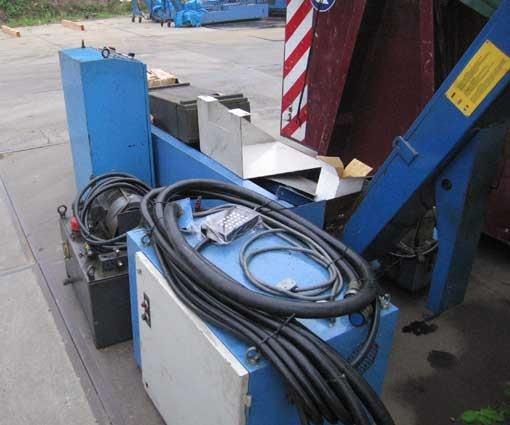

-- Chipconveyor
--*Automatic clampchanger for 12 sets of clamps + Hydr. cyl "HOWA"
- Tipo/Modello: turn 30 ATC
- Numero di magazzino: A.07 2561 *07
- Categoria: [A] Torni
- Sottocategoria: [A.07] Torni CNC
- Il marchio: Mazak Slant
