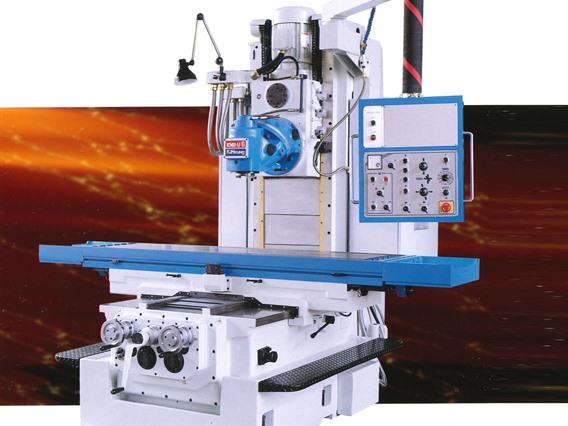

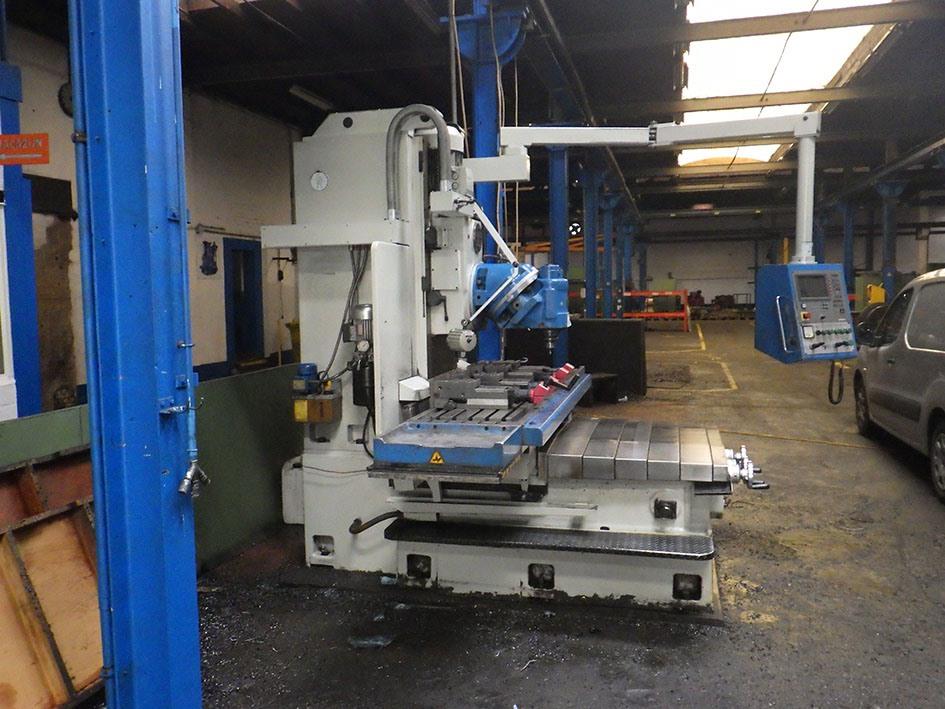

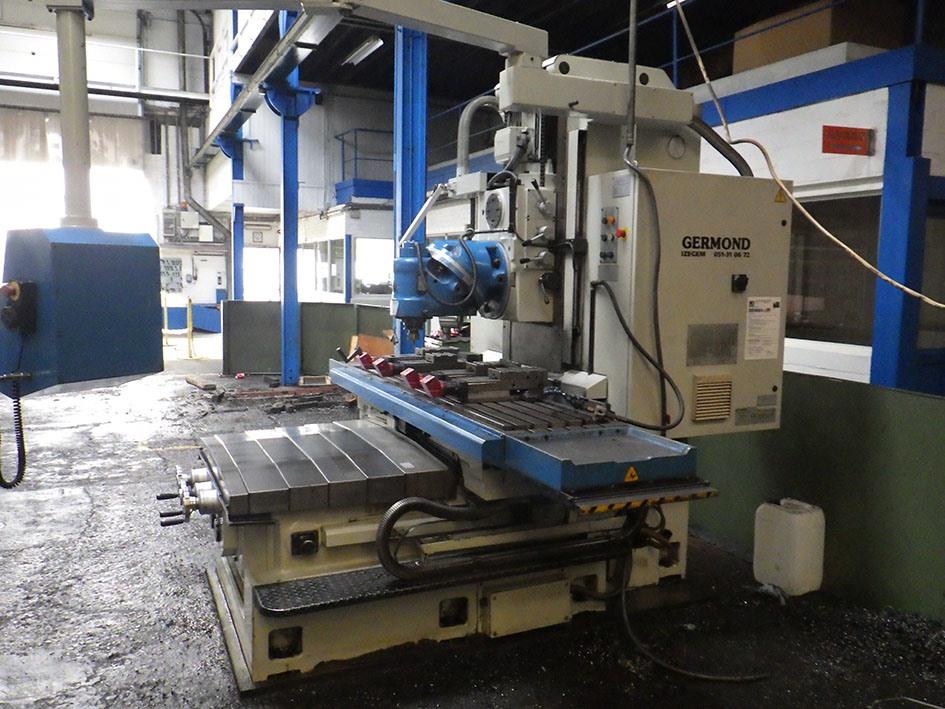

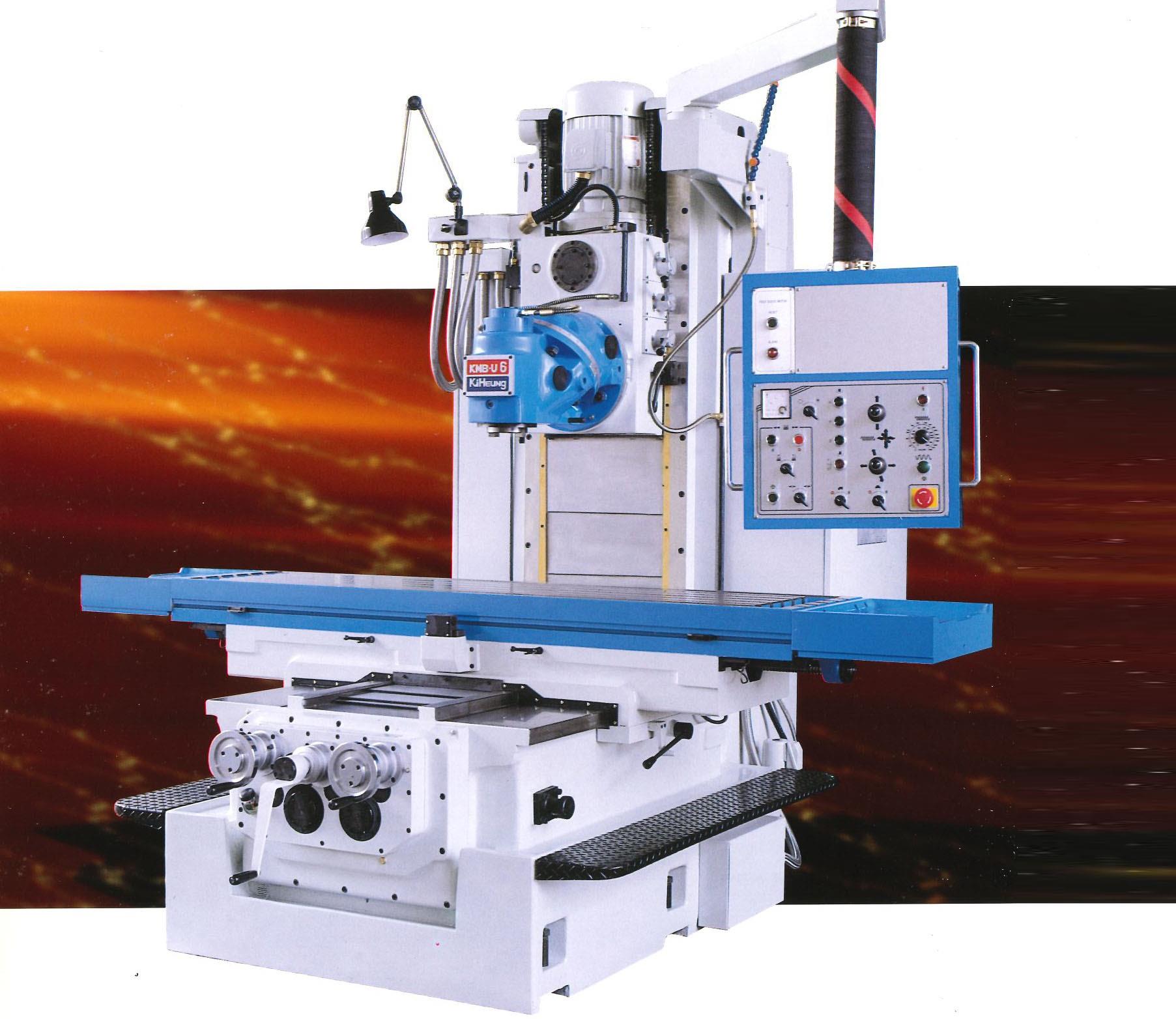

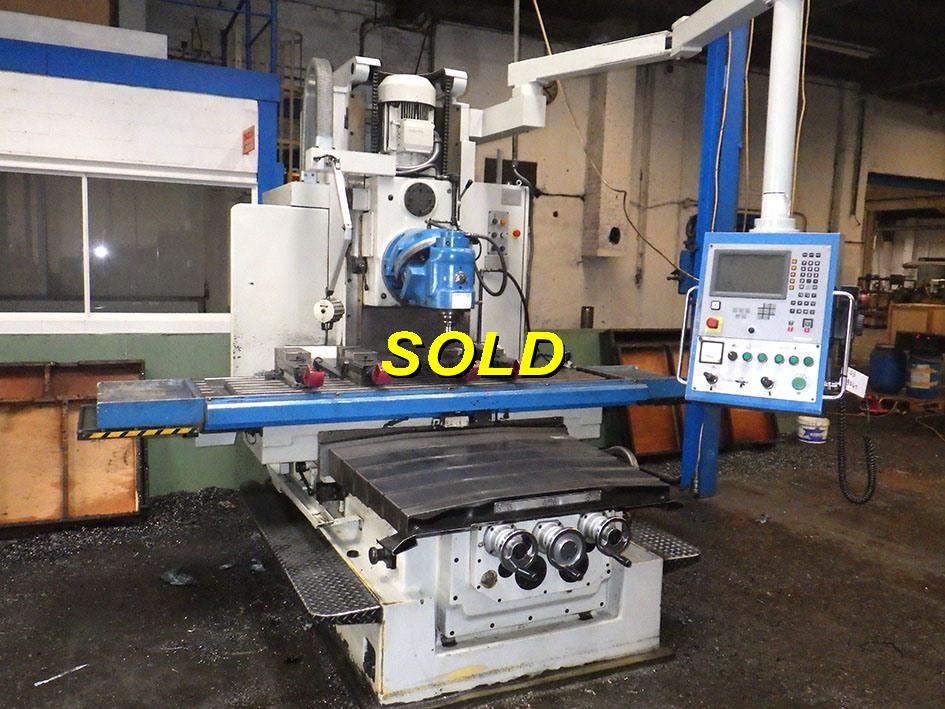

Kiheung - Point U6 X: 1600 - Y: 720 - Z: 760 mm CNC

Kiheung Point U6 X: 1600 - Y: 720 - Z: 760 mm CNC

Produkt dodany do ulubionych

Specyfikacja

Longitudinal travel X-axe1600 mm
Cross travel Y-axe720 mm
Travel Z-axe760 mm
Dimensions clamping space- table2200 x 550 mm
Power on spindle11 kW
Admission in boring head (ISO)ISO 50
Max speedrange40 > 1600 rpm

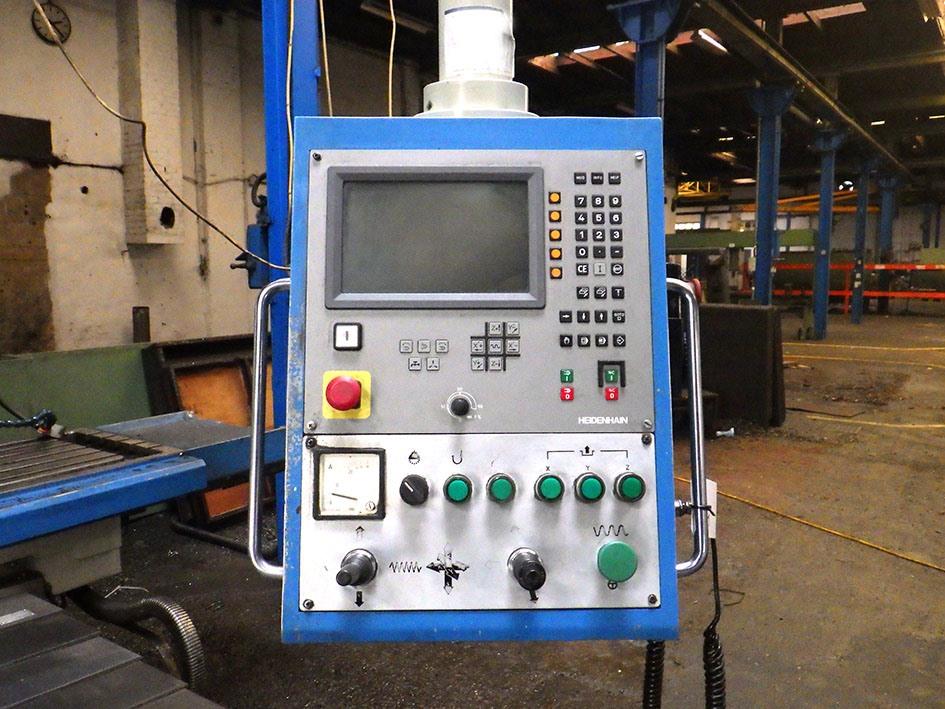

ControlHeidenhain
Length L -- R4760 mm
Depth Fw -- Bw2720 mm
Height3050 mm
Weight8 ton

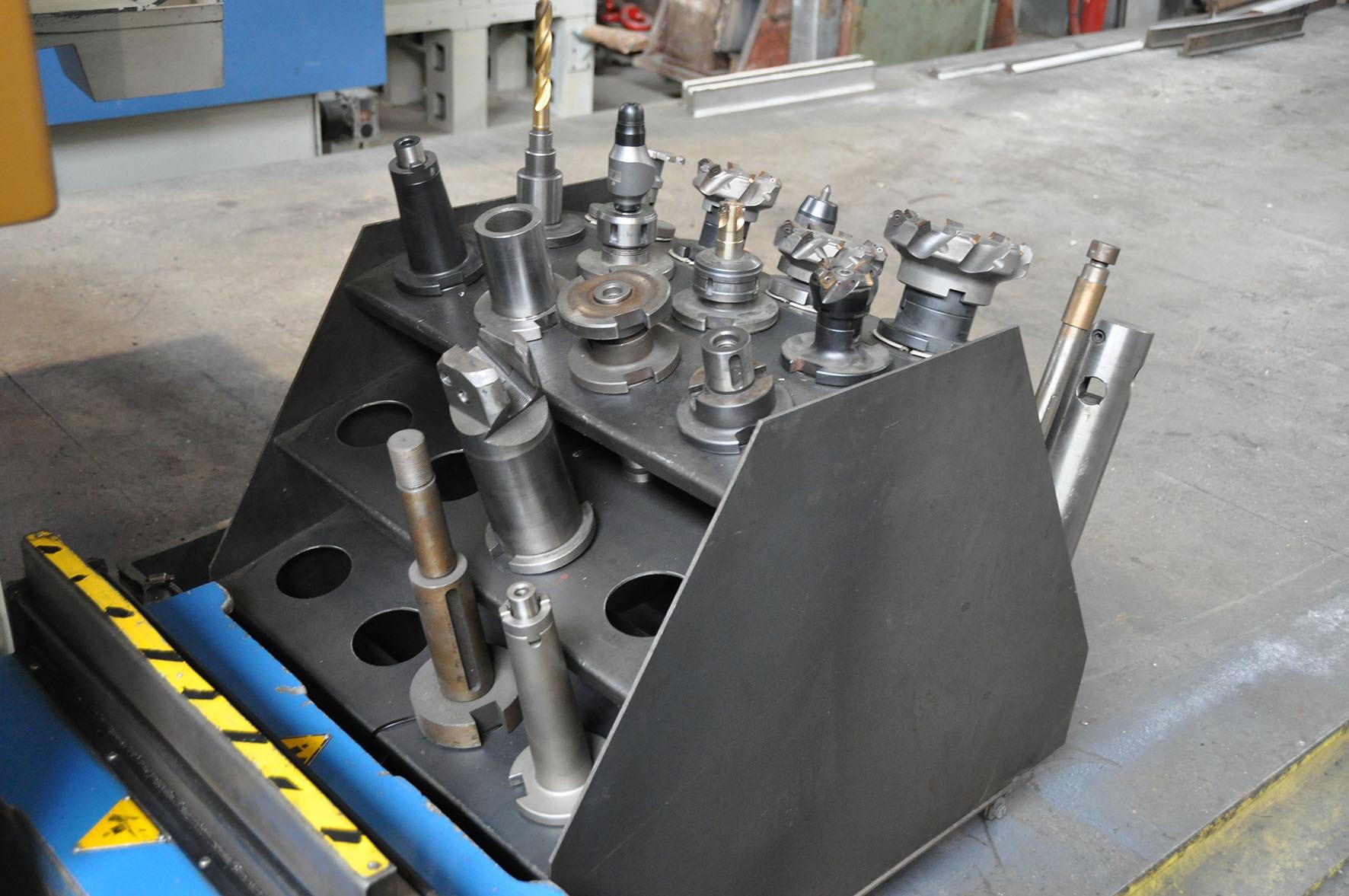

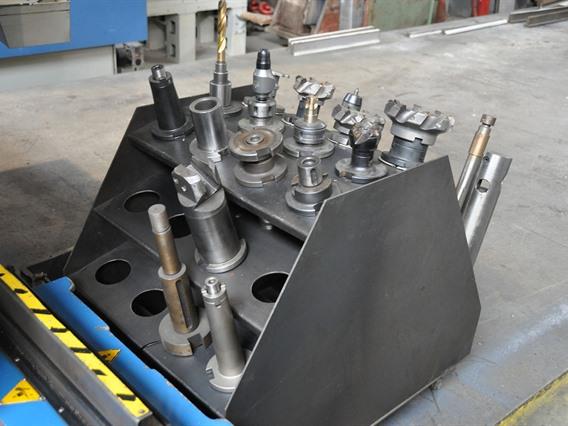

ACCESSORIES & TOOLINGyes

Dodatkowe informacje

4 vices on table are NOT included with the machine
Typ/Model: Point U6 X: 1600 - Y: 720 - Z: 760 mm CNC
Stocknumber: B.03 11140
Kategoria główna: [B] Frezarki
Sub kategorii: [B.03] Frezarki łożowe z ruchomym stołem i CNC
Marka: Kiheung

Stocknumber: B.03 11140
