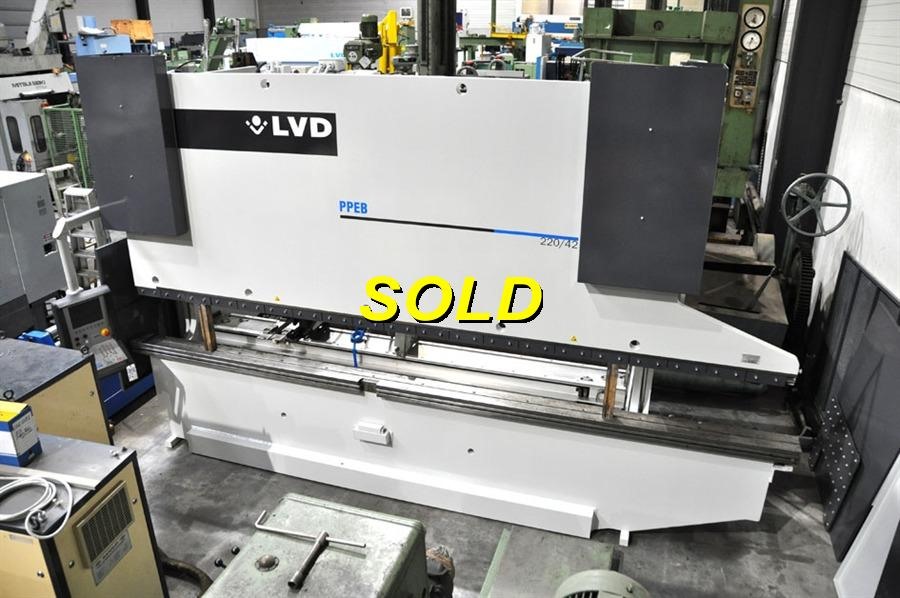

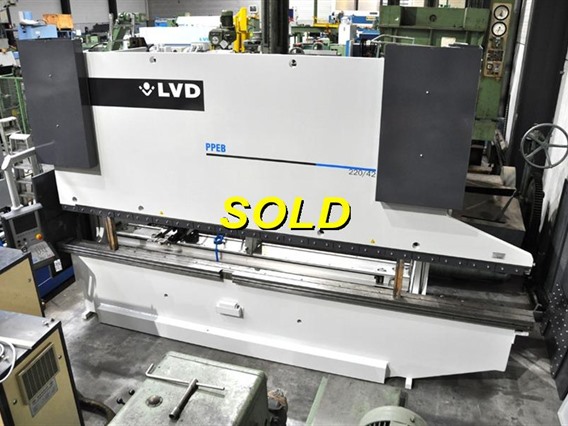

Krawędziowe prasy hydrauliczne LVD PPEB 220 ton x 5070 mm Cadman-CNC

Specyfikacja

Capacity x Max length220 ton x 5070 mm

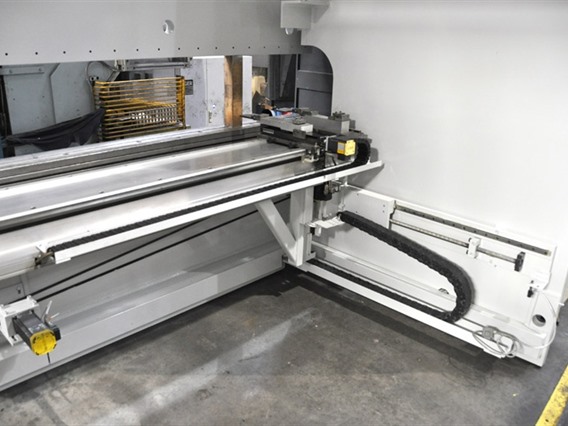

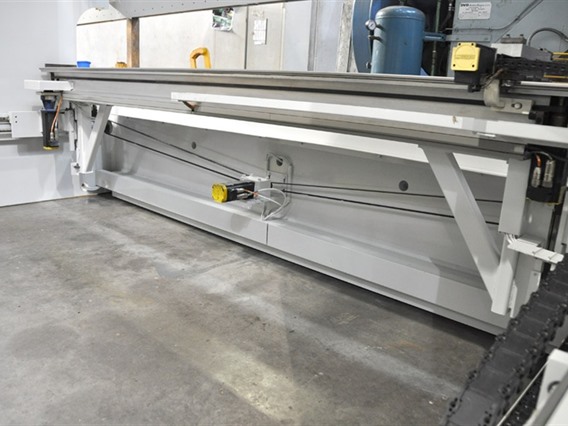

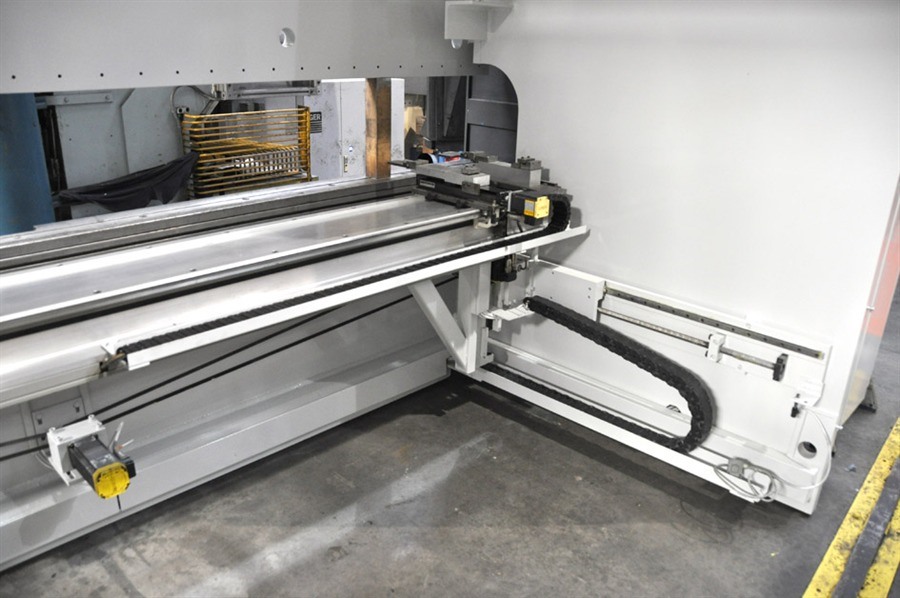

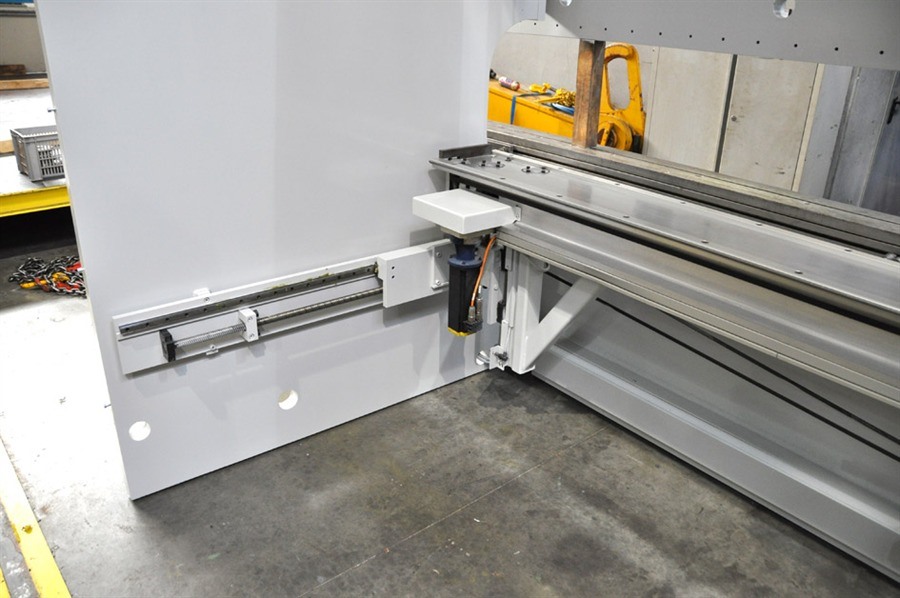

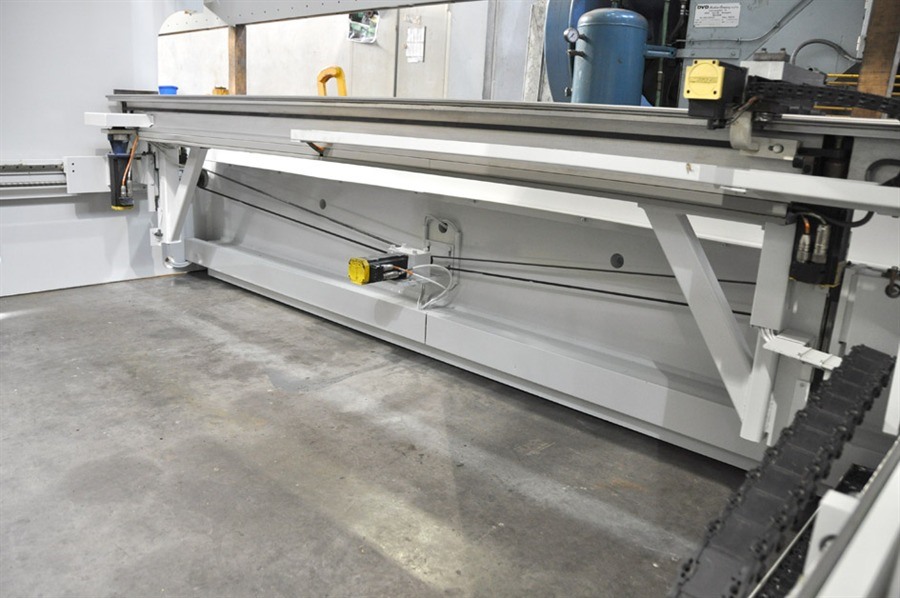

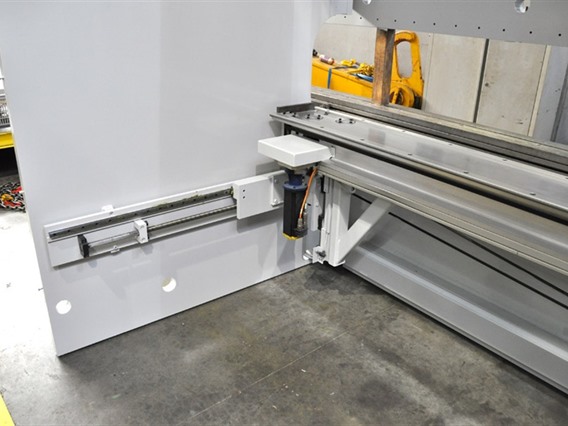

BackgaugeCNC

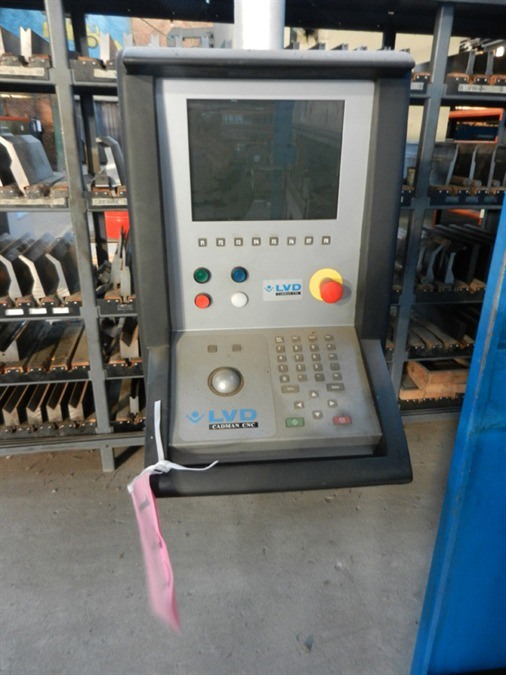

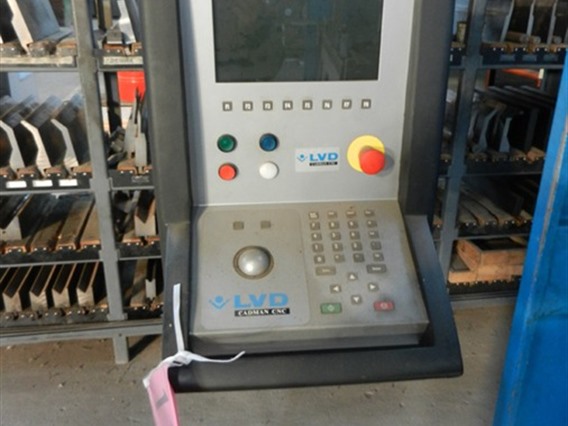

ControlCadman CNC
Passage between uprights3820 mm
Max stroke250 mm
Max distance between table -- ram485 mm
Depth of throat405 mm
Table width200 mm
Locking speed100 mm/sec
Working speed10 mm/sec
Returning speed113 mm/sec
Electric motor (power)22 kW
Power needed230 V
Length 4770 mm
Depth2925 mm
Height3435 mm
Weight19,5 ton
ACCESSORIESyes

Dodatkowe informacje

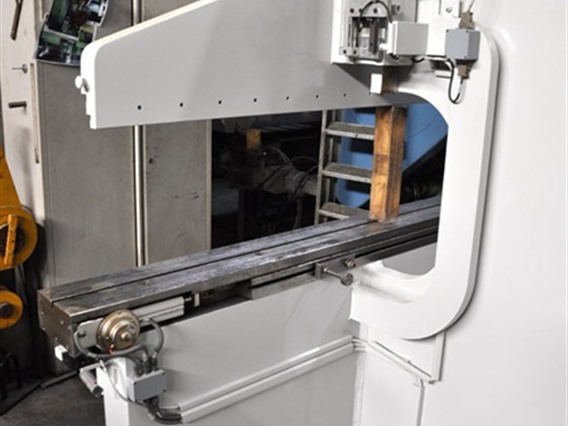

including horn: 800 mm

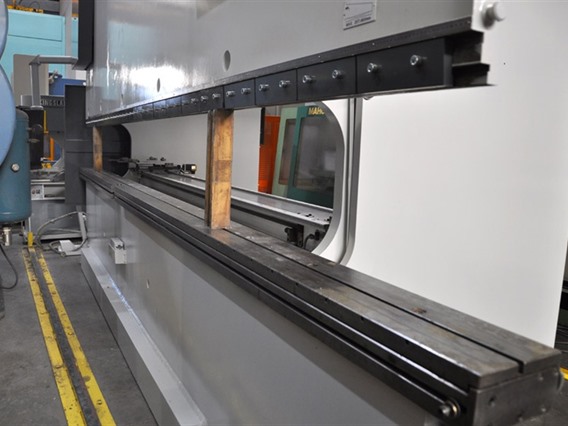

including bombation in table

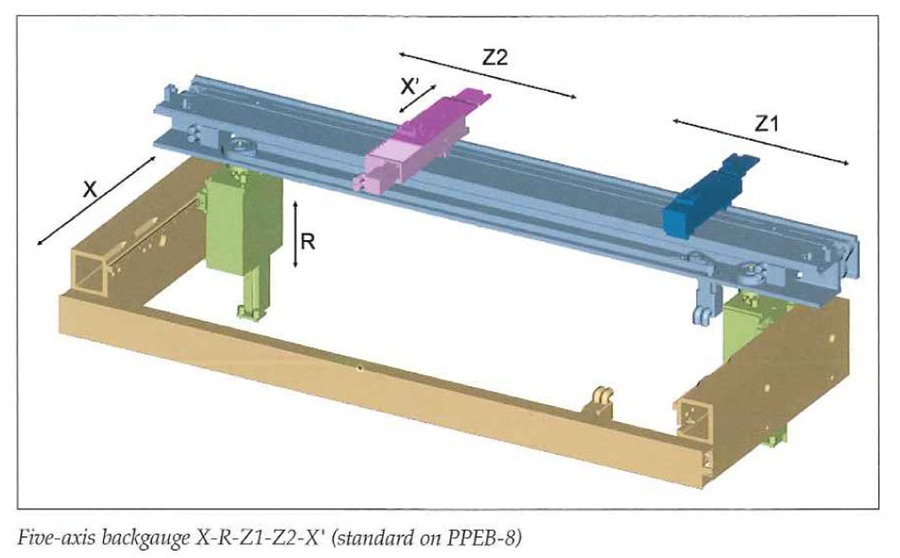

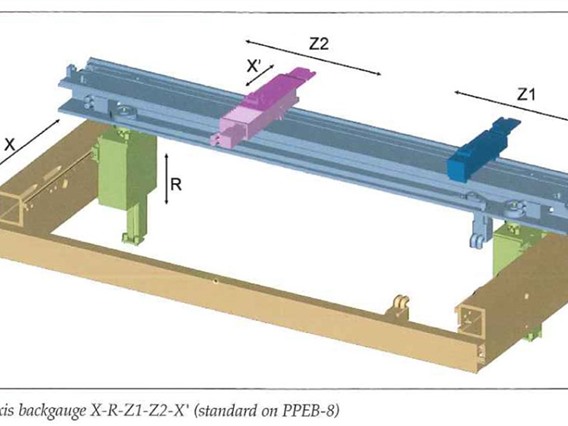

8 axes: X - X' - R - Z1 - Z2 - Y1 - Y2 - V

new price was 263 000€
Typ/Model: 220 ton x 5070 mm Cadman-CNC
Stocknumber: O.01 7051
Kategoria główna: [O] Giętarki, Prostownice, Wycinarki, Maszyny do cięcia laserowego, Maszyny do cięcia gazowego i Linie walcujące
Sub kategorii: [O.01] Krawędziowe prasy hydrauliczne
Marka: LVD PPEB

Stocknumber: O.01 7051
