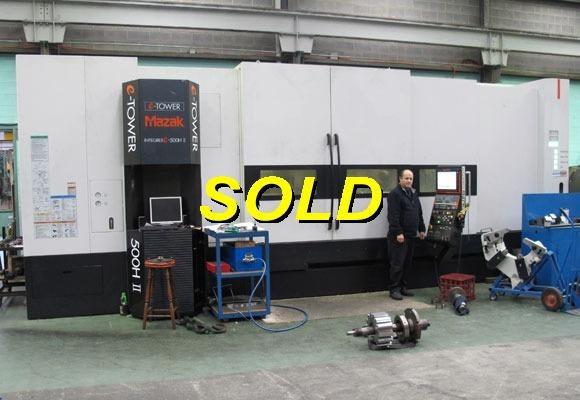

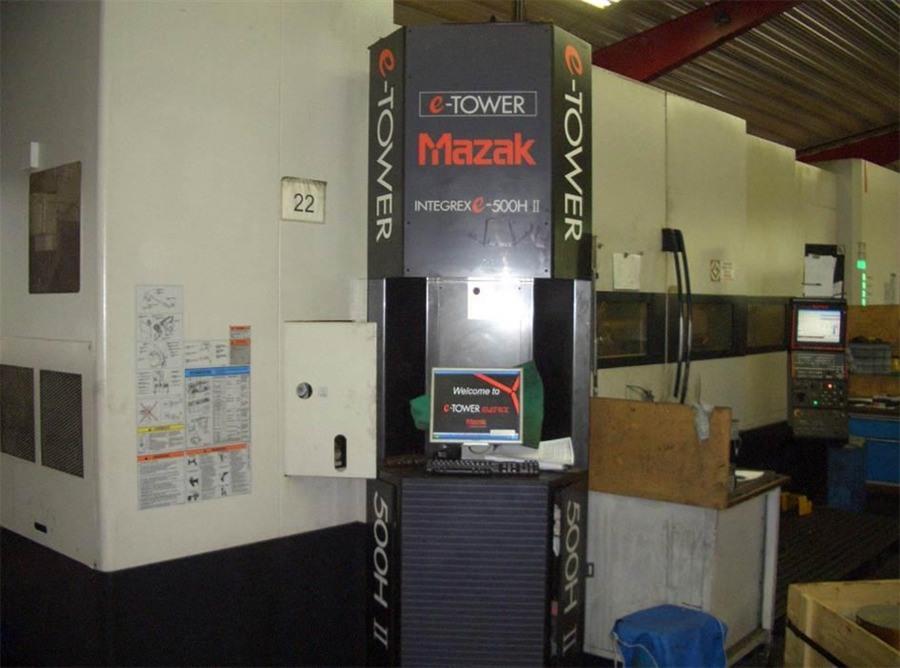

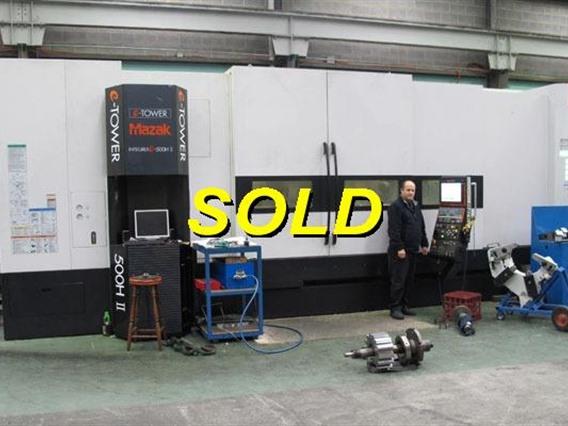

Tokarki CNC Mazak Integrex E-500H II E-Tower Ø 820 x 3050 mm
Specyfikacja
- Swing over bed820 mm
- Distance centre tot centre3050 mm
- Power on the spindle30 kW
- Number of speeds3300 rpm

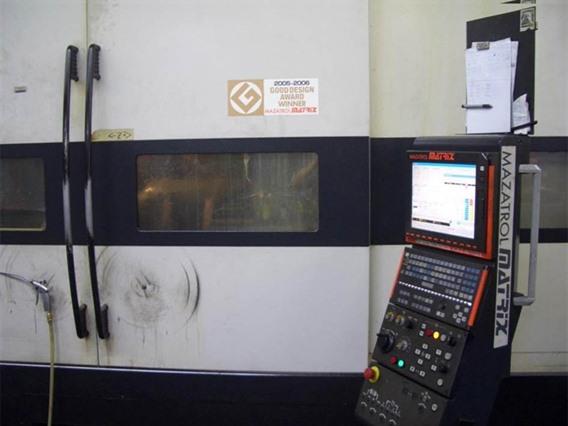

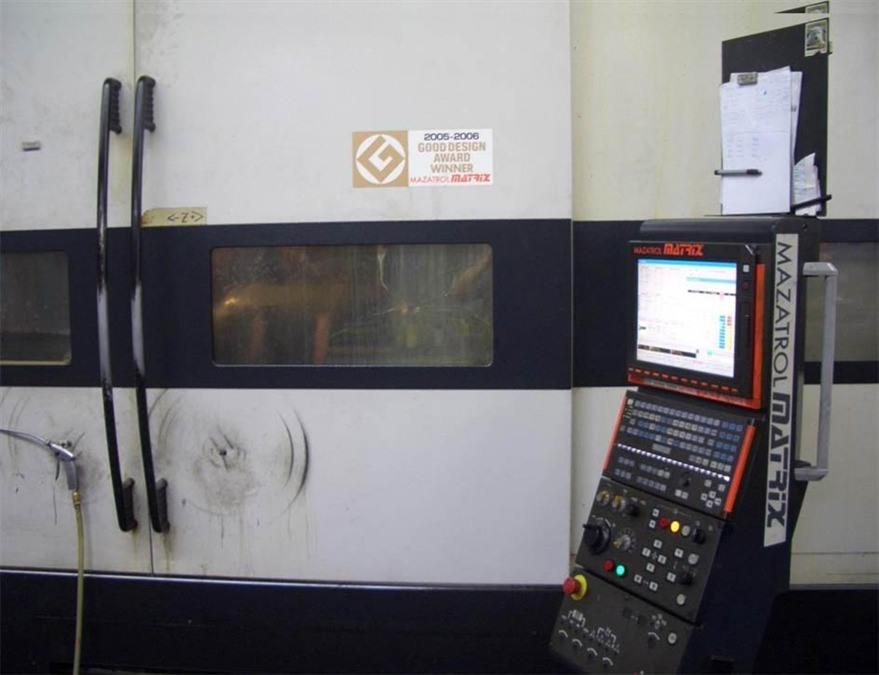

- Commandmazatrol matrix
- Weight28 ton
Dodatkowe informacje
- 5 axis simultaneous turning and milling

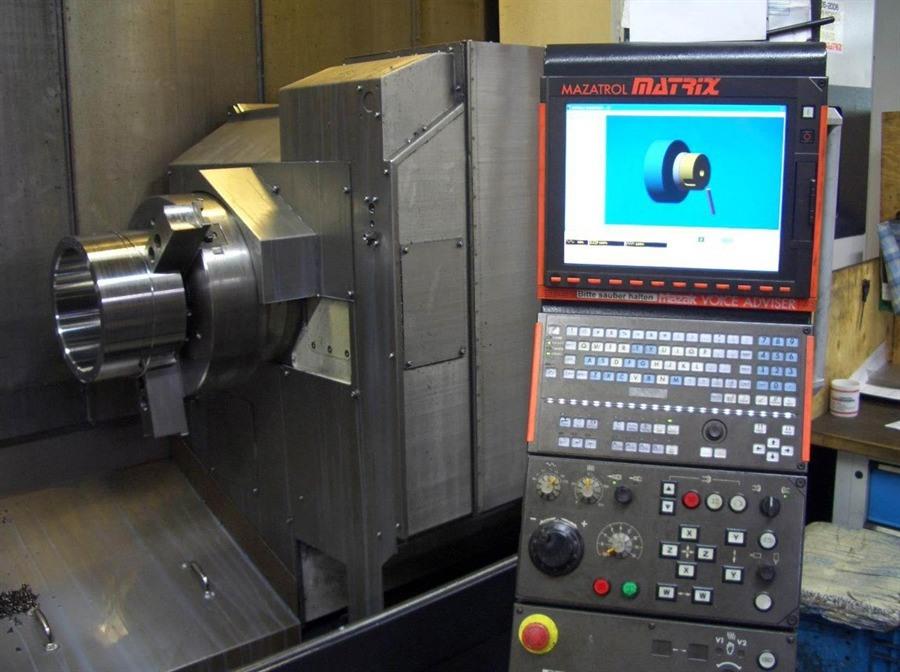

> Turning spindle
30 kW - 3300 rpm
21" chuck
torque: 1100 nm
> Subspindle
18" chuck

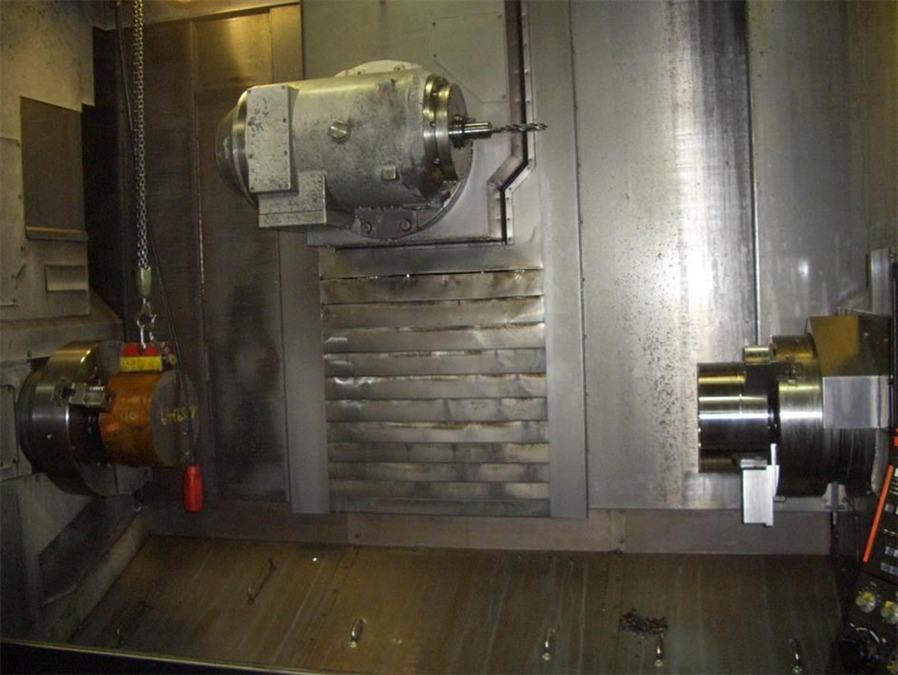

> Milling spindle heavy duty
37 kW - 10 000 rpm
> Toolstorage
80 toolposition driven - CAT50
> Options
Tool Eye
Mazak monitoring system B
Software for manufacturing gears
Synchronous threadcutting with milling spindle
Online service
2000 liter tank for coolant

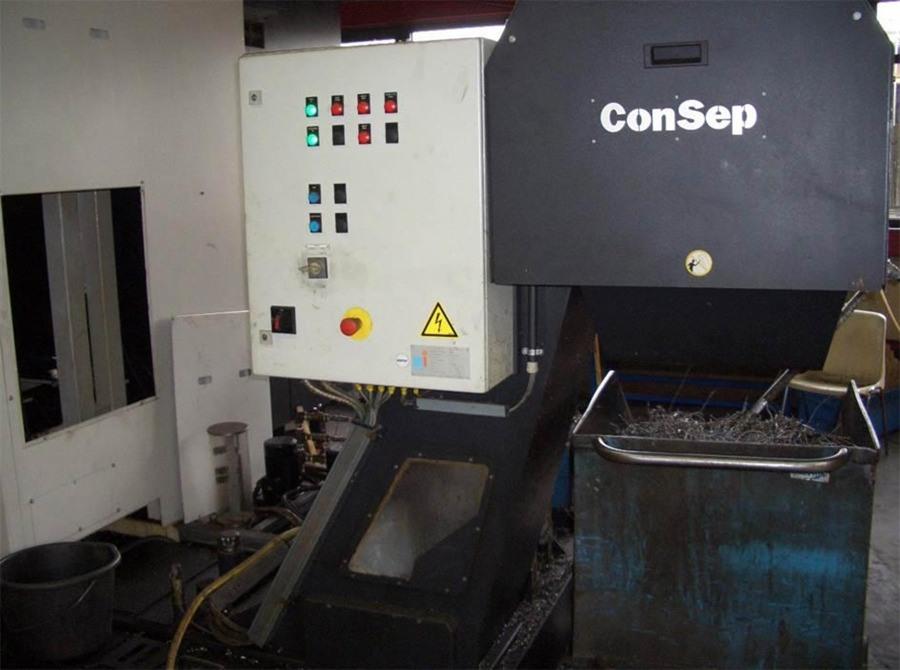

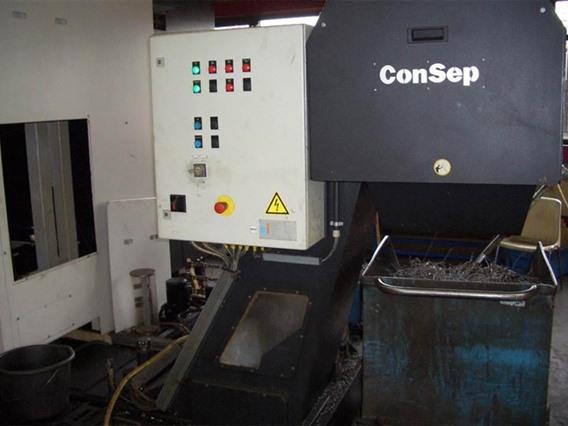

Chipconveyor
- Typ/Model: Ø 820 x 3050 mm
- Stocknumber: A.07 7652
- Kategoria główna: [A] Tokarki
- Sub kategorii: [A.07] Tokarki CNC
- Marka: Mazak Integrex E-500H II E-Tower
