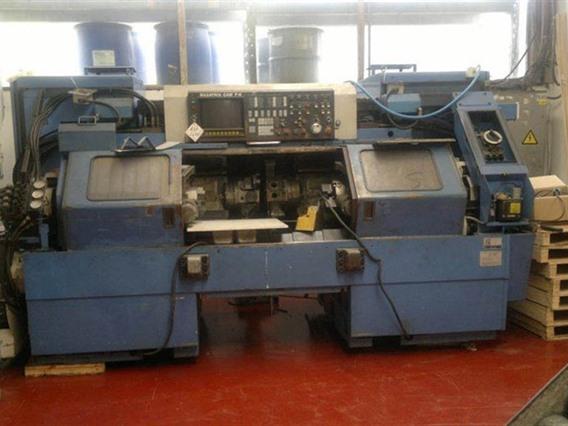

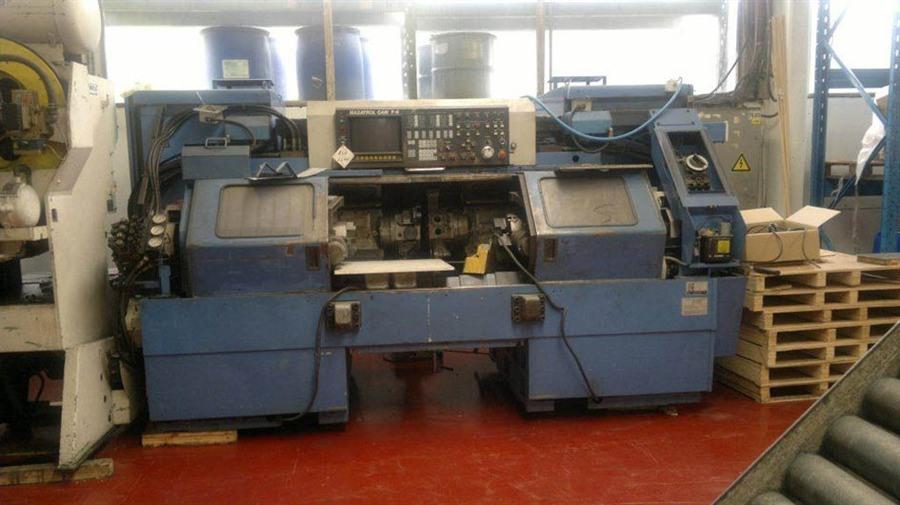

Tokarki CNC Mazak Multiplex 620

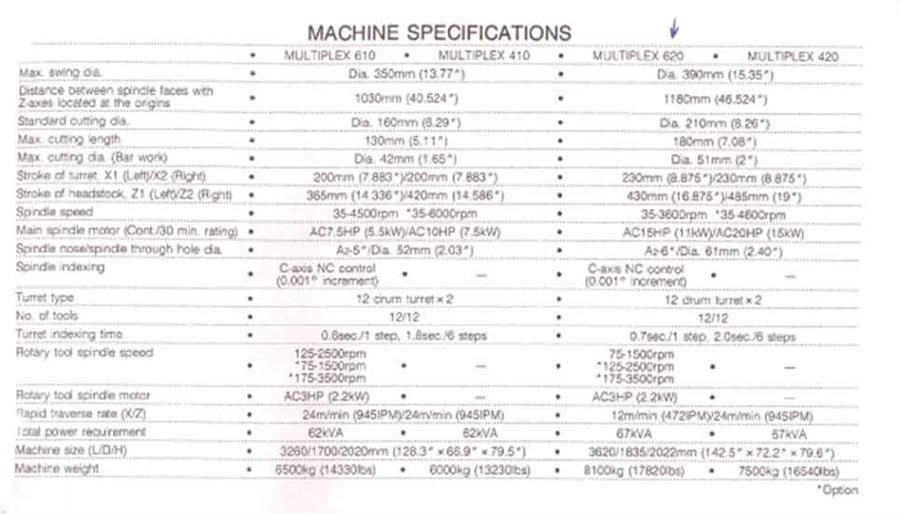

Specyfikacja
- Swing over bed390 mm
- Swing over cross-slide210 mm
- Distance centre tot centre1180 mm
- Spindle coneA2-6
- Dia of spindle bore51 mm
- Power on the spindle11 kW
- Number of speeds35-3600 rpm

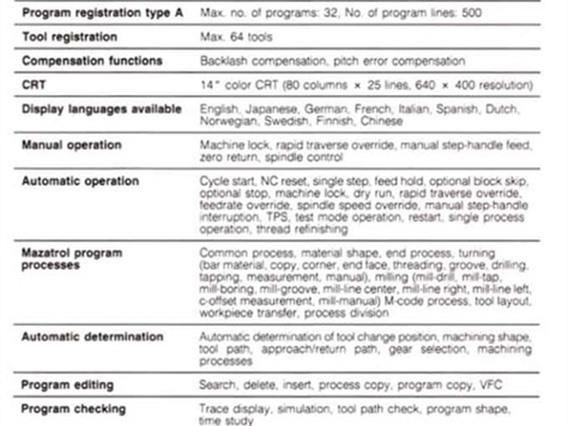

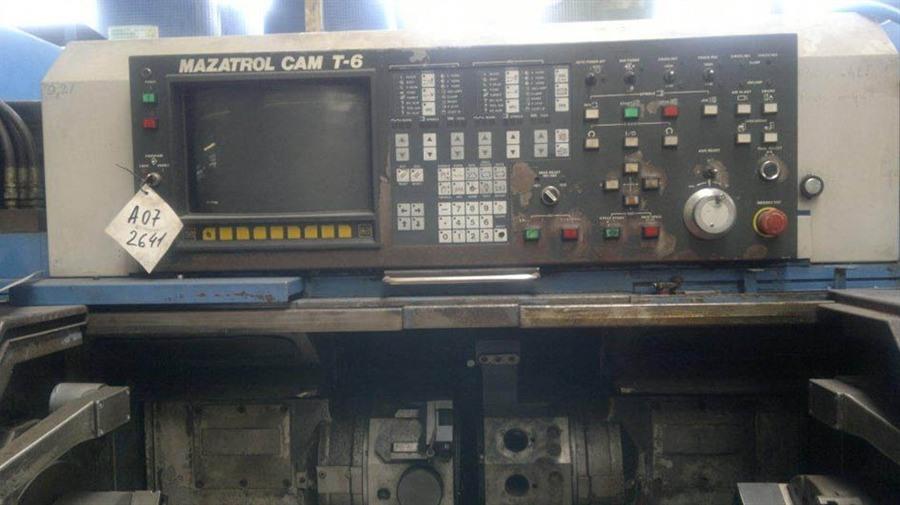

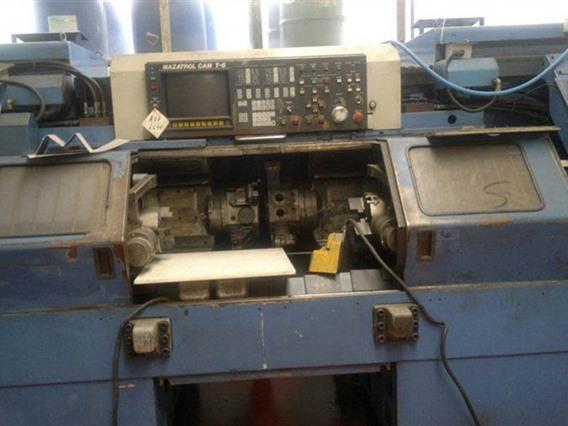

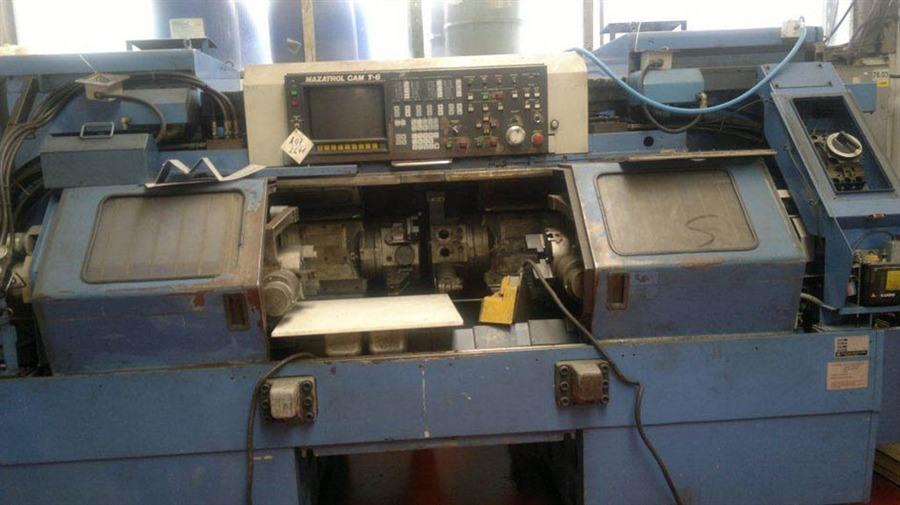

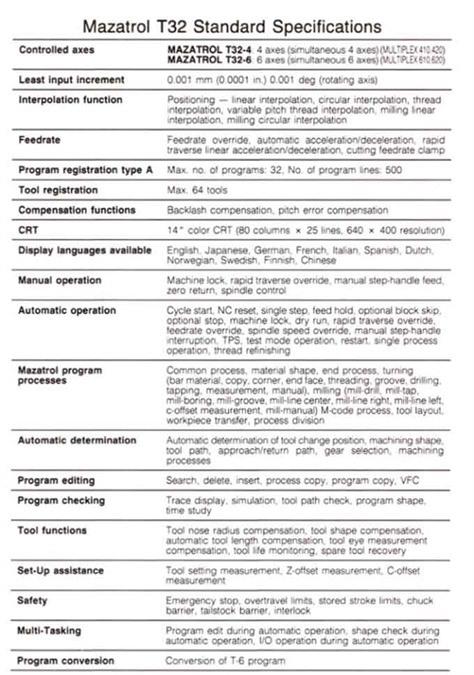

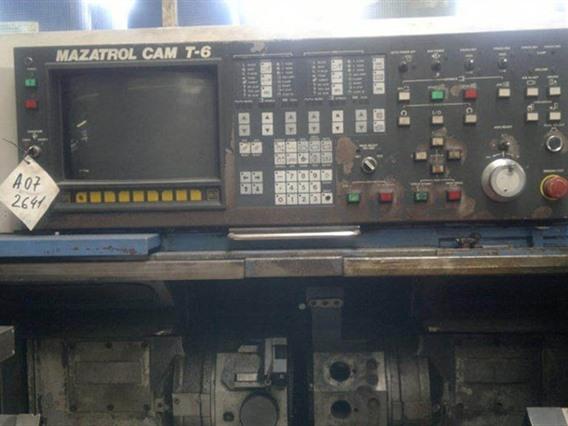

- CommandMazatrol T-6
- Length L -- R3620 mm
- Width Fw -- Bw1835 mm
- Height2022 mm
- Weight8 100 kg

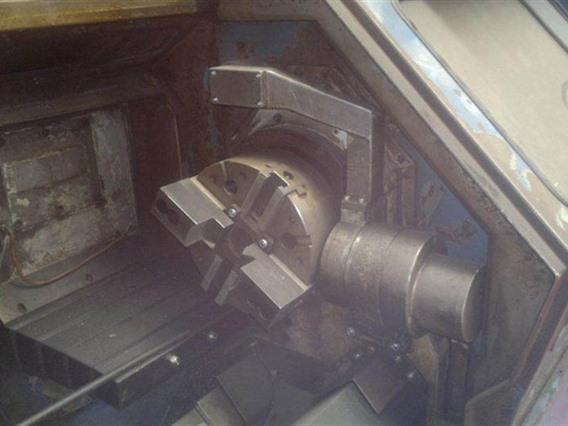

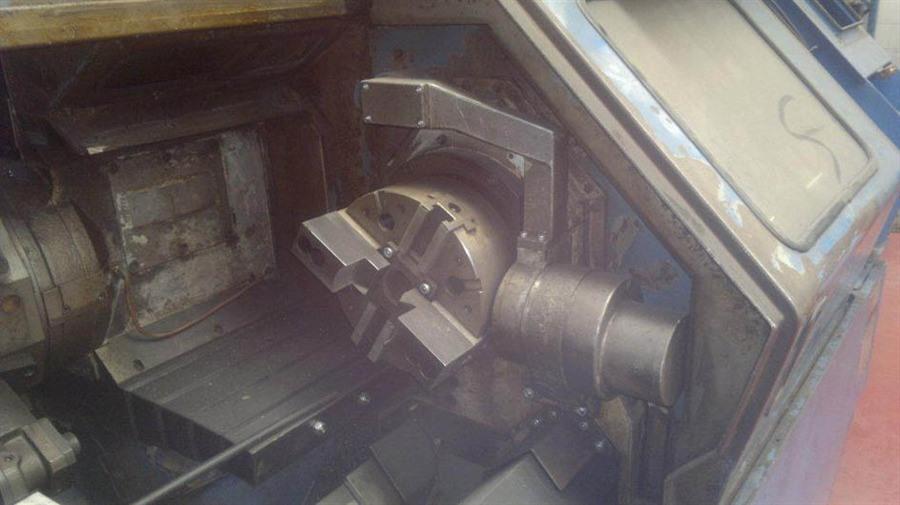

- Chuck+
- Hydraulic+
- Sliding ring+
- Toolchanger2
- Number of tools12 x 2 / driven
Dodatkowe informacje

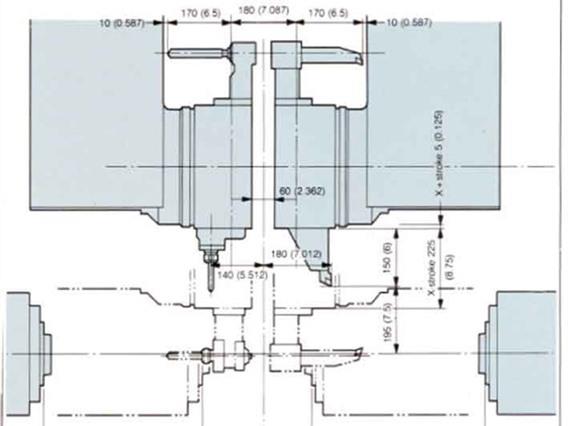

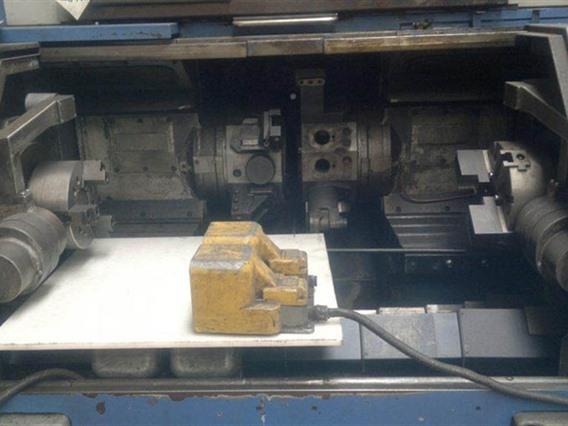

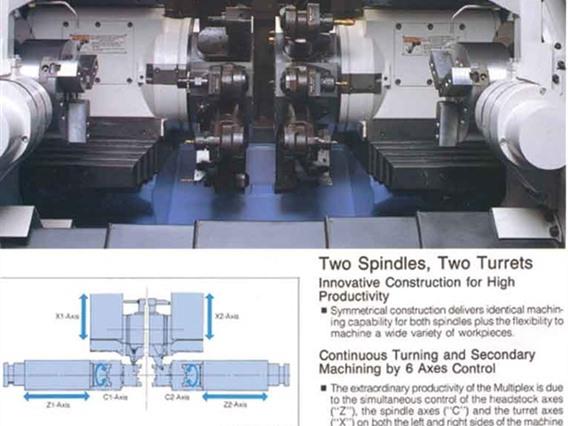

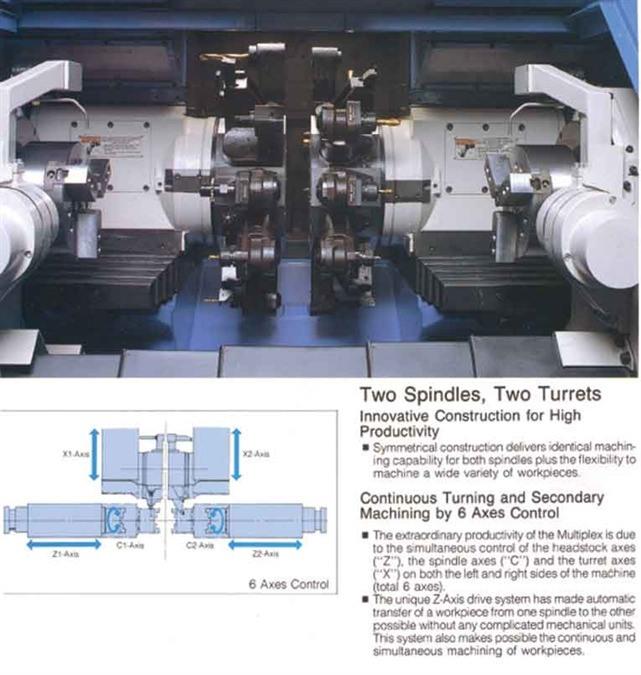

- Symmetrical construction with two spindles and turrets having identical machining capabilities. From turning to milling, drilling and tapping. Double spindle, 2 turret with 12 tools each, Mazatrol T 6 graphic.

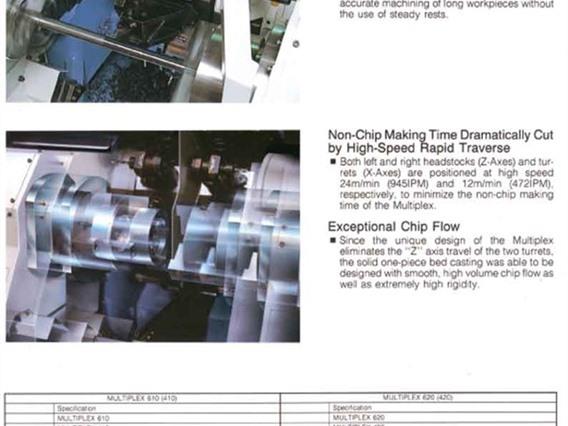

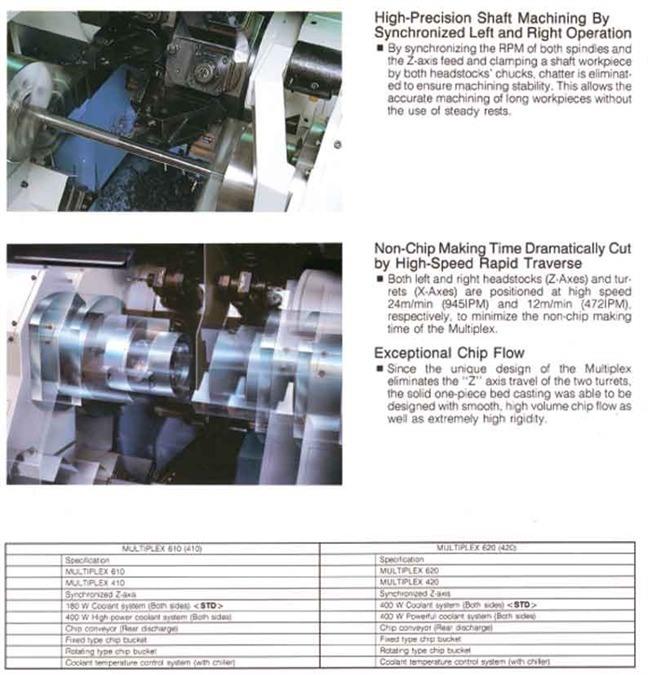

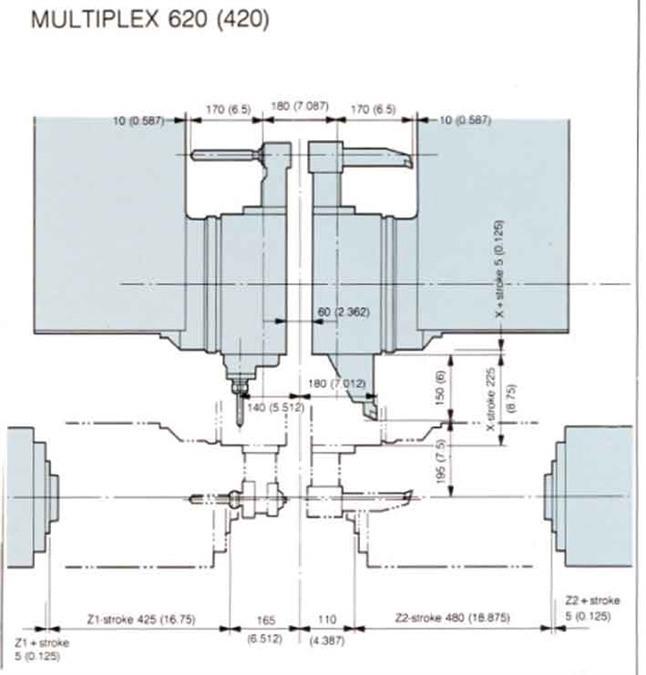

The extraordinary productivity of the Multiplex is due to the simultaneous control of the headstock axes Z, the spindle axes C and the turret axes X on both the left and right sides of the machine ( total 6 axes).
Floor space : 5075 x 2391 mm.
- Typ/Model: Multiplex 620
- Stocknumber: A.07 2641
- Kategoria główna: [A] Tokarki
- Sub kategorii: [A.07] Tokarki CNC
- Marka: Mazak
