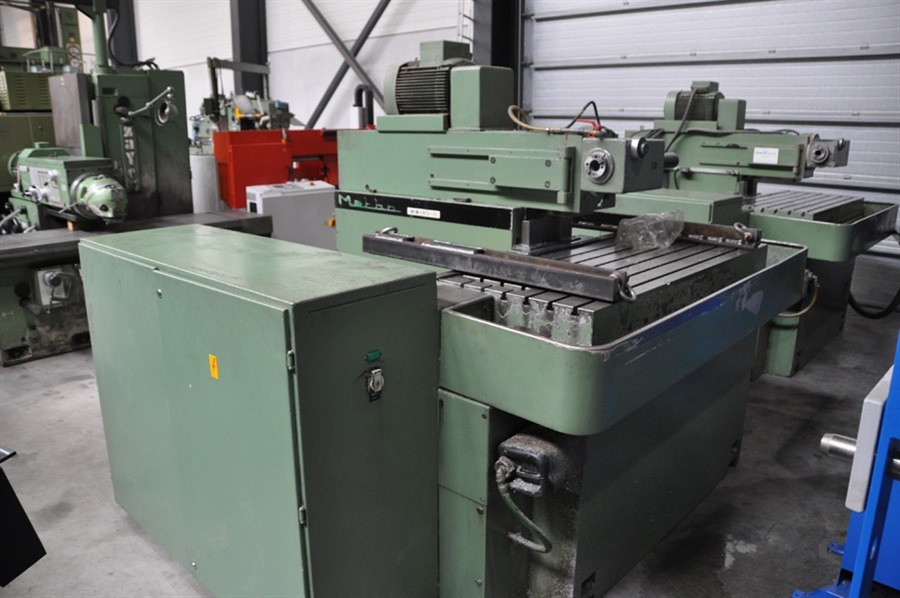

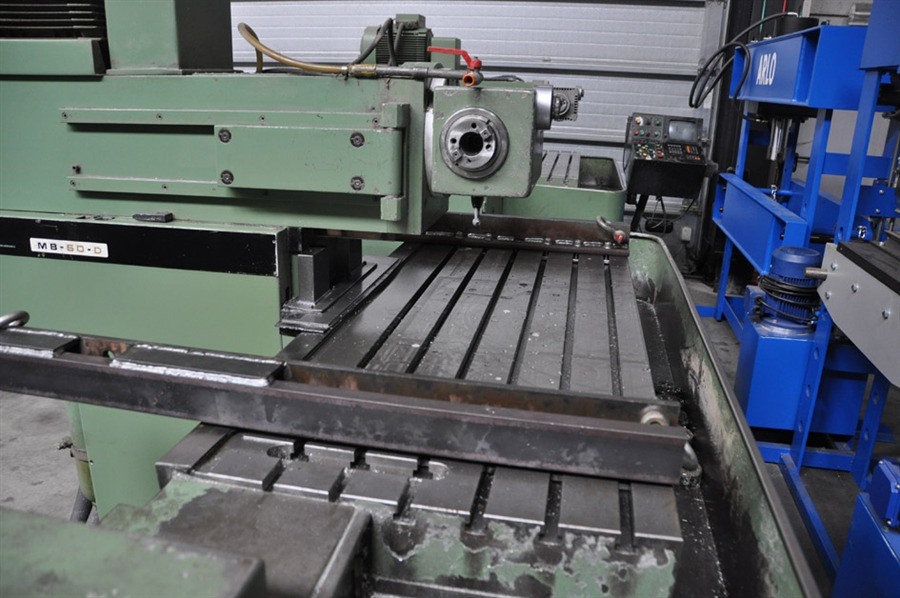

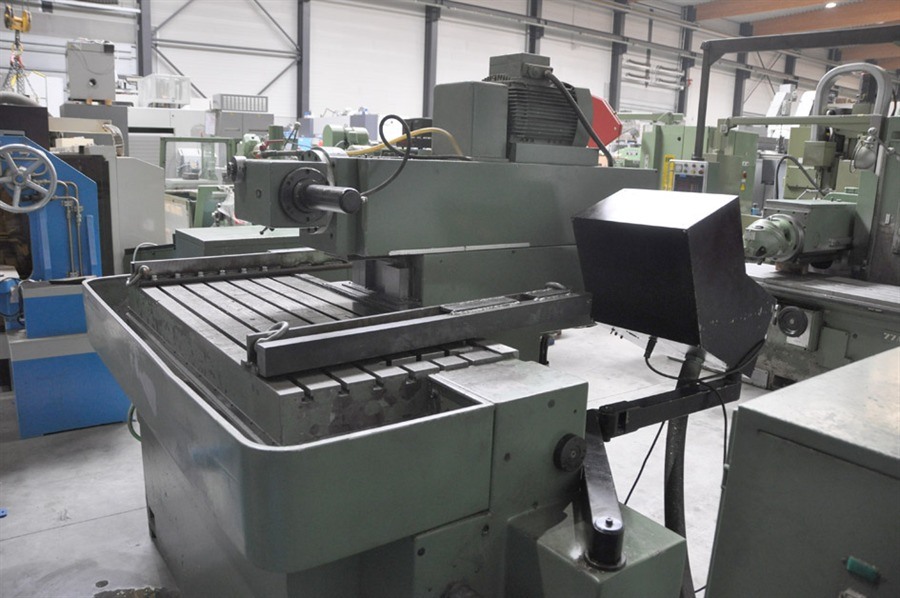

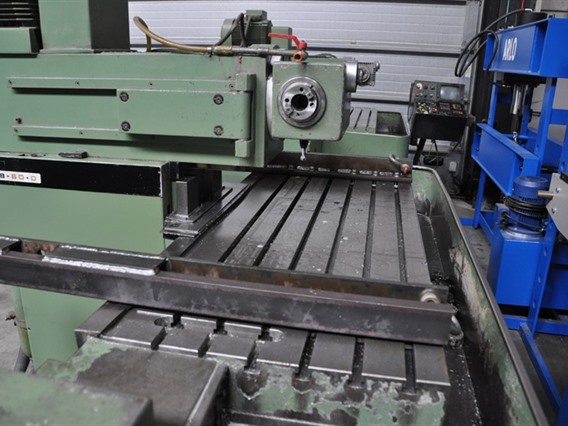

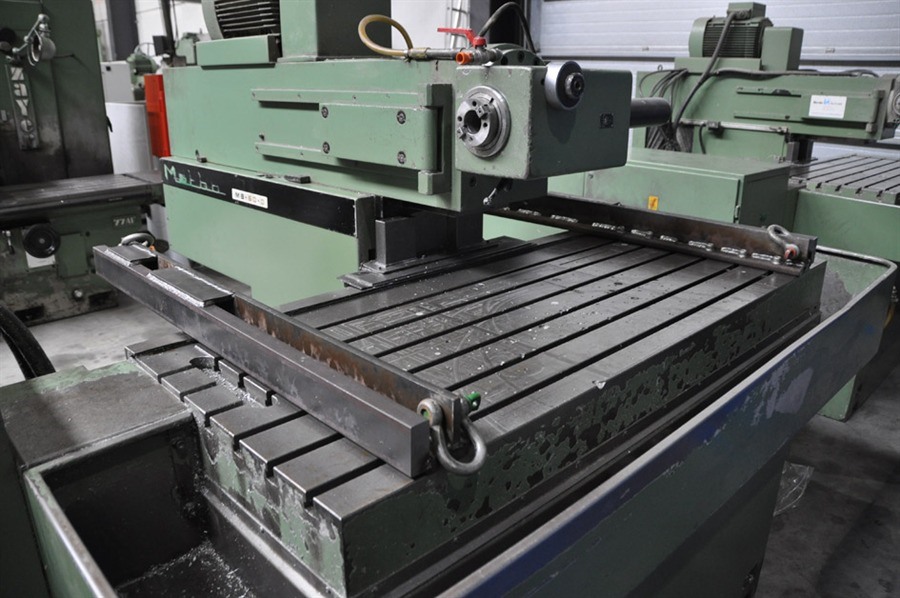

Metba MB-50-D CNC X: 1100 - Y: 600 - Z: 500mm
Teknik Bilgiler
- Longitudinal travel X-axe1100 mm
- Crosstravel Y -axe600 mm
- Travel Z-axe (Height)500 mm
- Dimensions clamping space - table1600 x 600 mm
- Max Height of workpiece648 mm
- Power on spindle9,5 kW
- Admission in millingheadspindle (ISO)ISO 40
- Max quill travel Z'100 mm
- Max speedrange3000 rpm

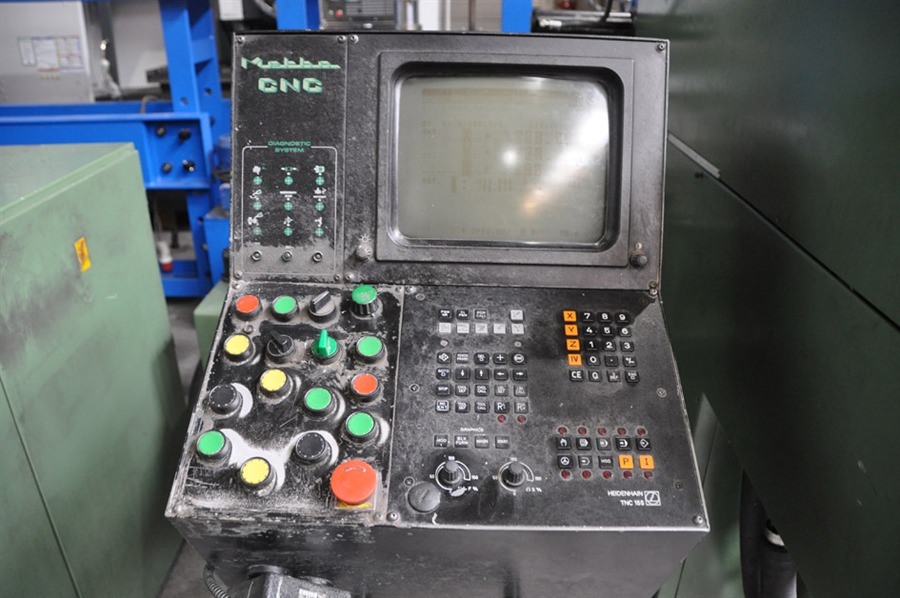

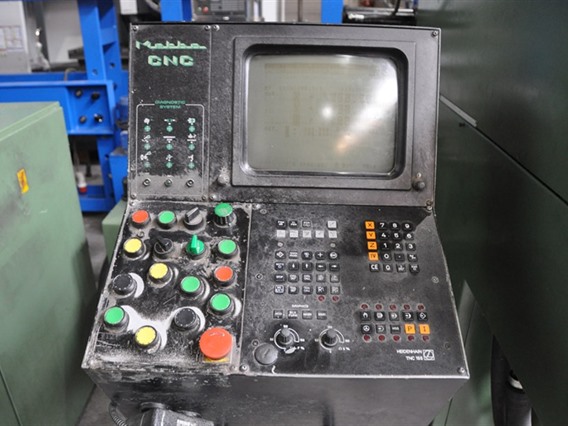

- ControlHeidenhain 3 axes
- Power needed12,5 kW
- Length L -- R2900 mm
- Depth Fw -- Bw1690 mm
- Weight5 ton
Ek bilgi

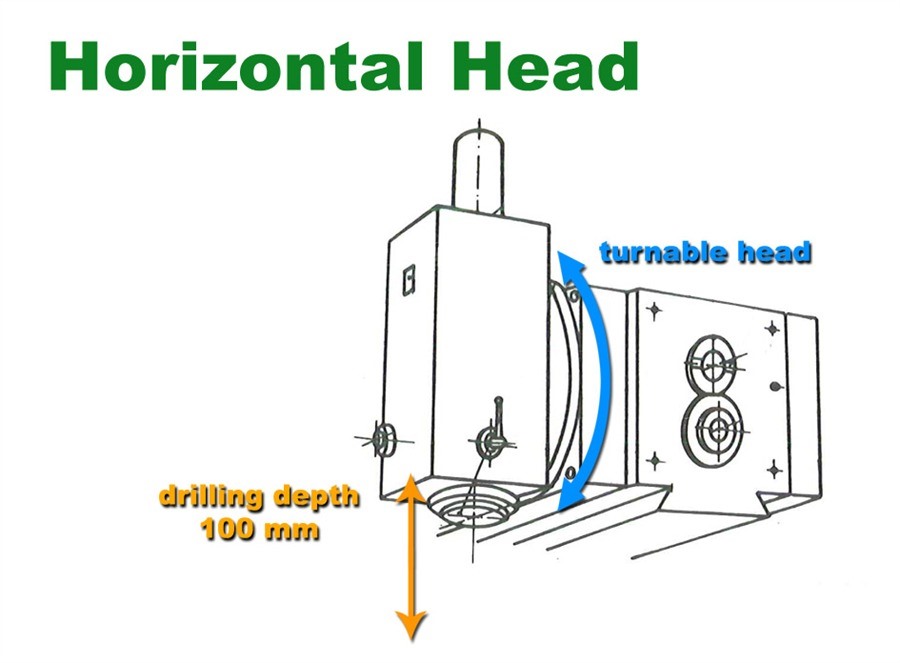

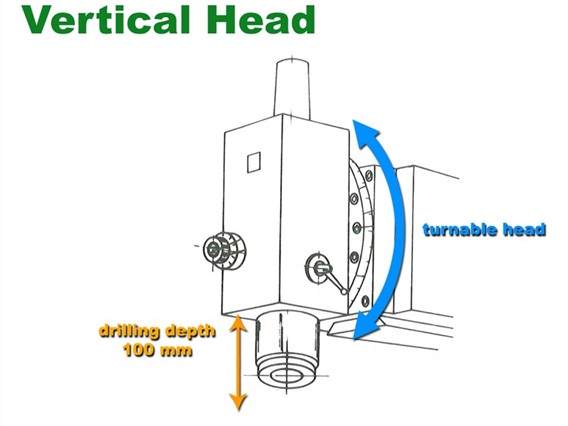

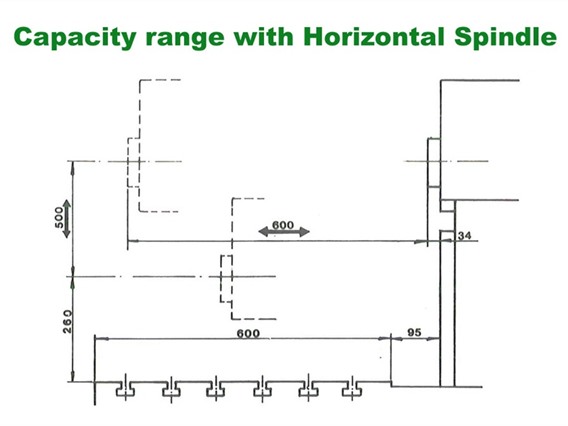

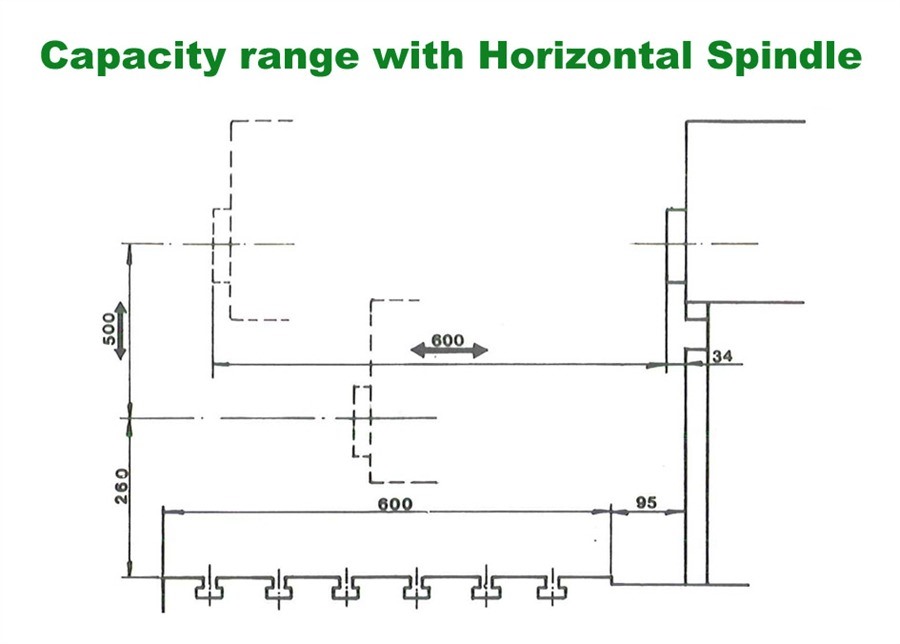

horizontal and vertical milling

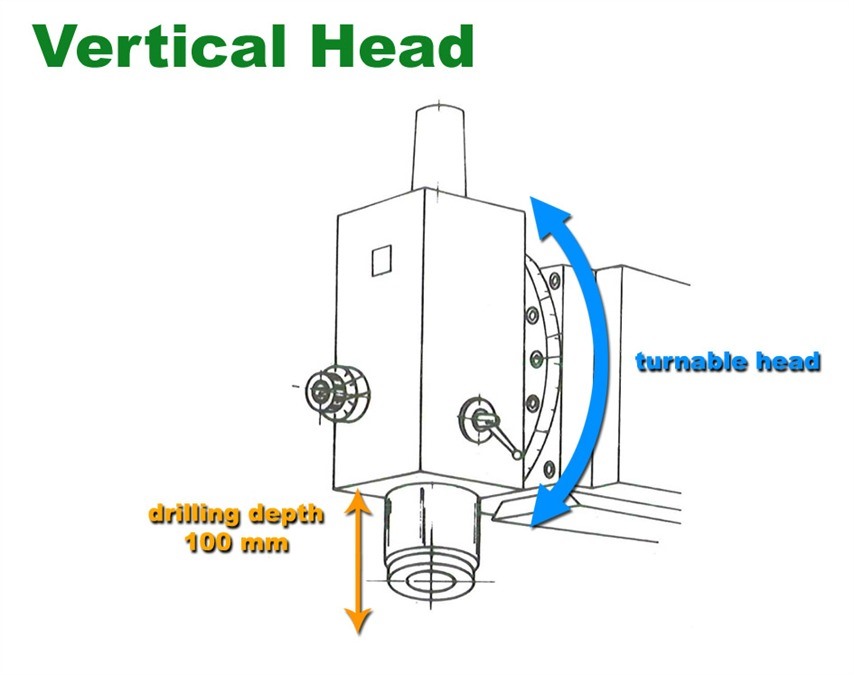

positionchangement of the head is done manually
drilling capacity (100 mm)

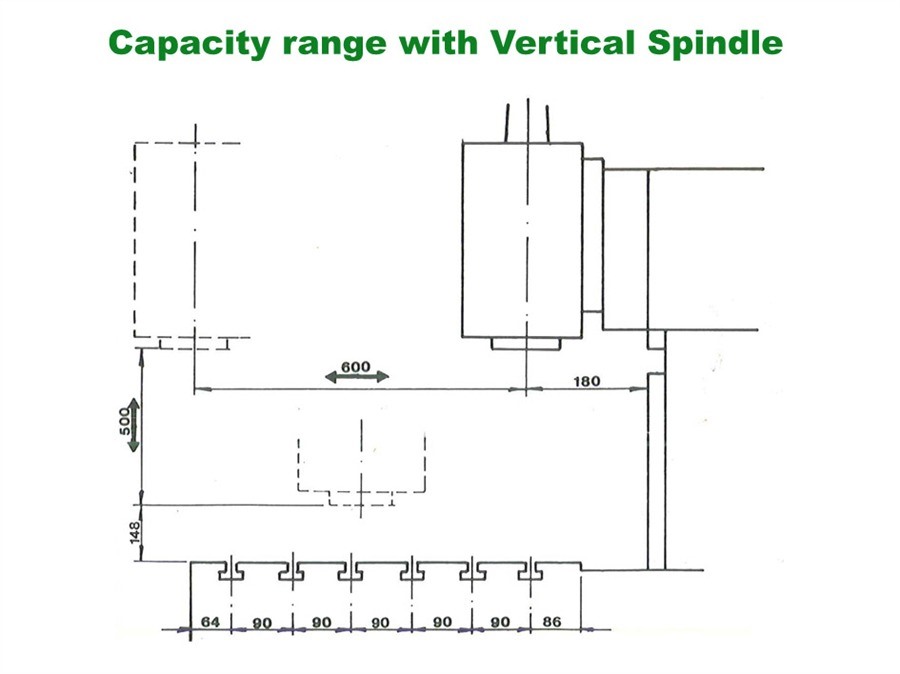

max workpieceheight: 648 mm
3 axes simultaneous
Check the video below the thumbnails to see the movement of the machine.
- Tip/Model: MB-50-D CNC X: 1100 - Y: 600 - Z: 500mm
- Stok numarası: B.04 7098
- Kategori: [B] Freze makineleri
- Alt kategori: [B.04] Bedfreesmachines / Beweegbare kolom conventioneel & CNC
- Marka: Metba
Stok numarası: B.04 7098
İş makinasının videosunu görüntüle
