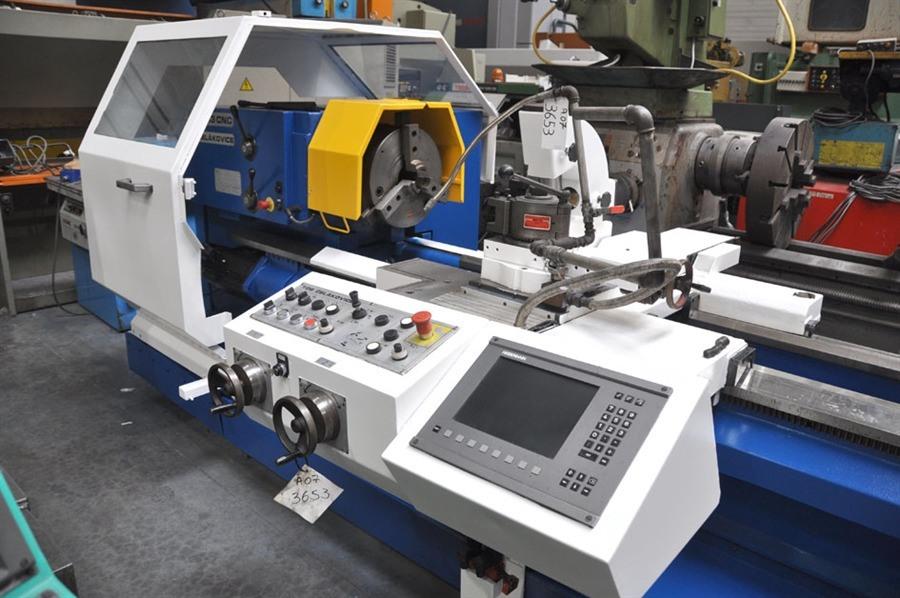

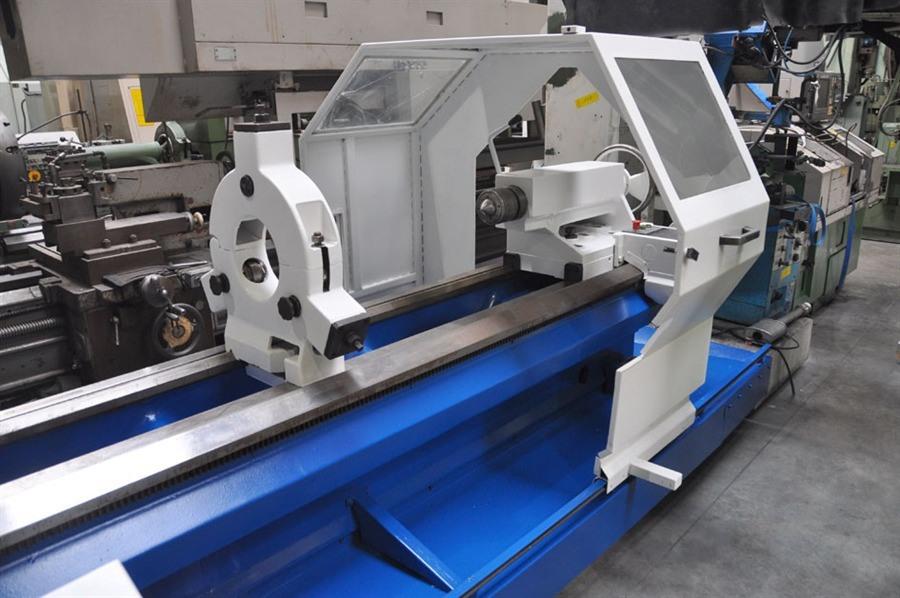

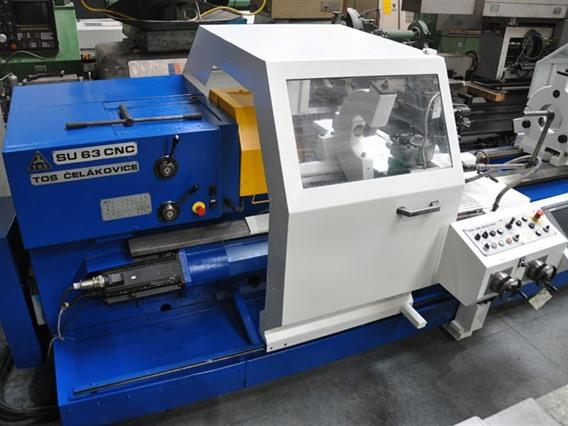

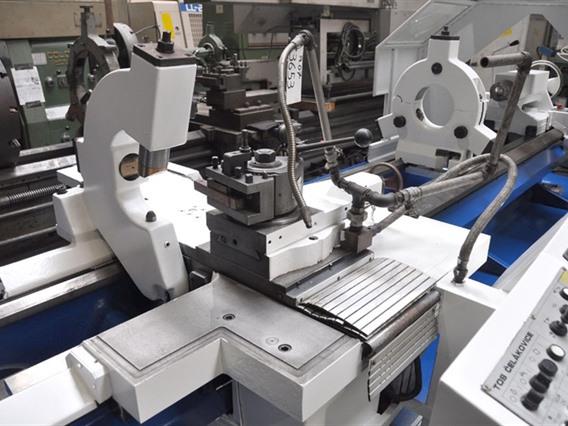

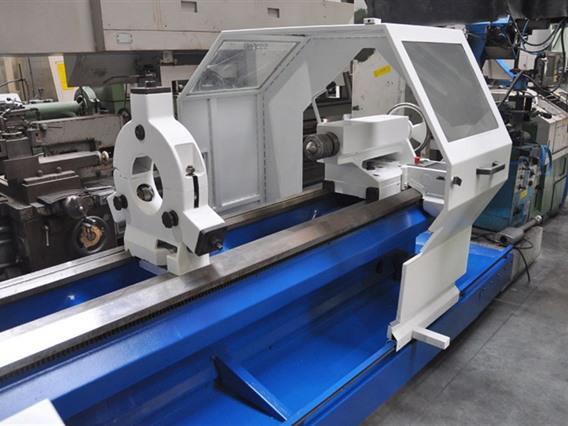

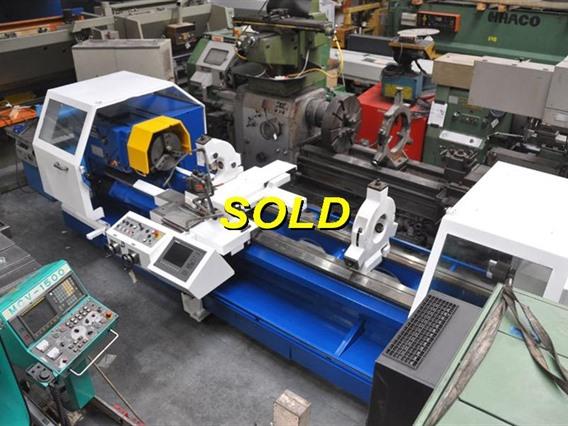

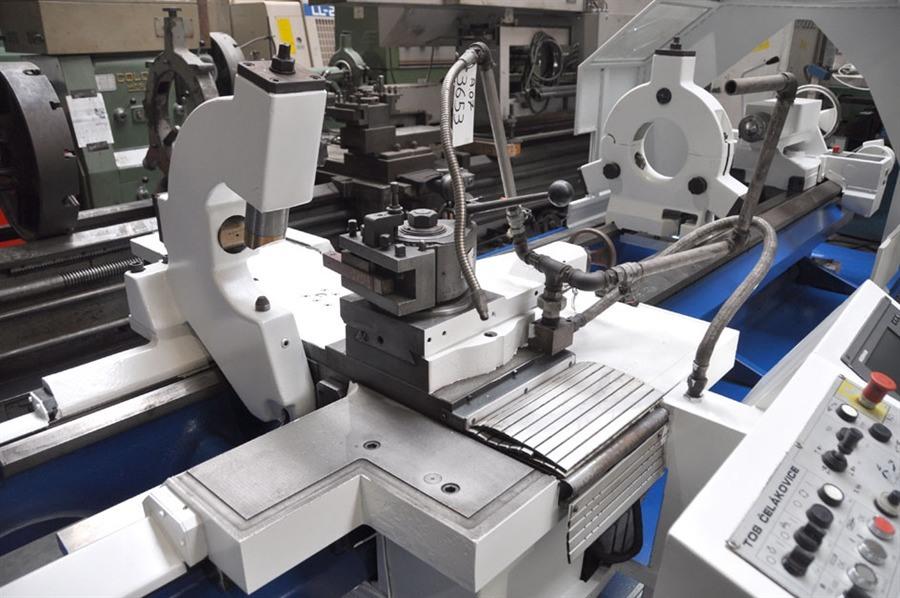

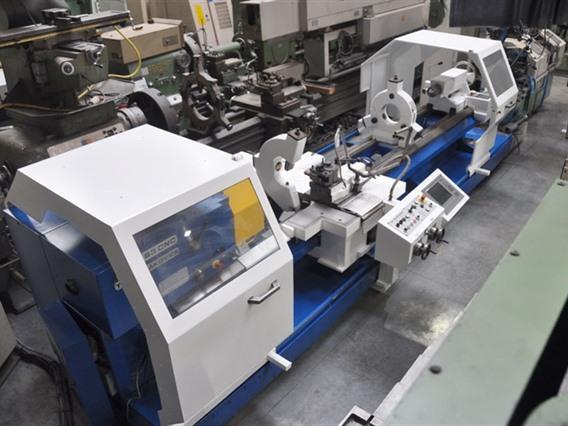

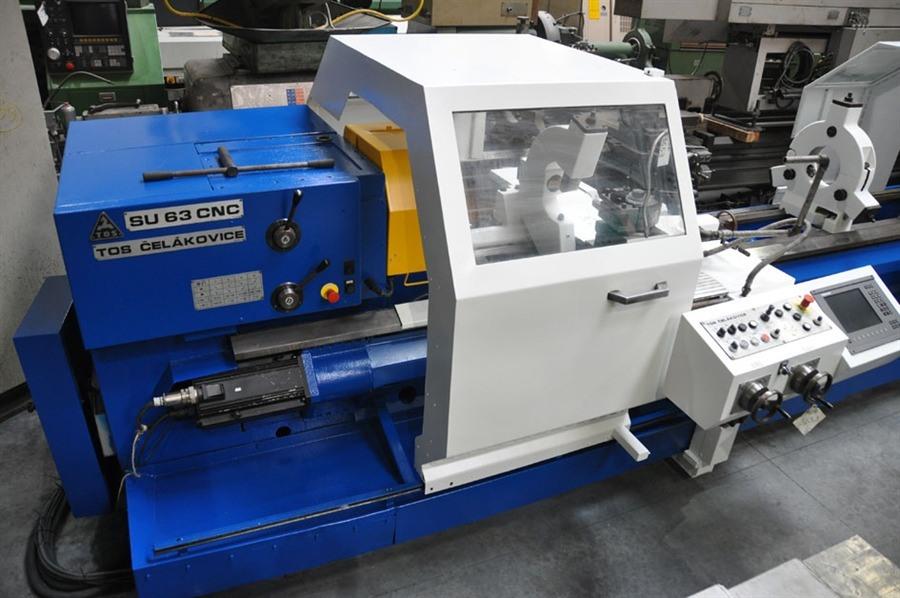

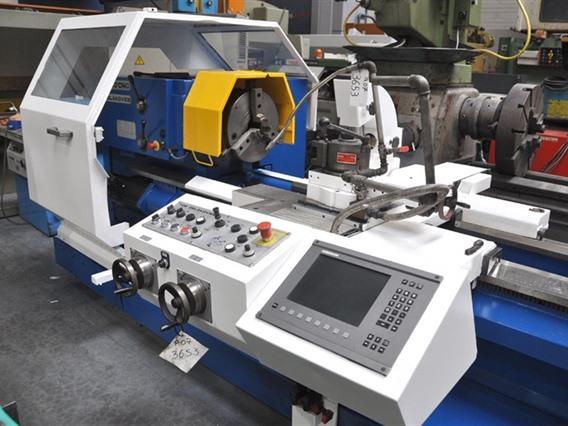

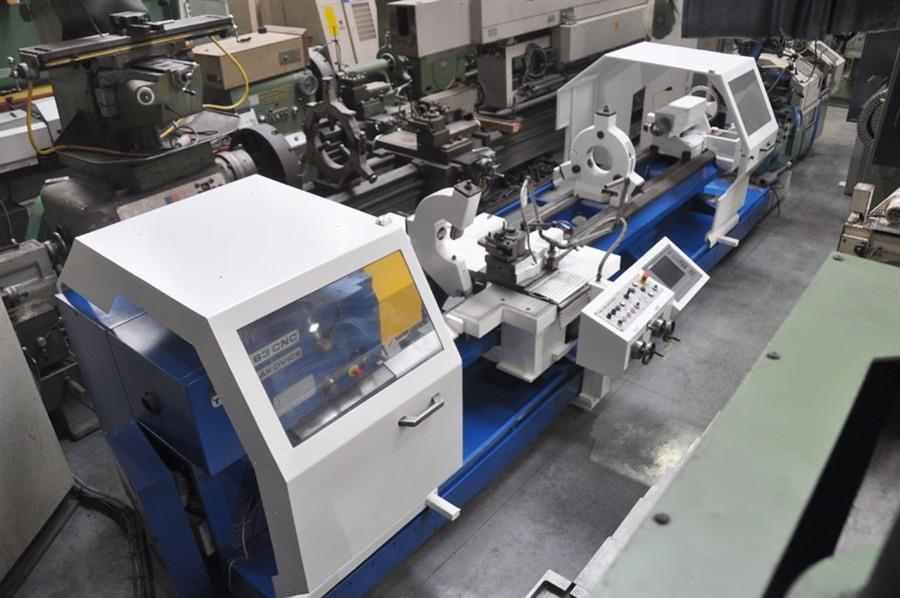

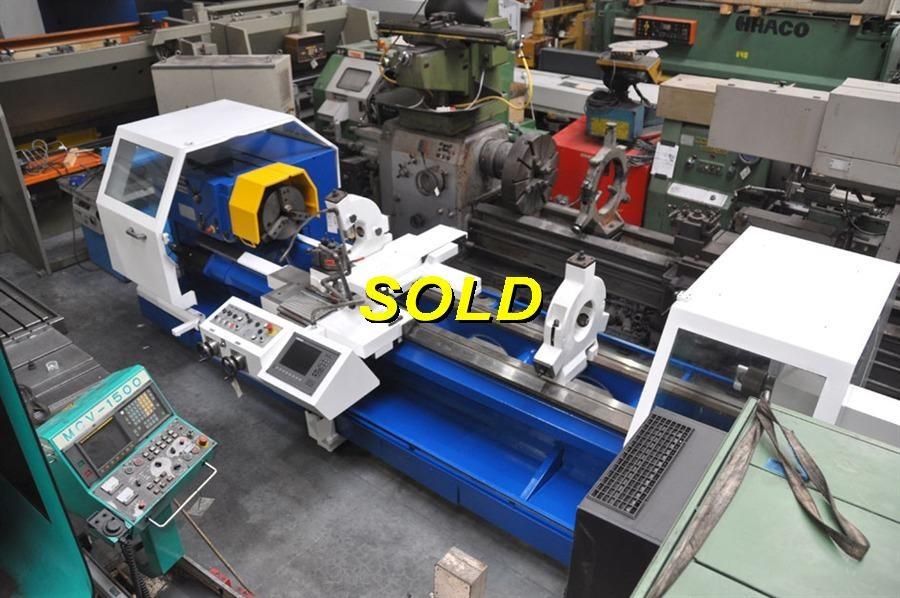

Tos Su 63 Ø 655 x 3500 mm CNC
Teknik Bilgiler

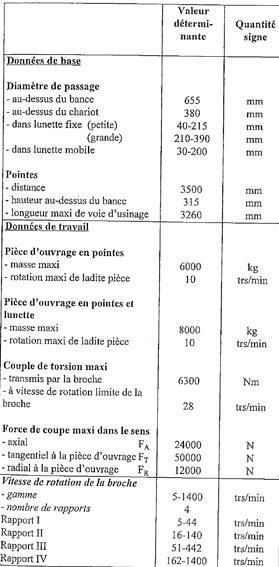

- Swing over bed655 mm
- Swing over cross-slide380 mm
- Distance centre tot centre3500 mm
- Spindle coneMorse 6
- Dia of spindle bore82 mm

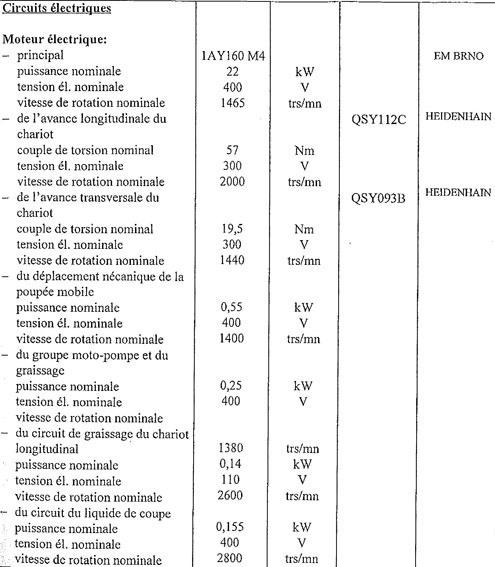

- Power on the spindle22 kW
- Number of speeds5 - 1400 rpm

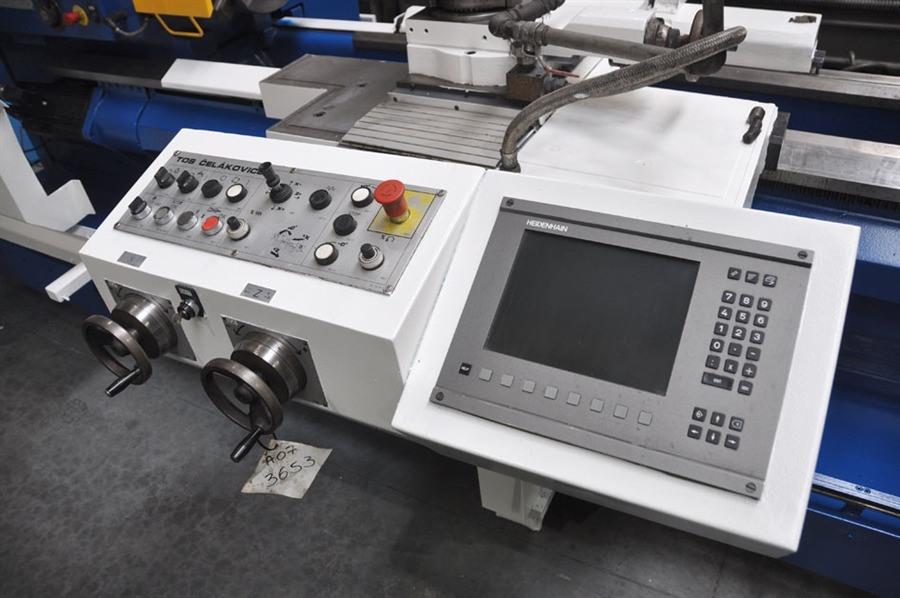

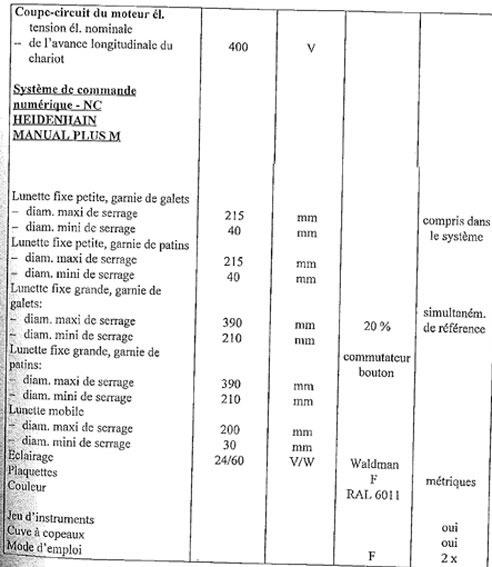

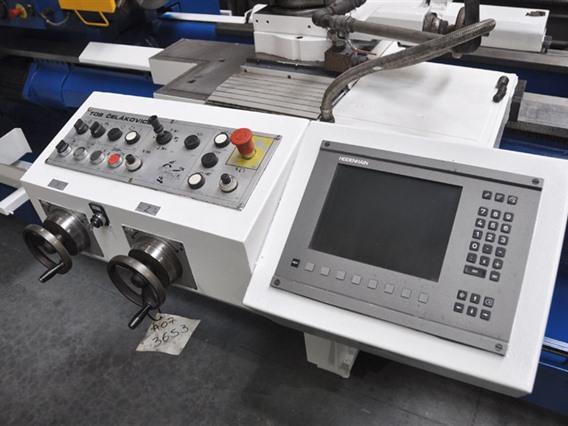

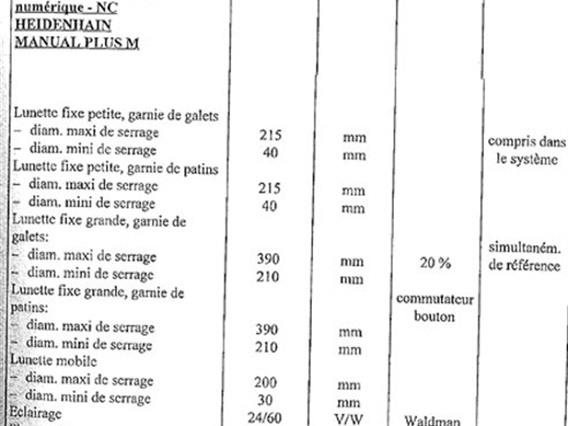

- CommandCNC Heidenhain Manual plus M

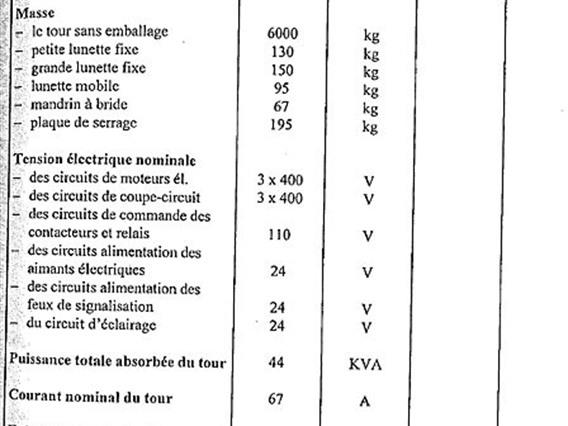

- Total power needed44 kva

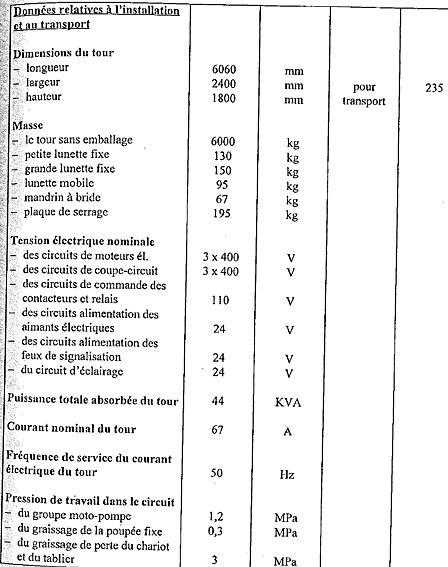

- Length L -- R6060 mm
- Width Fw -- Bw2400 mm
- Height1800 mm
- Weight6000 kg
- Chuck400 mm
