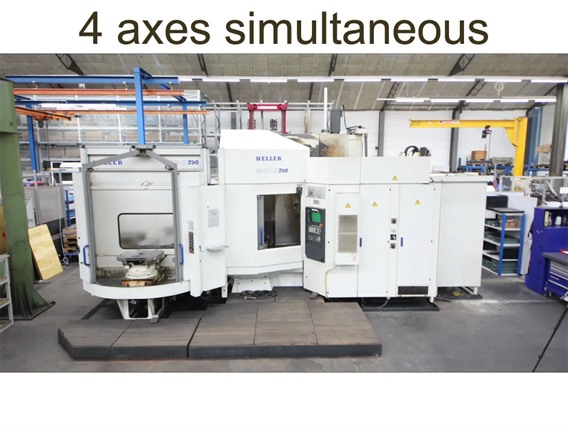

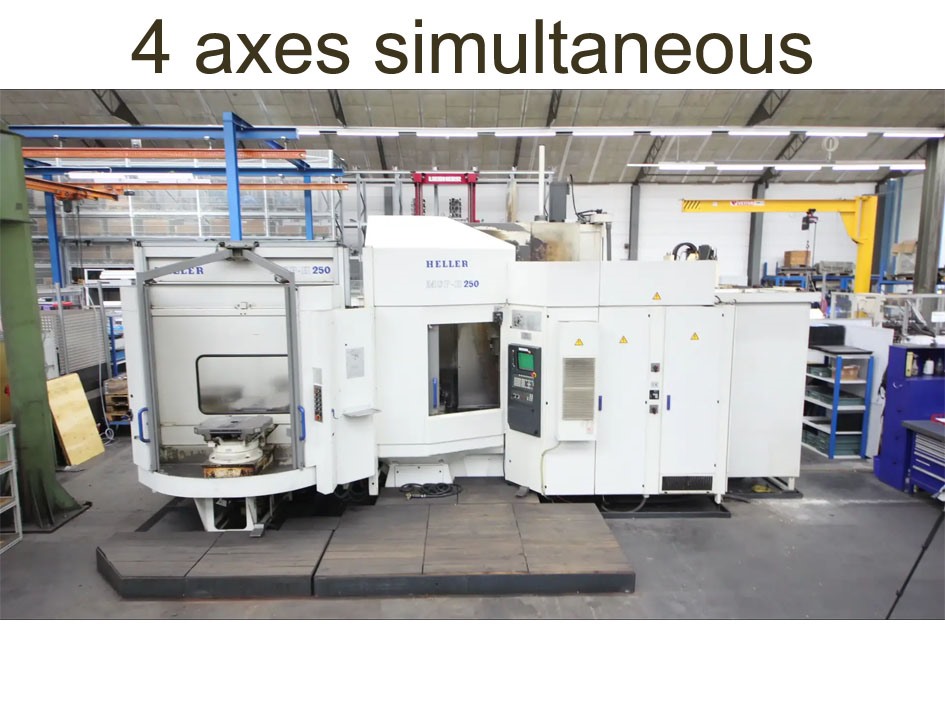

Heller X: 800 - Y: 800 - Z: 710 mm CNC

Ürün favorilere eklendi

» Kişisel fiyat talep edin

Teknik Bilgiler

Table longitudinal travel (X-axes)800 mm
Cross-travel head (Y-axes)800 mm
Height- travel head (Z-axes)710 mm
Table dimensions4 pallets > 630 x 500 mm
Admission in spindle (ISO)ISO 50
Power on the spindle43 kW (at 40%)
Control (type)Siemens Sinumerik
Number of axes4 axes simultaneous
Toolstoreyes
Tools52 tools
Frequency (from X tot Y rpm)45 > 6000 rpm

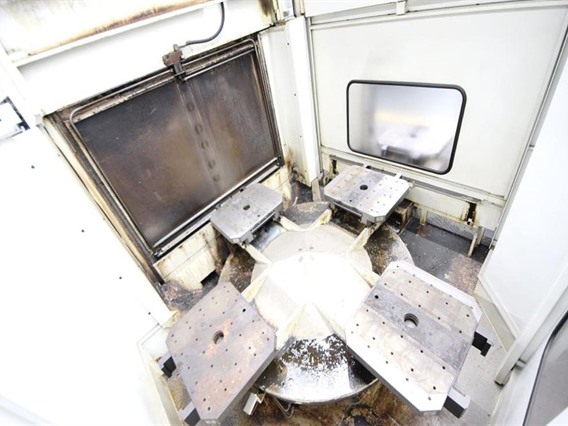

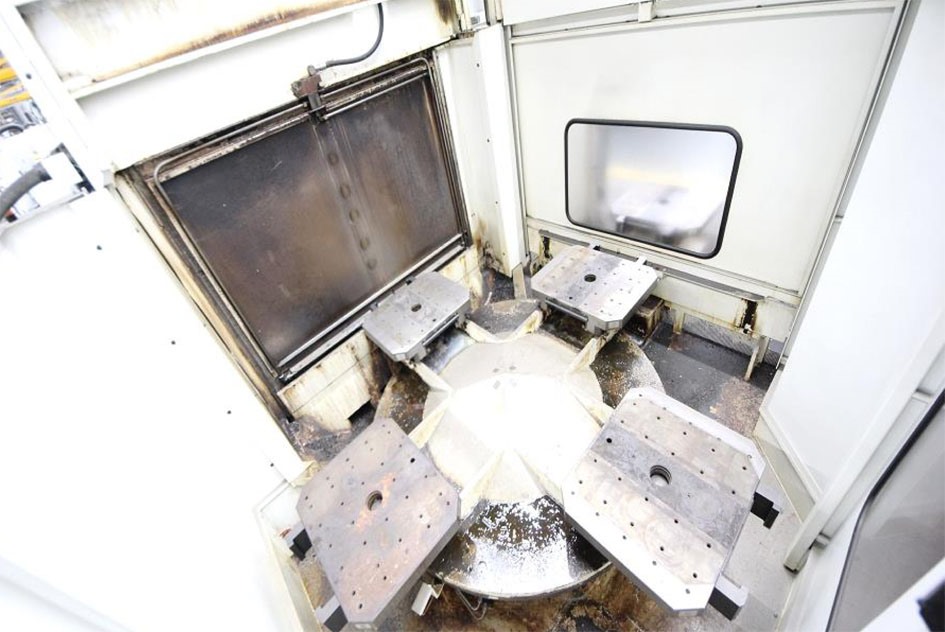

Number of pallets ( X of Lo x La)4x
Power principal motor62 kVa
Weight16,2 ton
Cooling-systemyes

Ek bilgi

Type: MCP-H 250
AC servo drives
high precision ballscrews
high pressure cooling through spindle
spindle diameter: 100 mm

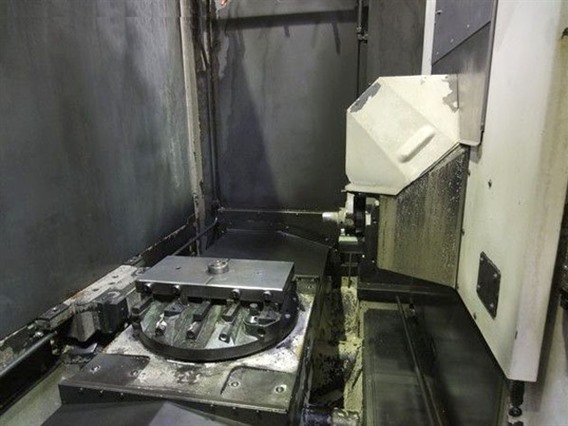

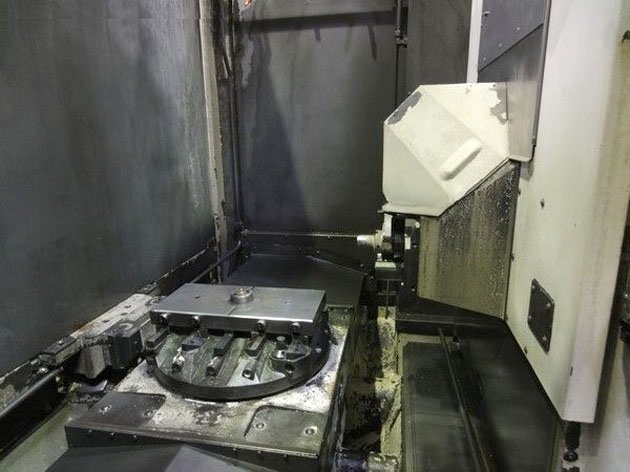

NC rotary table division: 36 000 x 0,001 degree
Tip/Model: X: 800 - Y: 800 - Z: 710 mm CNC
Stok numarası: D.02 10572
Kategori: [D] Uygulama merkezi
Alt kategori: [D.02] Horizontale bewerkingscentra conventioneel & CNC
Marka: Heller

» Kişisel fiyat talep edin

Stok numarası: D.02 10572

İş makinasının videosunu görüntüle

ZIP formatındaki tüm fotoğrafları indirin
