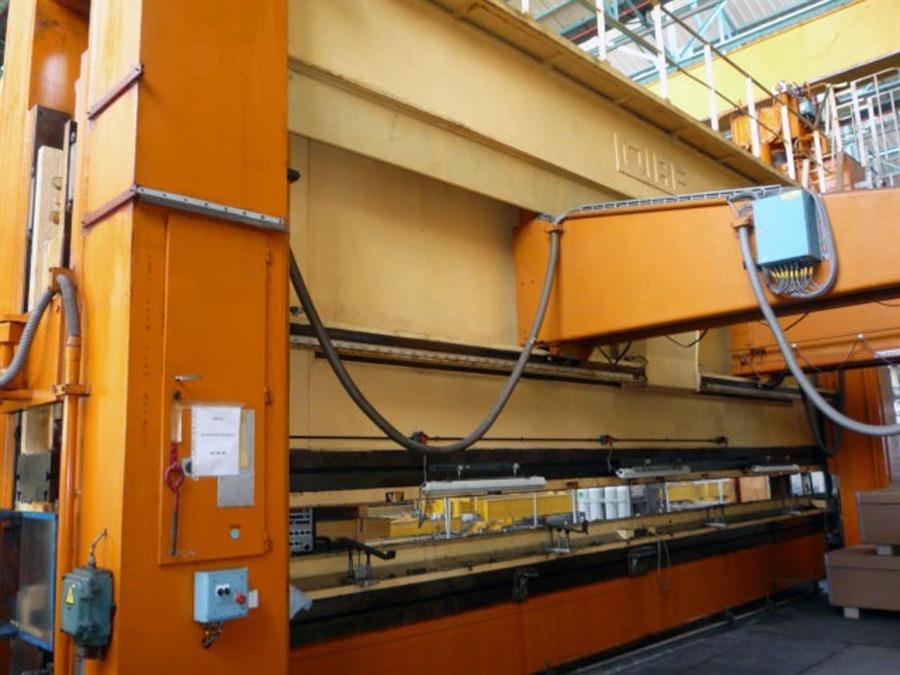

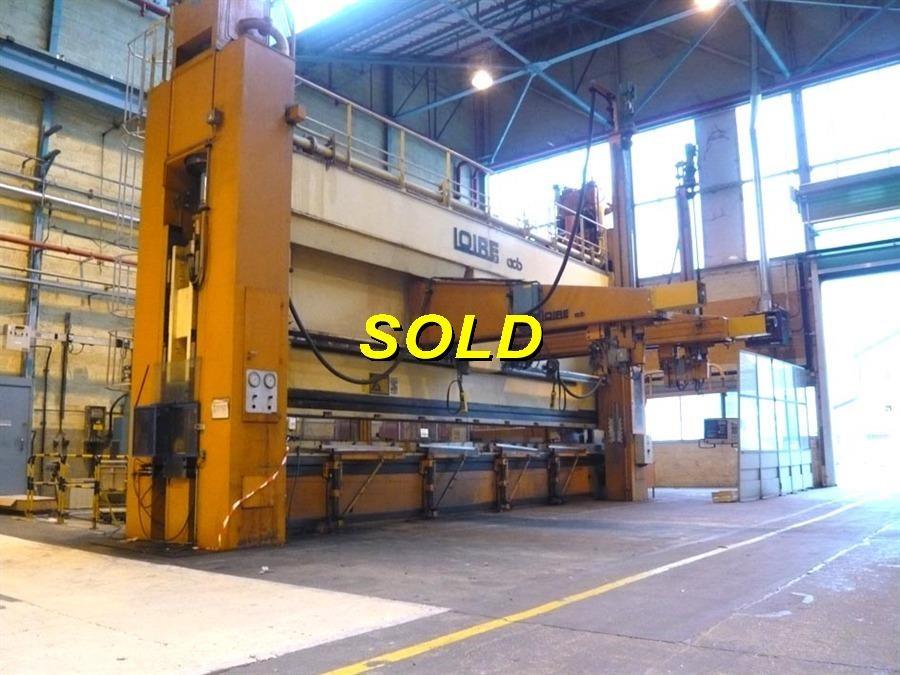

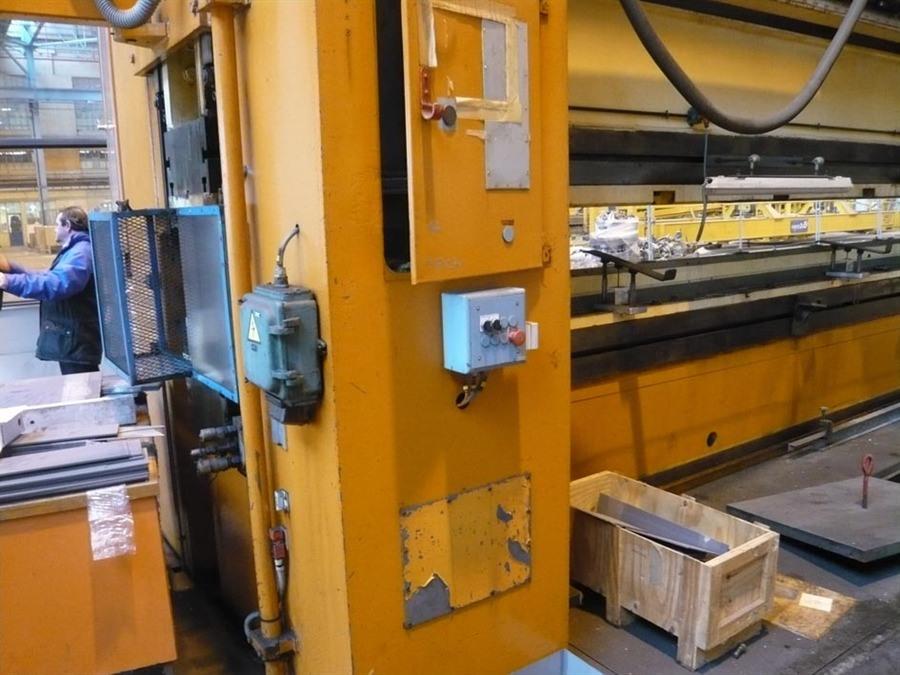

Loire 600 ton x 9200mm CNC
Teknik Bilgiler

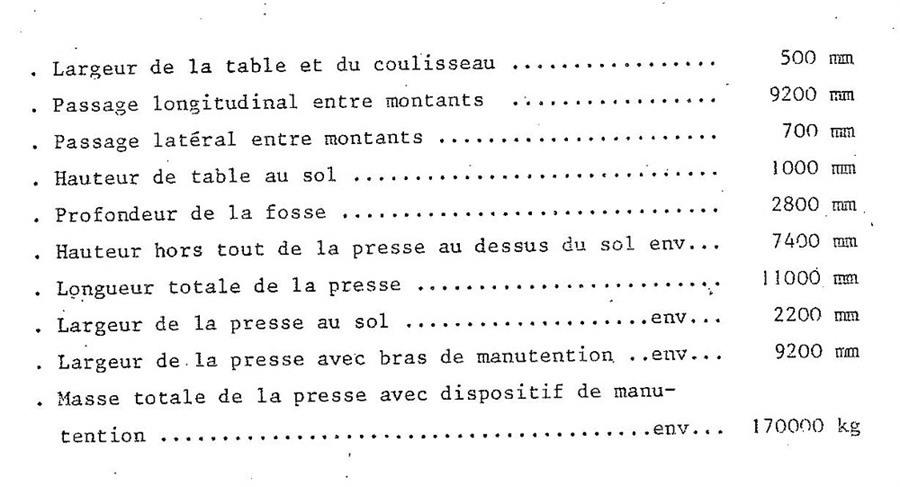

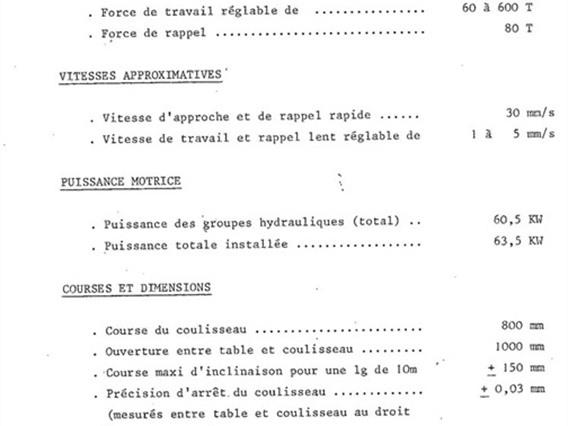

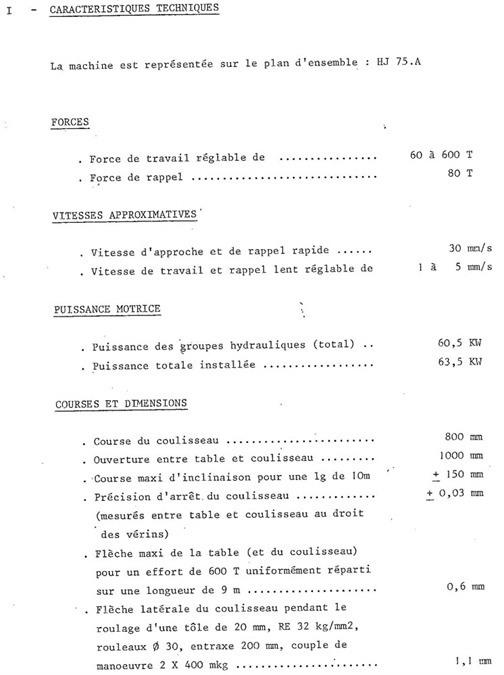

- Capacity x Max length600 Ton x 9200 mm
- ControlNUM 760
- Passage between uprights9200 mm

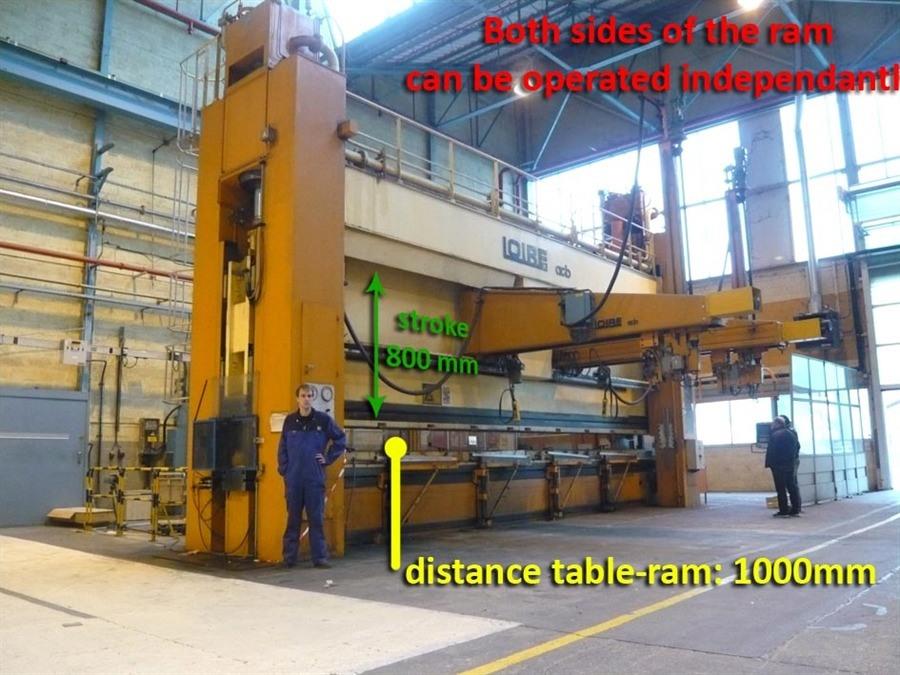

- Max stroke800 mm
- Max distance between table -- ram1000 mm
- Table width 500 mm
- Locking speed30 mm/sec
- Working speed5 mm/sec
- Electric motor (power)63.5 kw
- Length 11000 mm
- Depth 2200 mm (9200mm)
- Height7400 mm (above ground)
- Weight170 000 kg
Ek bilgi

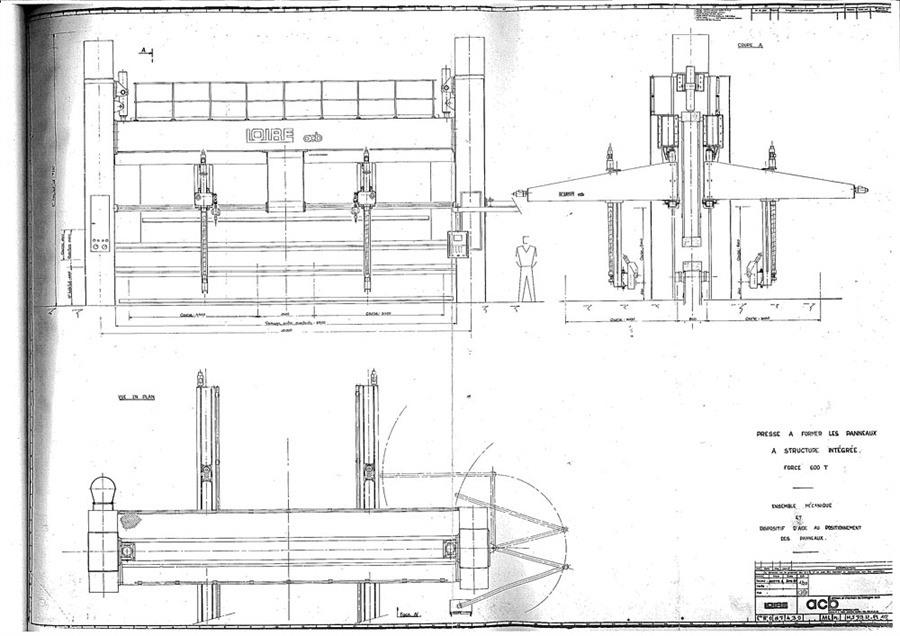

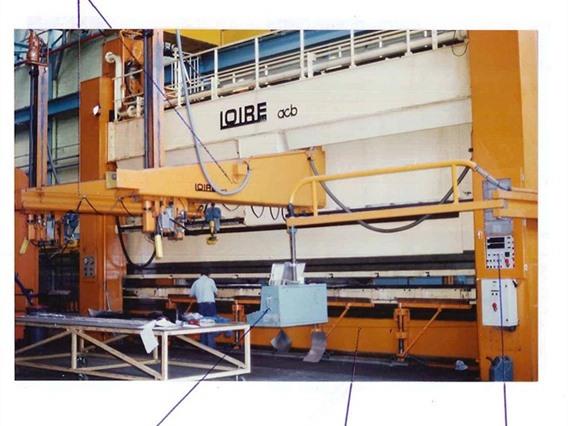

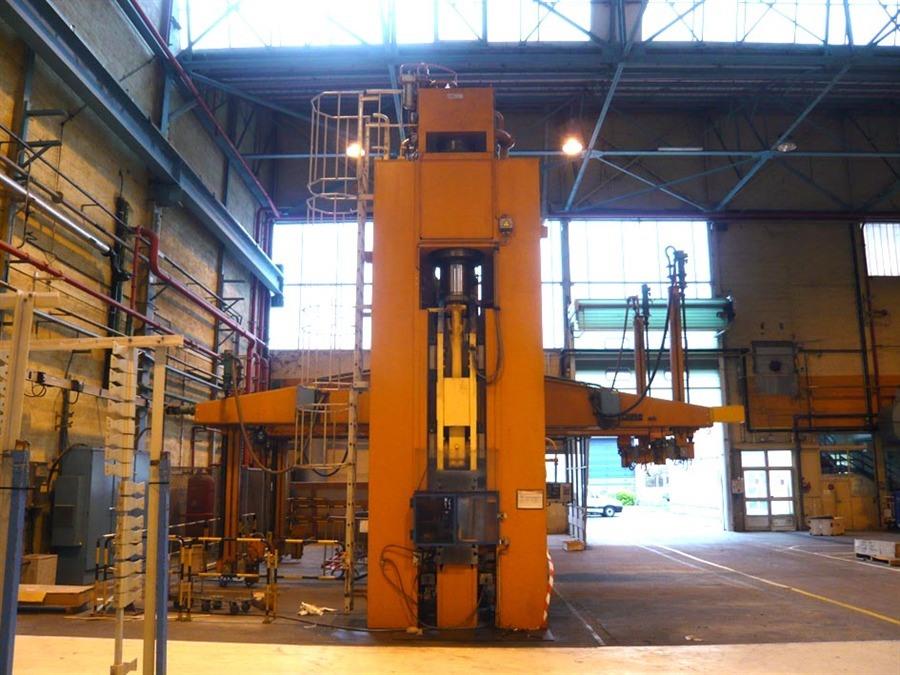

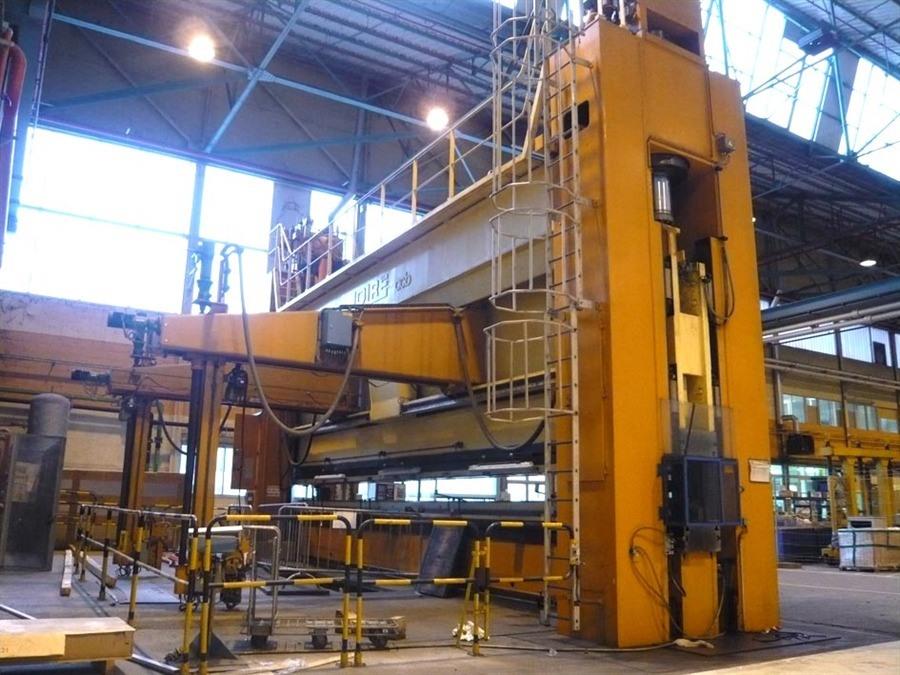

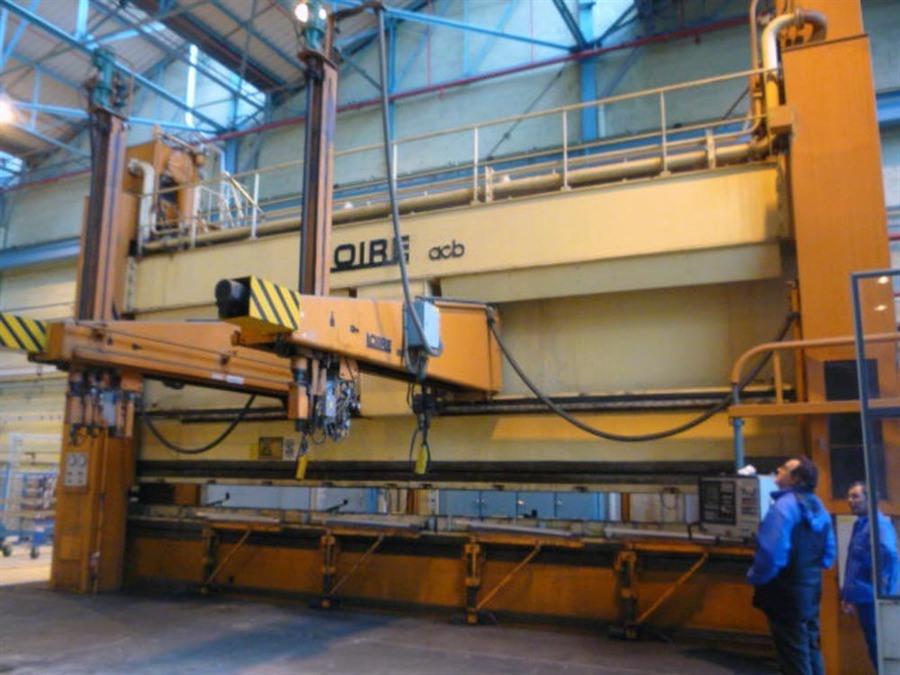

Unique Stretch forming press

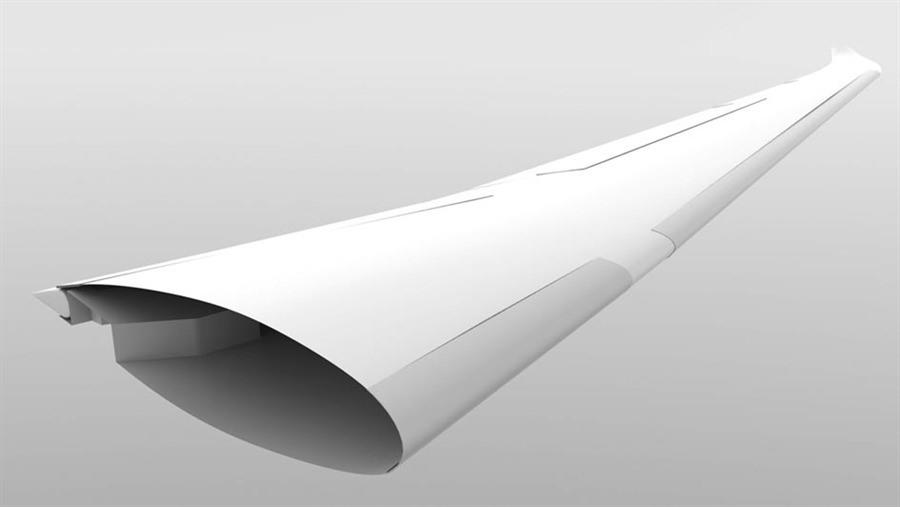

This machine has been studied especially to meet very specific forming panels structures by the two methods of rolling and succesive folding (endallage)

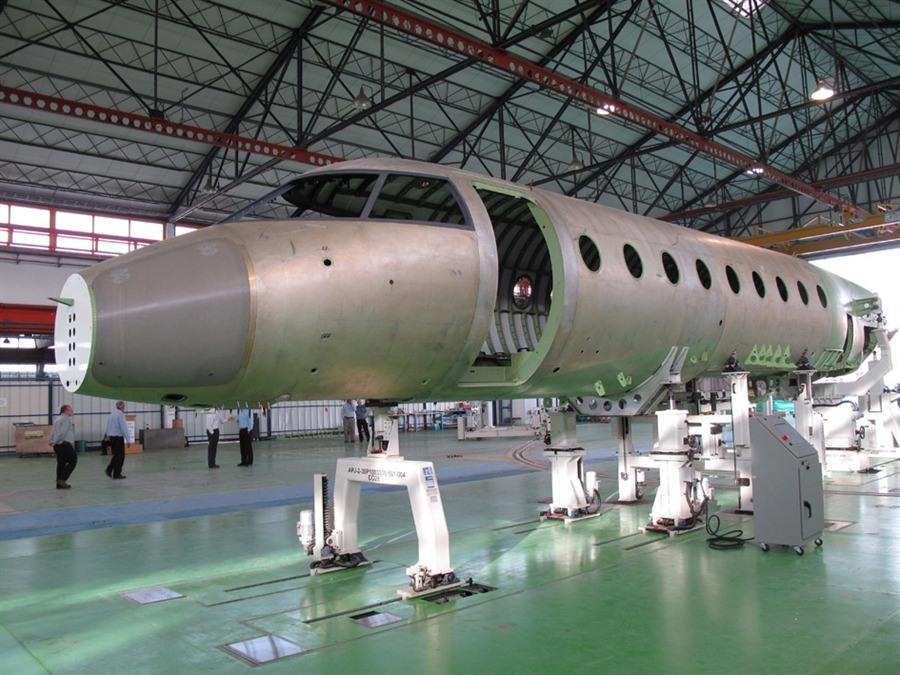

Special Bending and rolling unit, used also for making of the mantle of cockpit of Ariane rocket.

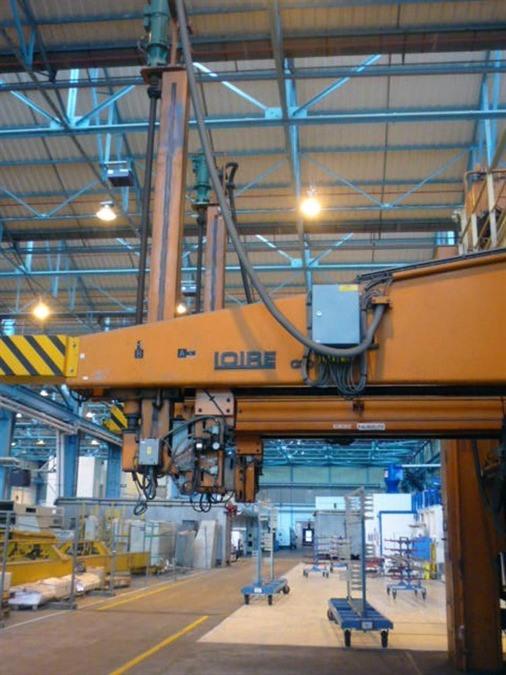

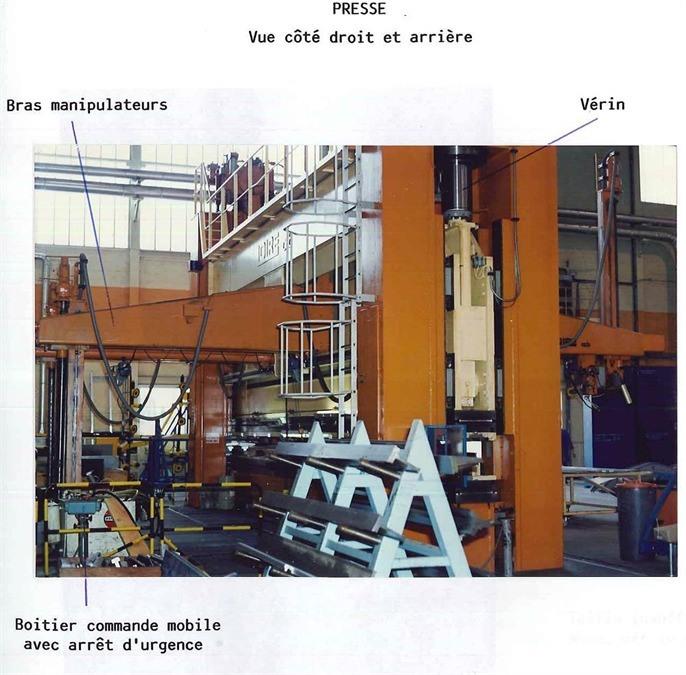

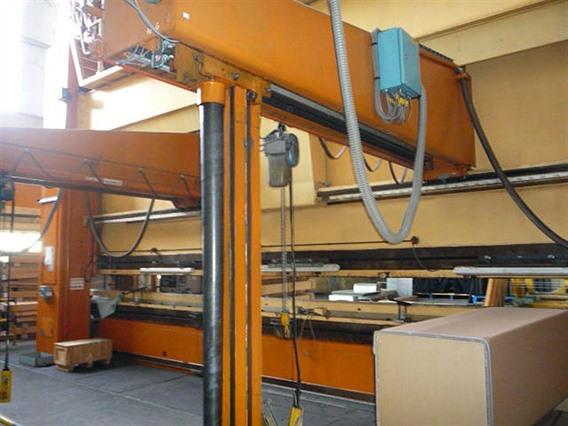

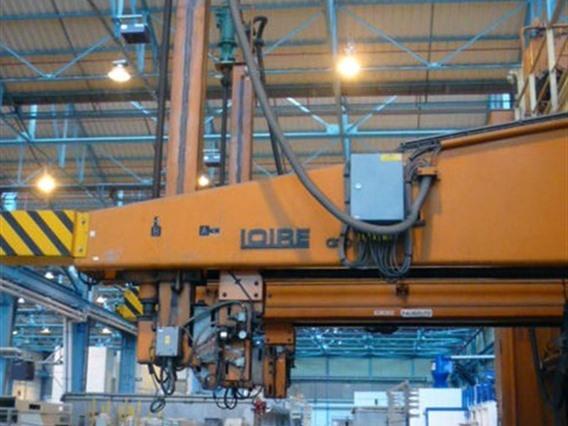

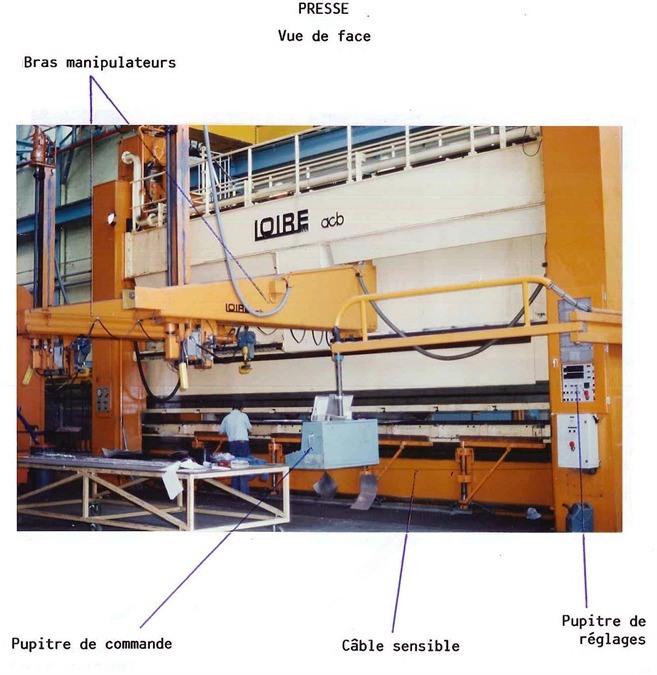

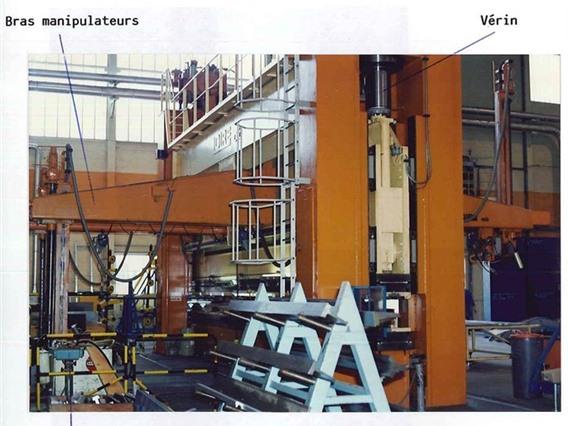

Equipped with 4 bending/holding arms, each of wich can be operated independantly - with X/Y/Z axis movement
Capacity x Max length: 600 Ton x 9200 mm

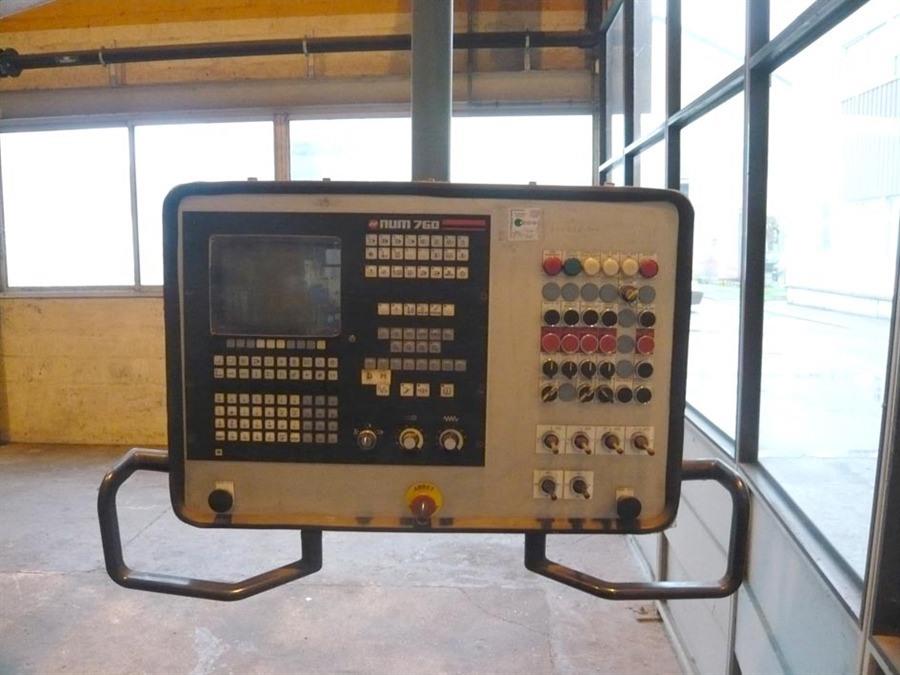

Control: NUM 760
Passage between uprights: 9200 mm
Max stroke: 800 mm
Max distance between table -- ram: 1000 mm
Table width L -- R: 500 mm
Locking speed: 30 mm/sec
Working speed: 5 mm/sec
Electric motor (power): 63.5 kw
Length L -- R: 11000 mm
Depth F -- B: 2200 mm (9200mm)
Height: 7400 mm (above ground)
Weight: 170 000 kg
3D bending & rolling & 14 controlled axes
Table: 42 ton
Ram: 52 ton
- Tip/Model: 600 ton x 9200mm CNC
- Stok numarası: O.01 6189
- Kategori: [O] doğrama tezgahları, Rulolama, hedefleme makineleri, kaynak makineleri, ateşli kesim makineleri, metal plaka kesme makineleri ve yarma tezgahı
- Alt kategori: [O.01] Hydraulische kantbanken & Hydraulische plooibanken
- Marka: Loire
