LVD - PPEB 350 ton x 8100 mm CNC

LVD PPEB 350 ton x 8100 mm CNC

Ürün favorilere eklendi

» Kişisel fiyat talep edin

Teknik Bilgiler

Capacity x Max length350 ton x 8000 mm
BackgaugeCNC

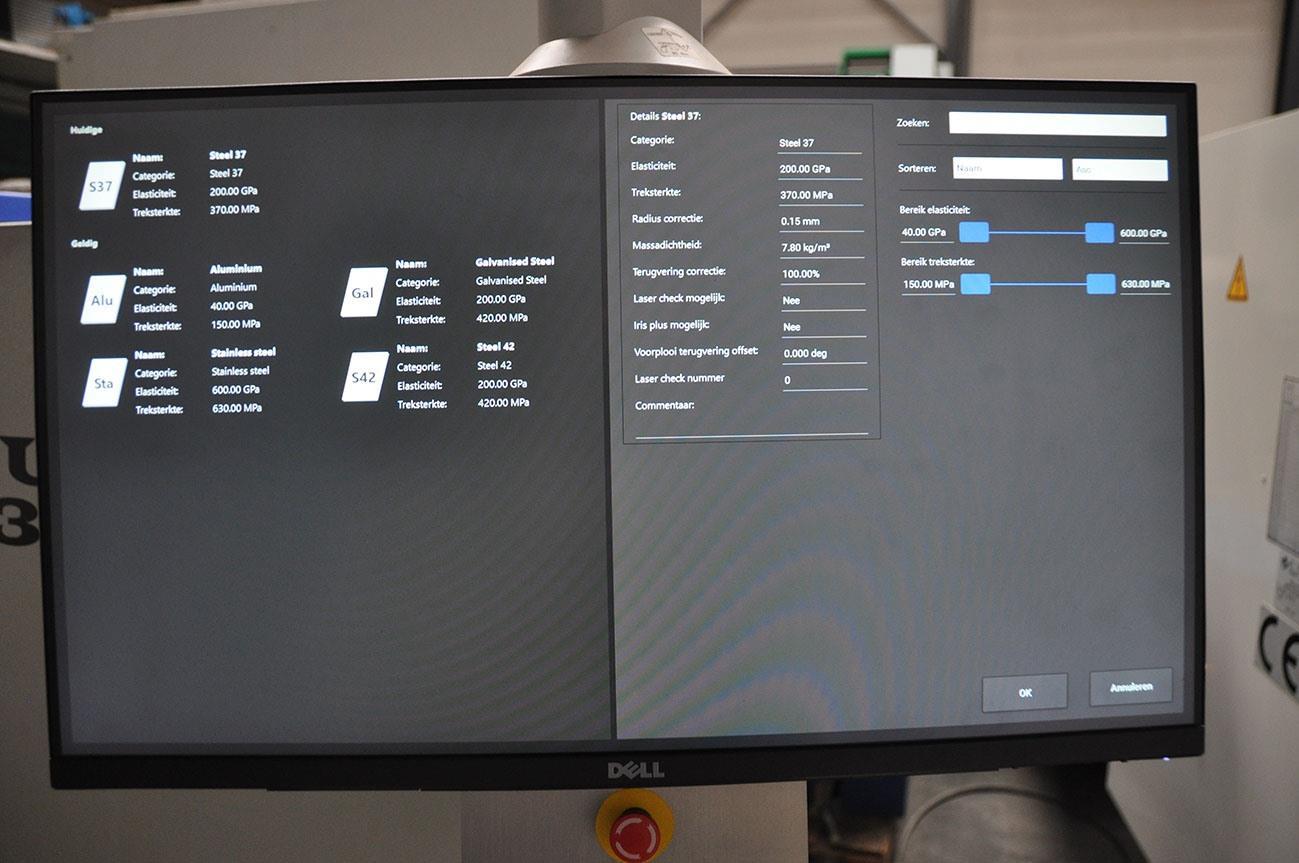

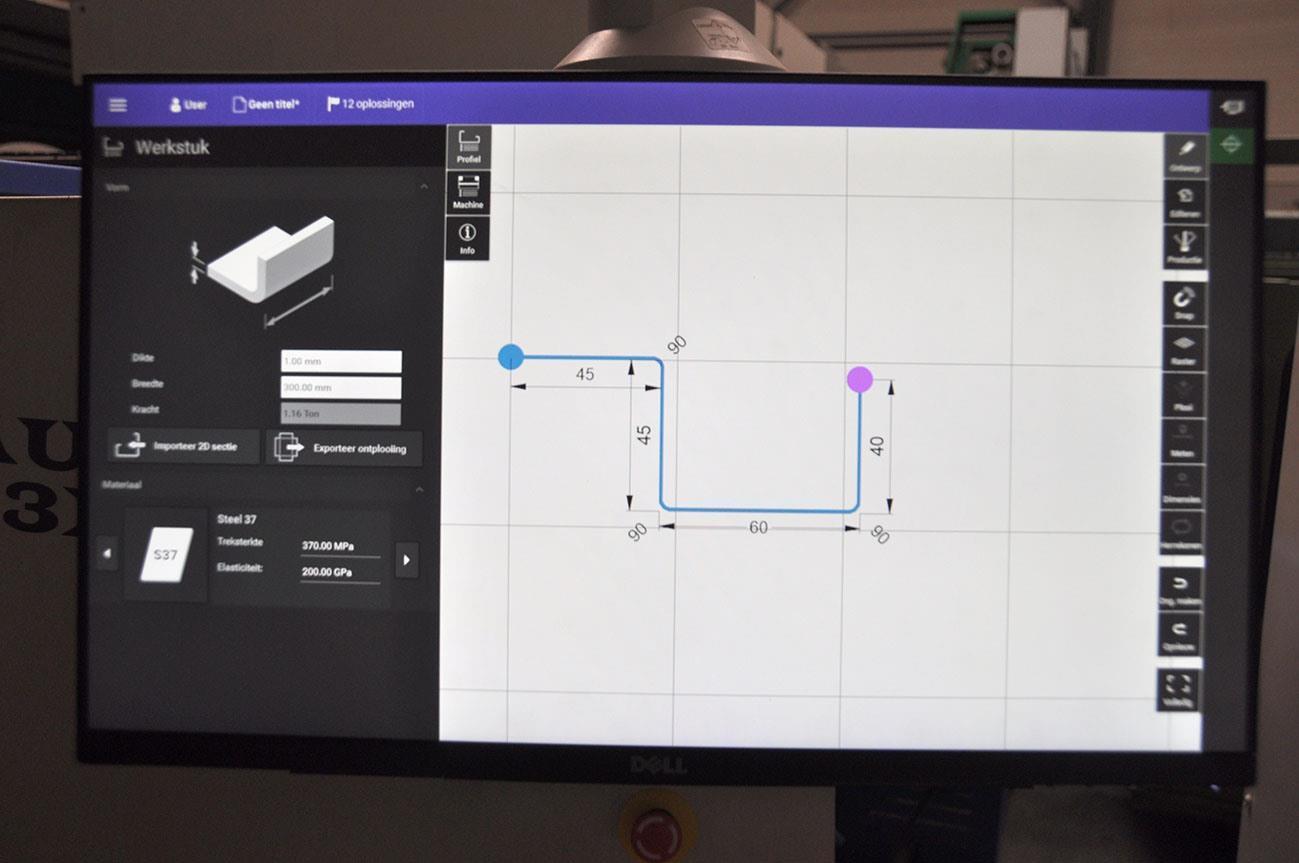

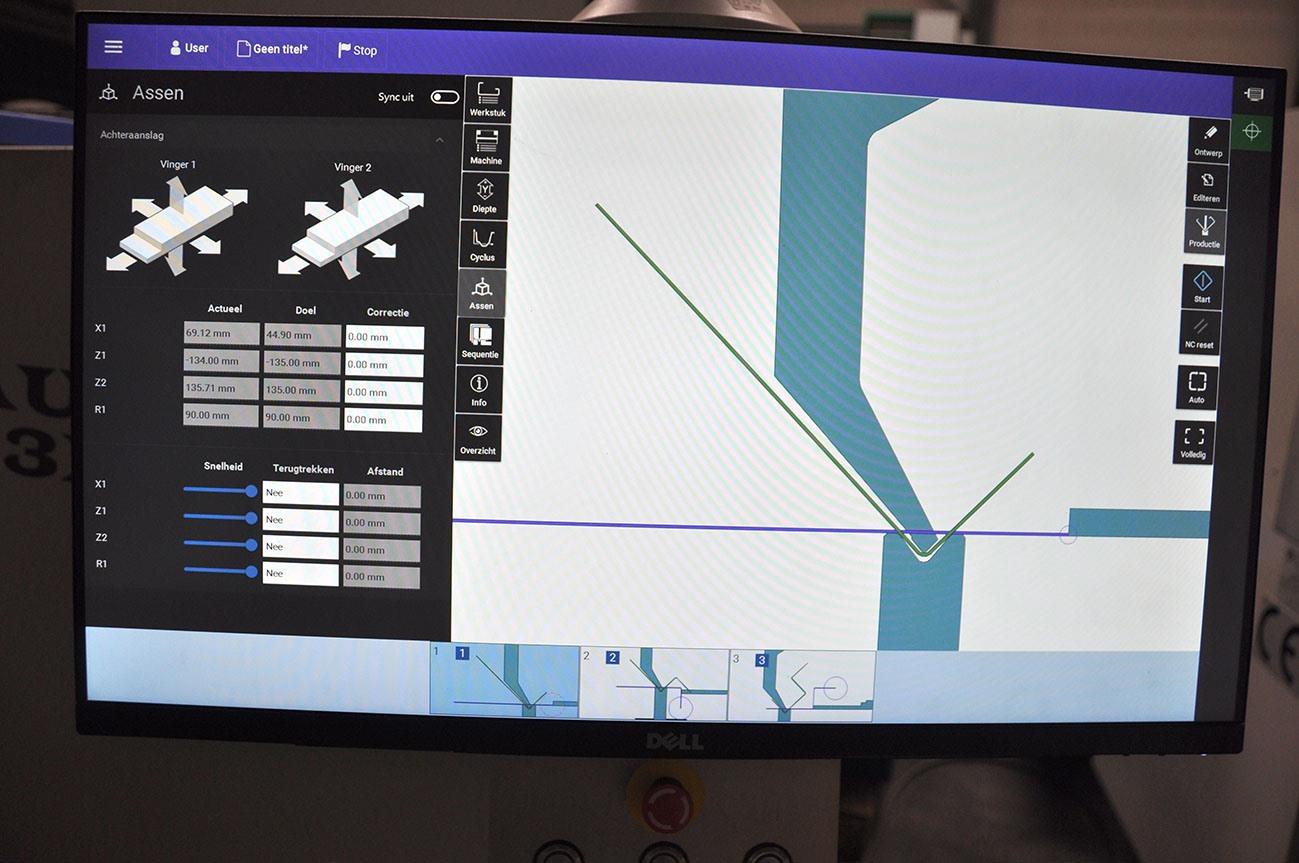

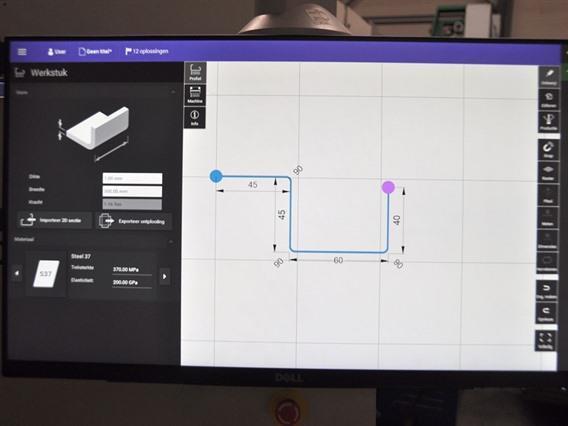

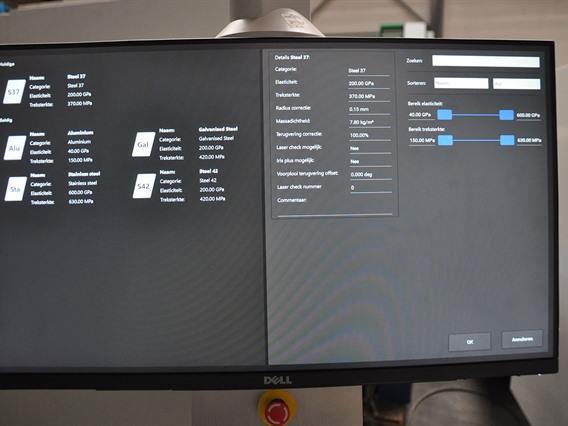

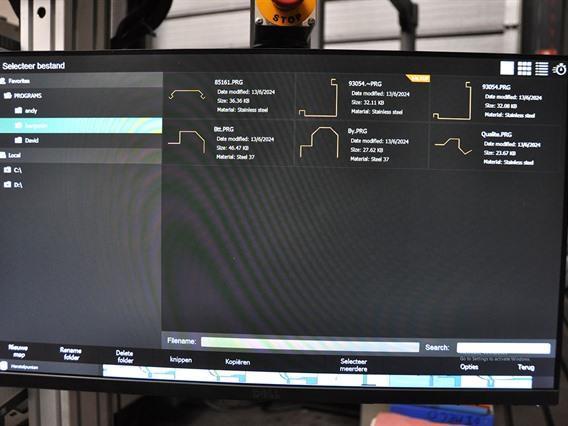

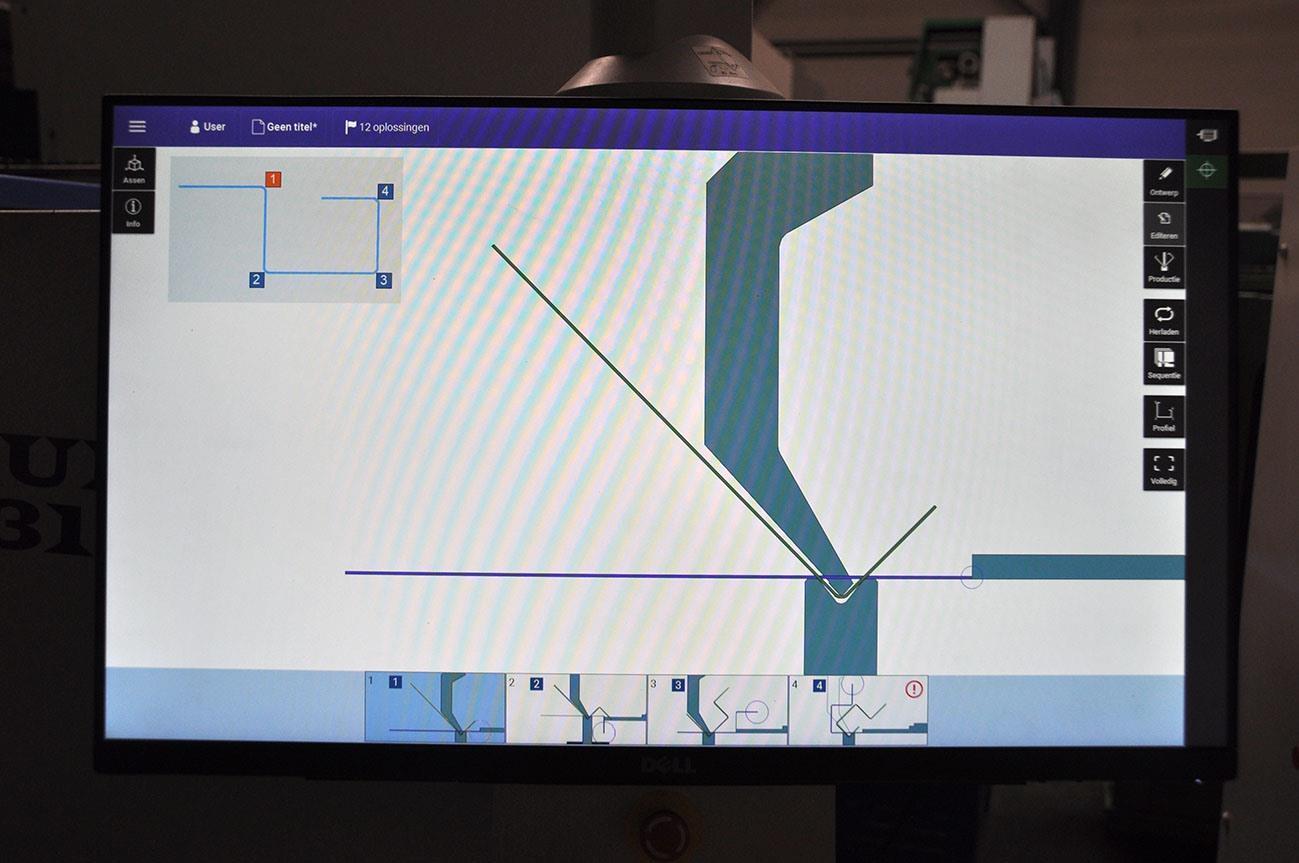

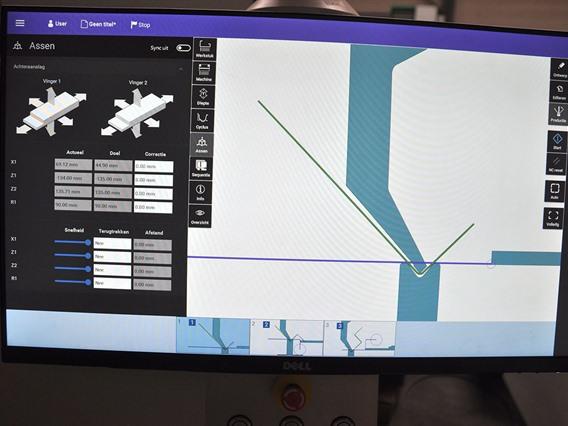

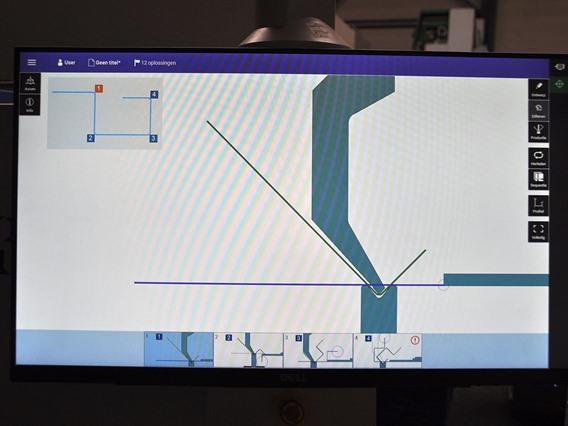

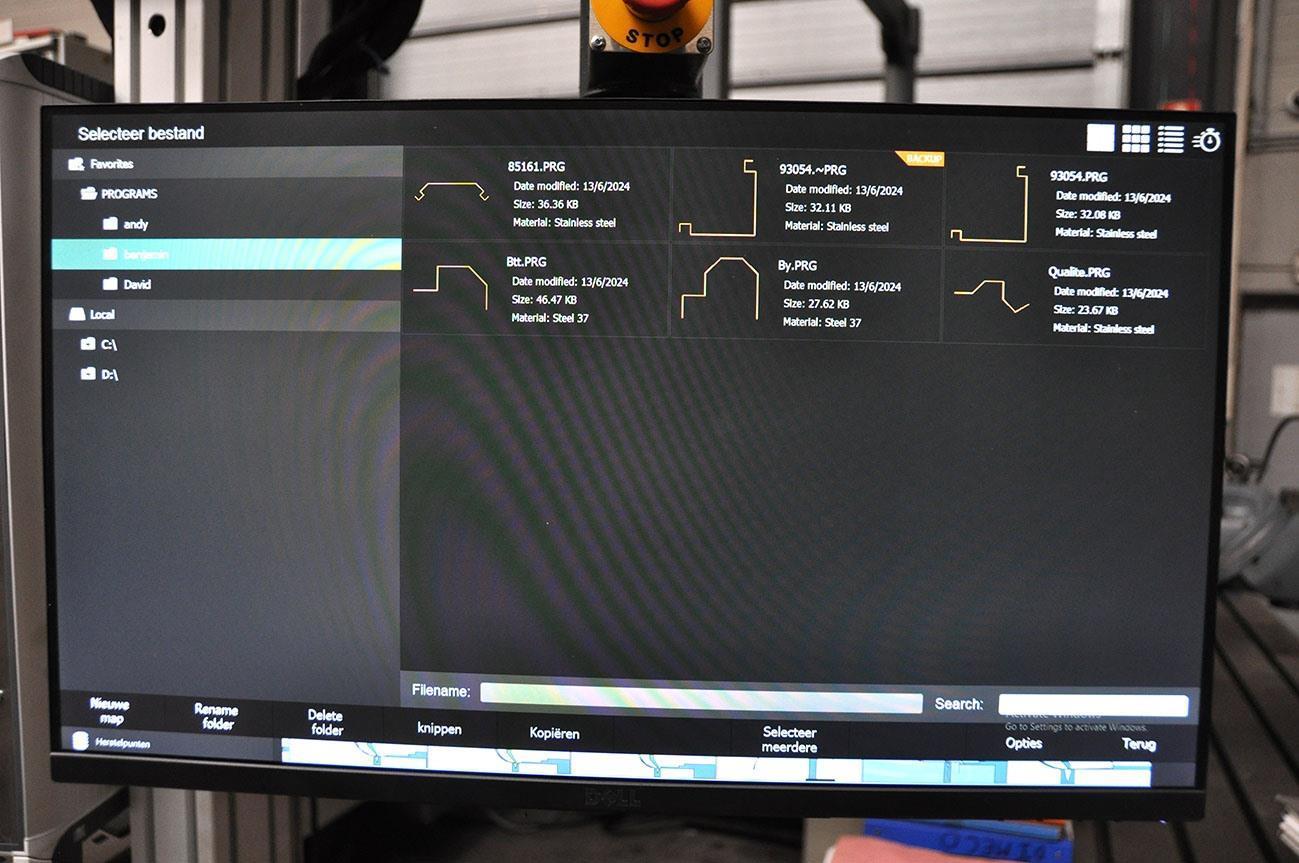

Control2D touch
Passage between uprights(2x) 3150 mm
Max stroke200 mm
Max distance between table -- ram400 mm
Depth of throat705 mm
Table width 150 mm
Locking speed100 mm/sec
Working speed12.7 mm/sec
Returning speed130 mm/sec
Electric motor (power)(2x) 22 kW
Length 11 460 mm
Depth 3115 mm
Height3000 mm
Weight(2x) 13 ton
ACCESSORIESyes

Ek bilgi

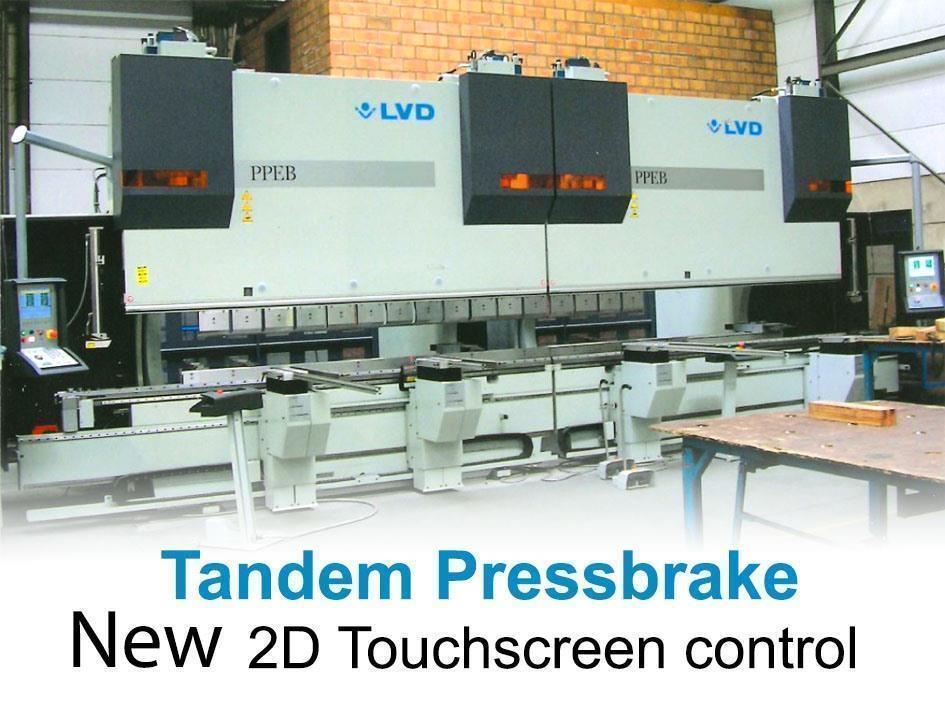

2x PPEB 175/40 CNC
(2x) 6 axes CNC (Y1-Y2-X-R-Z1-Z2)

Highhold system
Upper Hydraulic Clamping
2x two movable platesupports
Very unique >> large depth of throat: 705 mm

large collection of tools:
V-blocs - 16 pieces: 508 mm - V.20 30°
V-blocs - 16 pieces: 508 mm - V.12 30°
Sectionned knifes - 8 pieces: 100/30/45/35/25/125/40/100 – F10 26°
Knifes– 10 pieces:508 mm - F10 26°

Ideal for producing lighting poles!
Tip/Model: PPEB 350 ton x 8100 mm CNC
Stok numarası: O.01 10252
Kategori: [O] doğrama tezgahları, Rulolama, hedefleme makineleri, kaynak makineleri, ateşli kesim makineleri, metal plaka kesme makineleri ve yarma tezgahı
Alt kategori: [O.01] Hydraulische kantbanken & Hydraulische plooibanken
Marka: LVD

» Kişisel fiyat talep edin

Stok numarası: O.01 10252

İş makinasının videosunu görüntüle

ZIP formatındaki tüm fotoğrafları indirin
