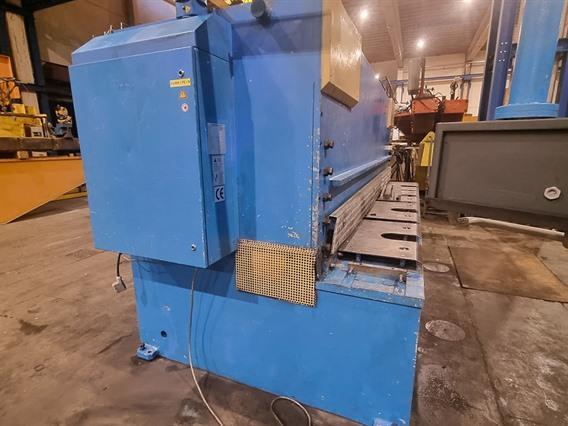

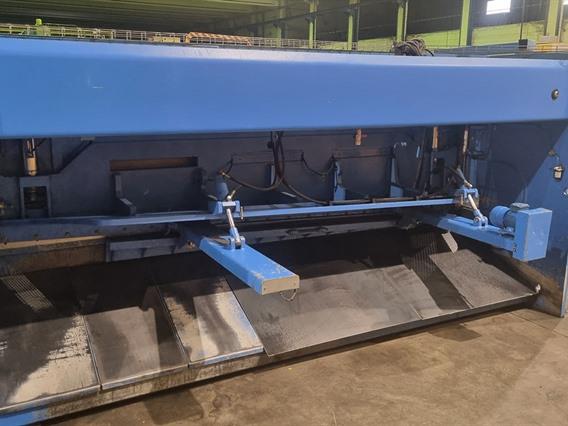

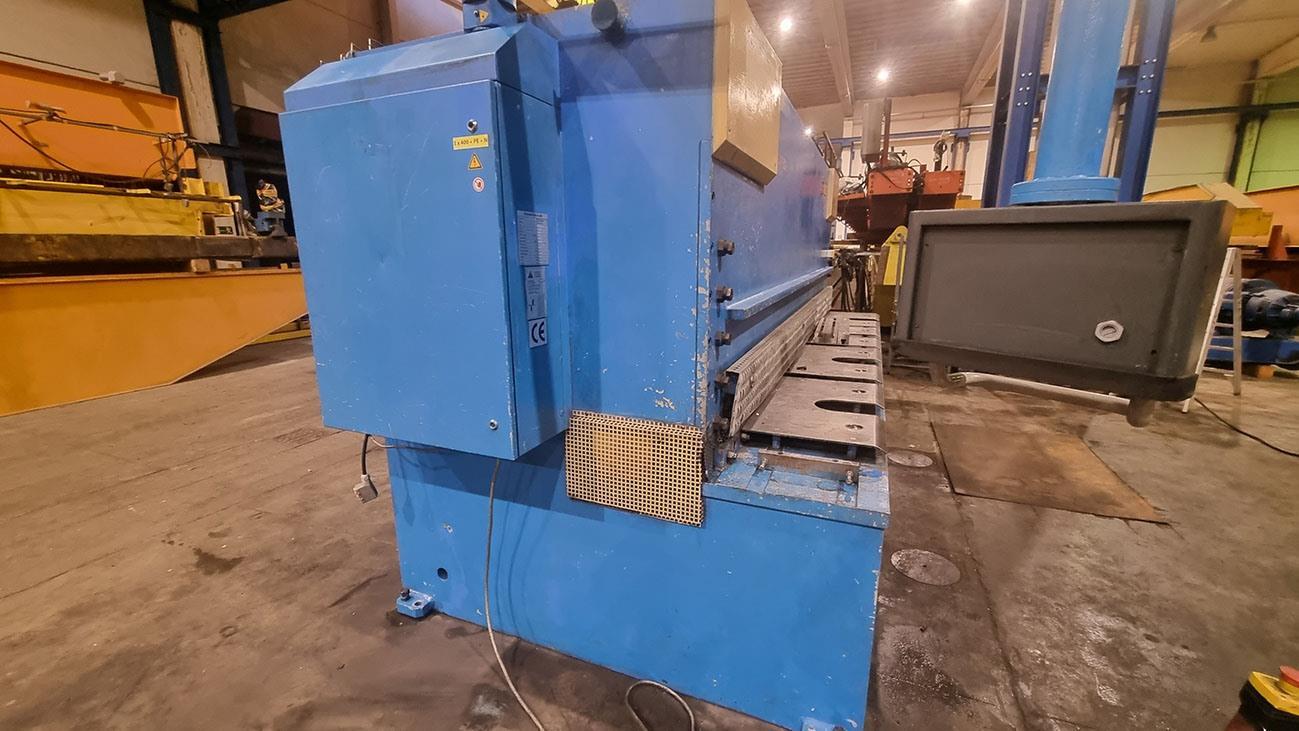

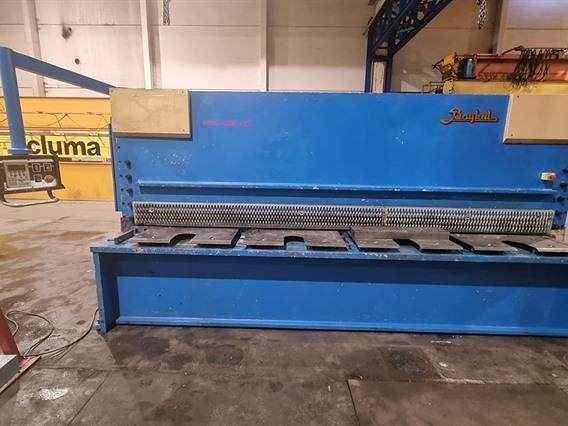

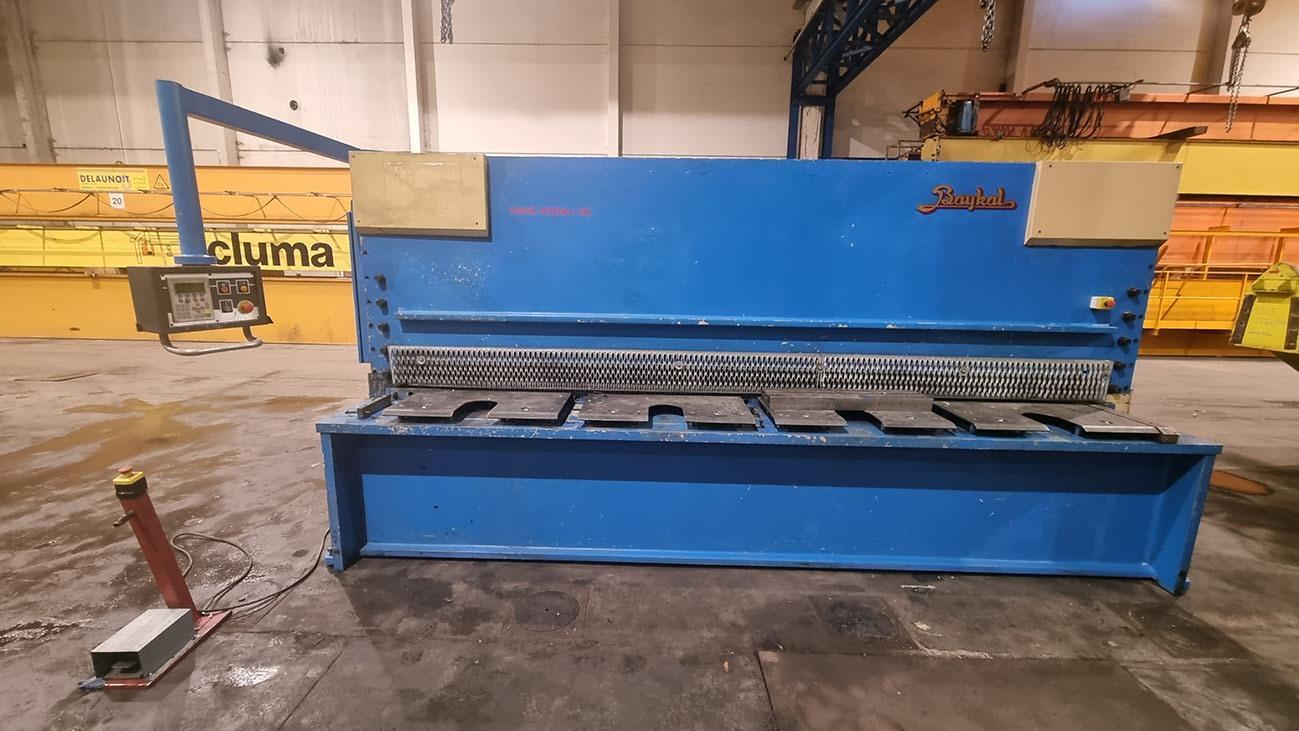

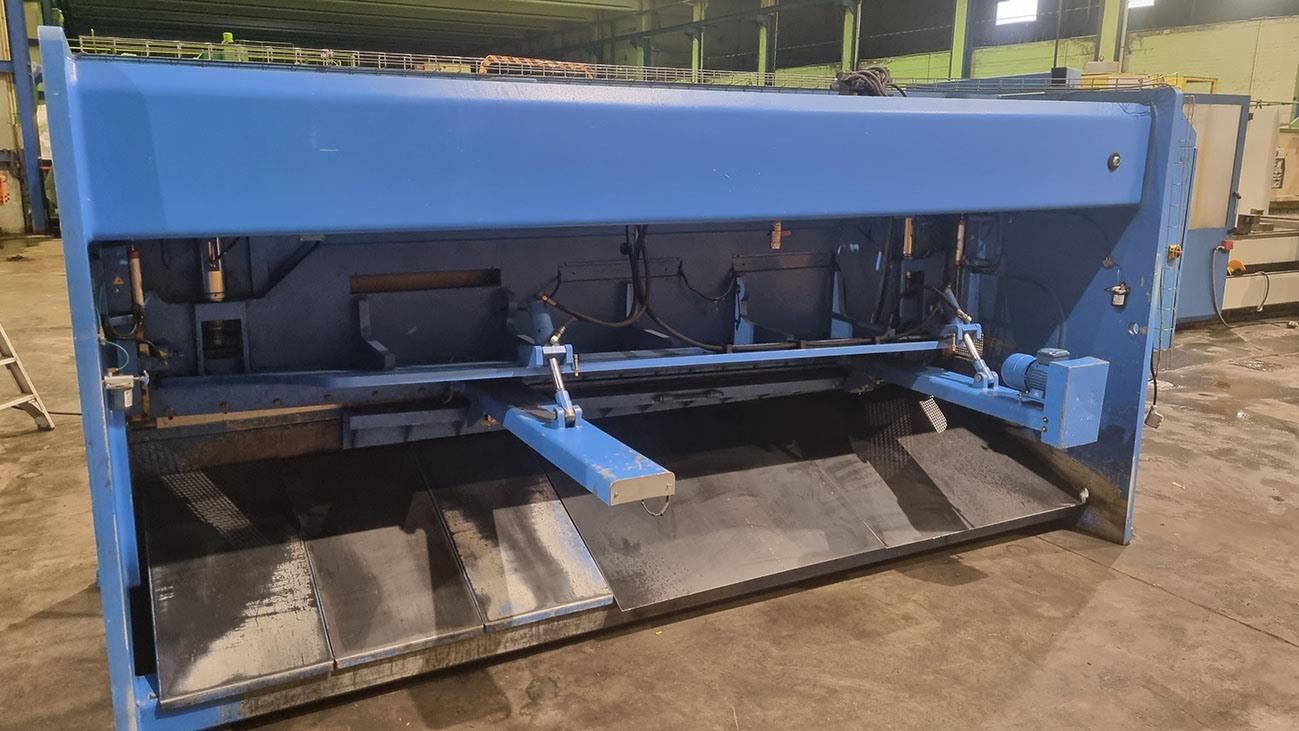

Baykal HNC 4100 x 10 mm CNC

Ürün favorilere eklendi

» Kişisel fiyat talep edin

Teknik Bilgiler

Cuttinglength4100 mm
Max sheetthickness st 4510 mm
Strokes/min12 > 16 str/min
Backgauge mech(1) elect (2) CNC (3)1000 mm - CNC Siemens
Adjustable cuttingedge (from-- to --)0,5° > 2°
Electric motor (power)22 kW
Length L -- R5000 mm
Depht Fw -- Bw2360 mm
Height2500 mm
Weight15 ton
number of sheetholders20x

Ek bilgi

CNC angle adjustment
CNC knife play adjustment
CNC backgauge
Foldable backgauge
Lasersecurity at the back

When type of material, thickness and length is programmed, the configuration of everything will be done automatically.
Tip/Model: HNC 4100 x 10 mm CNC
Stok numarası: P.05 13931
Kategori: [P] metal plaka makası, üniversal metal yarma kesme makinesi, yarma, kilitleme ve testereleme
Alt kategori: [P.05] Hydraulische Plaatscharen & Guillotinescharen
Marka: Baykal

» Kişisel fiyat talep edin

Stok numarası: P.05 13931

ZIP formatındaki tüm fotoğrafları indirin
