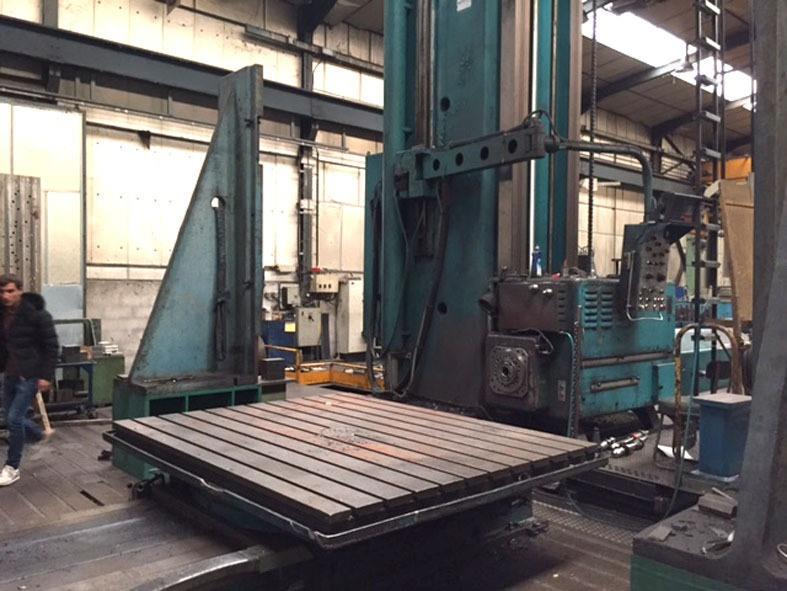

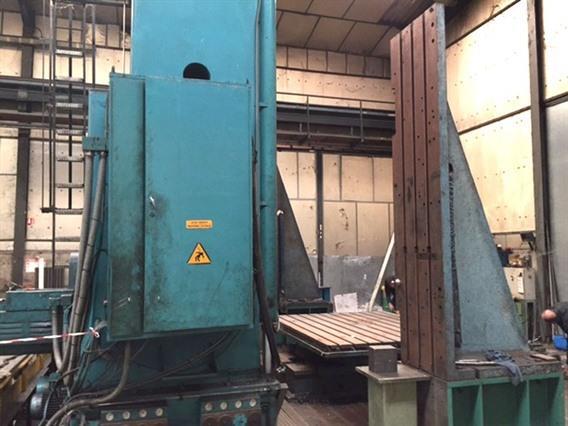

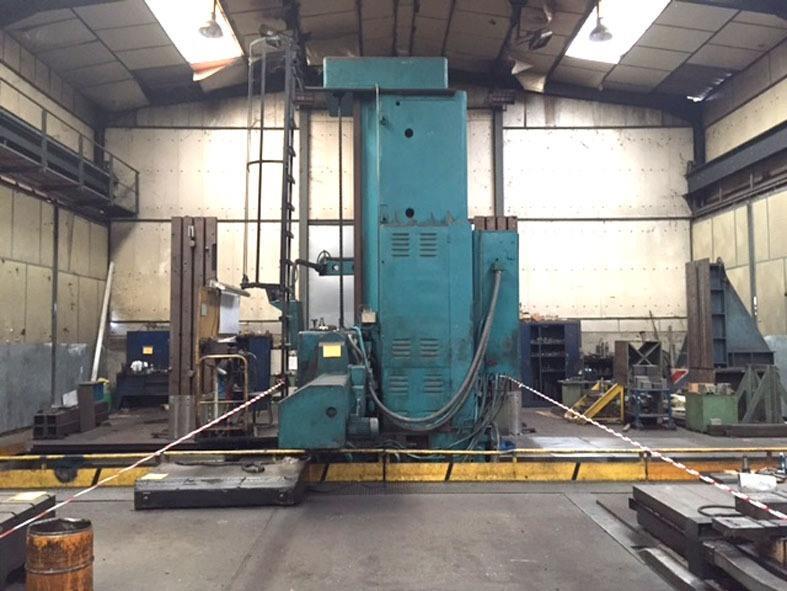

Defum WH150 X: 7000 - Y: 3000 - Z: 1200 mm
Teknik Bilgiler
- Longitudinal travel X-axis7000 mm
- Cross traverse Y-axis (table/column)1200 mm
- Vertical traverse Z-axis3000 mm

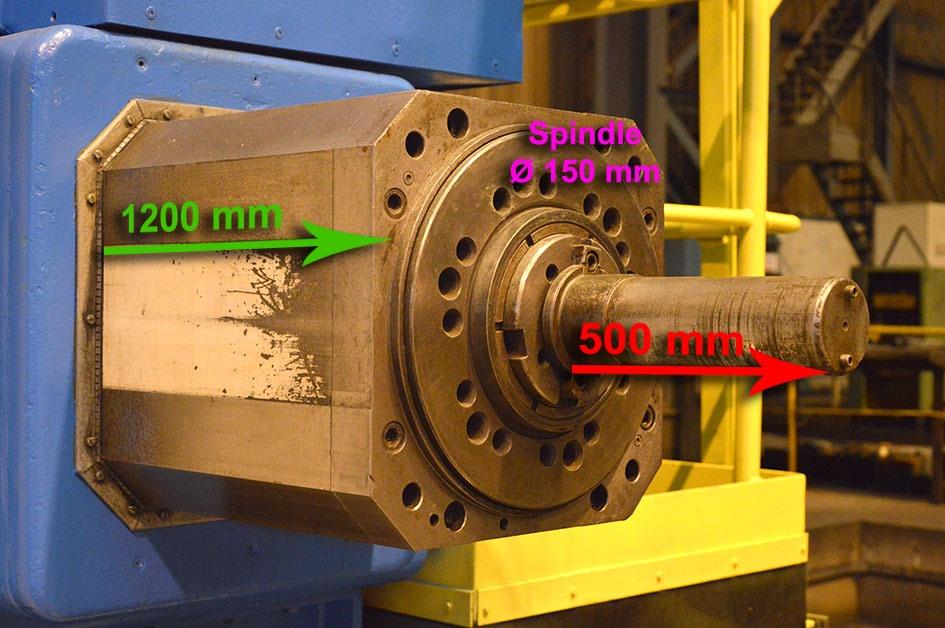

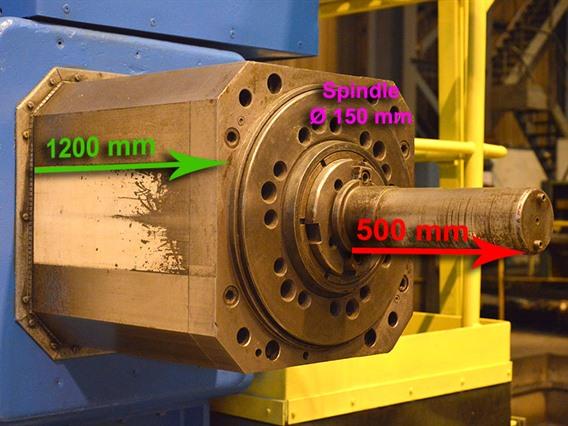

- Spindle traverse W-axis500 mm
- Milling spindle taper (ISO)ISO 50
- Spindle power30 kW

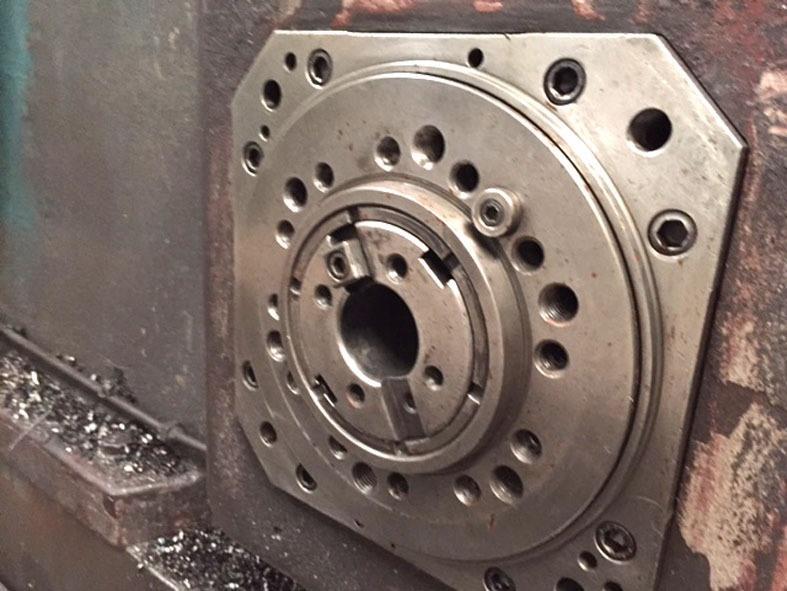

- Dia spindle -- Spindle bore150 mm
- Spindle speed range1470 rpm

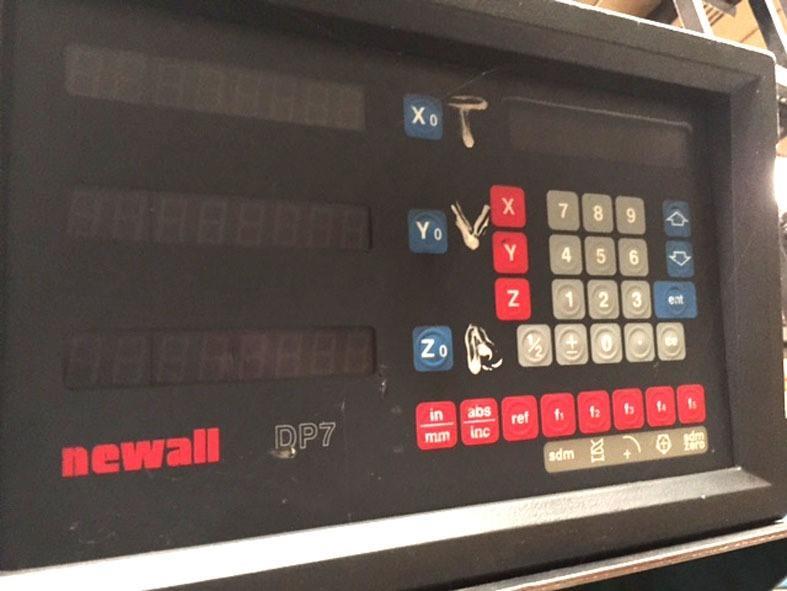

- Digital read-out (1) CNC(2)Newall dig readout
- Rotary table dimensions2500 x 2000 mm
- Weightyes
Ek bilgi

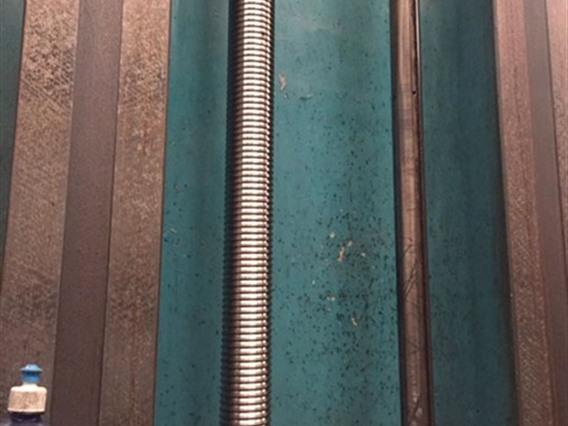

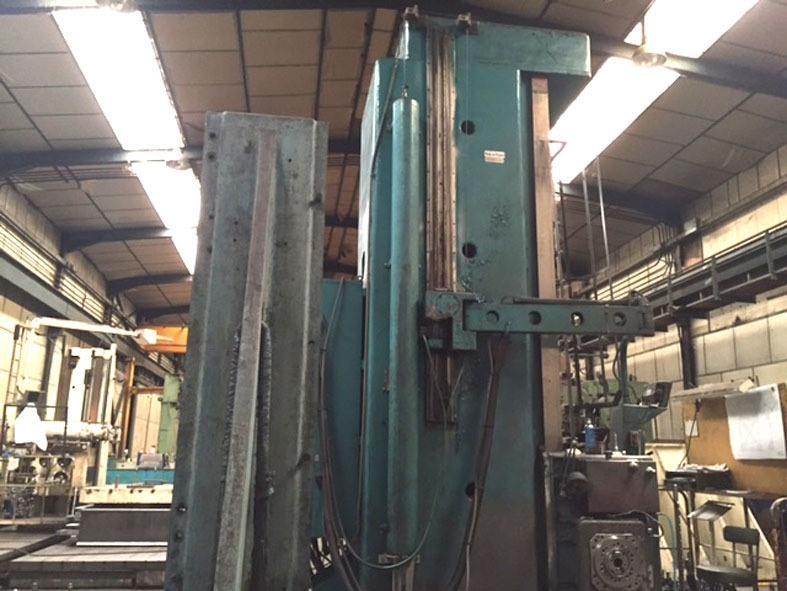

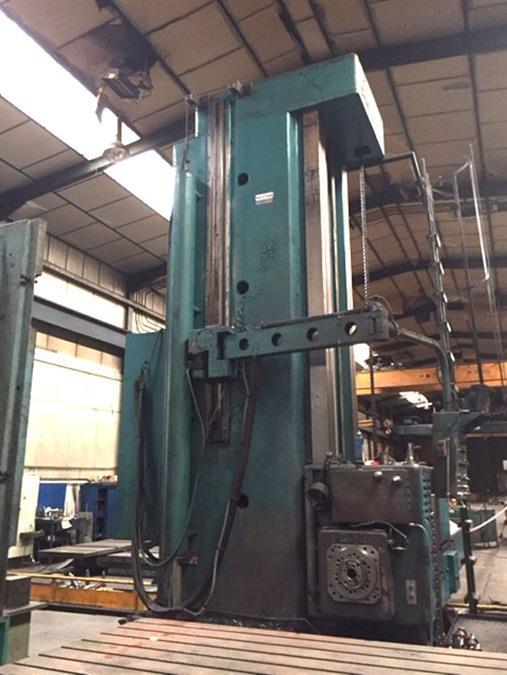

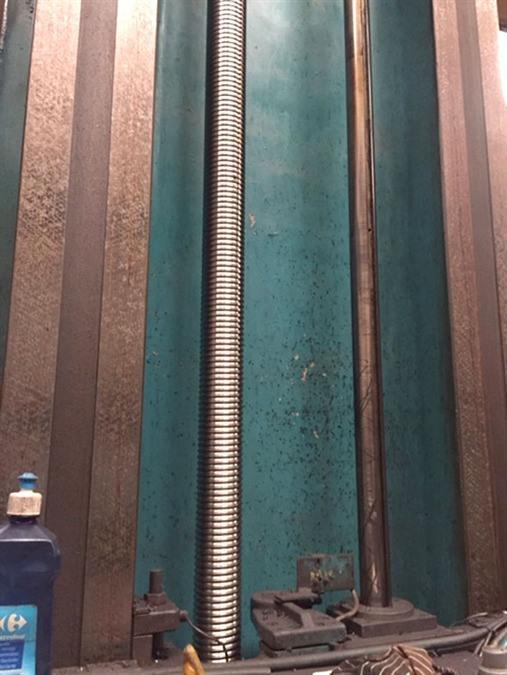

- Conventional borer with ballscrews, Skoda license production

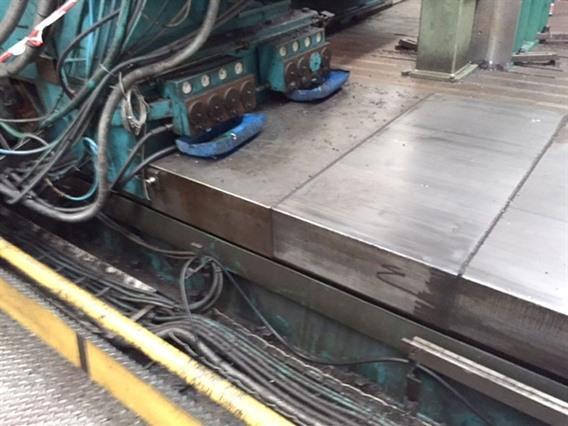

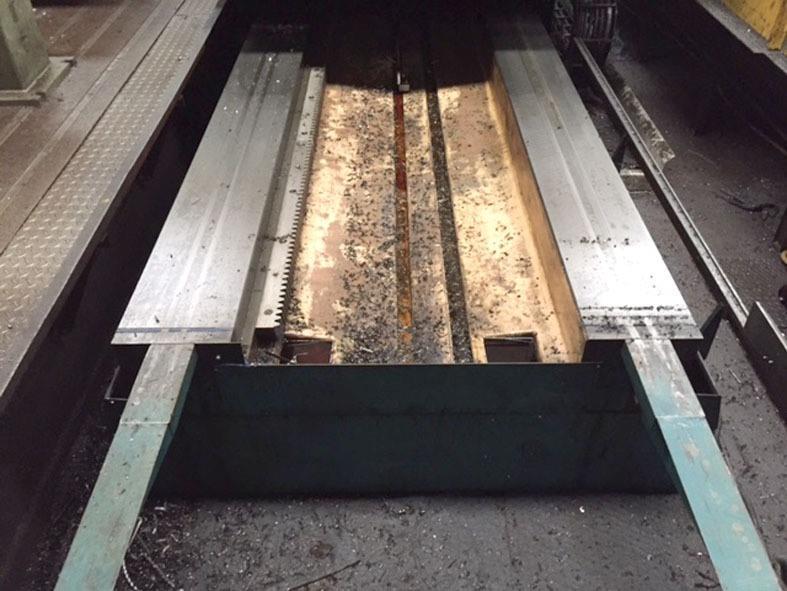

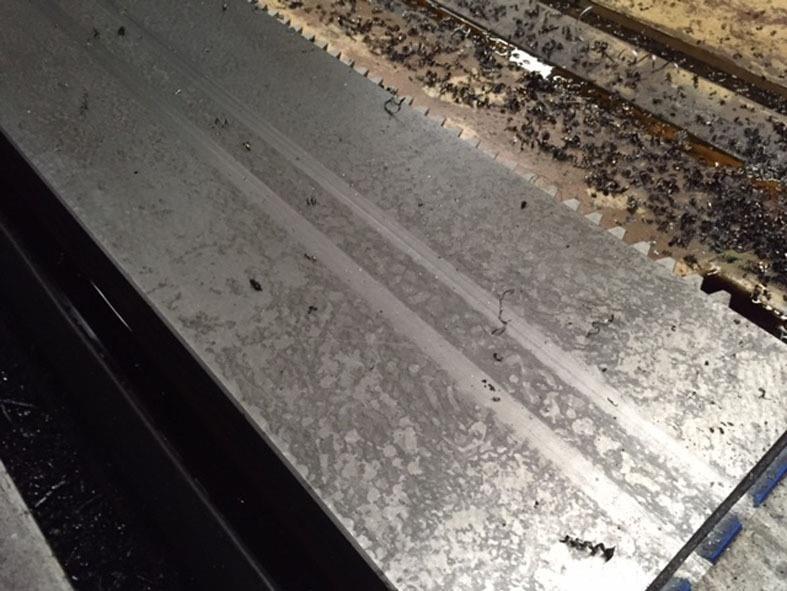

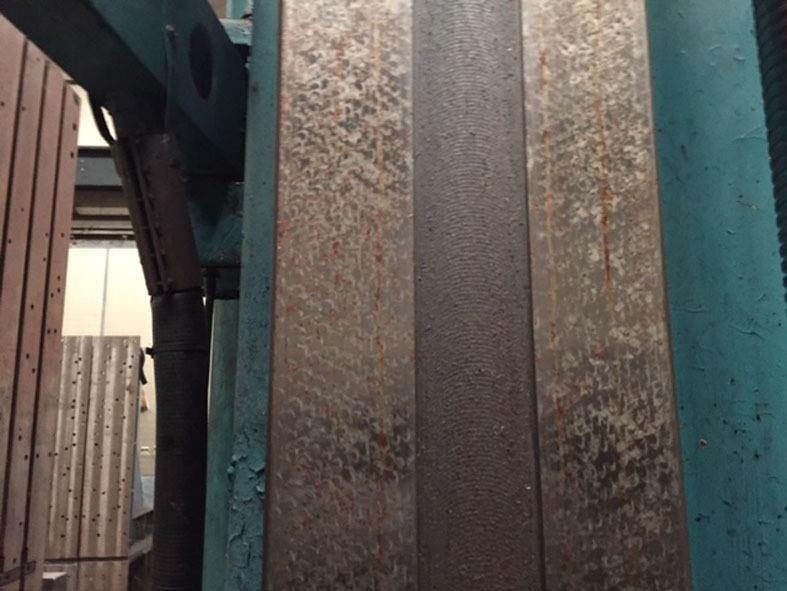

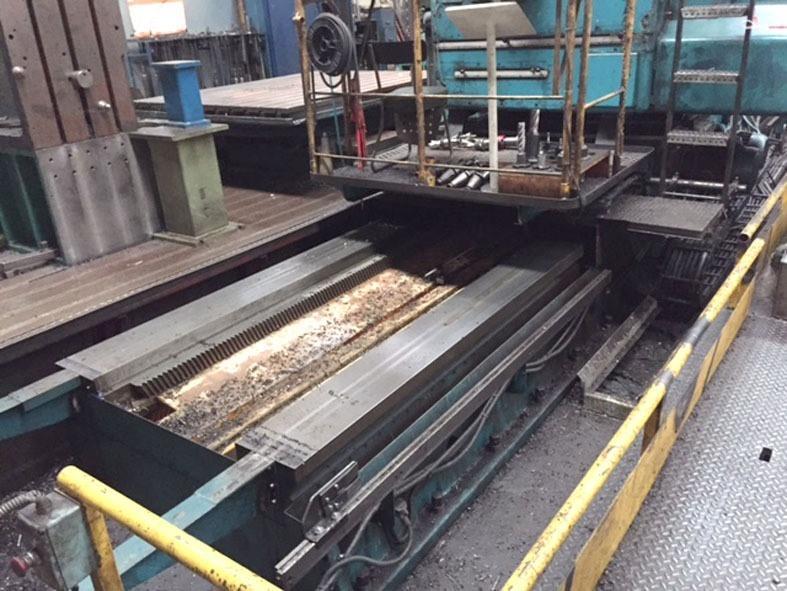

Slides are in excellent condition (flower texture still visible = very little wear)
ram size: 380 x 380 mm
Optional equipment:

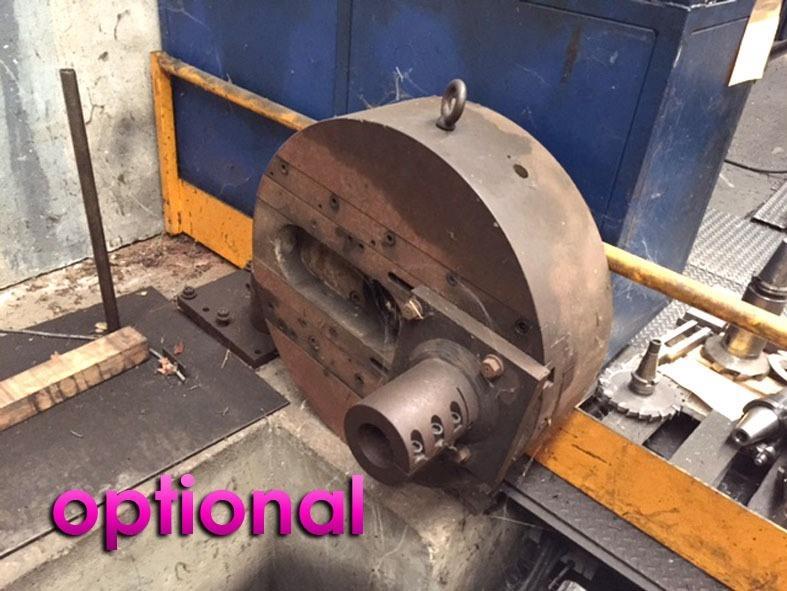

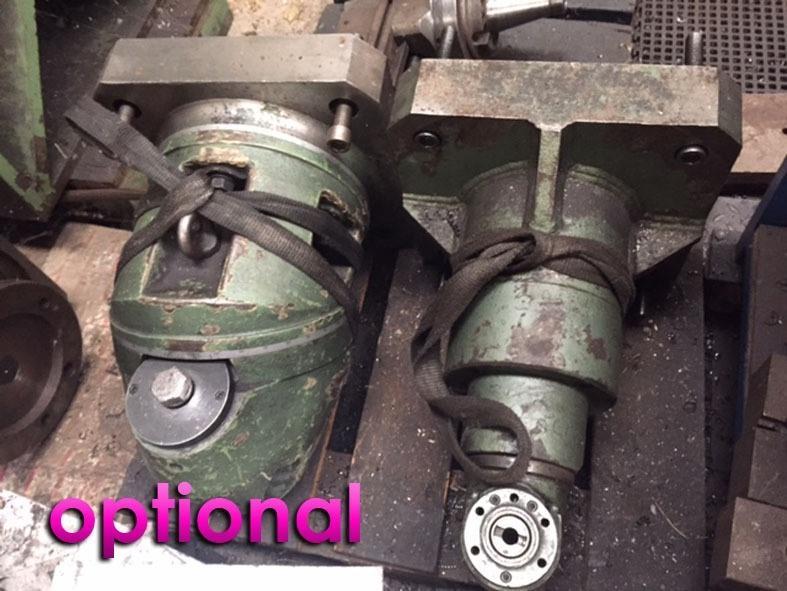

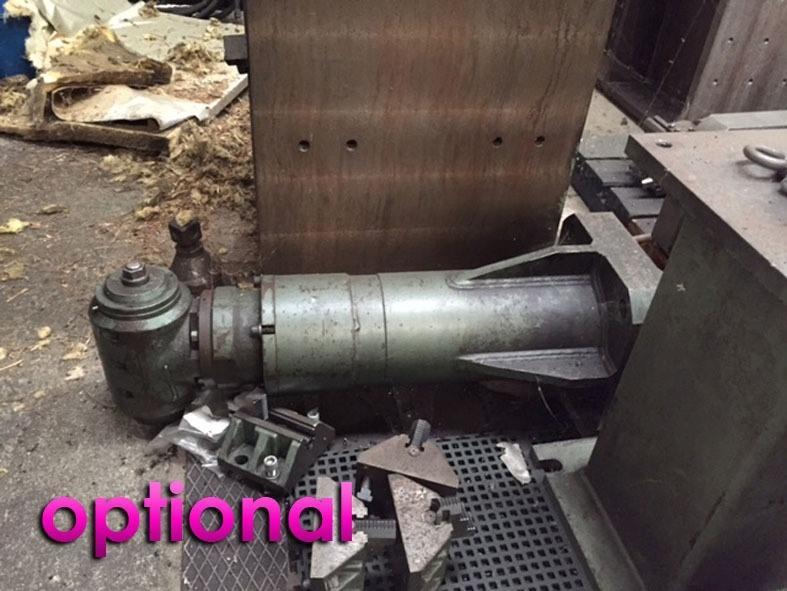

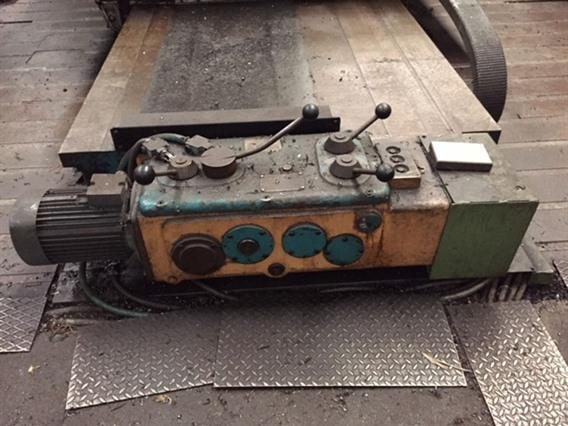

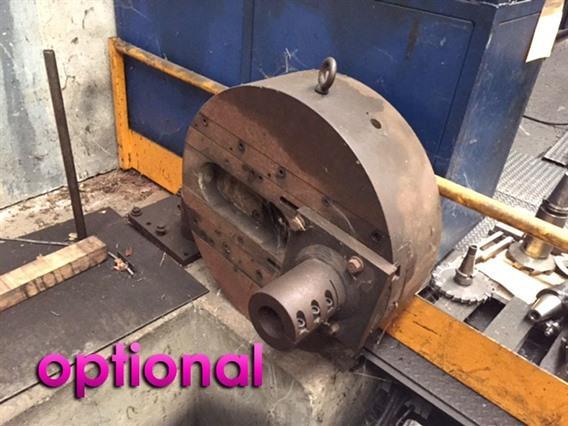

- 3 milling heads

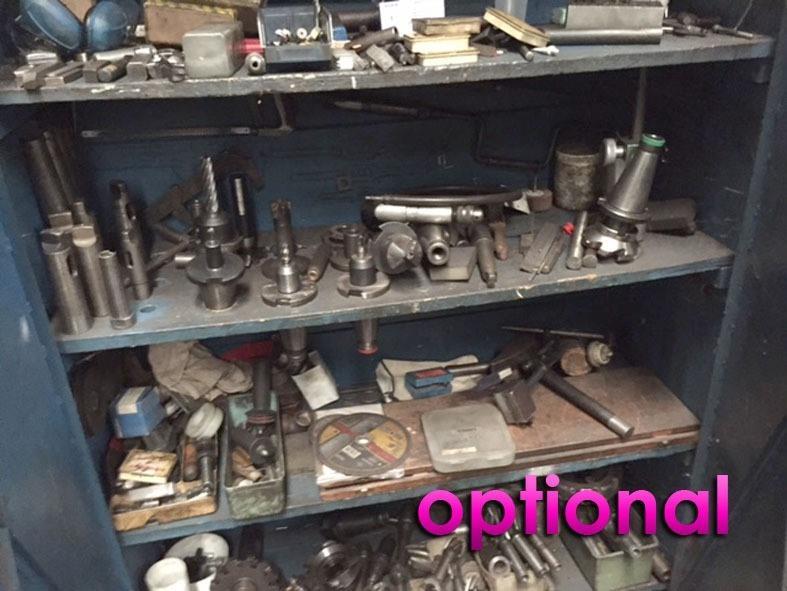

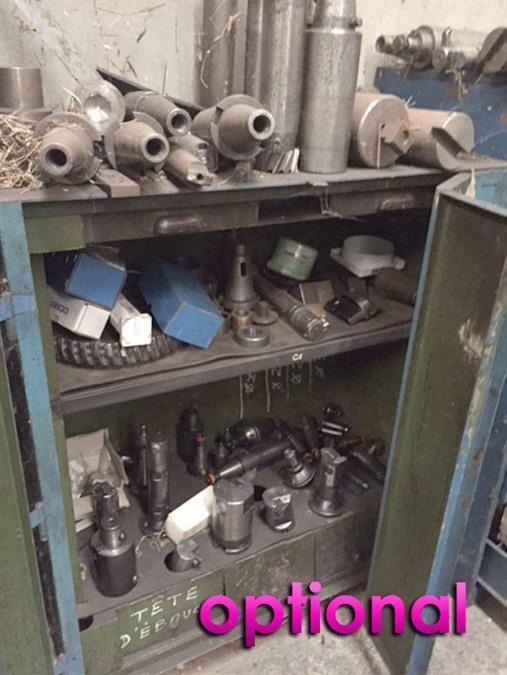

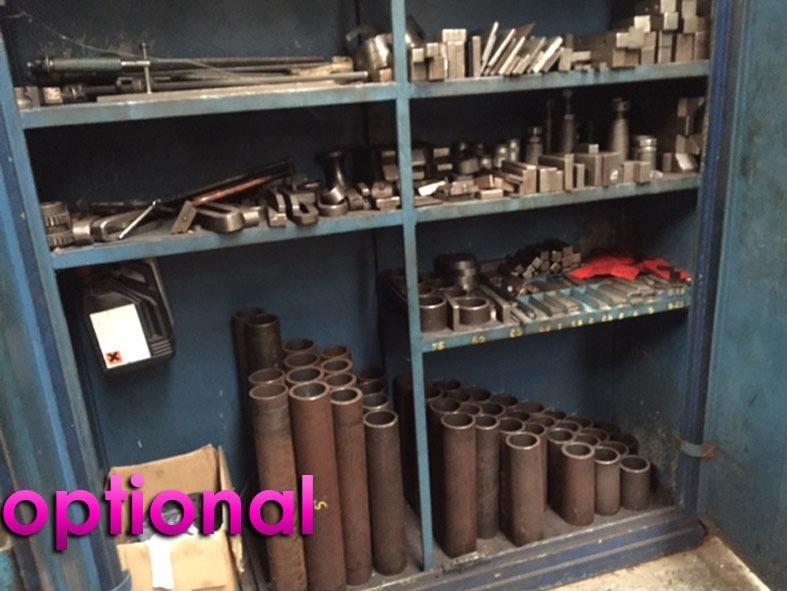

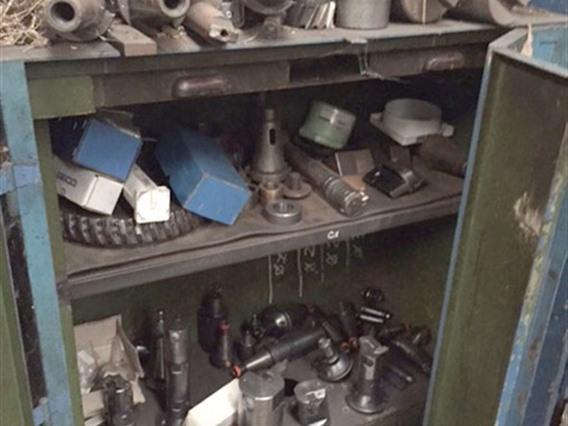

- 3 cabinets with tooling

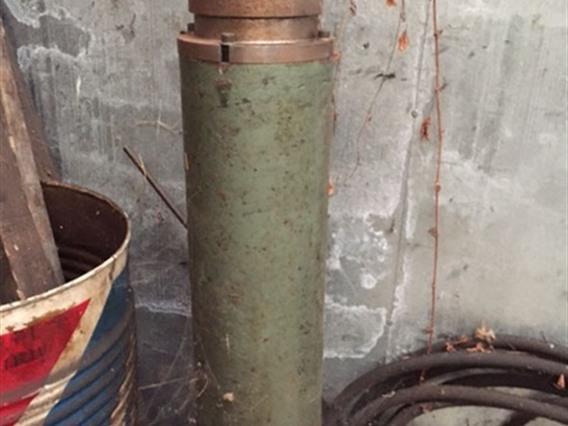

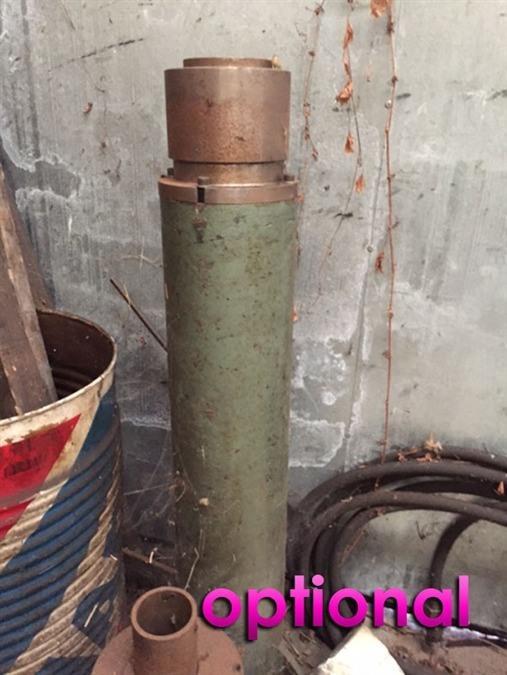

- lengthening piece for spindle

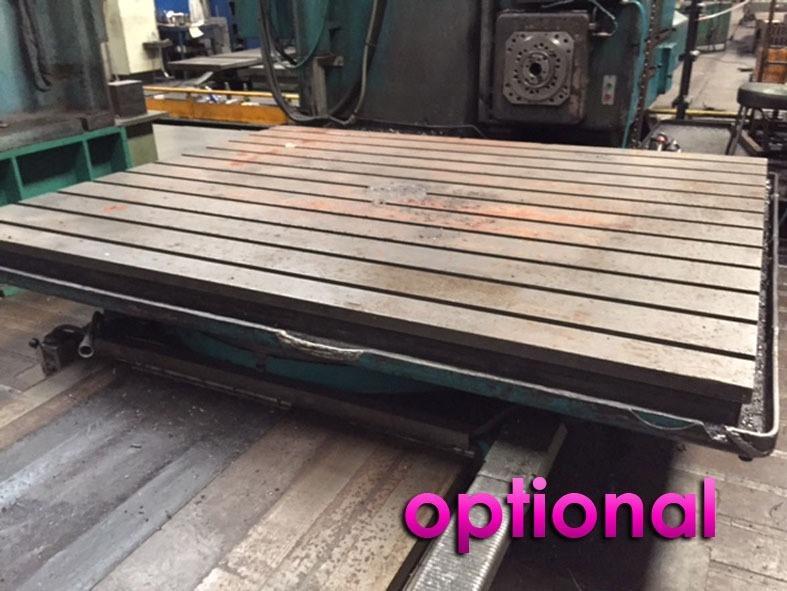

- turning table

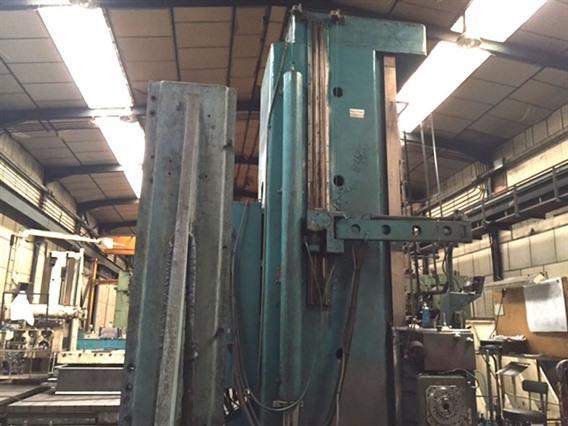

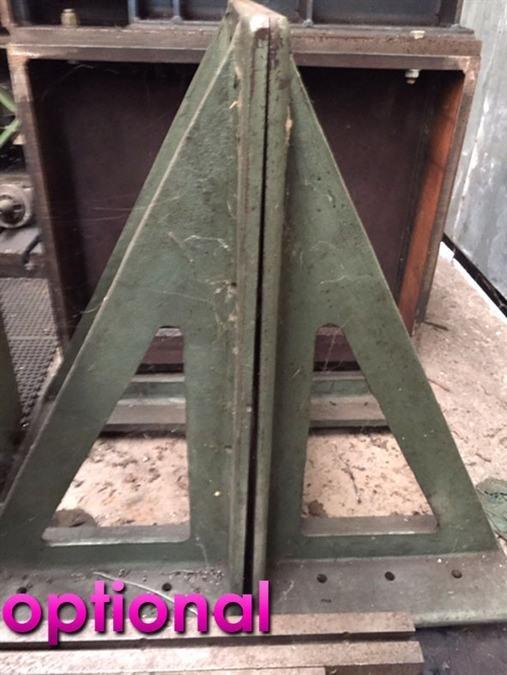

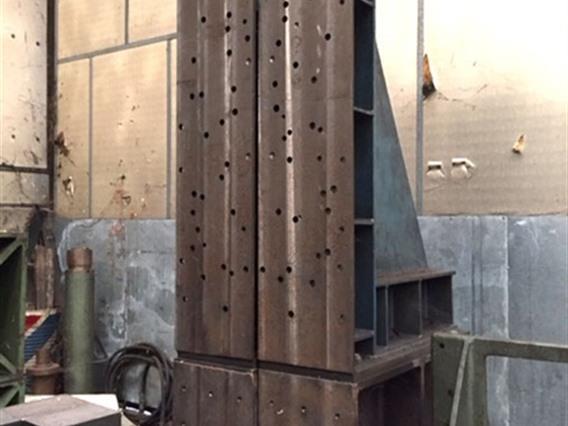

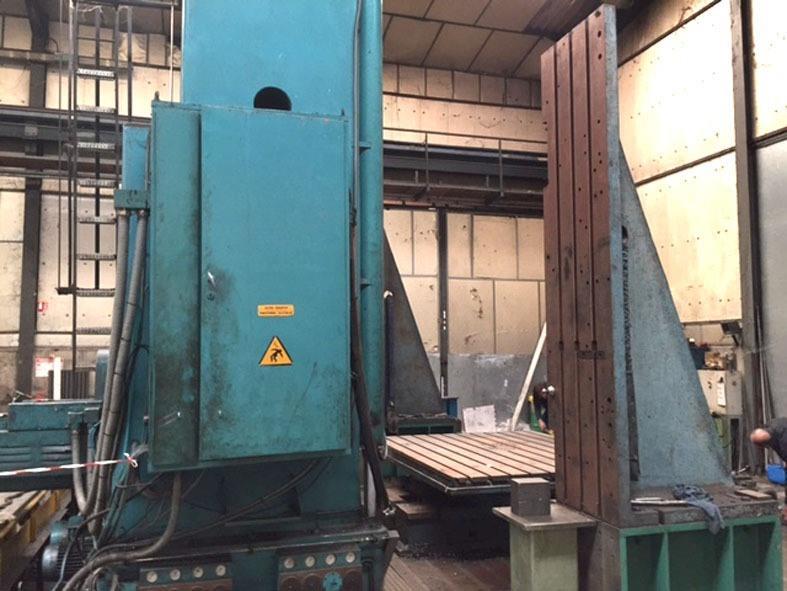

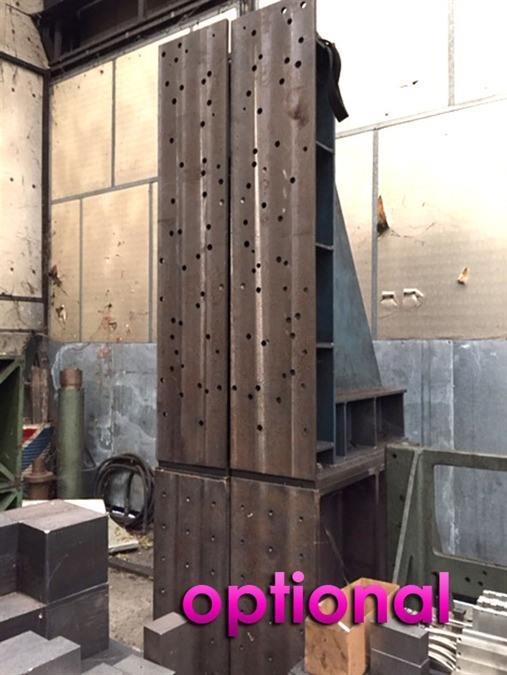

- 2 corner supports of 3000 mm high
- 2 corner supports of 2000 mm high
- 2 corner supports of 1100 mm high

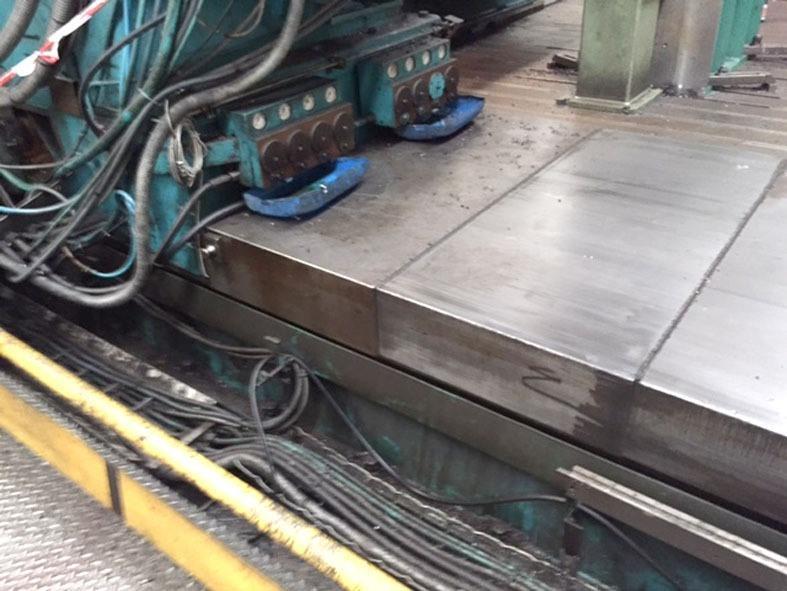

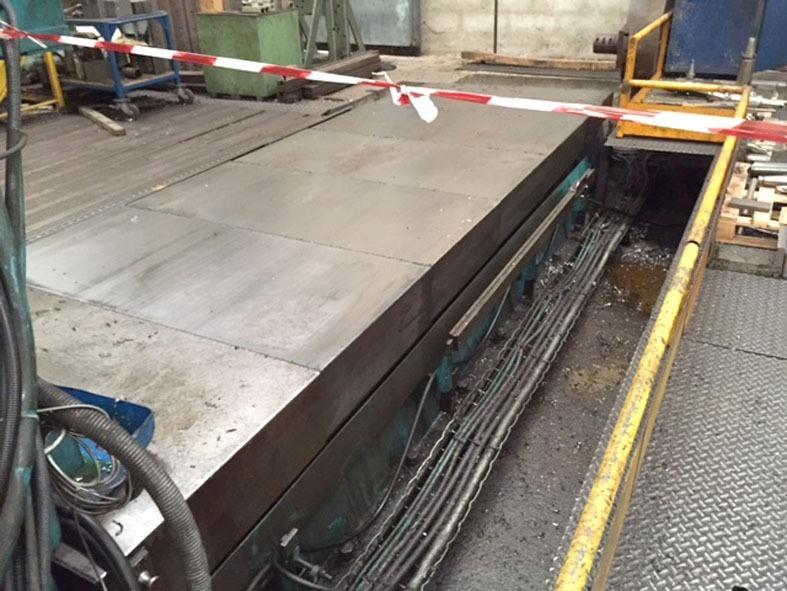

- 2 floorplates 5000 x 2000 x 400 mm
- Tip/Model: WH150 X: 7000 - Y: 3000 - Z: 1200 mm
- Stok numarası: F.02 9030
- Kategori: [F] (cnc) Tezgahlar ve Torna tezgahları
- Alt kategori: [F.02] Kotterbanken met beweegbare kolom – Vloertype
- Marka: Defum
