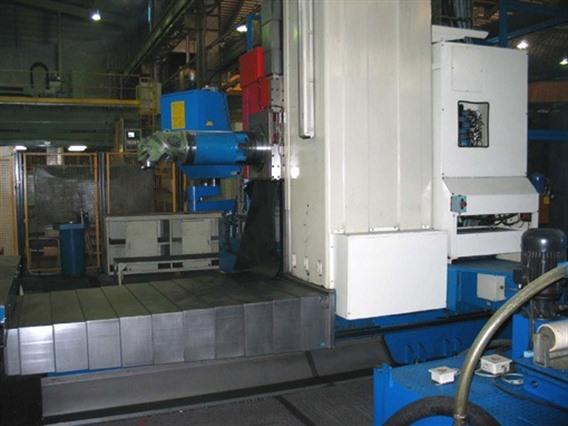

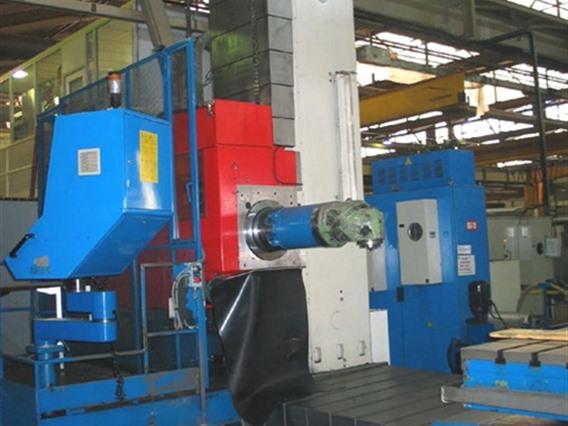

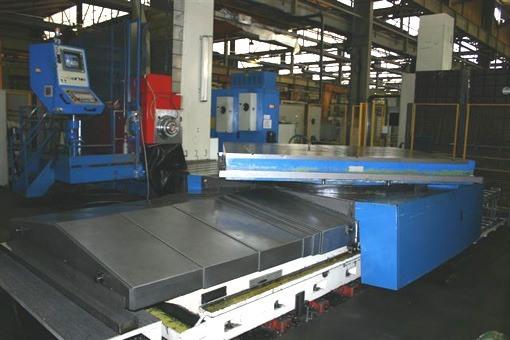

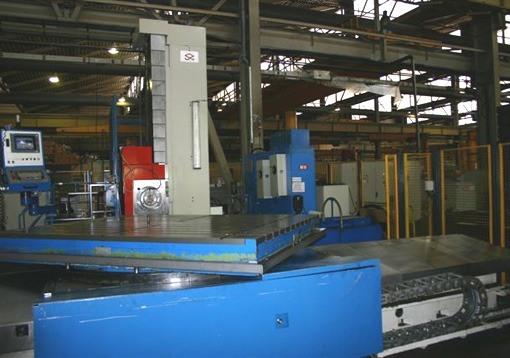

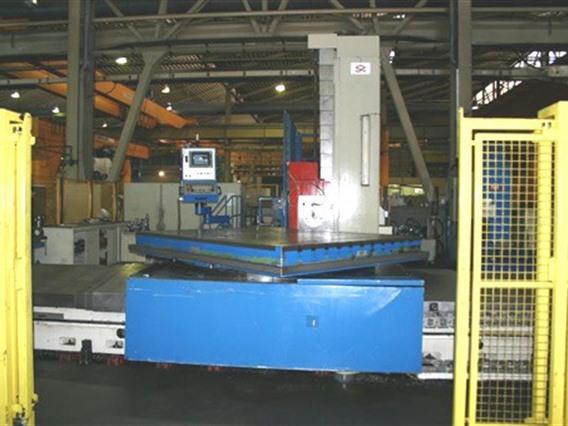

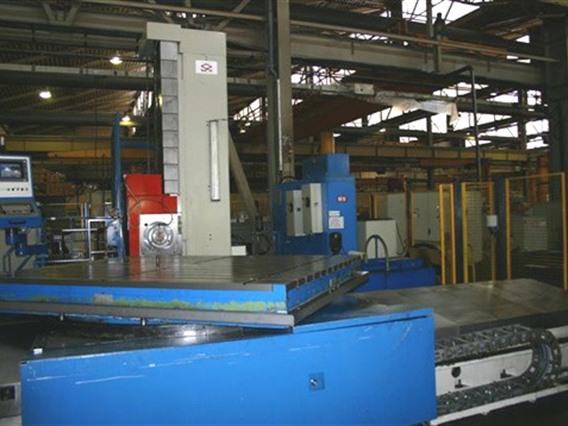

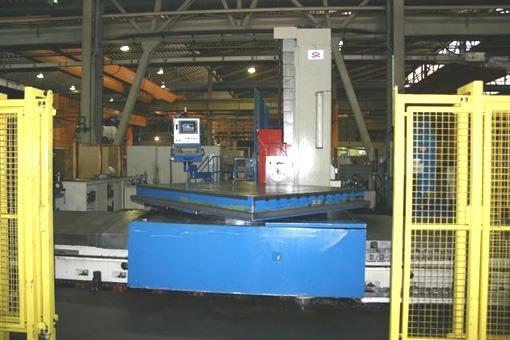

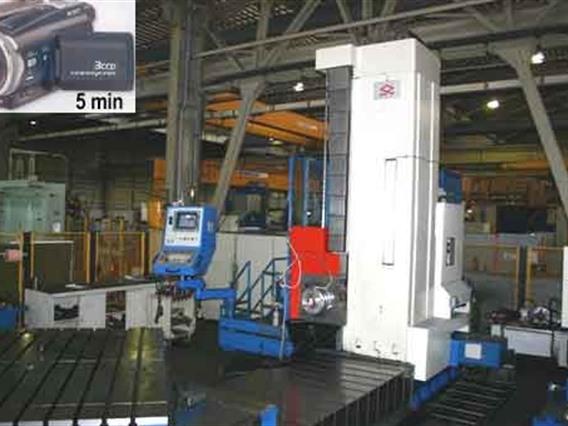

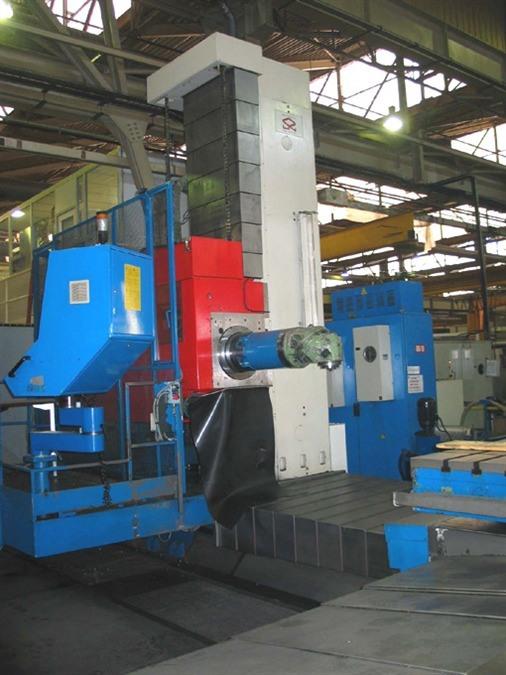

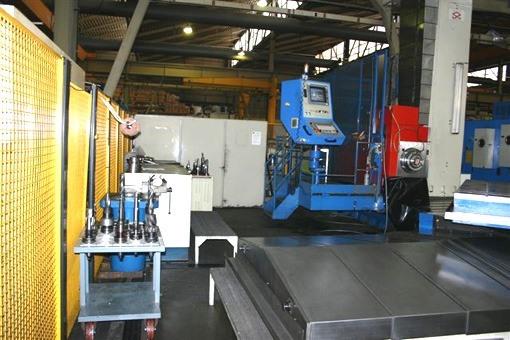

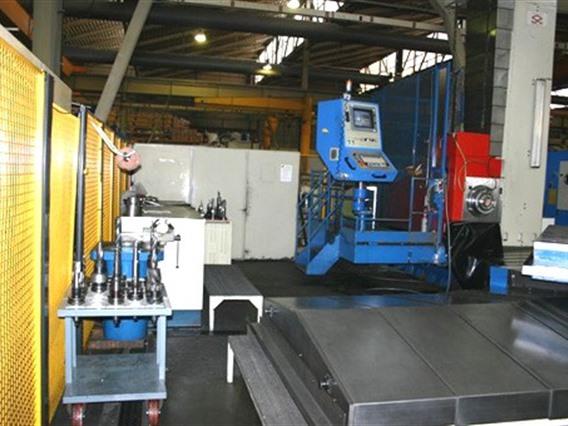

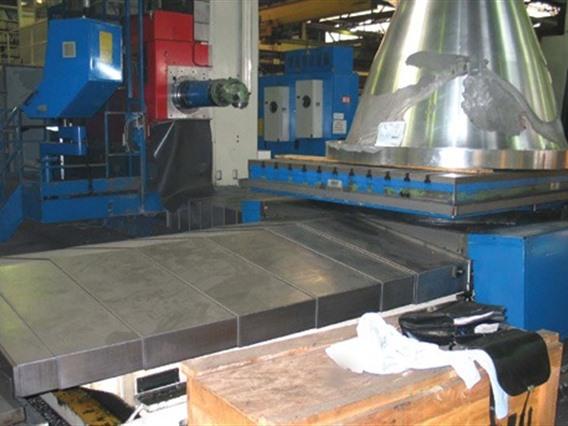

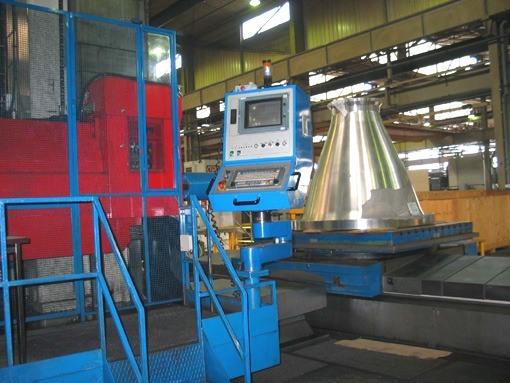

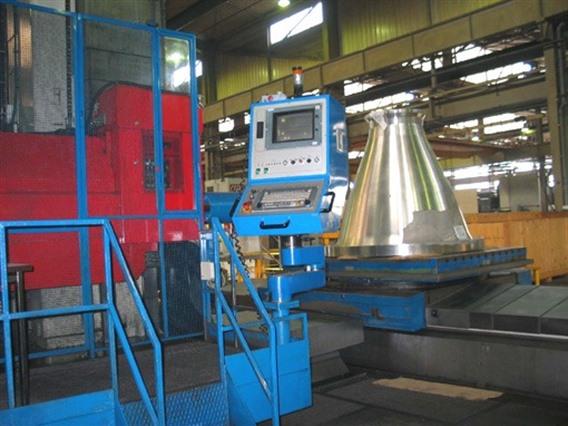

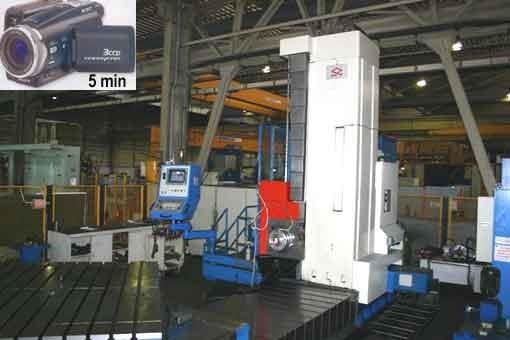

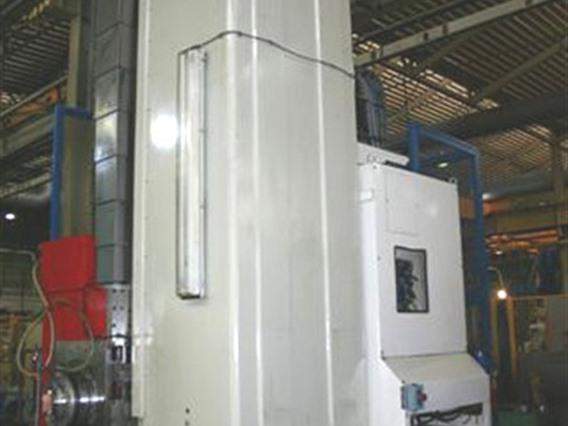

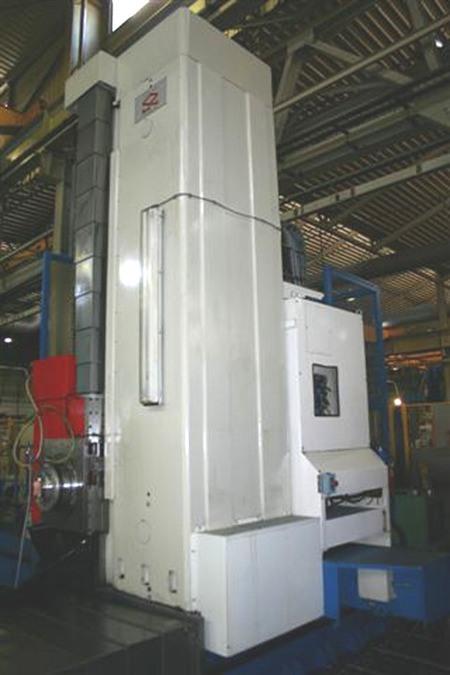

Futura - san rocco 130R cnc
Teknik Bilgiler

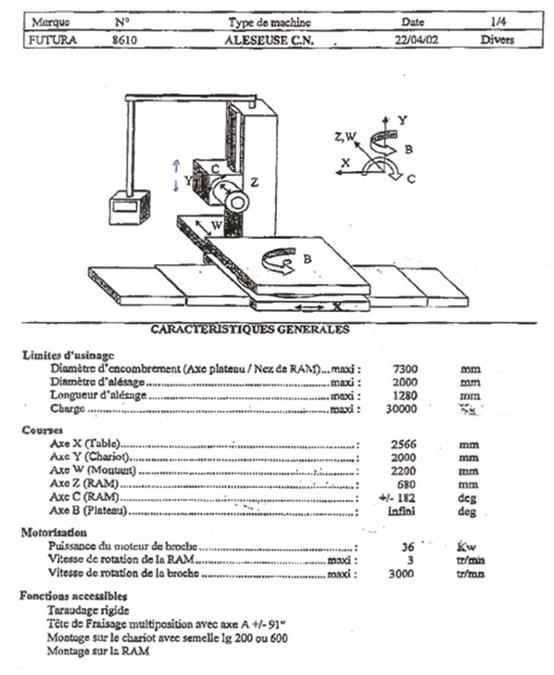

- Spindle dia325 mm
- Admission in spindleheadiso 50

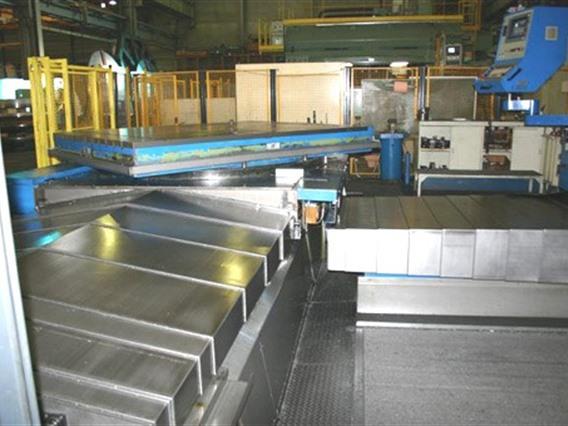

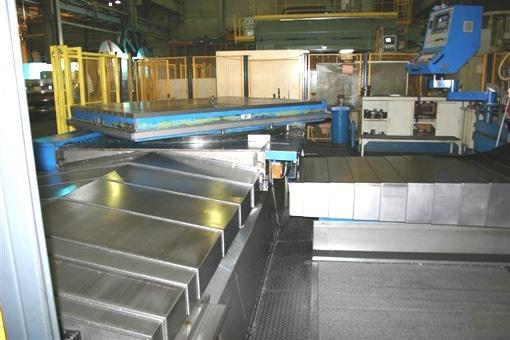

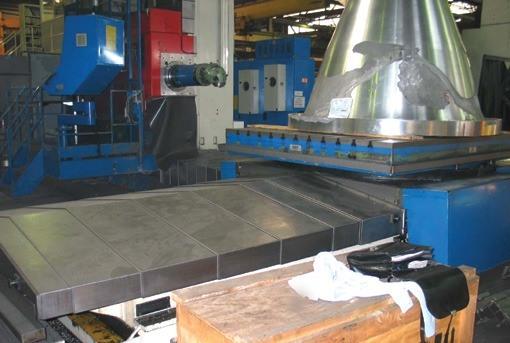

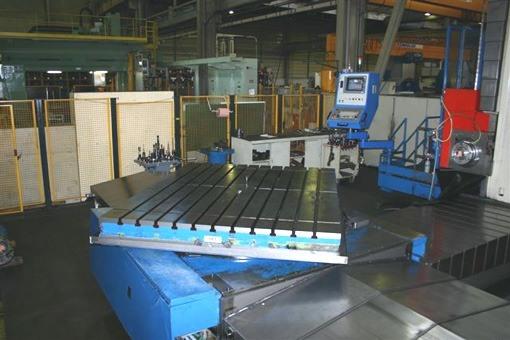

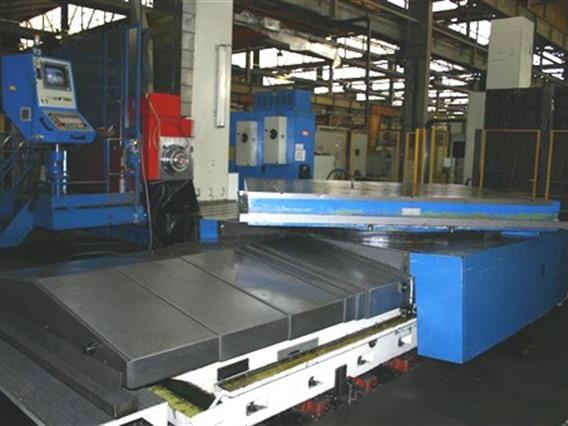

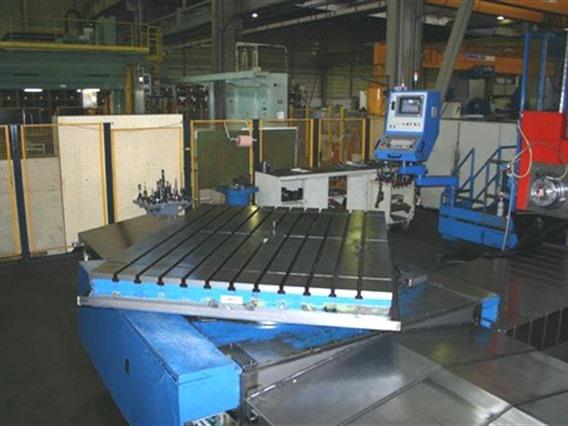

- Table dimensions2500 x 2000 mm
- Longitudinal travel table X-axis2566 mm
- Cross-travel table Y-axis (Table/Column)2200 mm
- Height travel head Z-axis2000 mm
- Max travel spindle680 mm

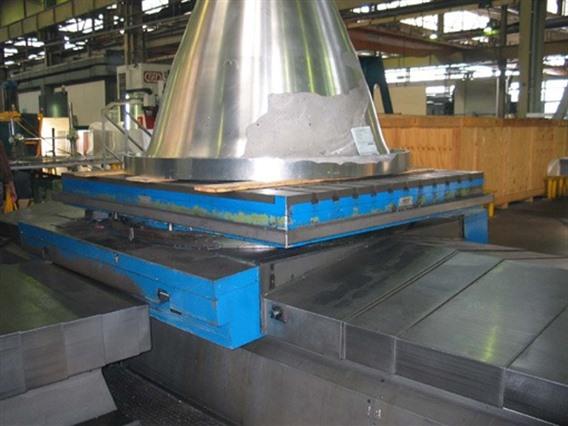

- Angle of twist of the table360 ° contin
- Power on the spindle36 kW

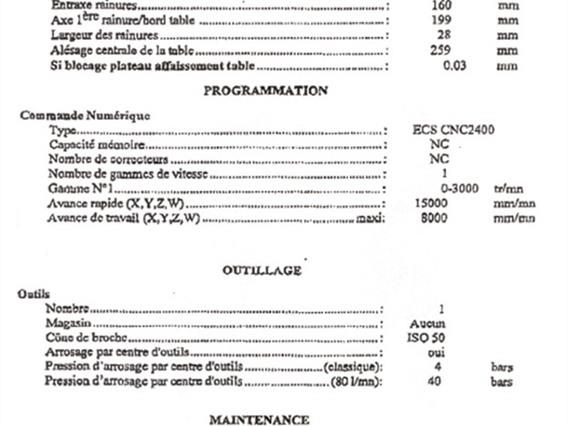

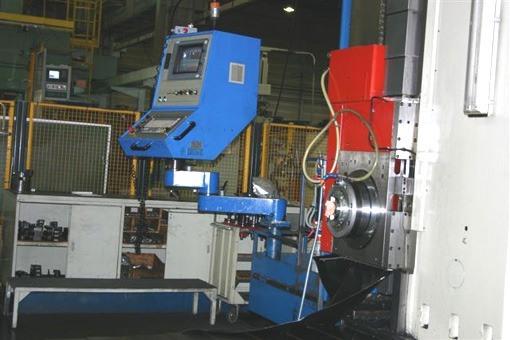

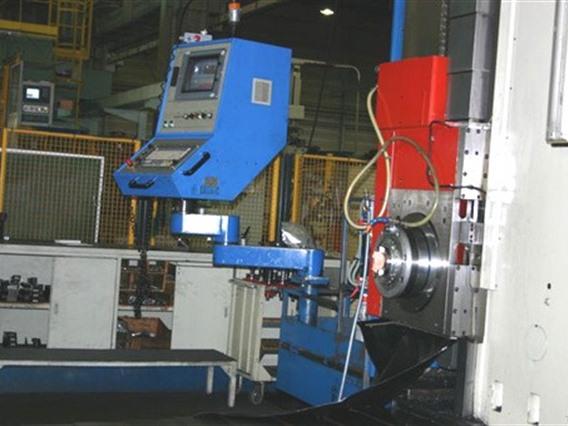

- Digital read out (1) CNC (2) (2) ECS CNC 2400
- Tension needed380 V
- Type of millingheadunivers
- Universal (2x360°) +
- Admission in millinghead (ISO) 50
Ek bilgi

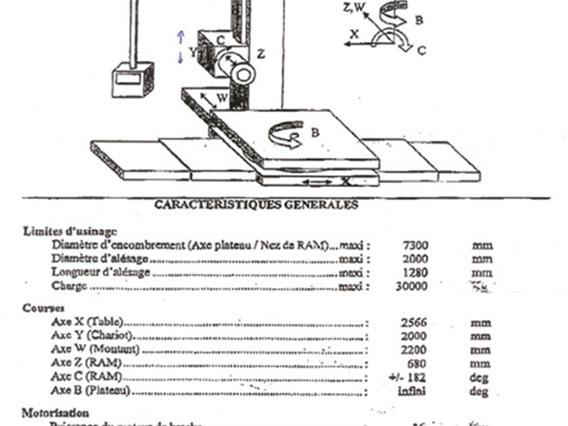

- Machine work 8 axis simultaneously.
C-as , ramturning +/- 182 ° simultaneous

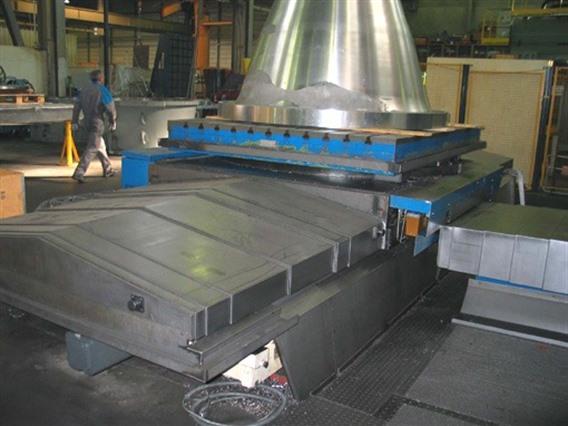

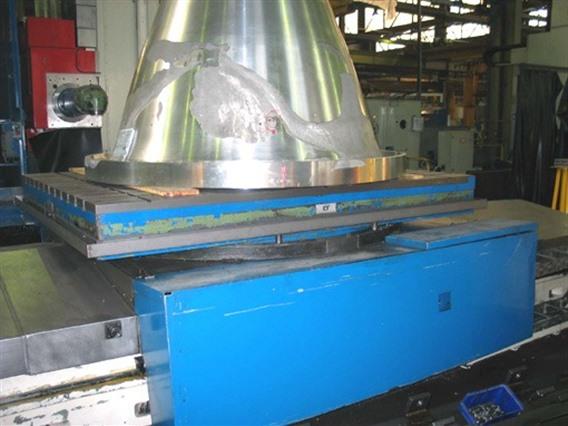

B-as tableturning 360 ° simultaneous
A-as robotmillinghead +/- 91° simultaneous
C'-as controlled amount of spindle speed rotation - simultaneous, spindle-Sincron Tappen
Max dia horiz of workpiece 7300 mm
Spindle dia 130 mm;
Ram dia 325 mm
Equipment:

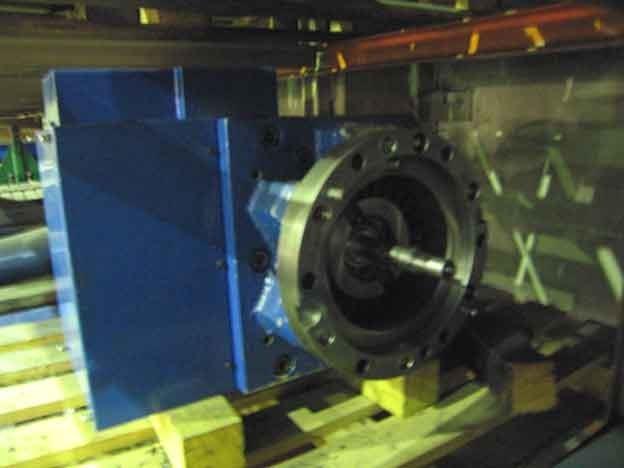

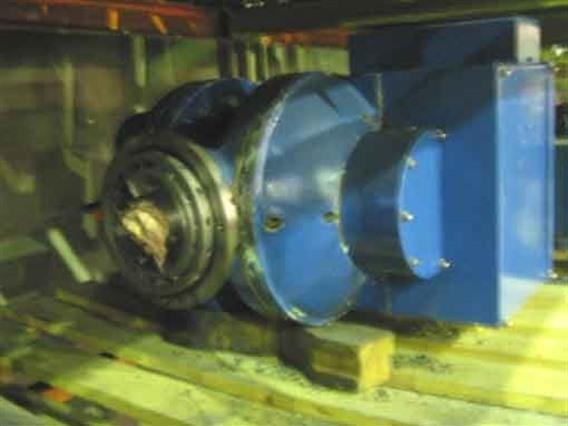

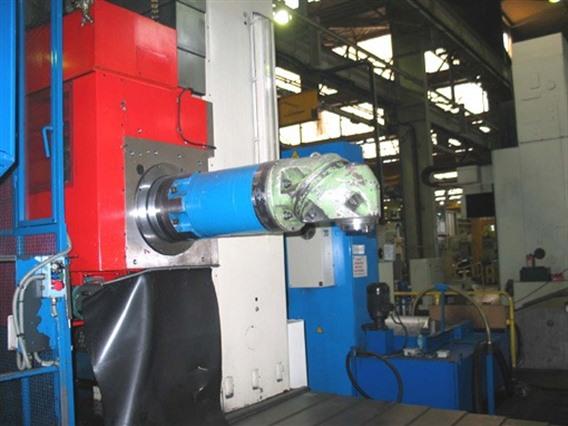

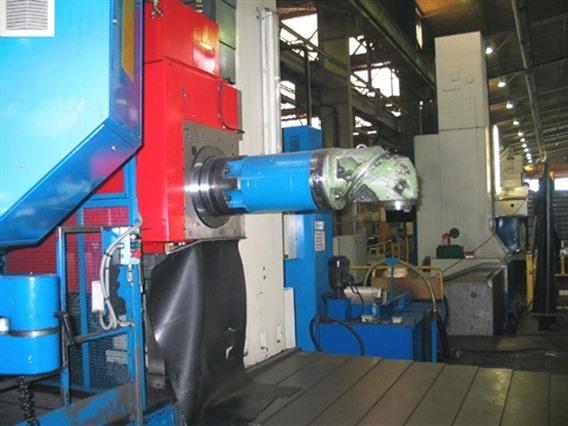

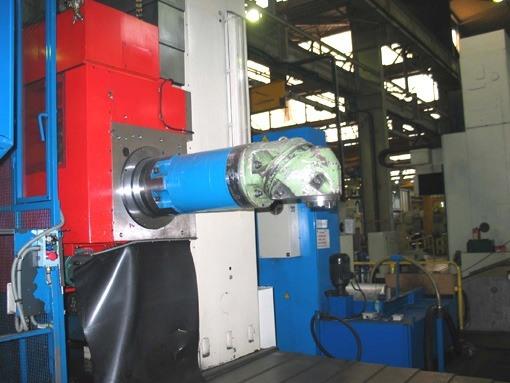

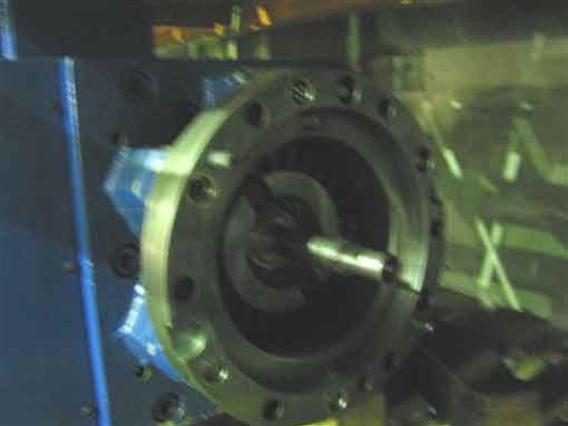

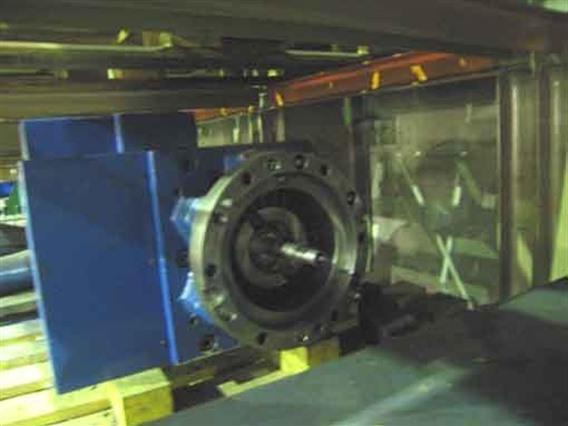

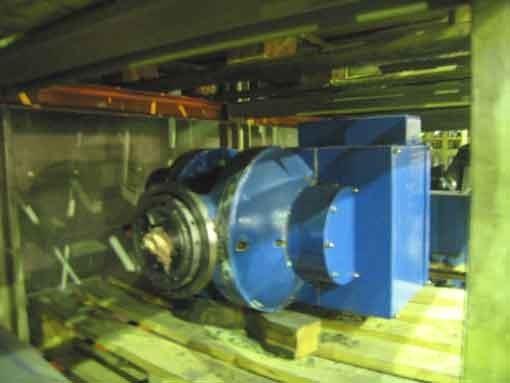

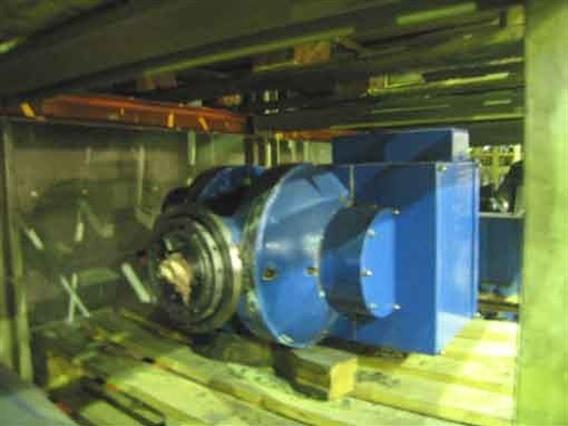

1 milling head type Robot , type Forest -Line, simulaneous

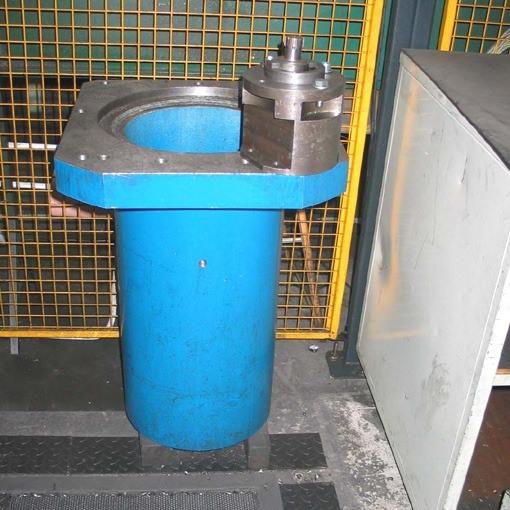

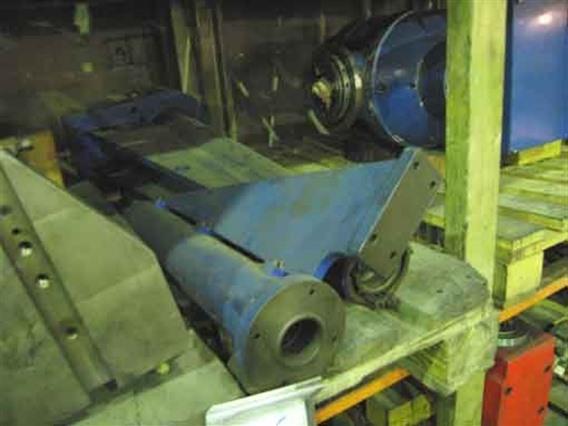

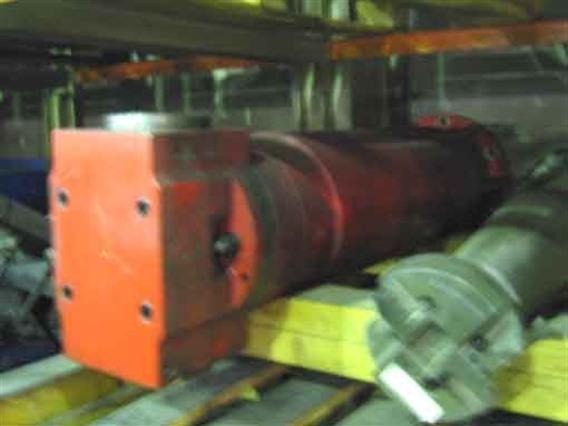

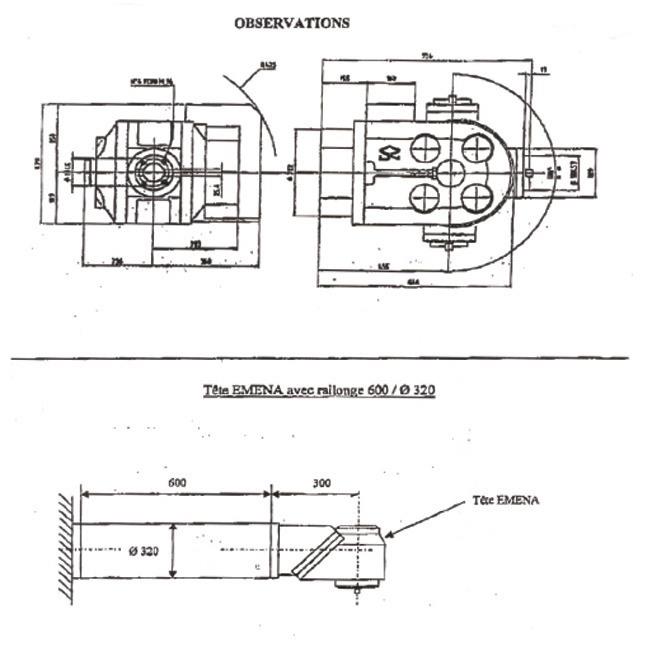

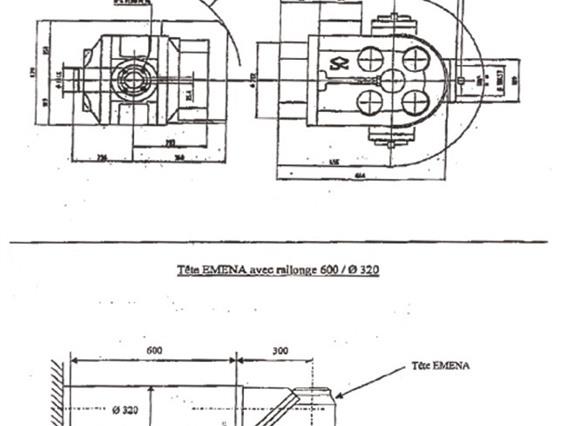

1 extention - dia 220 mm, lengte 600 mm

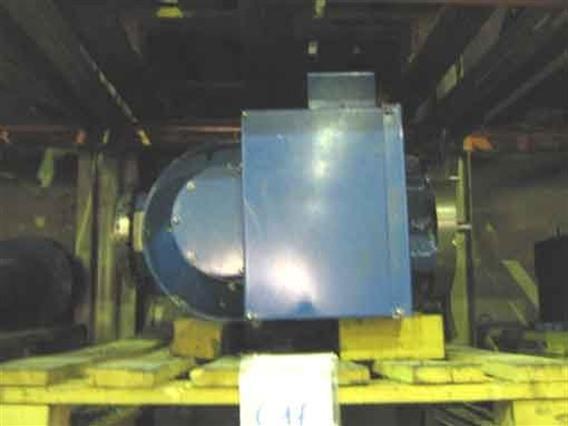

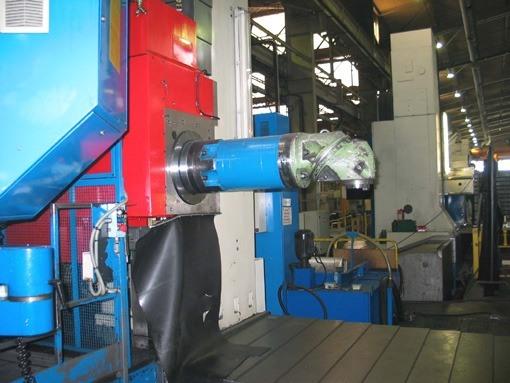

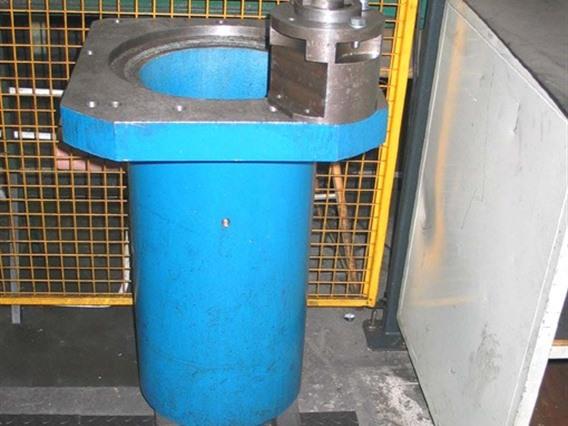

1 univers.millinghead, links-rechts 90°, manual with exention piece
1 Huron Head - milling head 2 x 360° manual with exention piece
Transport dimensions: ( L x B x H x weight)
1.Table + X as slide 7400 x 2500 x 1200 mm x 20 T
2. Slide without column 5500 x 1500 x 900 mm x 15T

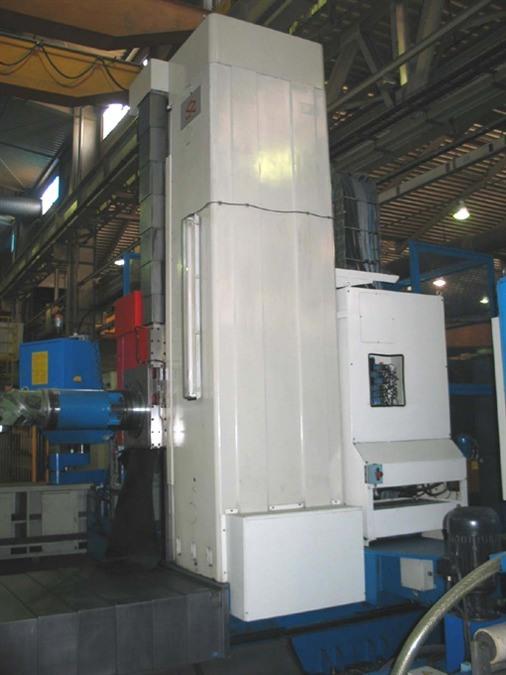

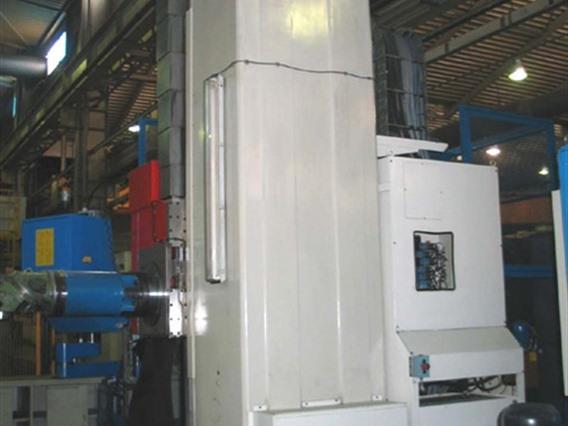

3.Column 3900 x 2900 x 1300 mm x 12T

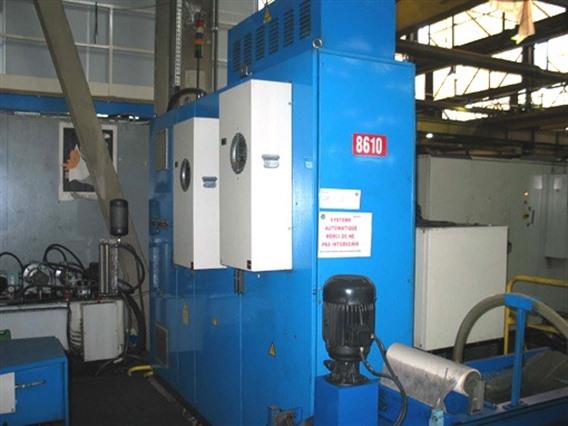

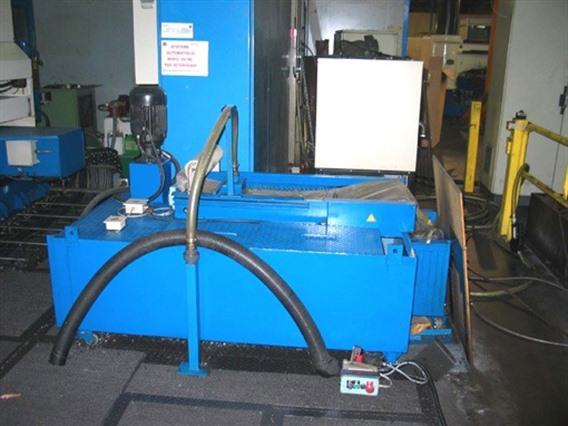

+/- 20 foot container full met hydraulic and electric tools
- Tip/Model: 130R cnc
- Stok numarası: F.01 3030 *06
- Kategori: [F] (cnc) Tezgahlar ve Torna tezgahları
- Alt kategori: [F.01] Kotterbanken – Tafeltype
- Marka: Futura - san rocco
