Trumpf - Kuka YAG laser beam welding - robot
Teknik Bilgiler
- ControlKRC2
- Number of axes6 axes

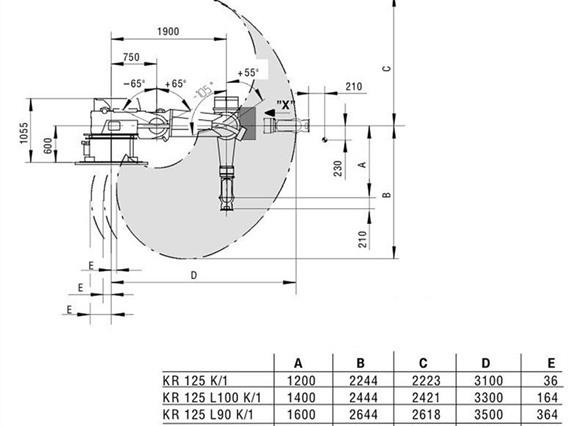

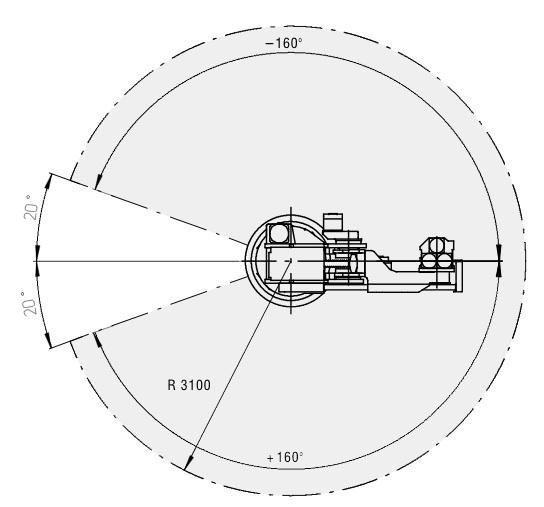

- Workarearadius 3000 mm
Ek bilgi
- THE ROBOT LASERWELDING
---Exist of---

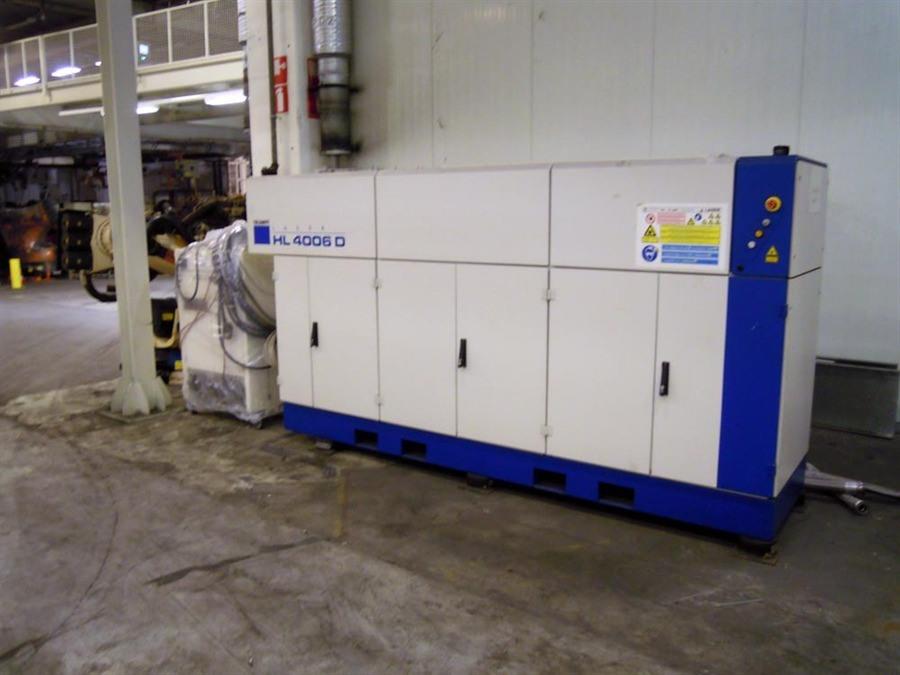

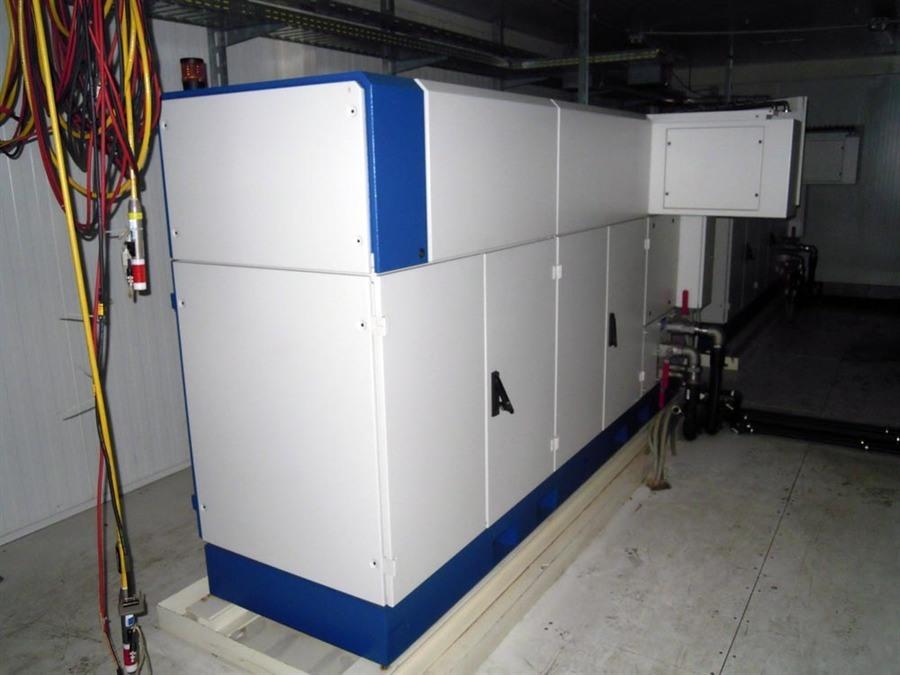

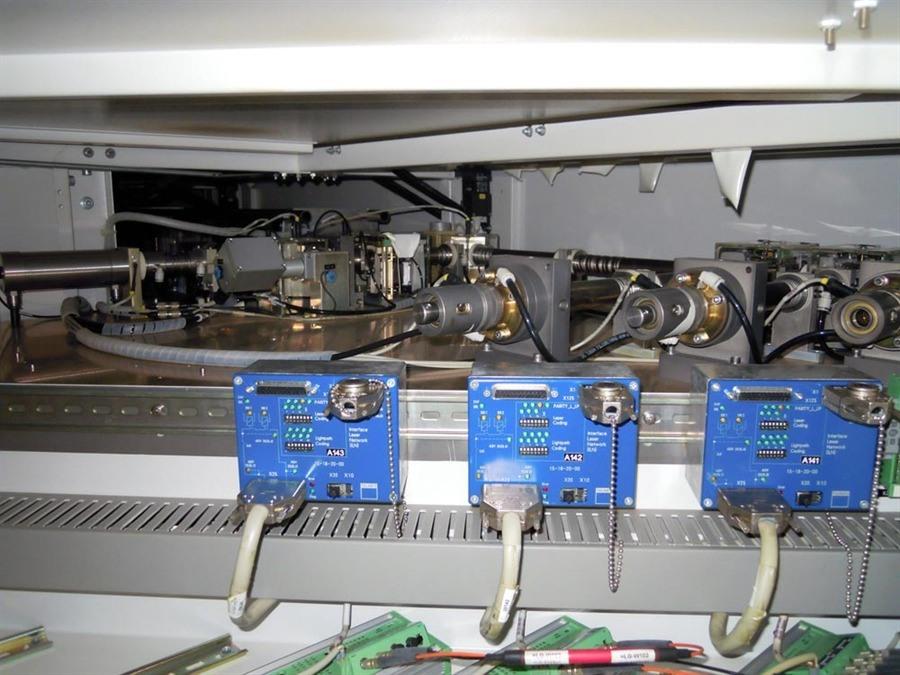

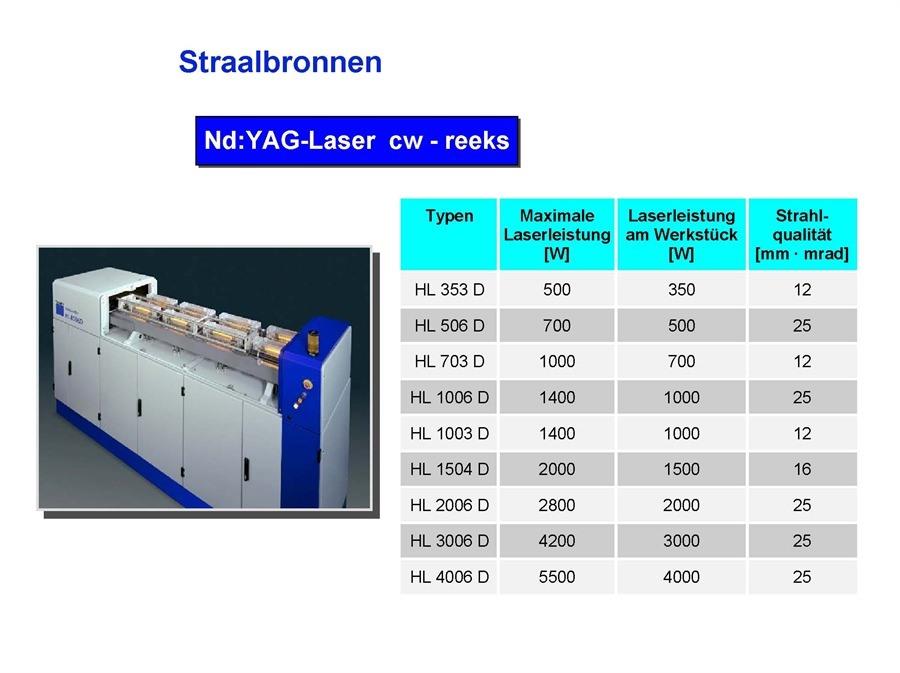

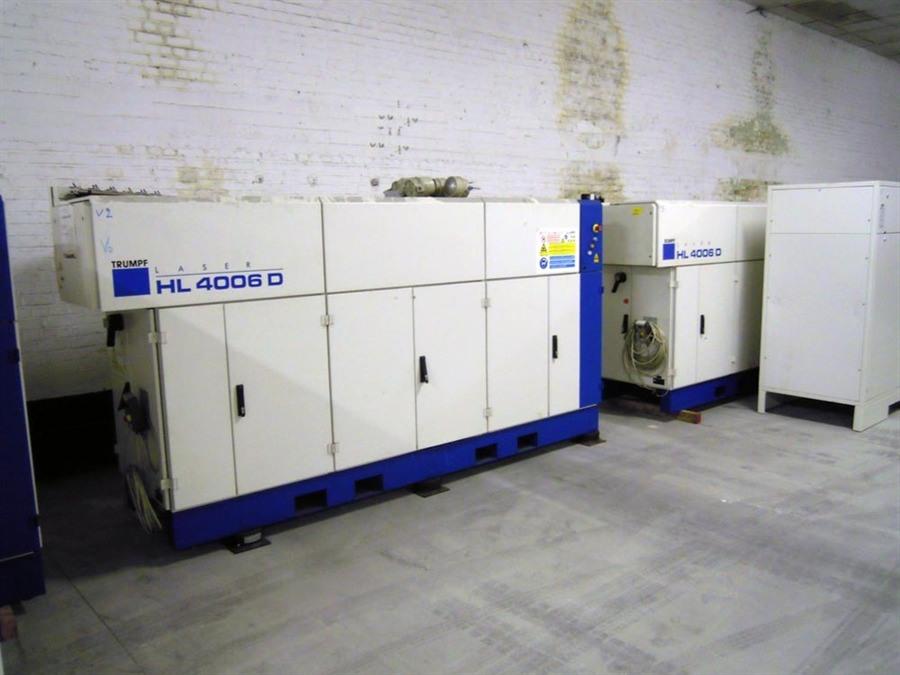

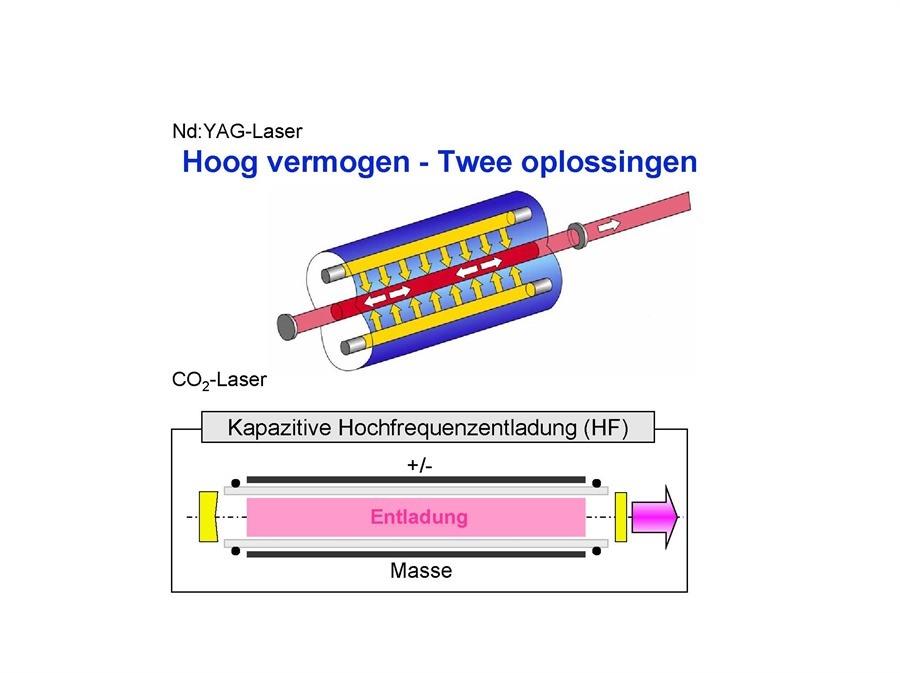

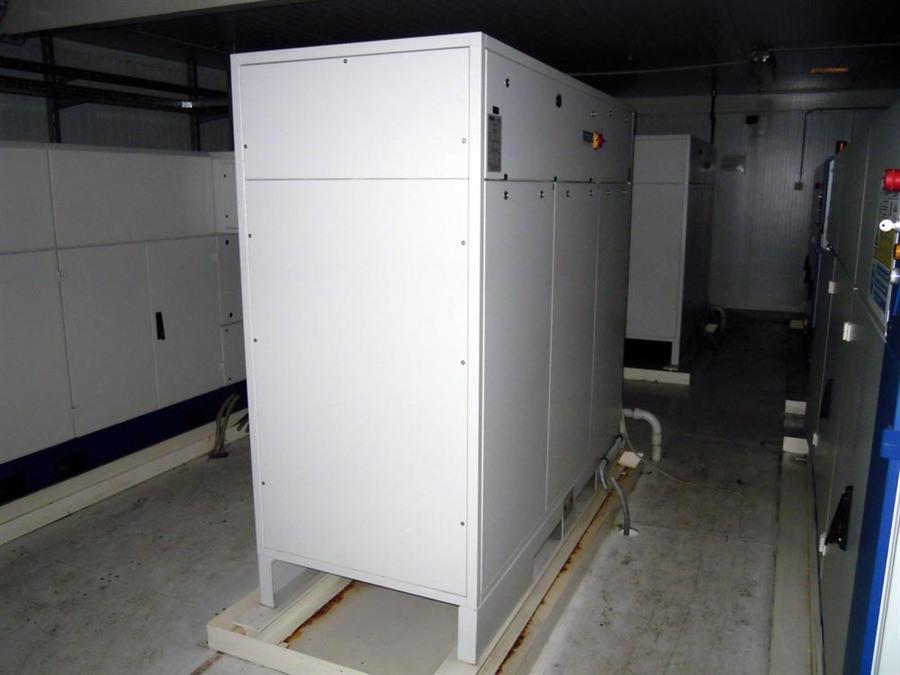

1. - Trumpf HL 4006 YAH-laser.
- Resonator max.cap: 4000W

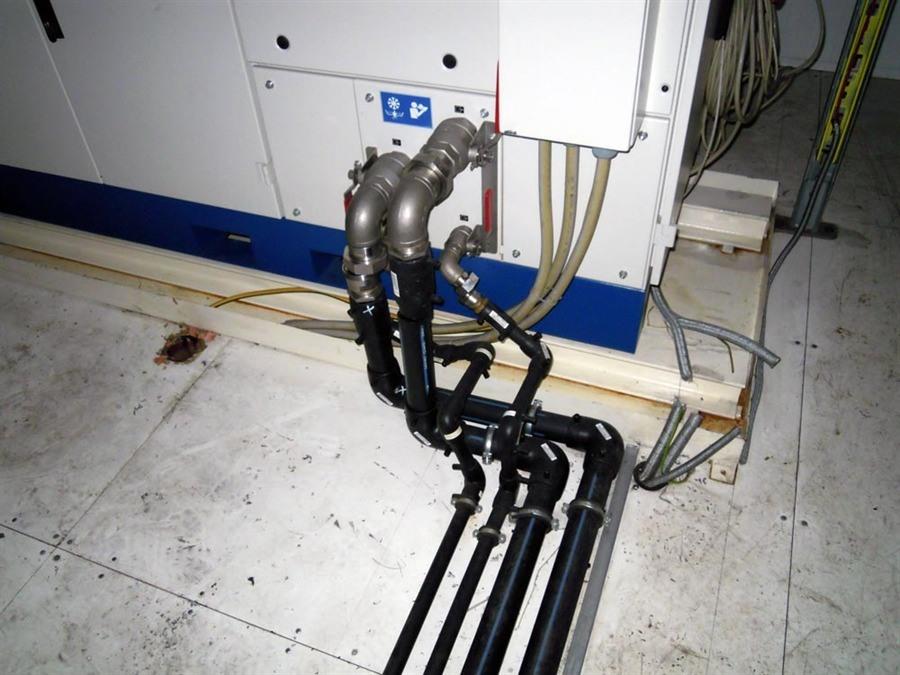

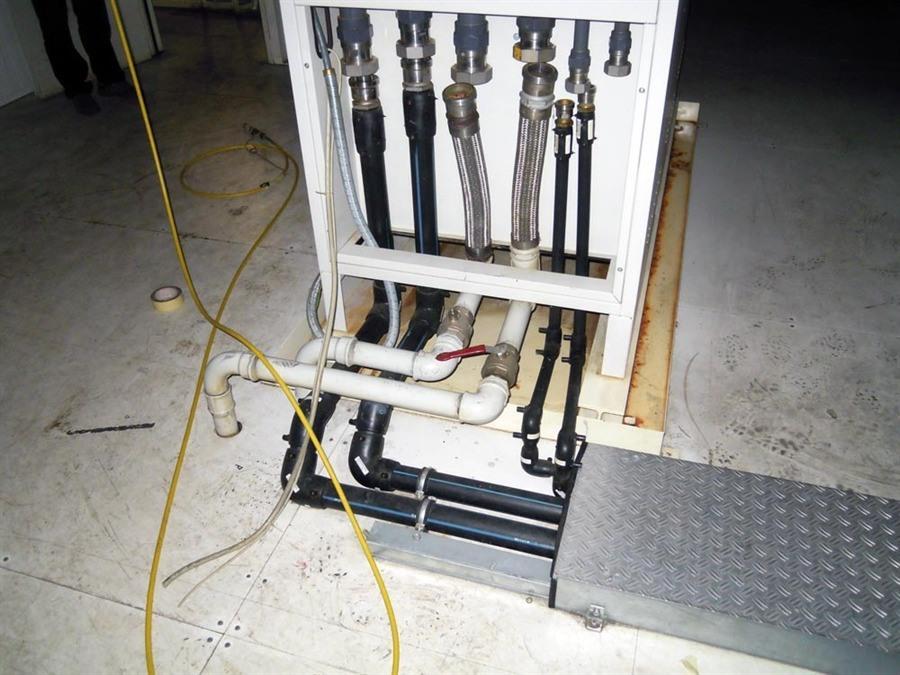

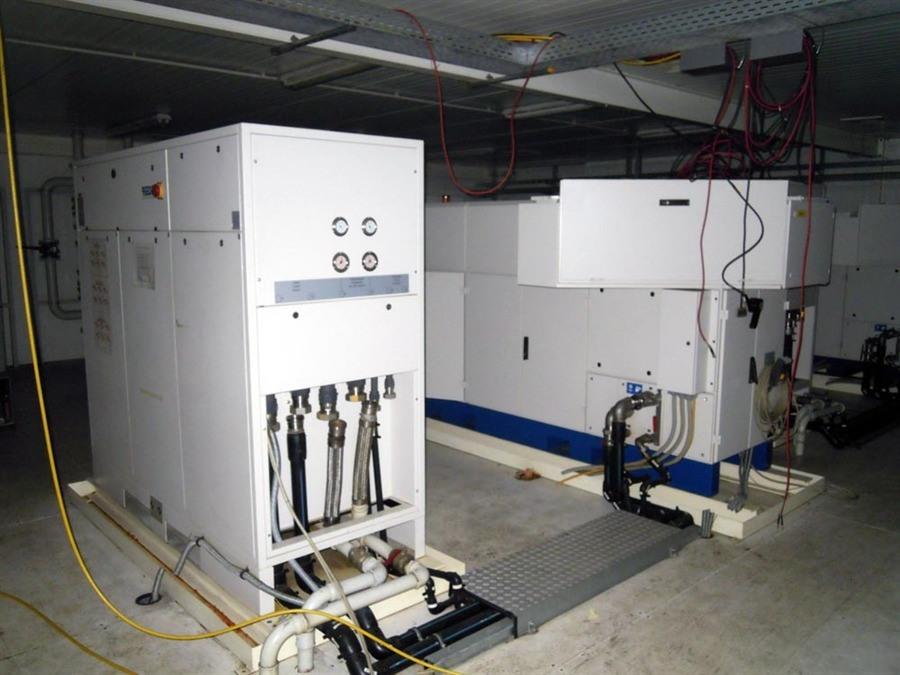

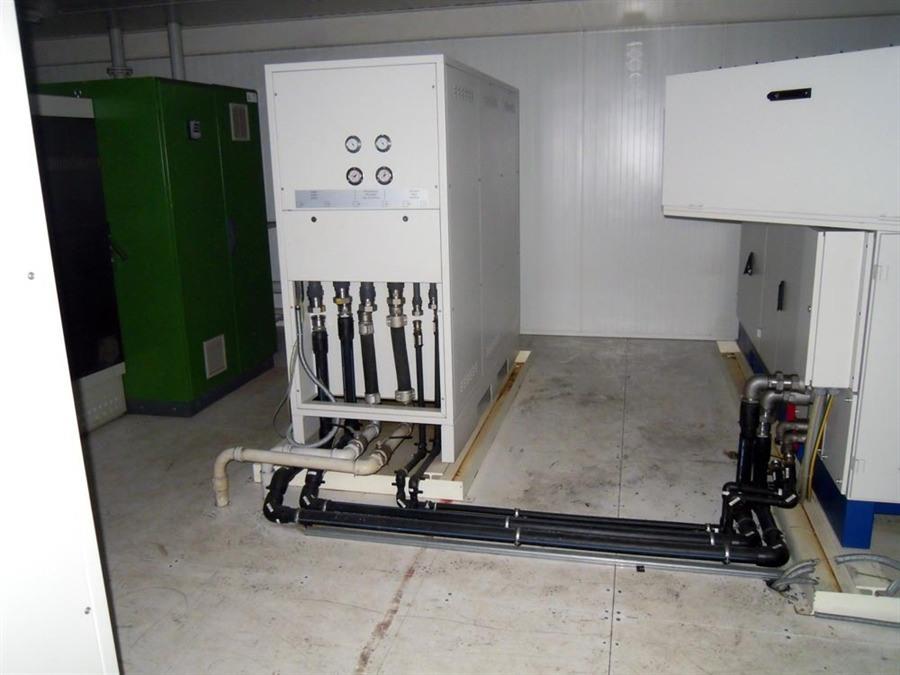

2. - Chiller Riedl for Resonator and Cooling

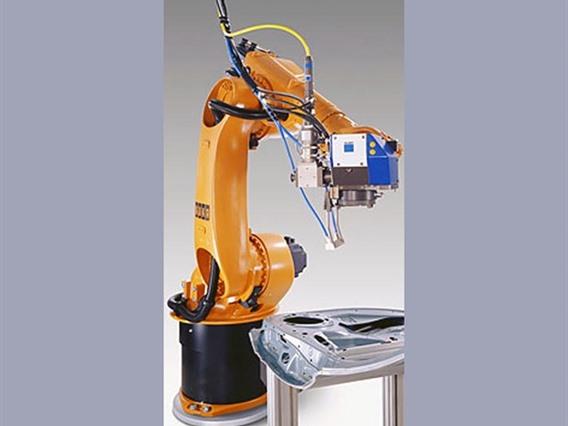

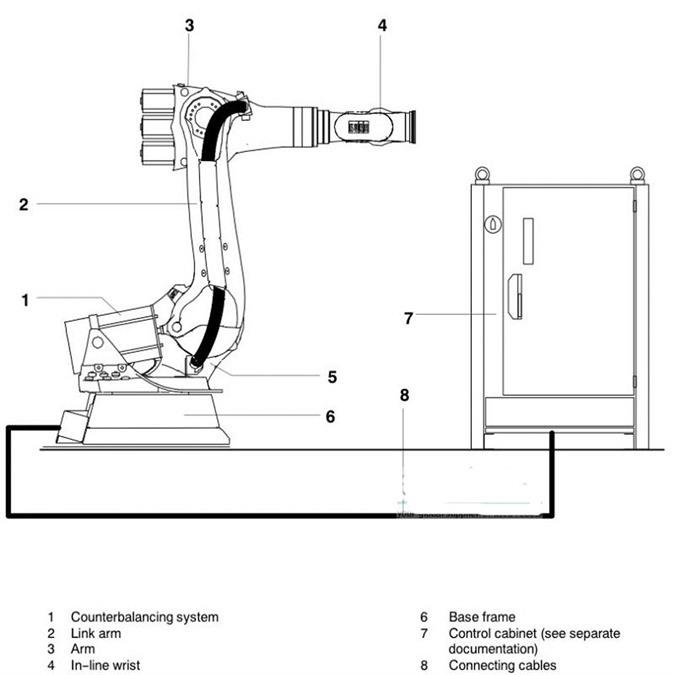

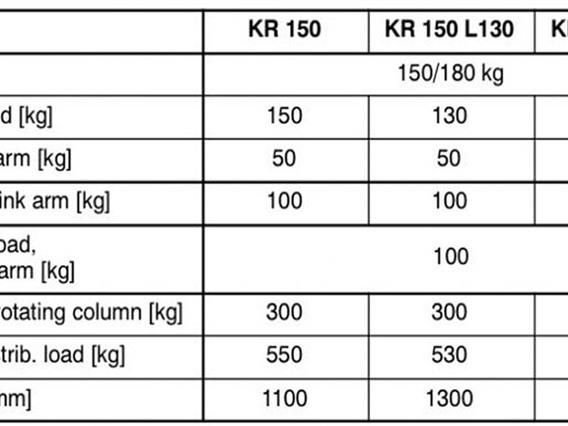

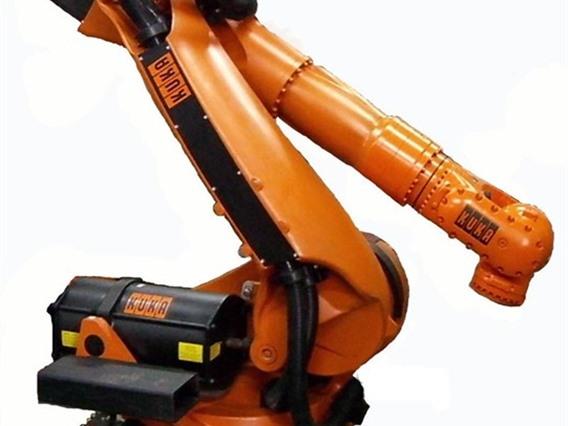

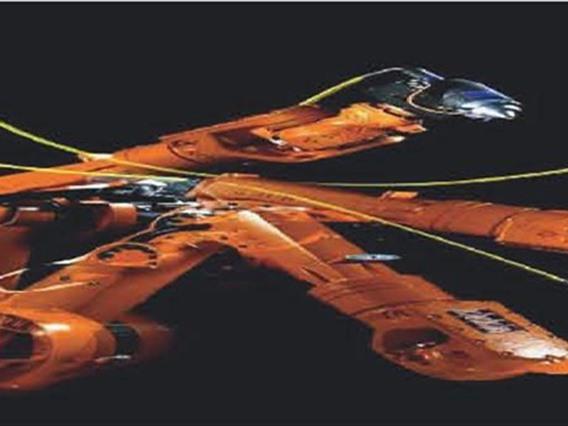

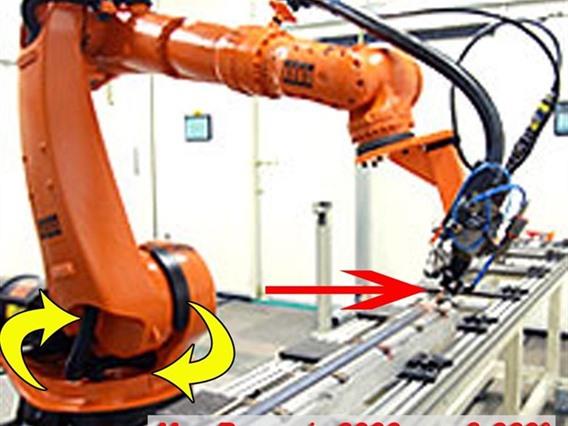

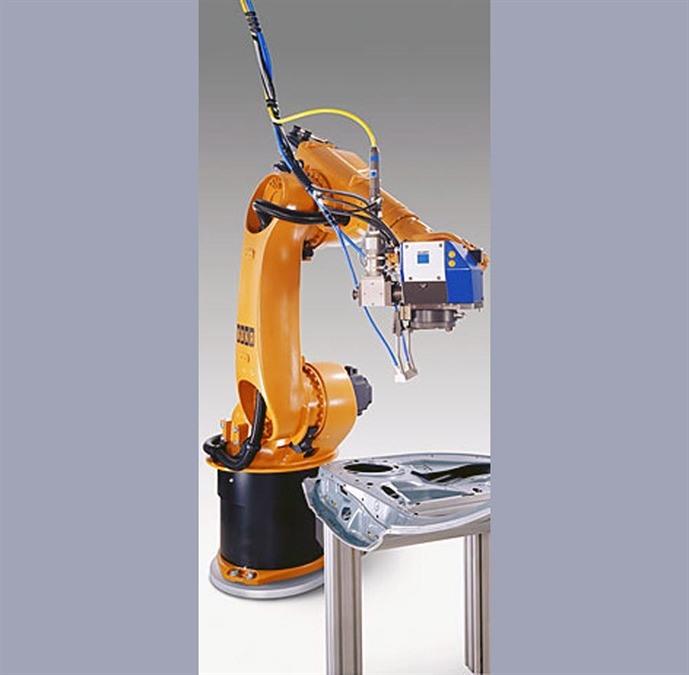

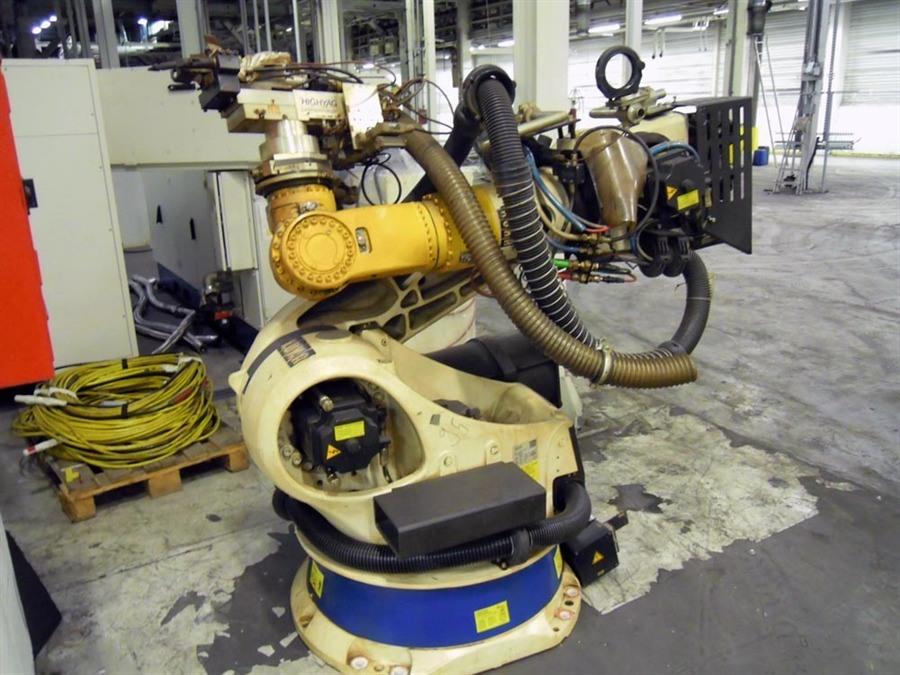

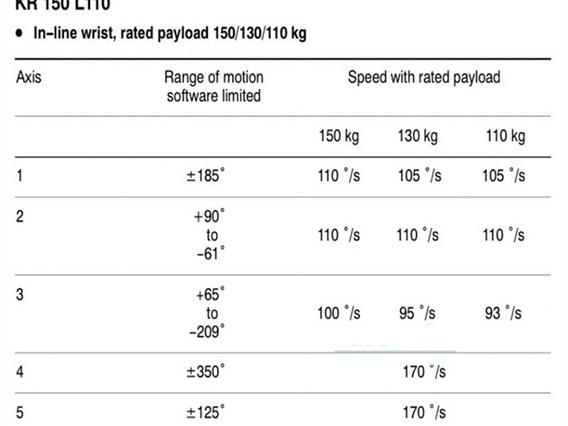

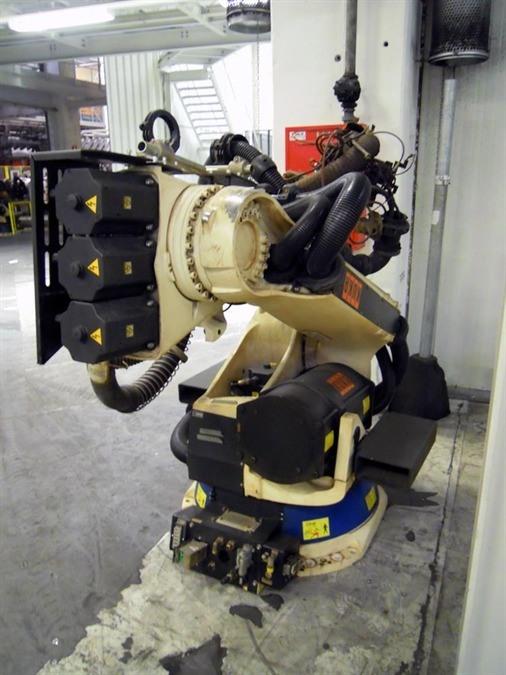

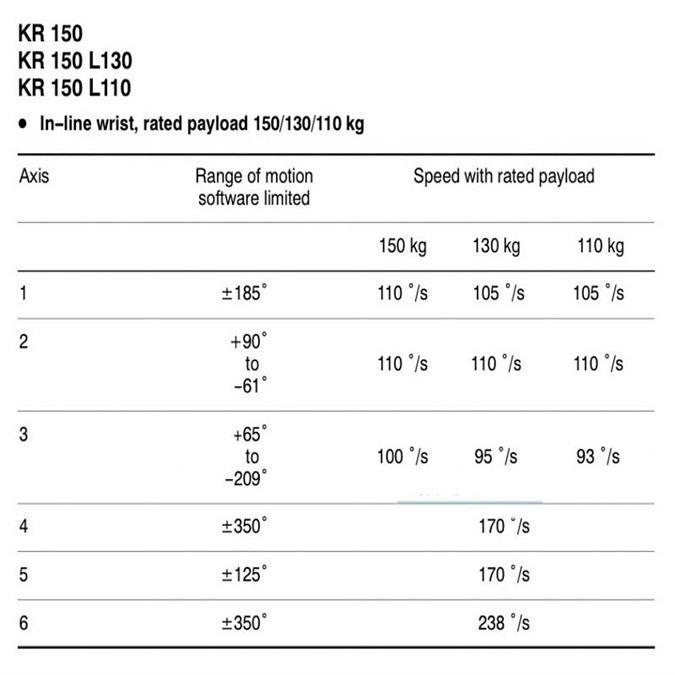

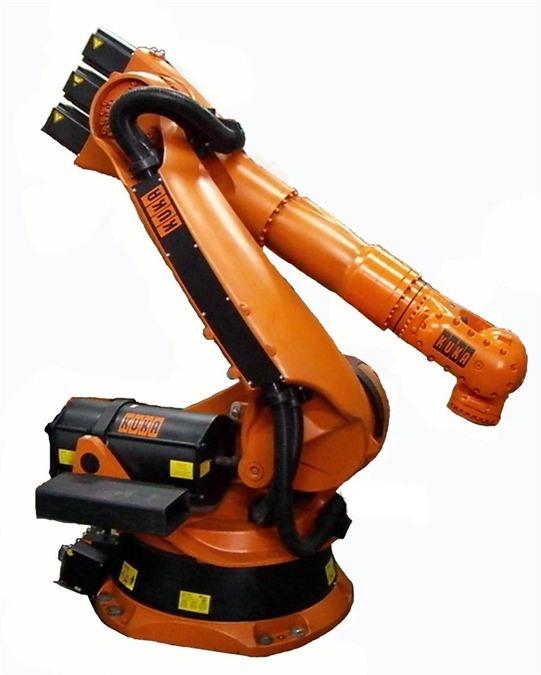

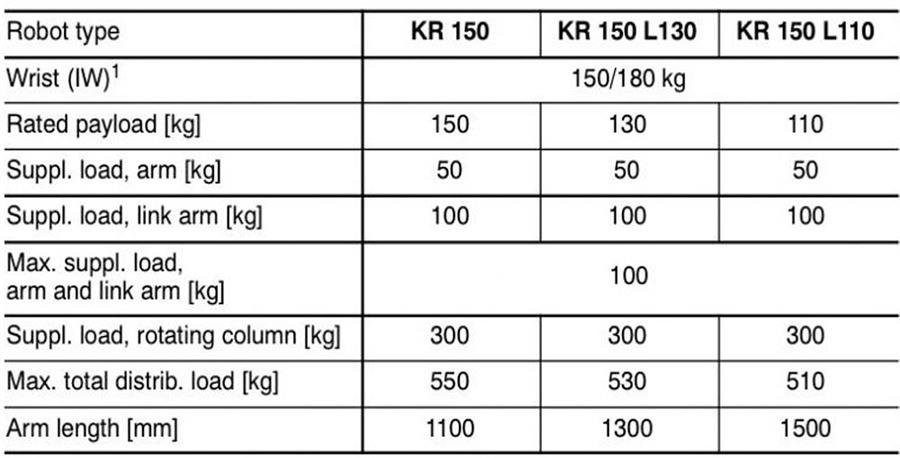

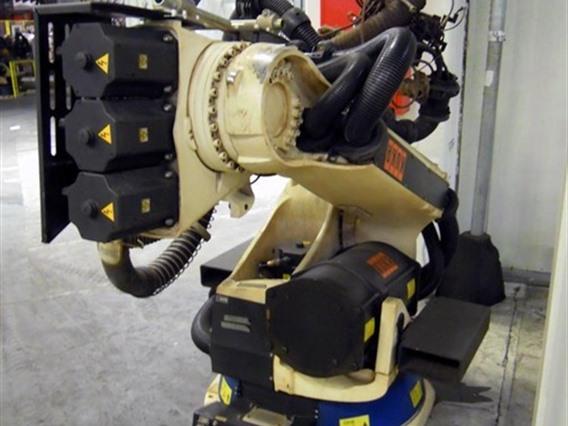

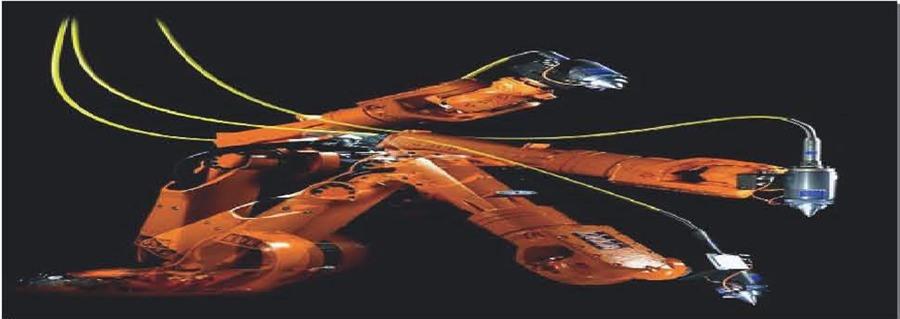

3. - Kuka Robot: type KR 150

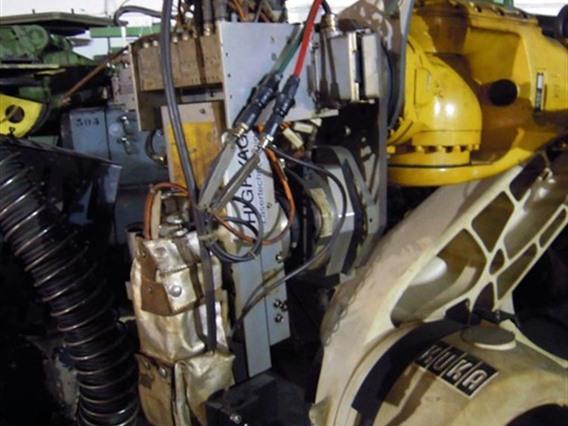

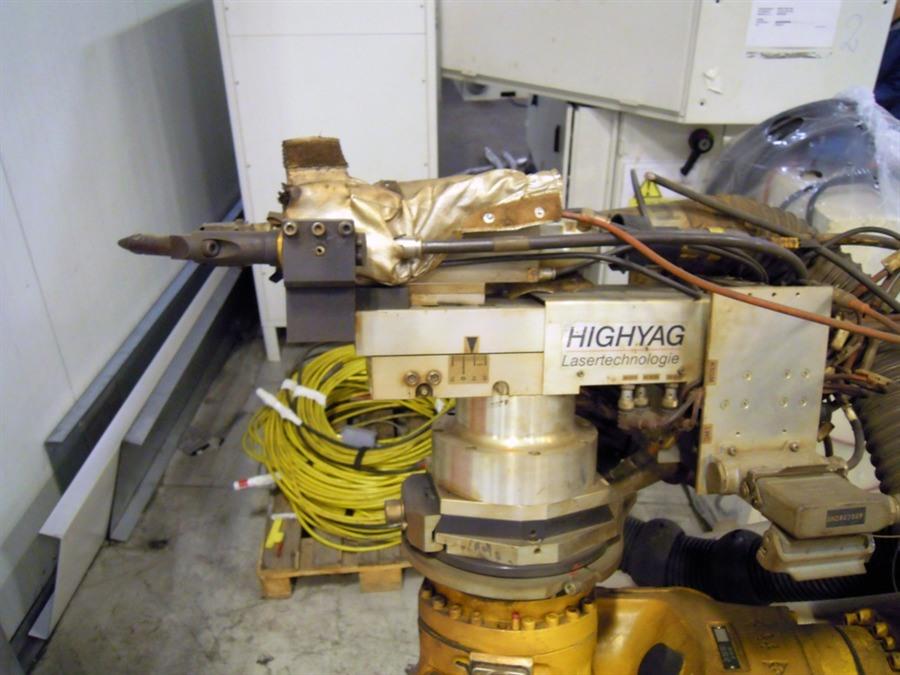

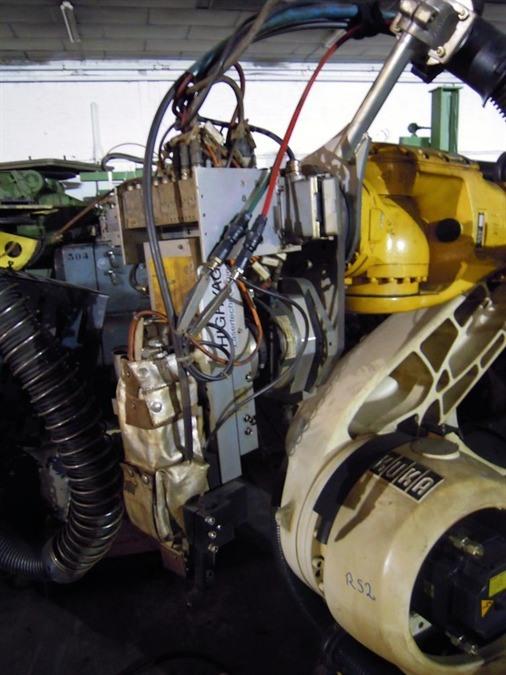

- 6 AXES with HighYAG laserwelding / cutting head

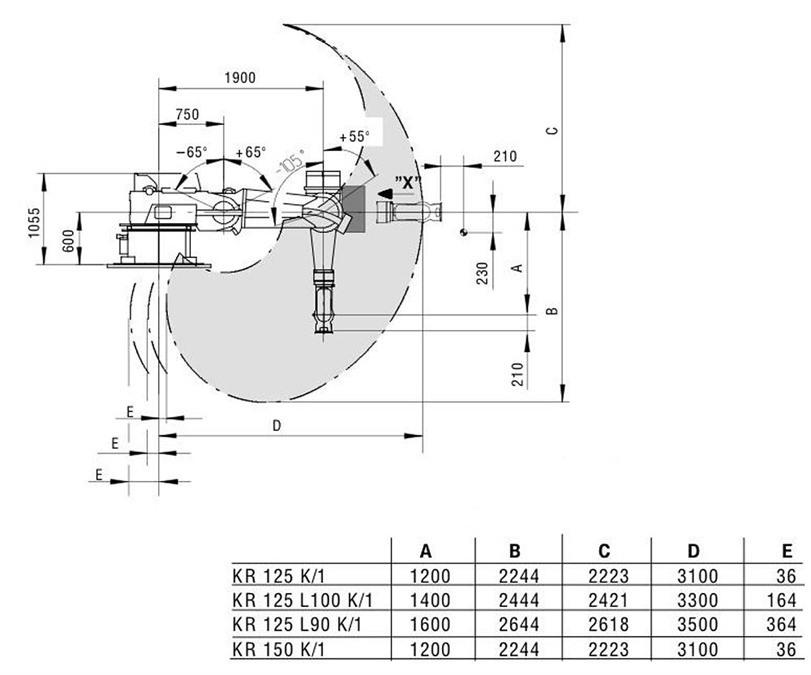

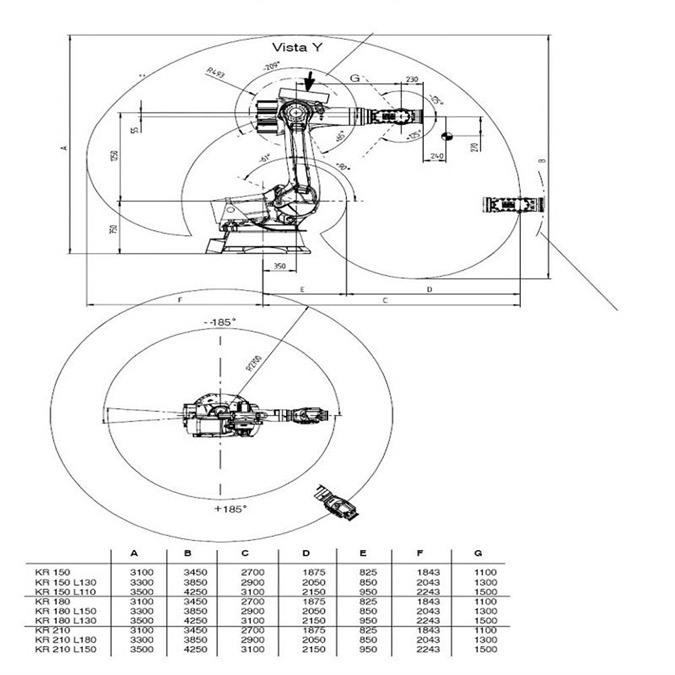

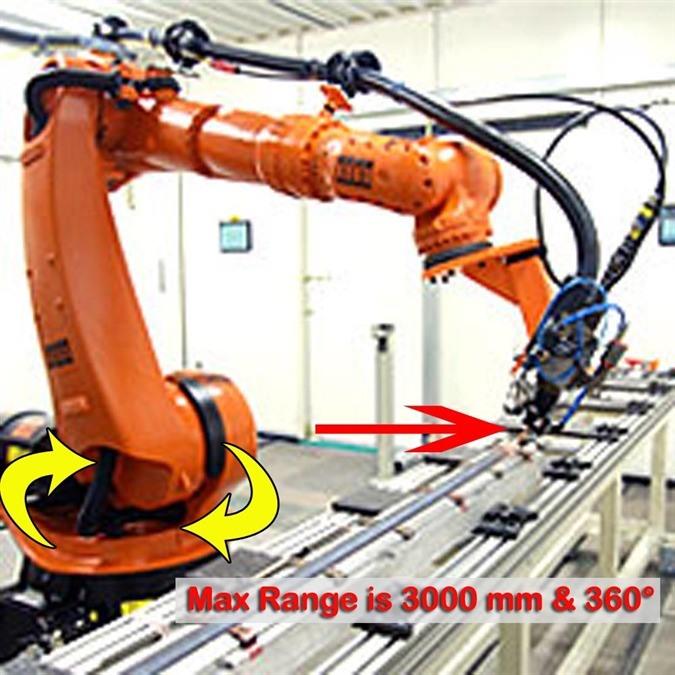

- Max workrange 3000 mm equipped with HIGHYAG laser welding cutting head.

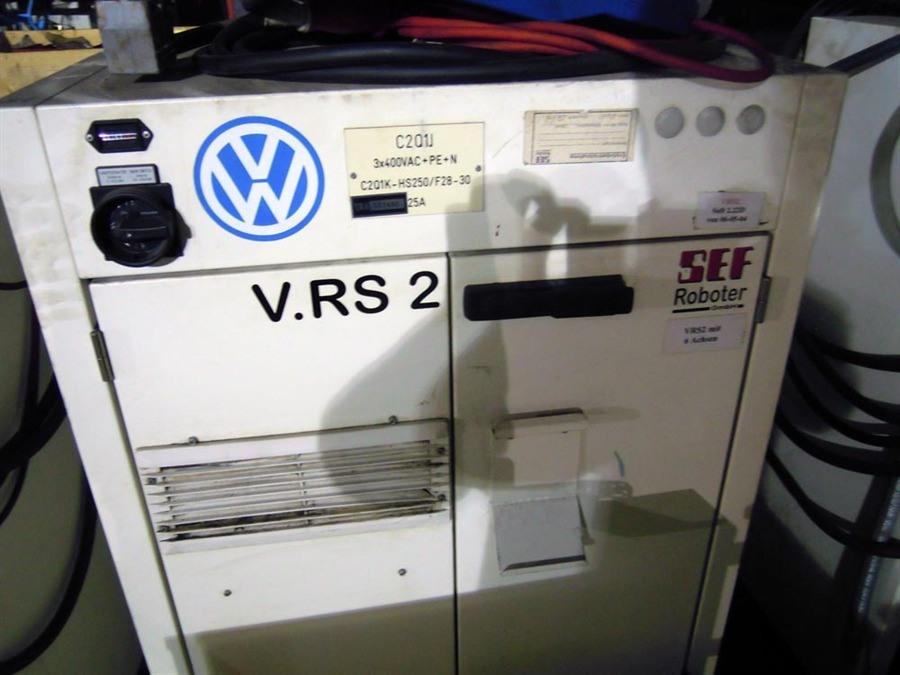

4. - SEF-Roboter VRS 2
- Controlbox with handcontrol/joystick for KUKA-Robot

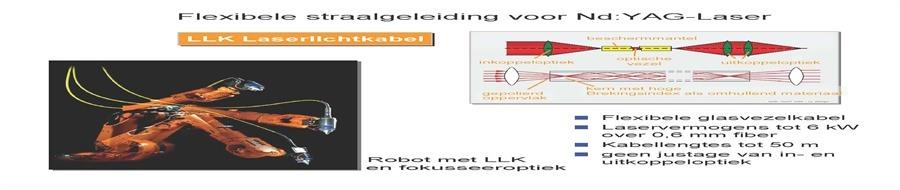

5. - 30 meter optical Fiber cable with connections for copeling resonator mounted on the YAG Robot-laserhead
6. - Optional 7th axis transversal movement of the robot 2000mm available

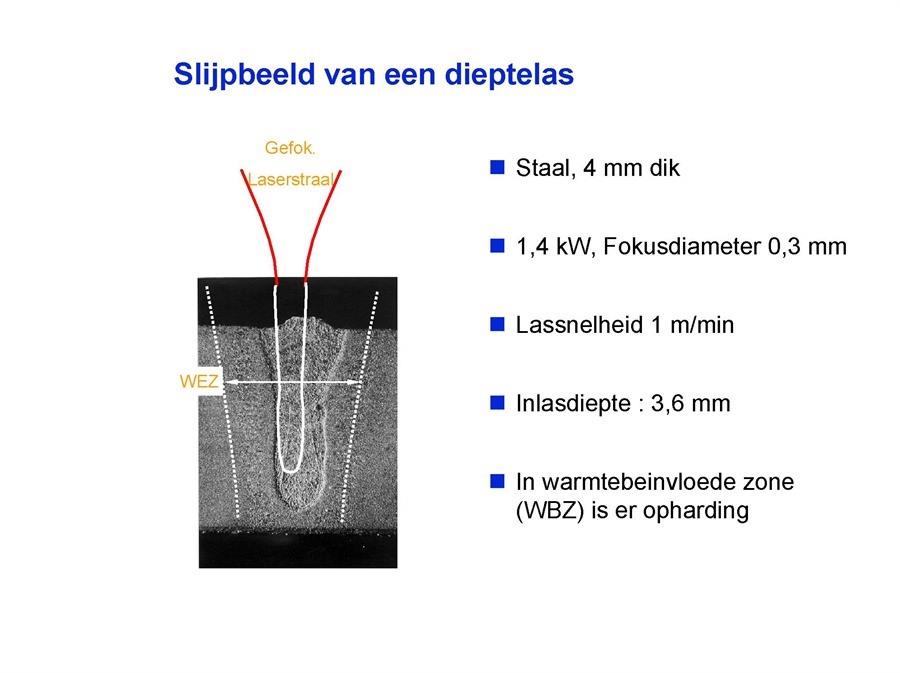

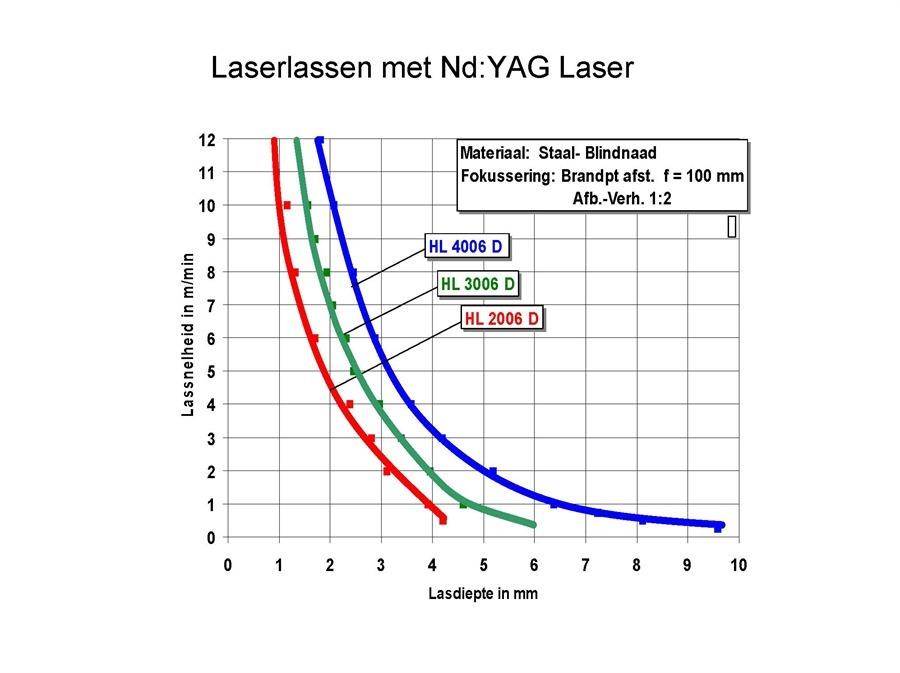

Example of the welding speed: steelplate 0.7 x 0.7mm = 100 mm/sec.
7. - The trumpf resonator feeds the laser by glassfiber cable up to 30m lenght max.
In use 2004, nearly new condition.
(original new price: +700000€ laserwelding + robot)
- Tip/Model: YAG laser beam welding - robot
- Stok numarası: V.03 6273
- Kategori: [V] rulopatronlu kaynak, manipülatorlar, robotlar, kaynak fıskıyeleri, kaynak tezgahları.
- Alt kategori: [V.03] Lasrobots
- Marka: Trumpf - Kuka
Stok numarası: V.03 6273
