Ponsmachines & Ponsnibbelmachines Amada Aries 245

Teknik Bilgiler

Max sheet thickness by punching + nibbling4,5 mm
Max weight workpiece50 kg
Working range on cross-side (X-axes)*1000 mm
Working range along (Y-axes)*1270 mm
ControlCNC linked DNC
Toolchangeryes
Number of toolpositioners20 (2auto-index)
Power needed11 kVA
Tension400 V - 50 Hz
Length L -- R3784 mm
Depth Fw -- Bw2700 mm
Height1950 mm
Weight7500 kg

Ek bilgi

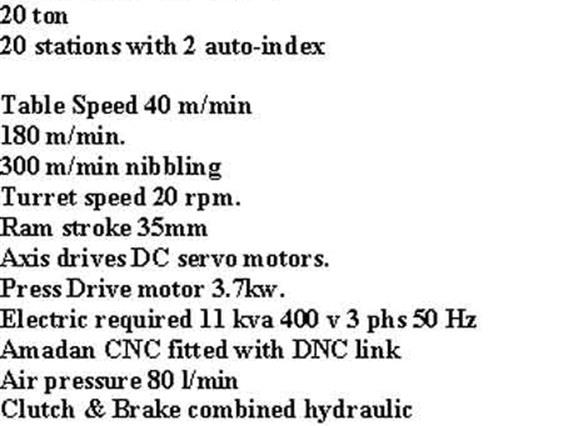

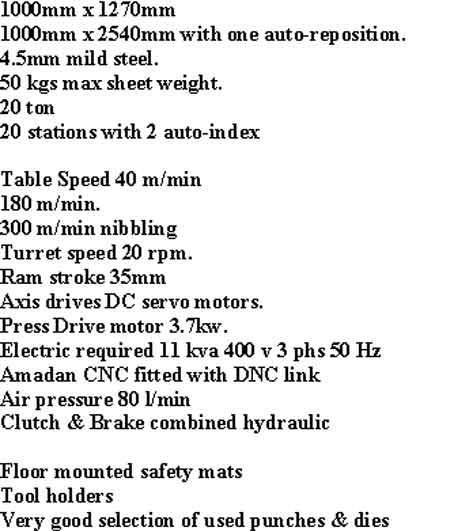

*met één automatische herpositionering 1000 x 2540 mm -- Specifications below (click to enlarge)
Tip/Model: Aries 245
Stok numarası: O.19 2311 *05
Kategori: [O] Doğrama tezgahları, Rulolama, hedefleme makineleri, kaynak makineleri, ateşli kesim makineleri, metal plaka kesme makineleri ve yarma tezgahı
Alt kategori: [O.19] Ponsmachines & Ponsnibbelmachines
Marka: Amada

Stok numarası: O.19 2311 *05

Satılan
Satılan

ZIP formatındaki tüm fotoğrafları indirin
