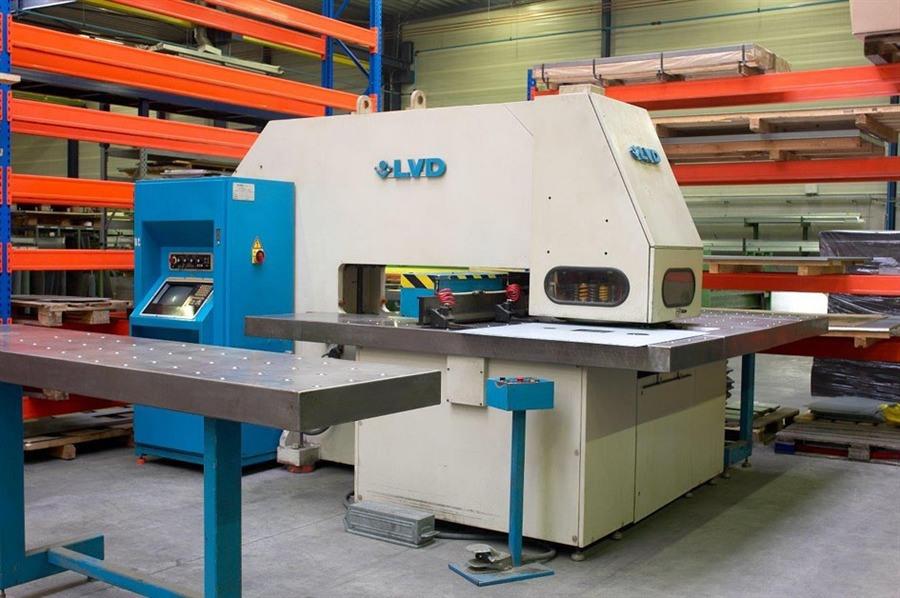

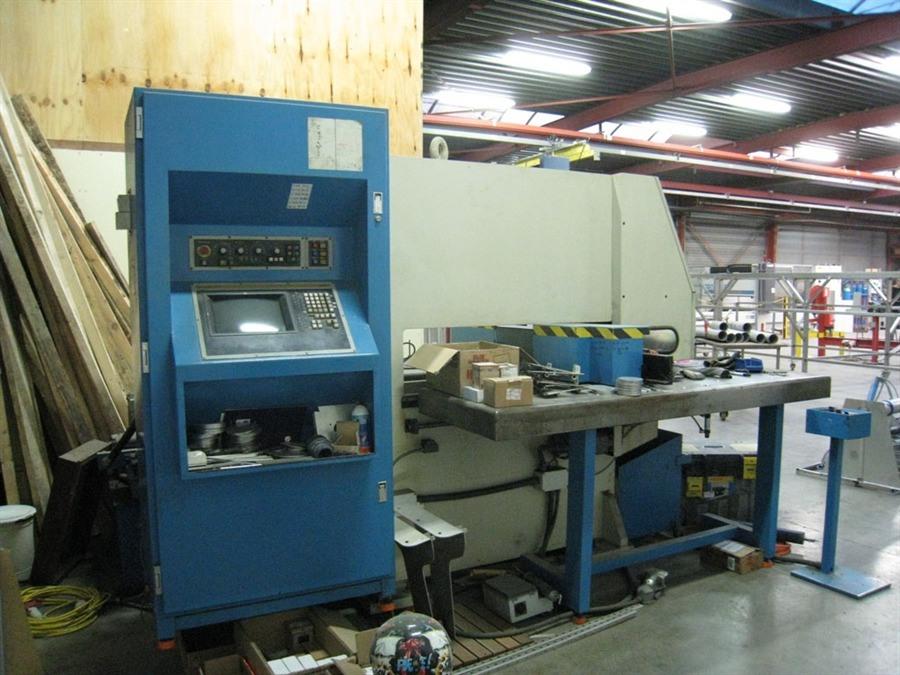

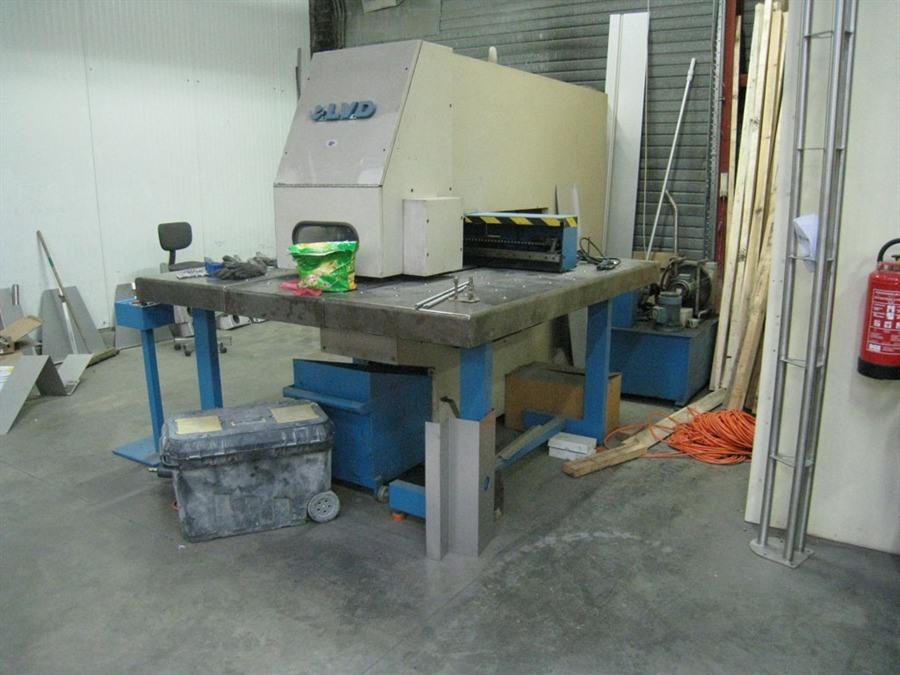

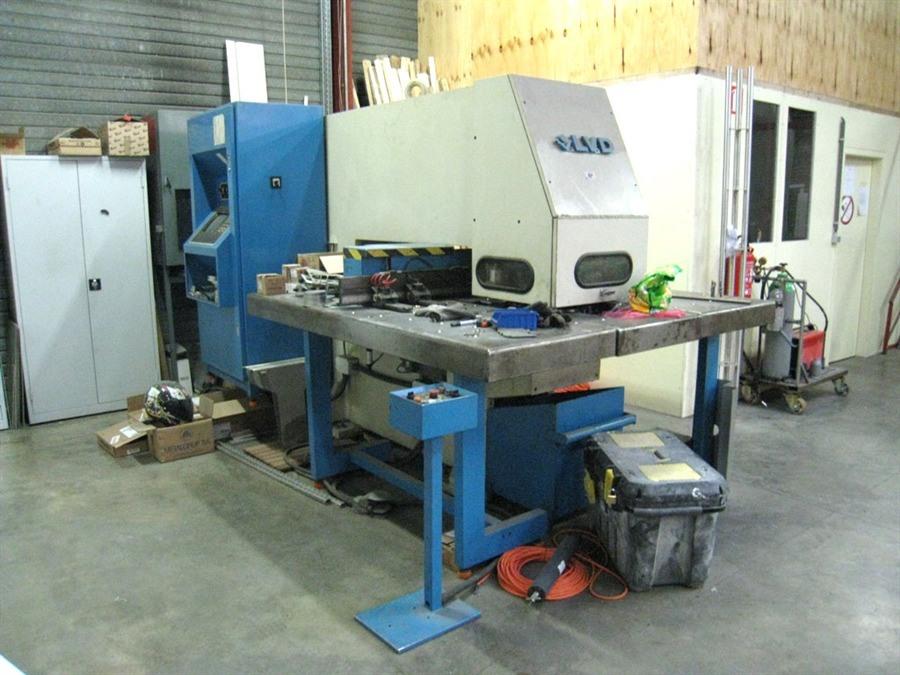

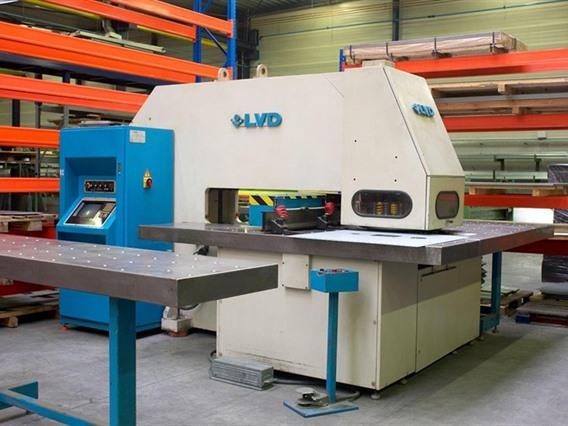

LVD Beta 20 ton CNC

Ürün favorilere eklendi

» Kişisel fiyat talep edin

Teknik Bilgiler

Cutting pressure (kN)20 ton
Max sheet thickness by punching + nibbling6,35 / 3,2 mm
Working range on cross-side (X-axes)-25 to 940 mm
Working range along (Y-axes)-25 to 787 mm
ControlSiemens Sinumerik

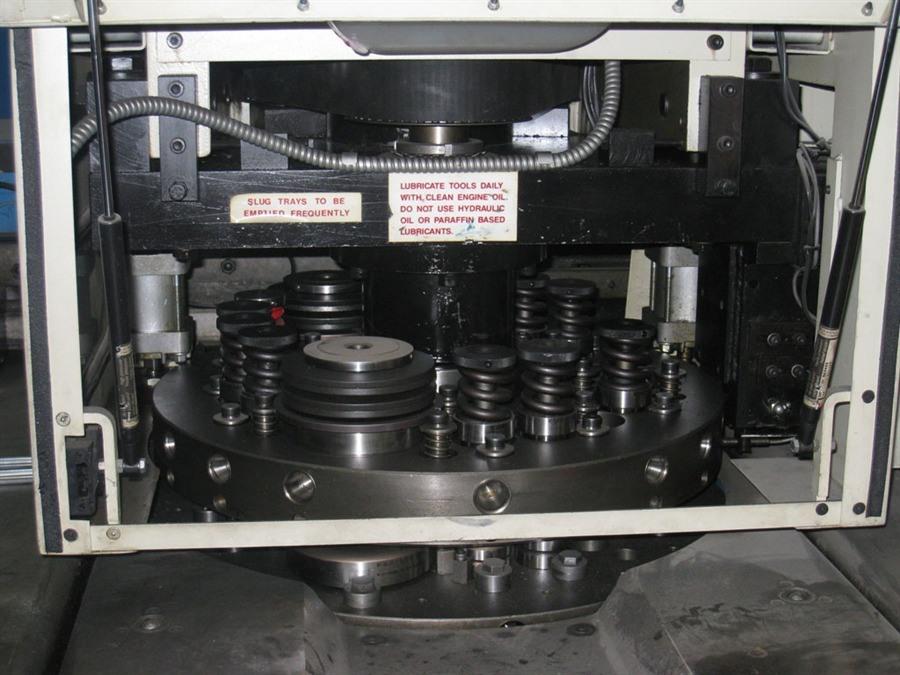

Toolchangeryes

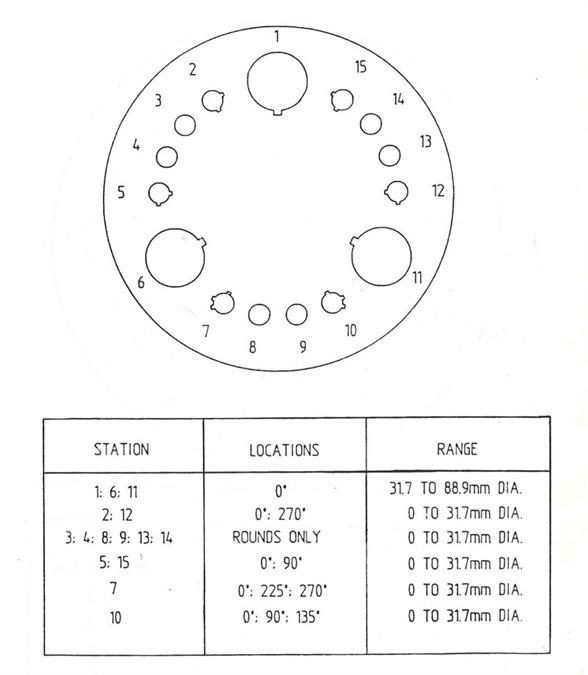

Number of toolpositioners15 stations (13 + 2 Index)
Weight7300 kg

Ek bilgi

max displacement: 965 mm

smalles workpiece: 580 x 140 mm
Tip/Model: 20 ton CNC
Stok numarası: O.19 8702
Kategori: [O] doğrama tezgahları, Rulolama, hedefleme makineleri, kaynak makineleri, ateşli kesim makineleri, metal plaka kesme makineleri ve yarma tezgahı
Alt kategori: [O.19] Ponsmachines & Ponsnibbelmachines
Marka: LVD Beta

» Kişisel fiyat talep edin

Stok numarası: O.19 8702

ZIP formatındaki tüm fotoğrafları indirin
