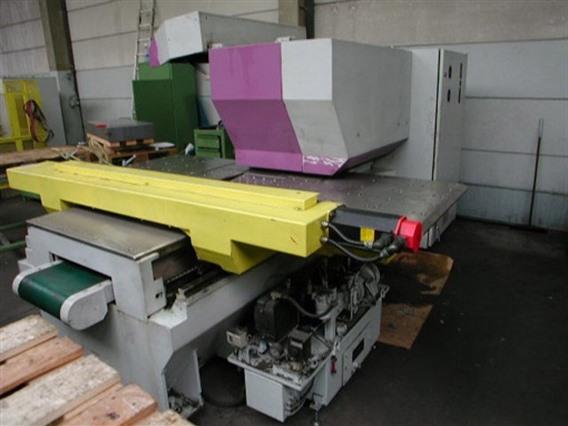

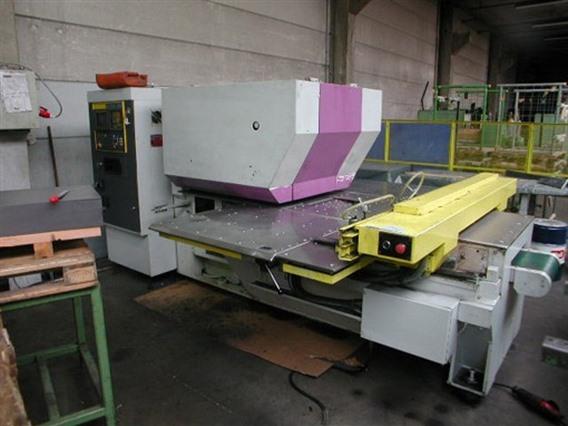

Ponsmachines & Ponsnibbelmachines Murata cnc Centrum 2000

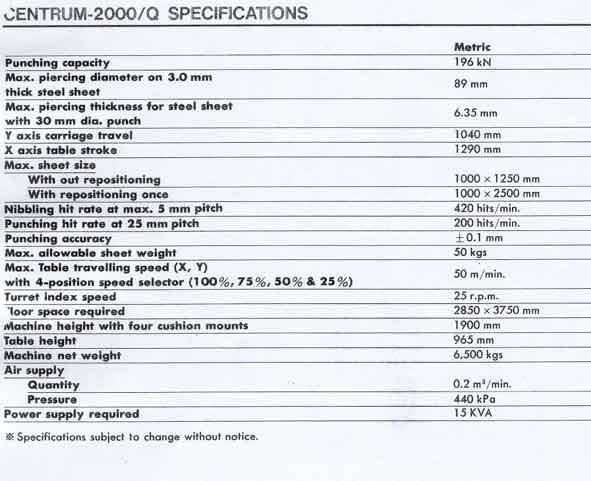

Teknik Bilgiler

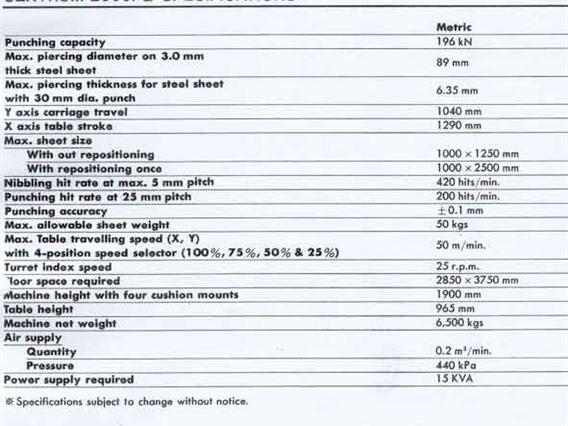

Cutting pressure (kN)196 kN (20 T)
Max sheet thickness by punching + nibbling6,35mm/30 dia
Max punching dia89 in 3 mm St
Max weight workpiece50 kg
Working range on cross-side (X-axes)1000 mm
Working range along (Y-axes)1250 mm
Positioning speed along X-axes50 m/min
Positioning speed along Y-axes50 m/min

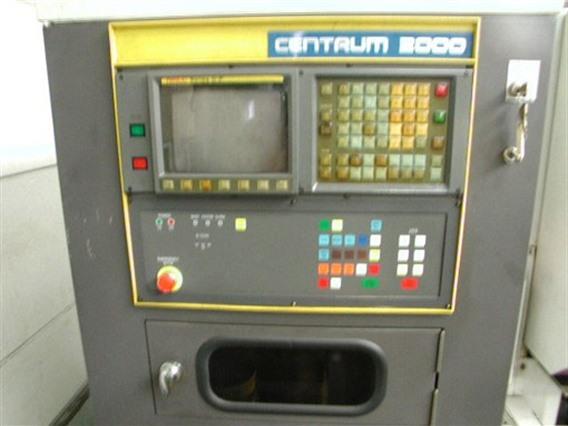

ControlFanuc CNC

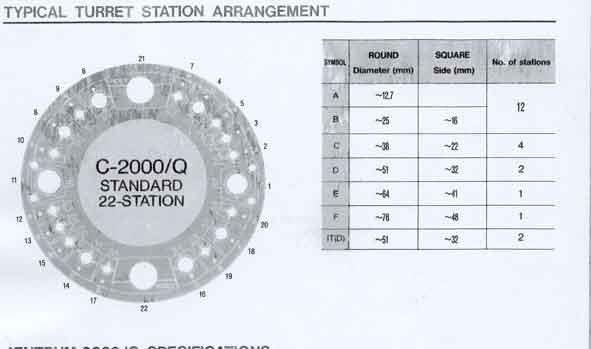

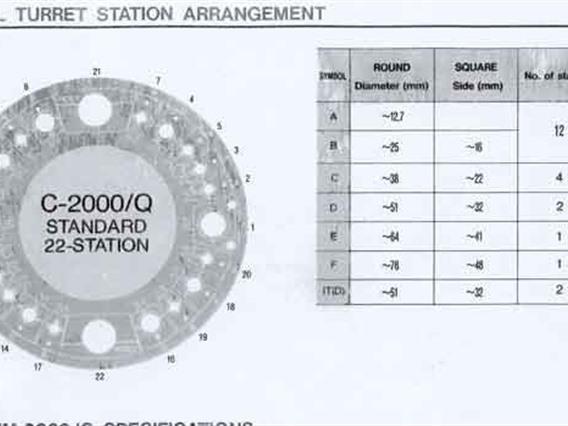

Number of toolpositioners22 stations
Power needed15 kVA
Tension380 V
Length L -- R2850 mm
Depth Fw -- Bw3750 mm
Height1900 mm
Weight6500 kg

Ek bilgi

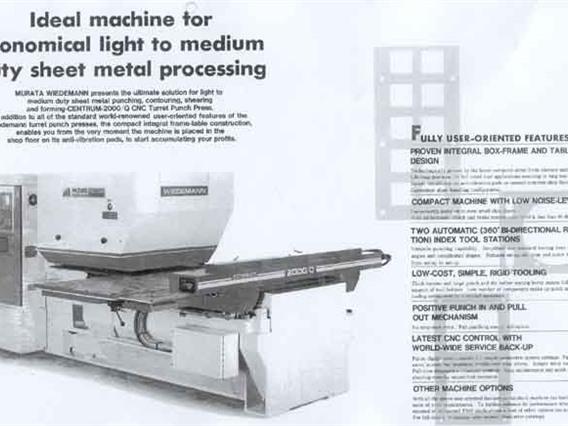

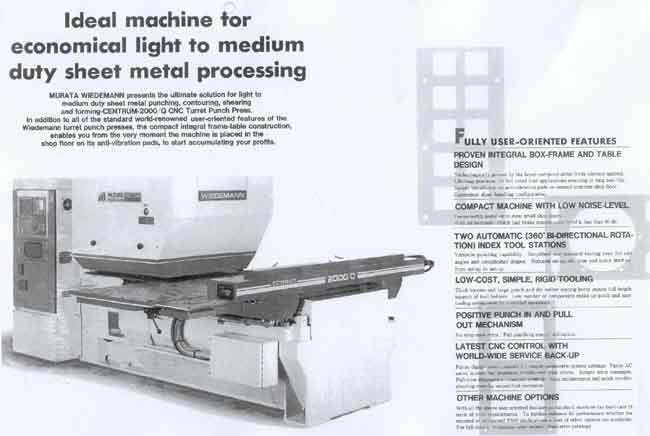

Murata - Wiedemann : Met gereedschap -- Avec outilages -- With Tools Auto index - Hydraulic clutch & brake Nibbeling hit at max 5 mm pinc :420 hits/min Punching hitrate at 25 mm pinch : 200 hits/min 2 x rotation
Tip/Model: Centrum 2000
Stok numarası: O.19 1476 *04
Kategori: [O] Doğrama tezgahları, Rulolama, hedefleme makineleri, kaynak makineleri, ateşli kesim makineleri, metal plaka kesme makineleri ve yarma tezgahı
Alt kategori: [O.19] Ponsmachines & Ponsnibbelmachines
Marka: Murata cnc

Stok numarası: O.19 1476 *04
