Radiaalboormachines Tos Mas VR6A Mk5

Name: Tos Mas VR6A Mk5
Brand: Tos Mas VR6A
SKU: C.02 9251

Ürün favorilere eklendi

» Kişisel fiyat talep edin

Teknik Bilgiler

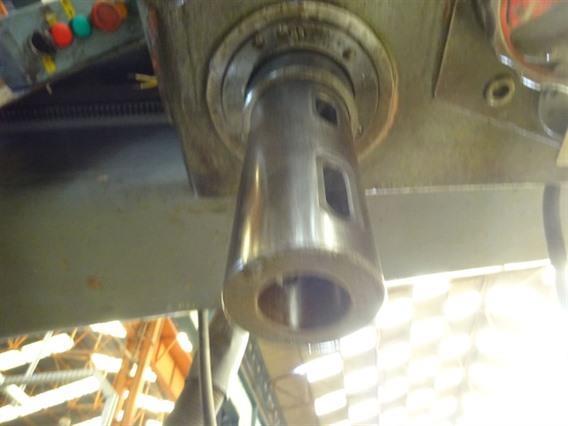

Admission in drilling-spindle (morse)Mk5
Max drilling capacity60 mm (steel 60 kg/mm²) / 80 mm (cast iron 25 kg/mm²)
Base dimensions (1) Table dim (2) 2850 x 1100 mm
Longitudinal travel drilling-head (X-axis)1613 mm
Height-travel arm (Y-axis)950 mm
Min dist. round column--drillingsp (X-axis)440 mm
Max dist.round column -- drillingspindle2000 mm
Dia spindle88 / 45 mm
Max drilling-depth380 mm
Admission in spindleMORSE 5
Speeds16-1400 rpm
Dricen gear (from -- to)10
Power on the spindle7,5 kW
Height3250 mm
Weight1300 mm
ACCESSORIES3900 mm
Cooling system6,4 ton

Ek bilgi

max distance between table and spindle: 1860 mm
Tip/Model: Mk5
Stok numarası: C.02 9251
Kategori: [C] Matkap
Alt kategori: [C.02] Radiaalboormachines
Marka: Tos Mas VR6A

» Kişisel fiyat talep edin

Stok numarası: C.02 9251

ZIP formatındaki tüm fotoğrafları indirin
