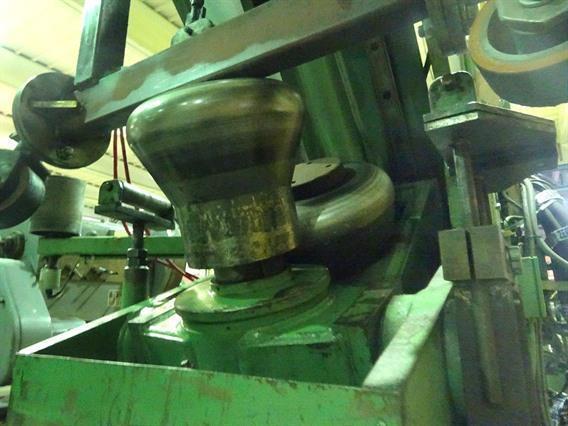

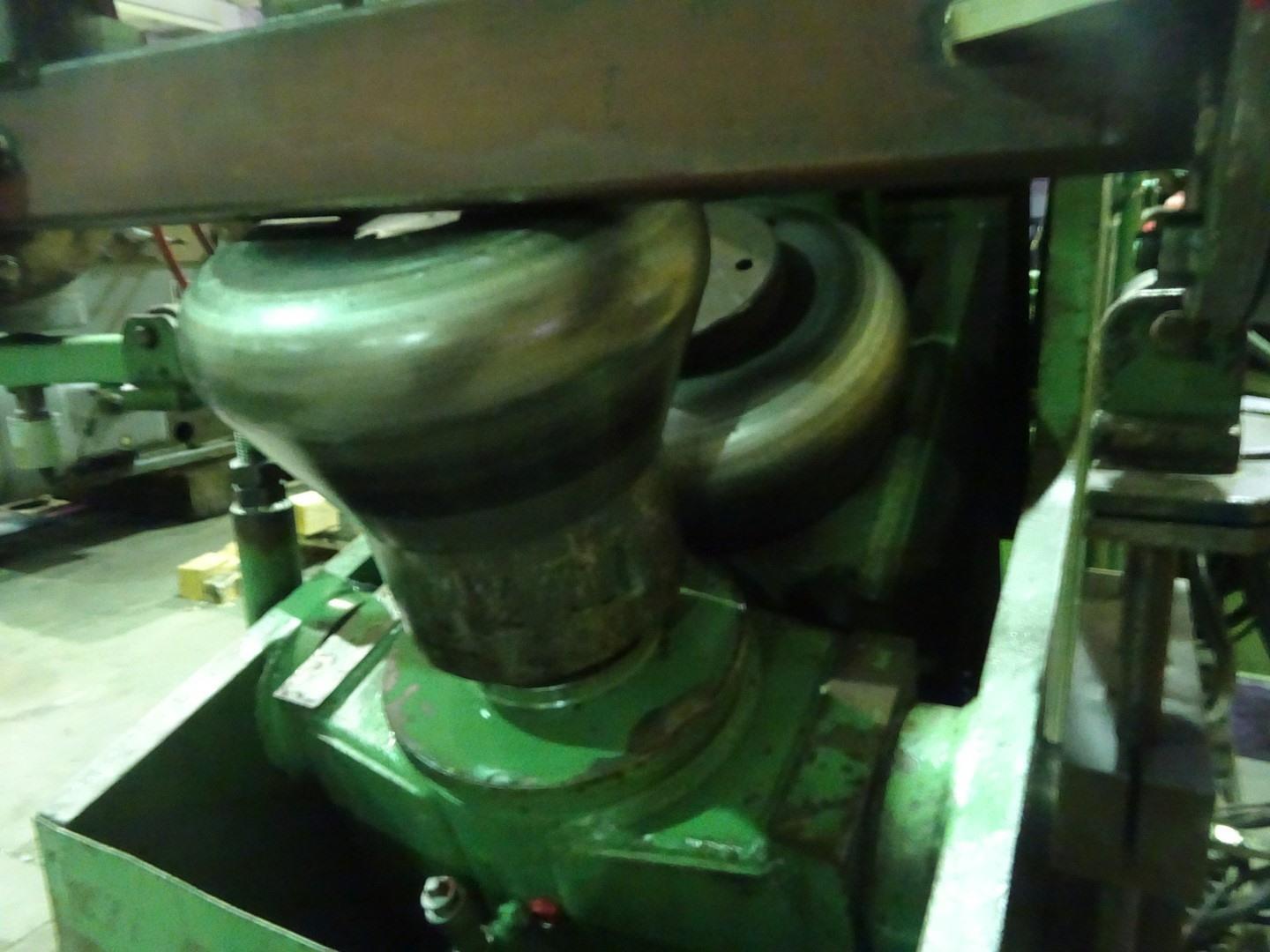

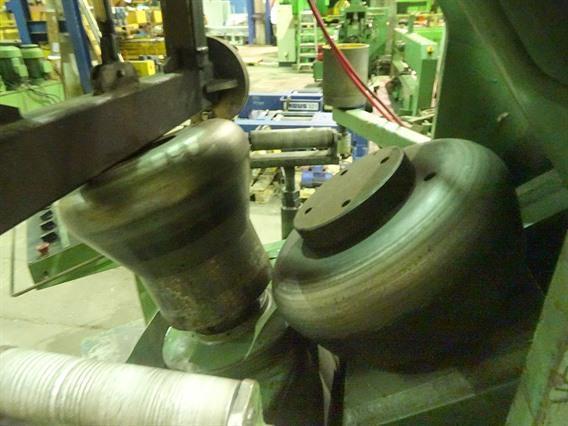

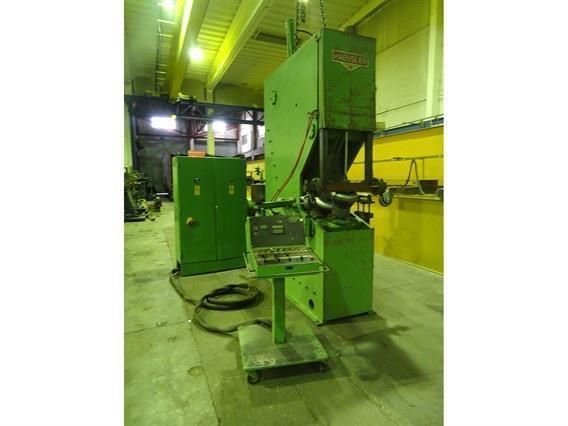

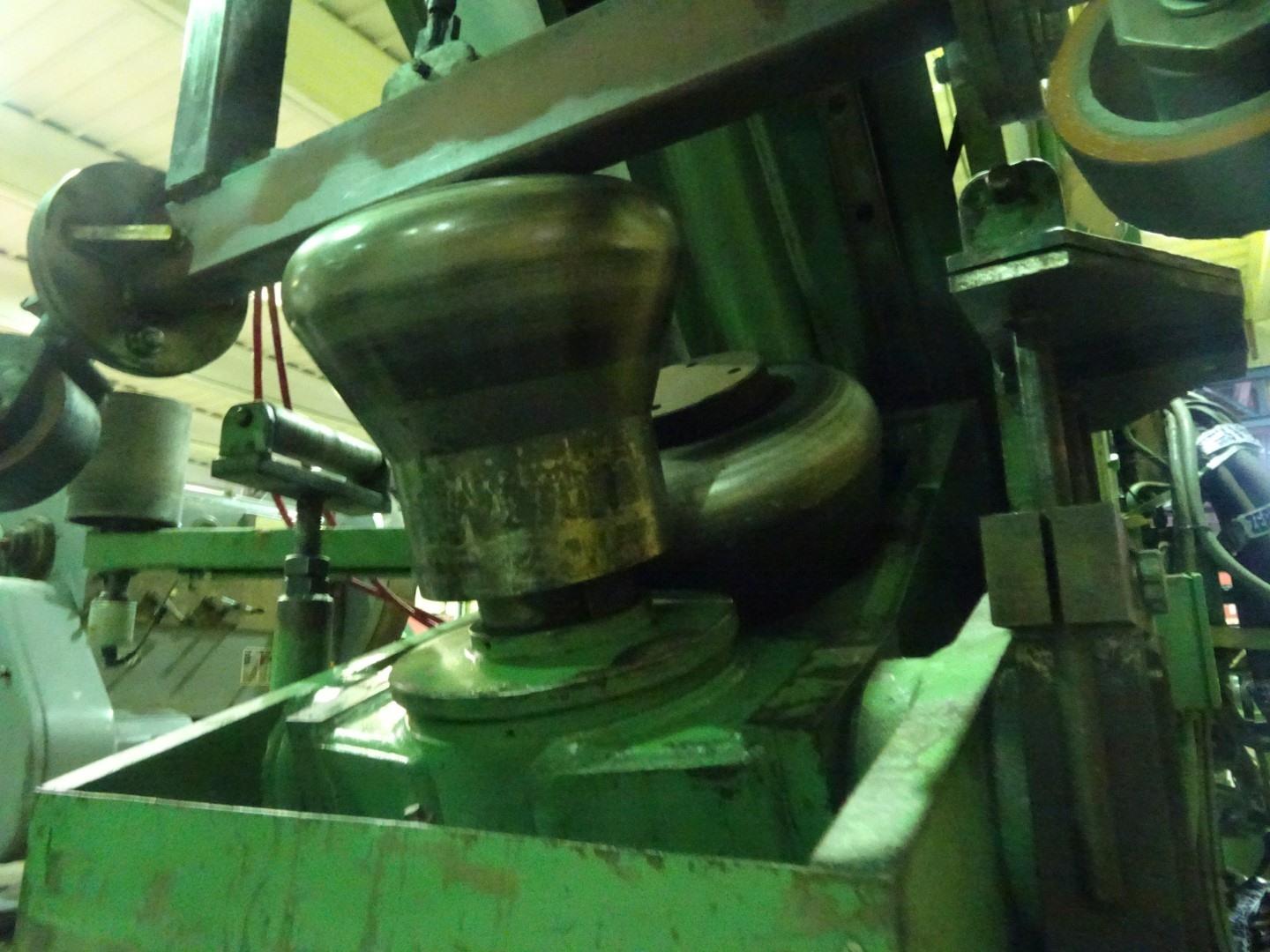

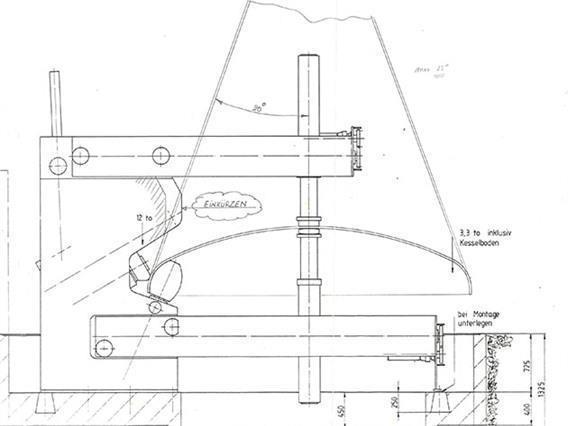

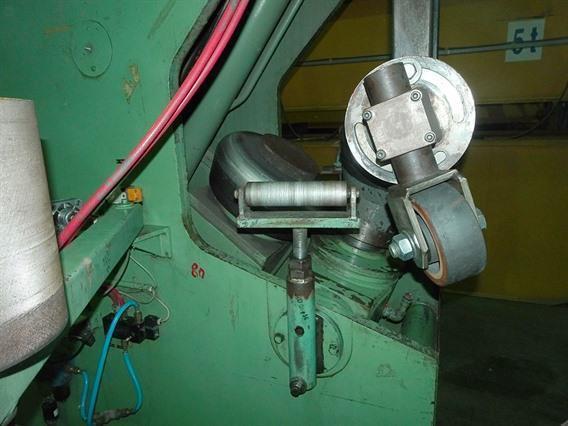

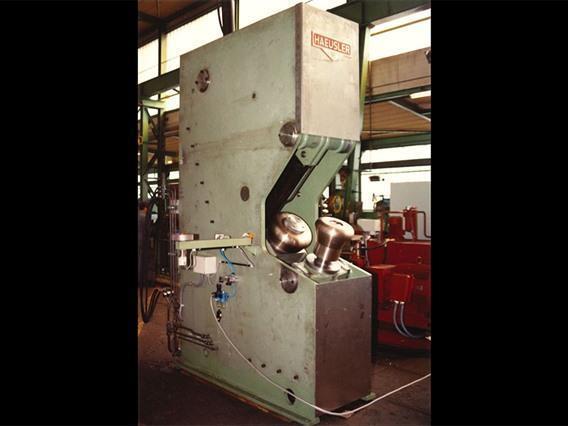

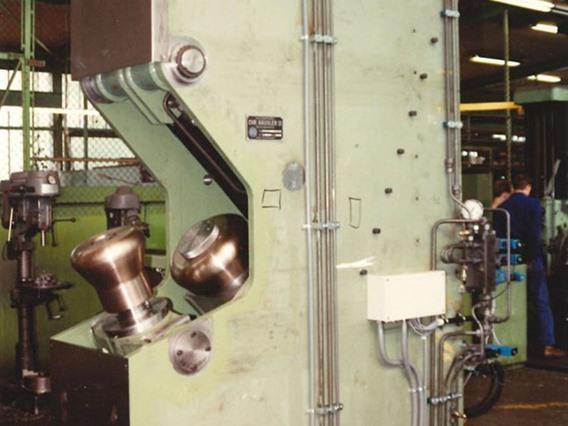

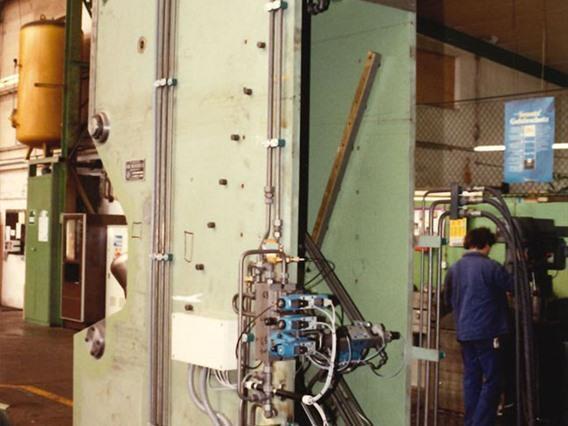

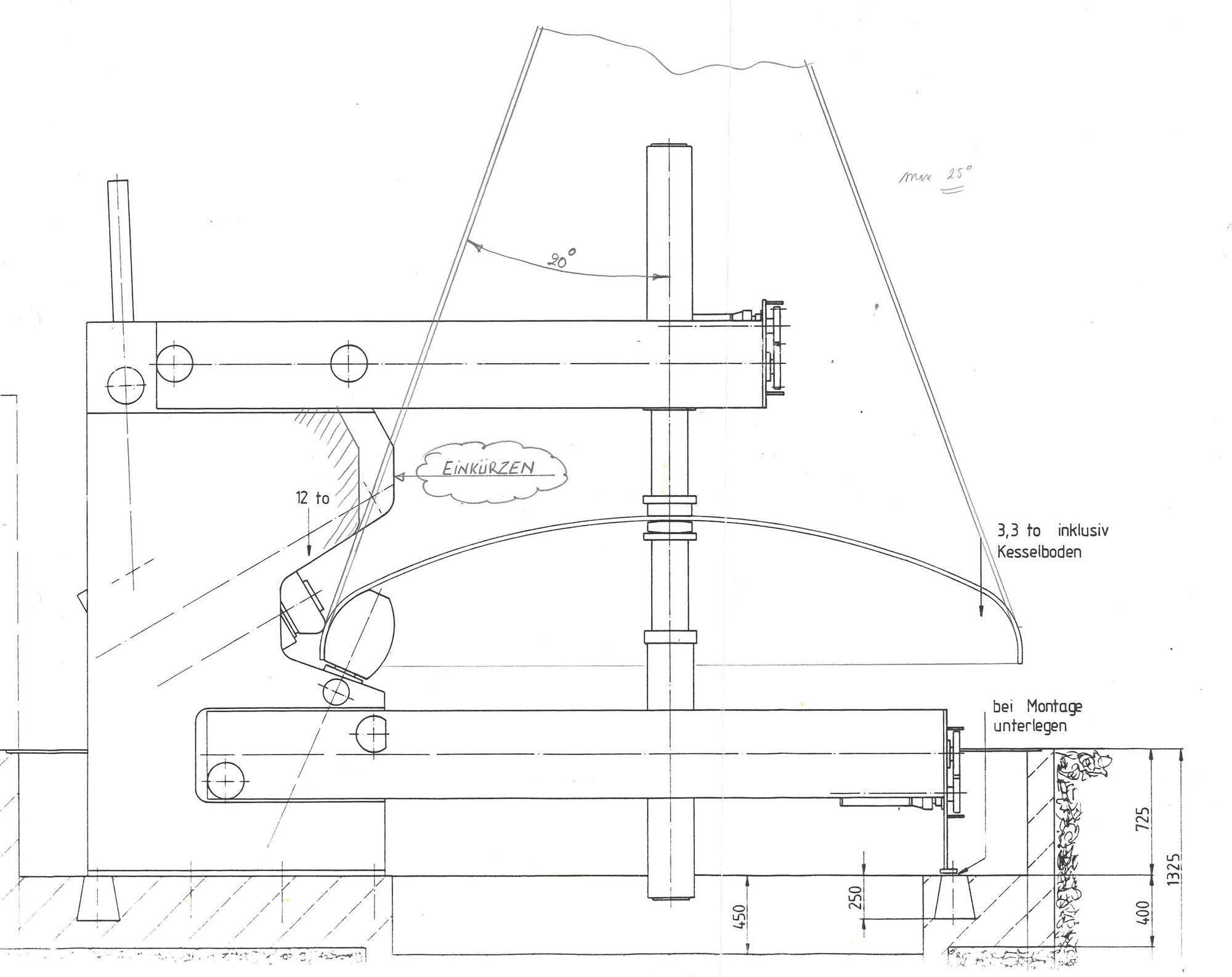

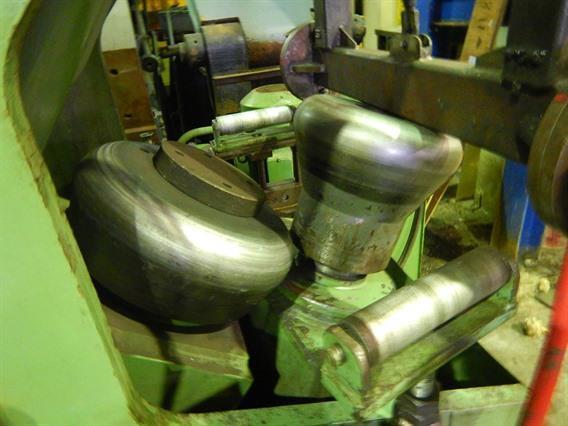

Type: HBM Flanging machine. Suitable for cold rolling of various types of fine-grained steel, stainless steel, normal steel and aluminium >> This machine is custom made in order to be able to form cone bottoms
max thickness: 20 mm max height of flange: 100 mm max flange radius (excl bottom): 150 mm max dilution within the keratinization zone: 10 > 12% min workpiece diameter: 1200 mm 2 driven rolls max pivoting angle of forming roll: 20° working speed: 1 > 150 m/min power: 79 kW weight: 16 ton
Kesselboden - Bördelmaschine - Konusboden
