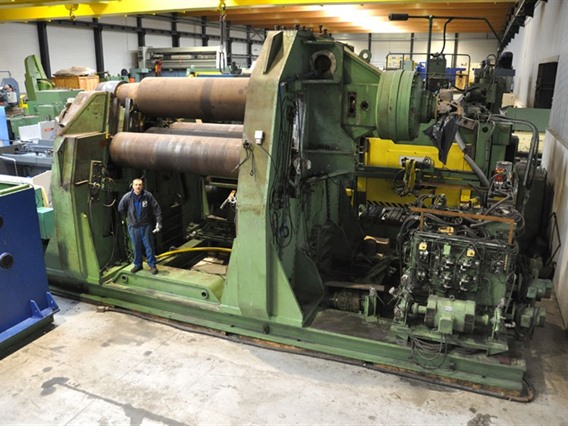

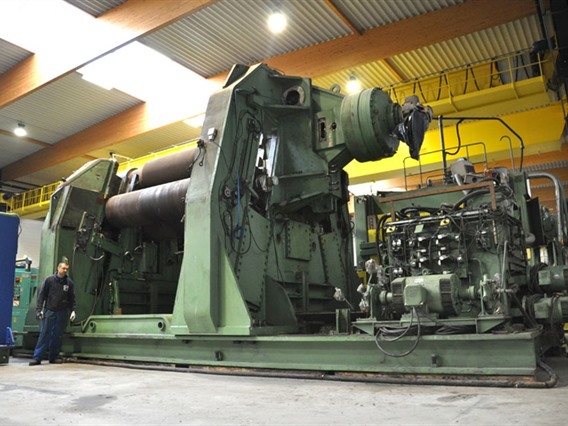

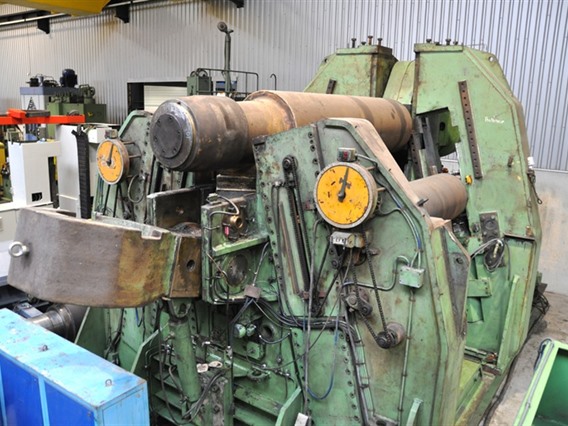

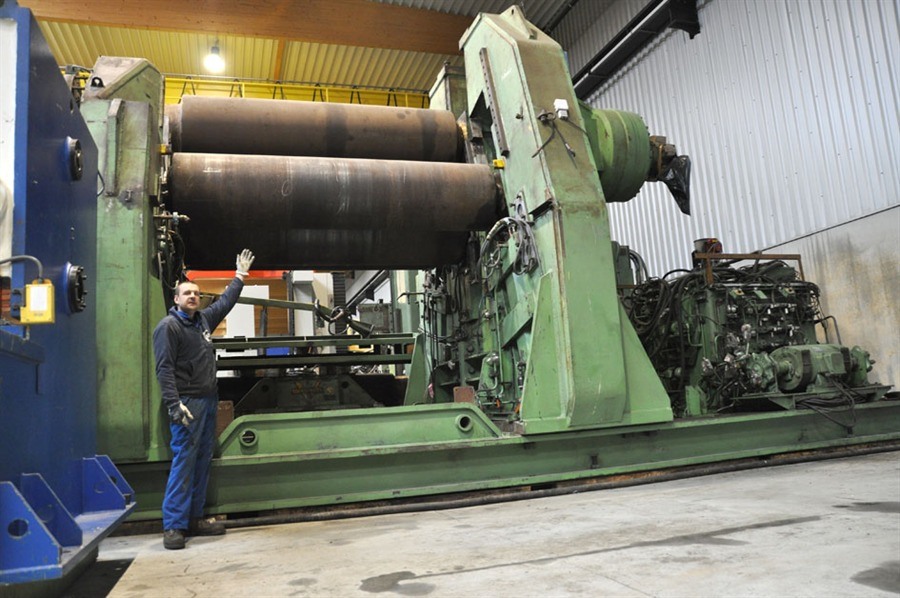

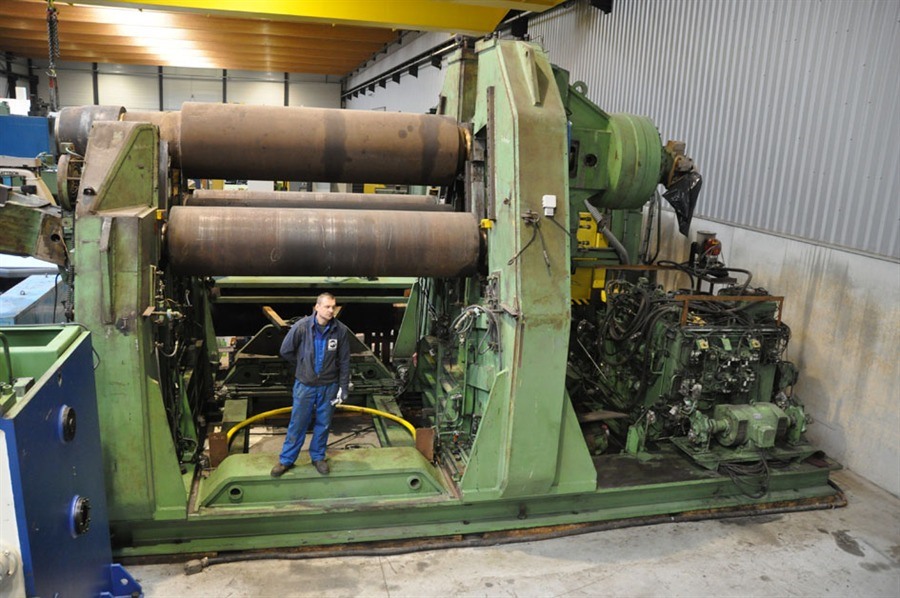

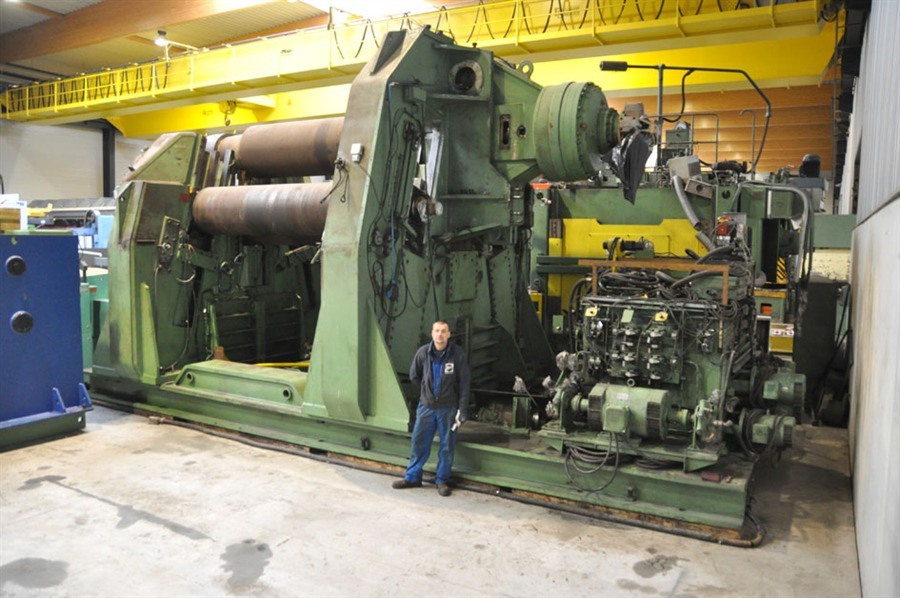

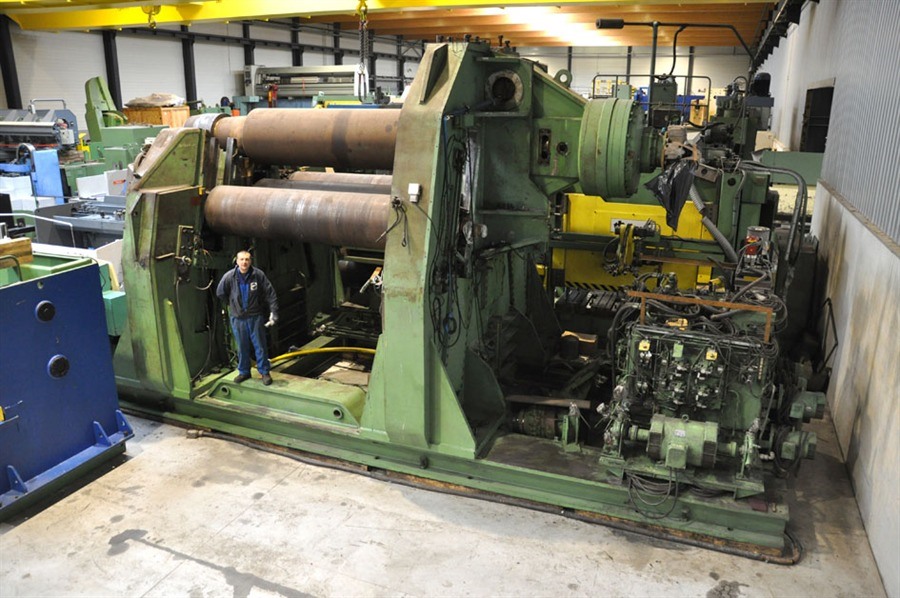

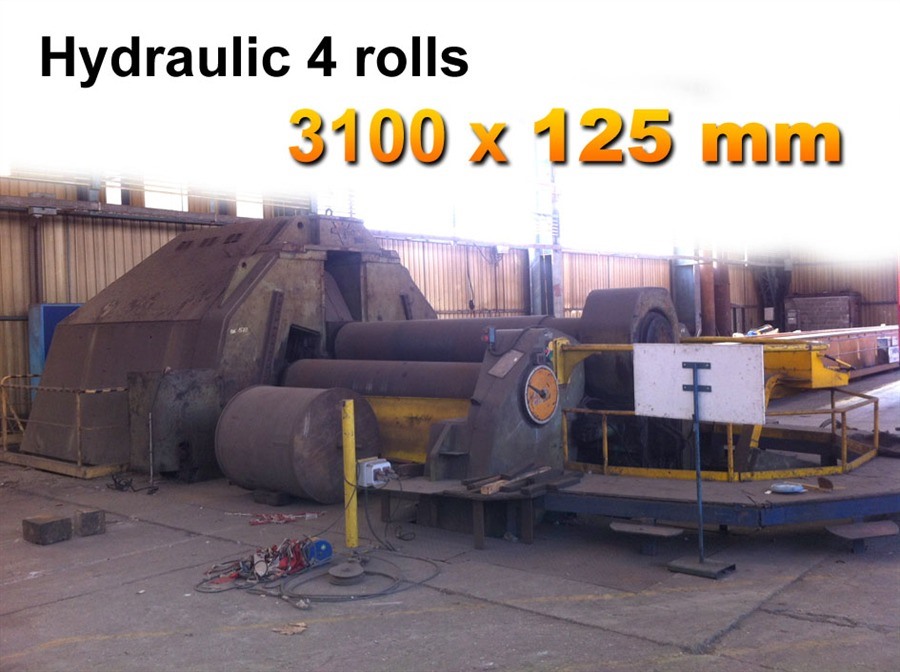

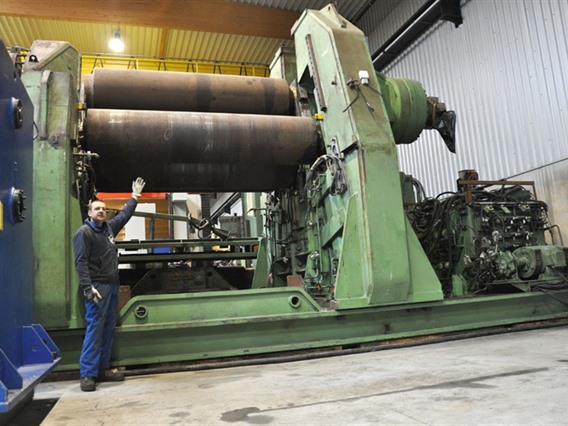

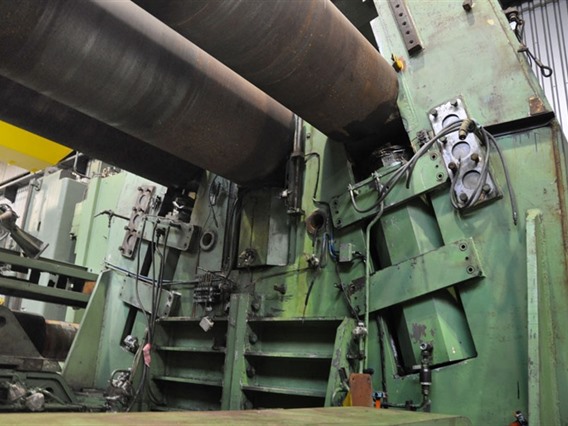

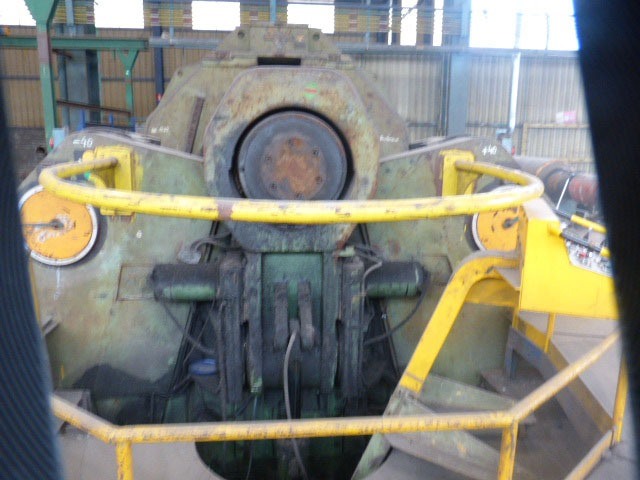

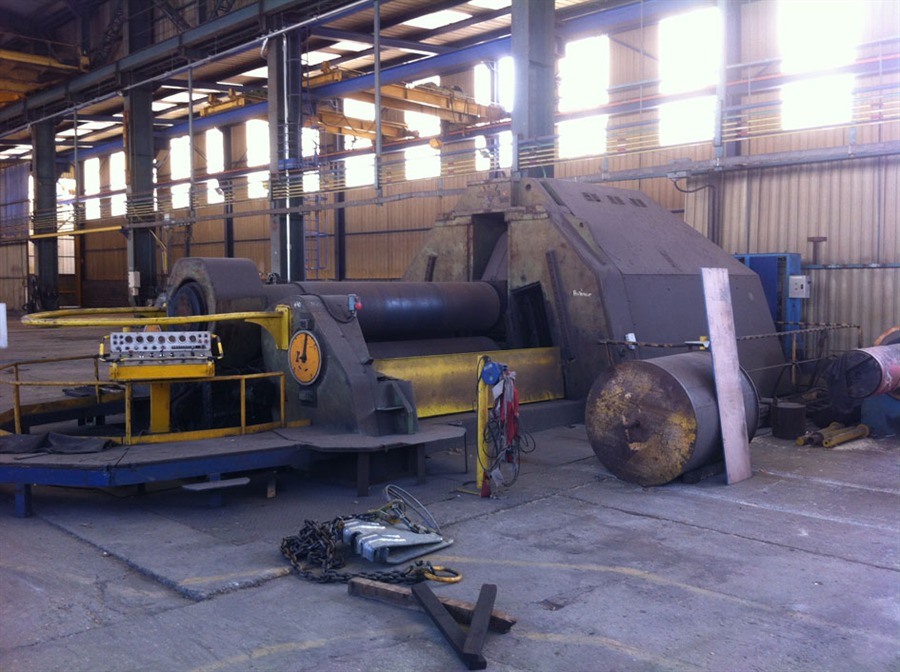

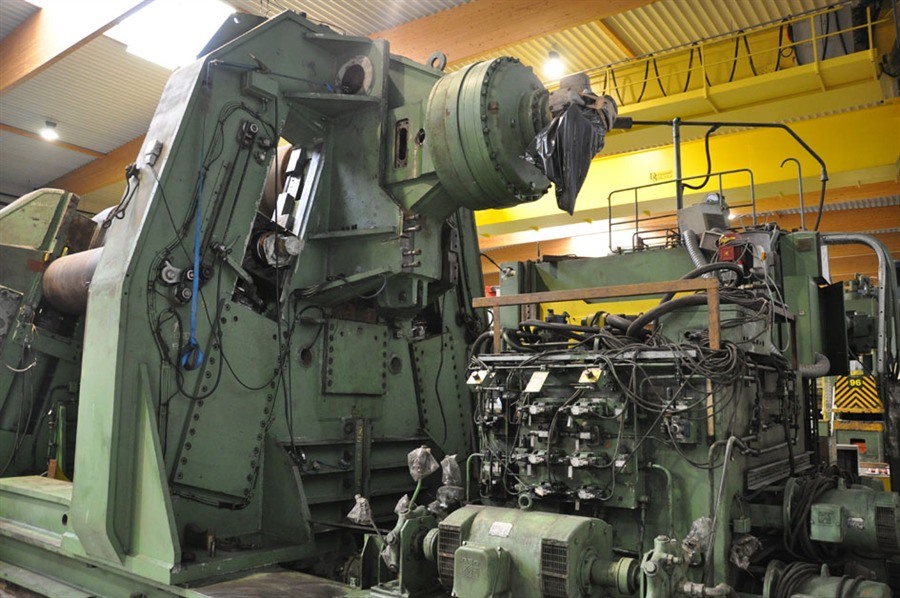

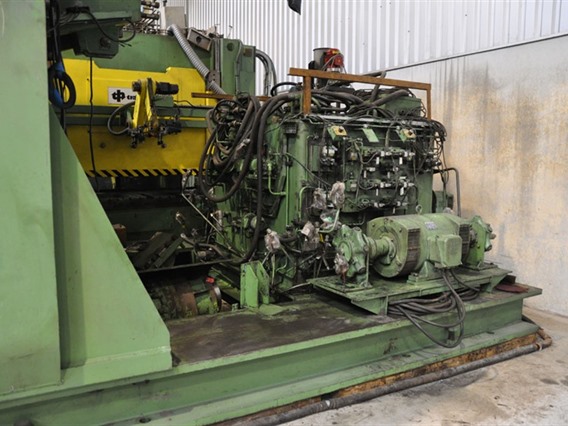

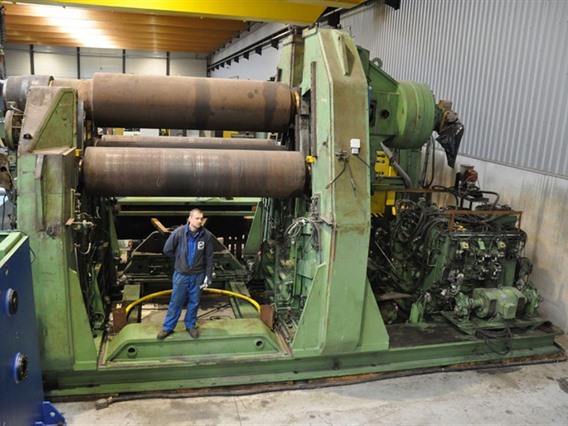

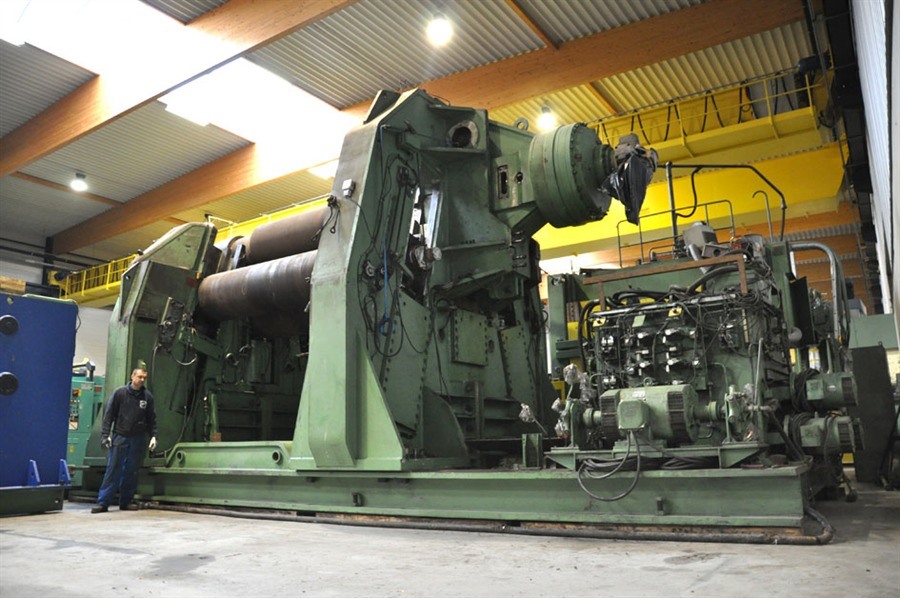

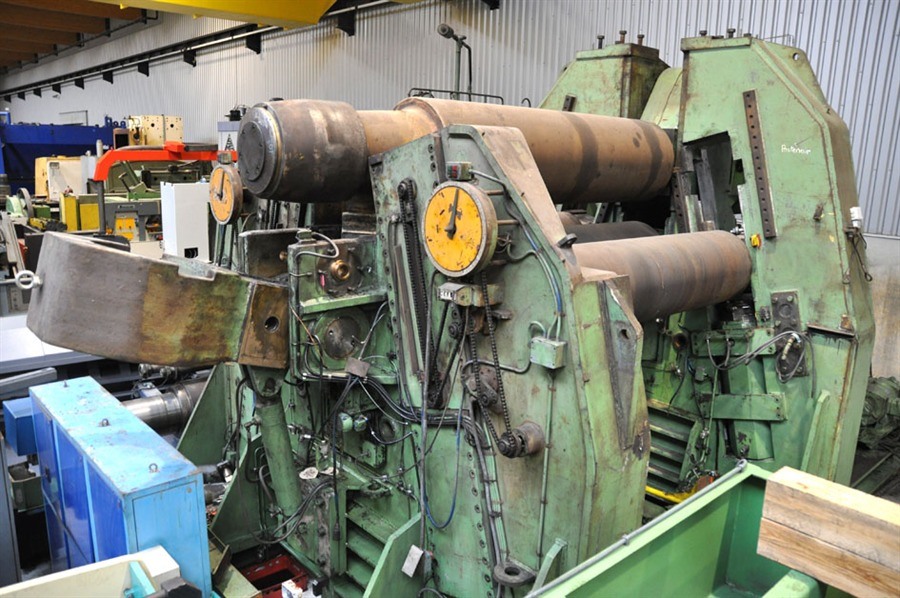

Verrina 3100 x 125 mm

Ürün favorilere eklendi

» Kişisel fiyat talep edin

Teknik Bilgiler

Number of rolls4
Roll capacity (L x thickness) cold3100 x 125 mm
Roll capacity (L x thickness) warm3100 x 180 mm
Mechanical (1) -- Hydraulic (2)hydraulic
Roll dia upside850 mm
Roll dia under rolls - Side rolls850 mm - 720 mm
Traction (separated Y/N) + number3 driven rolls
Power needed230 HP total
Length L -- R9000 mm
Depth fw -- Bw4300 mm
Hight3050 mm
Weight190 ton

Ek bilgi

top & side rolls hydraulicaly driven
110 HP on top roll

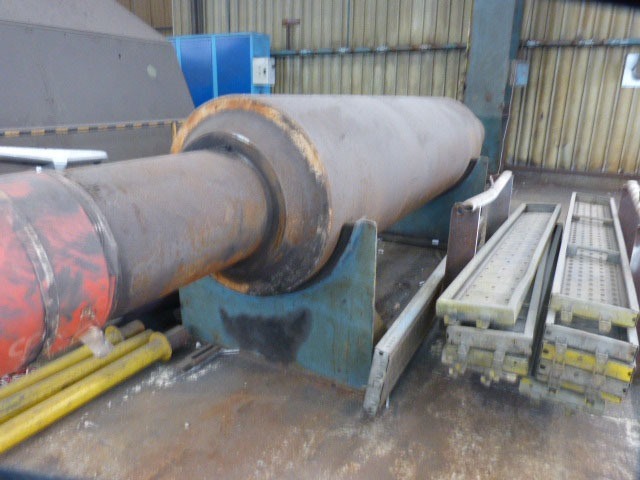

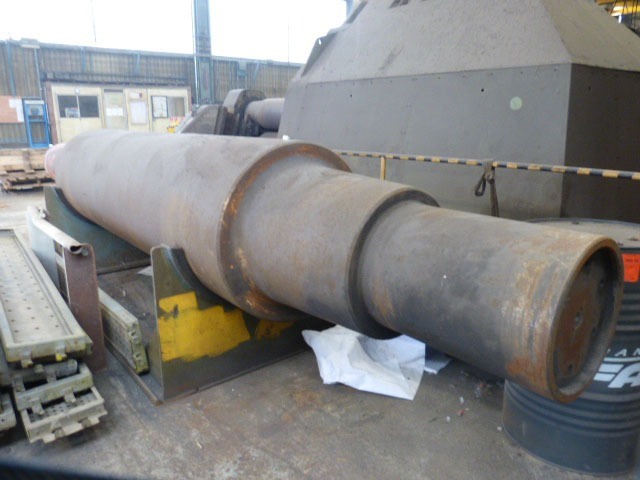

Extra top roll included, dia 660 mm
Hardened rolls treated with 50-NI-CR-No 7
Clamping force: 1000 ton
Conical bending

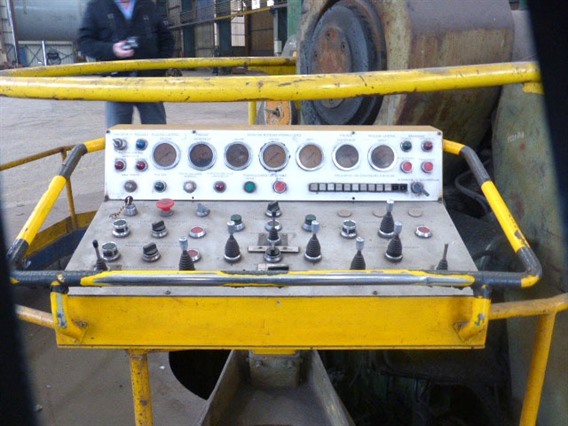

Electro mechanical control
Max open between rolls: 205 mm
Foundation needed: 10 500 x 5300 x 2400 mm
Tip/Model: 3100 x 125 mm
Stok numarası: O.06 8227
Kategori: [O] doğrama tezgahları, Rulolama, hedefleme makineleri, kaynak makineleri, ateşli kesim makineleri, metal plaka kesme makineleri ve yarma tezgahı
Alt kategori: [O.06] Rollenwalsmachines & Platenwalsmachines
Marka: Verrina

» Kişisel fiyat talep edin

Stok numarası: O.06 8227
