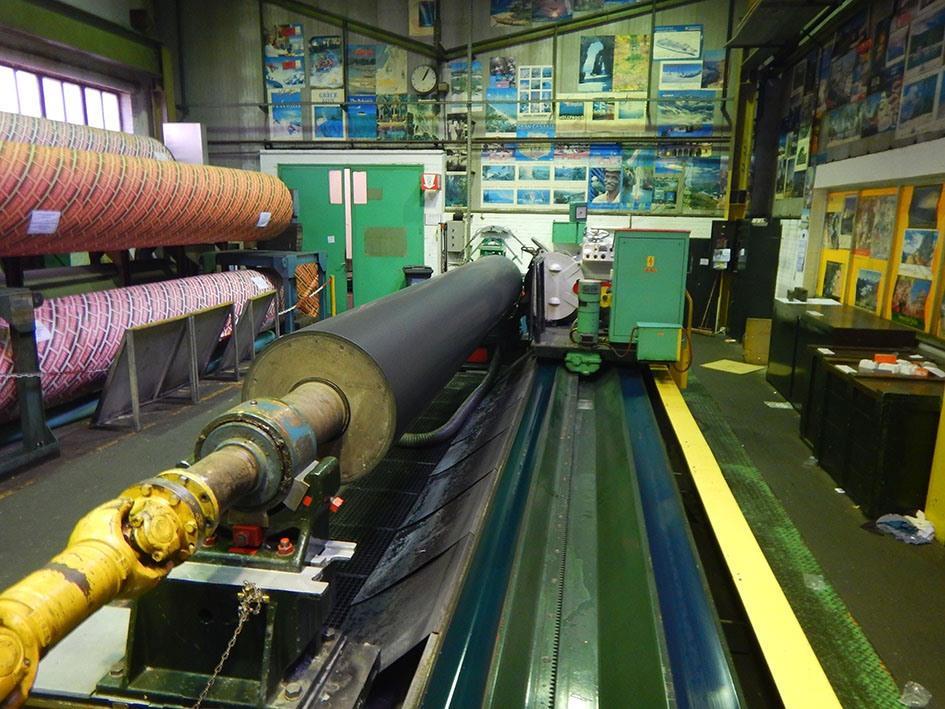

Voith rollgrinder Ø 2000 x 9000 mm
Teknik Bilgiler
- Center Distance9000 mm

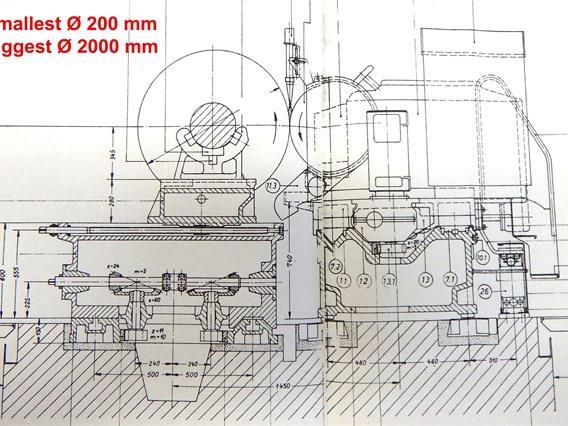

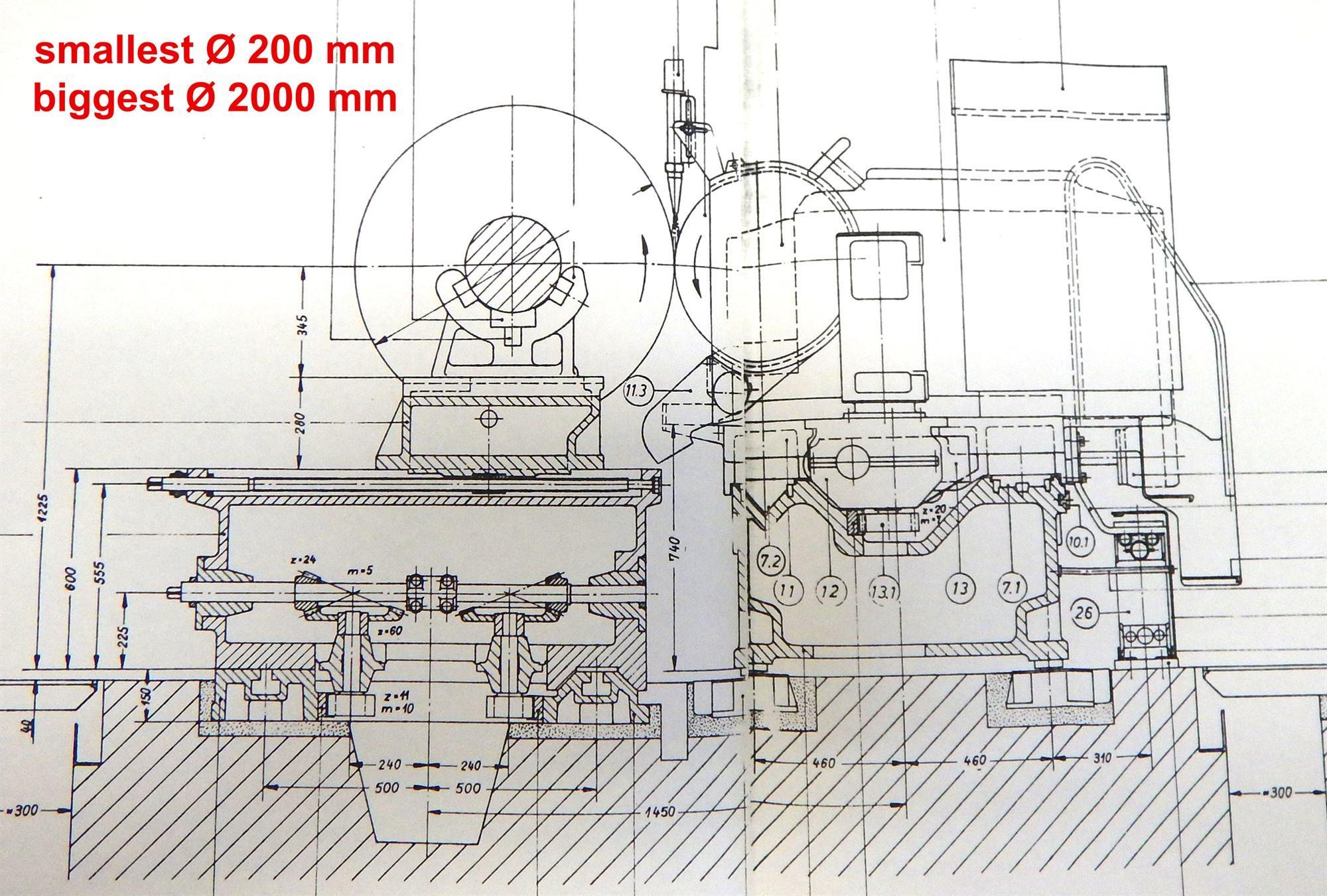

- Max diaØ 2000 mm
- Number of rotations grindingwheel50 > 2000 rpm
- Dia grindingwheel750 mm
- ACCESSORIESyes
Ek bilgi

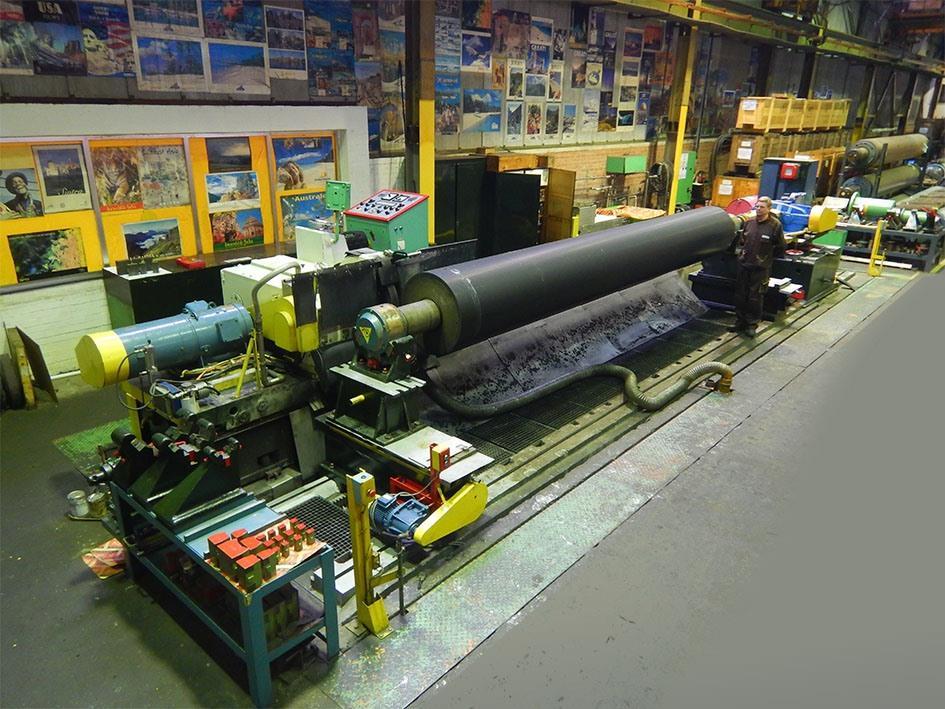

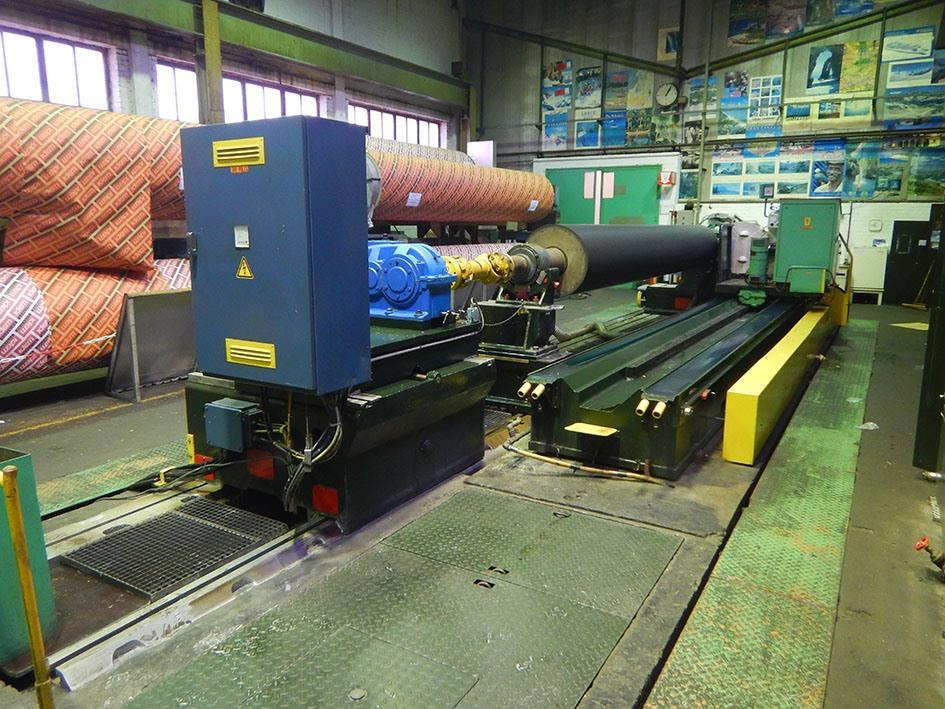

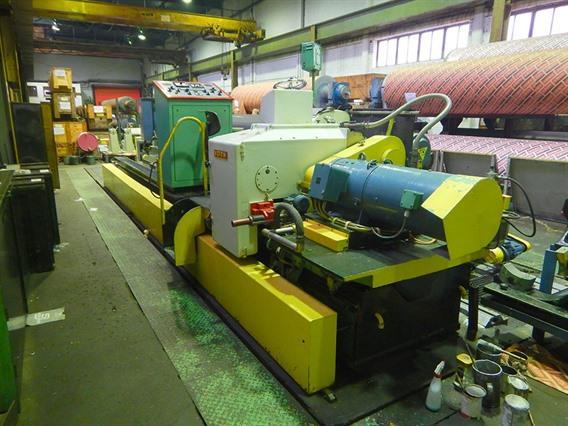

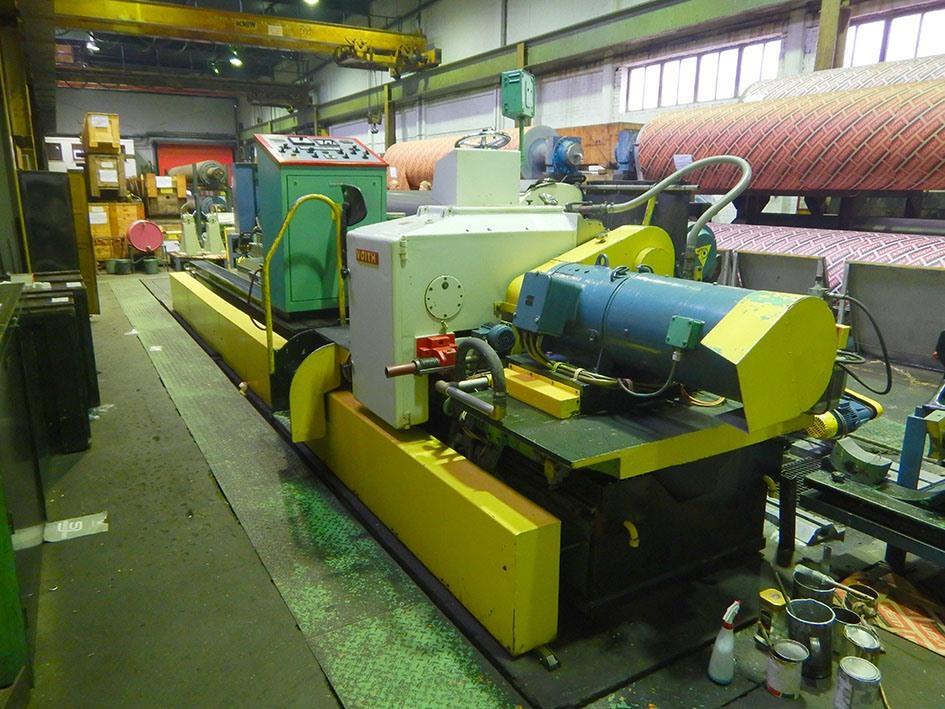

Rollgrinder Ø 2000 x 9000 mm

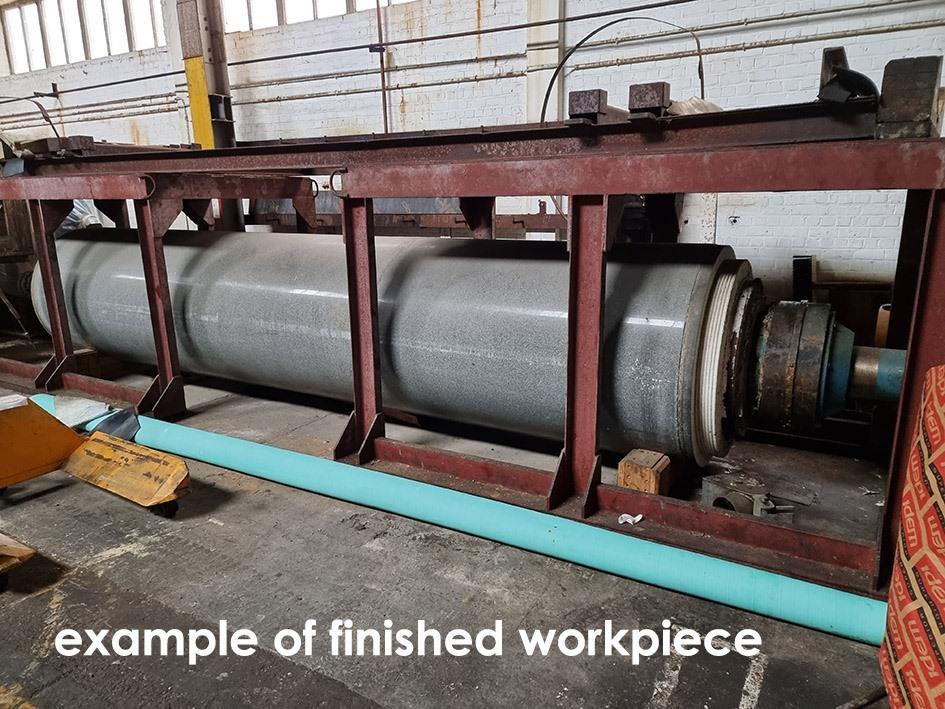

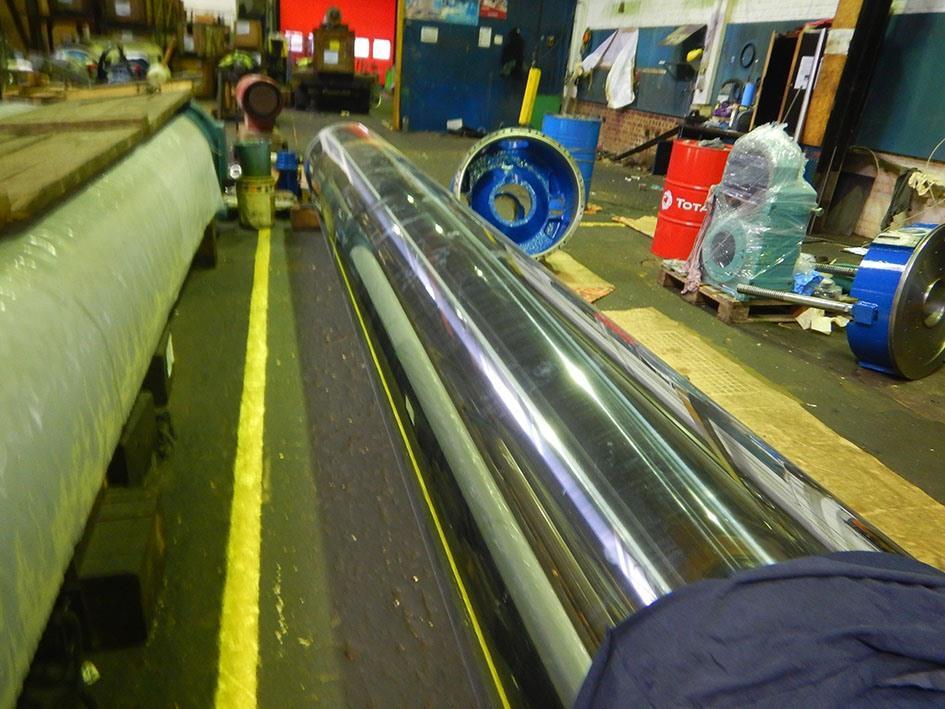

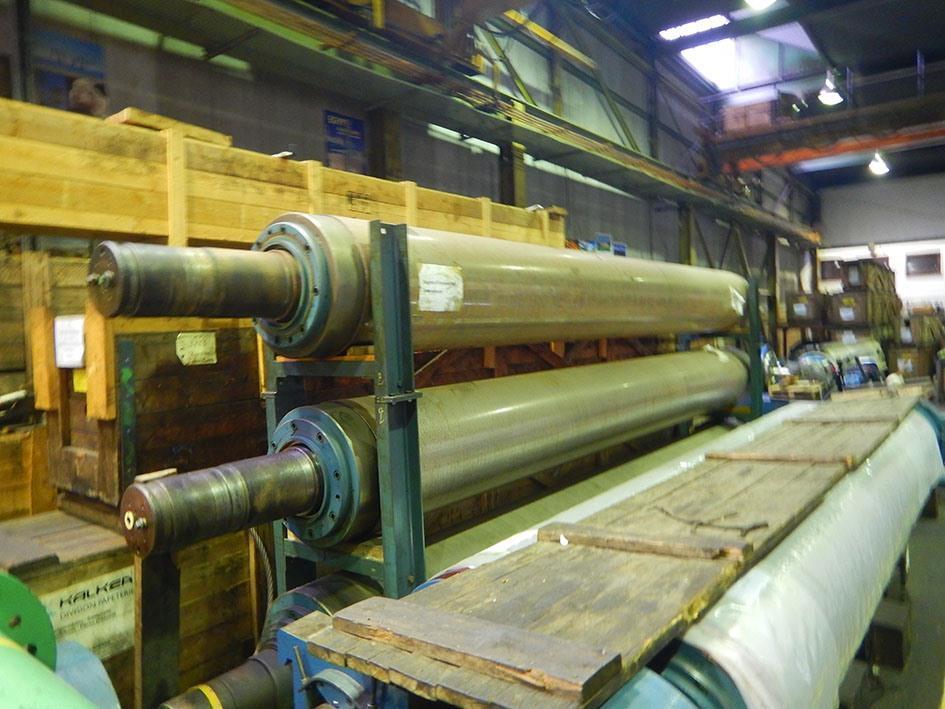

Can be used for grinding steel, stainless steel rolls & rubber rolls for printing industry and industrial applications

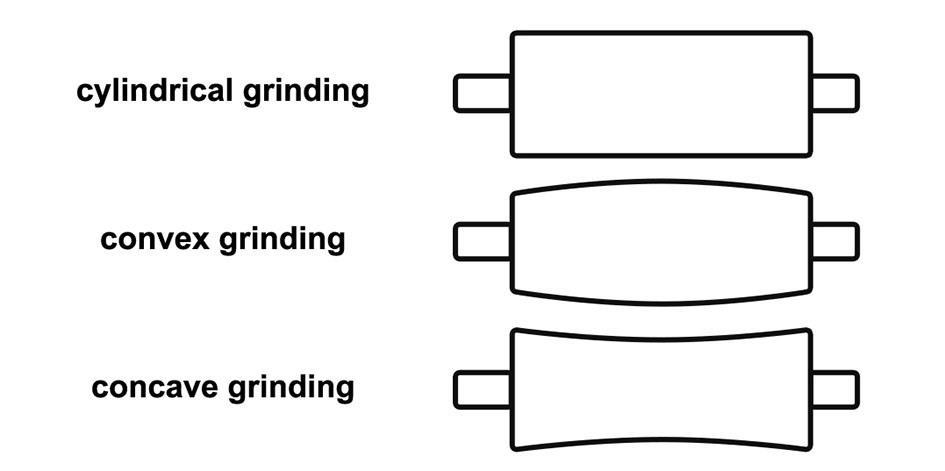

This mahine also has the capability of grinding rolls concave & convex!
Max roll weight: 45 ton

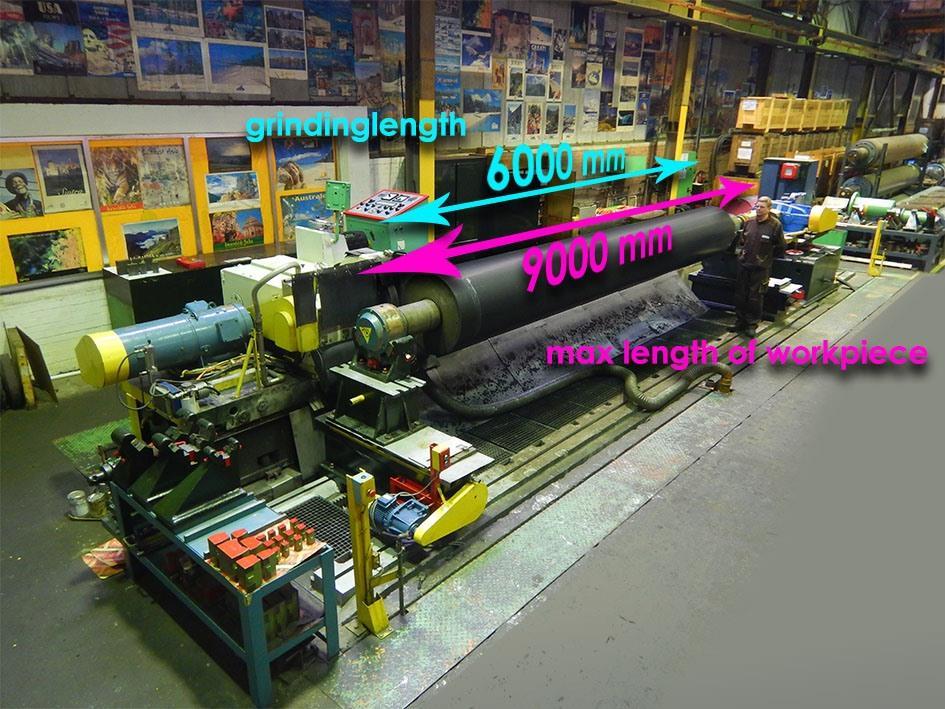

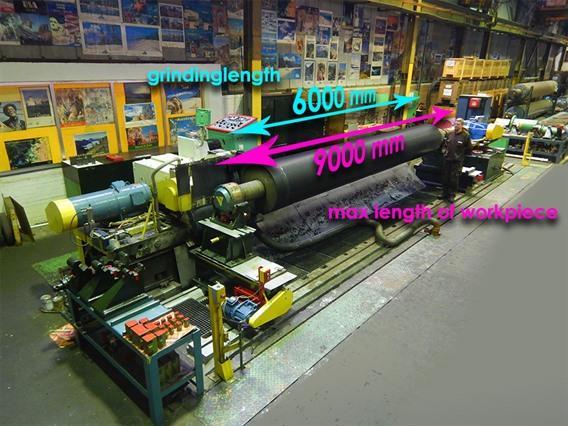

Max roll length: 9000 mm
Max grinding length: 6000 mm
Power on spindle for grinding: 30 kW

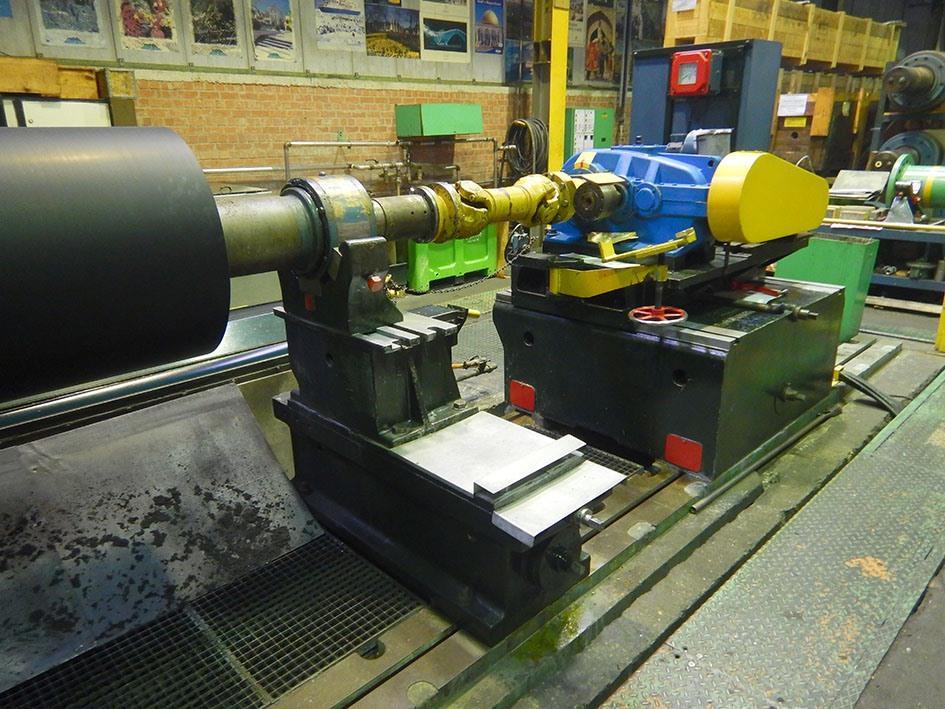

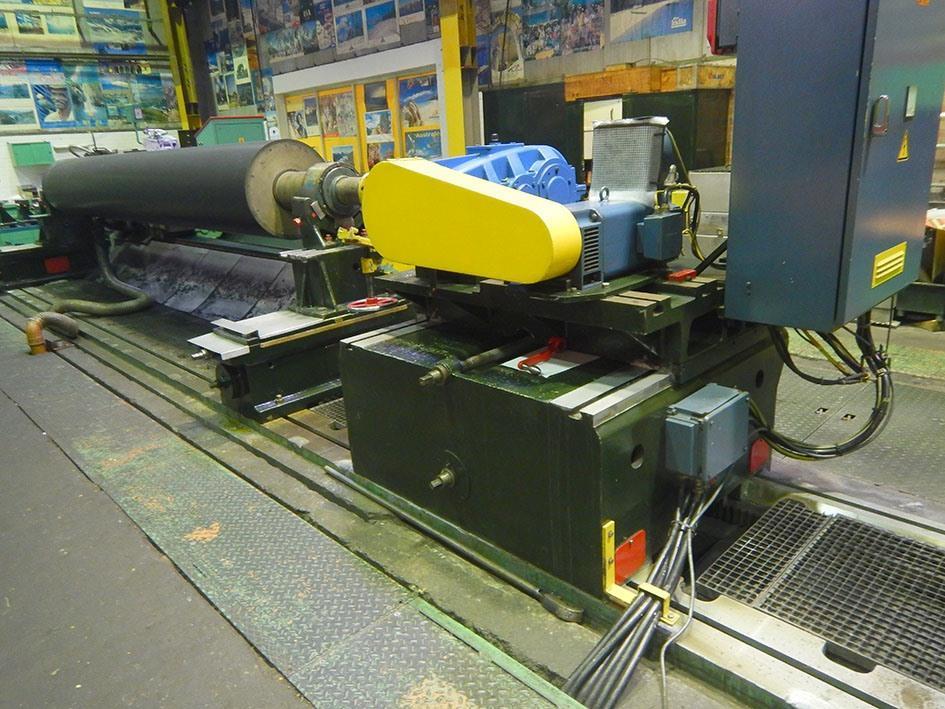

Power for turning the workpiece: 45 kW

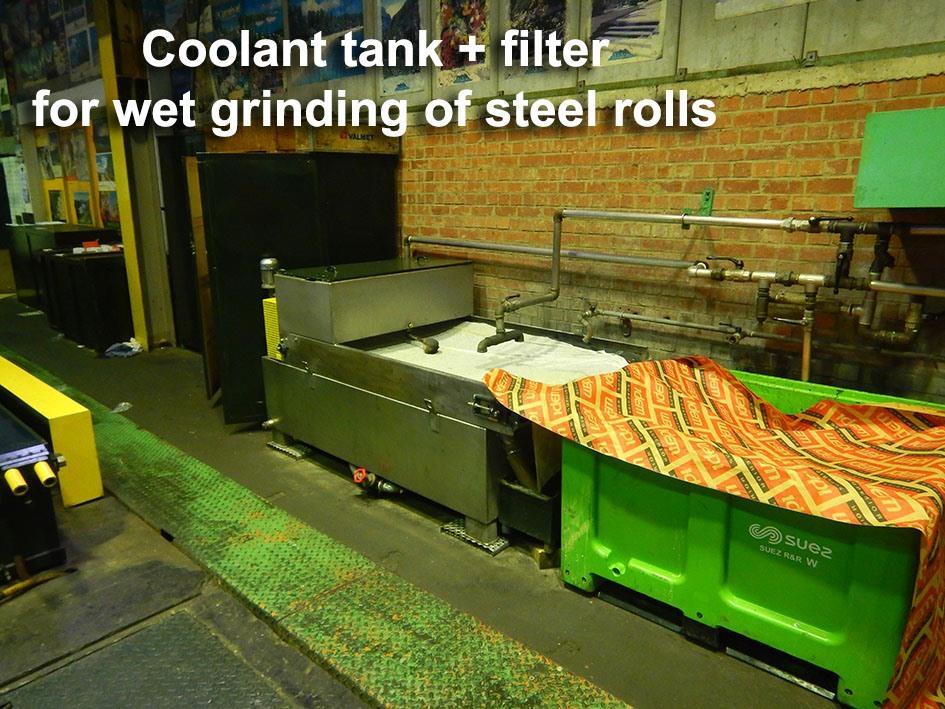

Equipped with cooling + filter when grinding steel rolls

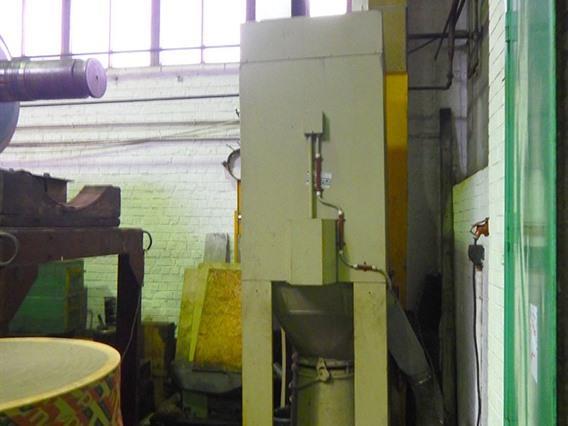

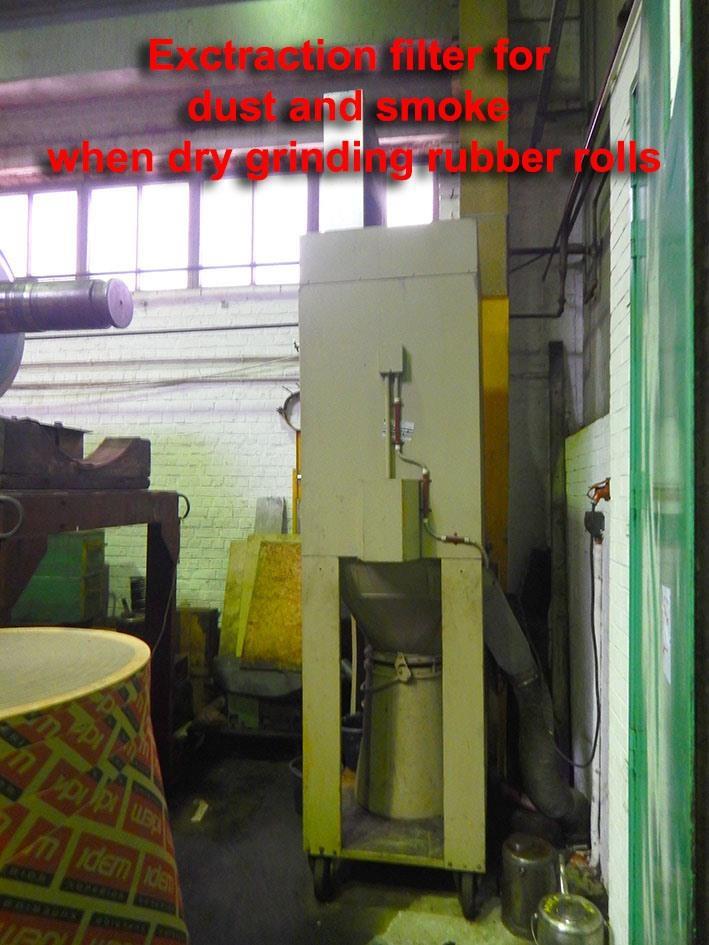

Equipped with extraction filter when grinding rubber rolls

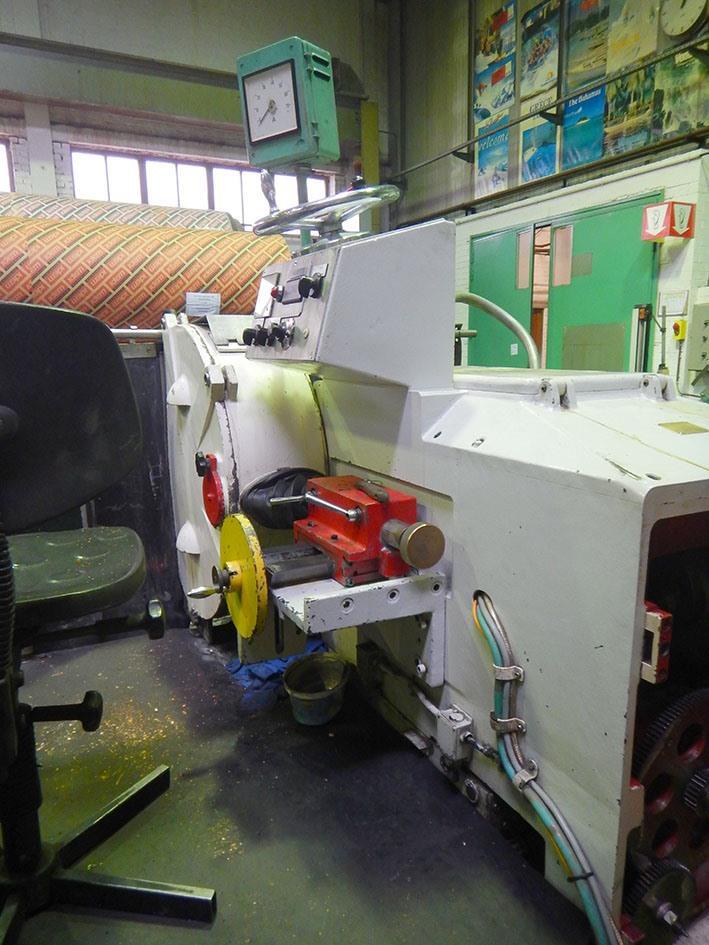

Equipped with system for grinding the wheel with a diamond tool.
Including:

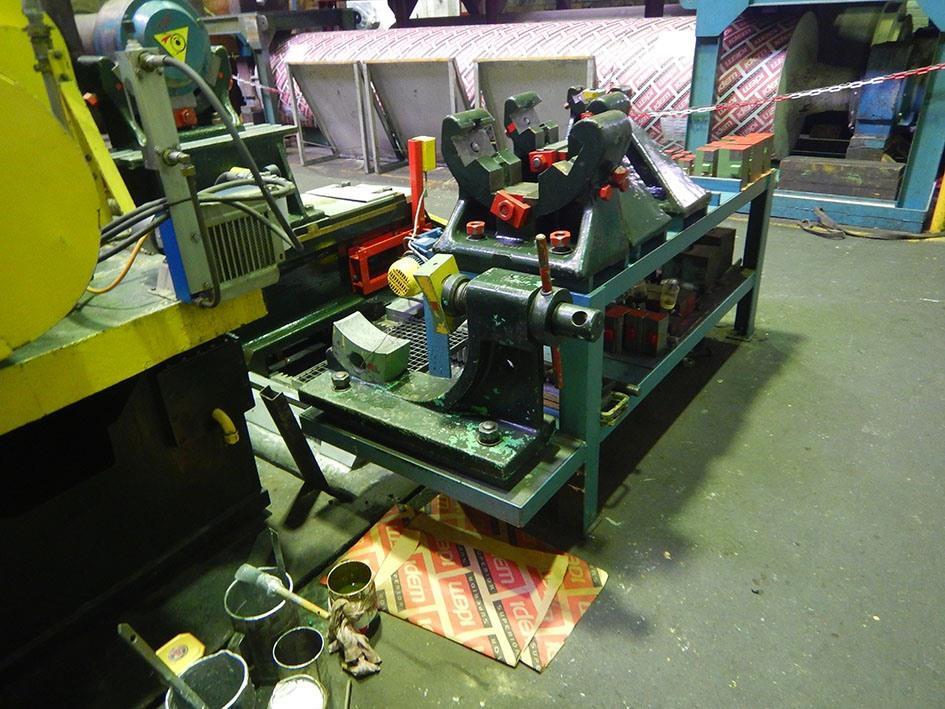

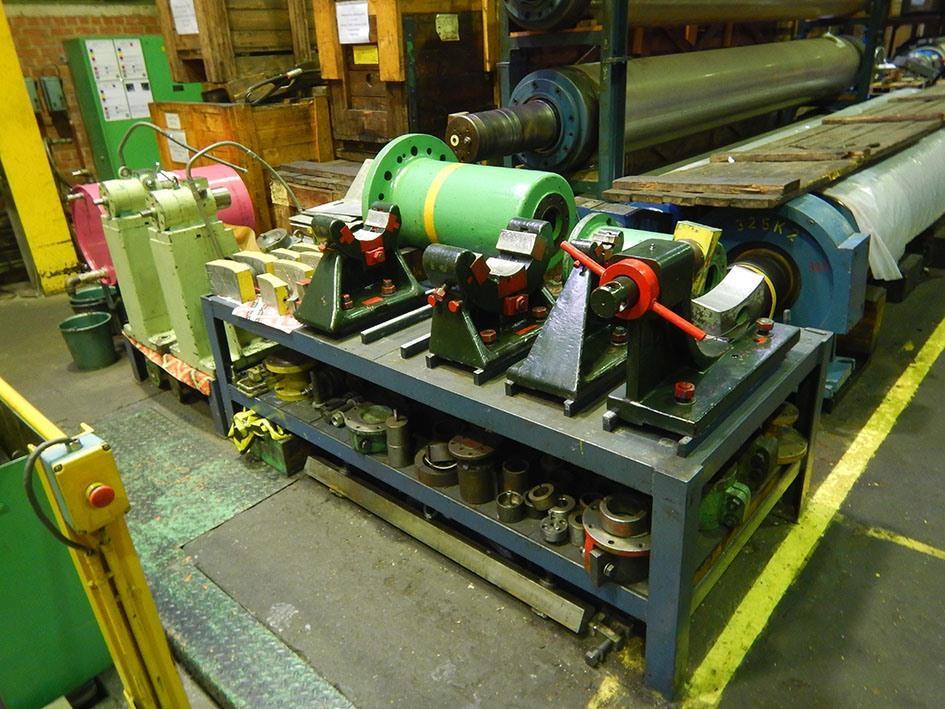

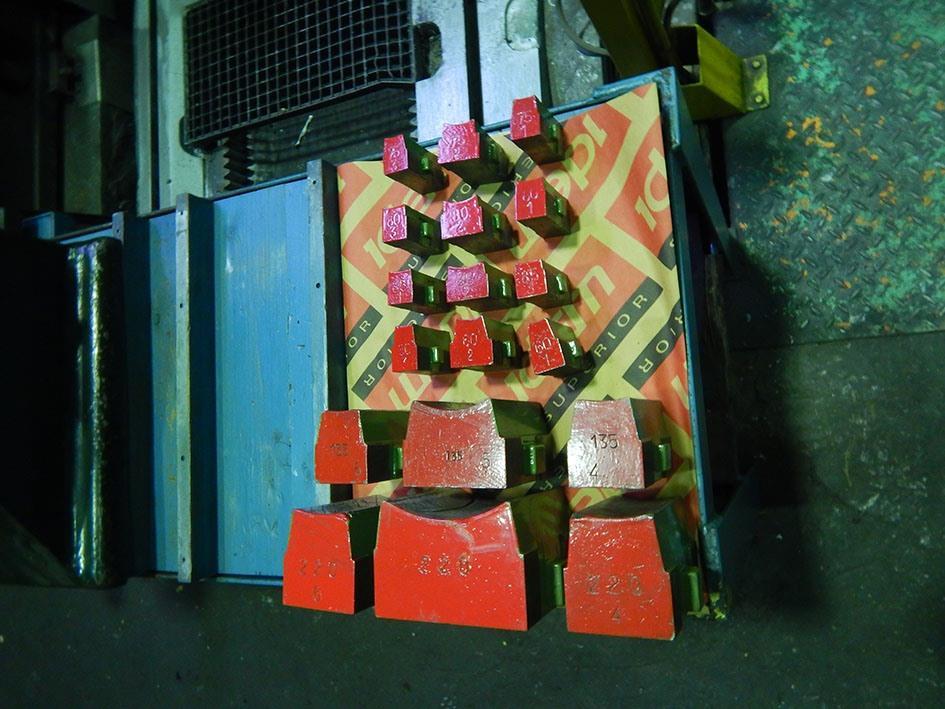

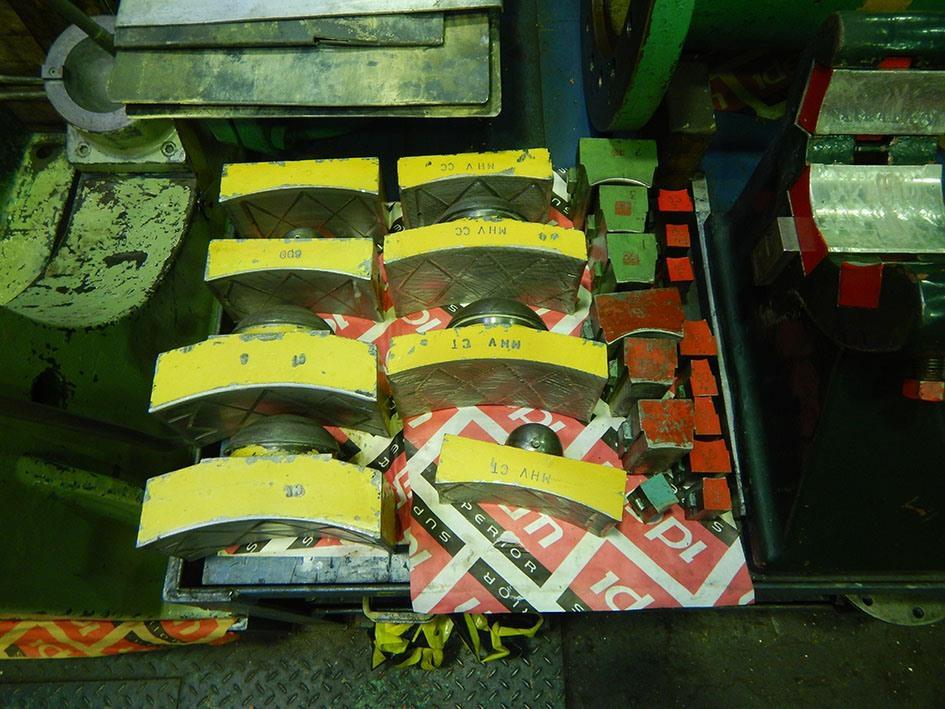

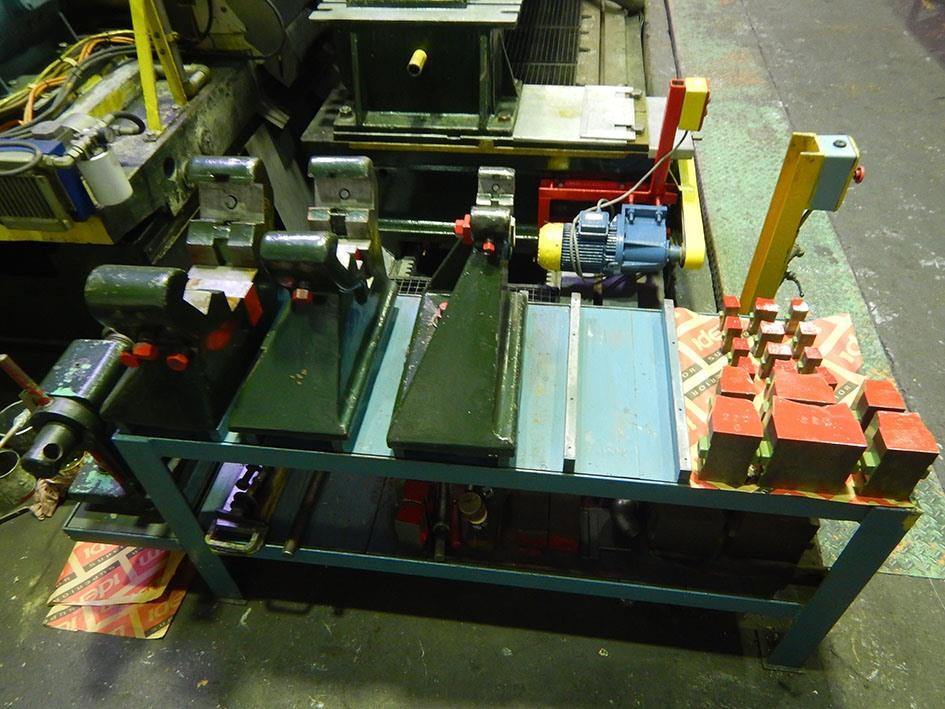

- many support blocs for different sized rolls

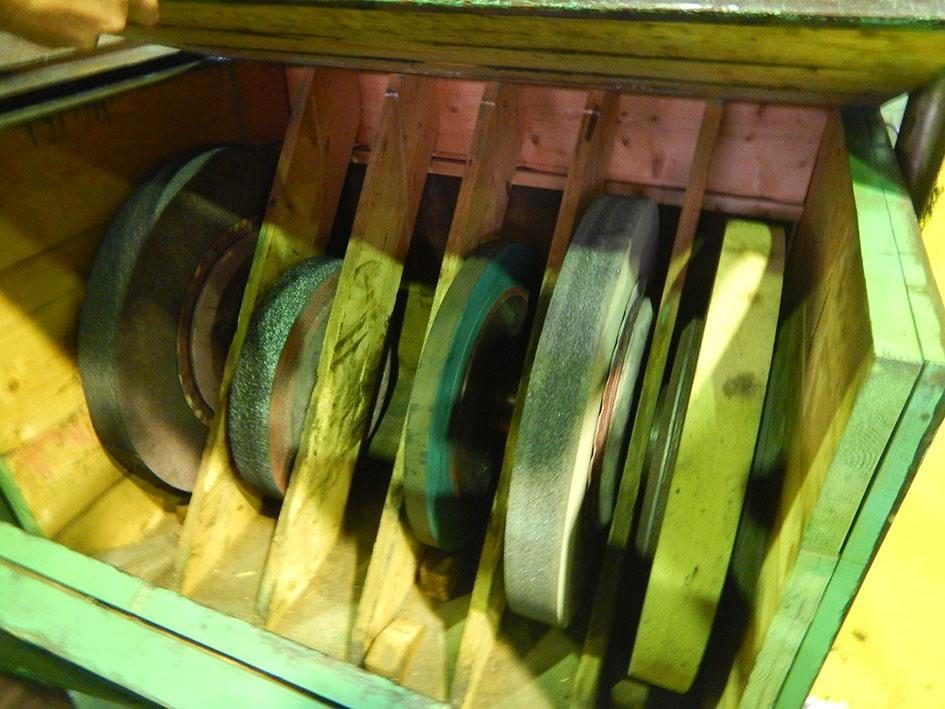

- many grinding stones for different materials of rolls
- Mess-matic measuring equipment for checking roll shape
Walzenschleifmaschine - rouleaux en caoutchouc - roller coating - graphic roller - industrial roller
- Tip/Model: rollgrinder Ø 2000 x 9000 mm
- Stok numarası: G.03 10902
- Kategori: [G] Törpü makineleri
- Alt kategori: [G.03] Rondslijpmachines
- Marka: Voith
