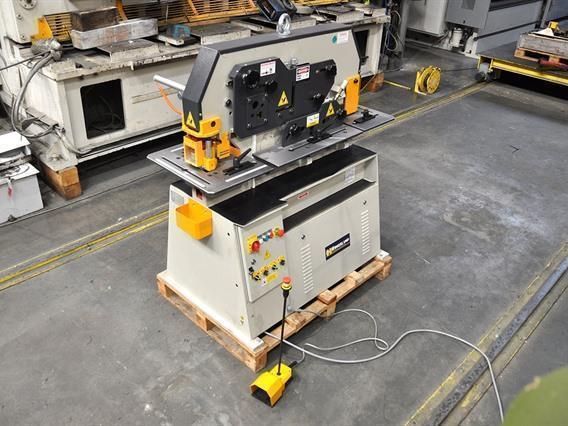

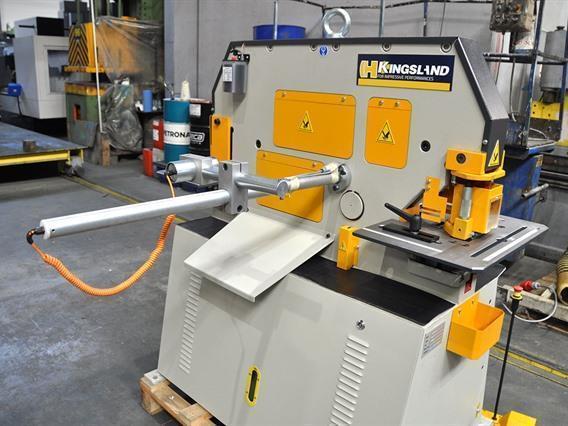

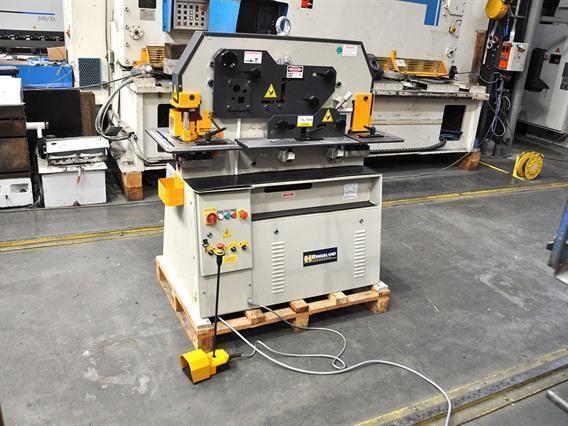

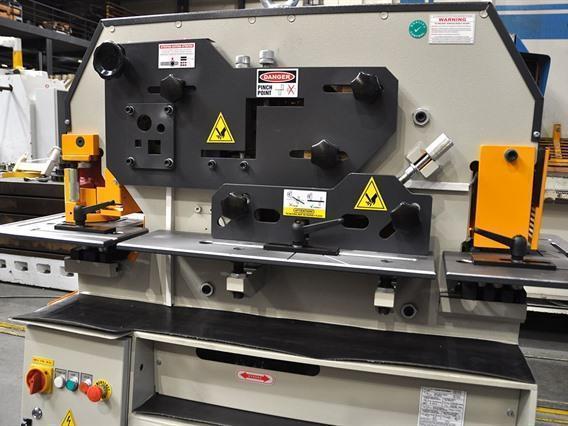

Kingsland 60 ton

Ürün favorilere eklendi

» Kişisel fiyat talep edin

Teknik Bilgiler

Punchingcapacity60 ton
Dia x sheetthickness28 x 15 mm
Max course55 mm
Strokes/min26 str/min
Depth of throat220 mm
Max hole dia.110 mm
Worklevel940 mm
Max cutting-thickness in plate200 x 20 / 310 x 15 mm

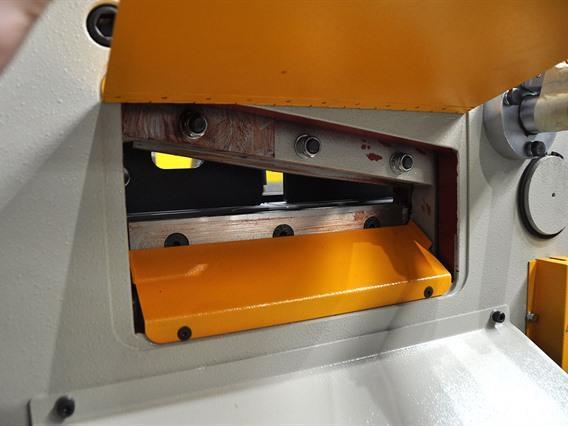

Bladelength380 mm
90°-cut120 x 120 x 12 mm
45°-cut80 x 8 mm
Worklevel1140 mm
Cut to length round/square40 / 35 mm
Cut to length UFN/IPN profiles102 x 51 mm
Cut to length Profile T80 x 10 mm
Max material -thickness by notching10 mm
Max wide by notching42 mm
Depth V-profile / rectangle100 mm
Electric motor (power)4 kW
Length L -- R1510 mm
Depth Fw --Bw590 mm
Height1570 mm
Weight1250 kg

Ek bilgi

Tooling is the same as Geka / Kingsland
Standard punch is dia 22 mm

Bending examples with bending dia (optional): 250 x 15 mm / 500 x 3 mm
Tip/Model: 60 ton
Stok numarası: P.13 10842
Kategori: [P] metal plaka makası, üniversal metal yarma kesme makinesi, yarma, kilitleme ve testereleme
Alt kategori: [P.13] Universele Ponsknipmachines & Ponsmachines
Marka: Kingsland
