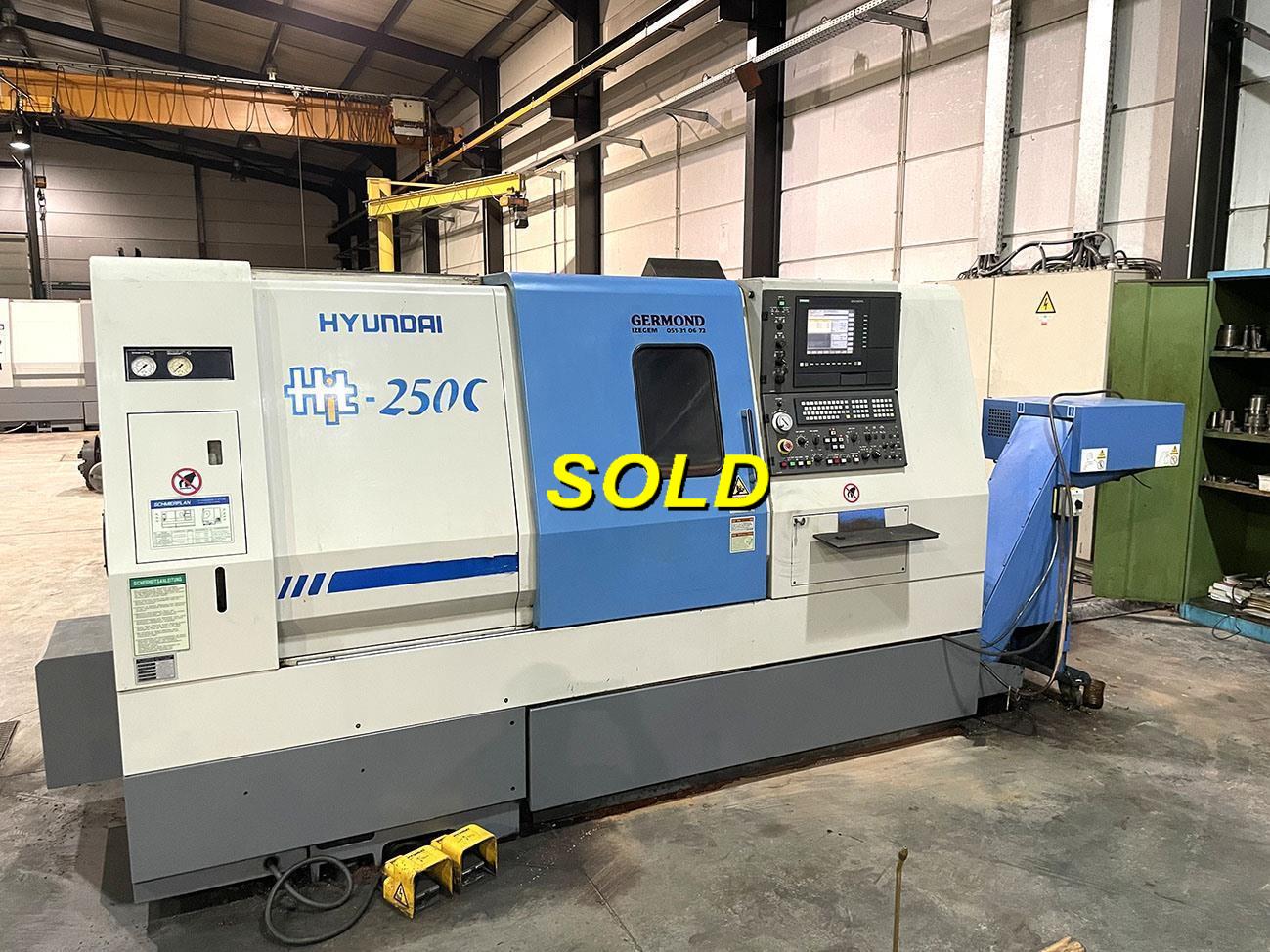

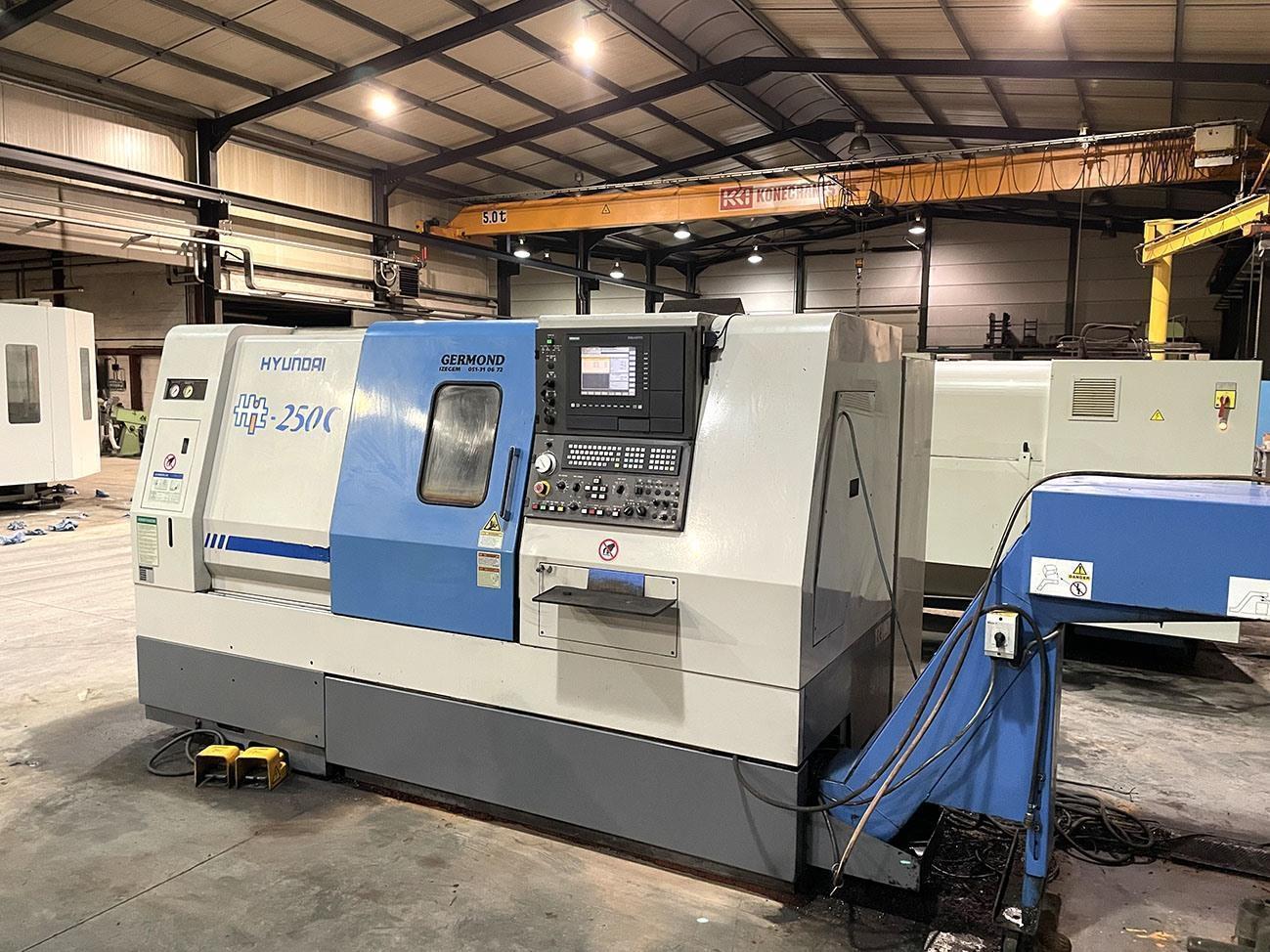

Hyundai HiT-250C Ø 590 x 670 mm CNC

Produit ajouté à vos favoris

» Demandez un devis personalisé

Information technique

Passage max au-dessus du banc590 mm
Passage max au-dessus du chariot358 mm
Distances entre pointes670 mm
Déplacement longitudinal axe Z685 mm
Déplacement transversal axe X270 mm
cône de brocheA2-8
Passage dans la brochedia 90/104 mm
Puissance sur la broche18,5/22 kW
Nombre de vitesses30 > 3000 rpm

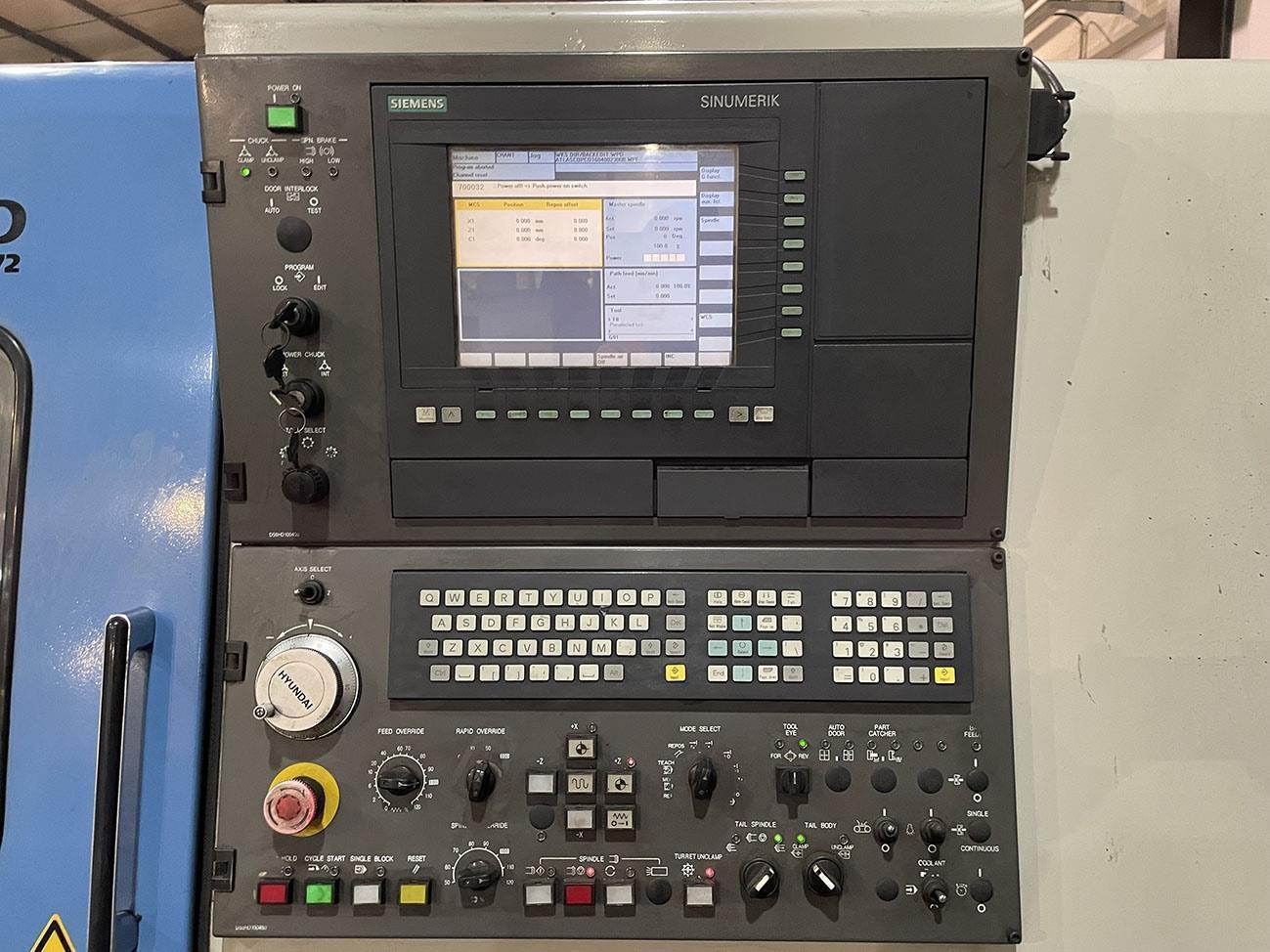

CommandeSiemens
Puissance nécessaire55 kVa
Longueur G -- D3330 mm
Largeur Av -- Ar1850 mm
Hauteur 1850 mm
Poids6,3 ton

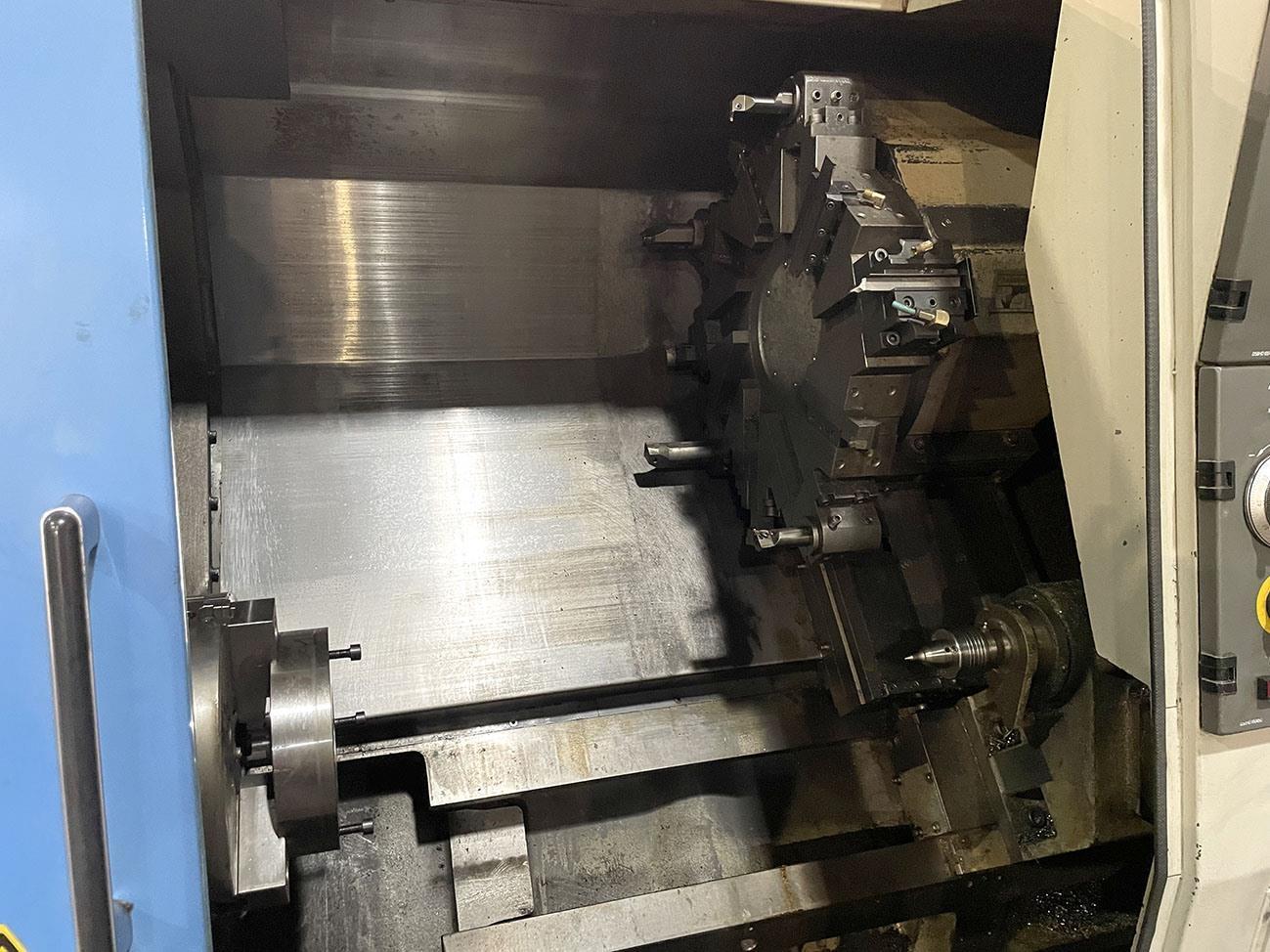

Changeur porte-outilsyes
Nombre d'outils10 positions

Informations complémentaires

C-axis
Hydraulic chuck
Driven tools (3000 rpm)
Type/Modèle: Ø 590 x 670 mm CNC
Numéro de Stock: A.07 13979
Catégorie principal: [A] Tours
Subcatégorie: [A.07] Tours CNC
Marque: Hyundai HiT-250C

» Demandez un devis personalisé

Numéro de Stock: A.07 13979

Regarder la vidéo

Télécharger toutes les photos en ZIP
