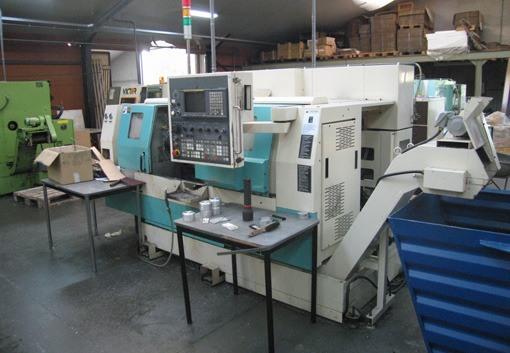

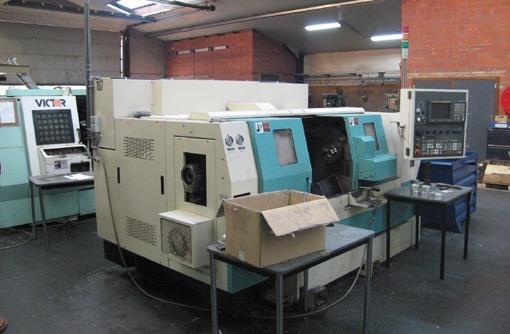

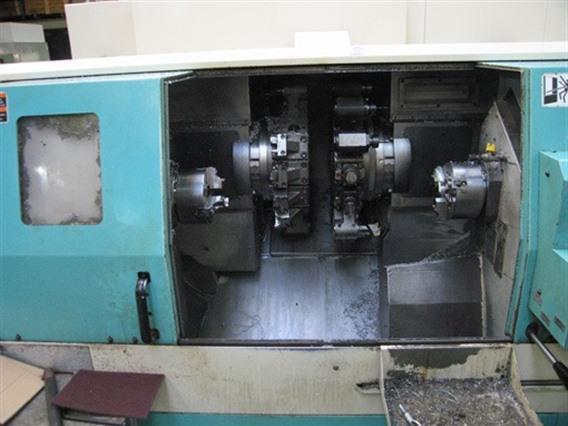

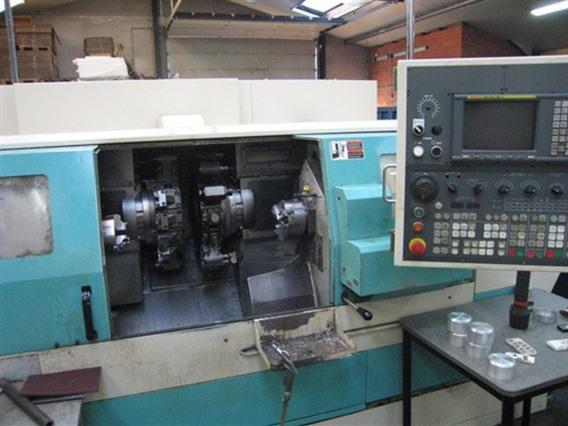

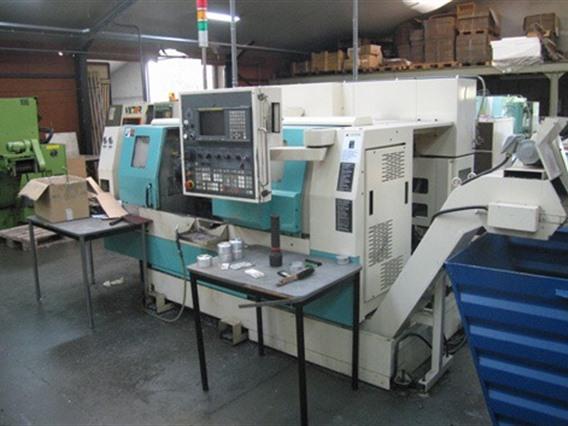

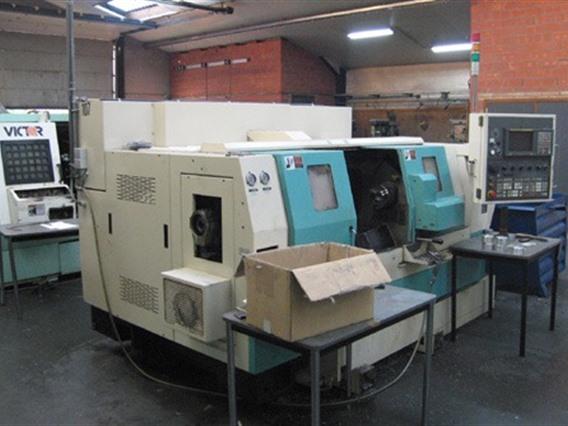

CNC Drehmaschinen Muratec M 12 twin spindle cnc
Technische Informationen
- Schwung über Querschlitten240 mm
- Durchgang Spindeldia 51 mm
- Leistung auf Spindel7.5 kW
- Geschwindigkeiten Anzahl4500 rpm
- SteuerungFanuc
- Spanscheibe +
- Hydraulisch +
- Spannring +
- Werkzeugwechsler 2
- Werkzeuge Anzahl 15 + 15
Zusätzliche Informationen
- in use medio 1998

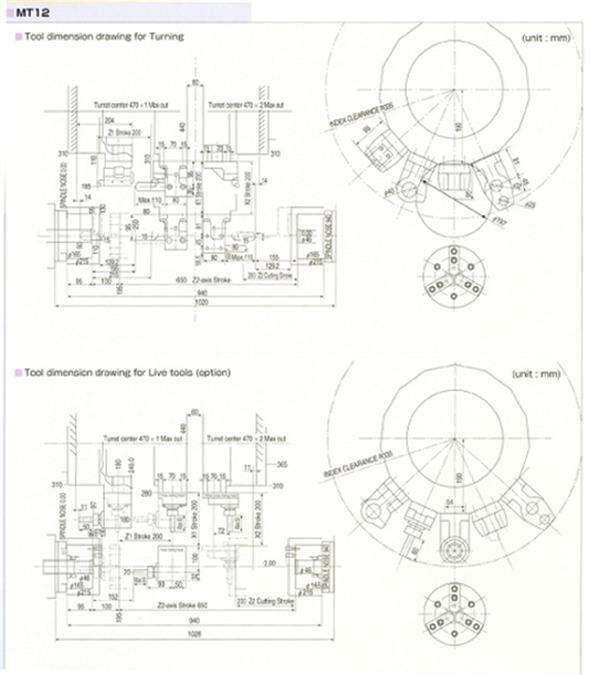

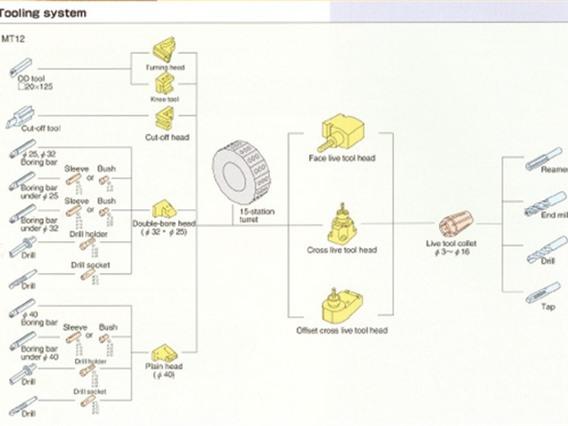

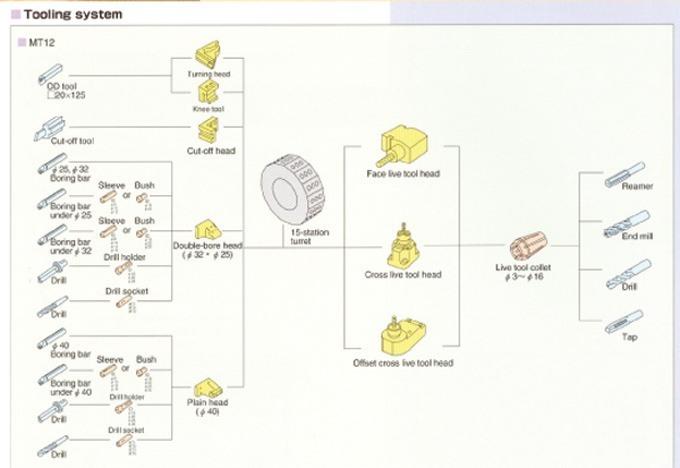

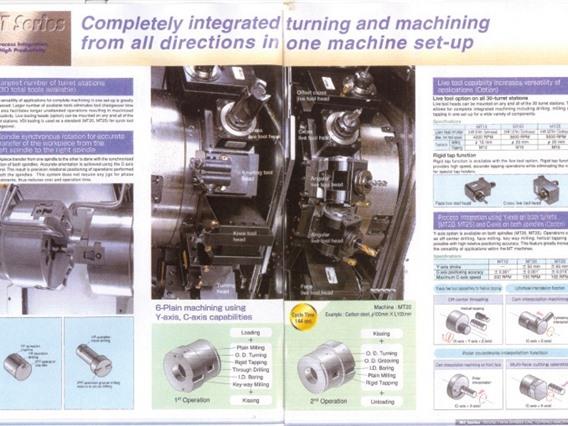

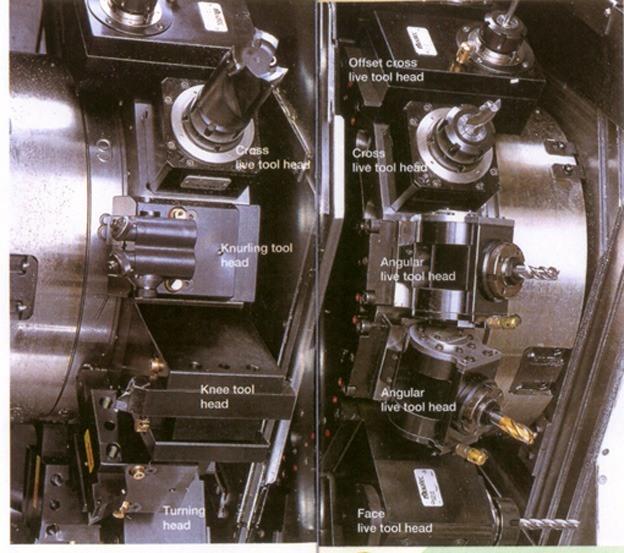

15-station turret on both sides

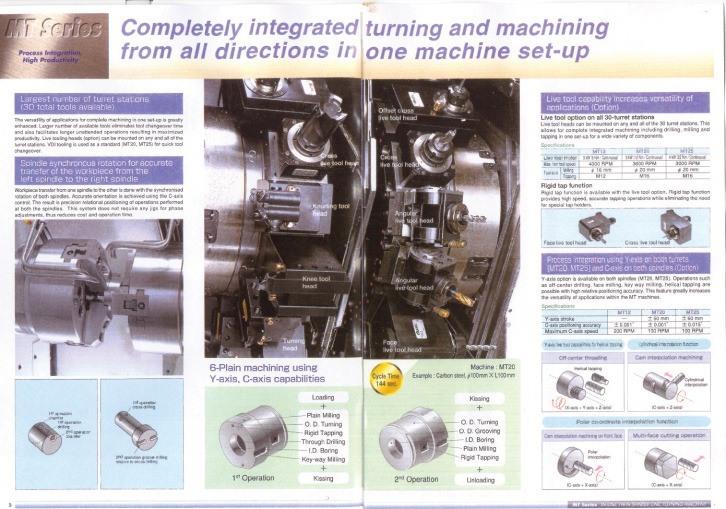

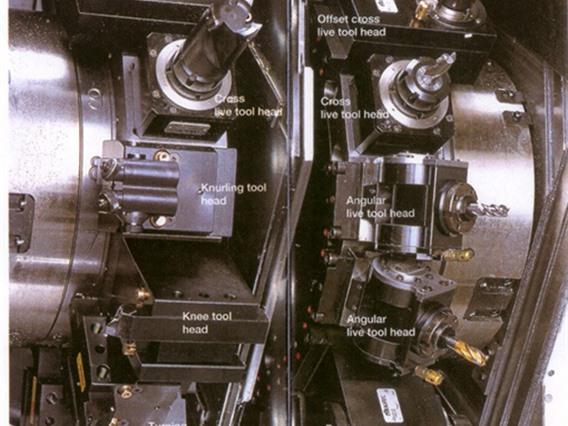

Live tool position available on all 30 turret stations
C-axis control on both spindles

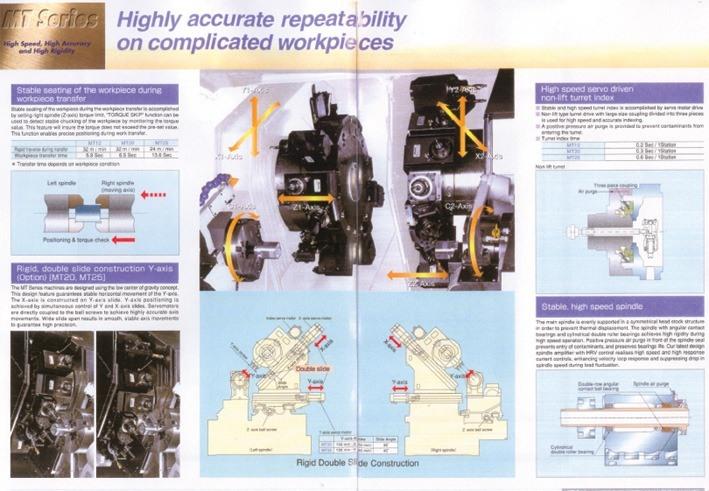

High precision spindle synchronization work transfer
Compact design – Floor area 5.0 m2

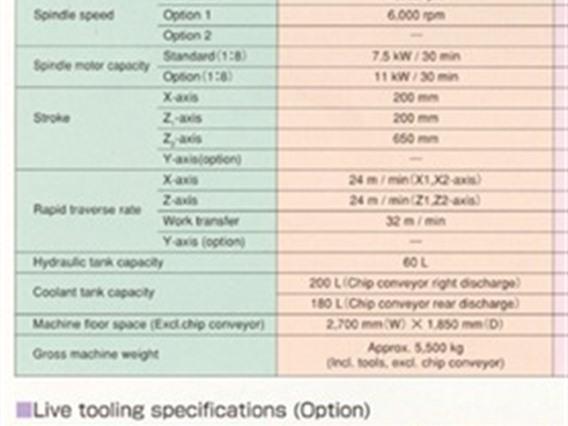

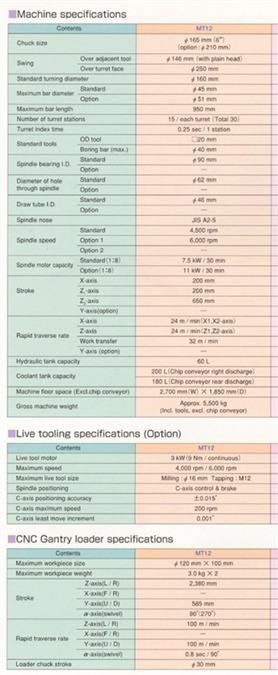

Brief Specifications
Chuck size: Standard: Dia. 165 mm
Option: Dia. 210 mm
Maximum turning diameter 240 mm
Maximum bar diameter: Standard: 45 mm
Option: 51 mm
Number of turret stations: 15 x 2
Spindle speed 4500 rpm

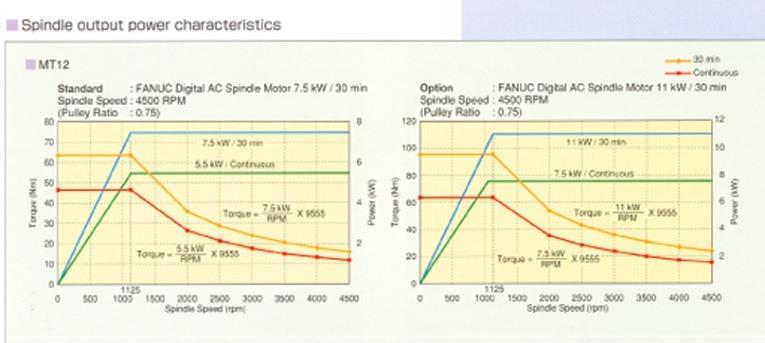

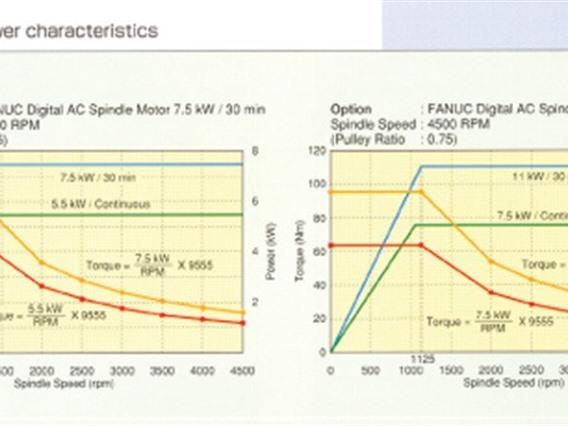

Spindle AC motor: Standard: 7.5 kW/30 min
Option: 11 kW/30 min

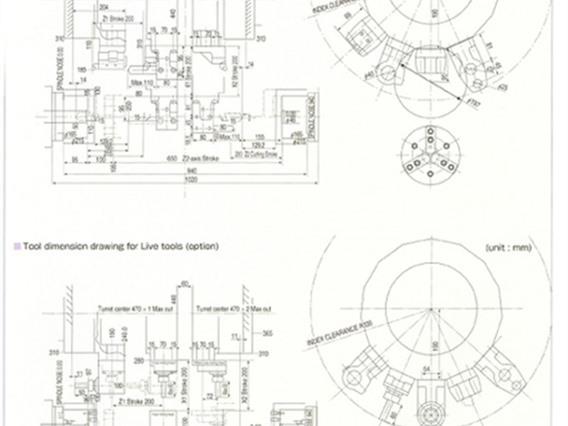

Live Tool Specifications (Option)
Live tool spindle motor 2.8 kW
Live tool speed 4000 rpm
Maximum live tool diameter: Milling - Dia. 16 mm
Tapping - M12
electric on: 14860
- Typ/Modell: M 12 twin spindle cnc
- Stocknummer: A.07 2843 *05
- Hauptkategorie: [A] Drehmaschinen
- Unterkategorie: [A.07] CNC Drehmaschinen
- Markenname: Muratec
